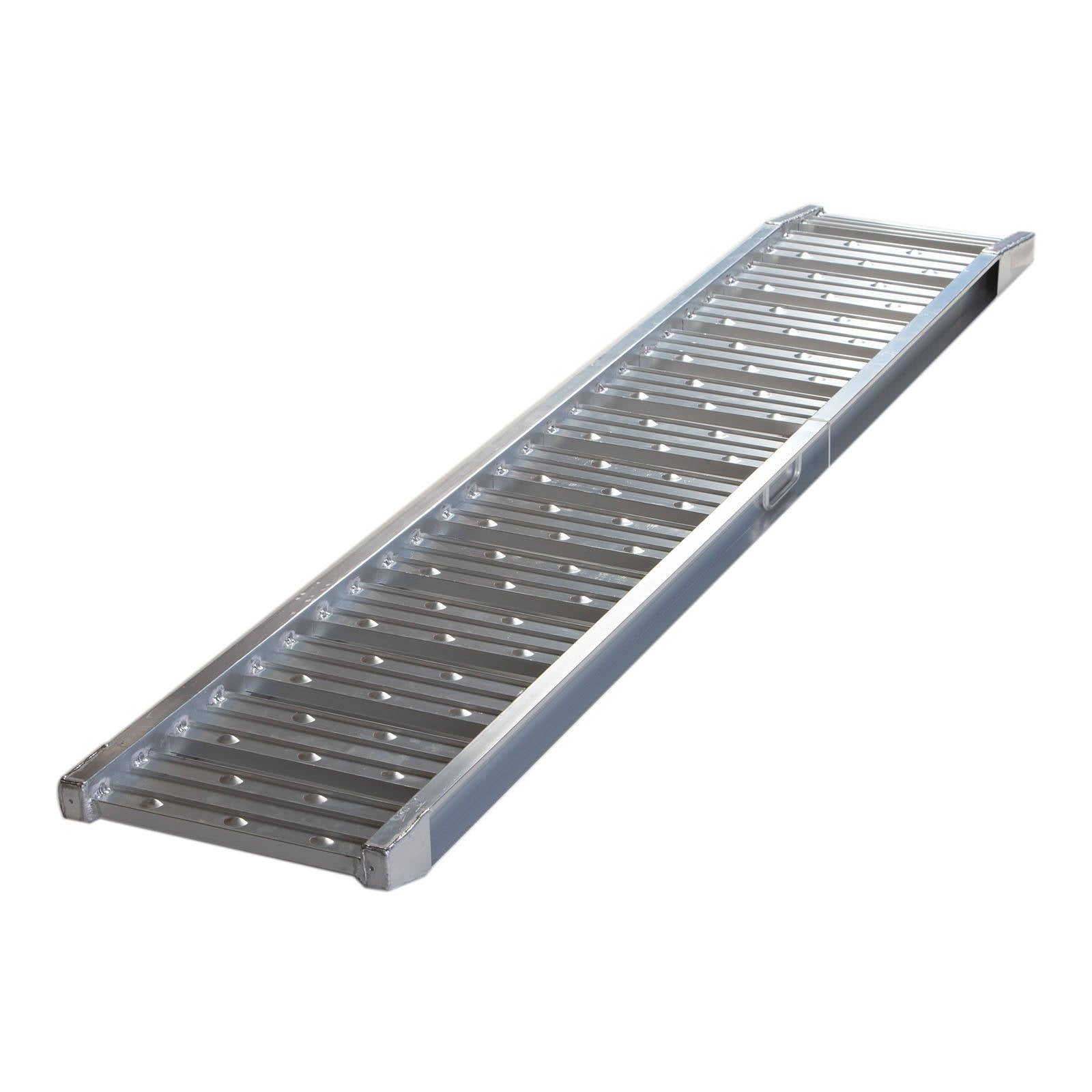

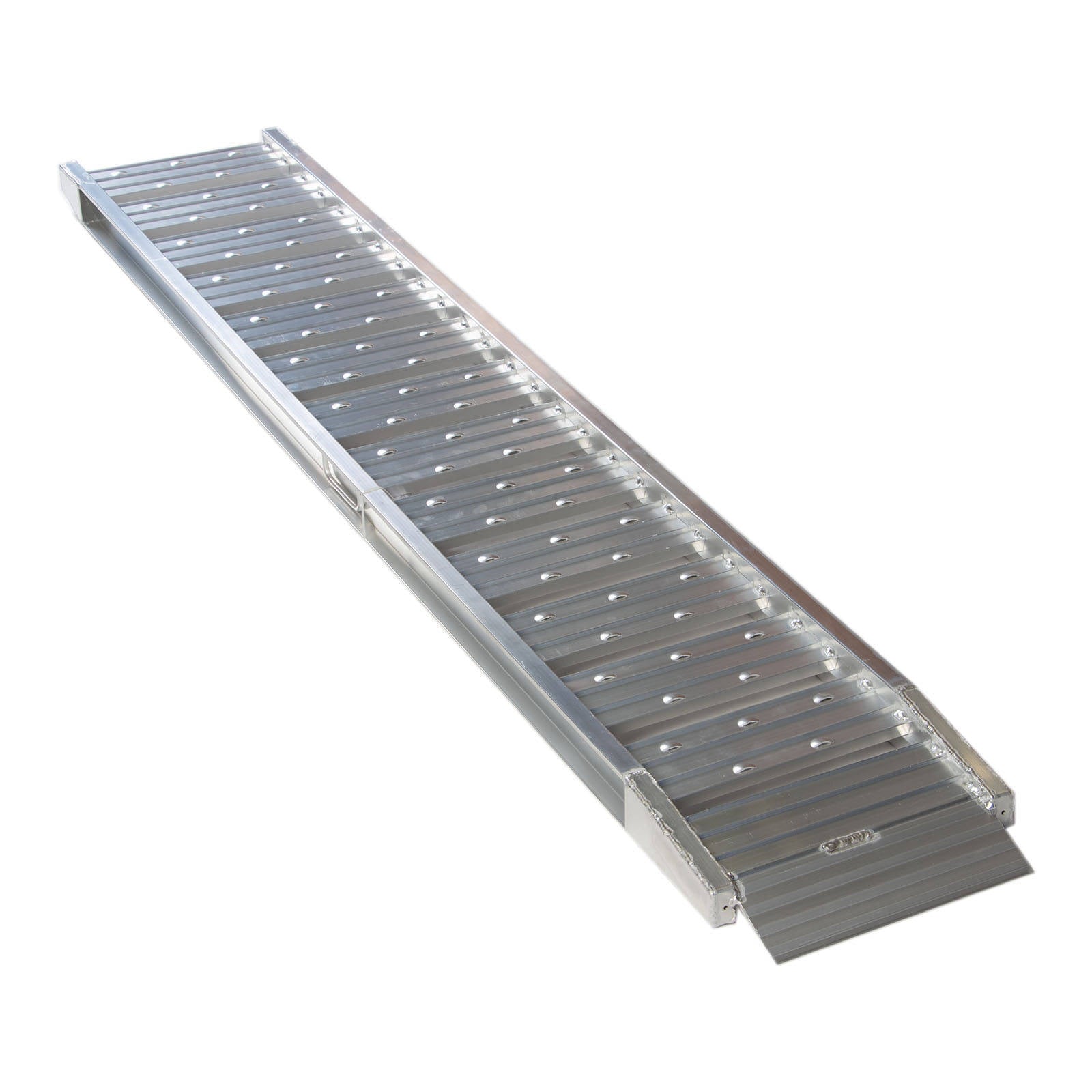

Constructed from lightweight marine grade 6061 aluminium the WMP Alloy ATV/UTV Ramp is strong and durable while maintaining excellent corrosion resistance. Weighing only 8.9kg it is extremely portable and lightweight while capable of withstanding weights up to 500kg. Raised sides combined with the serrated plate styling surface prevent your bike from slipping when loading.
- Marine-grade 6061 aluminium construction
- Serrated plate style surface prevents slipping
- Raised sides to help prevent bike slippage
- Length: 2 085mm
- Width: 355mm
- Weight: 8.9kg
- Loading capacity: 500kg (per ramp)
Please note due to shipping restrictions this product cannot be delivered to rural addresses.
- Marine-grade 6061 aluminium construction for strength and corrosion resistance
- Rated to 500kg loading capacity per ramp
- Serrated plate style surface to reduce tyre slipping
- Raised side rails to help keep the wheels tracking on the ramp
- Lightweight at 8.9kg for easy handling and storage
- 2,085mm long by 355mm wide loading surface
- Supplied as a single ramp
- 1 x Whites HD01 alloy loading ramp (single)
| Brand | Whites Motorcycle Parts |
|---|---|
| Model | HD01 |
| Type | Alloy ATV/UTV loading ramp (single) |
| Material | Marine-grade 6061 aluminium |
| Length | 2,085mm (208.5cm) |
| Width | 355mm (35.5cm) |
| Weight | 8.9kg |
| Loading capacity | 500kg per ramp |
| Surface | Serrated plate style with raised sides |
| SKU | WPSRAMPHD01001 |
| Barcode | 9420060994780 |
- Inspect the ramp before every use — check for cracks, bends, deep gouges or loose rivets, and take it out of service if anything looks damaged.
- Never exceed the 500kg rating; remember this figure applies per ramp, so match the ramp count and rating to the total weight of the machine being loaded.
- Set the ramp on firm, level ground and make sure both ends sit flat and fully engaged against the tray or tailgate before loading.
- Secure the ramp to the vehicle with suitable tie-downs or straps so it cannot kick out or slide sideways during loading and unloading.
- Keep the serrated surface clean and free of mud, oil, grease, ice and loose gravel, as contamination reduces grip for both tyres and feet.
- Walk heavier machines up the ramp with a helper rather than riding them up wherever practical, and keep bystanders clear of the sides.
- Rinse with fresh water and mild detergent after use in mud, sand or salt-spray conditions, then allow to dry before storing.
- Store flat or on edge in a dry area, supported along its length, and avoid stacking heavy items on top that could deform the alloy.
- Do not modify, drill, weld or heat the ramp, as this compromises the aluminium and voids its load rating.
