Vertex Top End Gasket Set - Suzuki RM250 82-83 (W4045)

$27.05; ~~$27.05~~; $27.05
Unit price: per

Best price guarantee

Found it cheaper? Call us and we'll match it.

🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 2–4 days.

Explore related collections:

Vertex Top End Gasket Set - Suzuki RM250 82-83 (W4045)

$27.05

Quantity:

Vertex Top End Gasket Set - Suzuki RM250 82-83 (W4045)

$27.05

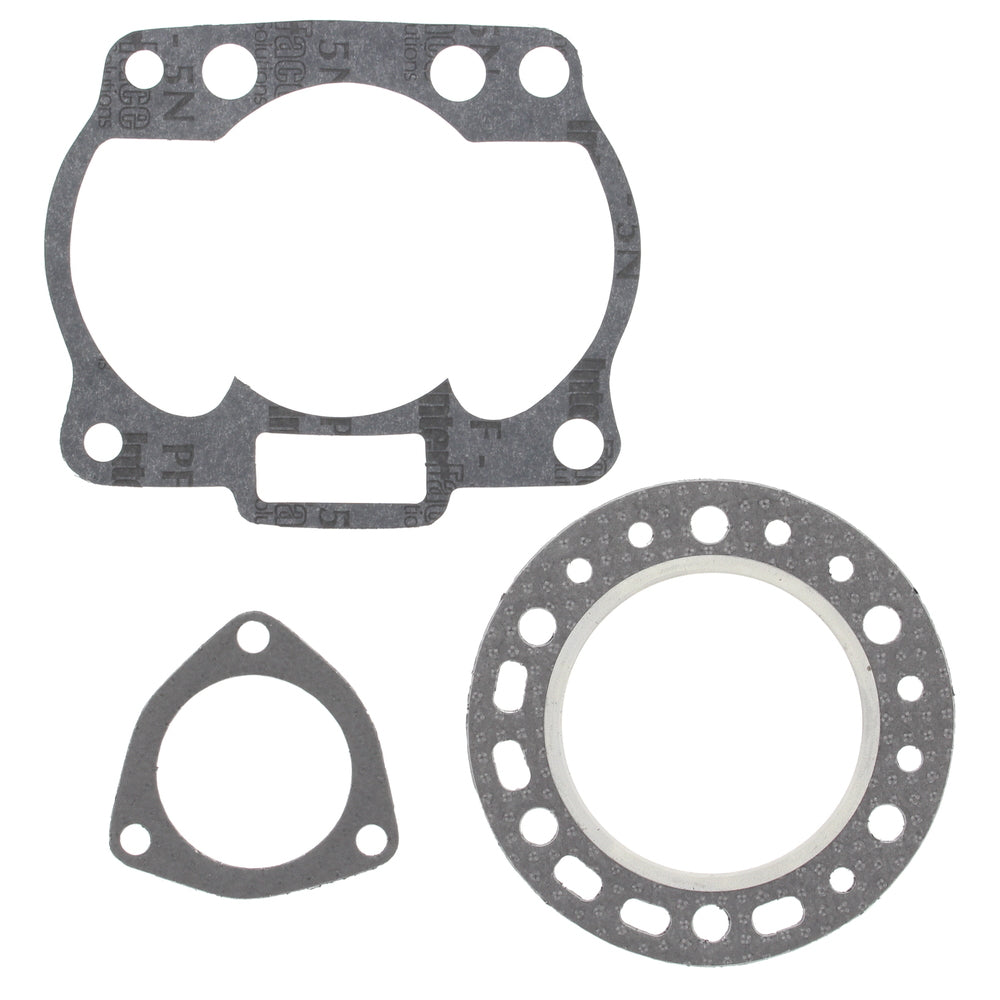

The Vertex W4045 is a model-specific top end gasket set for the 1982-1983 Suzuki RM250. It brings together the gaskets needed to reseal the cylinder head and cylinder area in one kit, so the top end goes back together on fresh sealing surfaces instead of reused ones.

It suits owners, restorers and workshops freshening or rebuilding the top end of these early-eighties two-stroke motocrossers, and is typically fitted at the same time as a new piston, rings and small-end bearing.

RM250 top end components changed between model years, so check the W4045 part number and the 1982-1983 year range against your engine before ordering.

Vertex part number W4045
Model-specific fitment for Suzuki RM250 1982-1983
Covers the top end, so the cylinder head and cylinder can be resealed
Supplied as a matched set rather than individually sourced gaskets
Intended for two-stroke top end rebuilds alongside a new piston and rings

Brand	Vertex
Part Number	W4045
Type	Top end gasket set
Fits	Suzuki RM250
Model Years	1982-1983
Engine Type	250cc two-stroke
SKU	810571

Confirm part number W4045 and the 1982-1983 RM250 year range against your engine before fitting, as top end components changed across RM250 model years.
Treat gaskets as single-use: fit a new set every time the head or cylinder is removed, and do not refit old gaskets.
Remove all old gasket material and sealant from the mating faces using a soft or plastic scraper, taking care not to gouge the alloy sealing surfaces.
Check the cylinder head and cylinder base faces for flatness and damage before assembly, and machine or replace any component that is out of specification.
Fit the gaskets dry unless the factory service manual specifies a sealant, and keep any sealant clear of the combustion chamber, ports and stud holes.
Handle paper and fibre gaskets carefully so they are not creased or torn, and lower them over the studs rather than stretching them.
Torque the head fasteners in the sequence and to the figures given in the Suzuki service manual, tightening in progressive stages.
After the first heat cycle, inspect around the head and base for leaks or weeping, and re-check fastener torque if the manual calls for it.
Store unused sets flat in their packaging, away from heat, direct sunlight, fuel and solvents, so the gaskets do not curl or harden.
