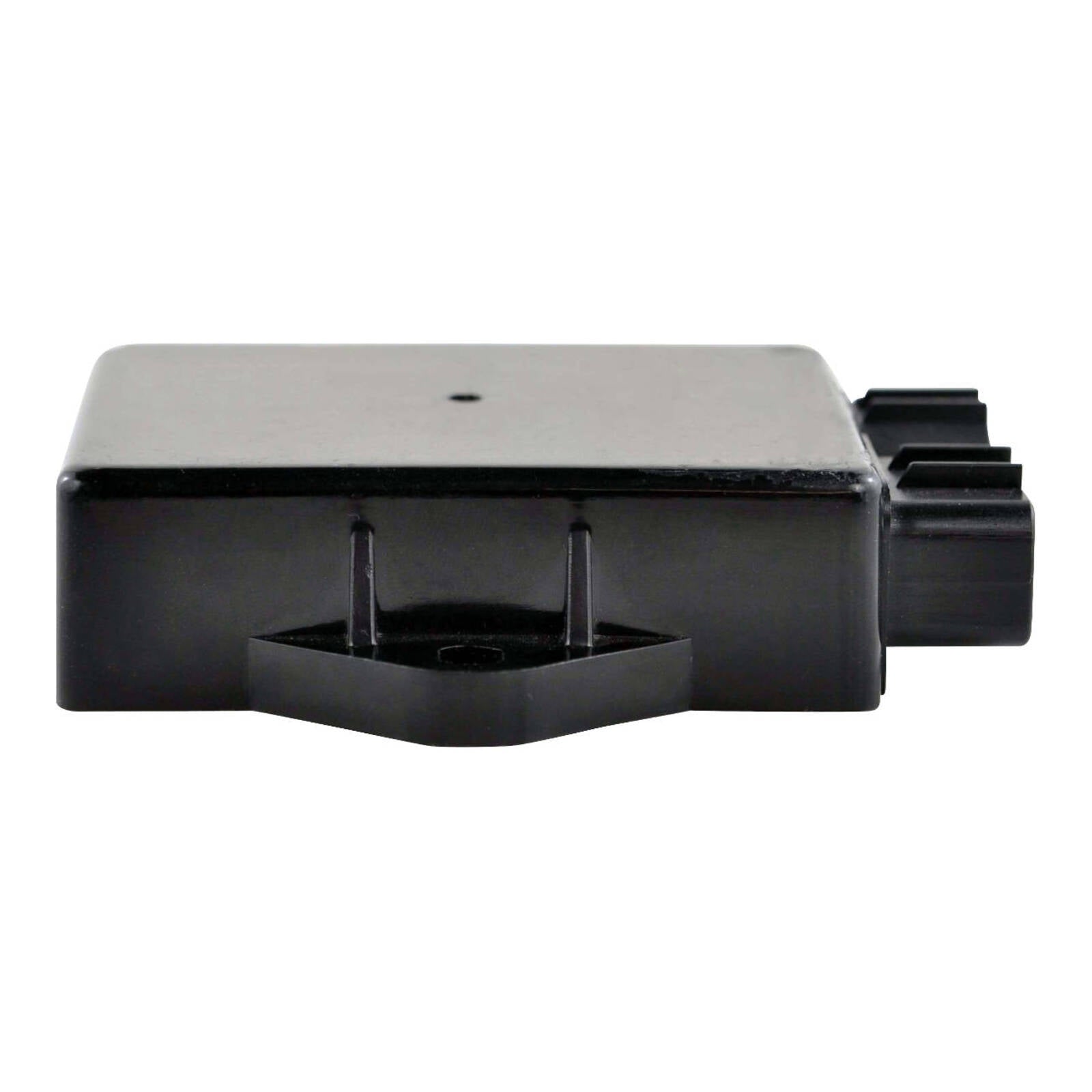

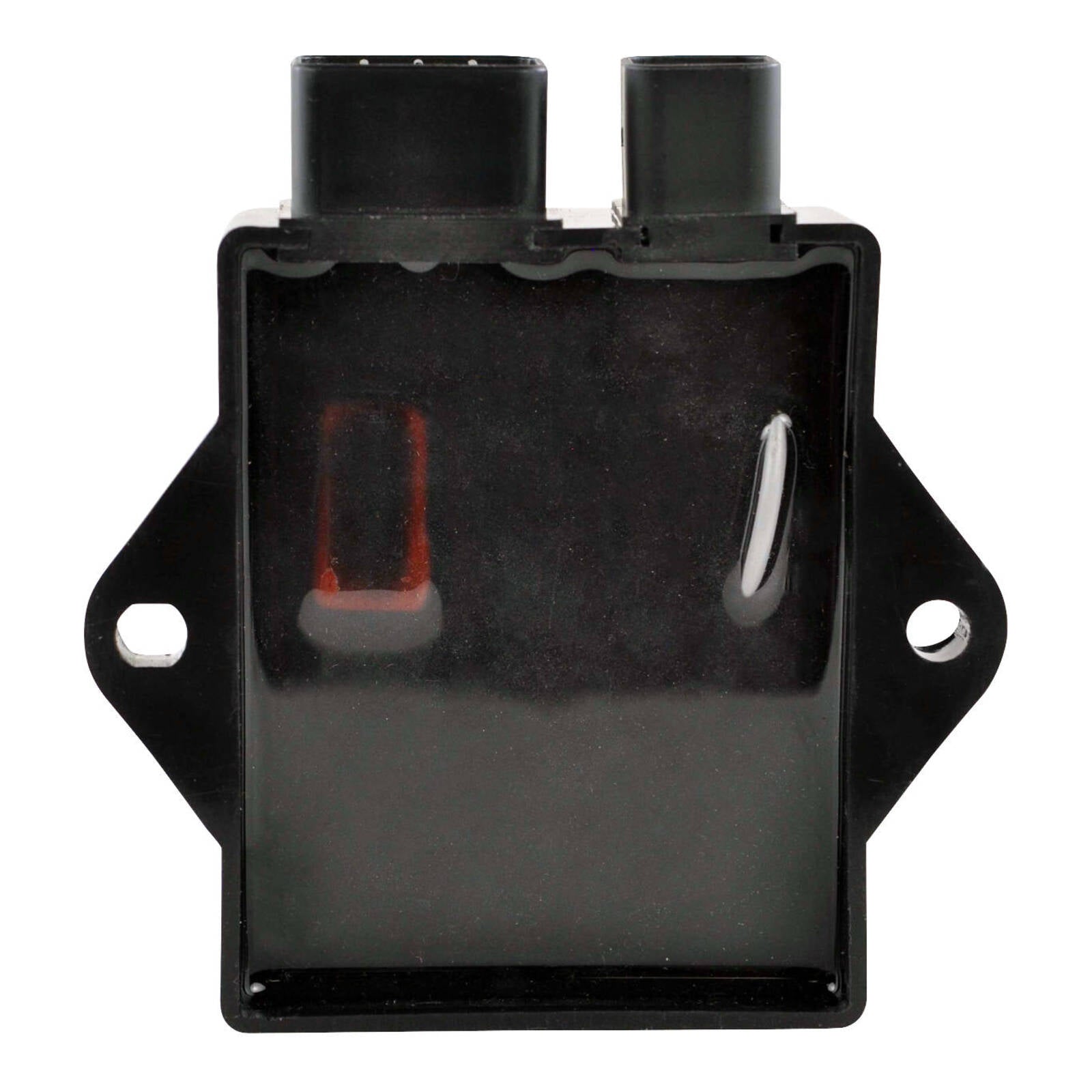

CDI Box - Yamaha Outboard (RMS030-103087)

Plug-and-play, aftermarket replacement CDI box for Yamaha outboard motors from RM Stator. Refer to fitment guide for models.

Dimensions:

• Width: 150mm
• Length: 156mm
• Height: 26mm
• Fixation holes, centre to centre: 143mm

Other specifications:

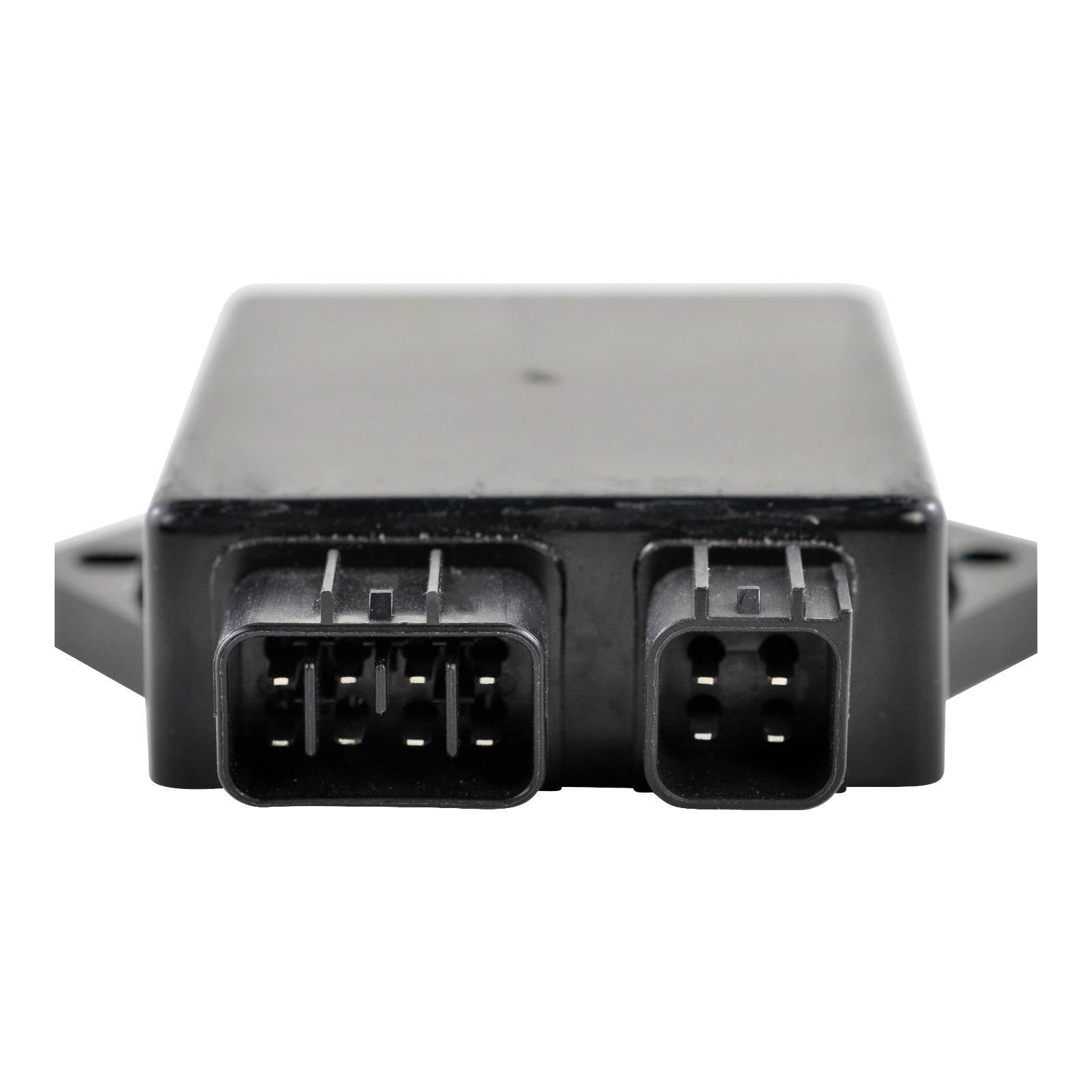

• Number of plugs: 2
• Number of pins: 12

Details:

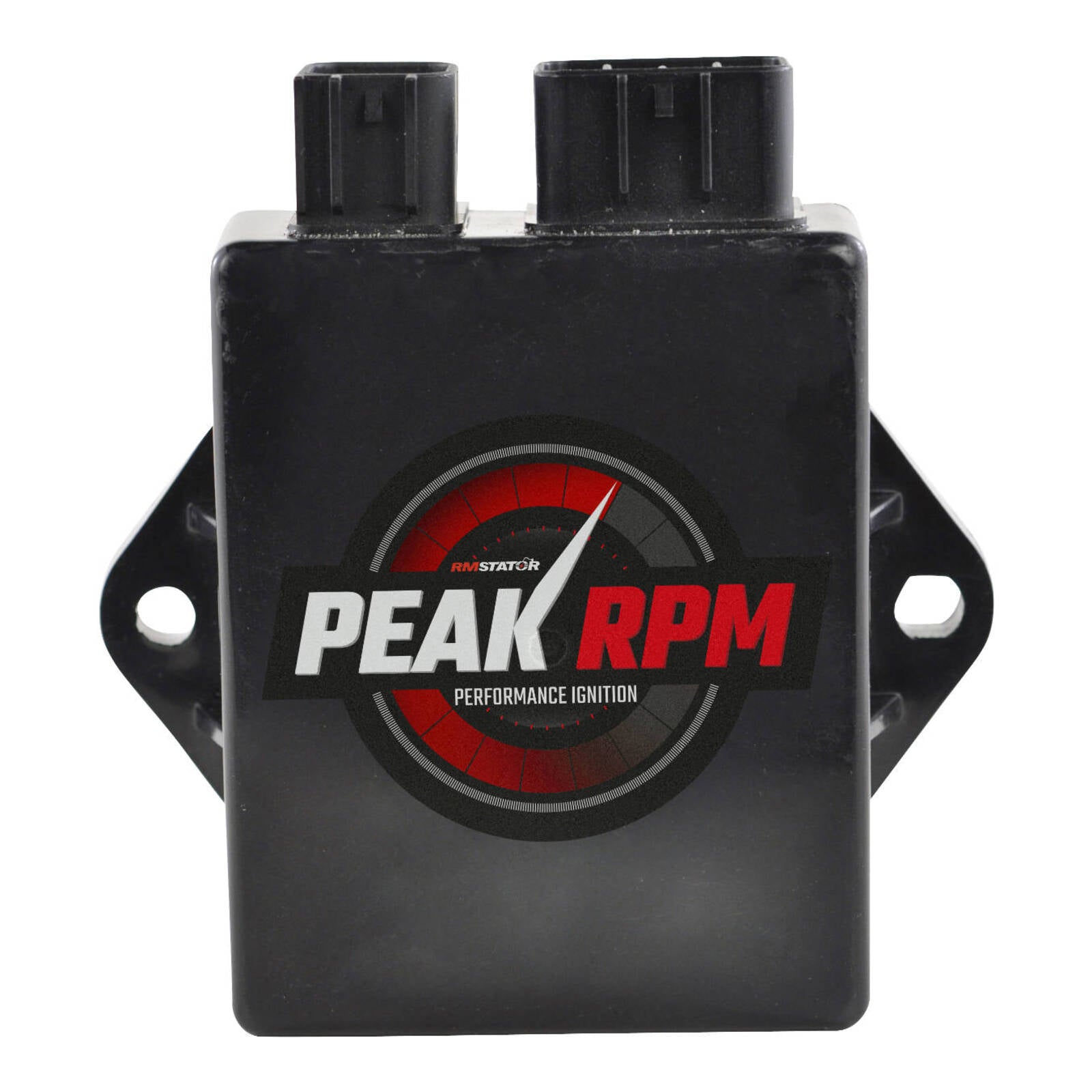

• RM Stator's PeakRPM technology provides a more aggressive timing curve for increased throttle response
• Ride at full throttle with their application-specific CDI box that raises the rev limiter by 1000 RPM
• Enjoy fast and easy installation with their plug and play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying
