STATOR + GASKET YAM YXR700 YXM700 YXC700 90-97 (RM01191G)

RMSTATOR | SKU: RMS01191G

STATOR + GASKET YAM YXR700 YXM700 YXC700 90-97 (RM01191G)

$400.49; ~~$449.99~~; $400.49
Unit price: per

Best price guarantee

Found it cheaper? We’ll match it. Shop with confidence every time.

Quantity:

Subtotal: $400.49

🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–2 days.

Explore related collections:

➔ Parts (25001 products)
➔ Clearance (25001 products)
➔ All products (25001 products)
➔ Electrical system and instruments (1890 products)
➔ Electrical systems (1795 products)
➔ Charging and regulation (926 products)
➔ RMSTATOR (516 products)
➔ Stators (358 products)

Description

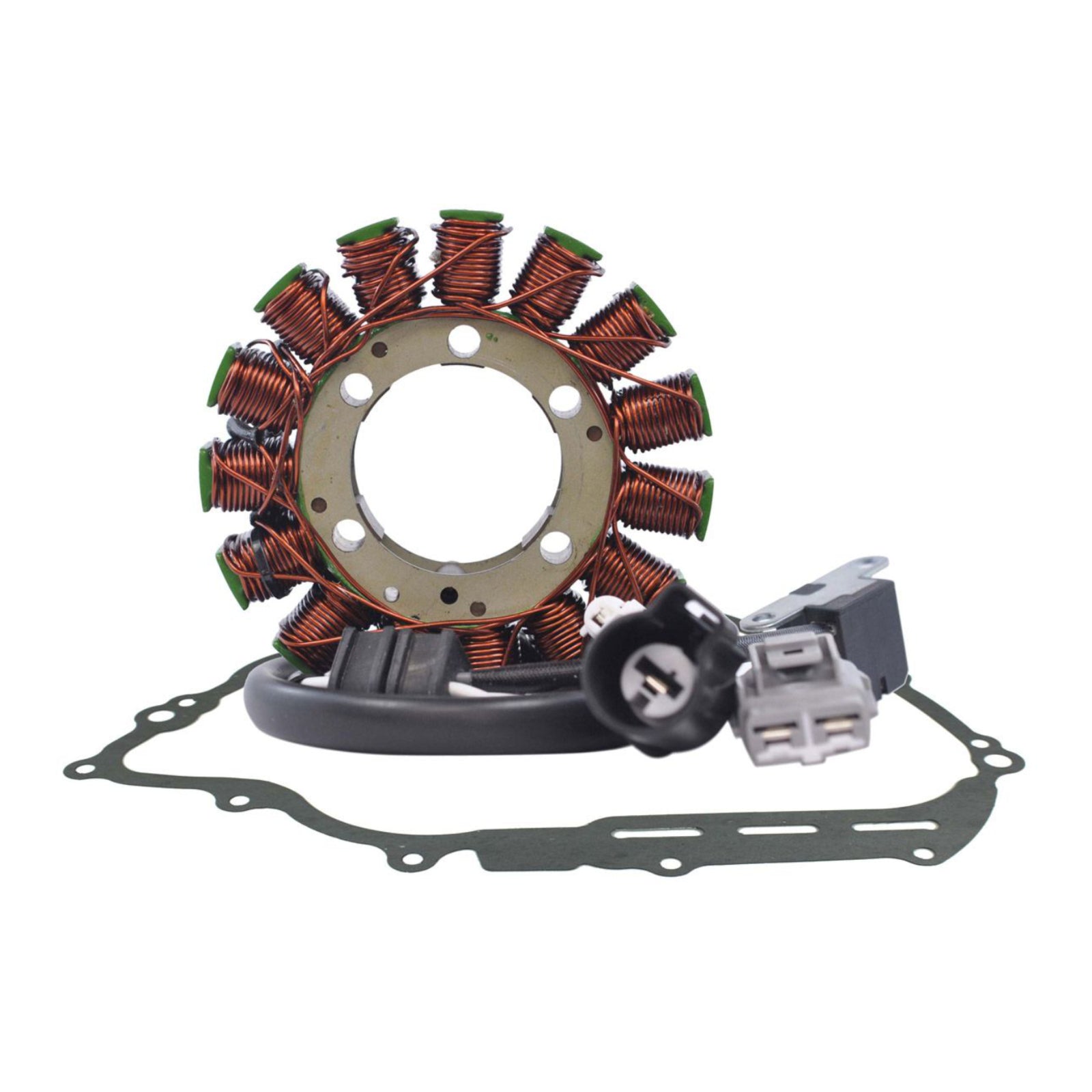

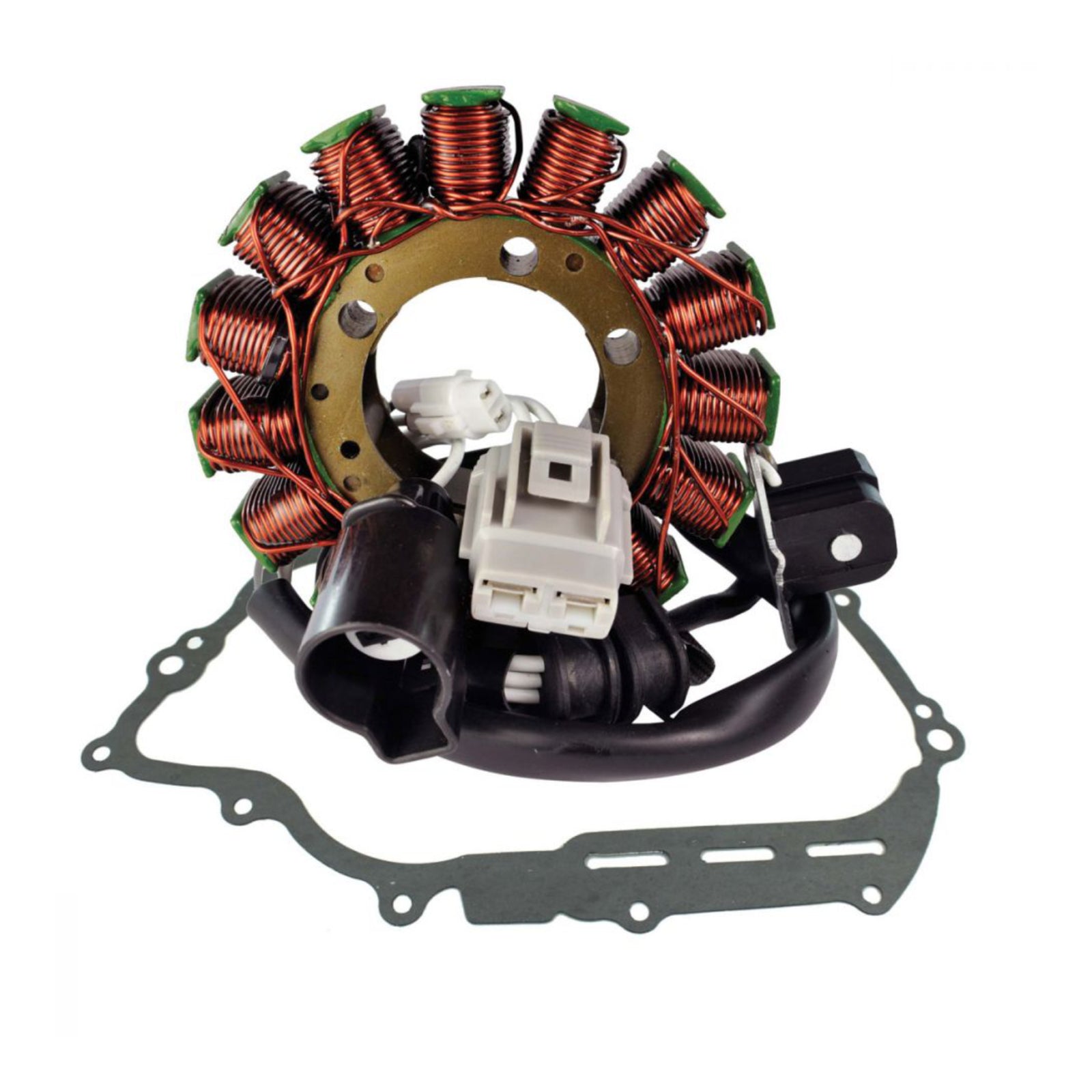

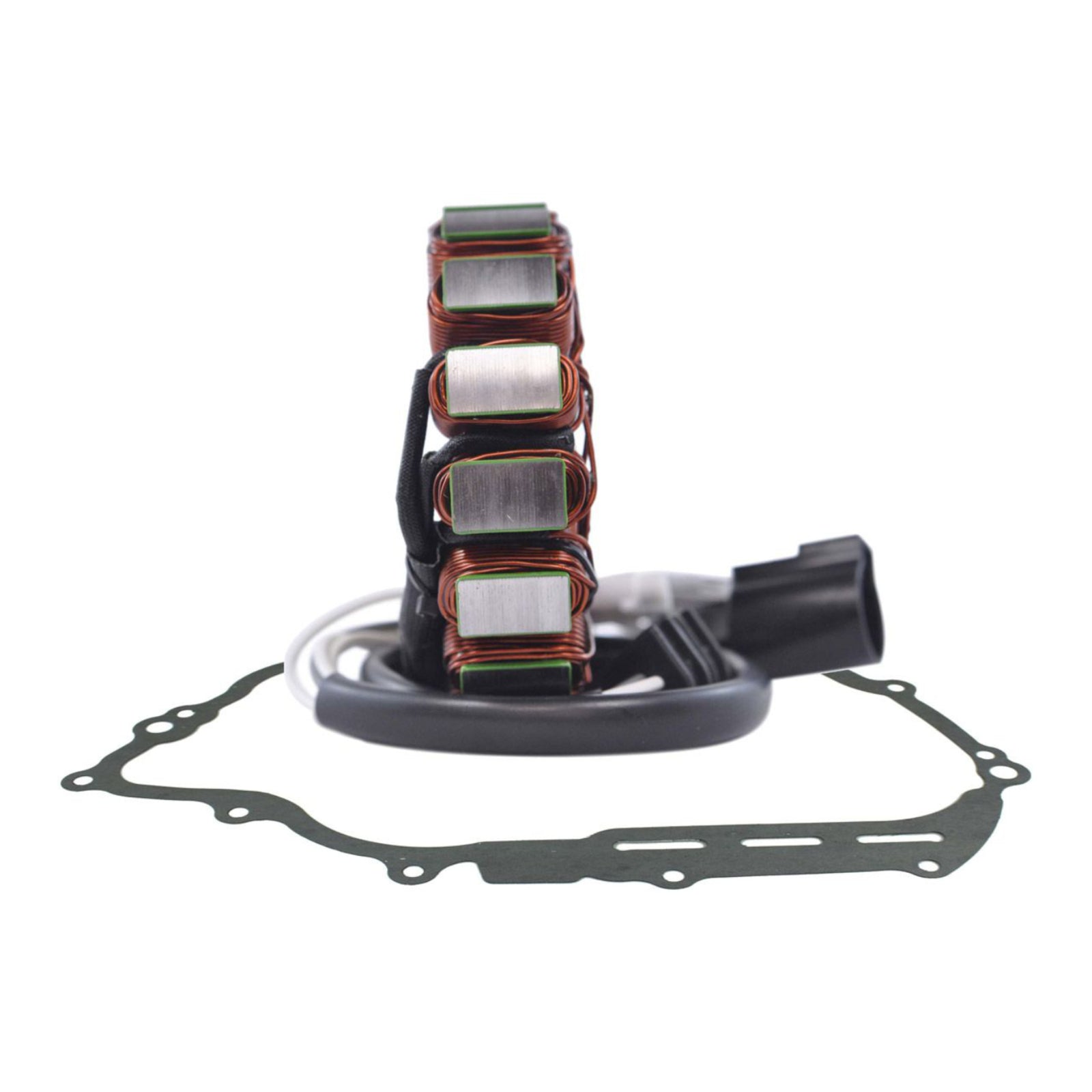

Brand new Kit Stator + Crankcase Cover Gasket

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
All products shipped are tested

Stator:

The highest grade of lamination materials
The highest grade of copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

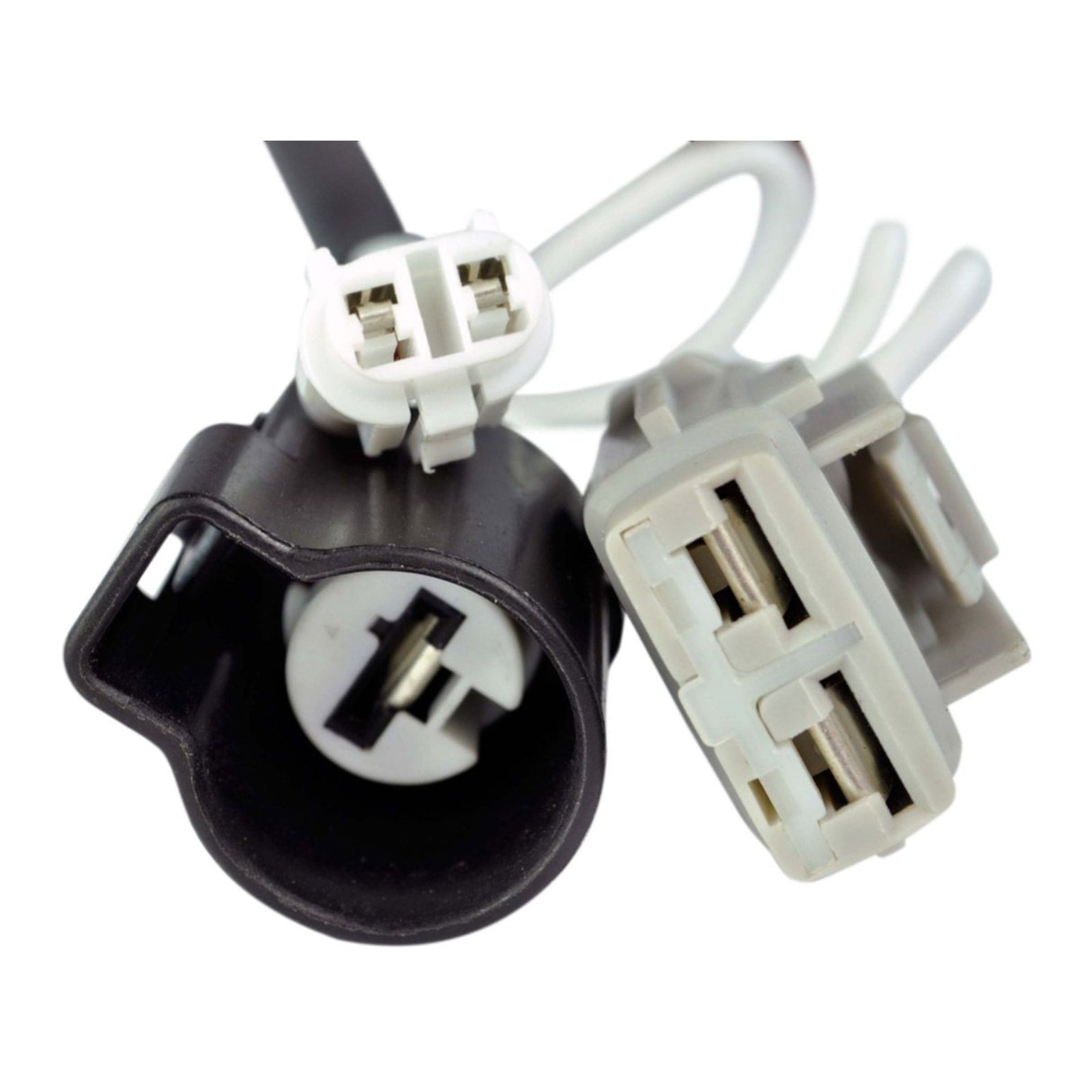

Connector included
Rubber grommet included

Specifications:

Dimensions Stator:

Interior diameter: 41 mm
Exterior diameter: 105 mm
Thickness: 19 mm
Length of wires stator to grommet: 65 mm
Length of wires grommet to plug: 400 mm
Length of pickup coil's wire to grommet: 65 mm

Other specifications:

Number of wires: 5
Number of plugs: 3
Number of pins: 5

Wire-to-wire resistance:

Alternator: White to White = 0.4 ohms +/-20%
Pickup: White to Grey = 500 ohms +/-20%
