RMSTATOR | SKU: RMS010107593

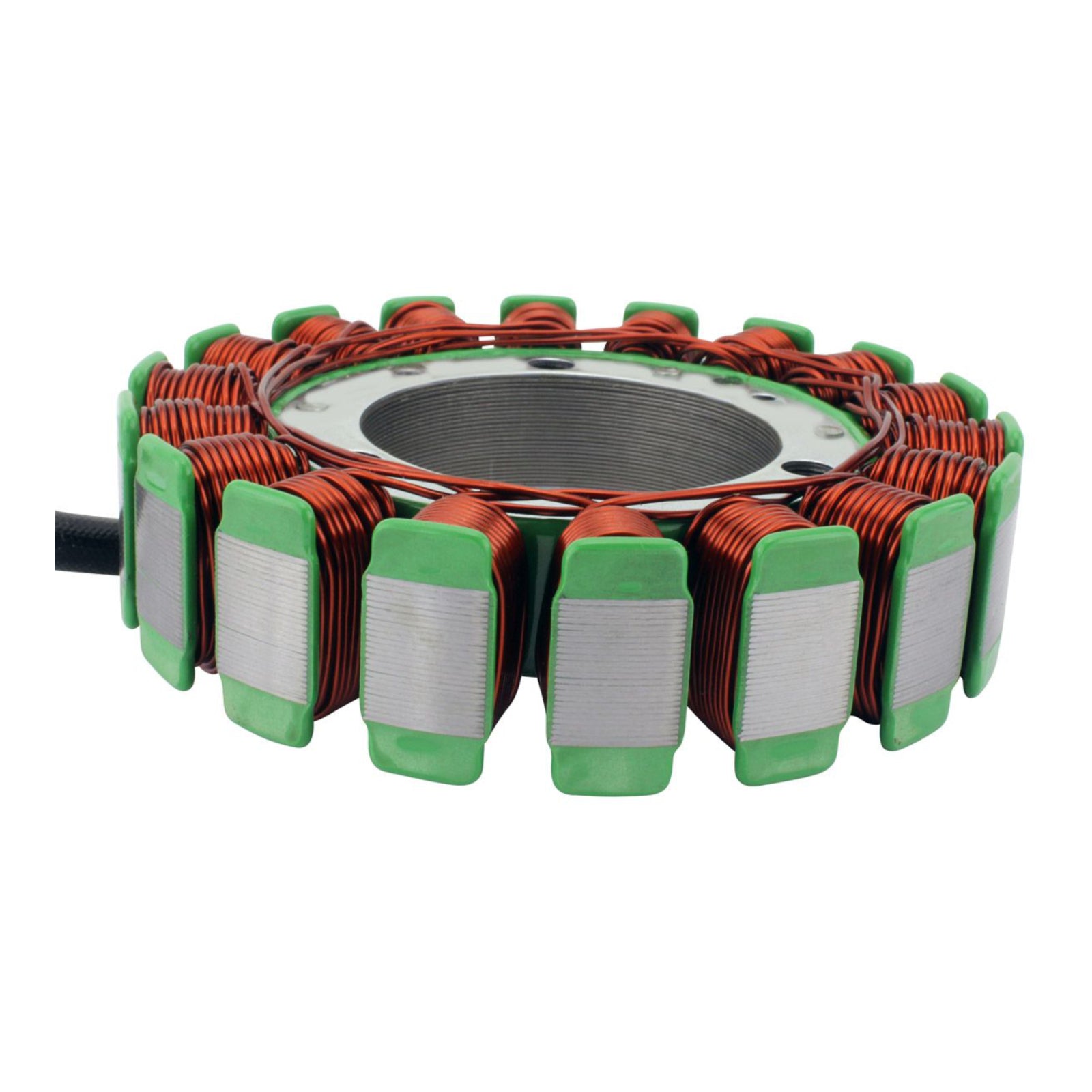

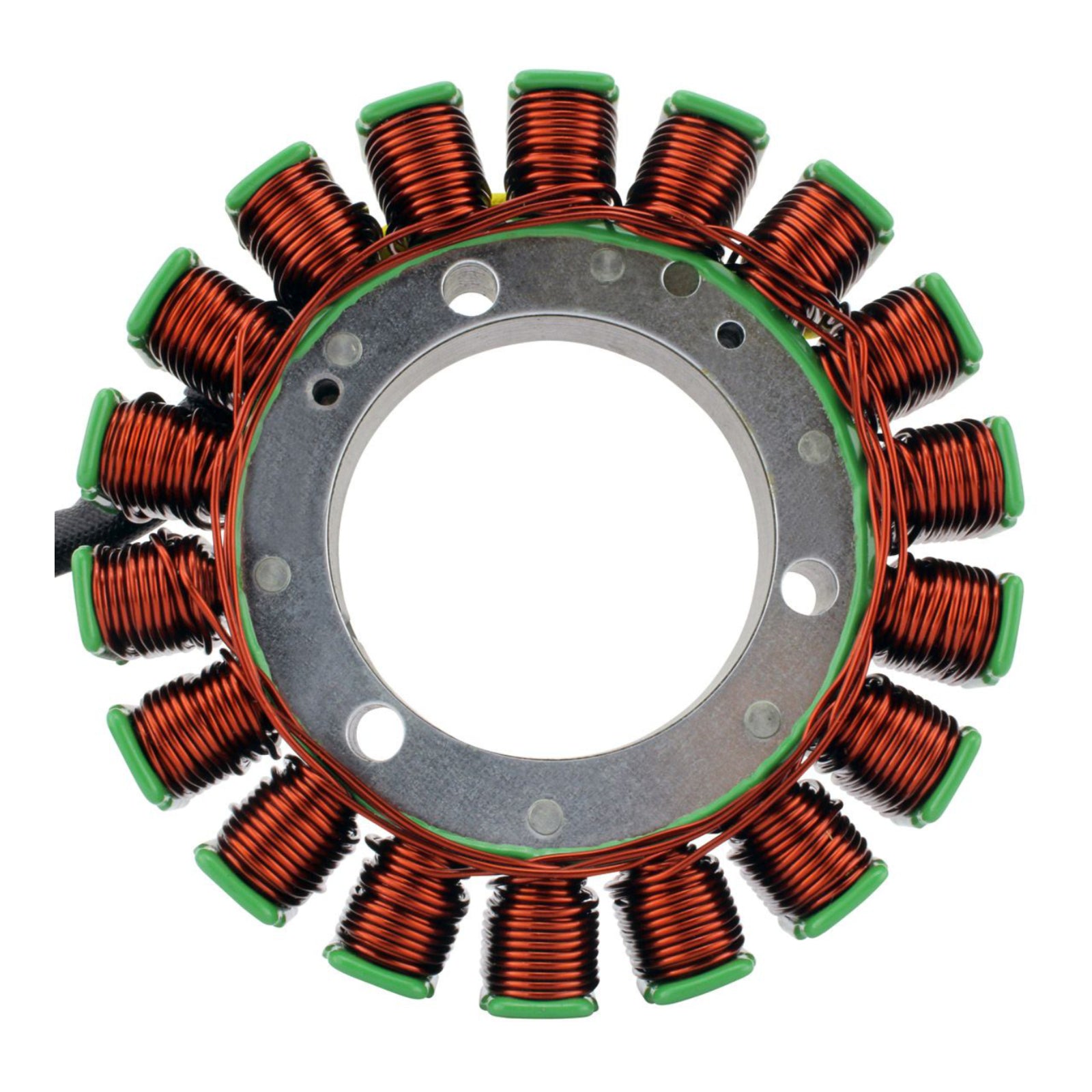

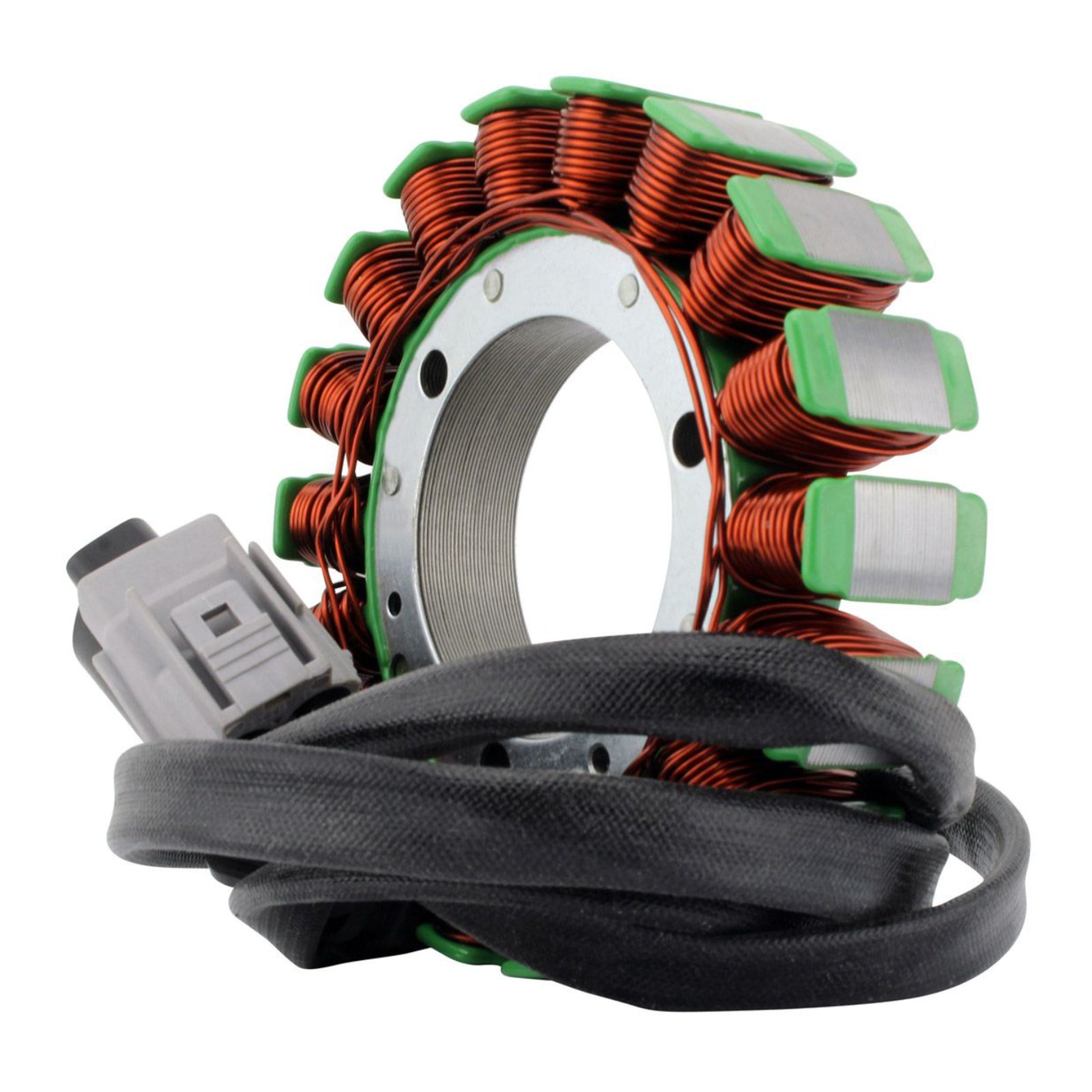

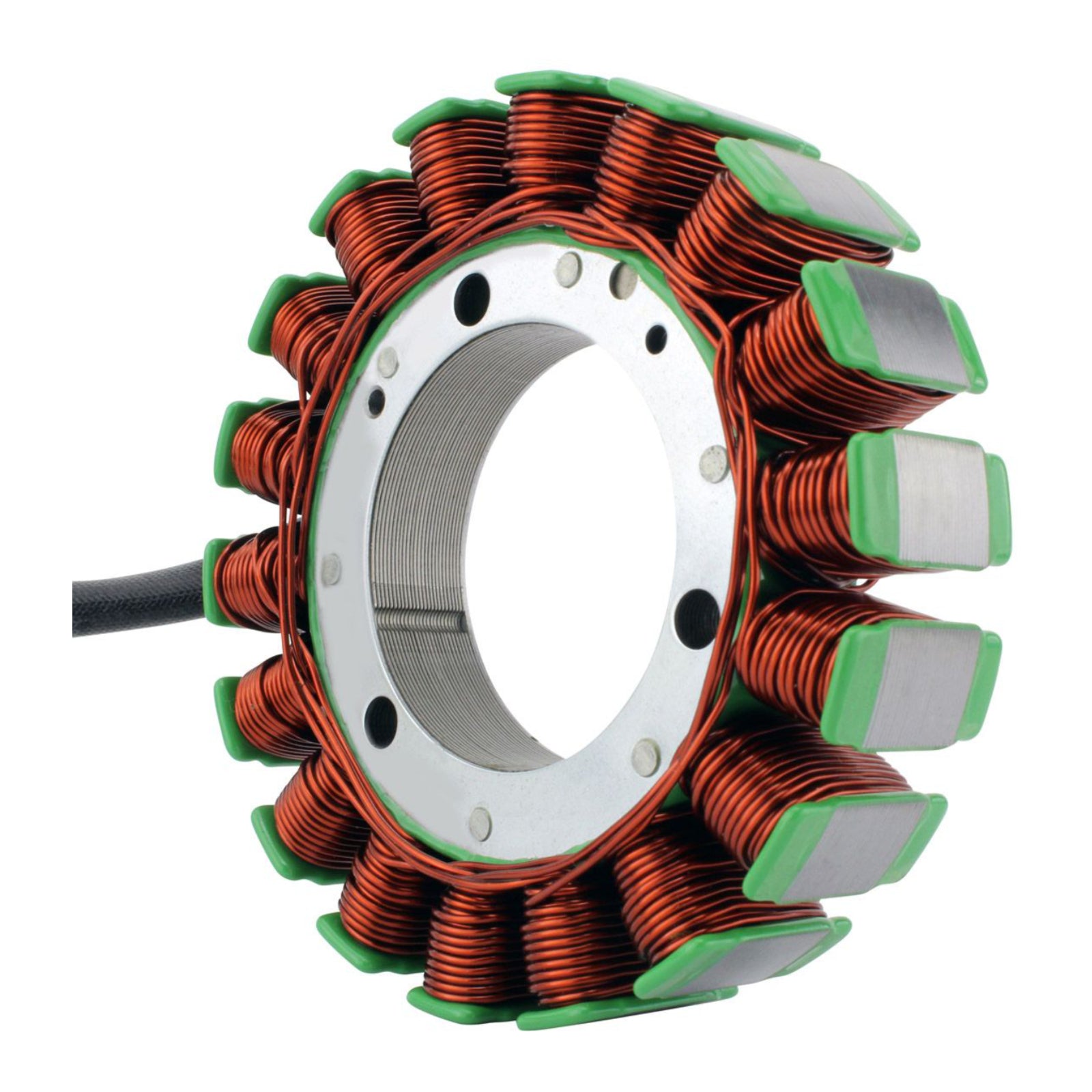

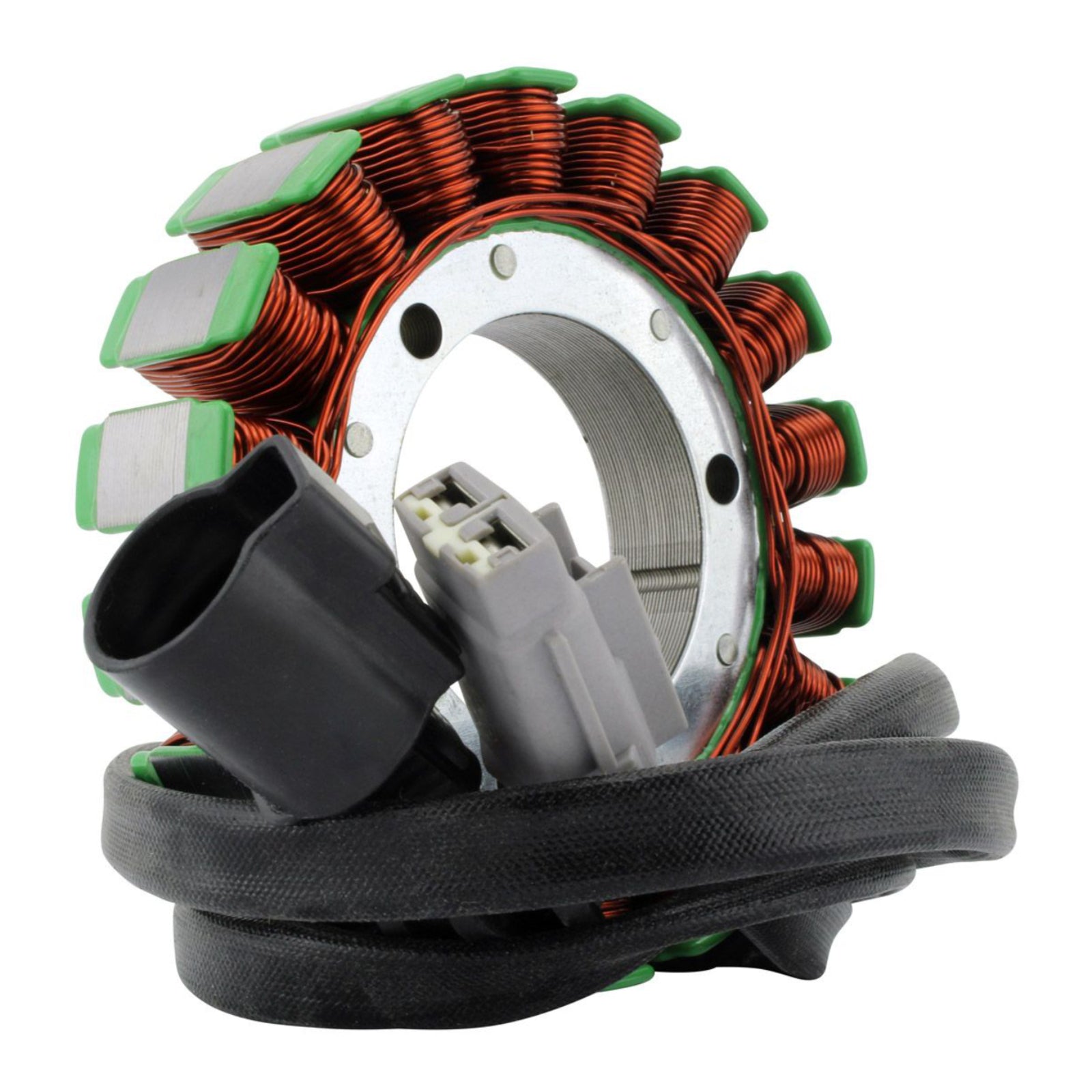

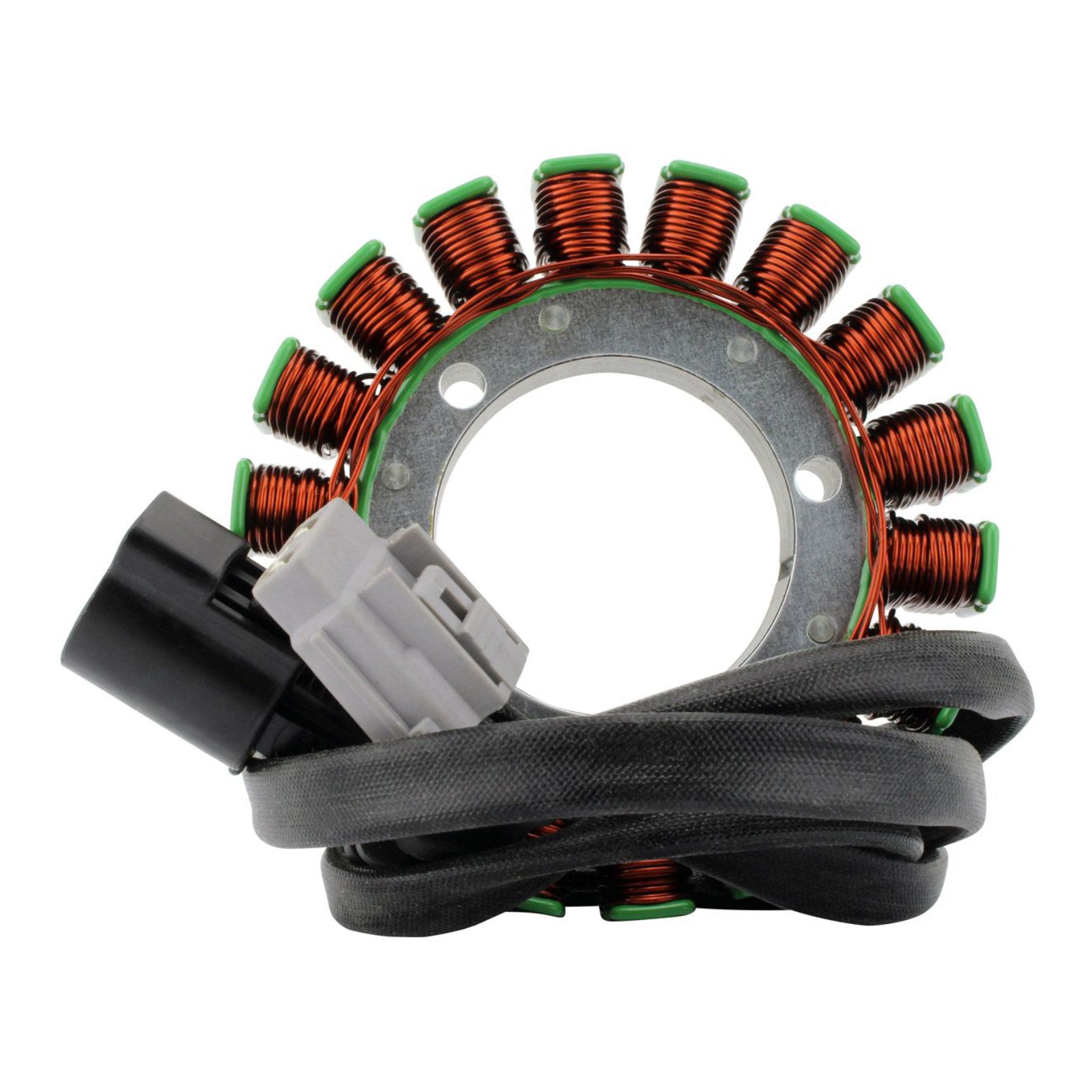

GENERATOR STATOR KAWA KRF 750 TERYX 2013
- $284.79
$319.99- $284.79
- Unit price
- per
Best price guarantee
Found it cheaper? We’ll match it. Shop with confidence every time.
Subtotal:
$284.79
Explore related collections:
- ➔ Parts (25001 products)
- ➔ Clearance (25001 products)
- ➔ All products (25001 products)
- ➔ Electrical system and instruments (1890 products)
- ➔ Electrical systems (1795 products)
- ➔ Charging and regulation (926 products)
- ➔ RMSTATOR (516 products)
- ➔ Stators (358 products)
Plug-and-play aftermarket replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 54mm
- Exterior diameter: 115mm
- Thickness: 18mm
- Length of wires stator to grommet: 160mm
- Length of wires grommet to plug: 840mm
Other specifications:
- Number of wires: 3

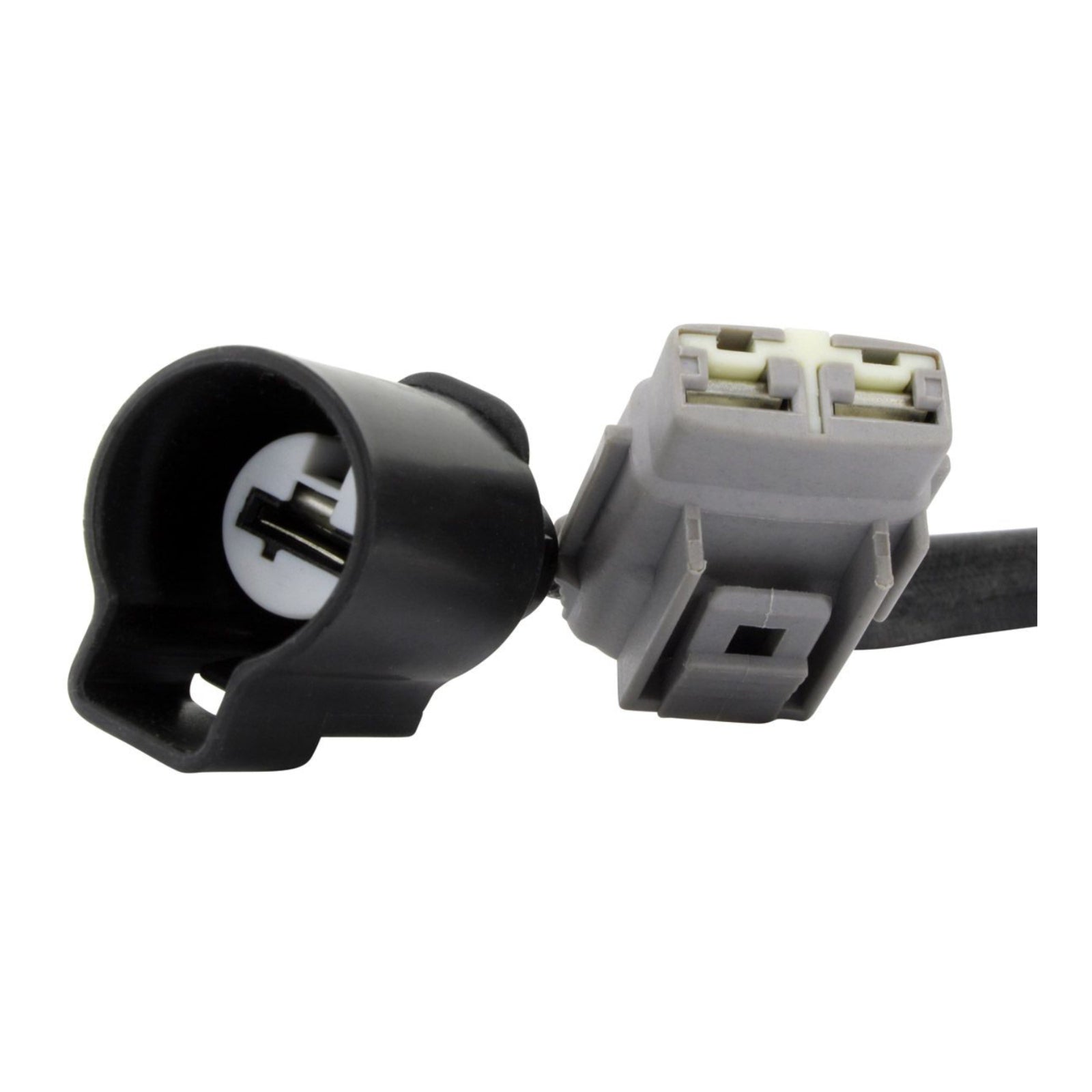

- Number of plugs: 2
- Number of pins: 3
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Black to Black = 0.4 ohms +-20%
- Alternator: Black to ground = O.L
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
- All products shipped are tested
