RMSTATOR | SKU: RMS010104193

STATOR ASSTD SCOOTERS 2003-2017 (RMS010-104193)

$195.79
$219.99
$195.79

Best price guarantee

Found it cheaper? We’ll match it. Shop with confidence every time.
Subtotal: $195.79
🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–2 days.

Explore related collections:

Description

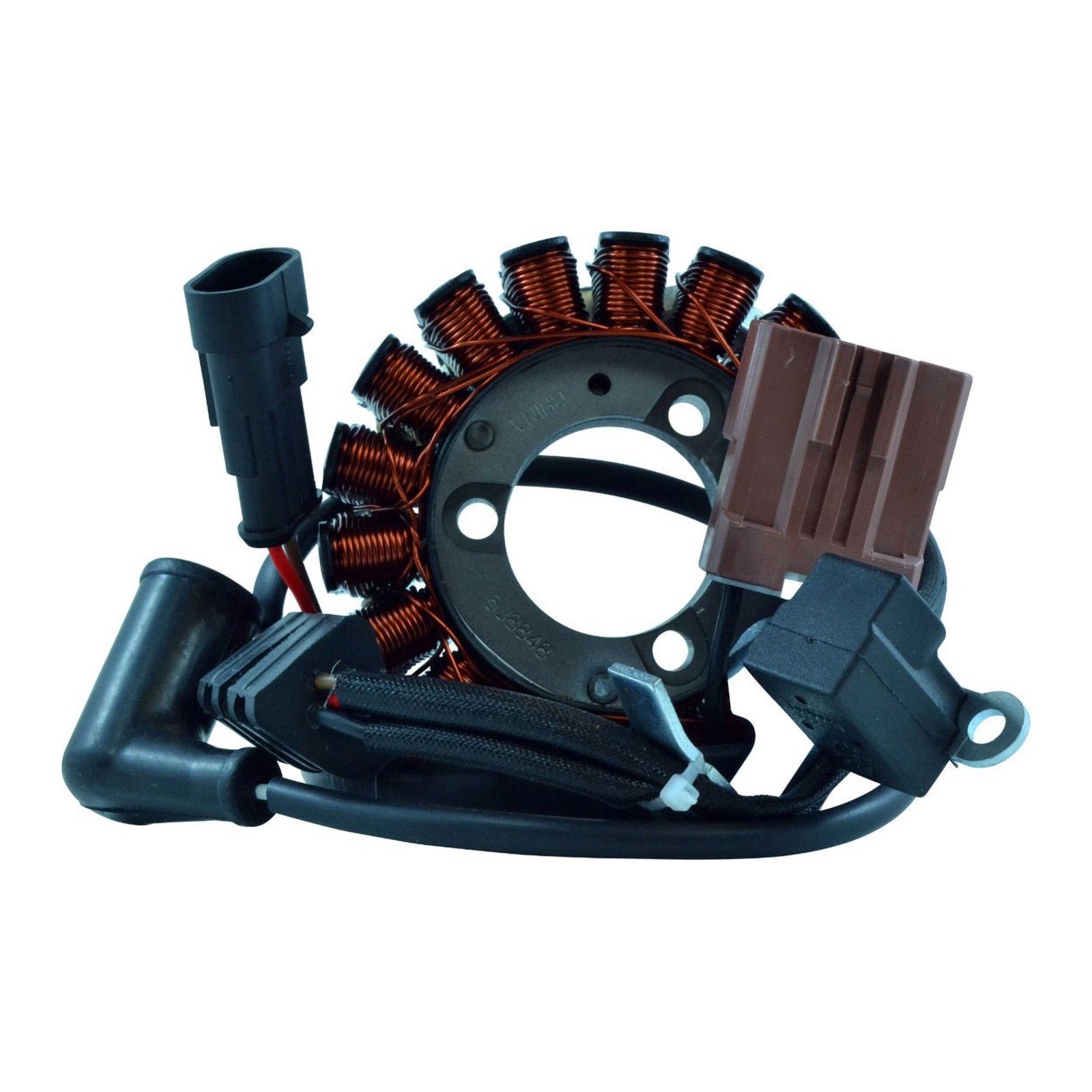

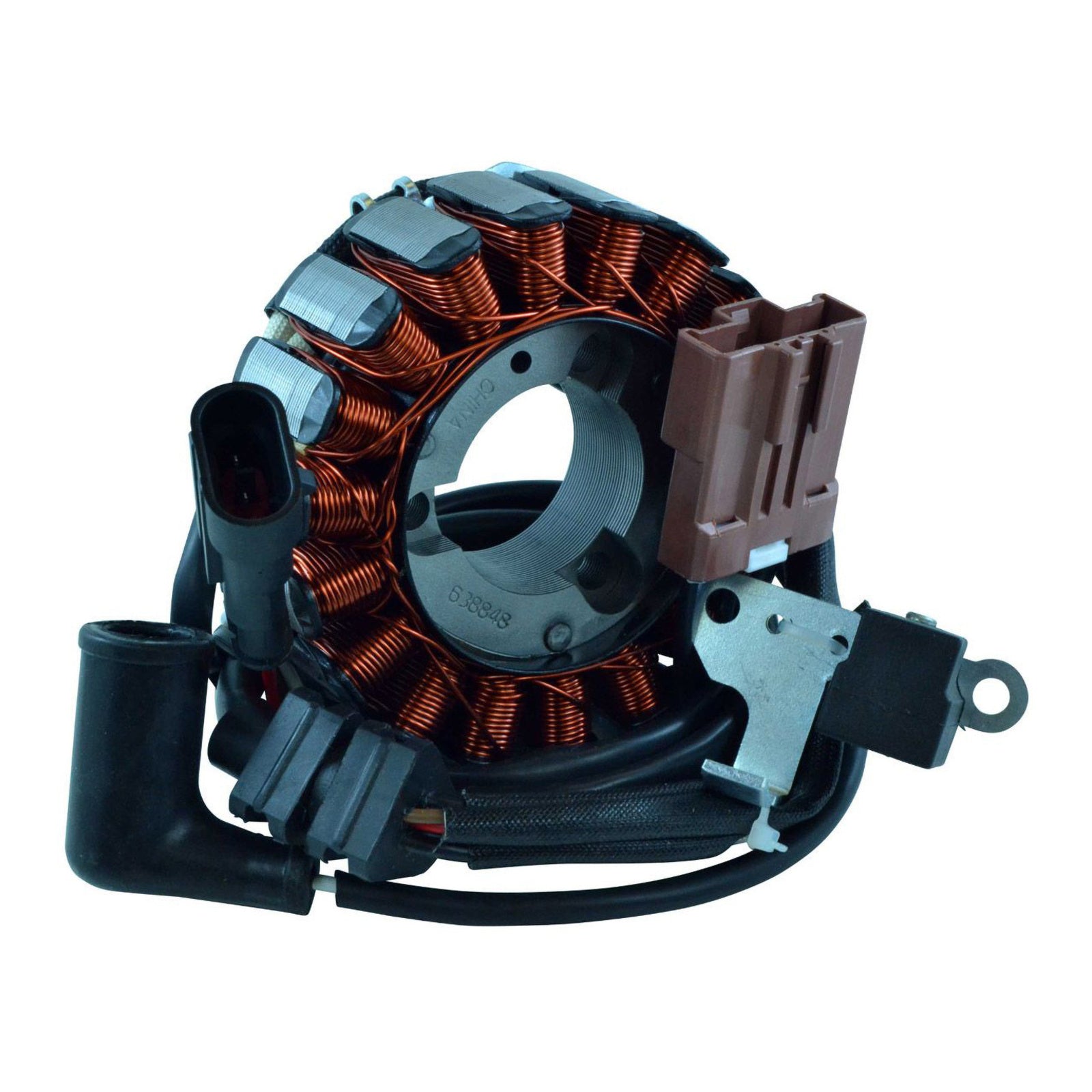

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 36 mm
  • Exterior diameter: 95 mm
  • Thickness: 32 mm
  • Length of wires stator to grommet: 165 mm
  • Length of wires grommet to plug:585 mm / 780 mm
  • Length of pickup coil's wire to grommet: 88 mm

    • Other specifications:

    • Number of wires: 6
    • Number of plugs: 3
    • Number of pins: 6
    • Number of poles: 18

    Wire-to-wire resistance:

    • Alternator :Yellow between each Yellow = 0.4 ohms +-20%
    • Pickup: Green/White to Yellow/White = 125 ohms +-20%
    • Source: Black/Red to Ground = 210 ohms +-20%
