Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

RMSTATOR | SKU: RMS010102117

Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

$271.95; ~~$289.99~~; $271.95
Unit price: per

Best price guarantee

Found it cheaper? Call us and we'll match it.

🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–3 days.

Explore related collections:

➔ RMSTATOR (524 products)

Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

~~$289.99~~ $271.95

Quantity:

Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

~~$289.99~~ $271.95

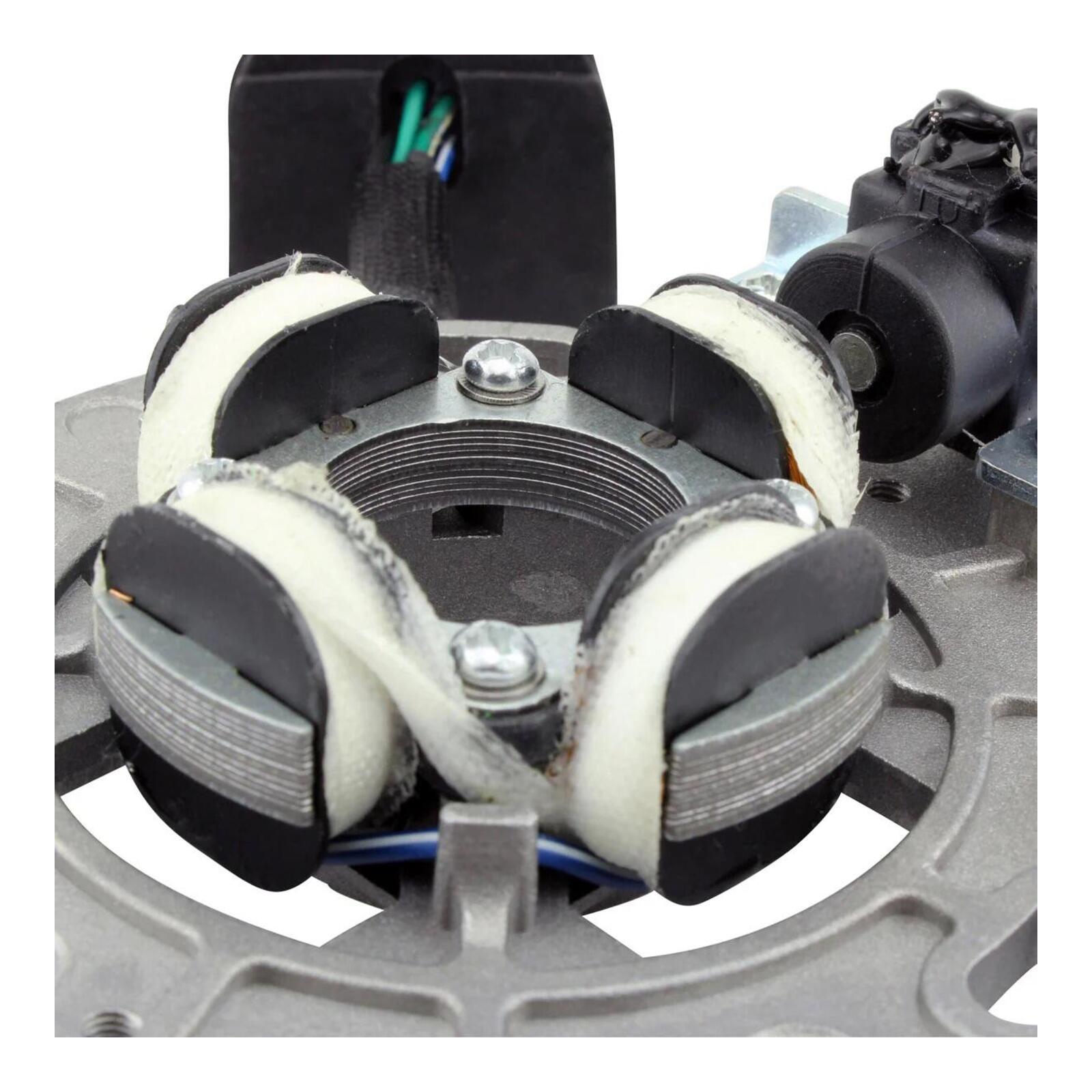

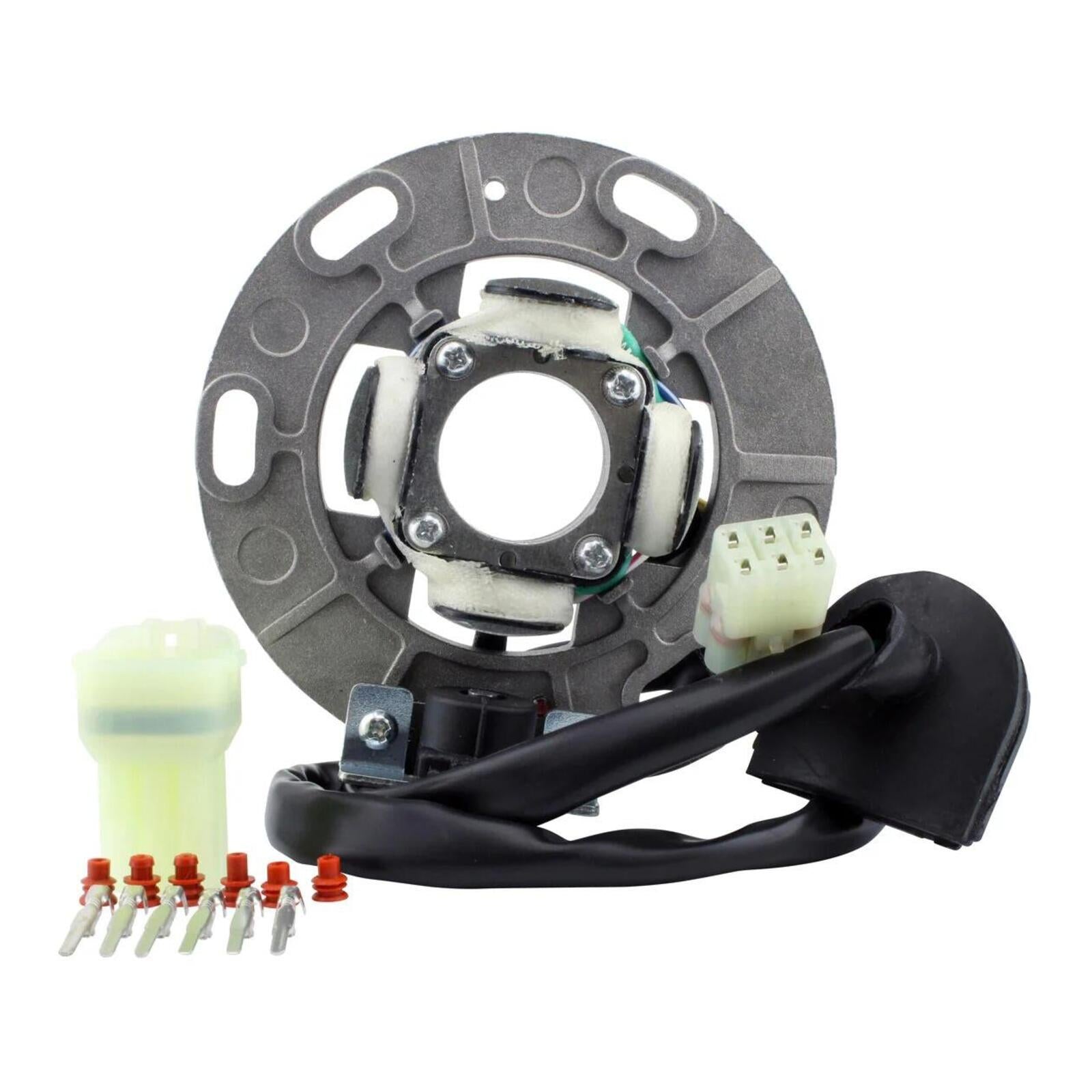

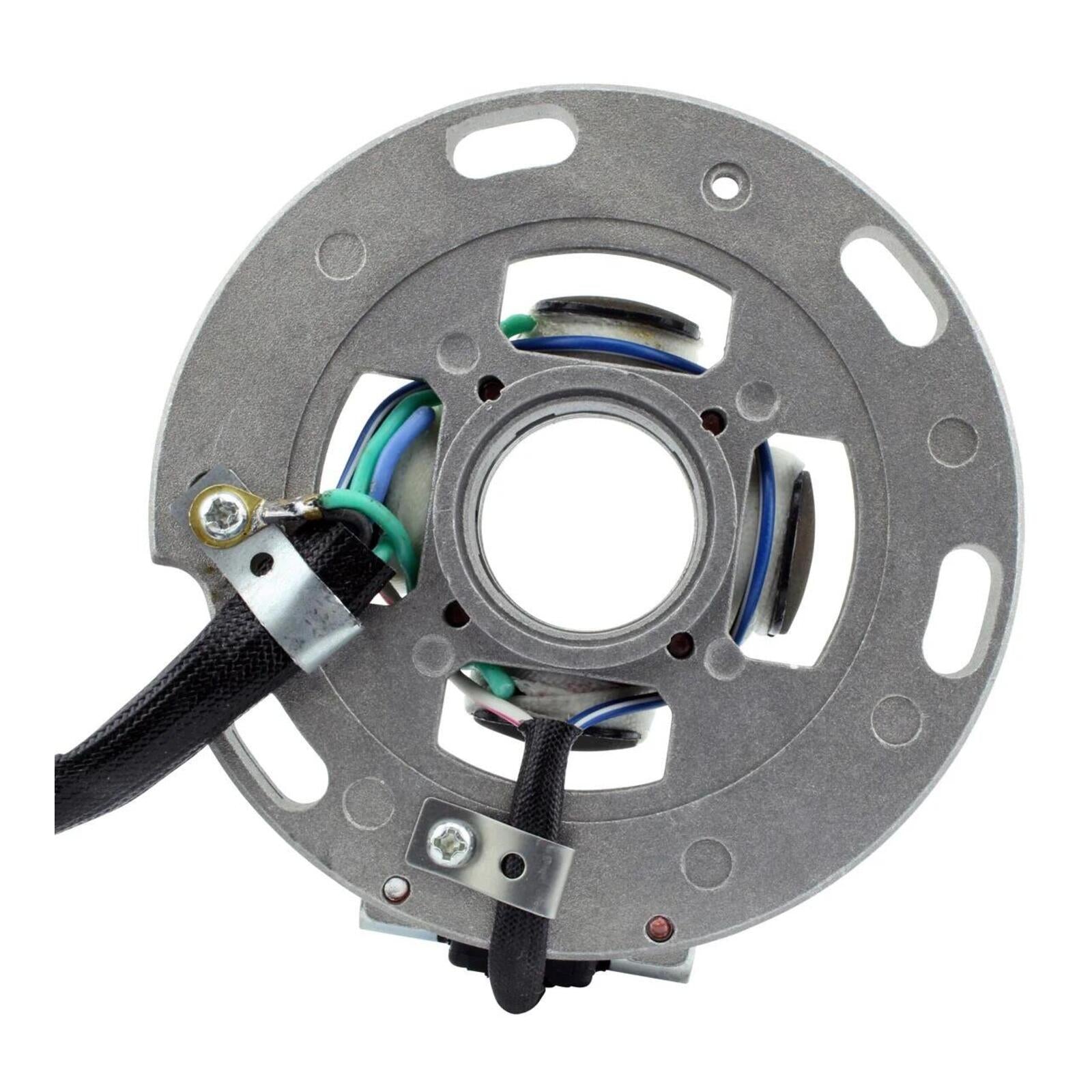

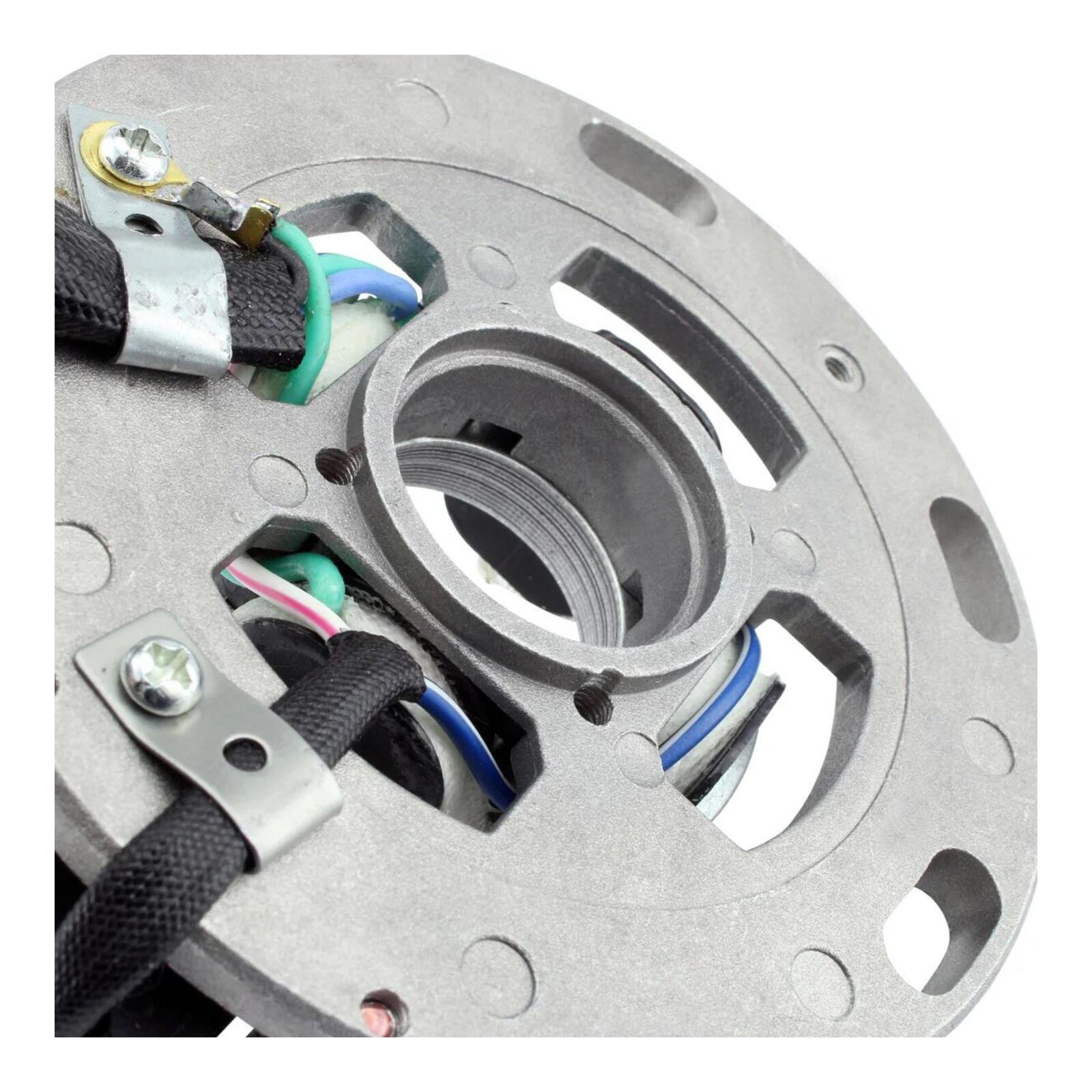

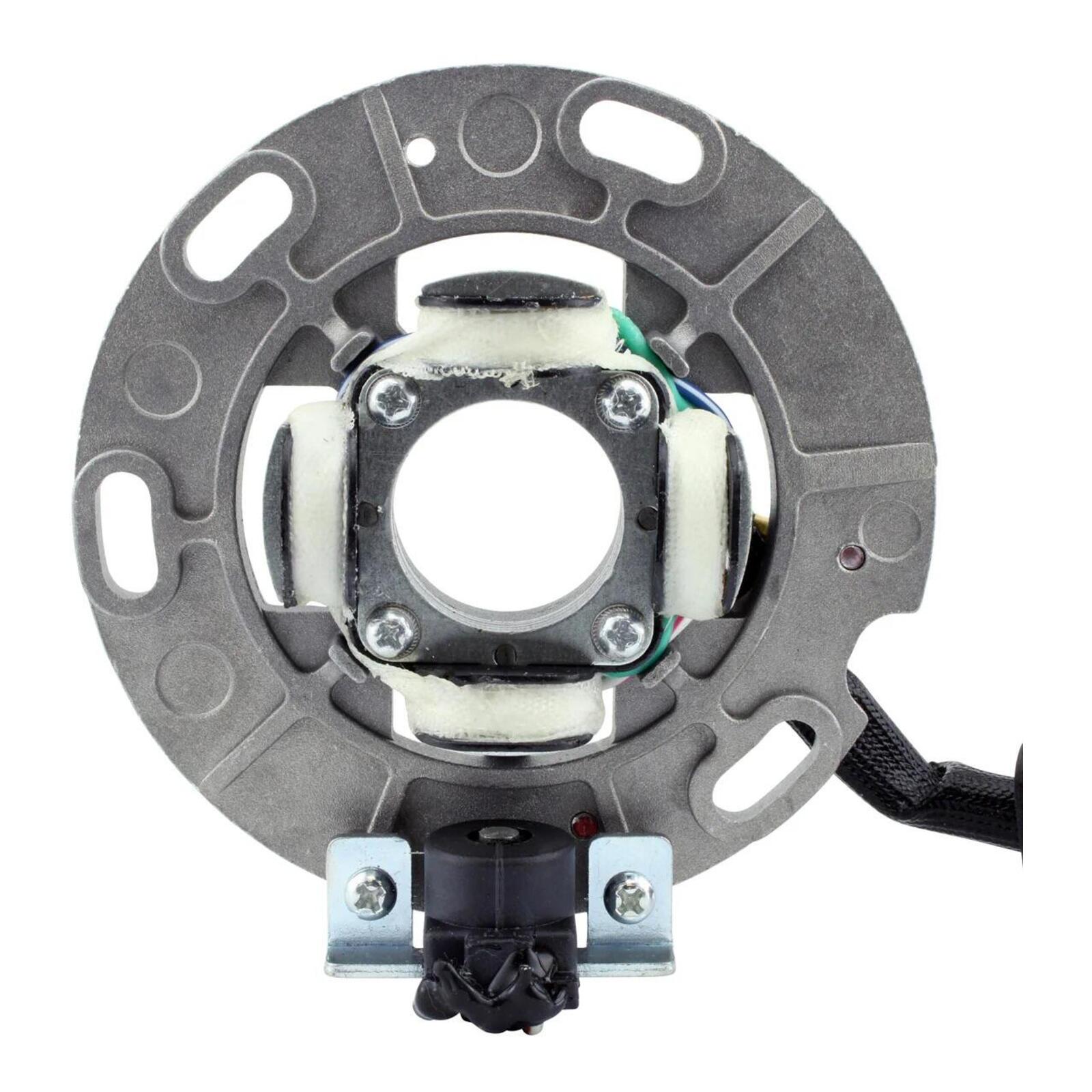

Brand new aftermarket Stator.

Features:

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest grade of lamination materials.
Highest grade of copper windings, resistant to 200 degrees Celsius.

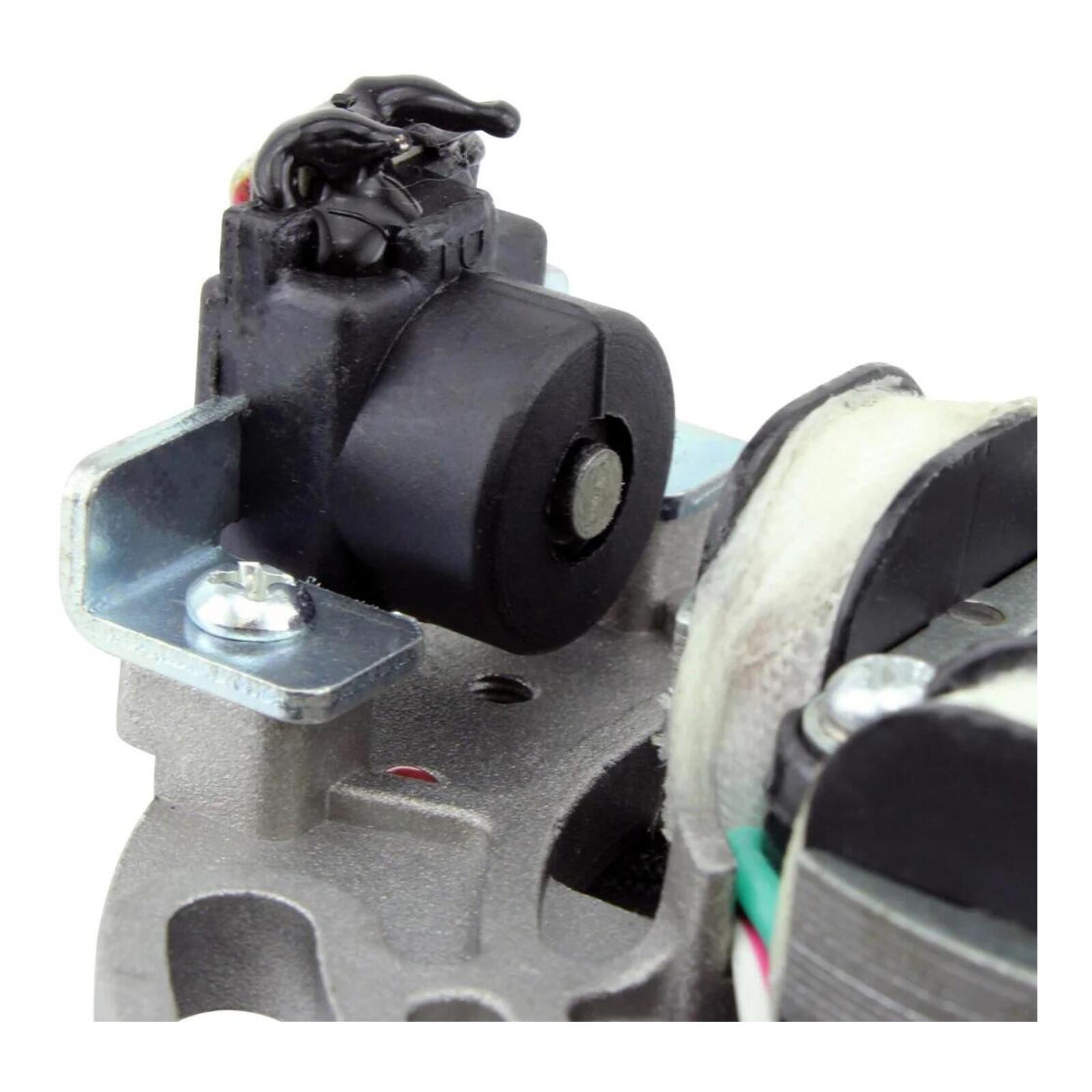

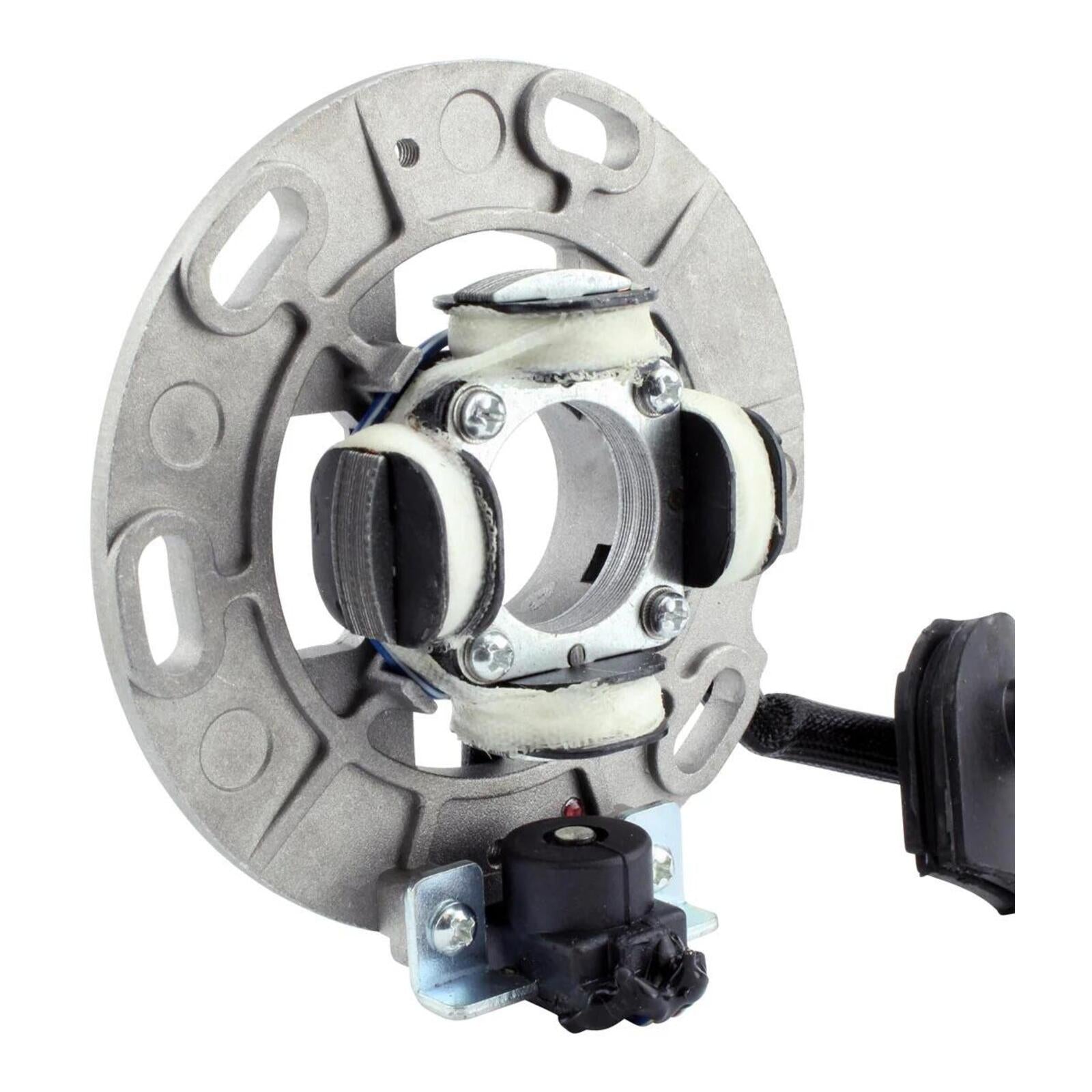

Pick up pulsar coil included.

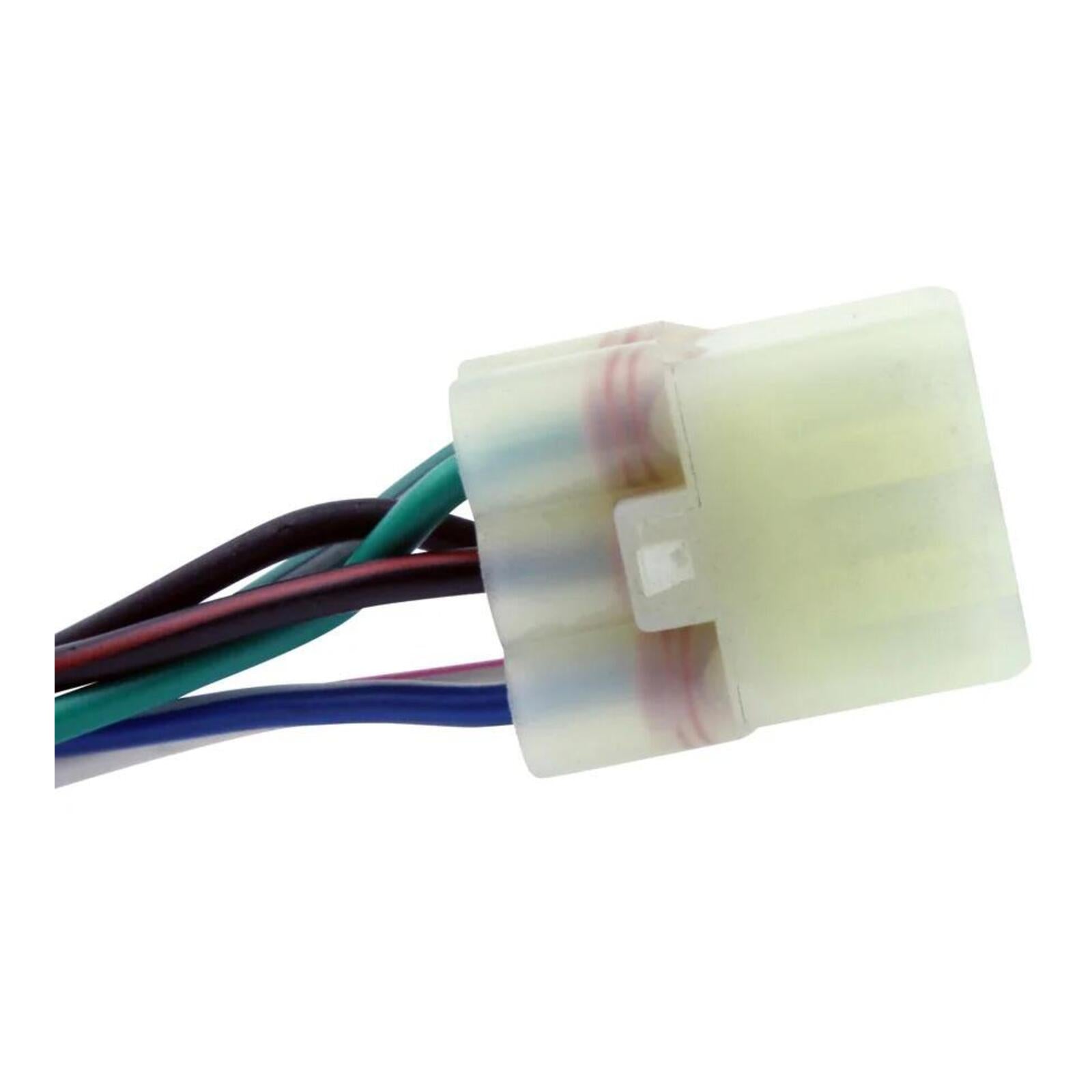

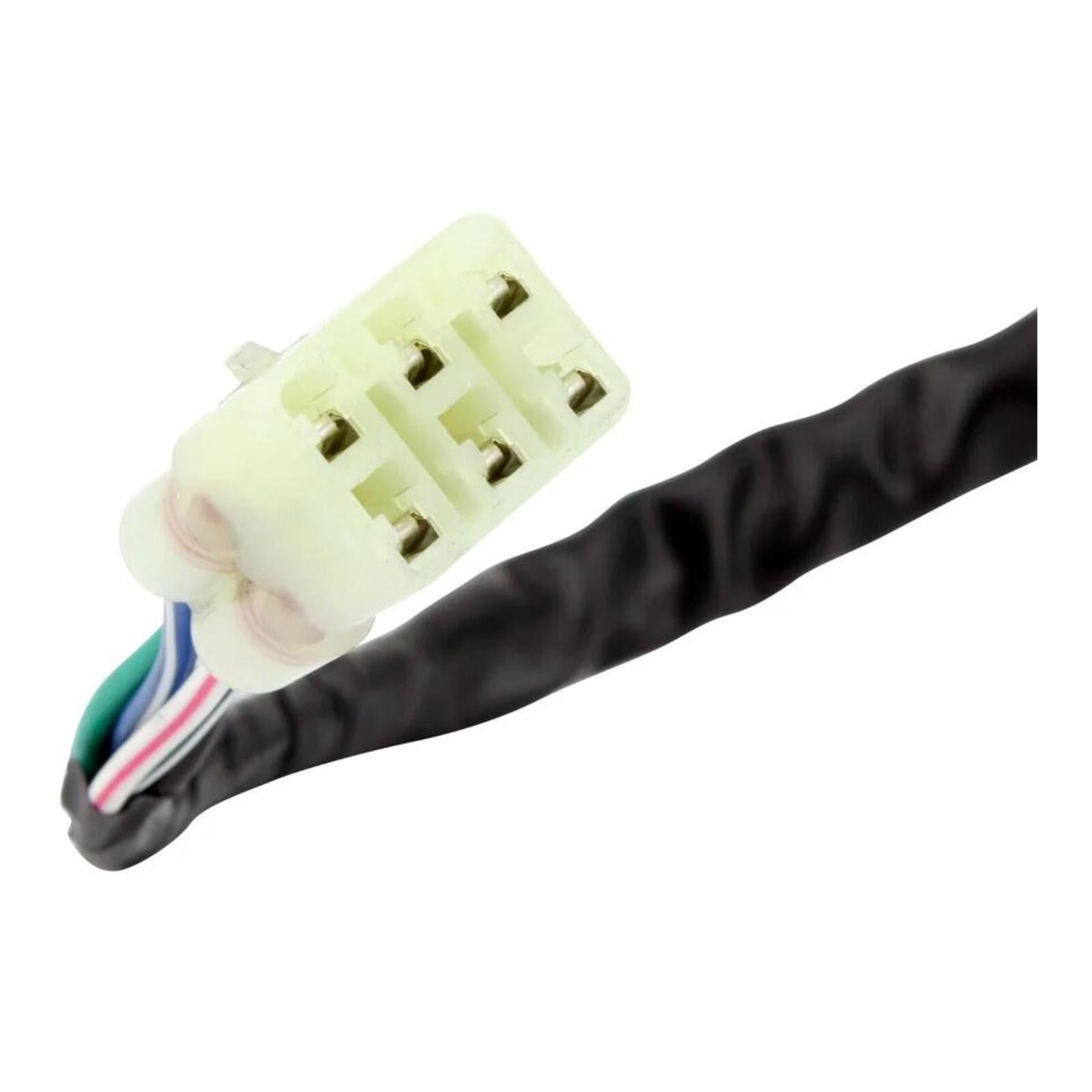

Connector included.

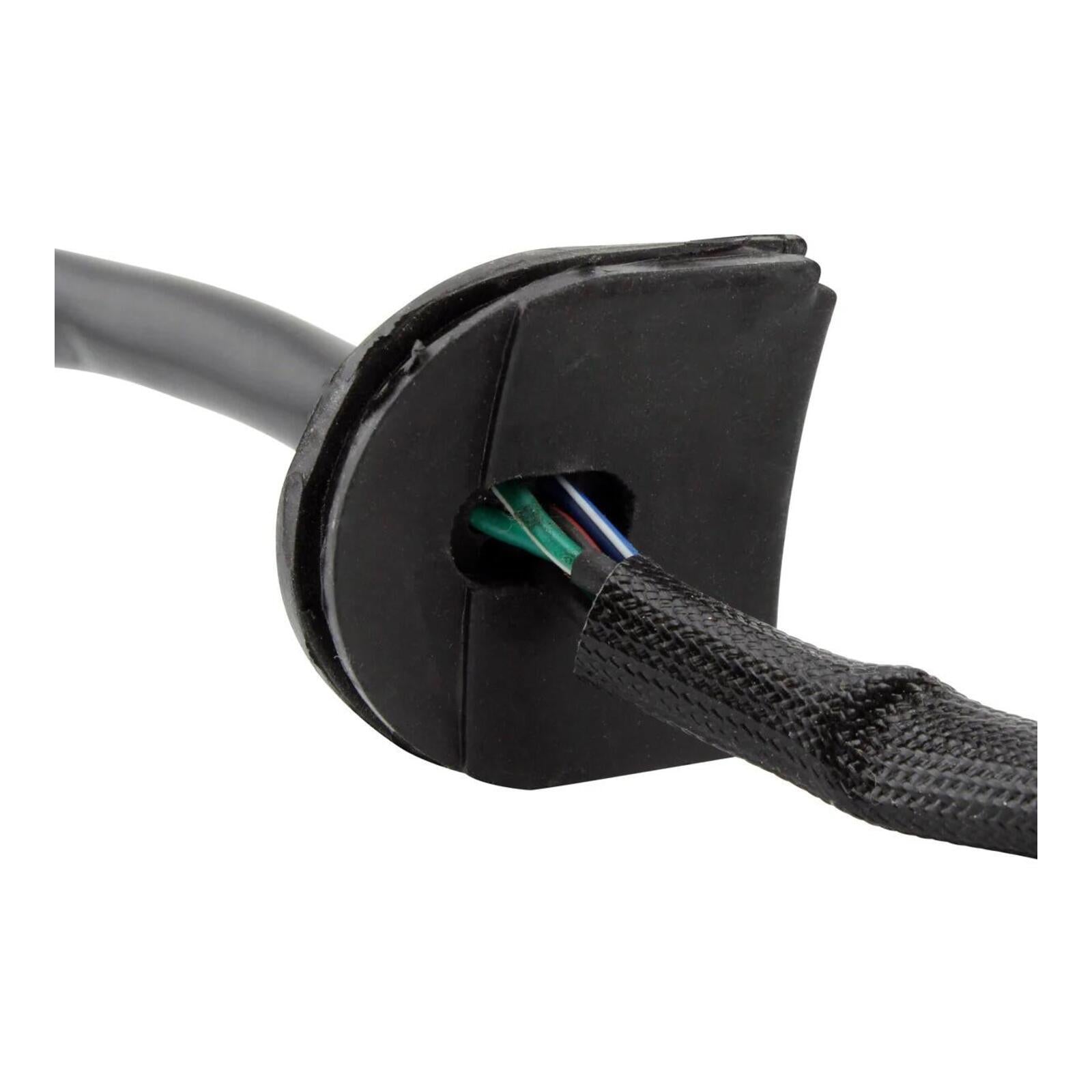

Rubber grommet included.
All products shipped are tested.

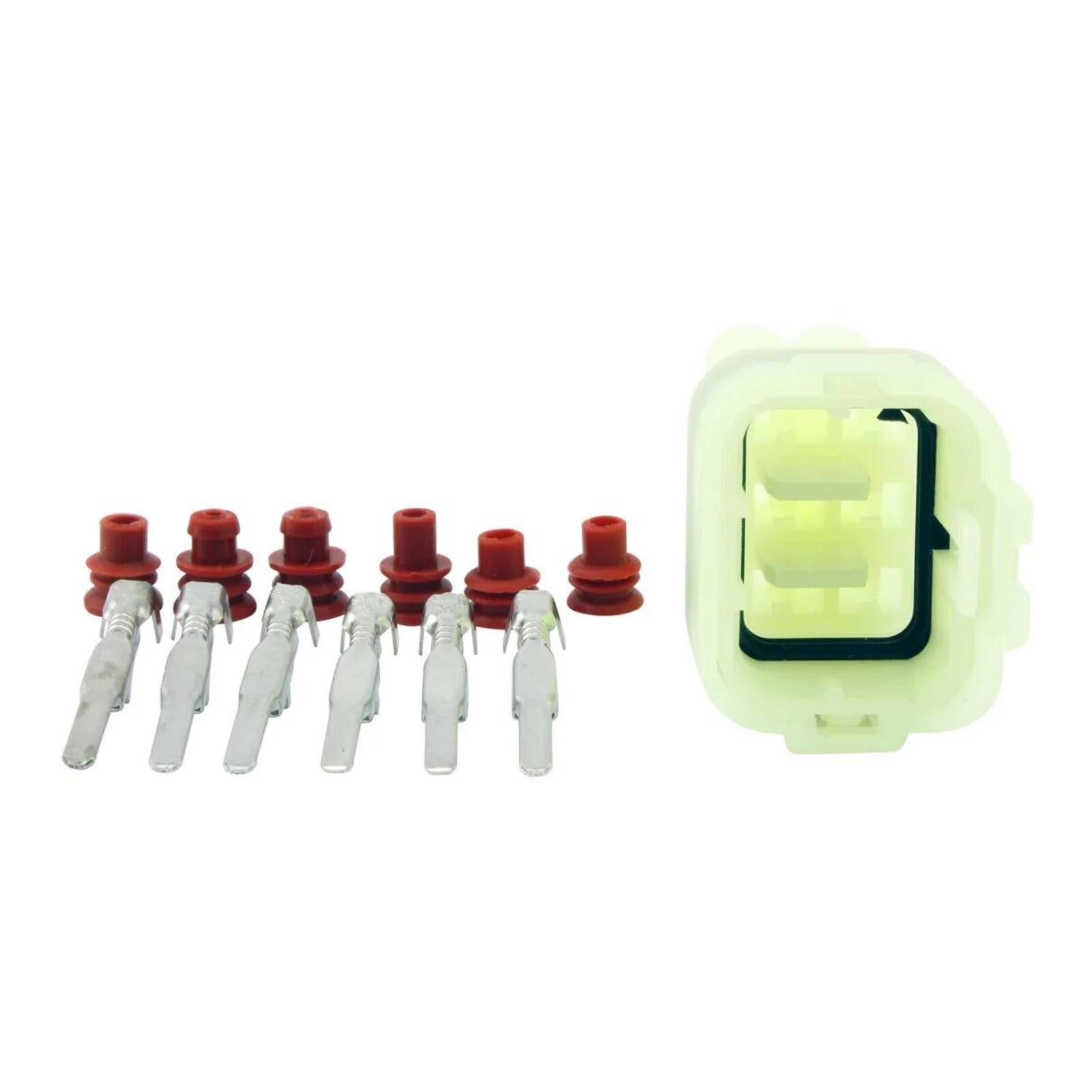

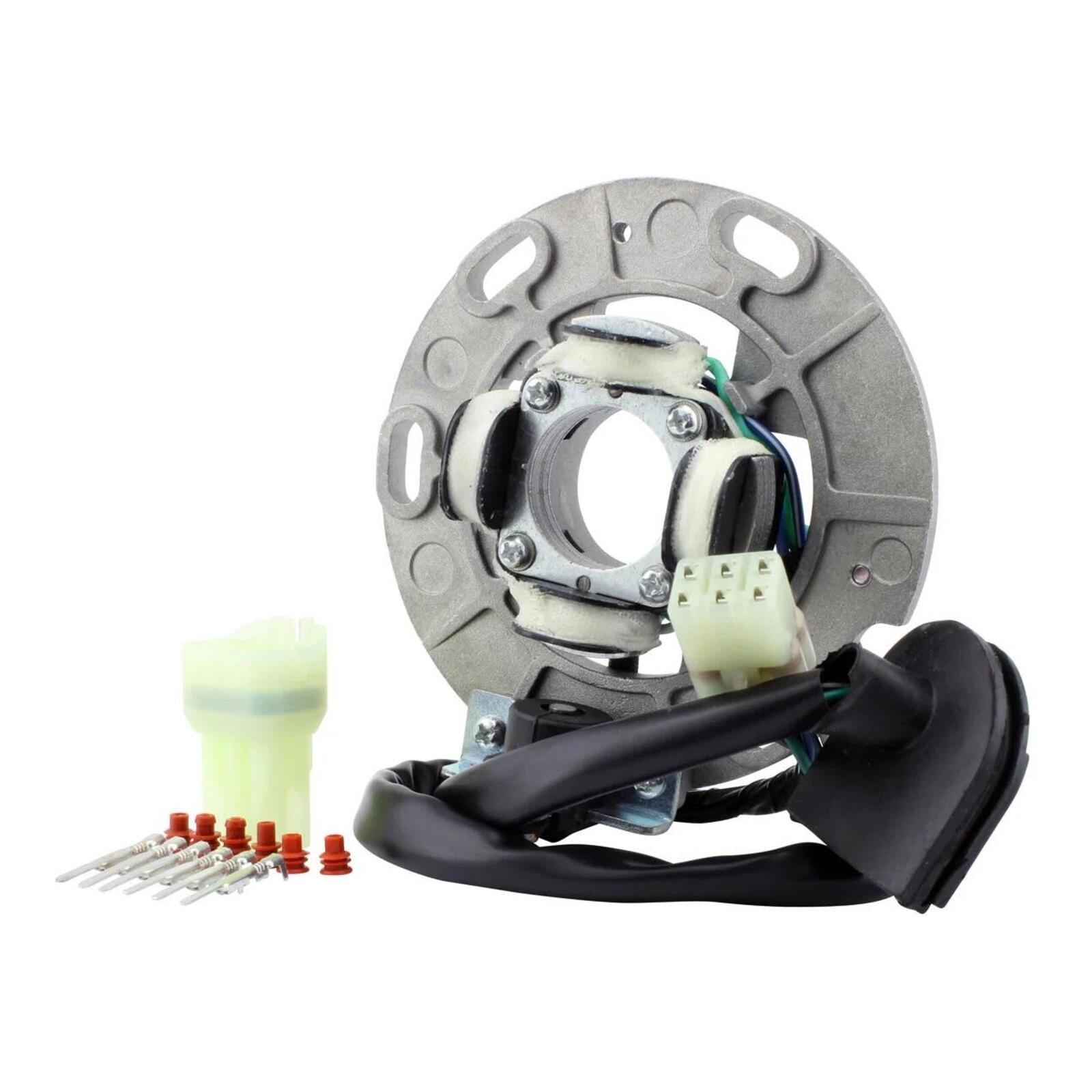

We have even included the opposite connector (main harness side), as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Specifications:

Dimensions :

Interior diameter: 28mm
Exterior diameter: 59.30mm
Thickness: 33mm
Length of wires stator to grommet: 32mm
Length of wires grommet to plug: 320mm

Other specifications :

Number of wires: 6
Number of plugs: 1
Number of pins: 6
Number of poles: 4
Pickup: White/Blue to White/Red = 285 ohms +-20%
Source #1: Green/White to Green = 54 ohms +-20%
Source #2: Black/Red to Black = 875 ohms +-20%

Interior diameter	28mm
Exterior diameter	59.30mm
Thickness	33mm
Length of wires stator to grommet	32mm
Length of wires grommet to plug	320mm
Number of wires	6
Number of plugs	1
Number of pins	6
Number of poles	4
Pickup	White/Blue to White/Red = 285 ohms +-20%
Source #1	Green/White to Green = 54 ohms +-20%
Source #2	Black/Red to Black = 875 ohms +-20%
