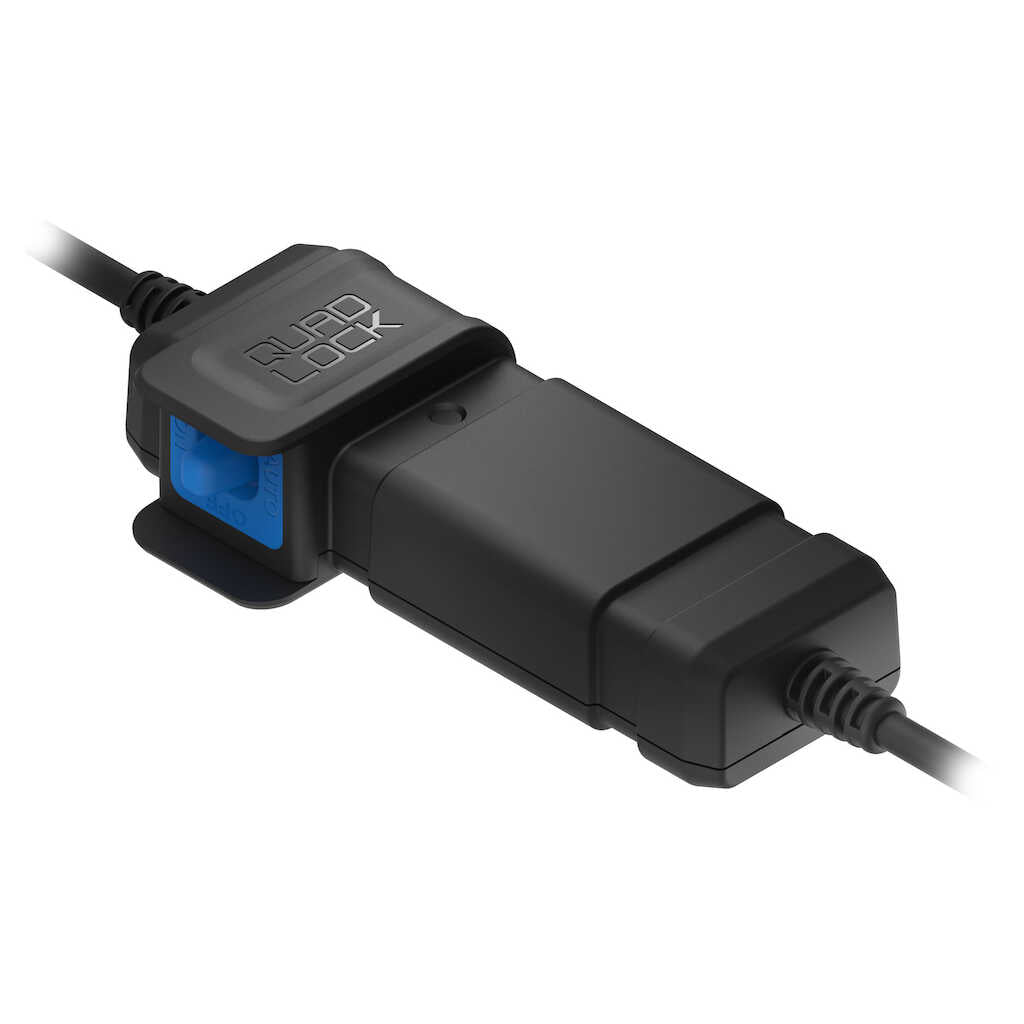

The Quad Lock Waterproof 12V to USB Smart Adaptor hardwires a sealed USB-A power source to your vehicle's battery, so you can run a Quad Lock Weatherproof Wireless Charging Head on bikes that have no factory USB outlet. It suits motorcycles and ATVs as well as constant-supply setups such as boats and caravans.
Everything needed for a tidy hardwired install is supplied, including ring terminal leads with an in-line fuse, a sealing boot for the USB connection and zip ties for cable routing. A three-position switch lets you choose between permanent power, off, or an automatic mode that only feeds the outlet once the charging system is running — useful for avoiding a flat battery on a bike that sits between rides.
The Weatherproof Wireless Charging Head is sold separately.
- Hardwired 12V–24V DC input for motorcycles, ATVs, boats and caravans
- USB-A output up to 18W max (5V/3A, 9V/2A, 12V/1.5A)
- Three-position toggle: On, Off and Auto
- Auto mode powers up above 13.5V and shuts off below 12.5V to prevent battery drain
- Reverse polarity protection if the ring terminals are connected the wrong way around
- In-line 3A fast-blow safety fuse on the ring terminal lead
- IP66 rated adaptor unit and cable housing
- IP64 rated USB sealing boot for the charging head cable connection
- Polycarbonate housing with TPU toggle switch and PVC over-moulded cables
- Brass ring terminals for a solid battery connection
- 1.5m USB-A lead and 10cm hardwired SAE tail, plus a 1m SAE to ring terminal cable
- 1 x Quad Lock Waterproof 12V to USB Smart Adaptor with 1.5m USB-A female port and 10cm hardwired SAE cable
- 1 x 1m SAE to ring terminal cable with in-line fuse
- 1 x USB-A sealing boot for the USB-A to USB-C cable supplied with the Weatherproof Wireless Charging Head
- 5 x Zip ties
| Brand | Quad Lock |
|---|---|
| Model | Waterproof 12V to USB Smart Adaptor |
| Type | Hardwired 12V to USB-A power adaptor |
| SKU | 7105930 |
| Input | 12V – 24V DC |
| Output | USB-A up to 18W max (5V/3A, 9V/2A, 12V/1.5A) |
| Switching modes | On / Off / Auto |
| Auto mode thresholds | Switches on above 13.5V, off below 12.5V |
| Fuse | In-line 3A fast-blow fuse |
| Protection | Reverse polarity protection |
| Ingress rating (adaptor) | IP66 rated unit and cable housing |
| Ingress rating (USB boot) | IP64 rated USB sealing boot cover |
| Housing material | Polycarbonate |
| Switch material | TPU toggle switch |
| Cable and over-mould materials | PVC cables with over-moulded SAE, USB-A and ring terminals |
| Ring terminals | Brass |
| Cable lengths | 1.5m USB-A female lead with 10cm hardwired SAE tail; 1m SAE to ring terminal cable |
| Compatibility | Powers the Quad Lock Weatherproof Wireless Charging Head (sold separately) |
- Connect the ring terminal cable directly to the battery, red to positive and black to negative, and fit the in-line fuse on the positive side as supplied.
- Select AUTO for motorcycles, ATVs and other vehicles where power should only be available while the engine is running — the adaptor switches on above 13.5V and off below 12.5V.
- Select ON only where a constant 12V–24V supply is appropriate, such as a boat or caravan, and switch to OFF when the vehicle will be parked for extended periods.
- If the vehicle uses a lithium battery, the Auto function may not work reliably; use the On/Off switch manually instead to protect the battery.
- Always fit the supplied USB-A sealing boot over the connection to the charging head cable, and keep the USB port covered when nothing is plugged in.
- The adaptor unit and cable housing are IP66 rated, but the USB boot is only IP64 — avoid directing high-pressure water at the USB connection when washing the bike.
- Route the cables away from steering stops, suspension travel, exhausts and other heat sources, and secure them with the supplied zip ties so nothing chafes or pulls.
- If the outlet stops delivering power, check the in-line fuse first and replace it with an equivalent 3A fast-blow fuse rather than bypassing it.
- Wipe the housing, switch and terminals with a soft damp cloth; avoid solvents, and inspect the ring terminals periodically for corrosion or looseness.
- Disconnect the ring terminals before carrying out any work on the battery or charging system.
