Quad Lock 360 Base - Flat Rectangle - 4 Hole

~~$14.99~~ $14.49

Quantity:

Quad Lock 360 Base - Flat Rectangle - 4 Hole

~~$14.99~~ $14.49

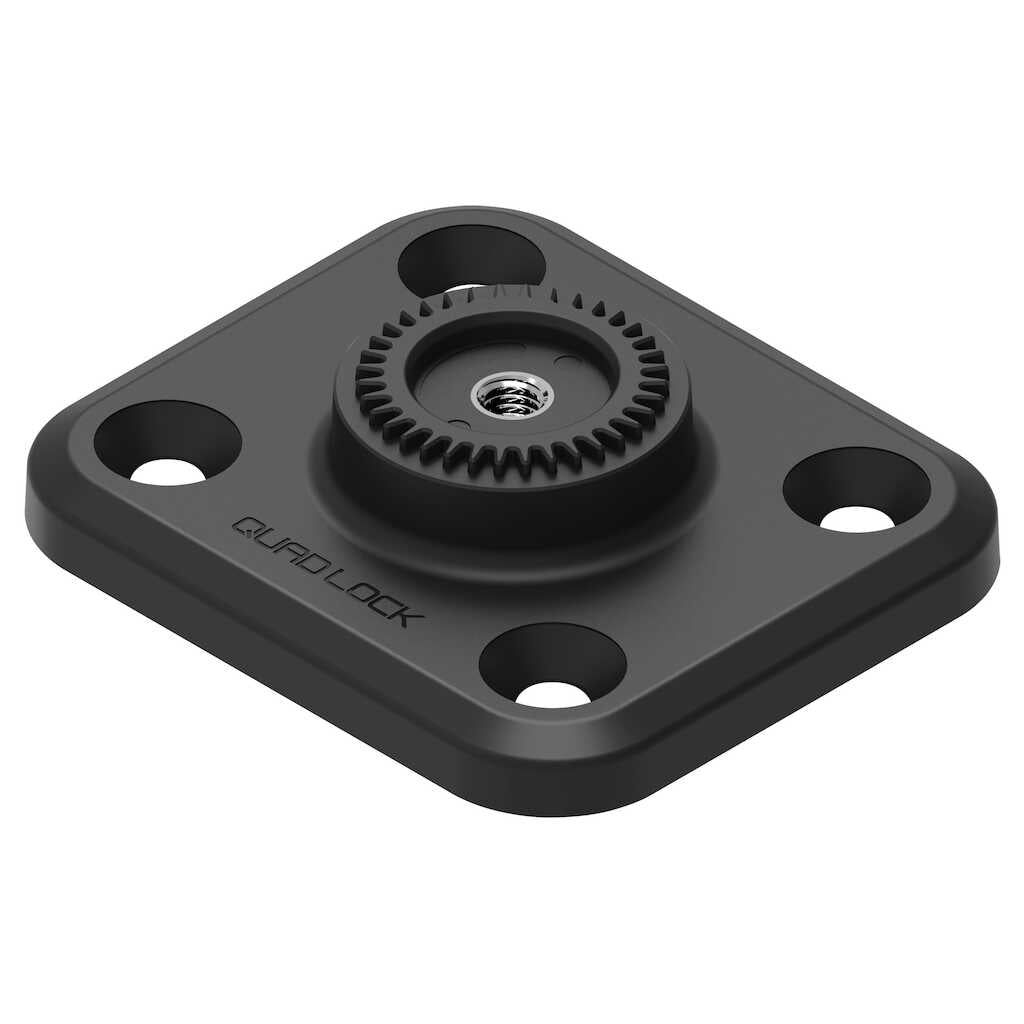

The Quad Lock 360 Flat Rectangle 4 Hole Base is the starting point for building a Quad Lock 360 mount on any flat, rigid surface. It bolts directly to the surface using the universal AMPS hole pattern, then accepts a Quad Lock 360 arm or head via the supplied spacer and screws.

It suits riders and builders fitting a phone mount to a fairing panel, dash, top box, handlebar clamp plate, crash bar bracket or workshop and vehicle surfaces where an existing AMPS pattern is already in place. The base can be fitted vertically, diagonally or horizontally, so the mount can be oriented to suit the bike.

Moulded in tough nylon with four fixing points, it is the more secure of the two rectangle bases — use all four screws for the strongest connection. Fasteners for attaching the base to your own surface are not included, so you can choose the correct length for the panel you are drilling.

Mounts a Quad Lock 360 arm or head to any flat, rigid surface
Four fixing points for the strongest connection — all four screws recommended
Universal AMPS hole spacing standard, 38mm x 30mm pitch
Holes accept 10G or M5 countersunk fasteners
Can be fitted vertically, diagonally or horizontally
Moulded in tough nylon
Includes a 10mm spacer plus M5x30 and M5x45 screws for connecting to a Quad Lock 360 head or arm
M5x45 screw supplied for use with the Weatherproof Wireless Charging Head
Screws for fixing the base to your own surface are not supplied

1 x Flat Rectangle 4 Hole Base
1 x 10mm spacer
1 x M5x30 screw (spacer to Lever Head or 360 Arm)
1 x M5x45 screw (spacer to Weatherproof Wireless Charging Head)

Brand	Quad Lock
Model	360 Flat Rectangle 4 Hole Base
SKU	7105804
Type	Flat-surface mounting base for the Quad Lock 360 system
Material	Nylon
Dimensions	58mm (2.3") long x 50mm (2") wide x 14mm (0.55") high
Hole pattern	Universal AMPS, 4 hole
AMPS hole pitch	38mm (1.5") x 30mm (1.2")
Fastener compatibility	10G or M5 countersunk fasteners (not supplied)
Included hardware	10mm spacer, M5x30 screw, M5x45 screw
Compatibility	Quad Lock 360 Arm and Lever Head (M5x30), Weatherproof Wireless Charging Head (M5x45)
Mounting orientation	Vertical, diagonal or horizontal

Mount only to a flat, rigid surface — flexing or curved panels will not support the base properly.
Use all four fixing holes for the strongest connection; fitting with fewer screws reduces holding strength.
Fix the base with 10G or M5 countersunk fasteners, chosen to suit the thickness of your surface. These are not supplied.
Use the supplied M5x30 screw to join the 10mm spacer to a Quad Lock 360 Arm or Lever Head, and the M5x45 screw when connecting to the Weatherproof Wireless Charging Head.
Tighten fasteners firmly but do not overtighten — the base is nylon and the threads can be stripped or the moulding cracked.
Check all fasteners for tightness after the first few rides and periodically afterwards, as vibration can loosen them over time.
Clean with a soft cloth and mild soapy water; avoid solvents, degreasers and harsh chemicals that can degrade nylon.
Inspect the base for cracks, distortion or elongated holes after any impact or drop, and replace it rather than continuing to ride with a damaged base.
