Oxford USB Type C 3.0amp Charging Kit

~~$72.99~~ $62.95

Quantity:

Oxford USB Type C 3.0amp Charging Kit

~~$72.99~~ $62.95

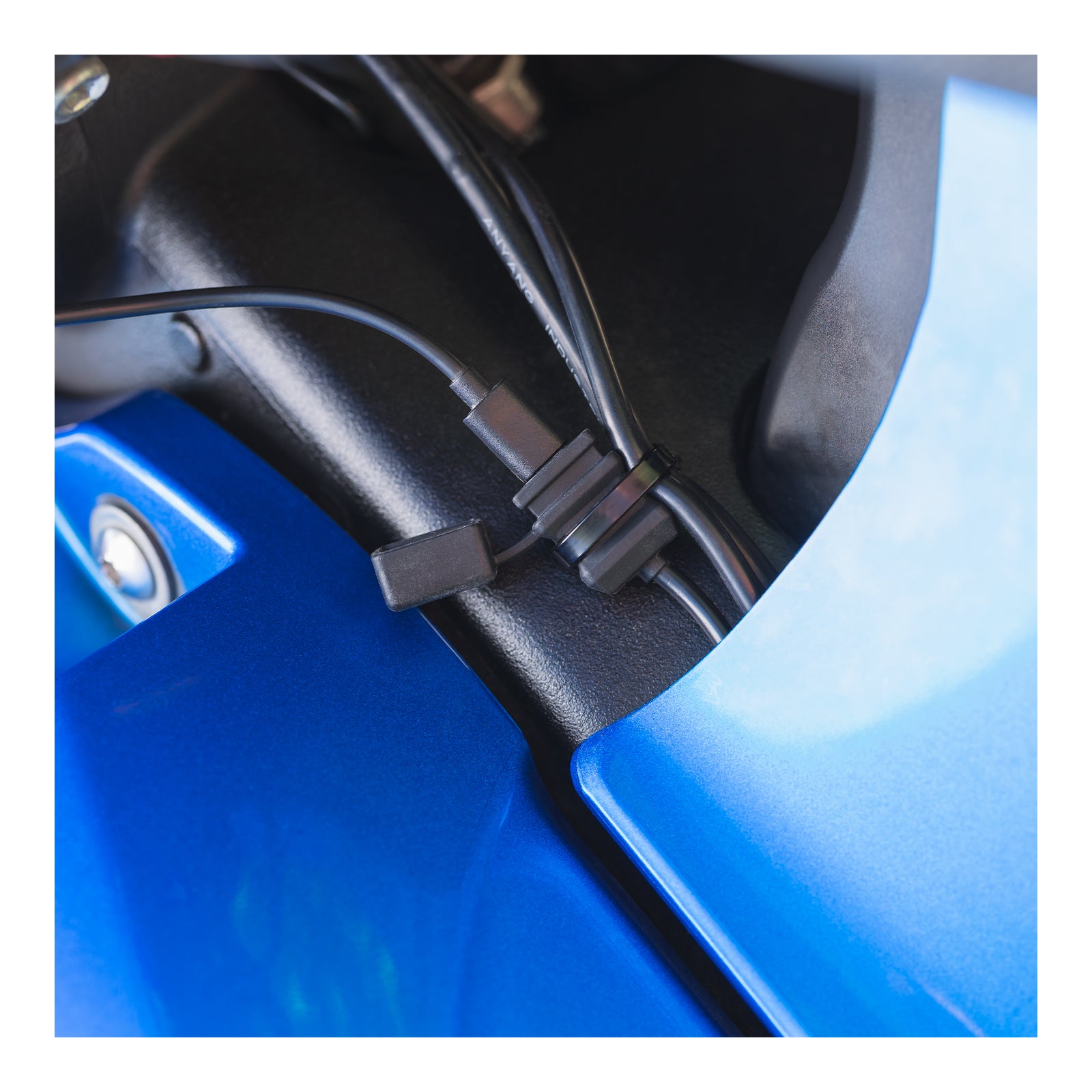

The Oxford USB Type C 3.0 Amp Charging Kit is a hardwired USB-C power outlet that lets you charge a phone, headset or other USB device straight from your motorcycle's battery. The port mounts wherever suits your bike using the supplied cable tie, and the attached ring leads run directly to the battery terminals for a tidy, permanent installation.

It delivers up to 3 amps at 5V, which is enough for most mobile devices, and an in-line fuse guards your device against power surges. The charger draws no current when nothing is plugged in, so it will not flatten your battery between rides, and a splash-resistant silicone cap seals the socket in wet weather.

A device-specific charging cable is not included.

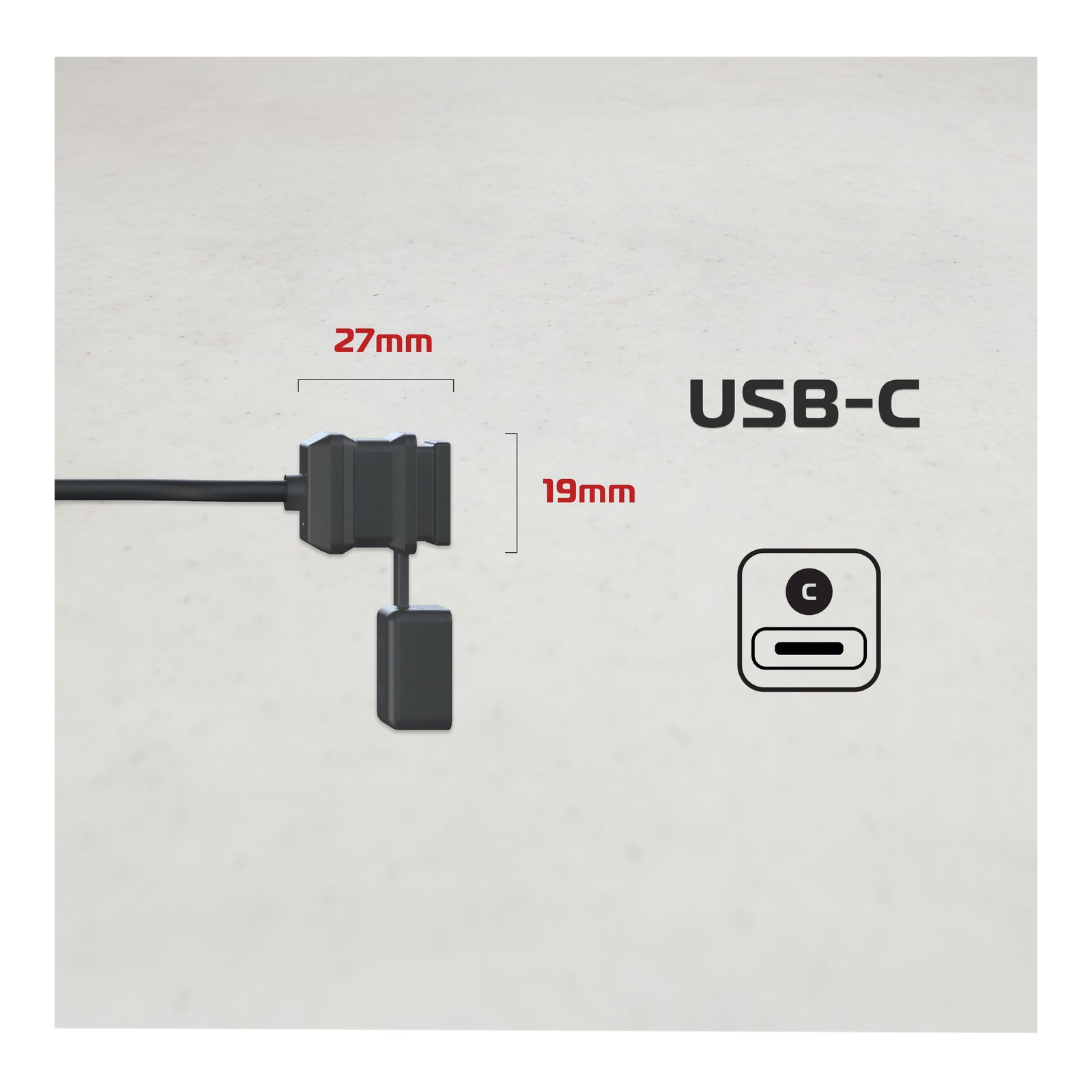

USB Type C female socket for hardwired on-bike charging
5V output with up to 3 Amp charging current
Suits 12-24V battery systems
1.6 m lead with ring terminals for direct battery connection
In-line fuse protects the connected device from power surges
Draws zero current when not in use, so it will not drain the battery
Splash-resistant silicone cap keeps water out of the socket
Simple installation using the supplied cable tie

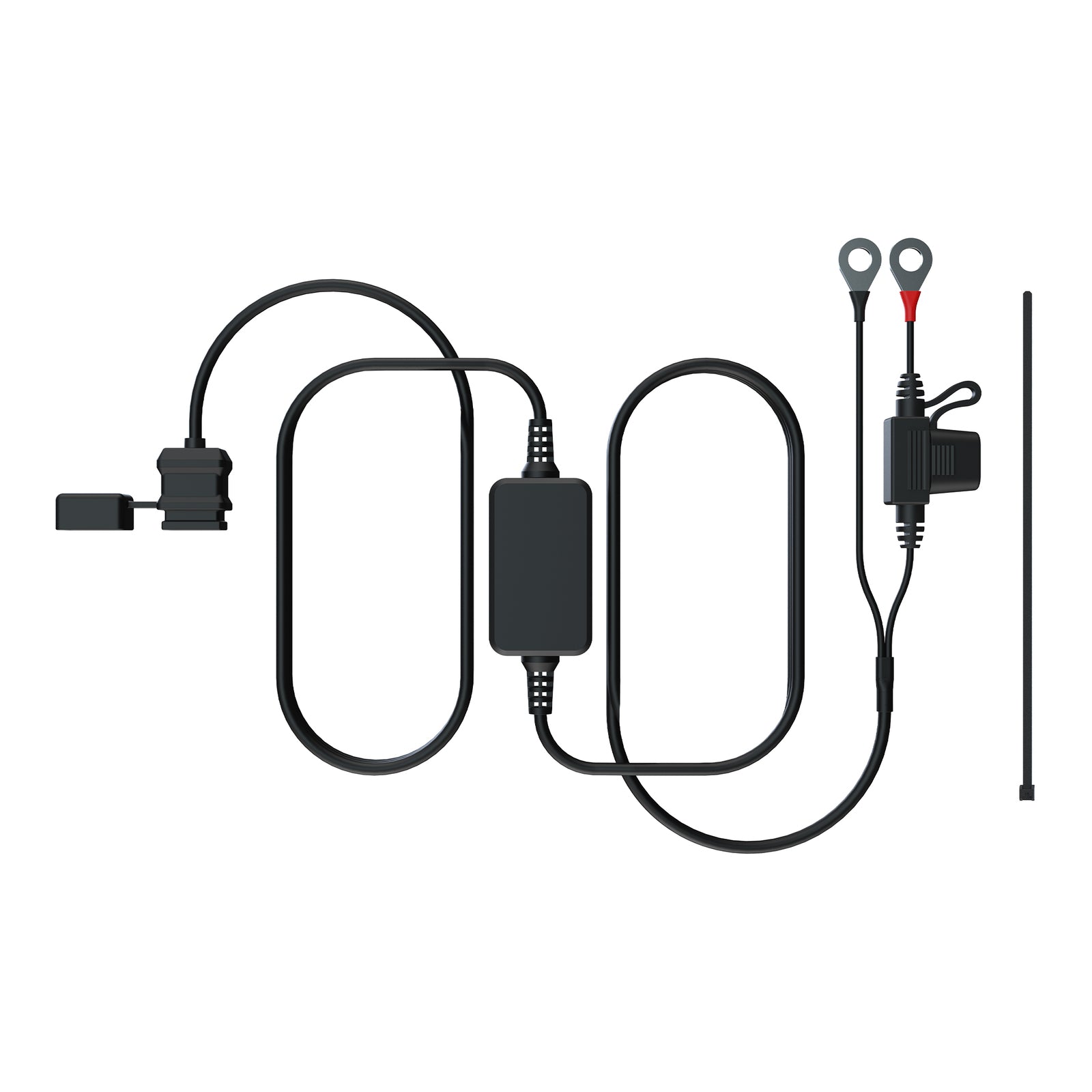

USB Type C charging port with 1.6 m lead and battery ring terminals
In-line fuse
Splash-resistant silicone cap
Cable tie

Brand	Oxford
Model	USB Type C 3.0 Amp Charging Kit
SKU	OXEL117
Type	Hardwired USB Type C charging kit with battery ring leads
Connector	USB Type C female
Output voltage	5V
Output current	Up to 3 Amp
Input / supply	12-24V battery powered
Lead length	1.6 m
Circuit protection	In-line fuse
Weather protection	Splash-resistant silicone cap over the socket
Standby draw	Zero current draw when not in use
Mounting	Cable tie mounting (cable tie supplied)
Not included	Device-specific charging cable

Disconnect the battery before installation, and reconnect the negative terminal last.
Connect the ring terminals directly to the battery terminals, observing correct polarity, and make sure the terminal bolts are done up firmly.

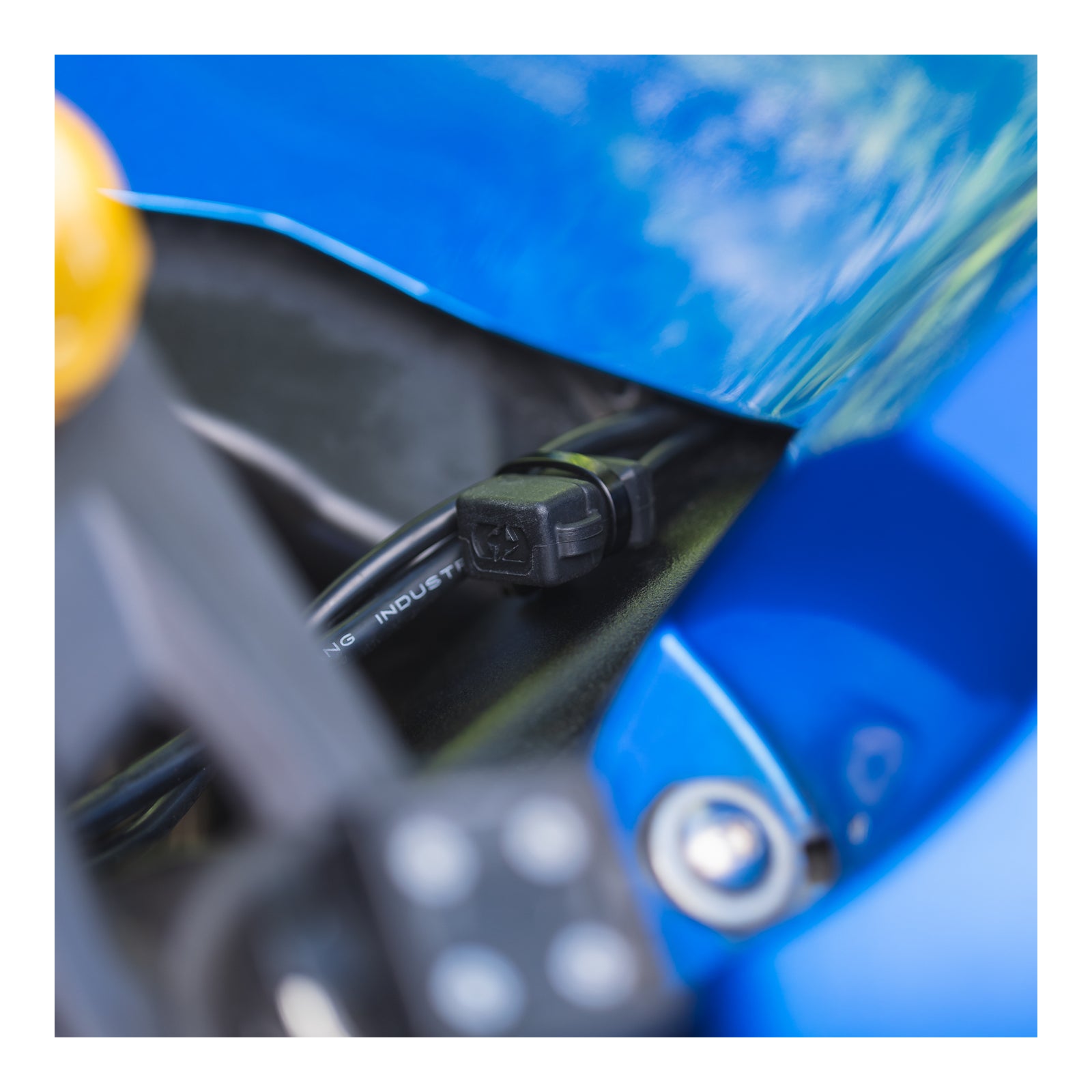

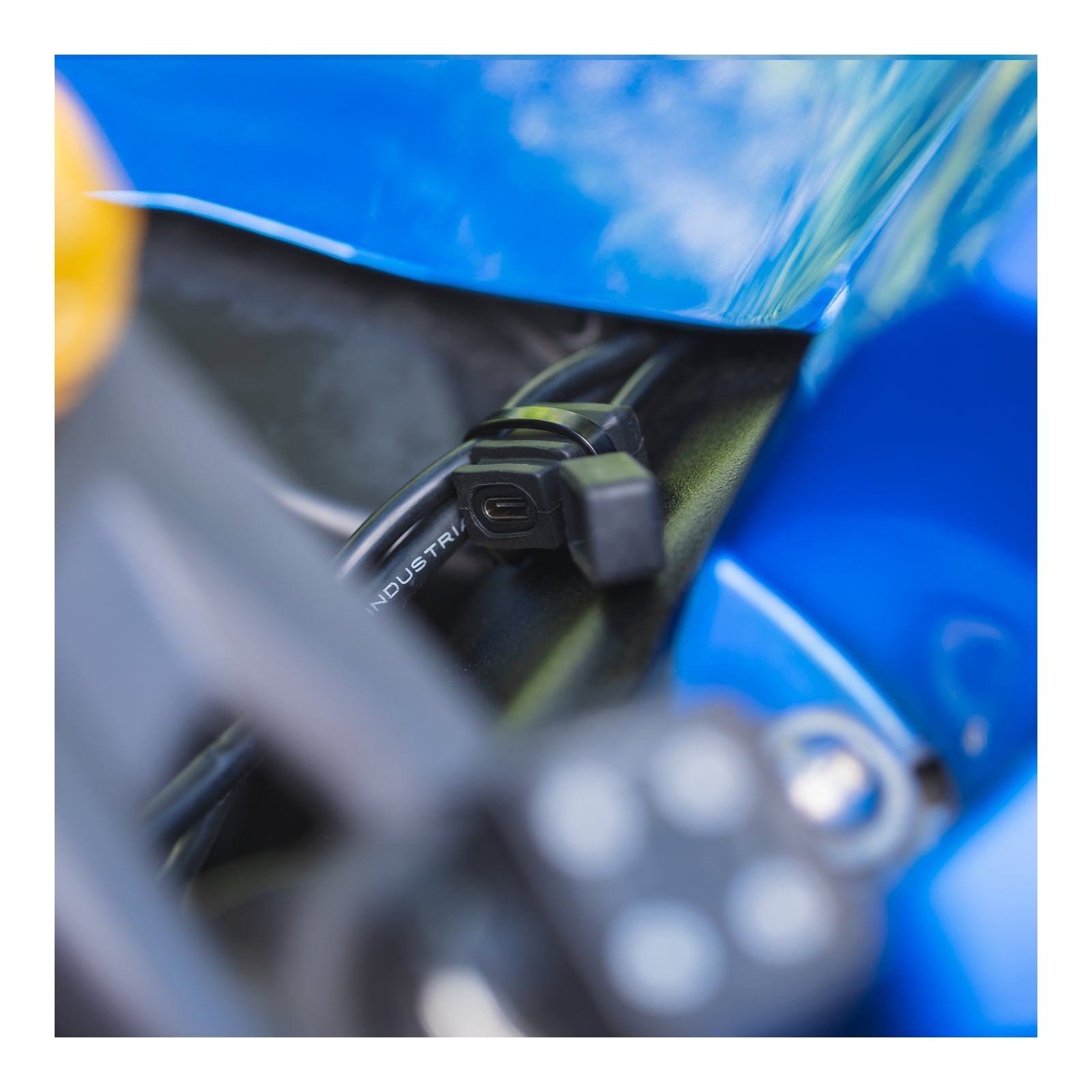

Mount the socket somewhere accessible and protected, then secure the 1.6 m lead with the supplied cable tie so it cannot chafe, stretch or contact hot or moving parts such as the exhaust, steering head or suspension.
Keep the silicone cap fitted whenever the socket is not in use — it is splash-resistant, not waterproof, so avoid direct high-pressure washing of the port.
Check the in-line fuse first if the socket stops delivering power, and replace it only with a fuse of the same rating.
Only connect devices that draw up to 3 Amps at 5V; higher-draw devices may not charge correctly.
Periodically inspect the ring terminals for corrosion and the lead for damage, chafing or loose routing, particularly after wet rides or off-road use.
Wipe the socket and cap with a soft damp cloth; do not use solvents or degreasers, and make sure the socket is dry before plugging in a cable.
Use a device-specific USB-C cable (not supplied) and unplug it before riding off if it could snag or pull on the socket.
