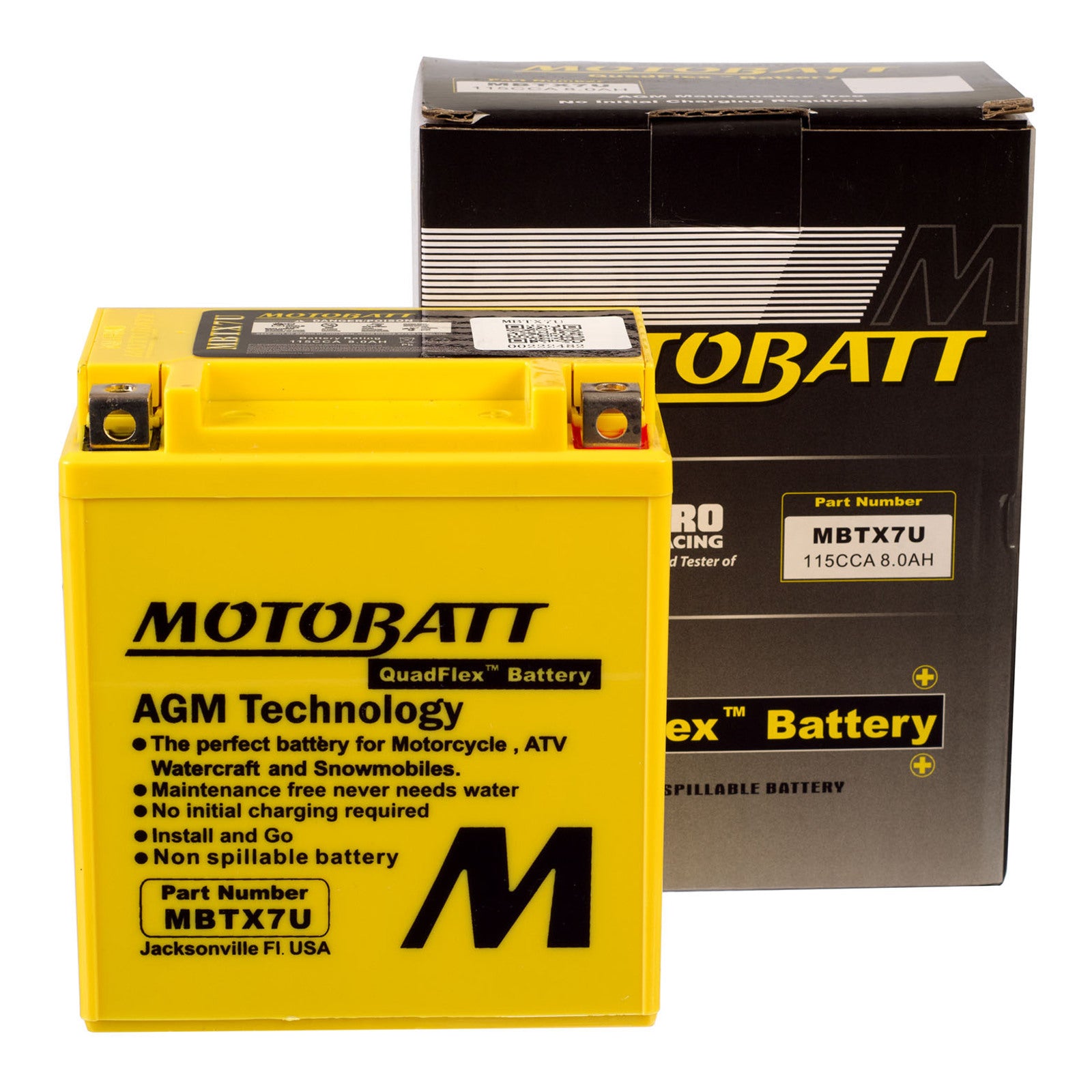

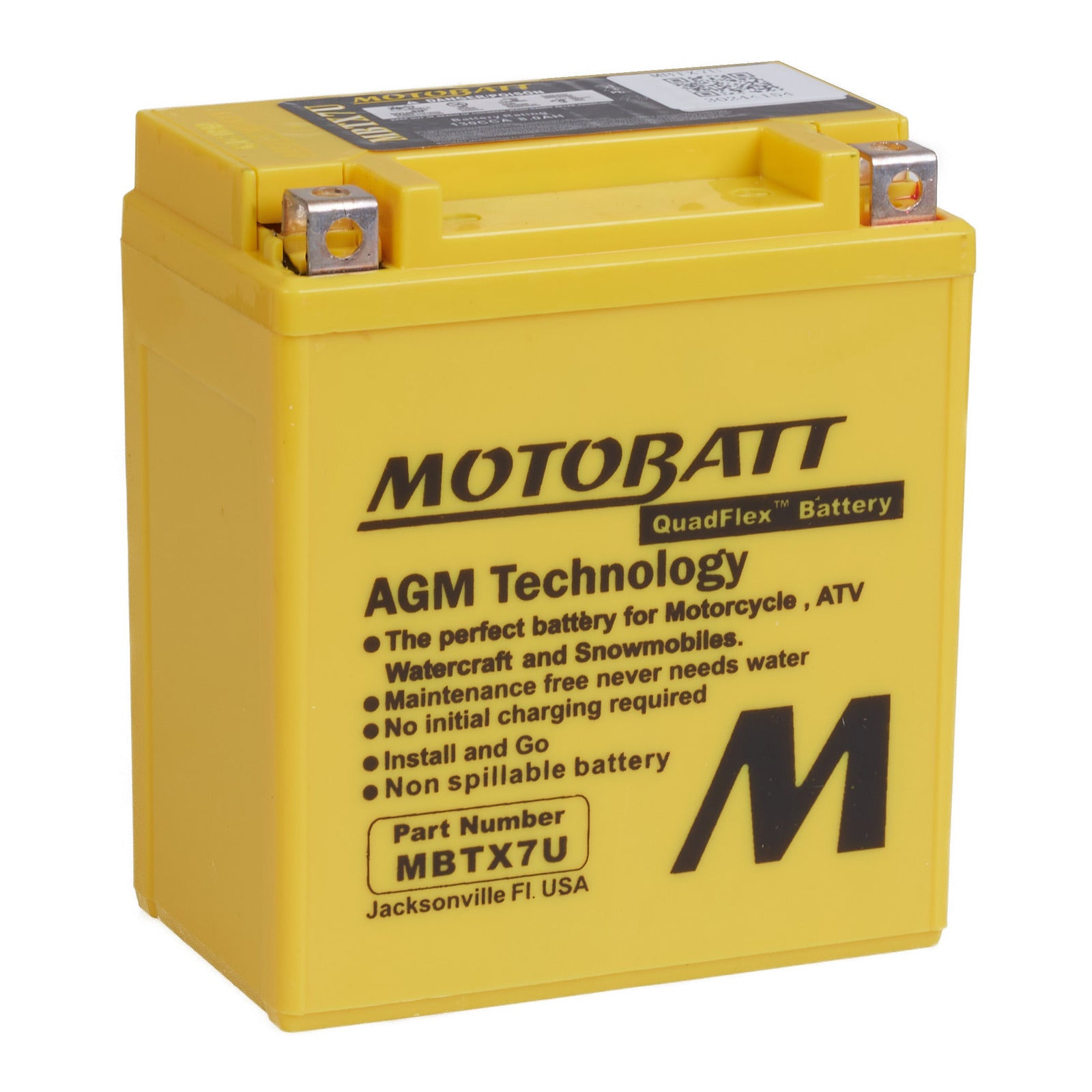

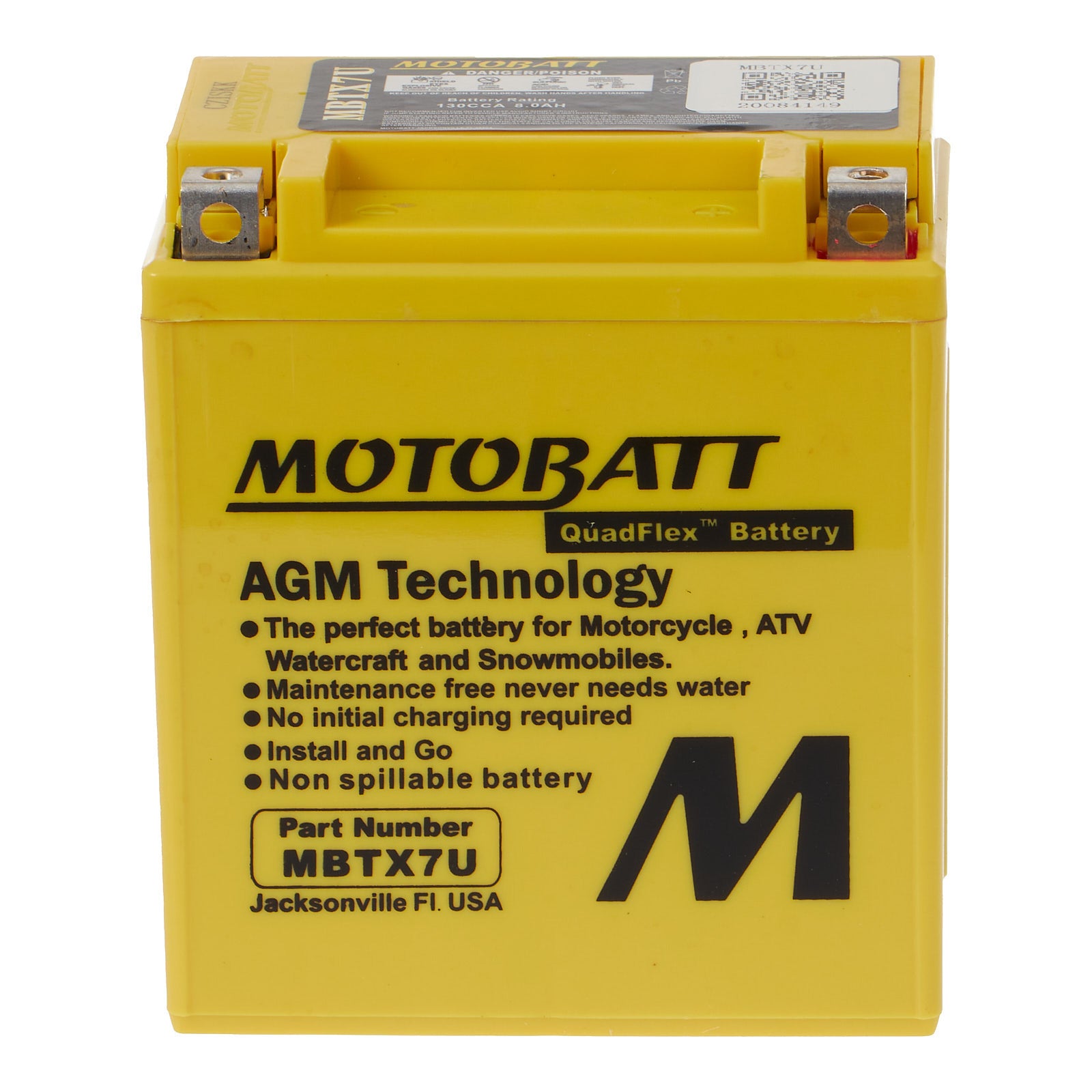

The Motobatt Quadflex MBTX7U is a sealed 12V AGM (Absorbed Glass Mat) powersports battery built for motorcycles, ATVs and small-engine machines that need strong, repeatable starting power. It arrives factory activated — pre-conditioned and fully charged — so there is no acid filling, no initial charging and no fluid top-ups.
Inside, each plate is wrapped in fibrous glass matting that absorbs the electrolyte and cushions the plates against vibration, a common cause of internal shorts and broken plate welds in conventional flooded batteries. AGM construction also brings a lower self-discharge rate and better tolerance of deeper discharge and recovery under alternator or maintenance charging.

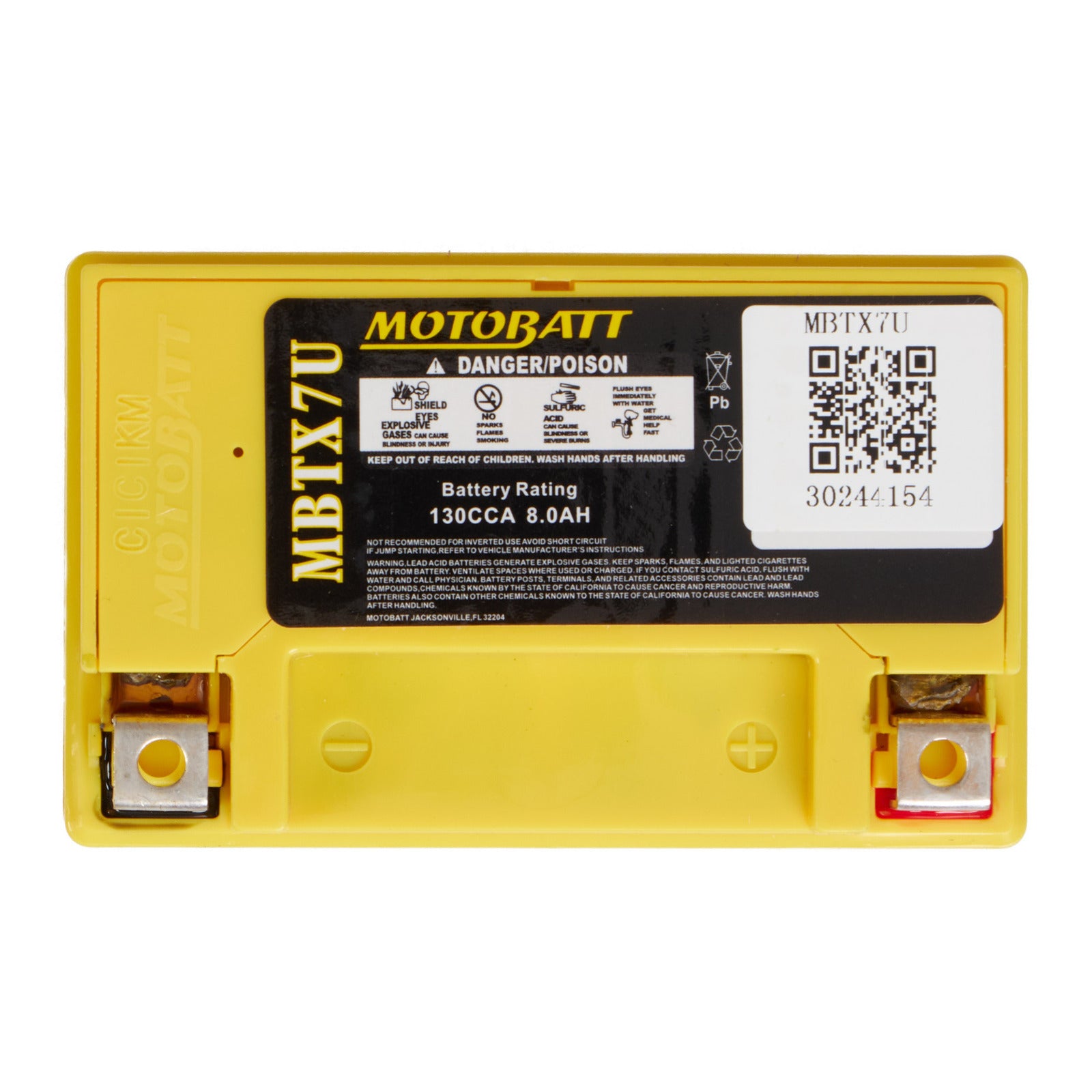

The patented Quadflex four-terminal layout (two positive, two negative) suits a wide range of fitments and makes connecting accessories straightforward. As a fully sealed, non-spill design it can be mounted in any position and shipped by courier.
- 12V AGM powersports battery, direct replacement for YTX7L-BS type fitments
- Patented Quadflex four-terminal design — two positive and two negative posts for multi-fit versatility
- 130A cold cranking amps (CCA), 190A marine cranking amps (MCA), 360A pulse hot cranking amps (PHCA)
- 8.5Ah at the C(20) rate, 8Ah at C(10)
- Factory activated — charged and ready to install straight from the box
- Maintenance free: no acid handling and no electrolyte top-ups
- Fully sealed and non-spill, so it can be mounted and transported in any position
- Absorbed Glass Mat plate separation resists vibration damage for longer service life
- Lower self-discharge rate than conventional flooded batteries
- Multiple terminals make accessory wiring easy without doubling up on a single post
- Contains no free liquid acid, so it can be sent by standard courier
- Motobatt MBTX7U Quadflex 12V AGM battery
- 2 x M5 x 2.5 terminal bolts (MPT1)
- 4 x M5 x 7 screws (2 x MPS1)
- 1 x 3 x 3 Allen wrench (MPAK1)
- 2 x 11 x 5.5 terminal caps (MPC1)
| Brand | Motobatt |
|---|---|
| Model | MBTX7U (Quadflex) |
| Type | Sealed AGM (Absorbed Glass Mat), factory activated, maintenance free |
| Voltage | 12V |
| Capacity C(10) | 8Ah |
| Capacity C(20) | 8.5Ah |
| Cold Cranking Amps (CCA) | 130A |
| Marine Cranking Amps (MCA) | 190A |
| Pulse Hot Cranking Amps (PHCA) | 360A |
| Dimensions (L x W x H) | 114 x 70 x 128mm (4.49 x 2.76 x 5.04in) |
| Weight | 2.6kg (5.73lb) |
| Terminal design | Quadflex four-terminal layout — two positive, two negative |
| Terminal hardware | 2 x M5 x 2.5 terminals (MPT1); 4 x M5 x 7 screws (2 x MPS1); 2 x 11 x 5.5 terminal caps (MPC1) |
| Tool included | 1 x 3 x 3 Allen wrench (MPAK1) |
| Height spacer | None supplied with this model |
| Mounting orientation | Any position — fully sealed, non-spill |
| Transport | Courier-friendly; contains no free liquid acid |
- No activation or initial charge is required — the battery is factory activated and ships fully charged, so it can be installed straight from the box.
- Check the terminal layout against your bike's leads before fitting; the Quadflex design gives two positive and two negative posts, so choose the pair that best suits your cable routing.
- Use the supplied M5 hardware and the included Allen wrench. Tighten terminal screws firmly but do not overtighten, as the threads are in the lead terminals.
- Fit the supplied terminal caps over any unused posts to prevent accidental shorting against the frame or seat pan.
- Disconnect the negative lead first when removing the battery and reconnect it last when fitting, to reduce the risk of shorting a spanner to earth.
- Do not attempt to open the battery, remove the sealed caps or add acid or water — it is a sealed maintenance-free AGM unit.
- Charge only with a charger or maintainer that has an AGM setting. Avoid high-current or unregulated automotive chargers, which can damage sealed AGM cells.
- If the bike is stored or ridden infrequently, keep the battery on a suitable AGM maintenance charger or top it up periodically; AGM self-discharges slowly but will still flatten over long periods.
- Store the battery in a cool, dry place, upright and away from direct heat sources, and keep the terminals clean and dry.
- Wipe the case with a dry or lightly damp cloth only; avoid solvents and do not hose the battery or its terminals.
- Recycle the battery through an approved lead-acid battery collection point at end of life — do not place it in general waste.
