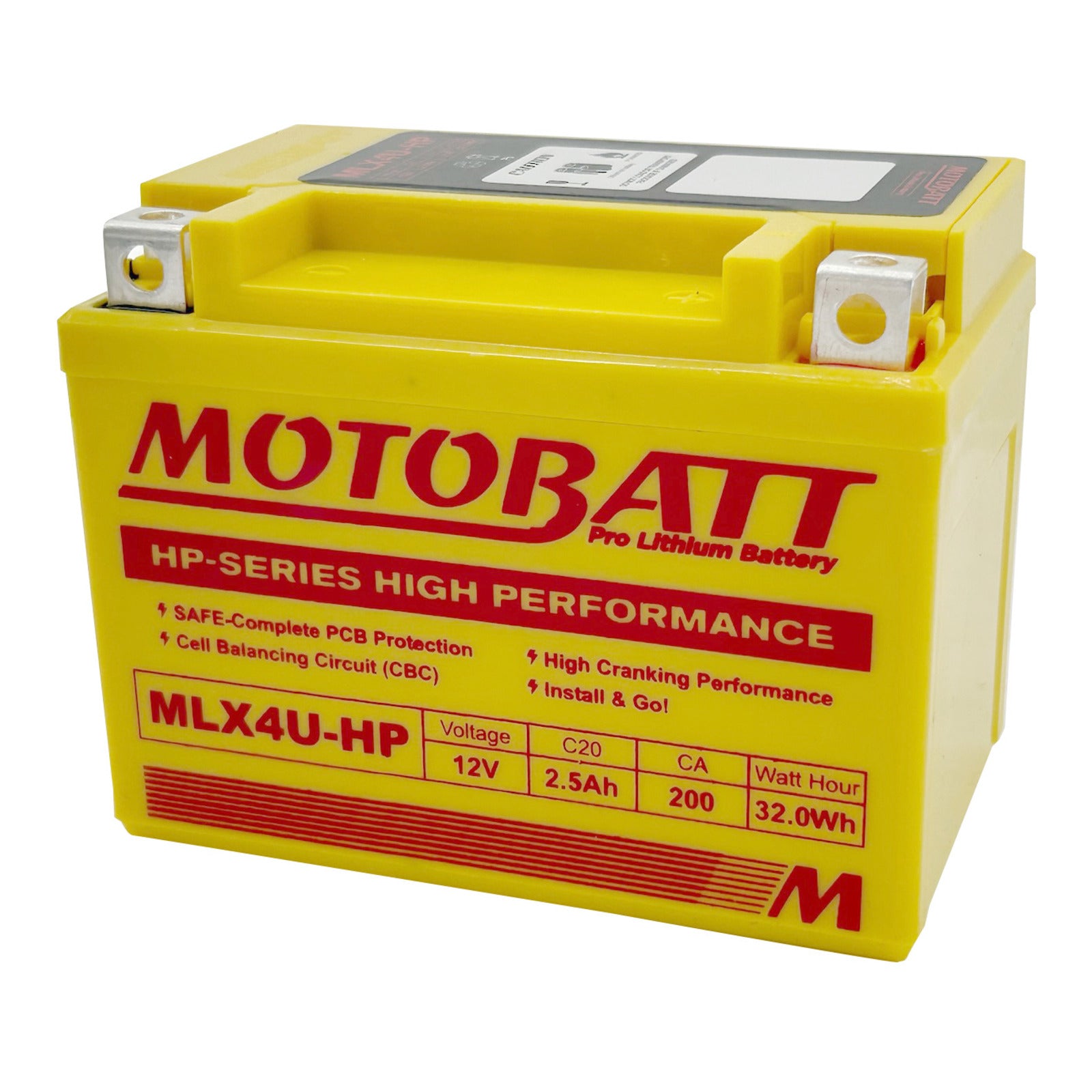

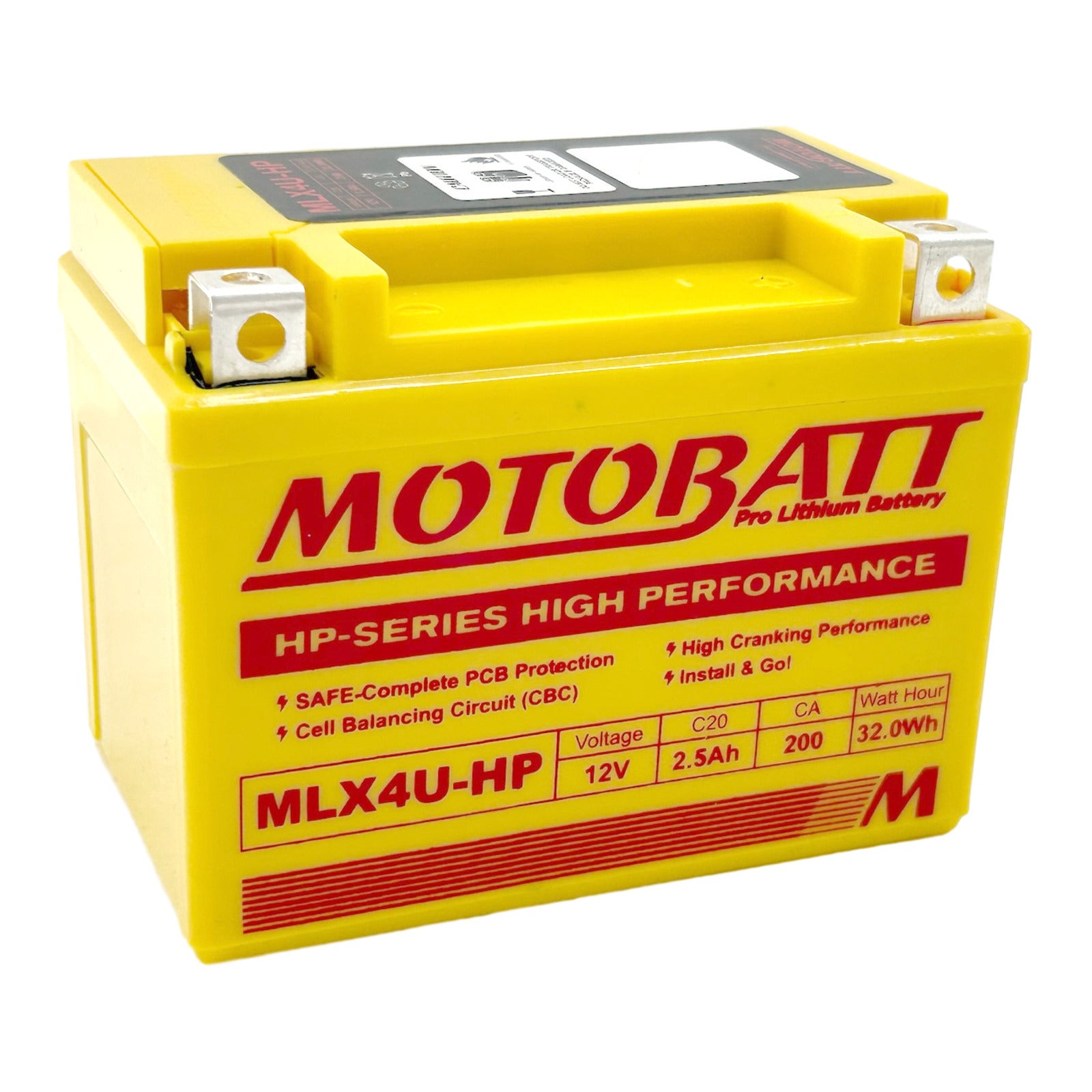

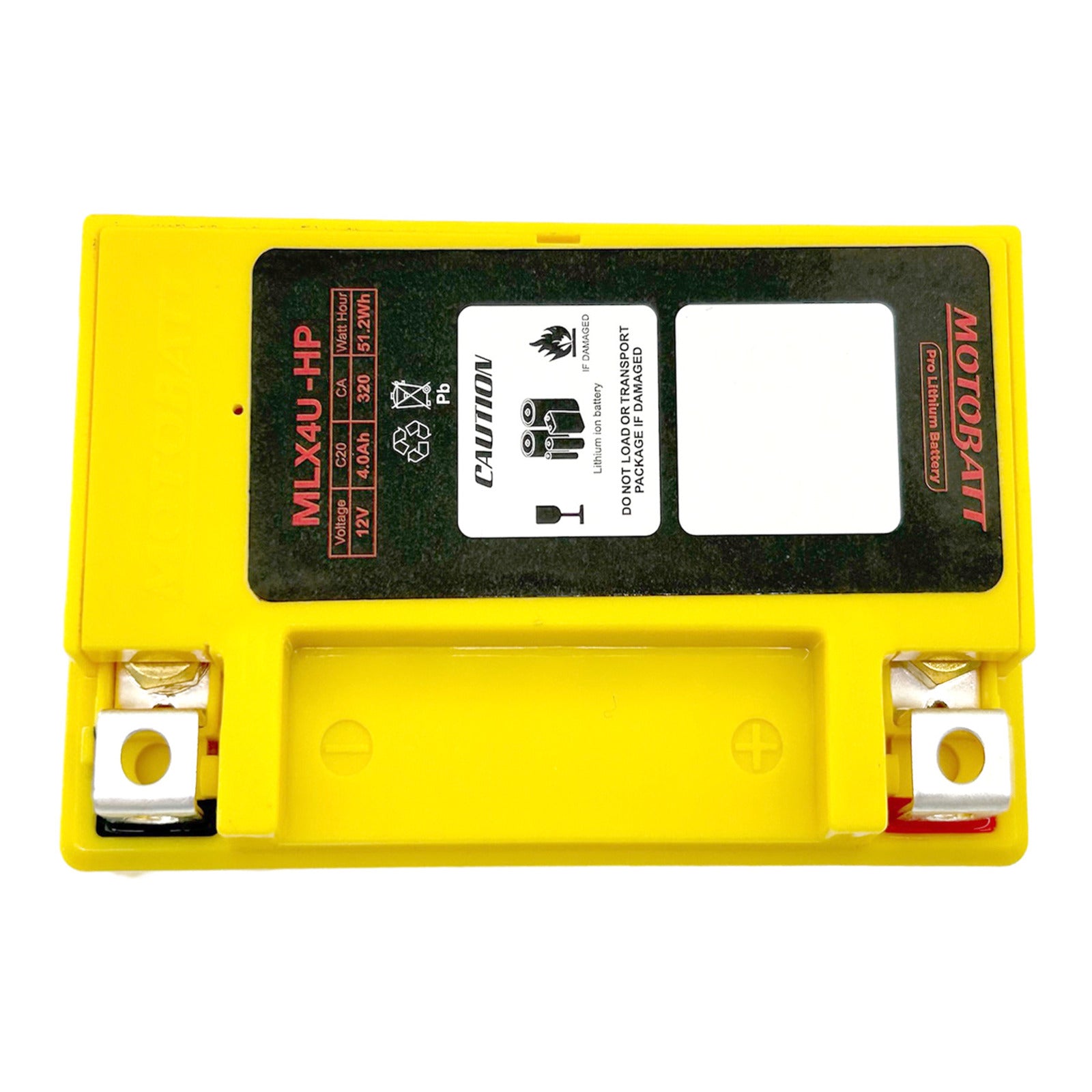

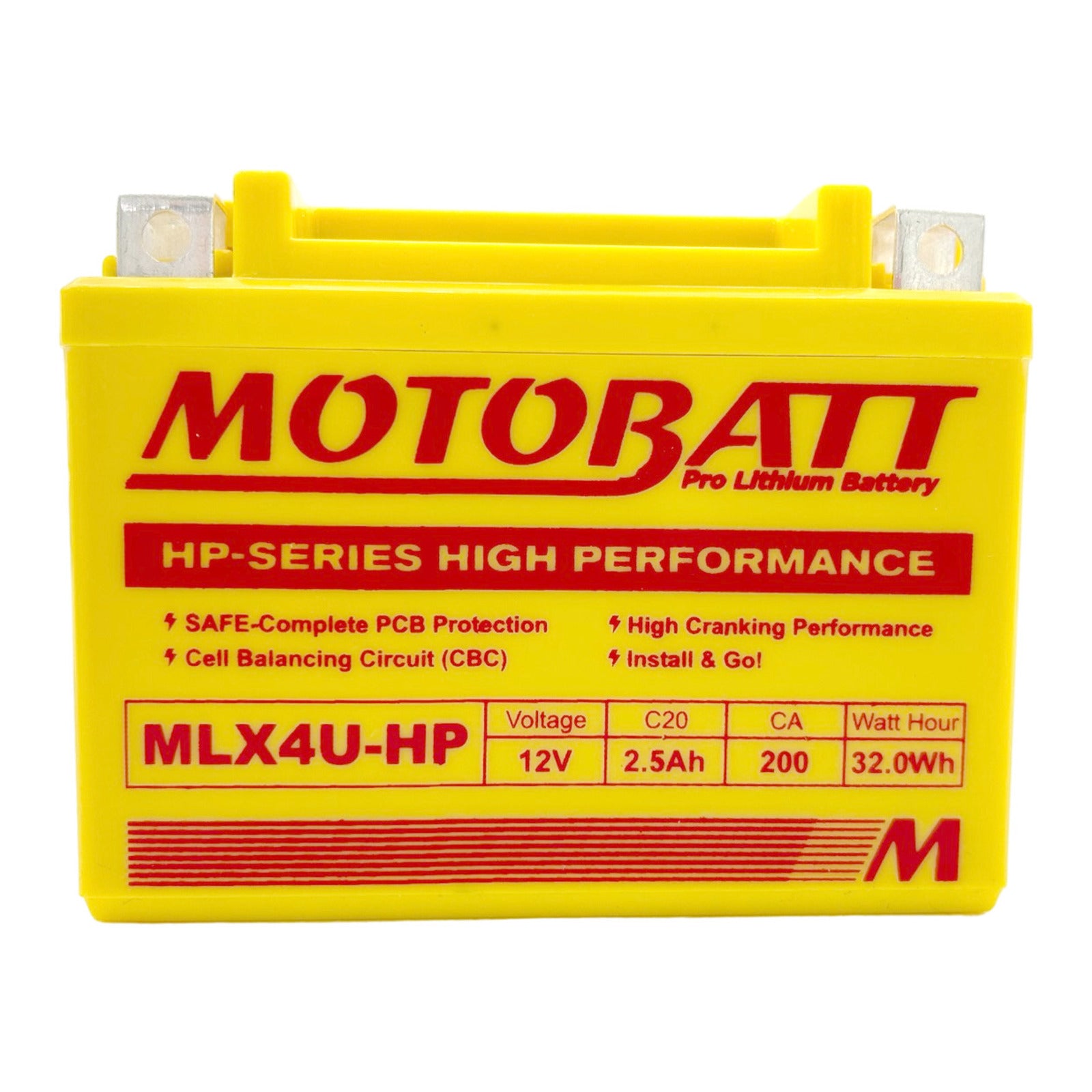

The Motobatt Pro Lithium MLX4U-HP is a high-performance 12V lithium starting battery built as a direct upgrade path from small-case lead-acid batteries. It weighs around a third of a comparable lead-acid unit yet delivers stronger cranking current, which makes it a popular choice for race bikes, track machines and lightweight road and off-road motorcycles where every kilogram counts.
Very low idle self-discharge means the battery can hold useful charge after more than a year sitting idle, and it recharges quickly compared with lead-acid. Motobatt rates the Pro Lithium range at over 2000 cycles, against roughly 500 for a typical lead-acid battery. The HP-Series adds Motobatt's Protection Circuit Board alongside their Cell Balancing Circuit for closer control of charge and discharge.
Important: this is a dedicated starting battery. It is not suited to bikes with a constant parasitic drain such as heated grips, alarms or clocks, and it must only be charged with a lithium-compatible charger.
- Around 3x lighter than an equivalent lead-acid battery
- 2.5 Ah capacity with 200 CA cranking output
- Rated for over 2000 cycles, compared with around 500 for lead-acid
- Very low idle discharge — retains charge after more than a year of inactivity
- Fast recharge, reaching up to 90% charge in a short charging period
- Over-charge protection triggers at 15.6V pack voltage or 3.90V on any individual cell
- Over-discharge protection triggers below 8.0V held for more than 7 seconds
- Cell Balancing Circuit (CBC) built into the battery, not just the charger, for constant charge/discharge control
- Protection Circuit Board (PCB) exclusive to the HP-Series, reducing the risk of thermal runaway and premature failure
- Can be recharged after being run flat below 10V thanks to CBC technology
- Quadflex fitment covers MBTX4U and MBTZ7S applications
- Supplied with an EVA spacer option to raise case height from 87mm to 107mm for a snug tray fit
- Direct replacement for YTX4L-BS, YT4L-BS, YTZ5S-BS, YB4L-A, YB4L-B, YTX5L-BS, YTZ6S and YTZ7S
| Brand | Motobatt |
|---|---|
| Model | MLX4U-HP (Pro Lithium HP-Series) |
| Type | Lithium motorcycle starting battery |
| Voltage | 12V |
| Capacity | 2.5 Ah |
| Cranking Amps (CA) | 200 |
| Dimensions (L x W x H) | 114 x 70 x 87 mm; 114 x 70 x 107 mm with EVA 2 spacer |
| Cycle Life | Over 2000 cycles |
| Over-charge Protection | Activates at 15.6V pack voltage or 3.90V on any individual cell |
| Over-discharge Protection | Activates below 8.0V for longer than 7 seconds |
| Safety Technology | Cell Balancing Circuit (CBC) and Protection Circuit Board (PCB) |
| Quadflex Fitment | MBTX4U, MBTZ7S |
| Replaces | YTX4L-BS, YT4L-BS, YTZ5S-BS, YB4L-A, YB4L-B, YTX5L-BS, YTZ6S, YTZ7S |
| Box Quantity | 10 |
| SKU | MBLX4UHP23 |
- Only ever charge with a charger designed for lithium motorcycle batteries — using a lead-acid or desulphating charger will void the warranty and can damage the battery.
- Motobatt recommends Tech 1 or Fat Boy chargers to maintain the battery and get the best performance and service life.
- Do not fit to a motorcycle with a constant parasitic drain (alarms, clocks, heated grips, accessory sockets); this is a starting battery only.
- If the bike is left standing, disconnect the battery or check the voltage periodically rather than leaving accessories drawing on it.
- Use the supplied EVA spacer to pack the battery out to 107mm case height where the tray is sized for a taller battery, so the unit cannot move or vibrate in the tray.
- Check terminal bolts are clean and correctly torqued at fitment, and make sure terminals cannot contact the frame or seat base.
- A battery run flat below 10V can generally be recovered on a lithium charger, but repeated or aggressive deep discharging will reduce capacity and rechargeability.
- Store off the bike in a cool, dry place; the low self-discharge rate means it will hold charge over long layups, but check and top up the charge before returning to service.
- Keep the case dry and free of fuel, solvents and cleaning chemicals — wipe with a damp cloth only.
- Do not open, puncture, drop or expose the battery to fire or extreme heat; replace it if the case is cracked, swollen or damaged.
