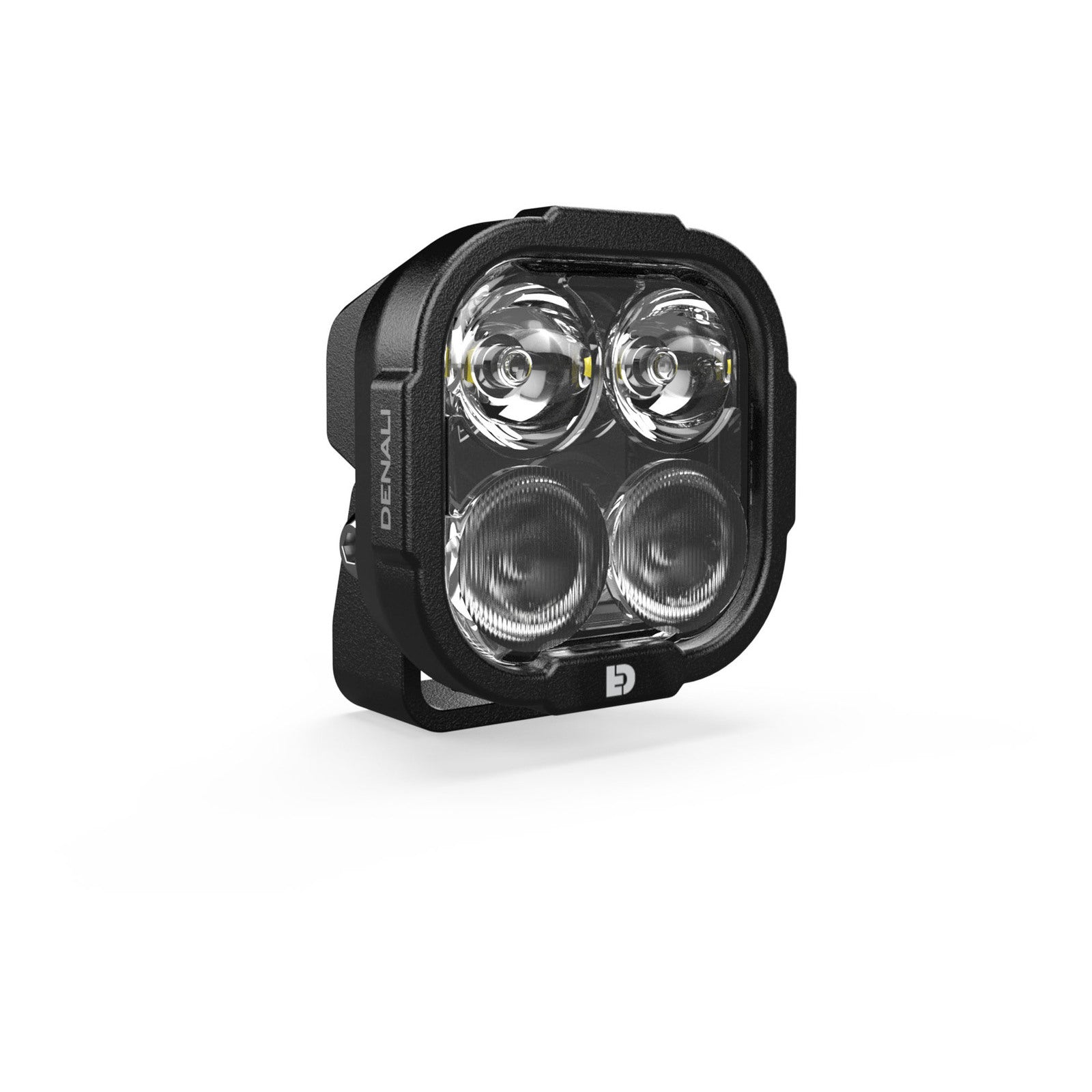

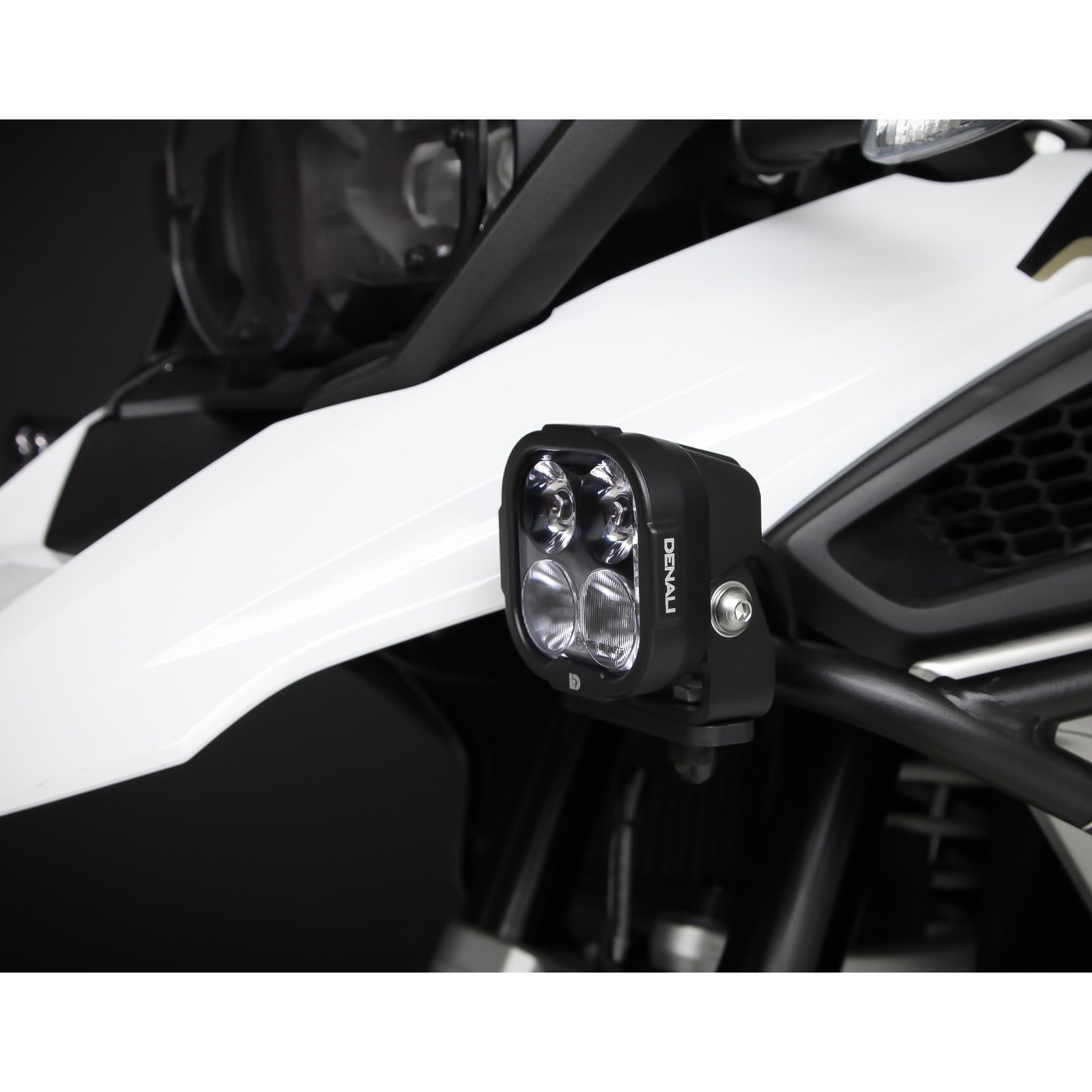

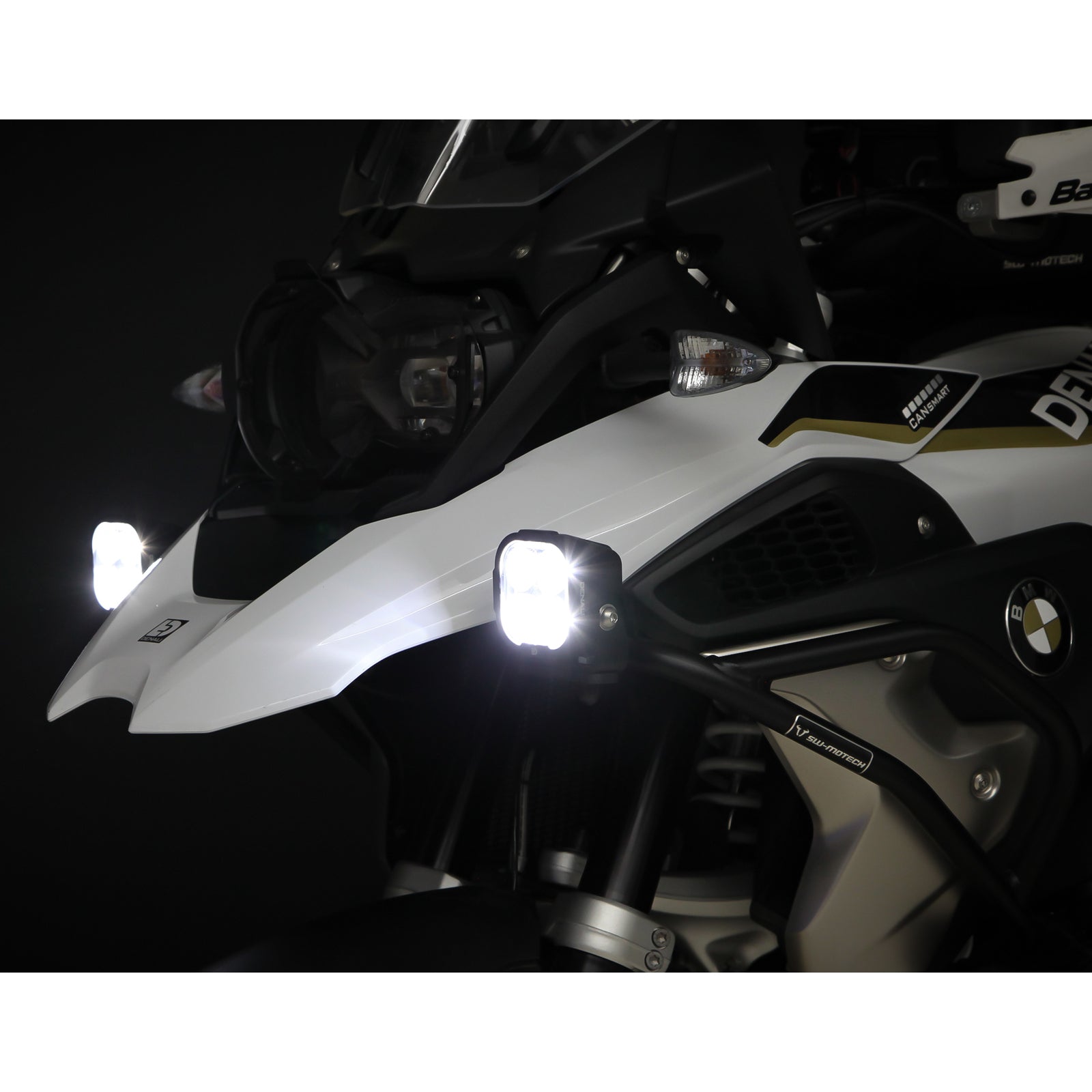

The Denali DL4 is a compact 4-LED auxiliary driving light built around a single-piece TIR optic and a robotically sealed housing. Its elliptical hybrid beam blends genuine long-range reach with useful spread, so you get distance without the tunnel vision of a pure spot. At 3,400 raw lumens from a 3-inch square pod, it is designed to work as a primary auxiliary driving light on small to medium capacity bikes, and it is light and compact enough to sit on the lower fender or crash bars of a larger adventure machine.
Denali's DataDim wiring means the DL4 is plug-and-play with the brand's harnesses, the DialDim controller and CANsmart controllers, so you can sync dimming to your factory high beam rather than running a single fixed intensity. DrySeal construction with an internally potted cable entry gives IP68 and IP69K sealing, and the powder-coated steel bracketry and UV-hardened polycarbonate lens are made to survive corrugations, washdowns and years of weather.
Supplied as a light pod with mounting hardware and pigtail. A Denali harness or lighting controller is required to complete the installation and is sold separately.
- Cree XP-L HI LEDs driven at 8W each — 32W and 3,400 raw lumens per pod
- Elliptical hybrid driving beam: 250 m of usable distance and 48 m of width per pod
- Oversized single-piece TIR optic distributes light more efficiently than a reflector
- DataDim 3-wire DT connector for plug-and-play dimming with Denali harnesses, DialDim and CANsmart controllers
- DrySeal sealed-beam construction with internally potted cable entry
- IP68 and IP69K rated — submersible and high-pressure wash safe
- 4mm powder-coated steel brackets and UV-hardened polycarbonate lens, rated to 21 grms vibration
- ECE R149 certified driving beam for use as a primary or auxiliary high beam
- EMC compliant to R10 and CISPR 25, with CE and UKCA marking
- Wide 9–32 VDC operating range at 2.7A draw per pod
- 6000K white light output
- Compact 3" × 3" × 2" pod weighing 1.2 lb (approx. 0.54 kg)
- Light pod with mounting hardware
- 3-wire DataDim-compatible pigtail
| Brand | Denali |
|---|---|
| Model | DL4 |
| Type | LED auxiliary driving light pod, elliptical hybrid beam |
| SKU | DEDNLDL4050W |
| LEDs | Cree XP-L HI, 8W each |
| Power | 32W single / 64W pair |
| Current draw | 2.7A single / 5.4A pair |
| Raw lumens | 3,400 single / 6,800 pair |
| Beam distance | 250 m (820 ft) single / 333 m (1,091 ft) pair |
| Beam width | 48 m (157 ft) single / 64 m (209 ft) pair |
| Colour temperature | 6000K |
| Colourway | White lens / white beam |
| Operating voltage | 9–32 VDC |
| Connector | DataDim-compatible 3-wire DT |
| Dimensions | 3" × 3" square × 2" deep per pod |
| Weight | 1.2 lb single / 2.4 lb pair |
| Materials | 4mm powder-coated steel brackets, UV-hardened polycarbonate lens, alloy heatsink |
| Ingress protection | IP68 and IP69K — waterproof, submersible, high-pressure spray |
| Vibration rating | 21 grms |
| Beam certification | ECE R149 driving beam (auxiliary high beam) |
| EMC compliance | R10, CISPR 25, CE, UKCA |
| Compatibility | Plug-and-play with Denali harnesses, DataDim module, DialDim and CANsmart controllers; not compatible with Denali fender mount LAH.00.10700.B |
- Mount the pod to a rigid point such as a crash bar, light bar or lower fender bracket using the supplied 4mm steel bracketry — avoid fairing panels or plastics that flex and amplify vibration.
- The DL4 requires a Denali harness or lighting controller (sold separately) to operate; plug the 3-wire DT pigtail into DataDim-compatible wiring if you want dimming synced to your factory high beam.
- Wire to a circuit that suits the load — 2.7A per pod at 12V, within a 9–32 VDC supply range — and route cabling away from steering stops, exhausts and suspension travel, leaving a service loop at the pod.
- Aim the beam with the bike upright on level ground before riding at night, then re-check aim after any crash, drop or bracket adjustment.
- When used on public roads, run the pod as an auxiliary high beam only and confirm your state or territory's rules on auxiliary driving lights before fitting.
- Clean the lens with warm water, mild detergent and a soft cloth. Do not use solvents, fuel, degreasers or abrasive pads on the UV-hardened polycarbonate lens.
- The pod is IP68 and IP69K sealed, so pressure washing and water crossings are fine, but avoid directing a high-pressure jet straight at the connector join and make sure connectors are fully seated and latched.
- Periodically check bracket and mounting bolts for tightness, especially after corrugated or off-road riding, and inspect the pigtail for chafe points.
- The housing is a sealed, potted assembly — do not attempt to open it, replace the lens or service the LEDs internally.
- If output flickers or the light stops dimming correctly, check the DataDim wire and connector pins first rather than the pod itself.
