XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48

XAM | SKU: XSKRDS340X

XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48

$172.95
$184.70
$172.95

Best price guarantee

Found it cheaper? Call us and we'll match it.
Subtotal: $172.95
🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–3 days.

Explore related collections:

  • ➔ XAM (716 products)
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48

XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48

$184.70 $172.95
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48
XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48

XAM Sprocket Kit Suzuki GSX650F '08-'13 X-Ring 15/48

$184.70 $172.95

A complete drive replacement kit from XAM for the Suzuki GSX650F (2008-2013), pairing an X-ring chain with matched front and rear sprockets in a 15/48 tooth combination. It's a cost-effective alternative to buying OEM parts separately, and is built to meet or exceed original equipment specifications.

Suited to riders replacing a worn or stretched drive train as part of routine maintenance, where fitting a new chain and both sprockets together is the correct approach. The sprockets are cut from C49 high-carbon steel for durability under road use, and the X-ring chain seals its lubrication in for longer service life between adjustments.

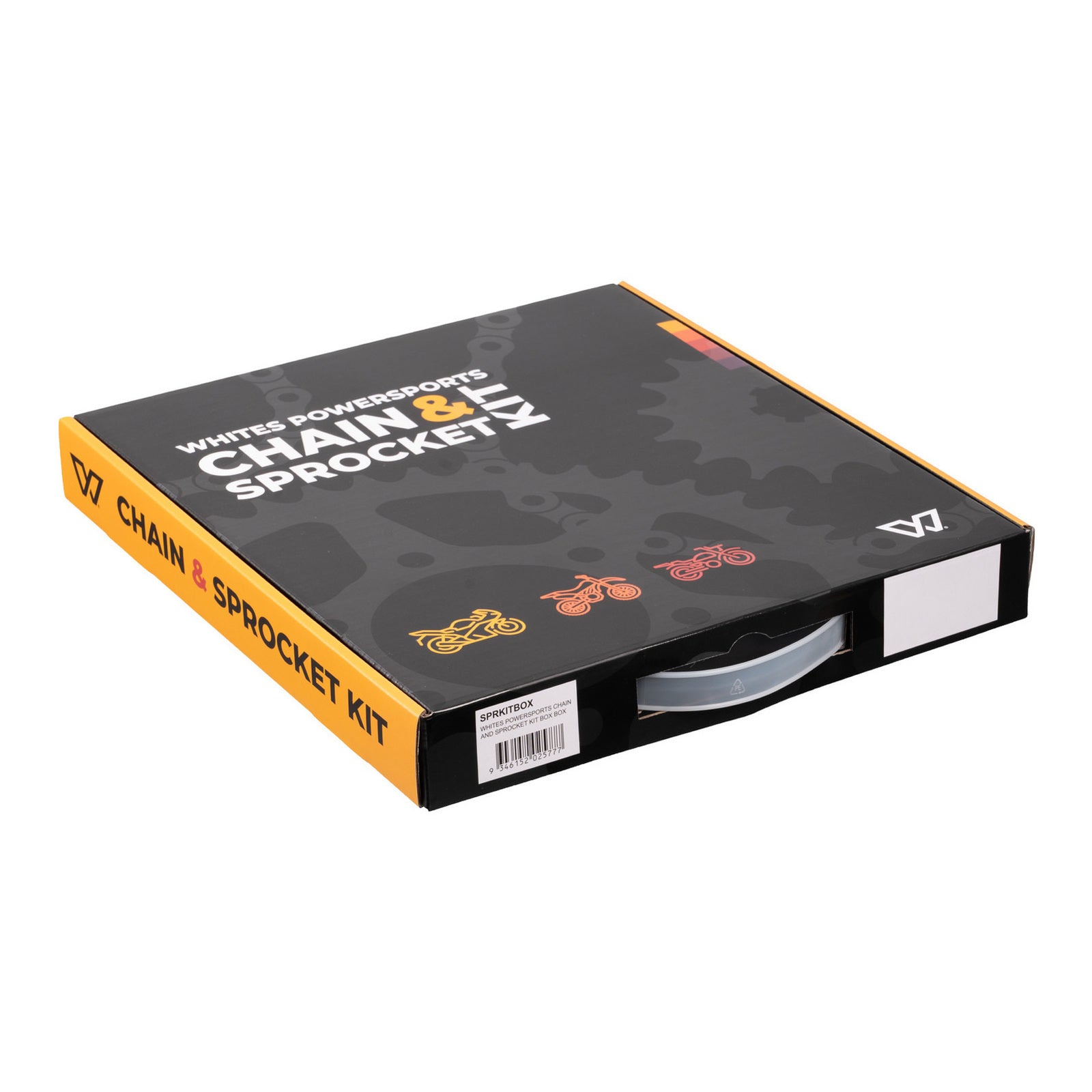

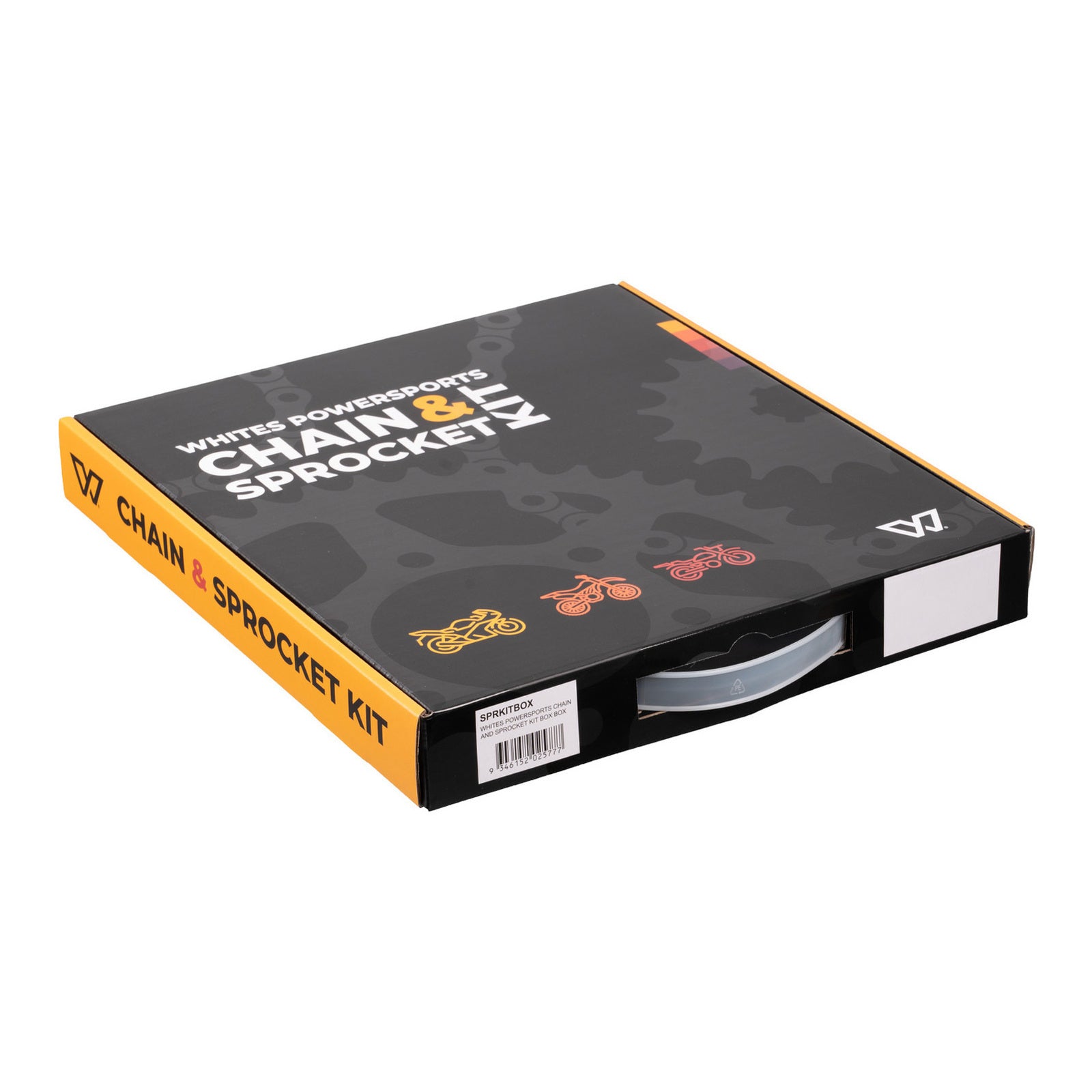

Supplied in retail packaging with a carry handle, so the kit is easy to transport from the counter to the workshop.

  • Complete kit: X-ring chain plus front and rear sprockets for the Suzuki GSX650F 2008-2013
  • 15-tooth front and 48-tooth rear sprocket combination
  • 525 pitch chain, 118 links
  • Sprockets machined from C49 high-carbon steel
  • X-ring chain design retains factory lubrication between the plates
  • Designed to meet or exceed OEM specifications
  • More economical than sourcing OEM chain and sprockets individually
  • Supplied in retail packaging with a carry handle

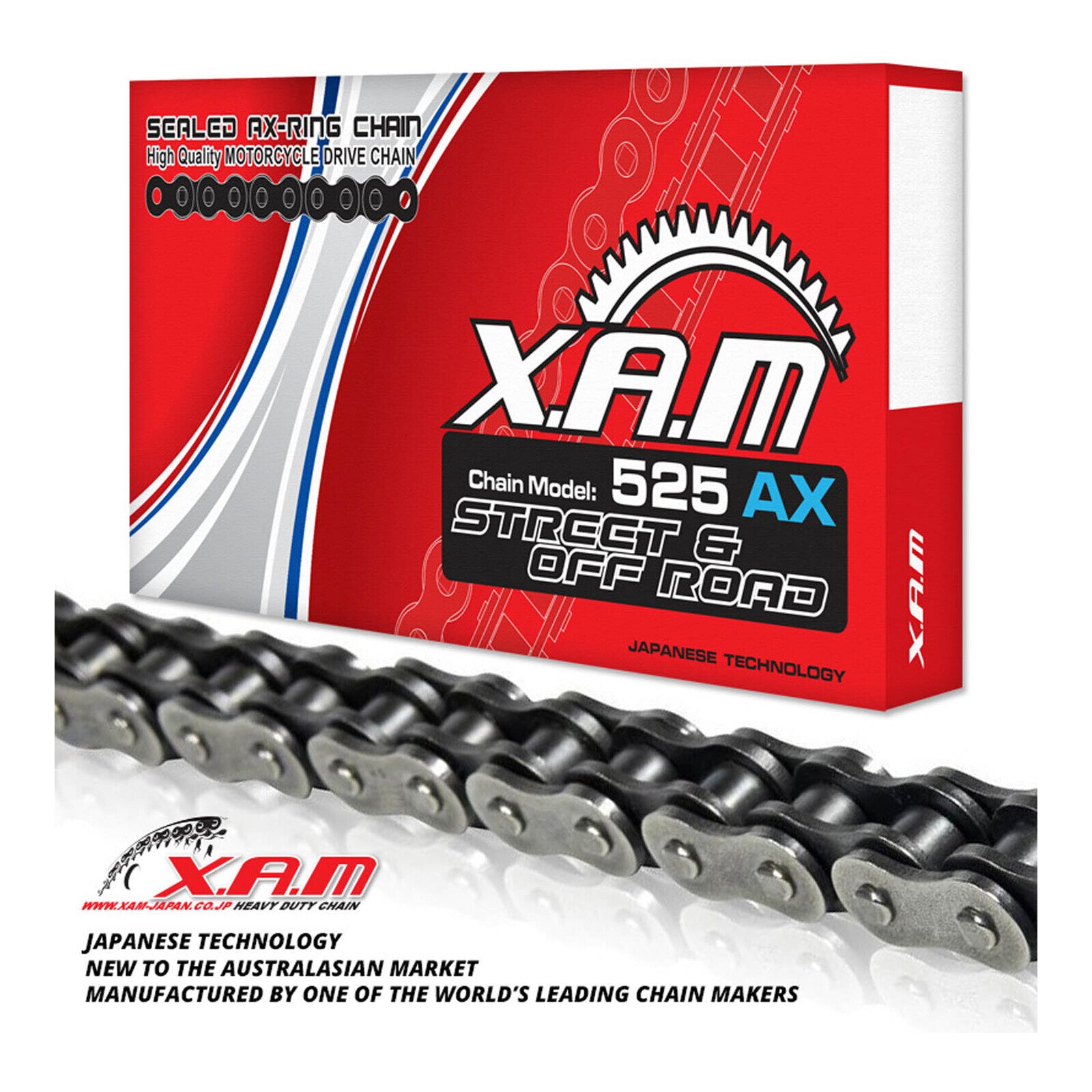

  • XAM X-ring drive chain

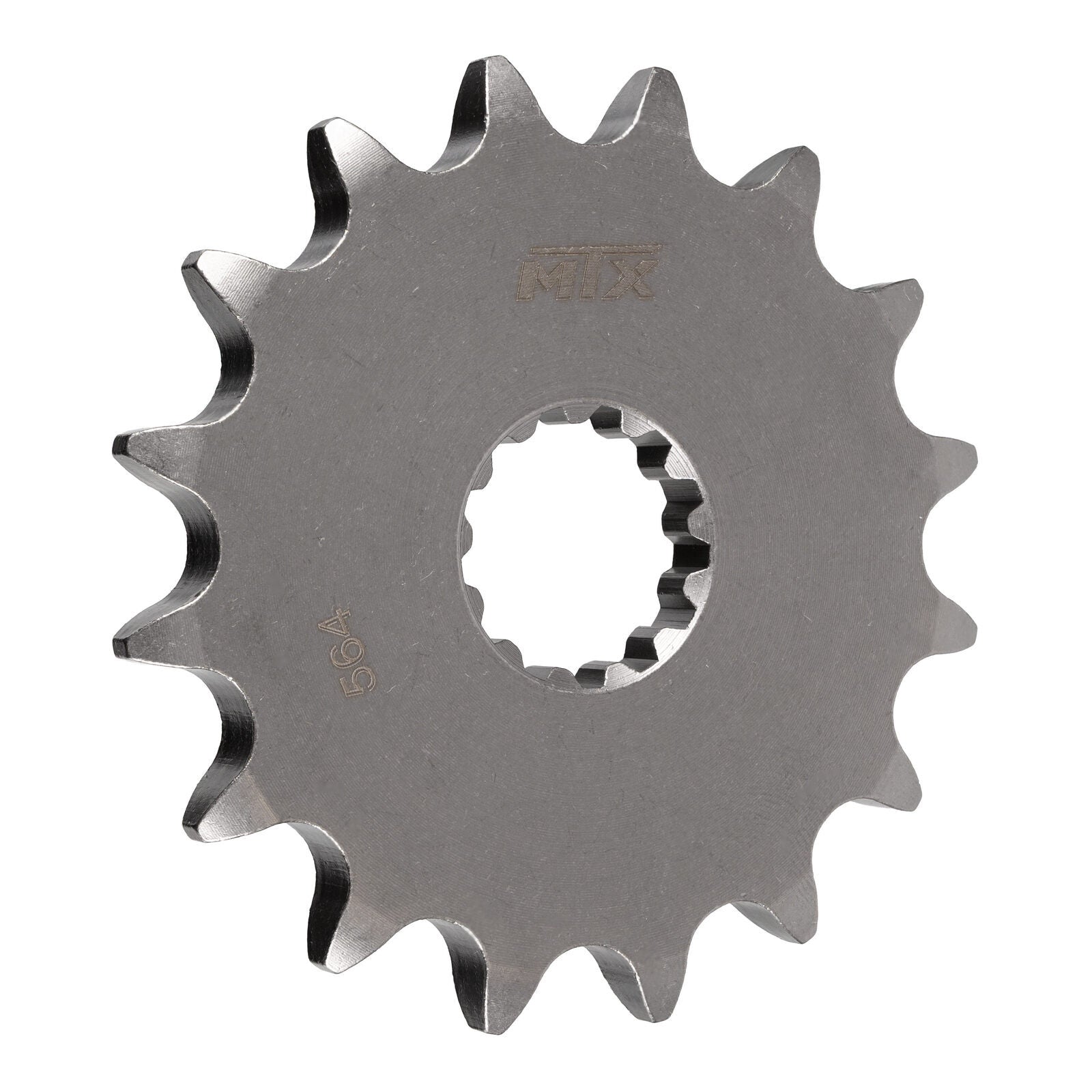

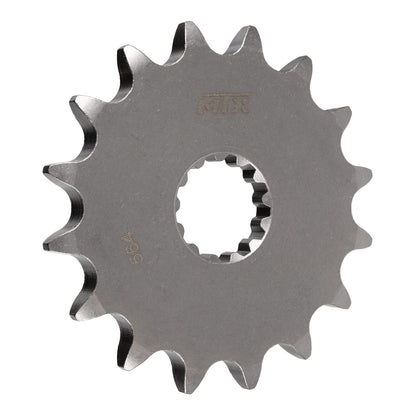

  • Front sprocket (15 tooth)

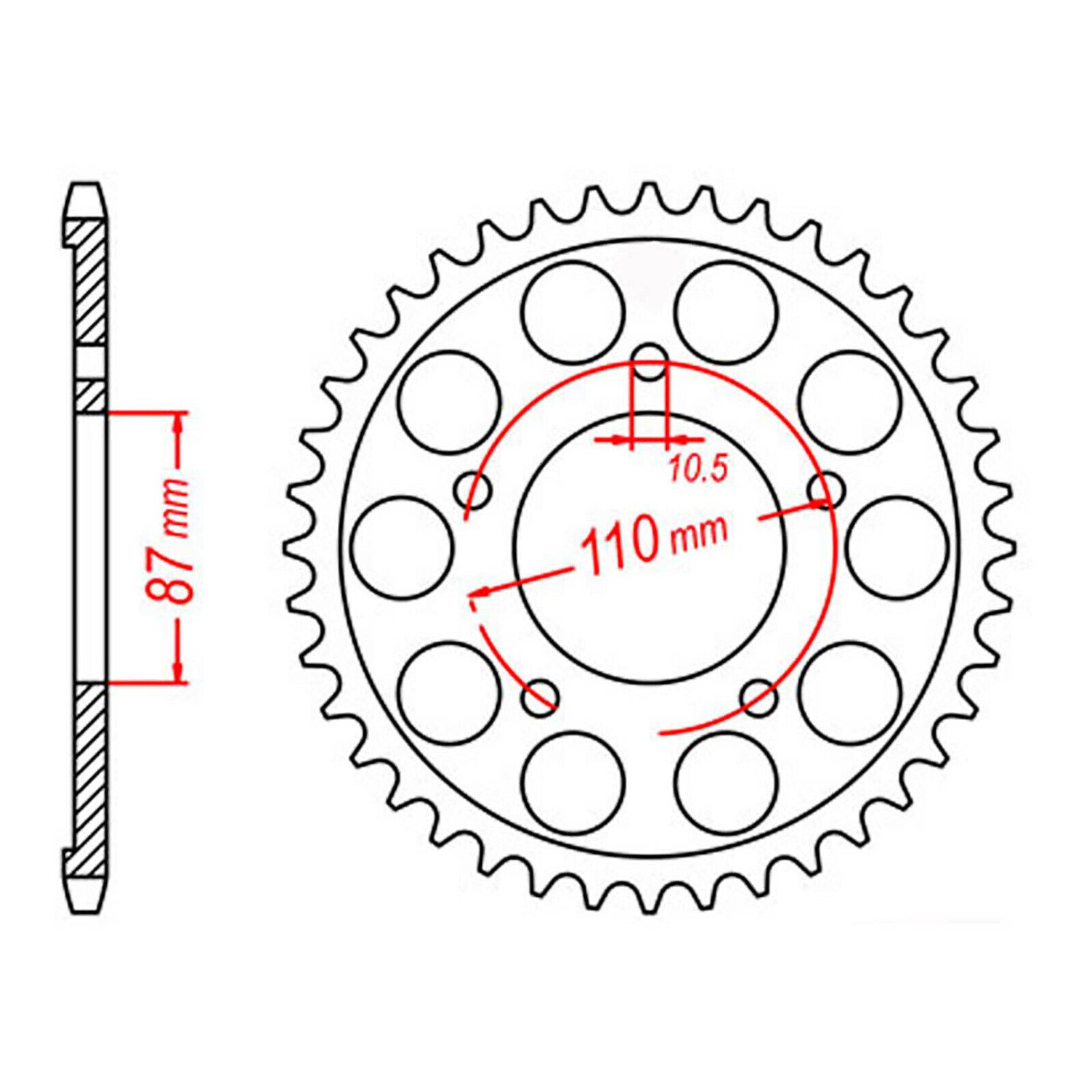

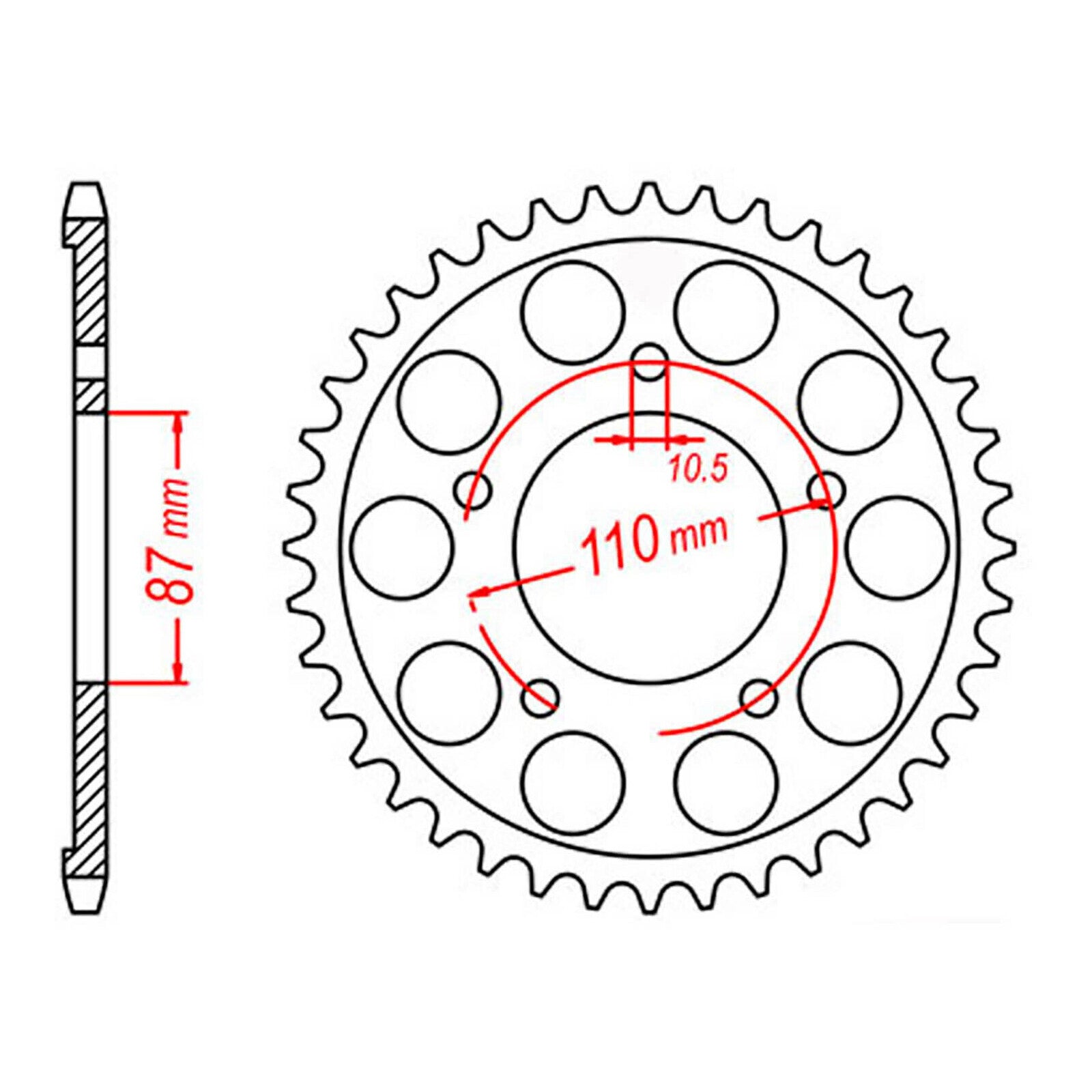

  • Rear sprocket (48 tooth)
BrandXAM
Part NumberXSKRDS340X
TypeChain and sprocket kit
FitmentSuzuki GSX650F 2008-2013
Chain TypeX-ring
Chain Pitch525
Chain Links118
Front Sprocket15 tooth
Rear Sprocket48 tooth
Sprocket MaterialC49 high-carbon steel
PackagingRetail box with carry handle
  • Replace the chain and both sprockets as a set — fitting a new chain to worn sprockets, or worn sprockets to a new chain, accelerates wear on both.
  • Have the kit fitted by a qualified mechanic if you are not equipped to rivet or fit the joining link correctly and check wheel alignment.
  • Set chain slack and rear wheel alignment to the figures in your Suzuki GSX650F service manual, and re-check slack after the first ride or two while the chain beds in.
  • Lubricate the chain regularly with a chain lubricant rated as safe for O-ring and X-ring chains, ideally while the chain is still warm after a ride.
  • Clean the chain with a dedicated chain cleaner or kerosene and a soft brush; avoid petrol, harsh solvents, wire brushes and high-pressure washers, which damage the X-ring seals.
  • Re-lubricate after riding in rain or washing the bike, and dry the chain before applying lubricant.
  • Inspect regularly for tight or kinked links, damaged rings, hooked or chipped sprocket teeth and loose sprocket fasteners; torque sprocket bolts and nuts to the manufacturer's specifications.
  • If the chain cannot be adjusted within the swingarm's marked adjustment range, or shows uneven slack as the wheel rotates, replace the drive set rather than over-tightening it.
  • Store spare chain and sprockets in a dry place and keep the chain lightly oiled to prevent surface corrosion.
