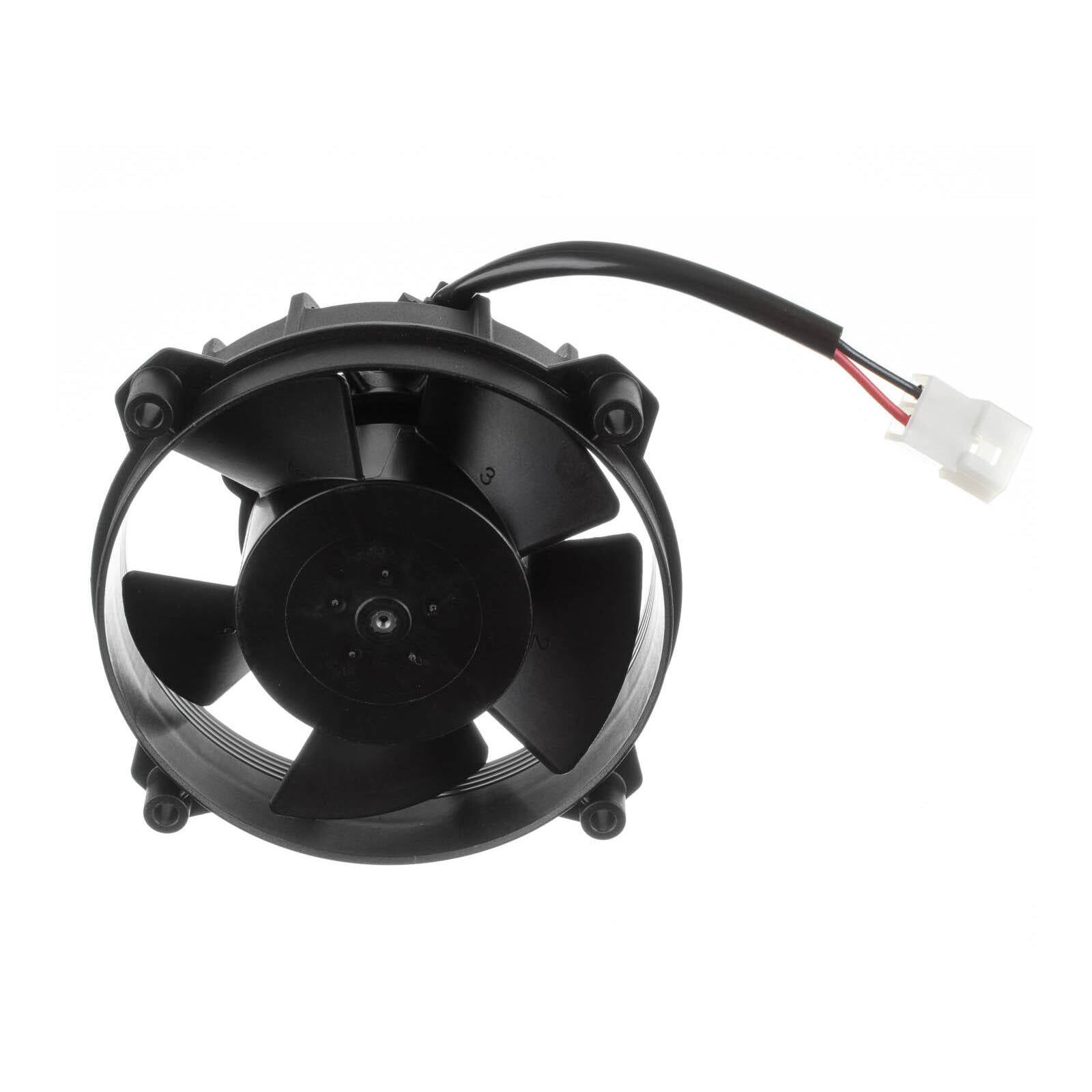

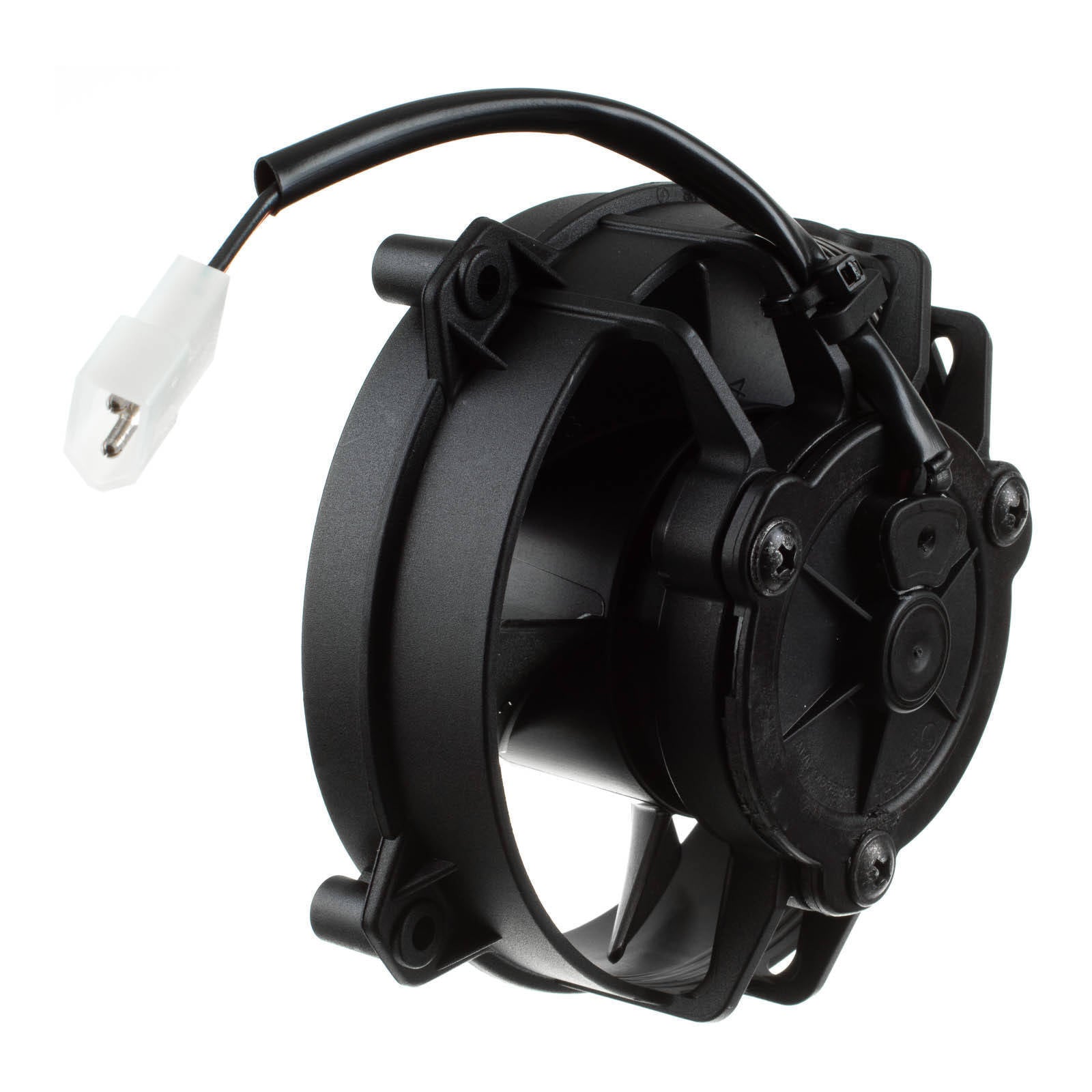

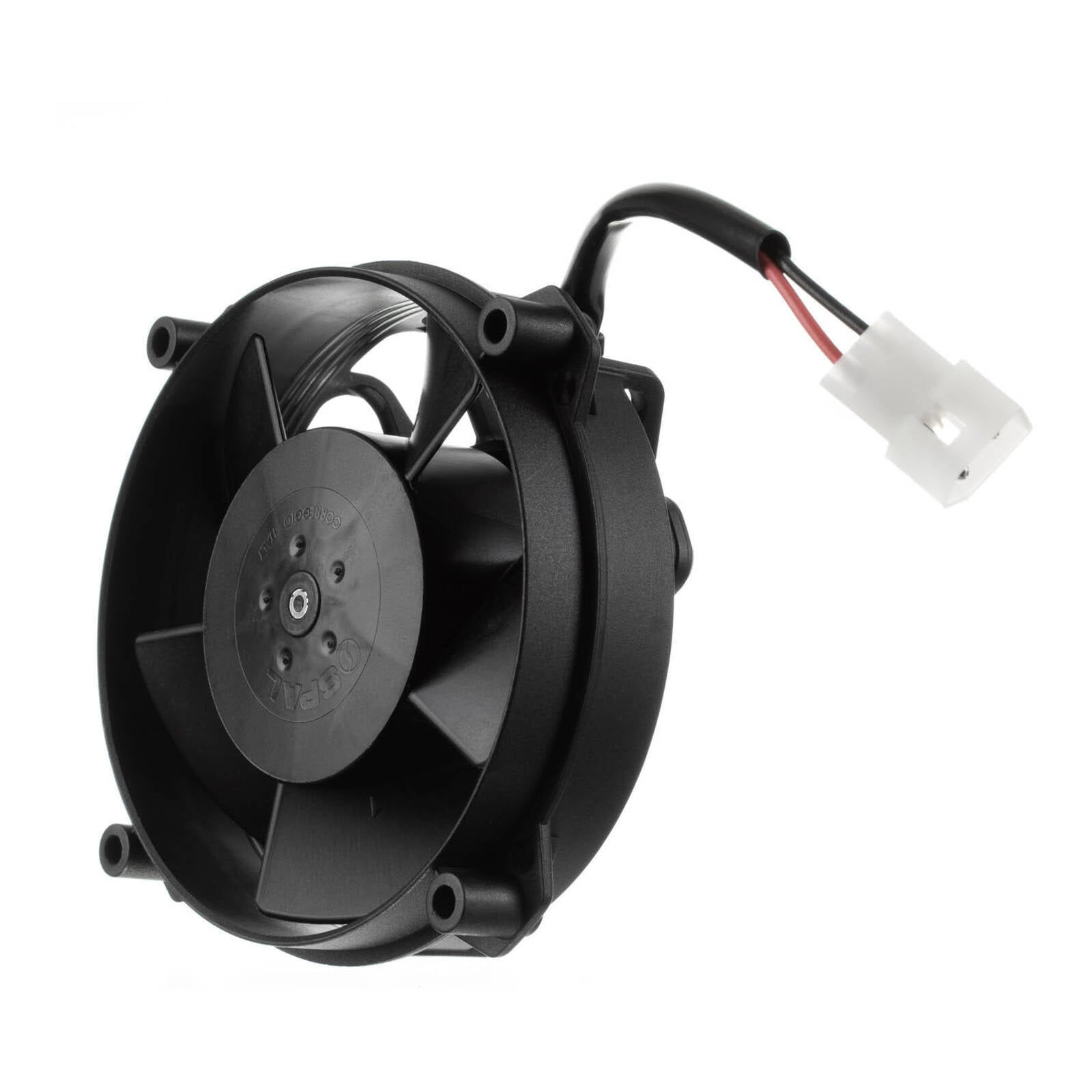

WMP Spal Universal 12V Cooling Fan - 104mm Diam X 60mm High

The WMP Universal Cooling Fan provides an economical solution to motorcycle cooling. The compact and universal design allows the fan to be fitted to almost anything via hard-wiring for constant operation or rigged through a switch for further control. Only the fan is included to enable an excellent price and universal fitment.

Features:

• Universal cooling fan.
• Virtually limitless applications.
• Can be installed/wired as desired.

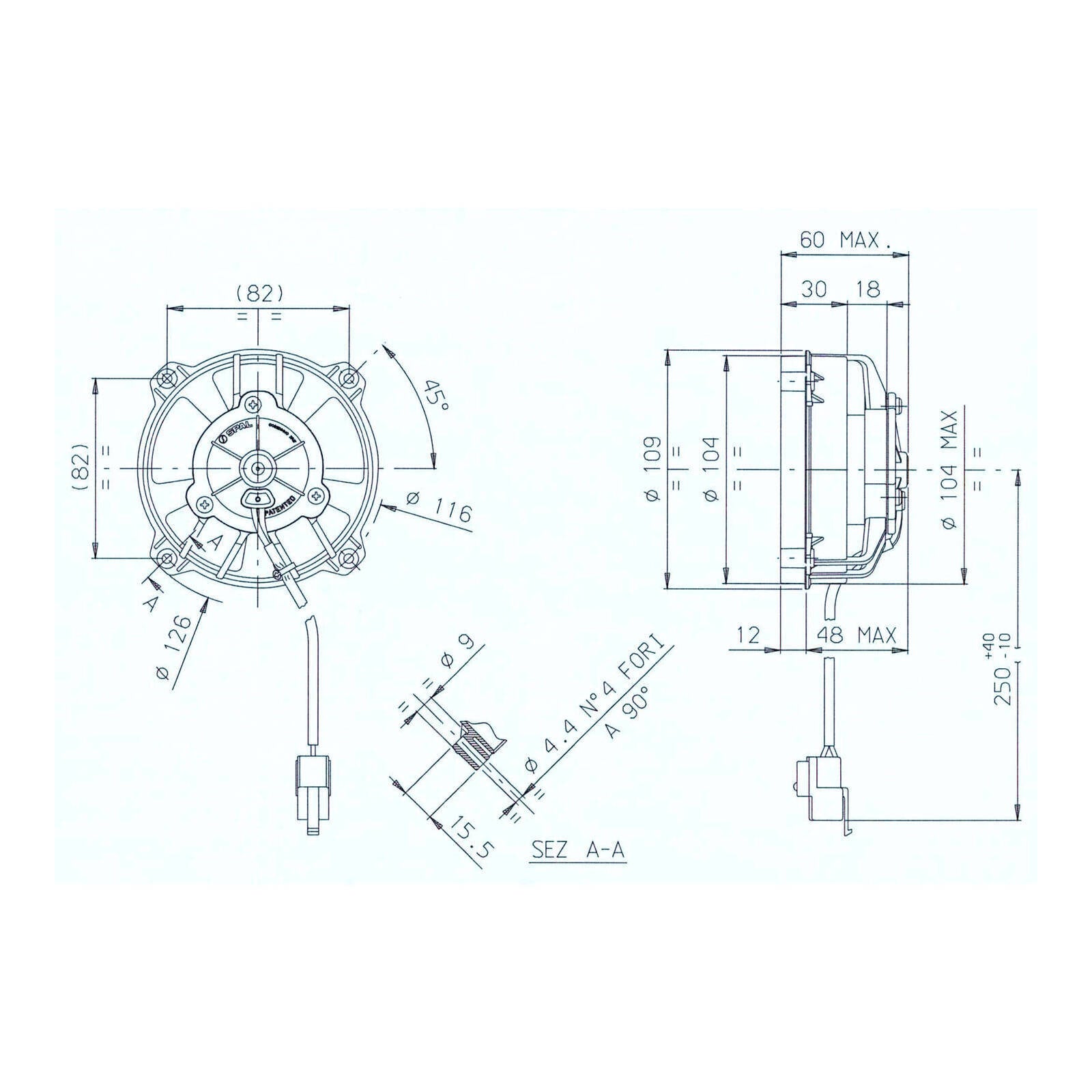

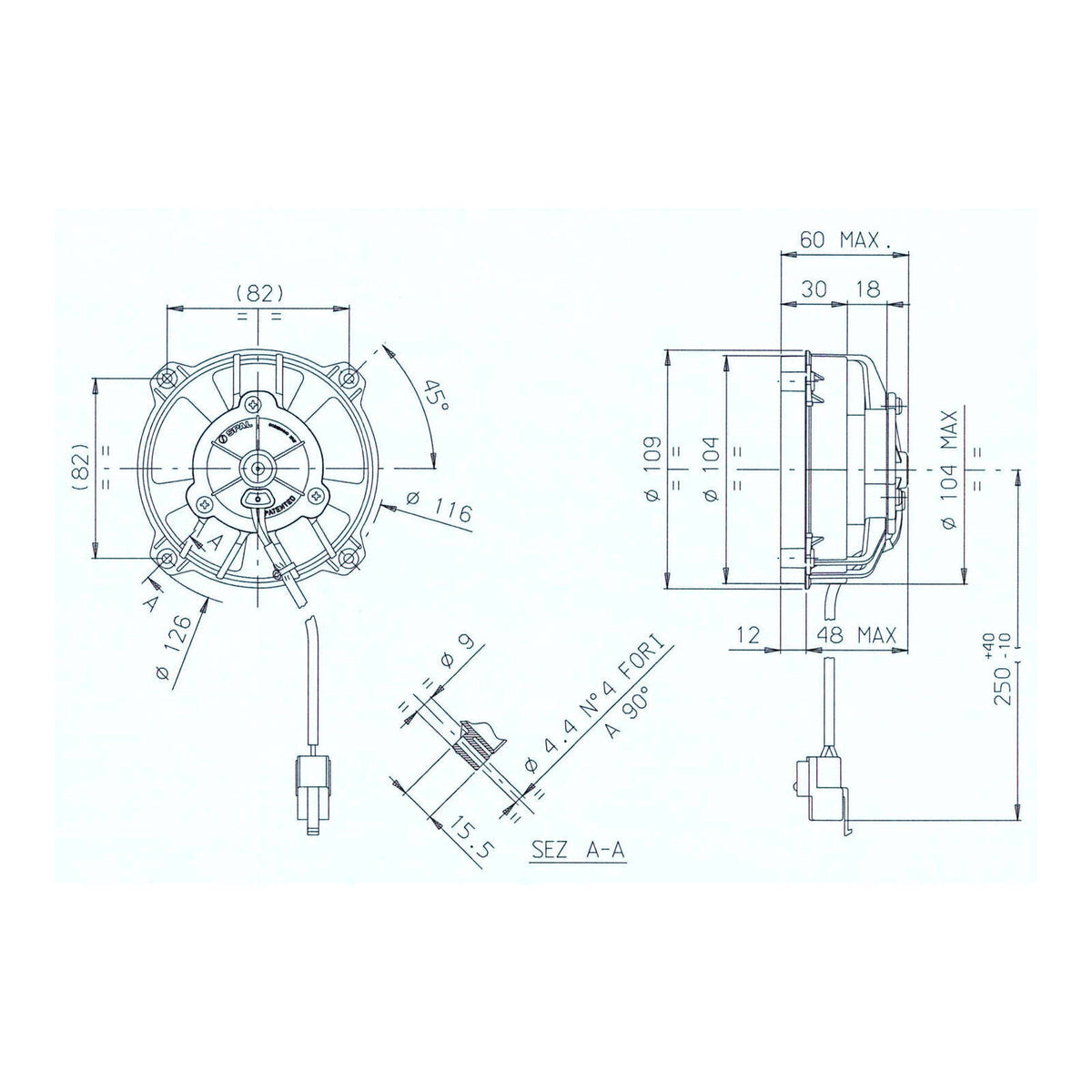

• Diameter: 104mm
• Thickness: 60mm

• Universal fitment suits motorcycles, powersports, and custom cooling applications
• 12V operation compatible with standard motorcycle electrical systems
• 104mm diameter — compact footprint for space-restricted installations
• 60mm overall height for low-profile, tight-clearance mounting
• SPAL specialist manufacture, trusted in motorsport and powersports cooling

Verify wiring polarity before connecting — reverse polarity can damage the motor. Wire through an appropriately rated fuse to protect the electrical circuit.
Ensure the fan blades have sufficient clearance from surrounding components before operating; inadequate clearance causes vibration and premature wear.
Mount the fan firmly using suitable brackets or mounting tabs to prevent vibration-induced fatigue on wiring connections over time.
Connect the fan to a switched circuit (ignition-on) rather than a permanent live feed unless a dedicated thermostat or relay is installed.
If using a thermostat switch, confirm the switch rating is compatible with the fan's current draw to avoid switch failure.
Periodically inspect electrical connectors and terminals for corrosion, particularly in wet or dusty riding environments; clean with electrical contact cleaner as needed.
Clean the blade assembly and housing with a soft brush or compressed air to remove accumulated debris that can reduce airflow efficiency.
Do not allow water to pool inside the fan housing; ensure drainage is possible in the installation position to avoid corrosion of the motor bearings.
