Trail Tech Voyager Pro Mounting Dock Kit

The Trail Tech Voyager Pro Mounting Dock Kit is the hard-mounted base that holds a Voyager Pro GPS trail computer on your bike and lets you take the unit off in seconds. The Voyager Pro snaps into place and releases with the large button on top, so the display can come with you at the trailhead, the campsite or the ute.

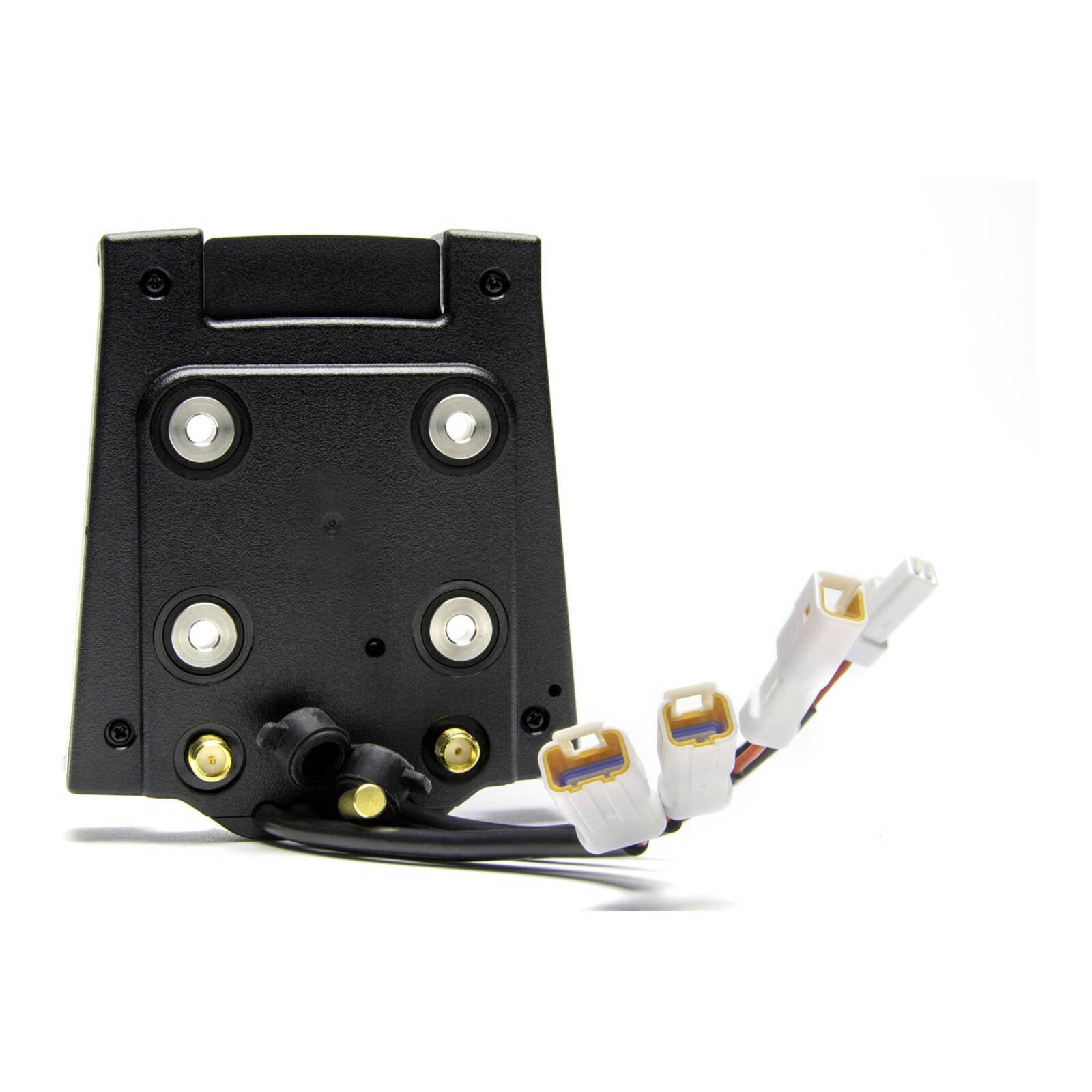

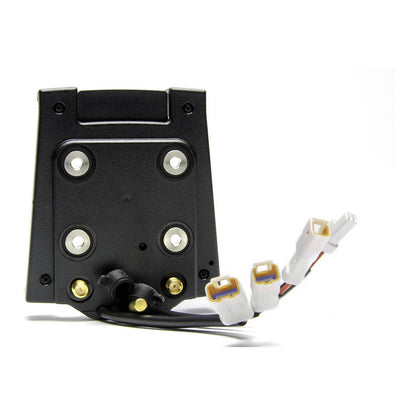

All of the vehicle-side wiring terminates at the dock: sensor leads plug into waterproof connectors at the rear, and the vehicle-to-vehicle antenna threads into its own port, so the head unit stays clean and cable-free when removed. A magnetic rubber guard covers the brass contact pins whenever the Voyager Pro is off the bike.

It suits riders who already run a Voyager Pro and want a second dock for another bike, or a replacement for a damaged one. A dock is already supplied in complete Voyager Pro kits.

• Hard-mounts to the vehicle for quick removal of the Voyager Pro head unit
• Voyager Pro snaps on and releases via the large button on top of the dock
• Can be locked to the dock using an Allen key for added security
• Waterproof white JST connectors at the rear for vehicle sensor leads
• Threaded rear port for the V2V (vehicle-to-vehicle) antenna

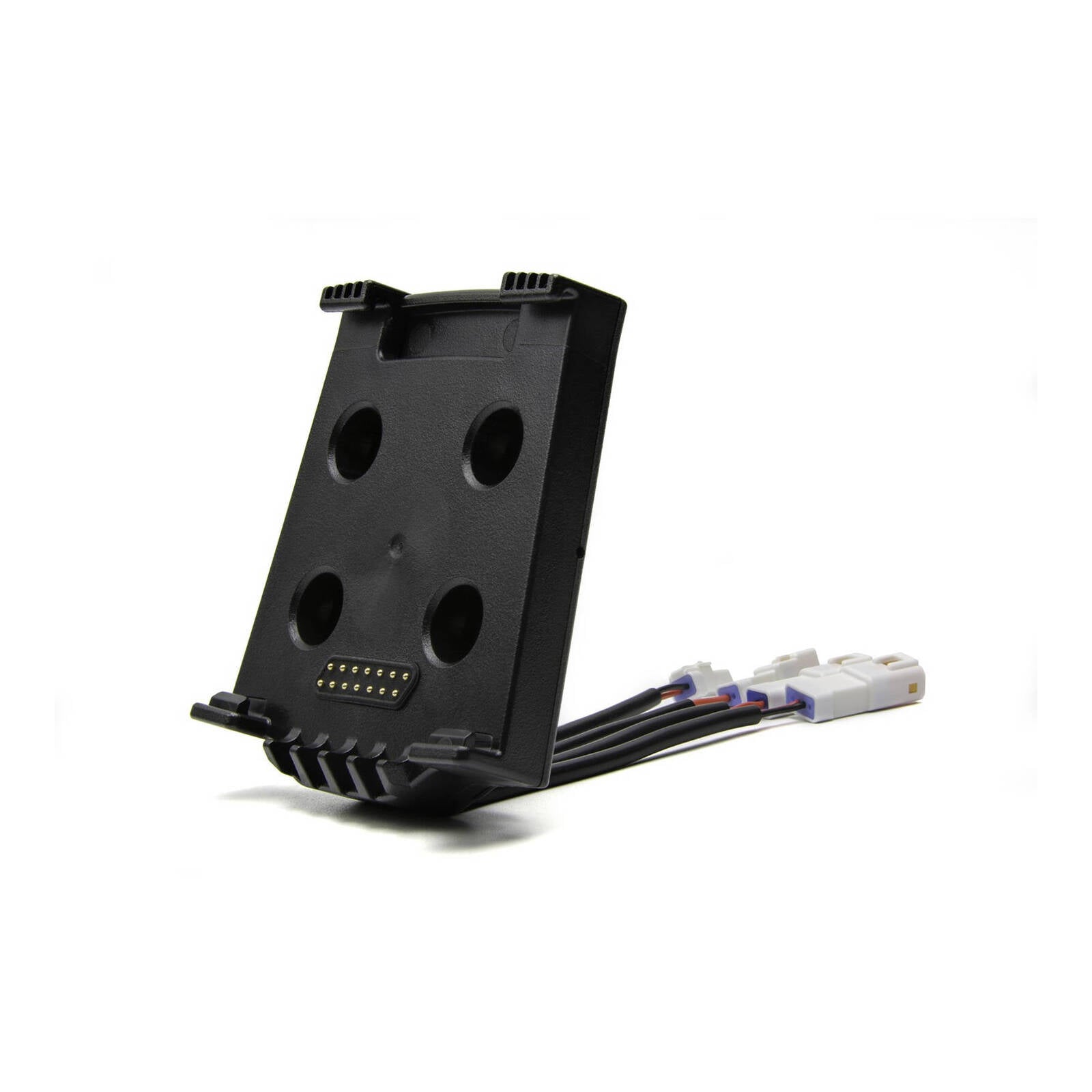

• Magnetic black rubber guard protects the brass pins when the unit is removed
• Mounts using the standard AMPS hole pattern
• Compatible with Trail Tech mounting hardware and RAM brand mounts

• Voyager Pro dock
• Power wire

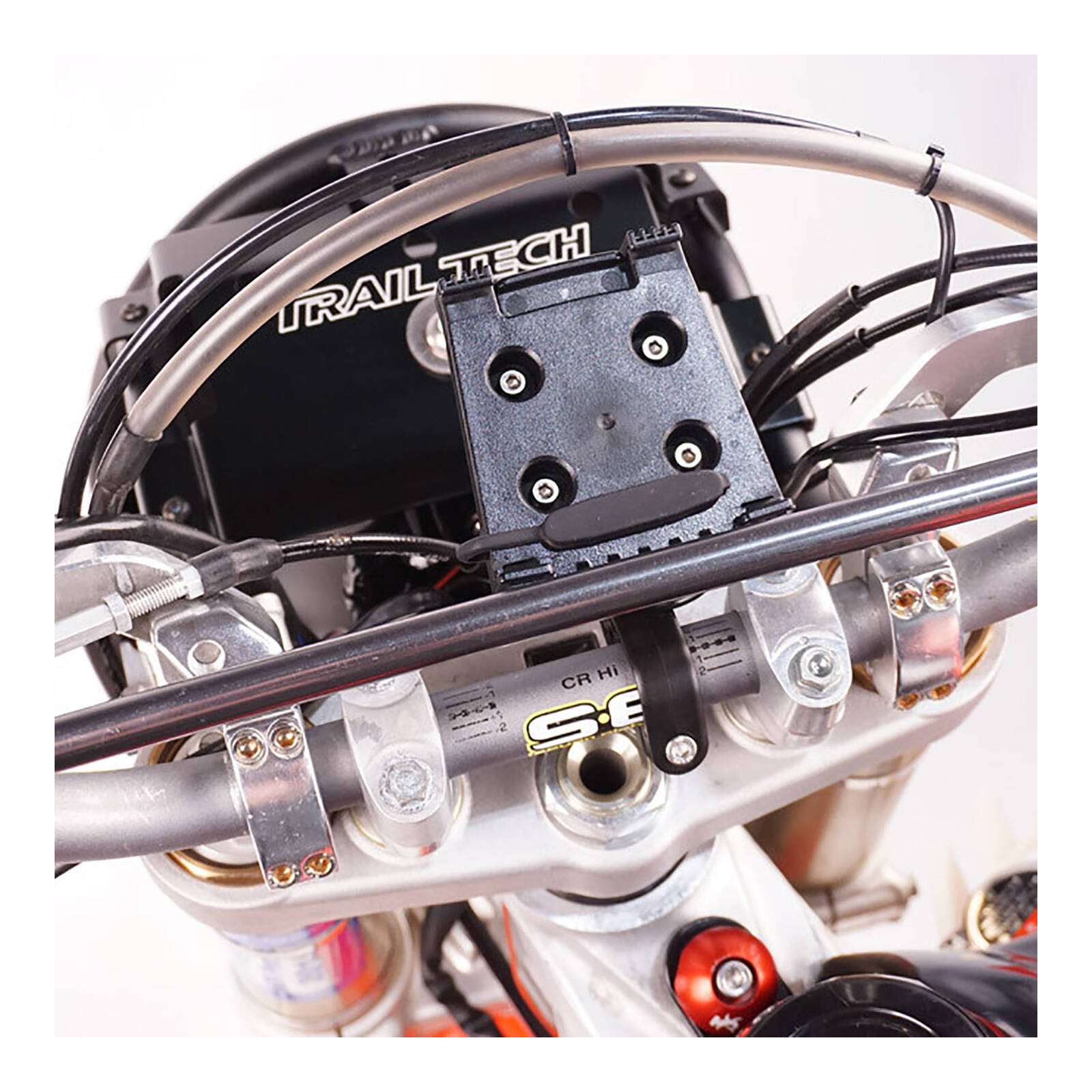

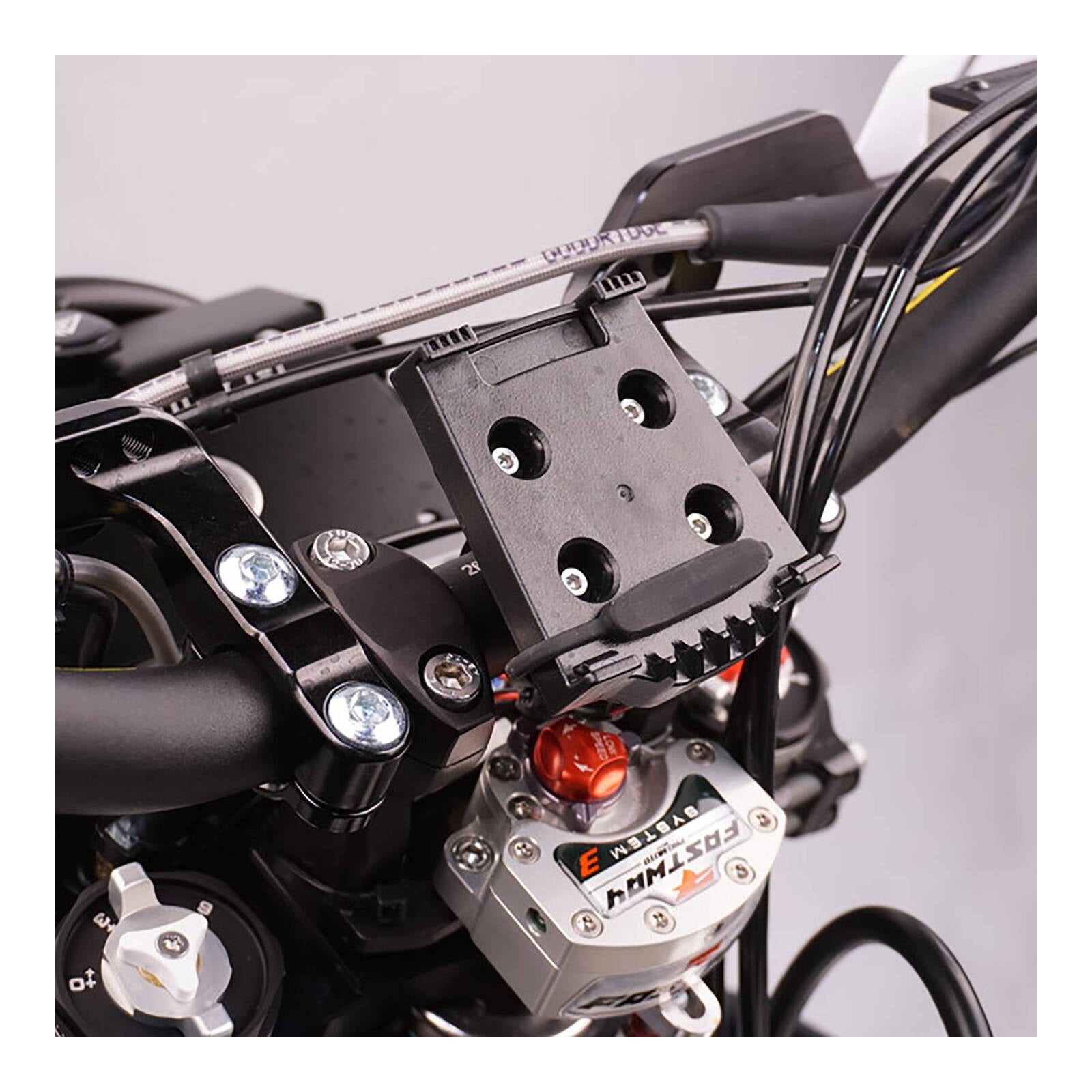

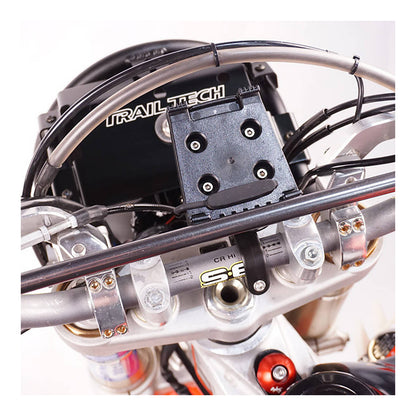

Mount the dock to an AMPS-pattern bracket, Trail Tech mounting hardware or a compatible RAM mount, and check the fasteners are secure before riding.
Route and connect the sensor leads to the waterproof white JST connectors at the rear of the dock, and screw the V2V antenna into its port before fitting the head unit.
Press the Voyager Pro straight onto the dock until it snaps into place; press the large button on top to release it.
Use the Allen key lock when leaving the bike unattended or riding rough terrain, so the head unit cannot be knocked or lifted off.
Always refit the magnetic black rubber guard over the brass pins whenever the Voyager Pro is removed, to keep mud, water and grit off the contacts.
Wipe the dock and contact pins clean with a soft damp cloth and let them dry fully before refitting the head unit; avoid solvents and harsh degreasers.
When washing the bike, keep high-pressure water away from the dock, connectors and antenna port, and make sure the pin guard is in place.
Re-check the mounting bolts and connector seating periodically, particularly after long or rough rides.
