Top Case Mount - Yamaha MT09

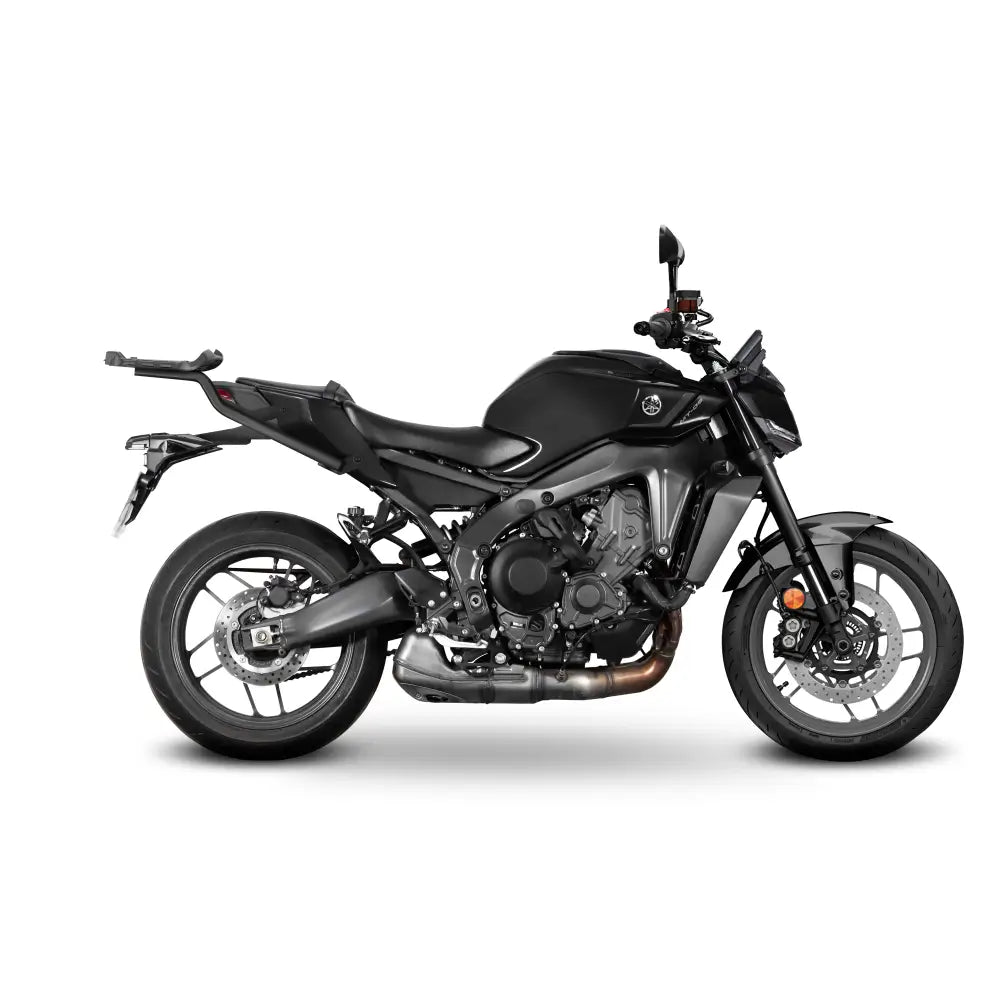

The SHAD Top Master is the model-specific mounting kit that lets you fit a SHAD top case to a Yamaha MT-09. Rather than a universal rack, it is engineered around this particular bike, so the fitting sits cleanly on the machine and gives your case a solid, stable base.

It suits riders who want luggage for the daily commute, a weekend away or touring, without leaving bulky hardware on the bike full time — the fitting is straightforward to install and just as easy to remove. Note that this listing is for the bike-side fitting only; you also need the mounting plate that comes packed with SHAD top cases (TERRA cases use their own plate, purchased separately).

• SHAD Top Master fitting kit, part number Y0MT94ST
• Model-specific design for the Yamaha MT-09 (2024–2025)
• Provides a secure base for mounting a SHAD top case
• Straightforward to install and to remove when luggage isn't needed
• Bike-specific fitment for a tidy appearance on the motorcycle
• Requires the SHAD mounting plate supplied with most SHAD top cases
• SHAD TERRA top cases require their own mounting plate, sold separately

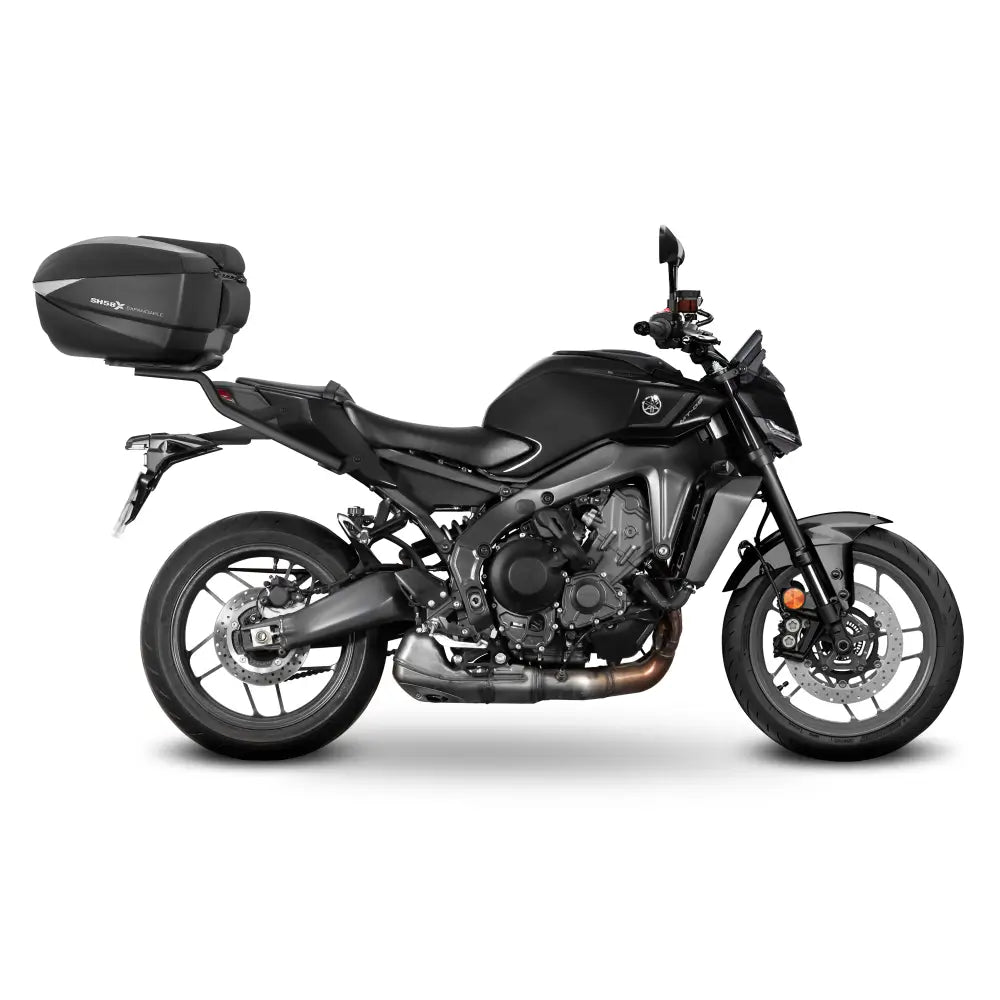

Fit the Top Master to the motorcycle first, then attach the SHAD mounting plate from your top case before clicking the case into place.
Follow the fitting instructions supplied with the kit and tighten all fasteners to the specified torque — do not overtighten into the bike's subframe mounting points.
Re-check and retighten all bolts after the first ride with luggage, then periodically as part of routine bike maintenance.
Before each ride, confirm the top case is properly latched and locked onto the plate and does not move when you tug on it.
Keep loads within the limits stated by SHAD for your top case and by Yamaha for the MT-09, and pack heavier items low and forward in the case.
Wash with mild soapy water and a soft cloth; avoid harsh solvents, abrasive pads and high-pressure washers aimed directly at the mounting points.
Dry the fitting after wet rides and inspect for corrosion, cracks or elongated bolt holes, particularly around the brackets.
Remove the top case when it is not in use to reduce wind load and vibration on the fitting; the mount itself can stay on the bike or be removed.
Do not modify, drill or weld the brackets, and replace any damaged fastener with the correct equivalent rather than a substitute.
