2% Off
RMSTATOR  | SKU: RMS900108154

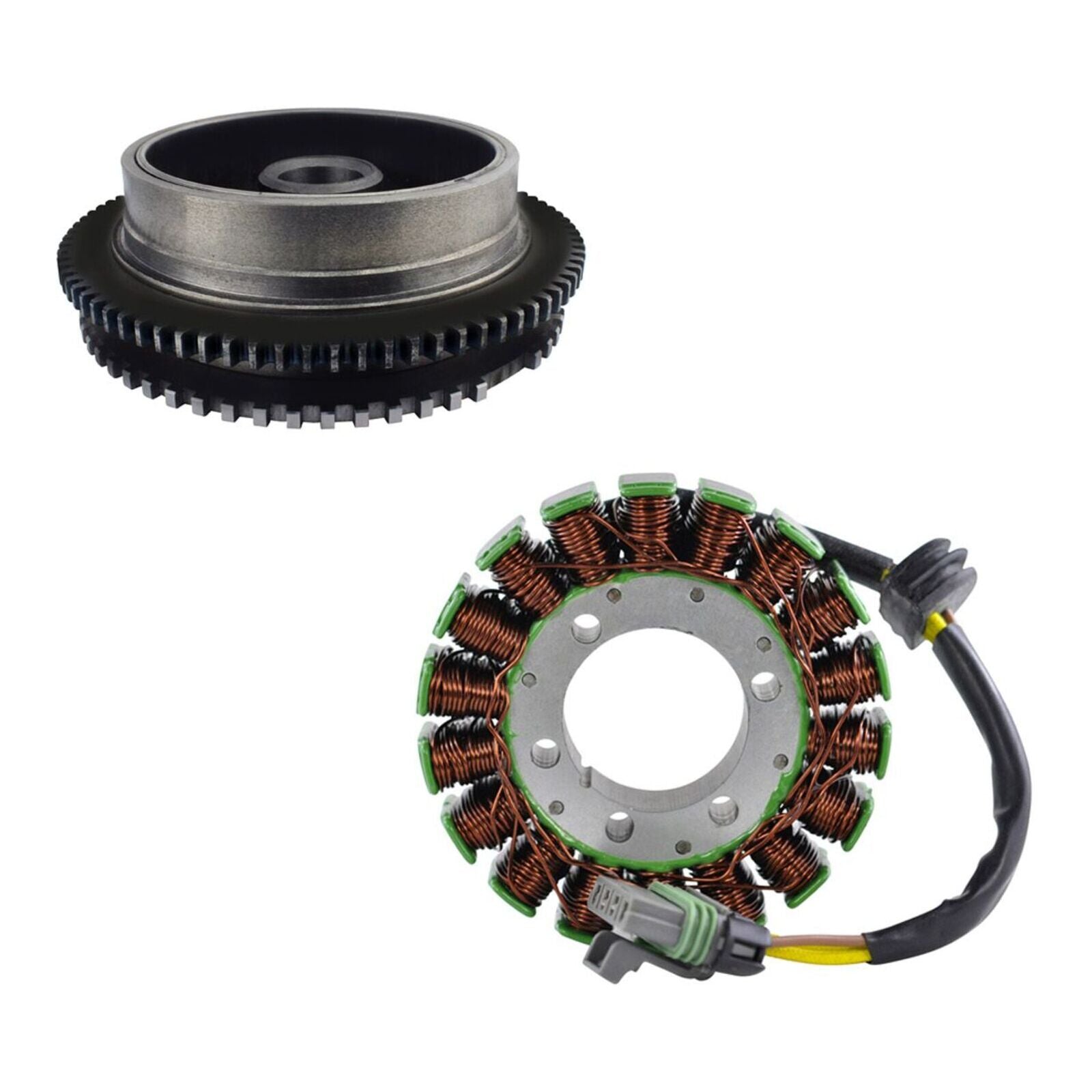

DT800 Charging Kit Assorted Polaris Models (Refer to Fitments) (RMS900-108154)

$1,230.00
$1,230.00 $1,249.99
Tax included. Shipping calculated at checkout.
Low stock! Only 2 left
🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–3 days.

Explore related collections:

Description

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

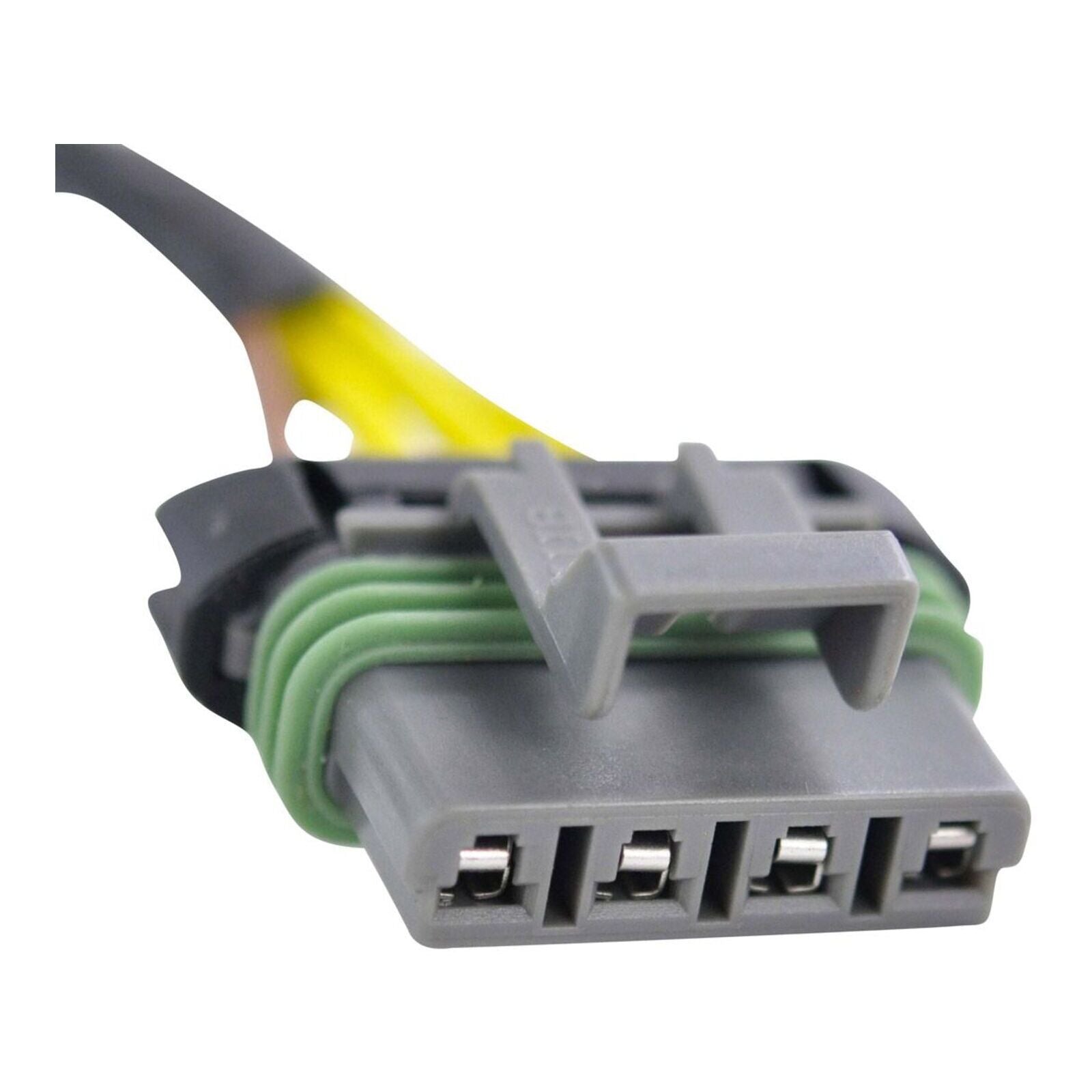

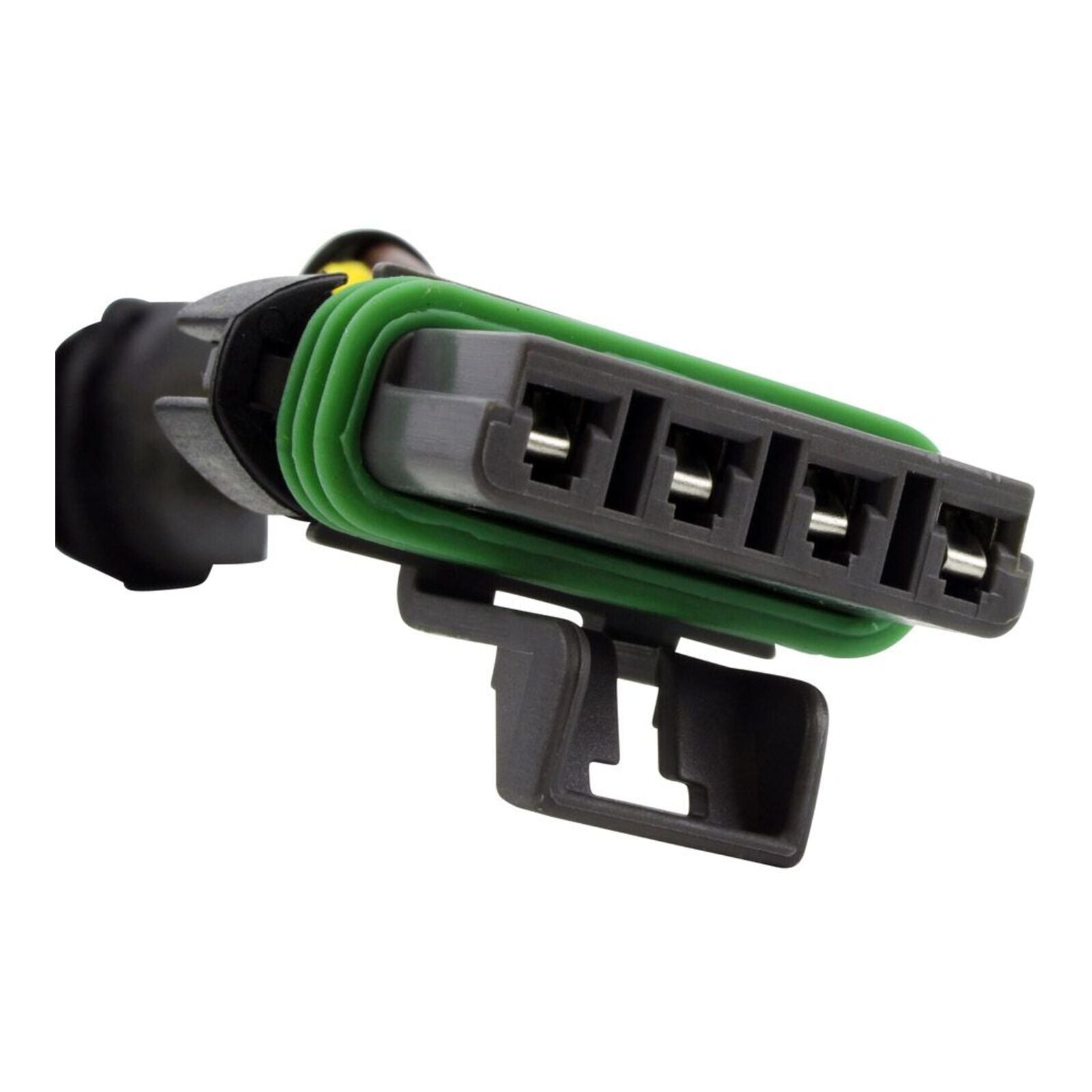

  • Connector included
  • Rubber grommet included
  • All product shipped are tested

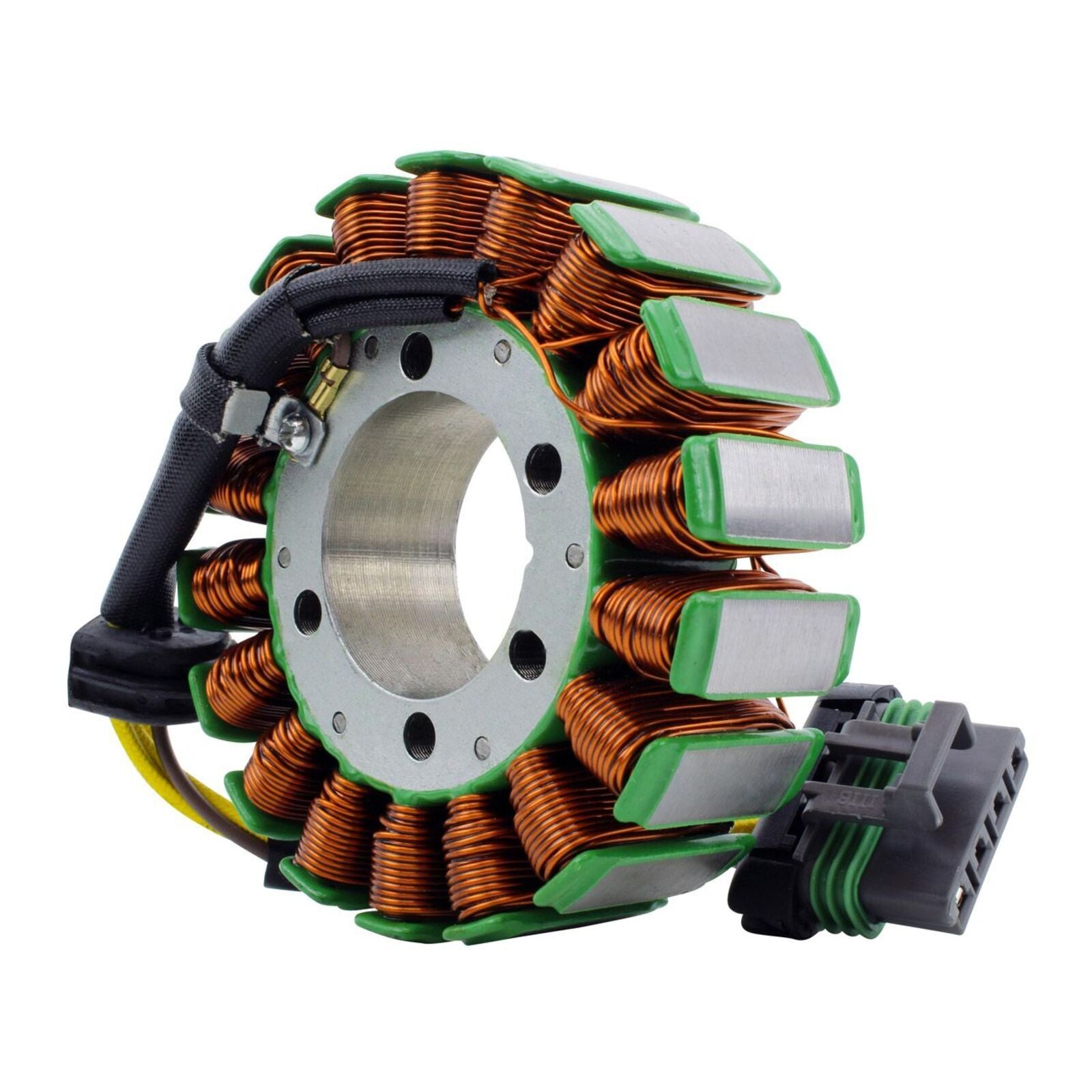

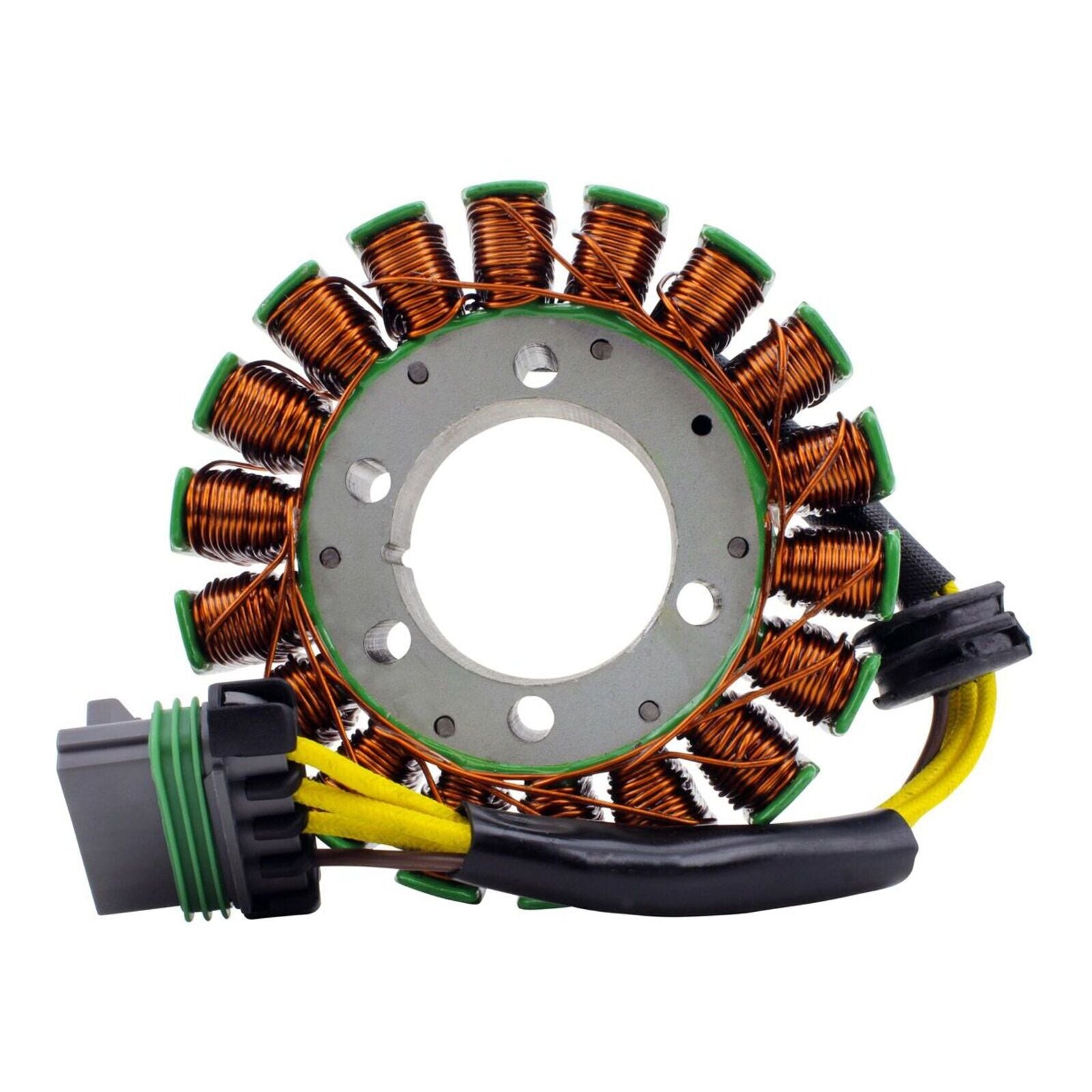

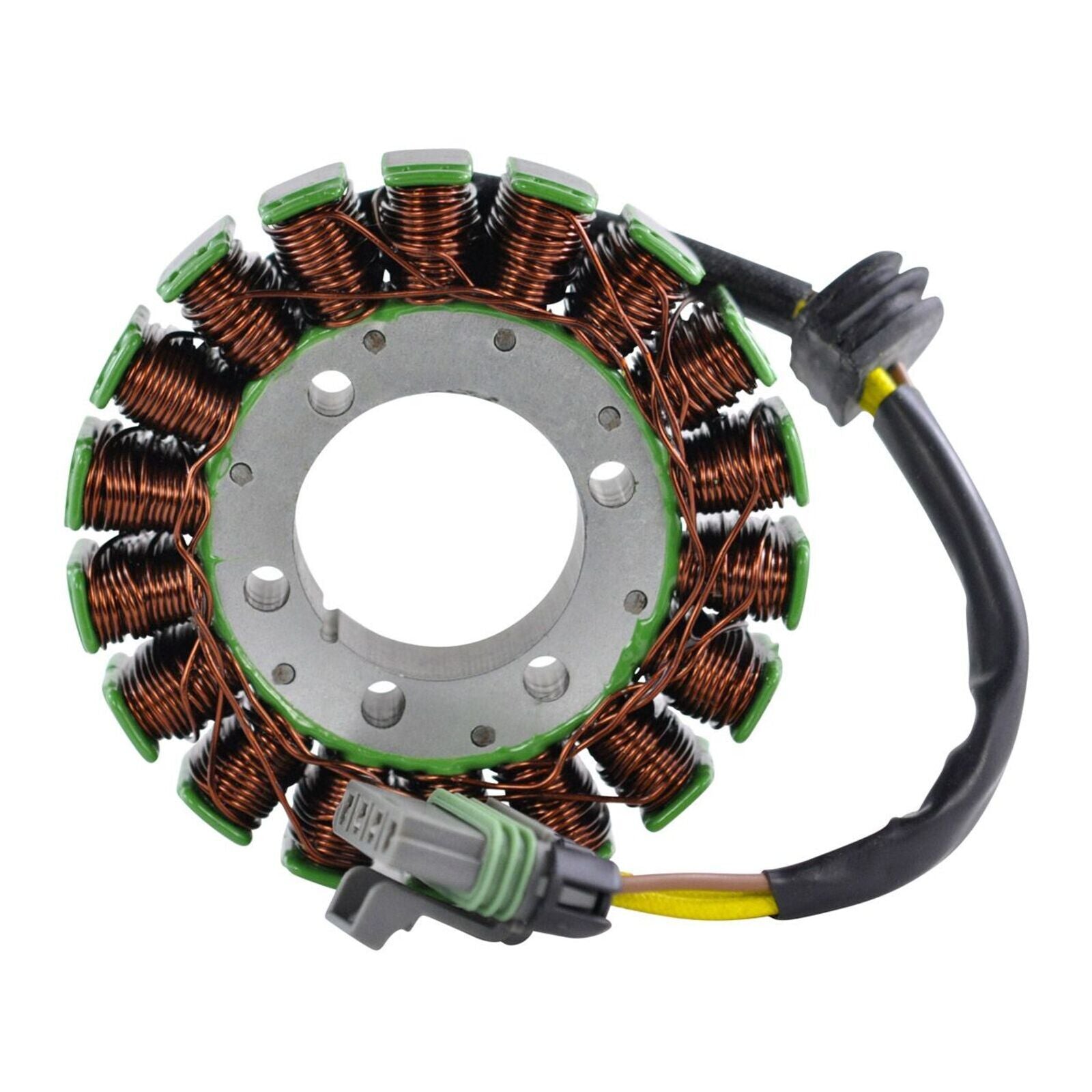

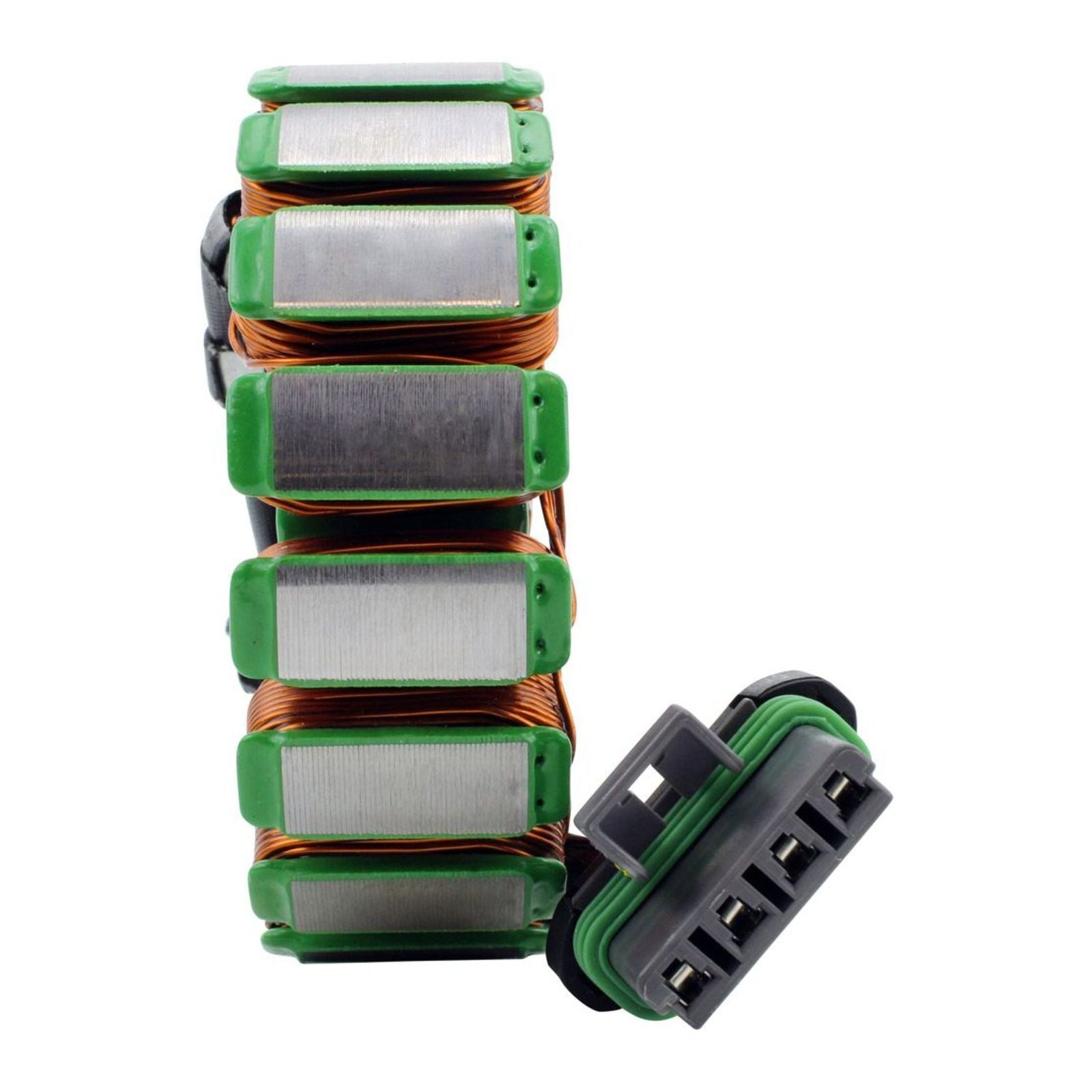

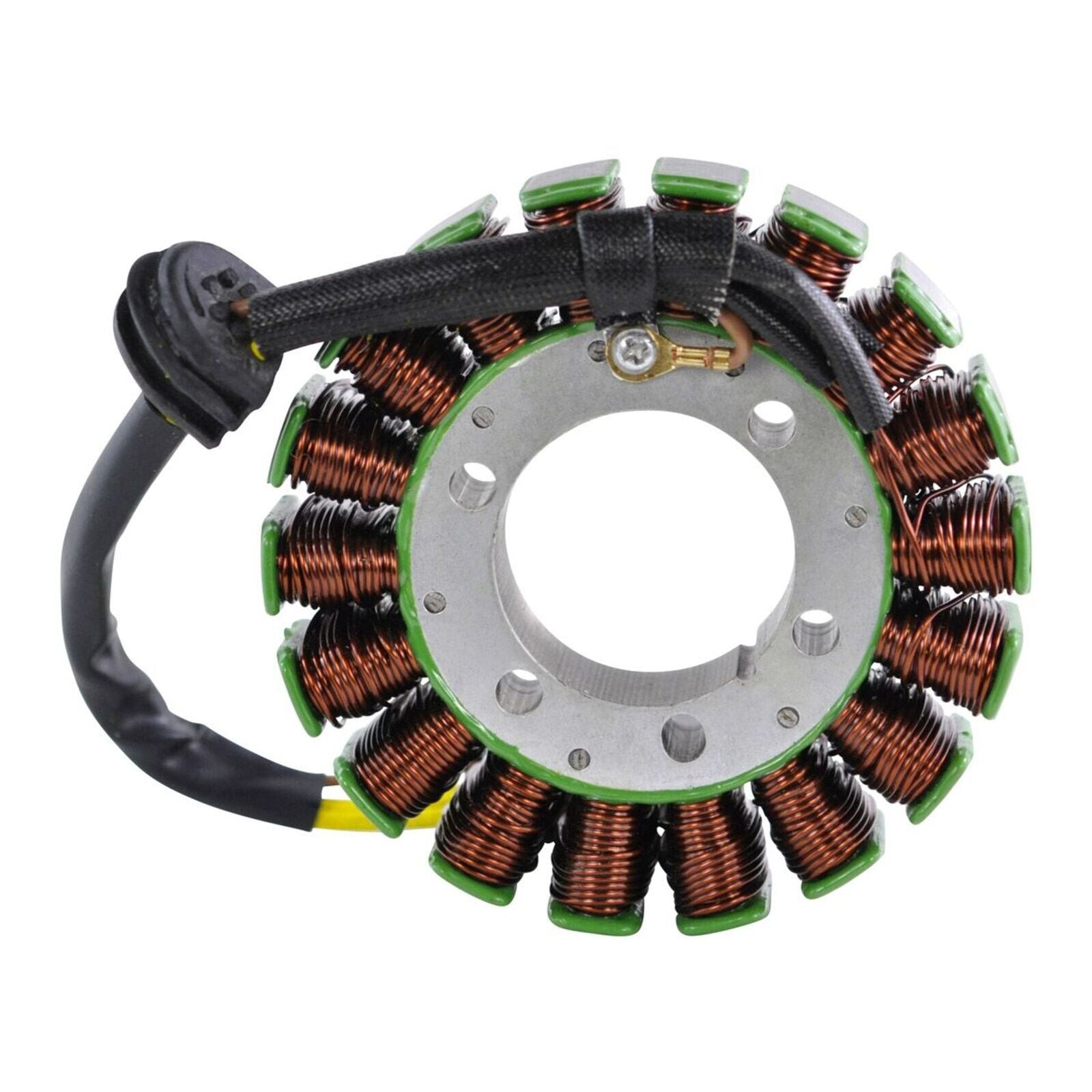

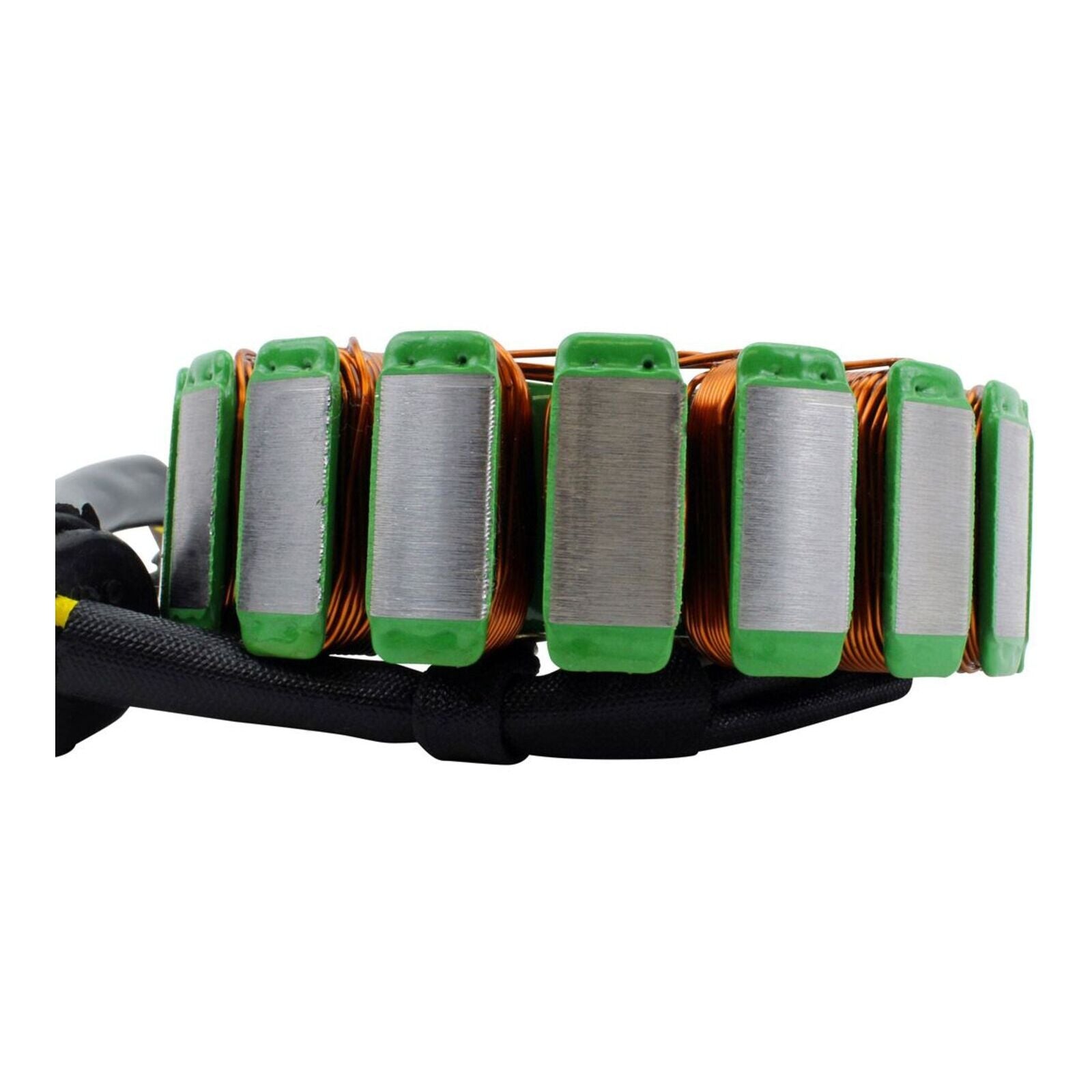

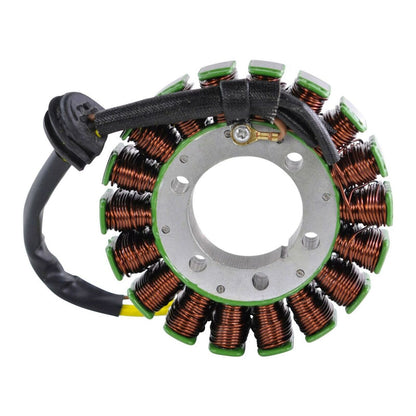

Specifications of Stator:

  • Dimensions:
    • Int erior diameter: 40 mm
    • Exterior diameter: 106 mm
    • Thickness: 24 mm
    • Length of wires stator to grommet: 45 mm
    • Length of wires grommet to plug: 100 mm
  • Other specifications:
    • Number of wires: 4
    • Number of plugs: 1
    • Number of pins: 4
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.4 ohms +/-20%

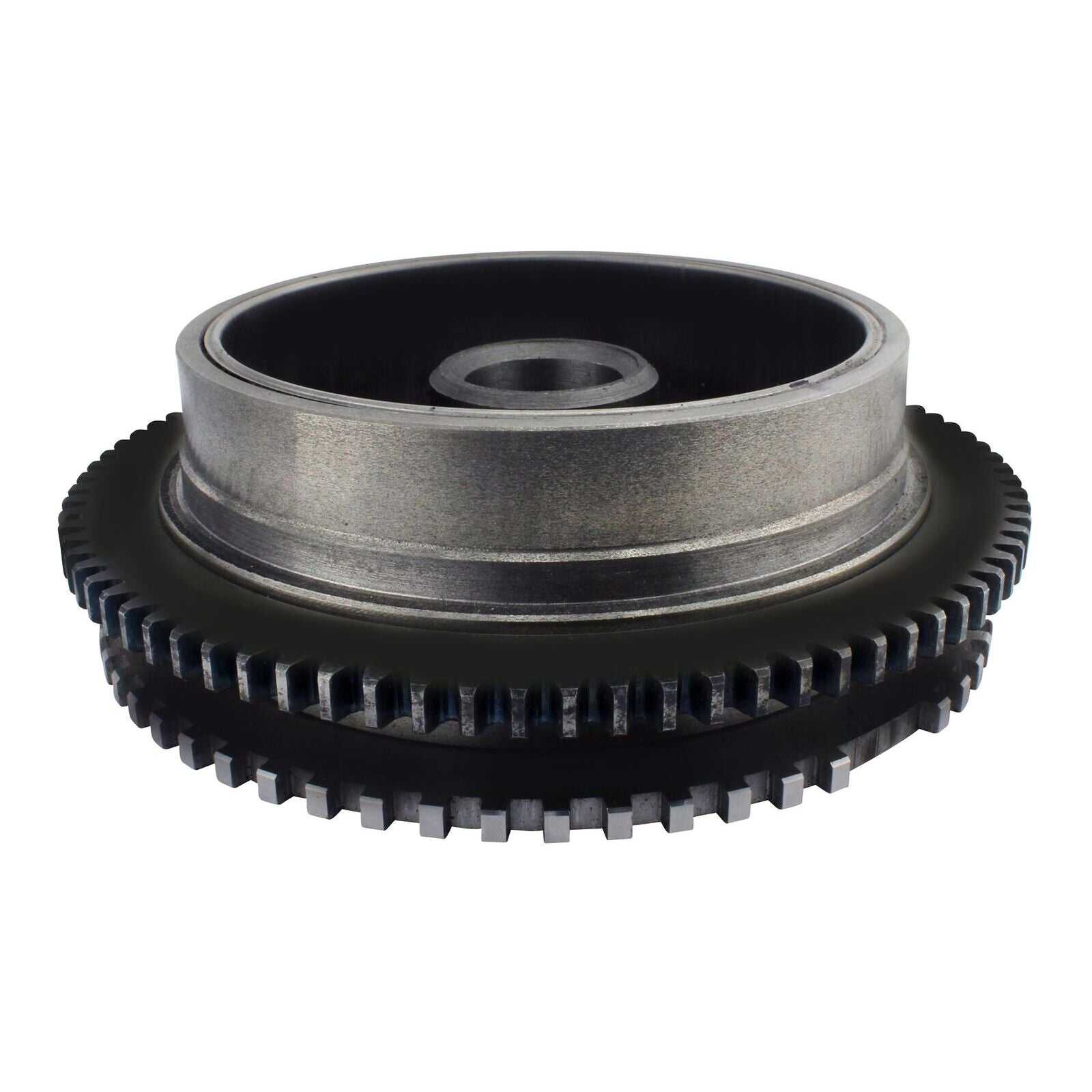

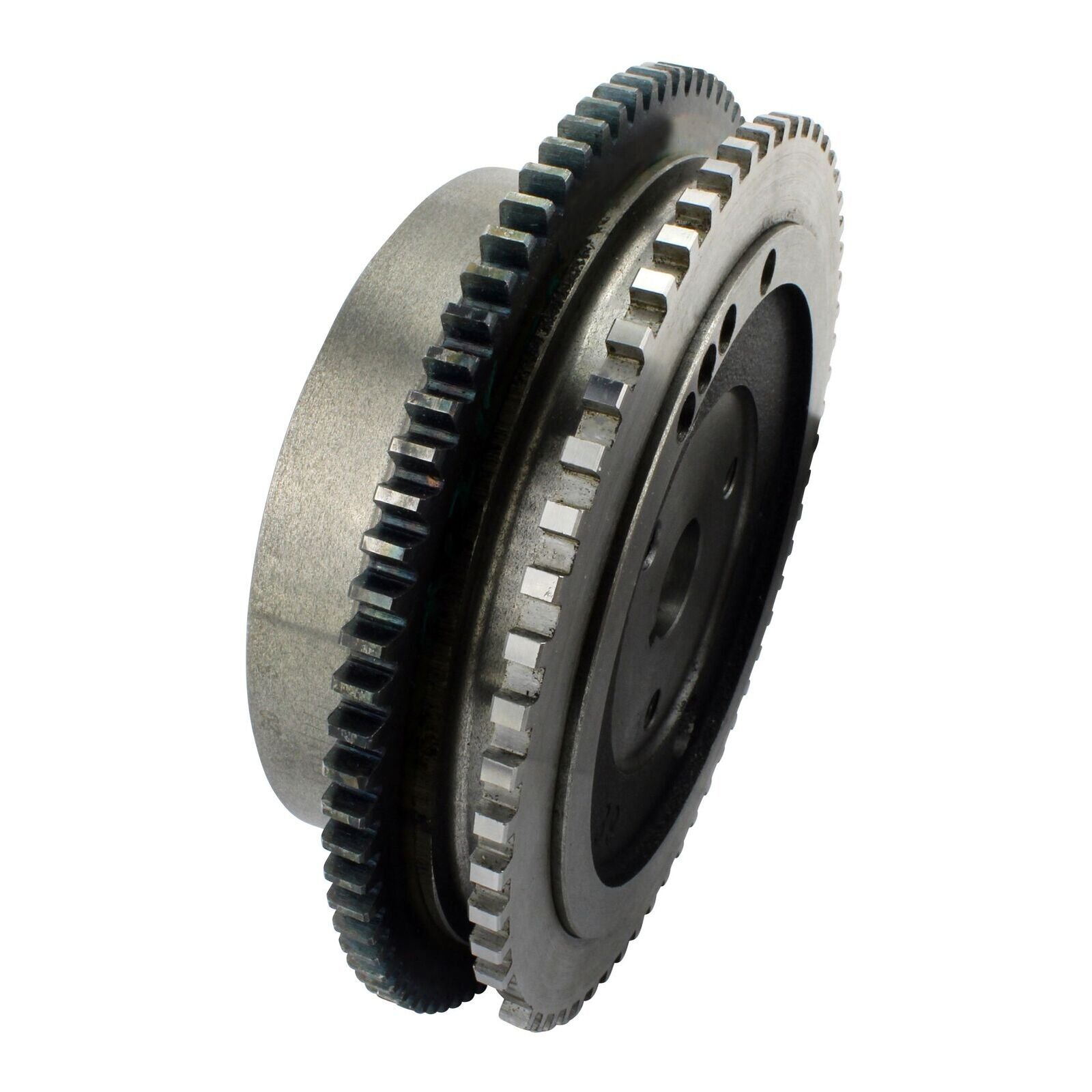

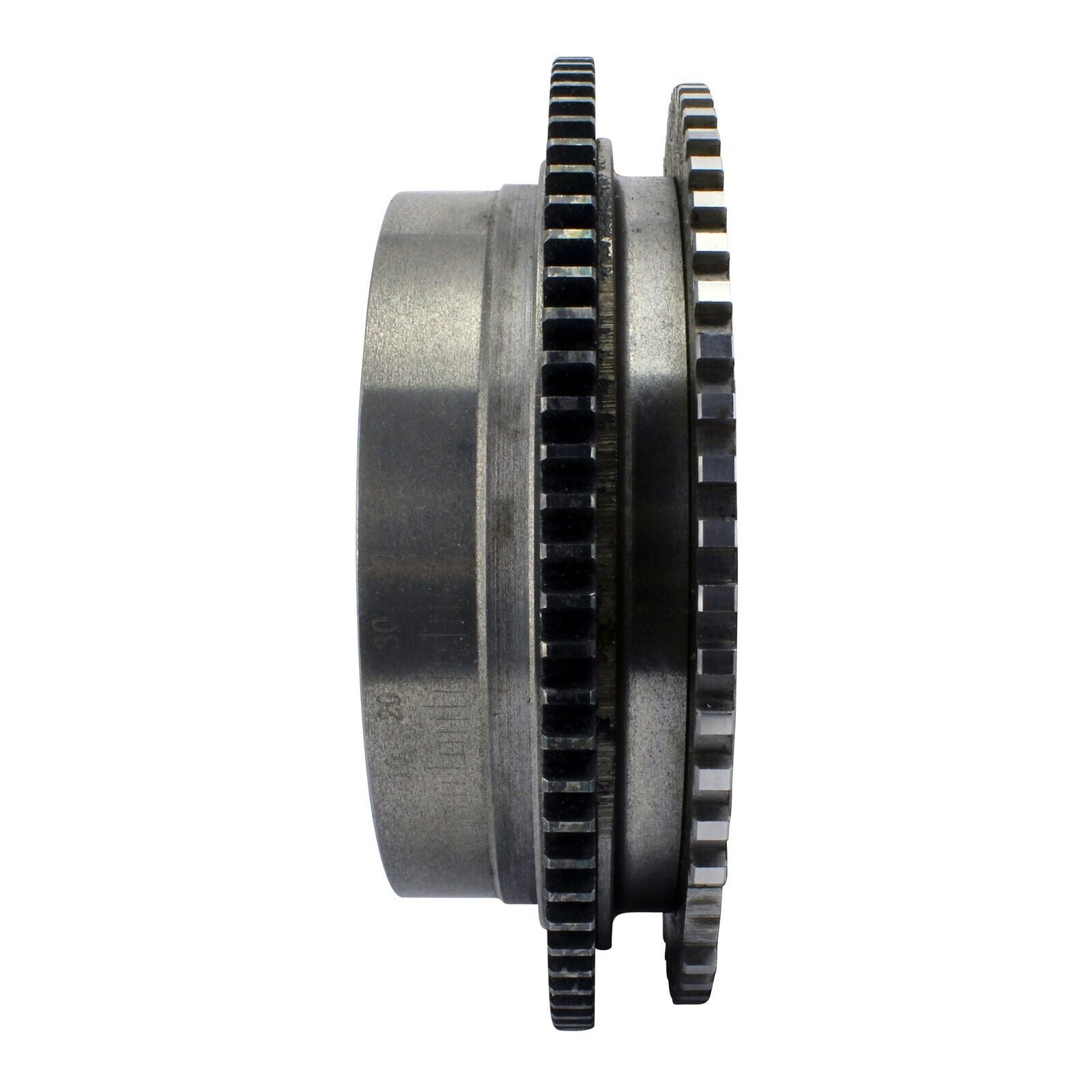

Specifications of Flywheel:

  • Dimensions:
    • E xterior Diameter: 167 mm
    • Interior Diameter: 109 mm
    • Interior Diameter Center Housing: 27 mm
    • Exterior Diameter Center Housing: 40 mm
    • Thickness (exterior): 54 mm
    • Thickness (interior): 43 mm

Specifications

Int erior diameter 40 mm
Exterior diameter 106 mm
Thickness 24 mm
Length of wires stator to grommet 45 mm
Length of wires grommet to plug 100 mm
Number of wires 4
Number of plugs 1
Number of pins 4
Alternator Yellow to Yellow = 0.4 ohms +/-20%
E xterior Diameter 167 mm
Interior Diameter 109 mm
Interior Diameter Center Housing 27 mm
Exterior Diameter Center Housing 40 mm
Thickness (exterior) 54 mm
Thickness (interior) 43 mm
