RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)

RMSTATOR | SKU: RMS900108112

RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)

$284.79; ~~$319.99~~; $284.79
Unit price: per

Best price guarantee

Found it cheaper? Call us and we'll match it.

🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–3 days.

Explore related collections:

➔ RMSTATOR (524 products)

RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)

~~$319.99~~ $284.79

Quantity:

RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)

~~$319.99~~ $284.79

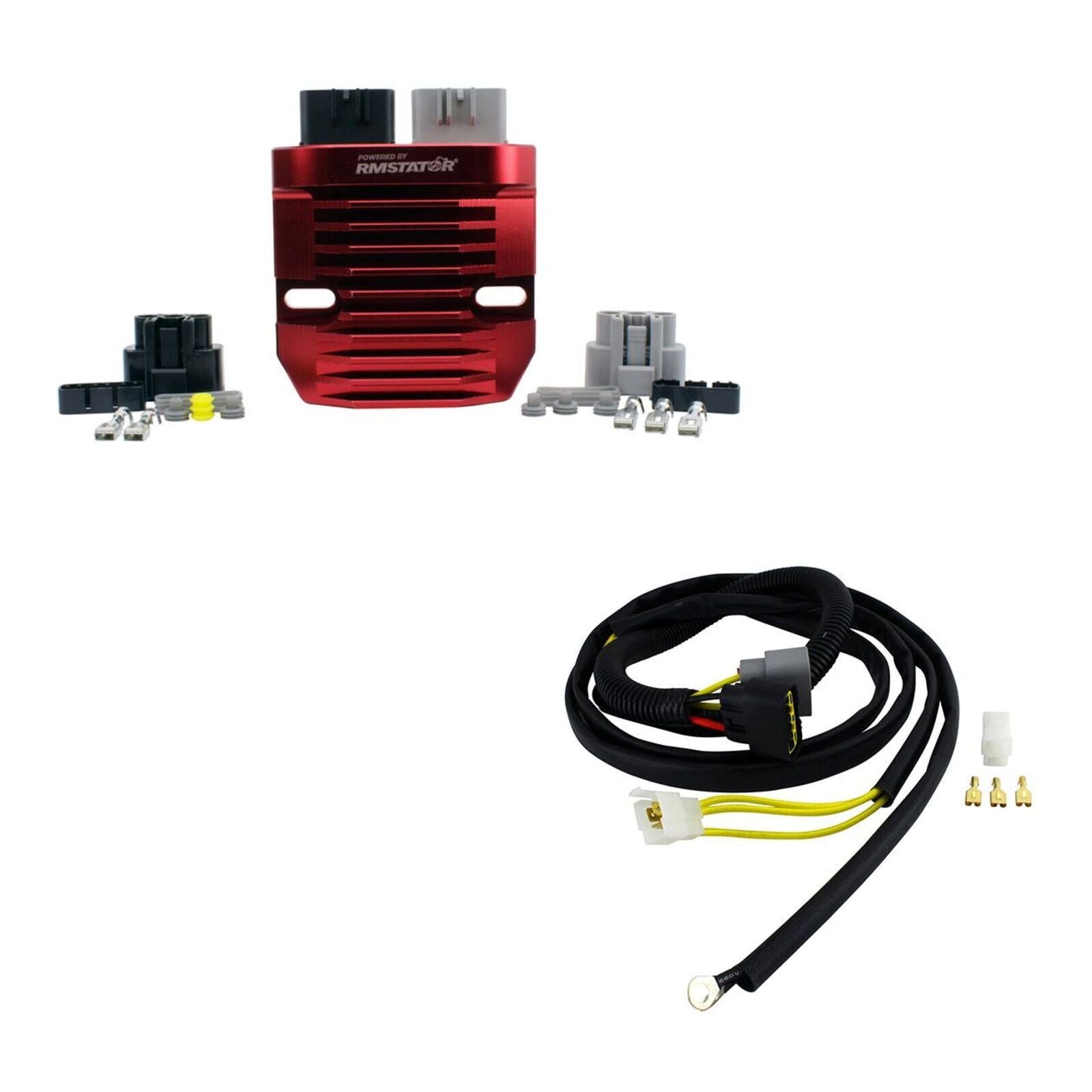

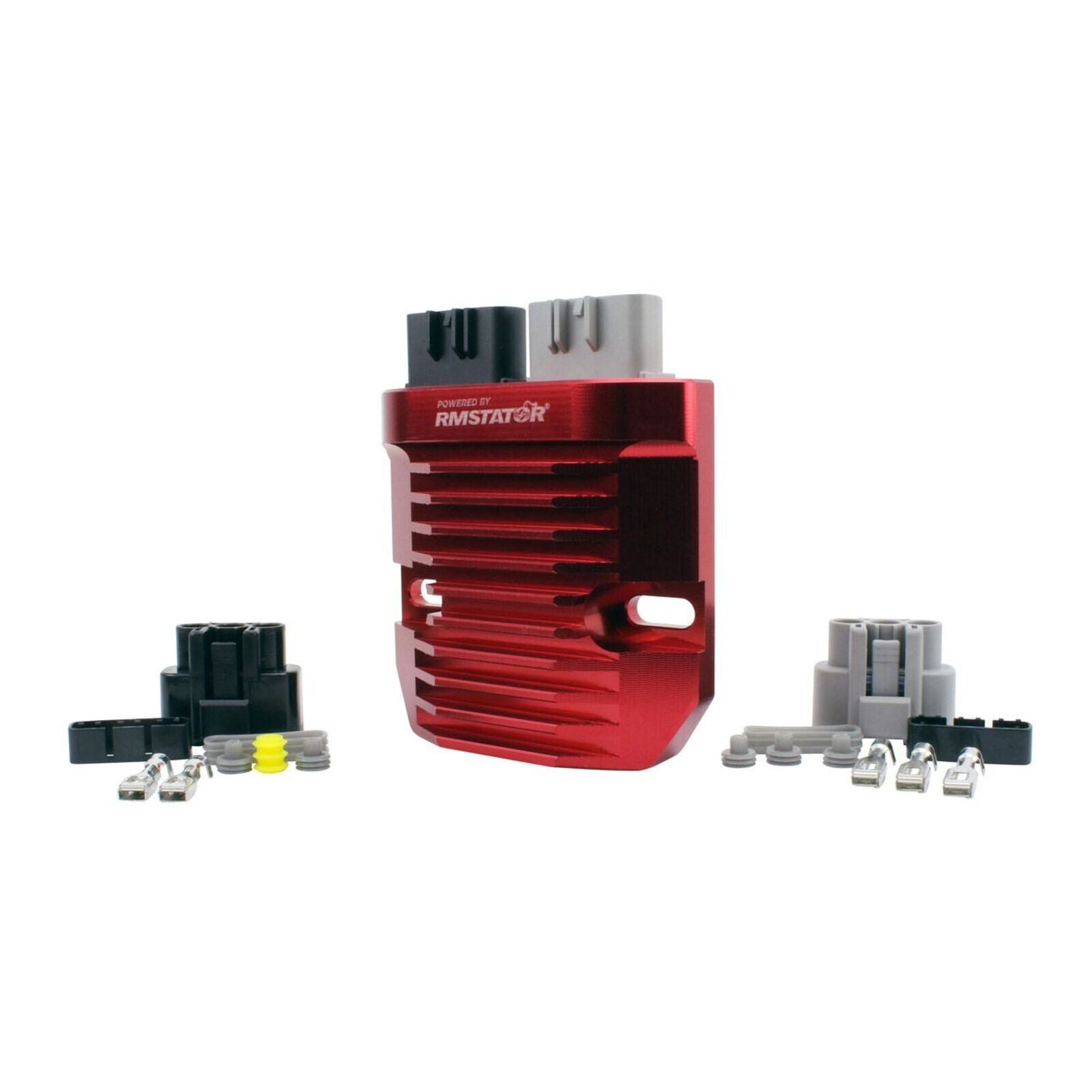

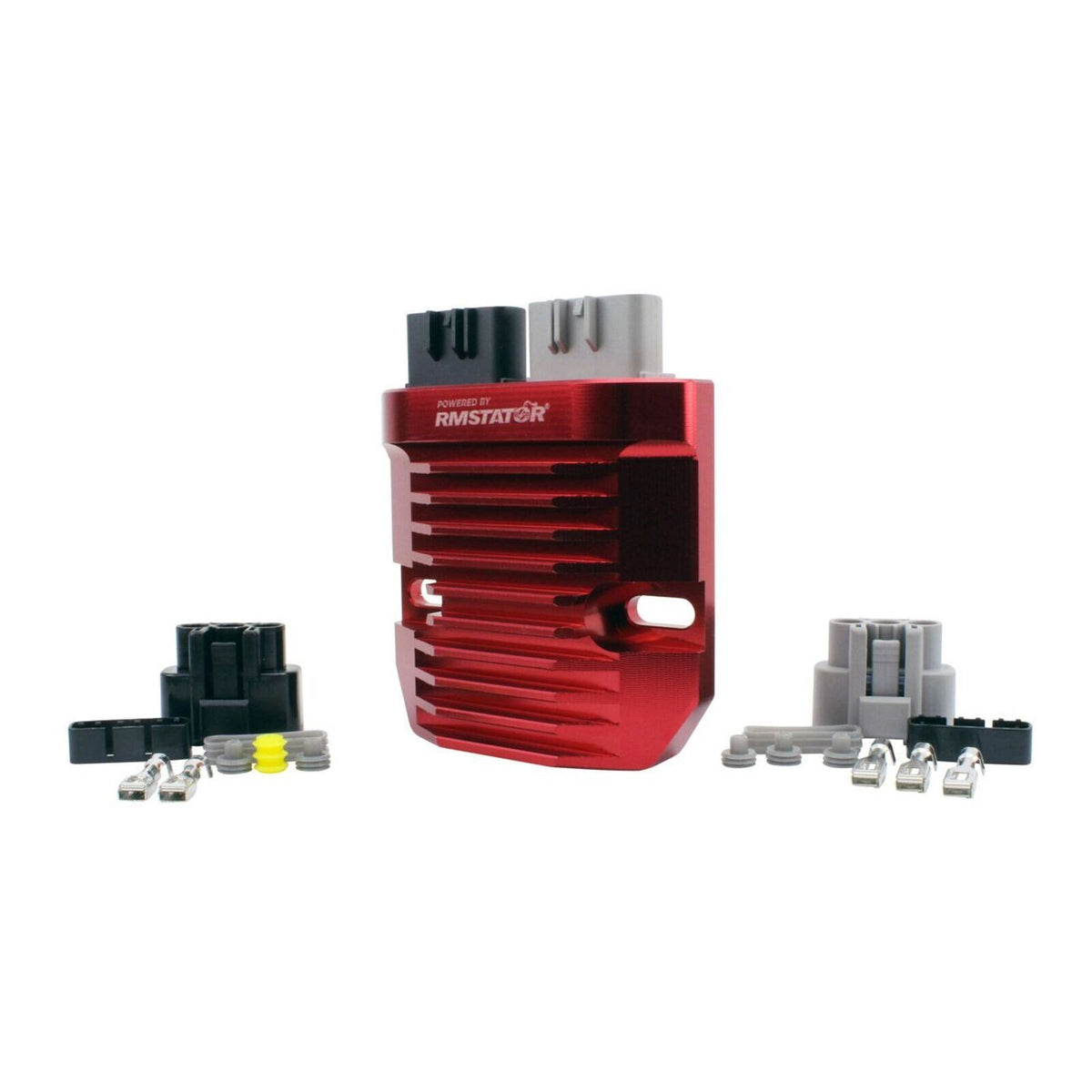

This replacement kit is only meant to the bypass the internal voltage regulator on Polaris ATV/UTVs that use the large silver SurePower ECM module with 2 large wiring connectors on opposite sides of the unit. Please confirm your OEM part number on your unit matches the list below.

Replaces these OEM Numbers :

4011089
4011090
4011598
4011375
4011657
4011226
4011517

4011240

Specifications:

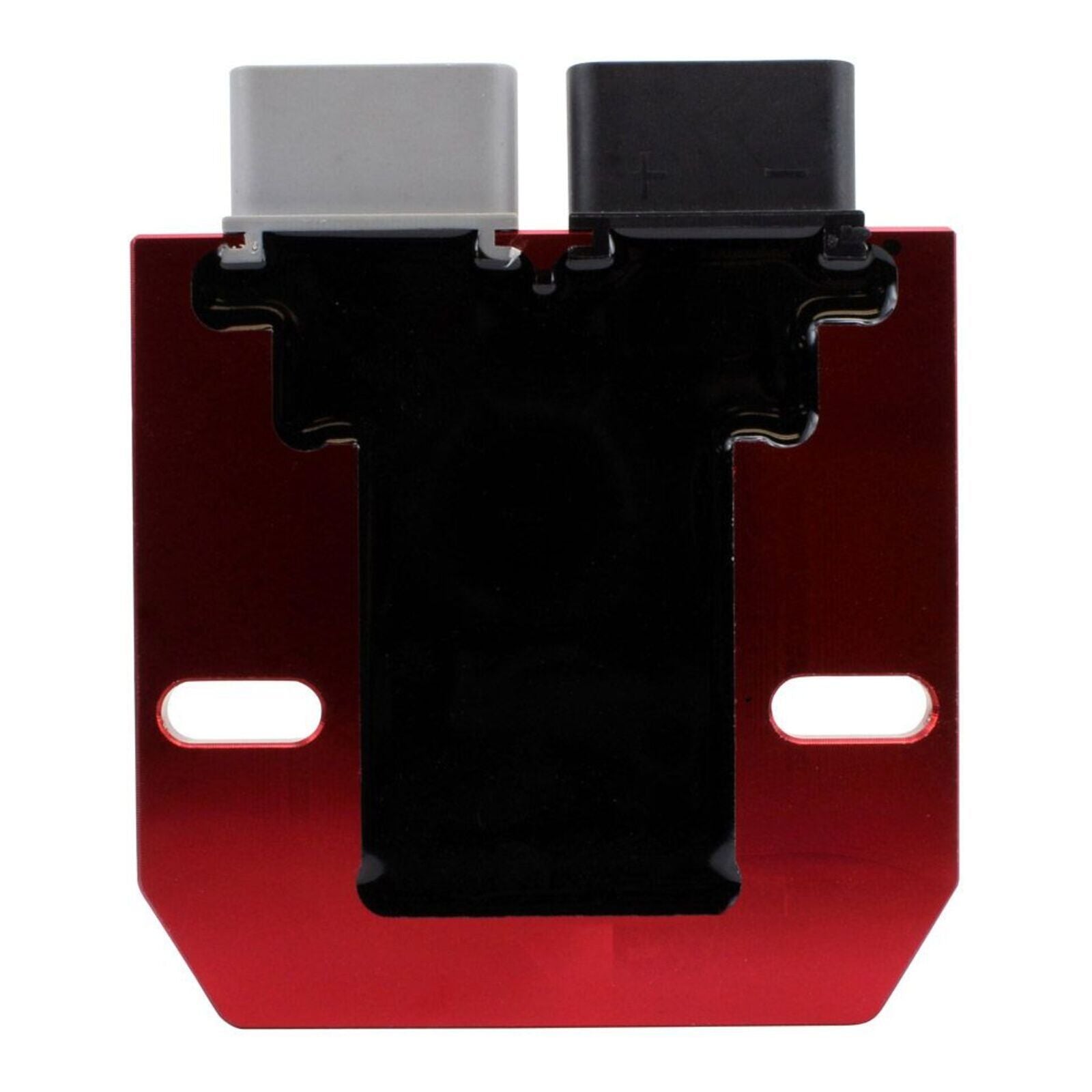

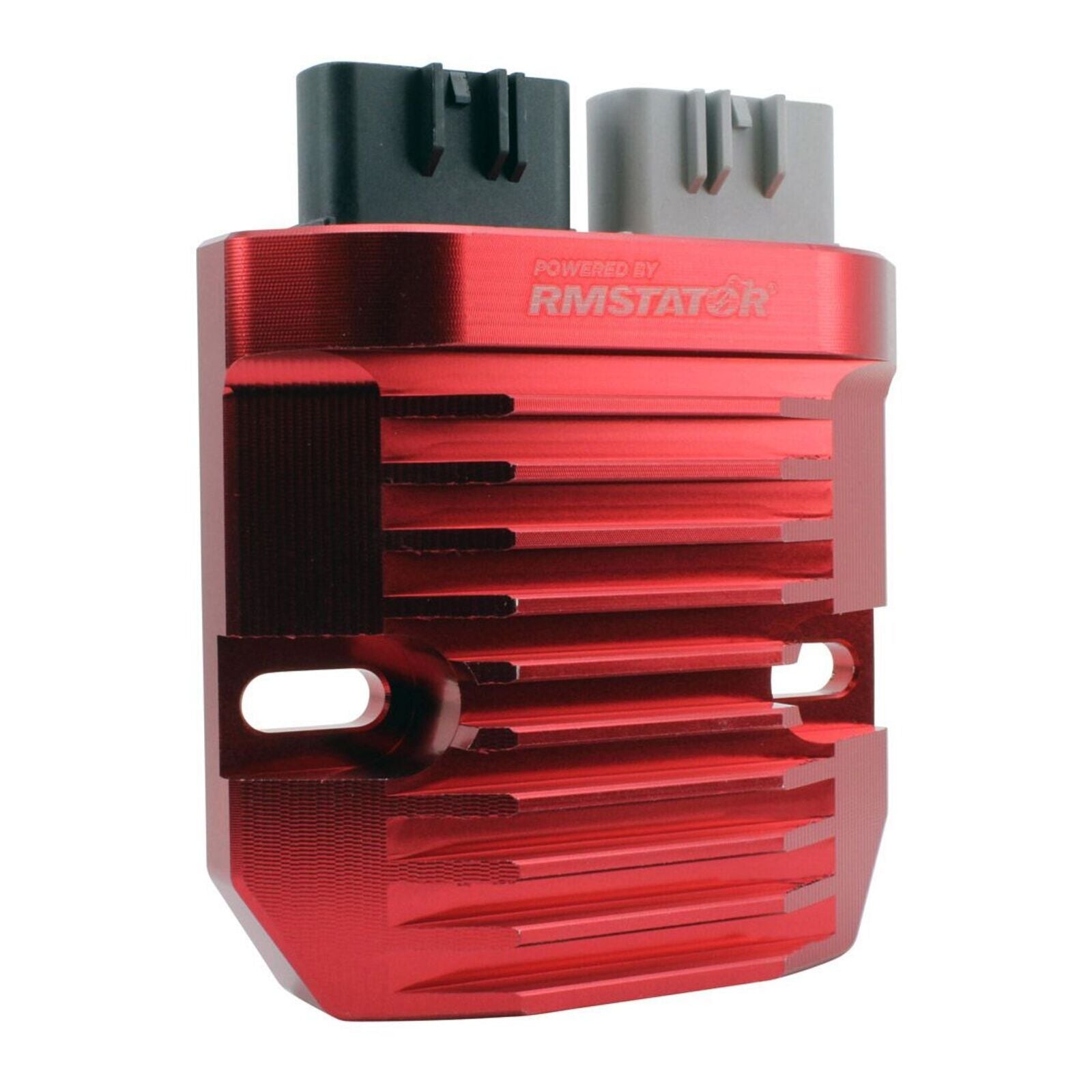

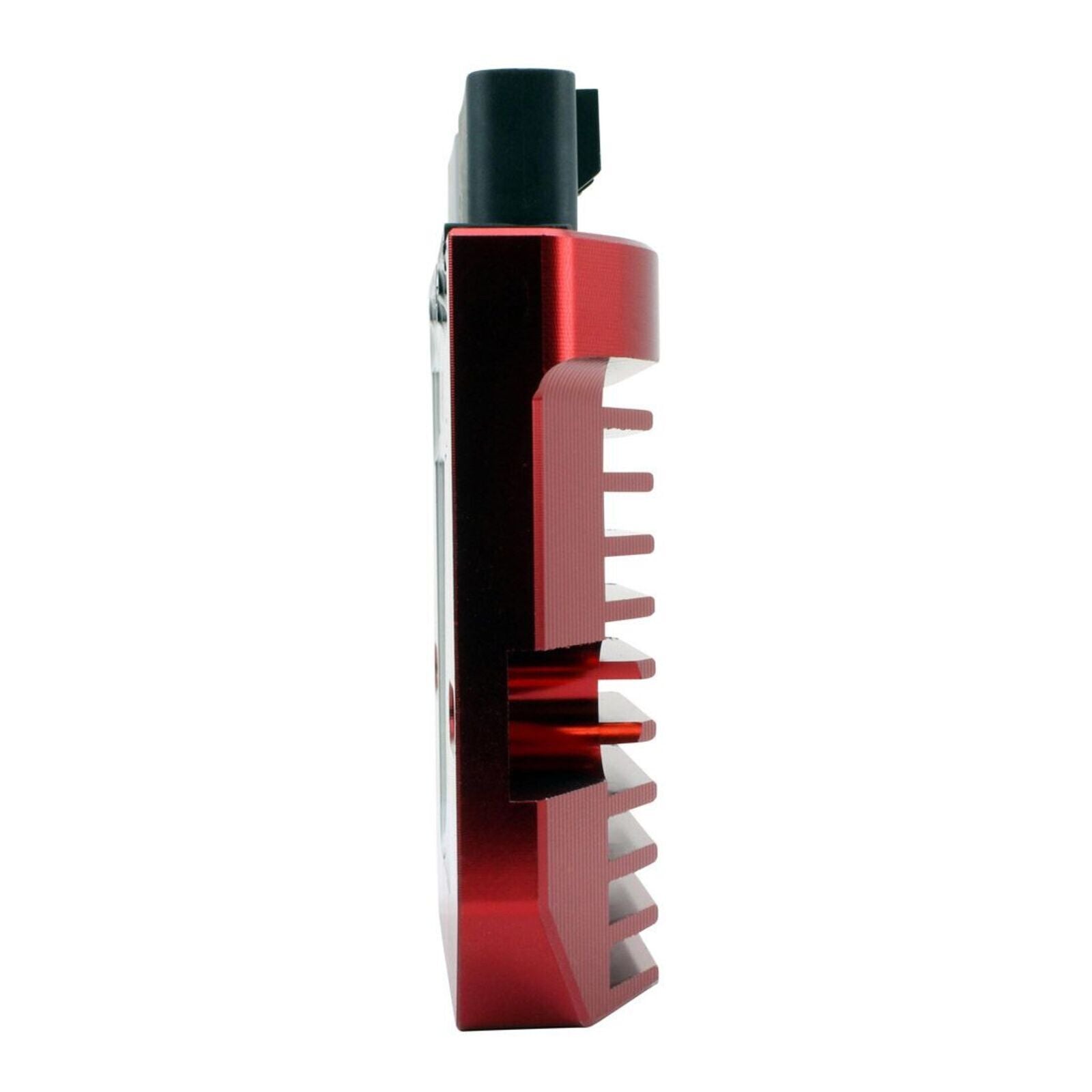

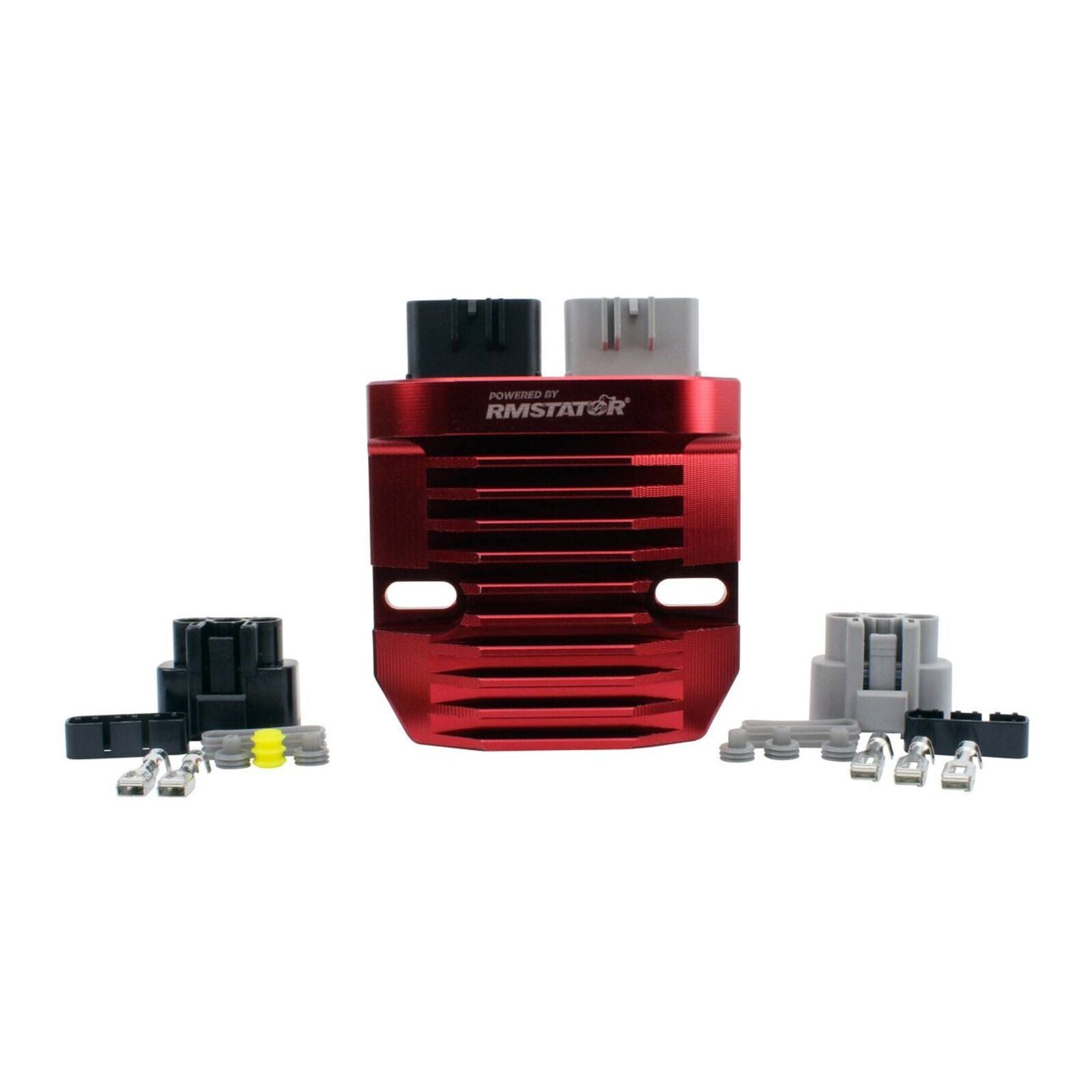

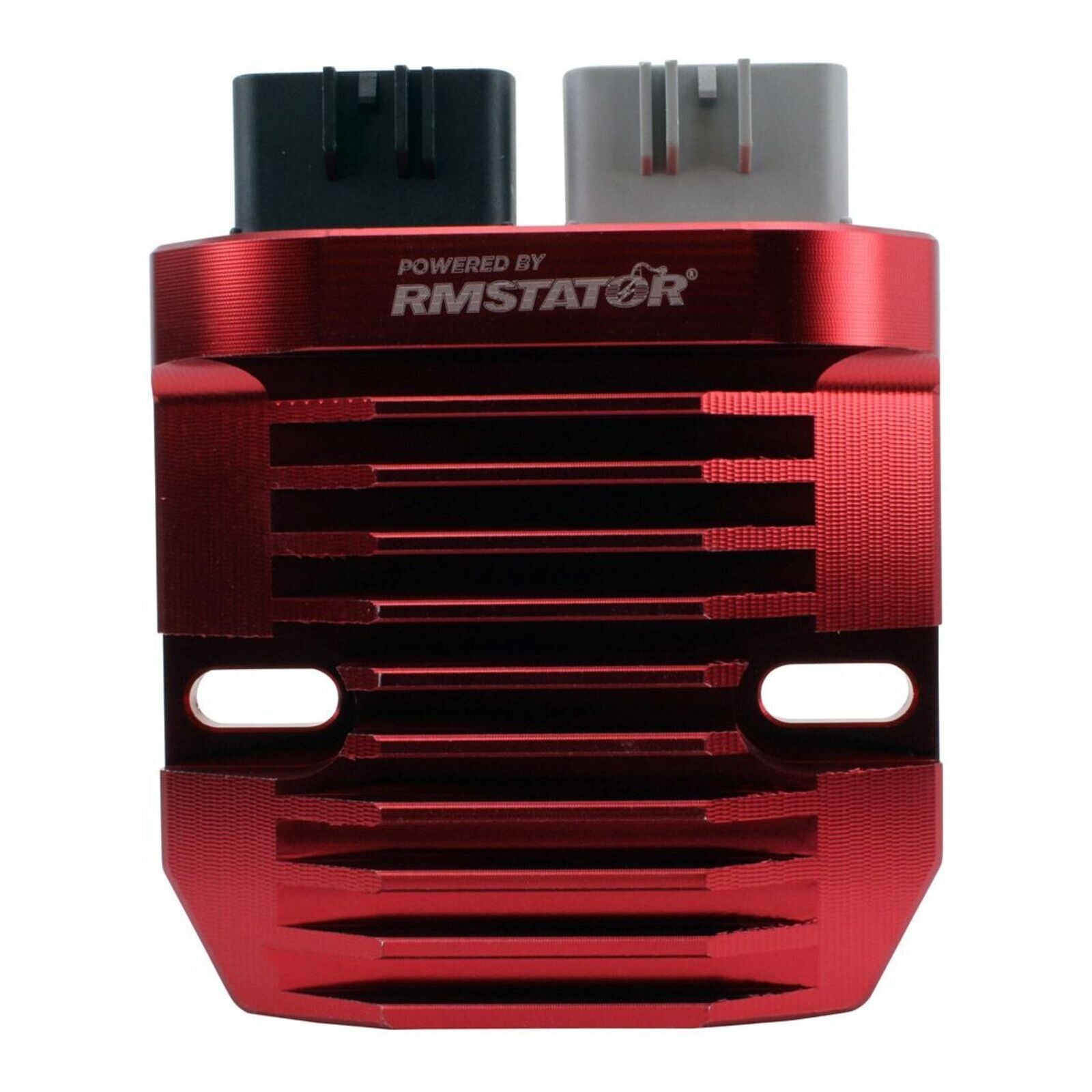

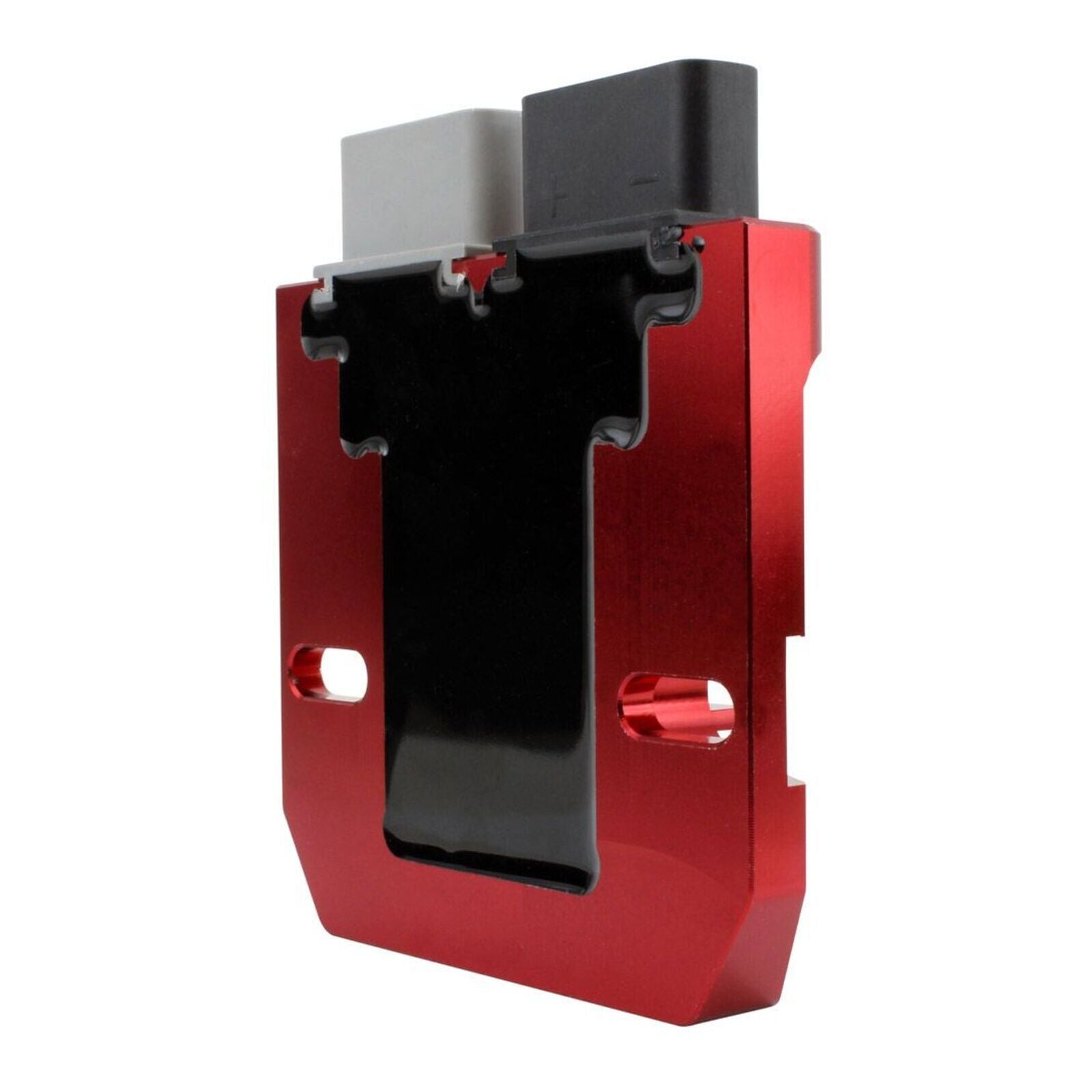

Red Machined Aluminum Mosfet Regulator:

Dimensions:
- Width: 103 mm
- Length: 103 mm
- Height: 28 mm
- Fixation holes center to center: 80 mm
Other specifications:
- Number of plugs: 2
- Number of pins: 5
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C

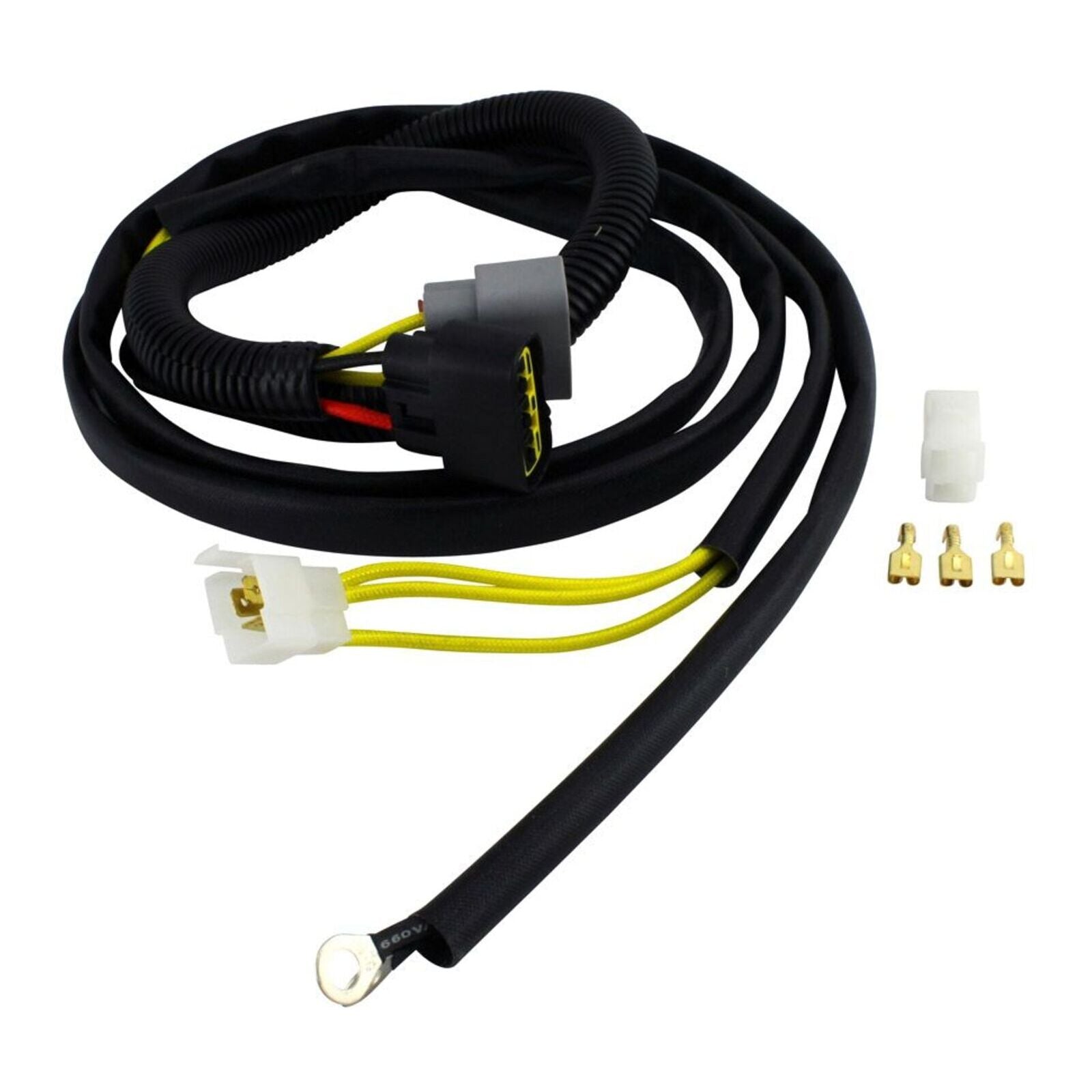

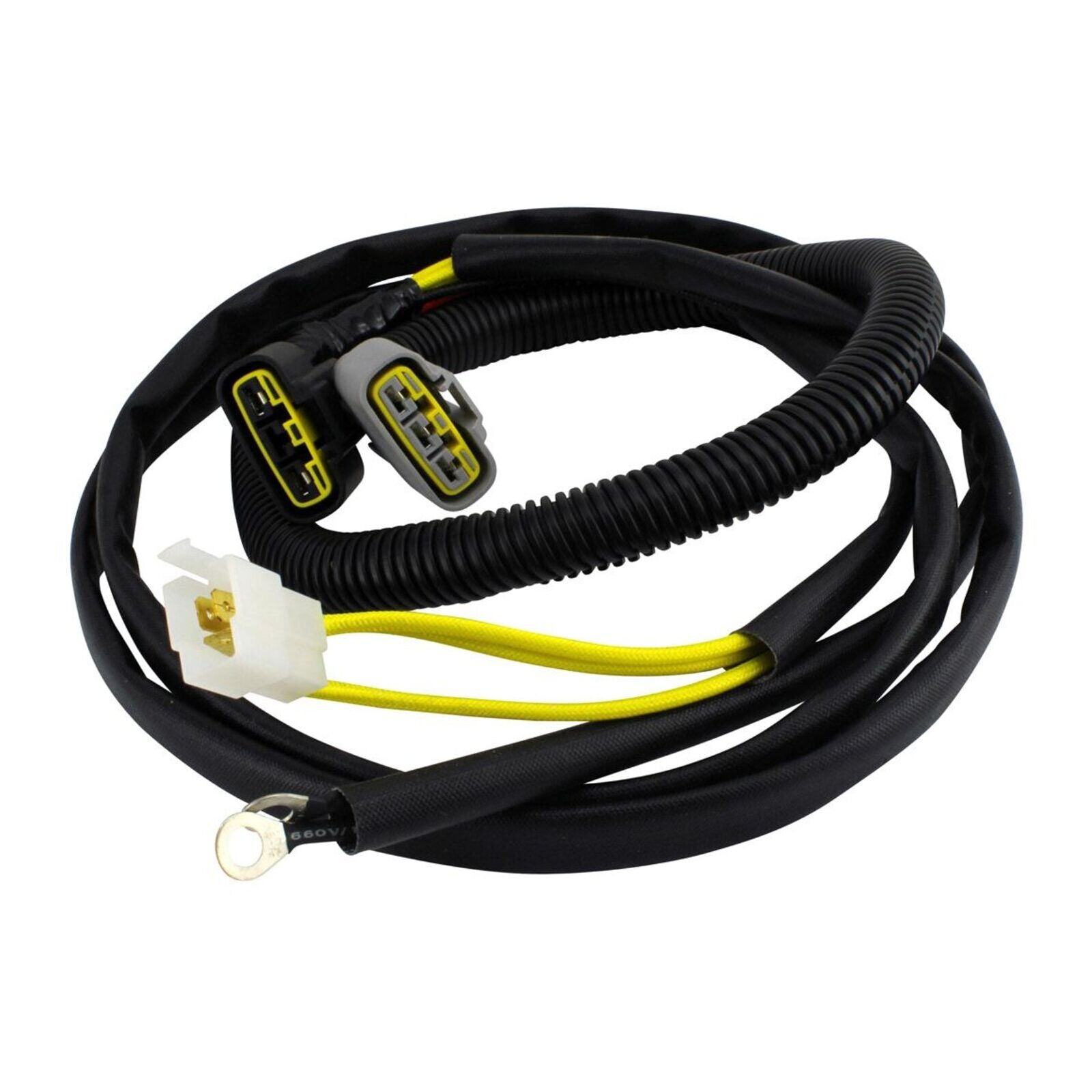

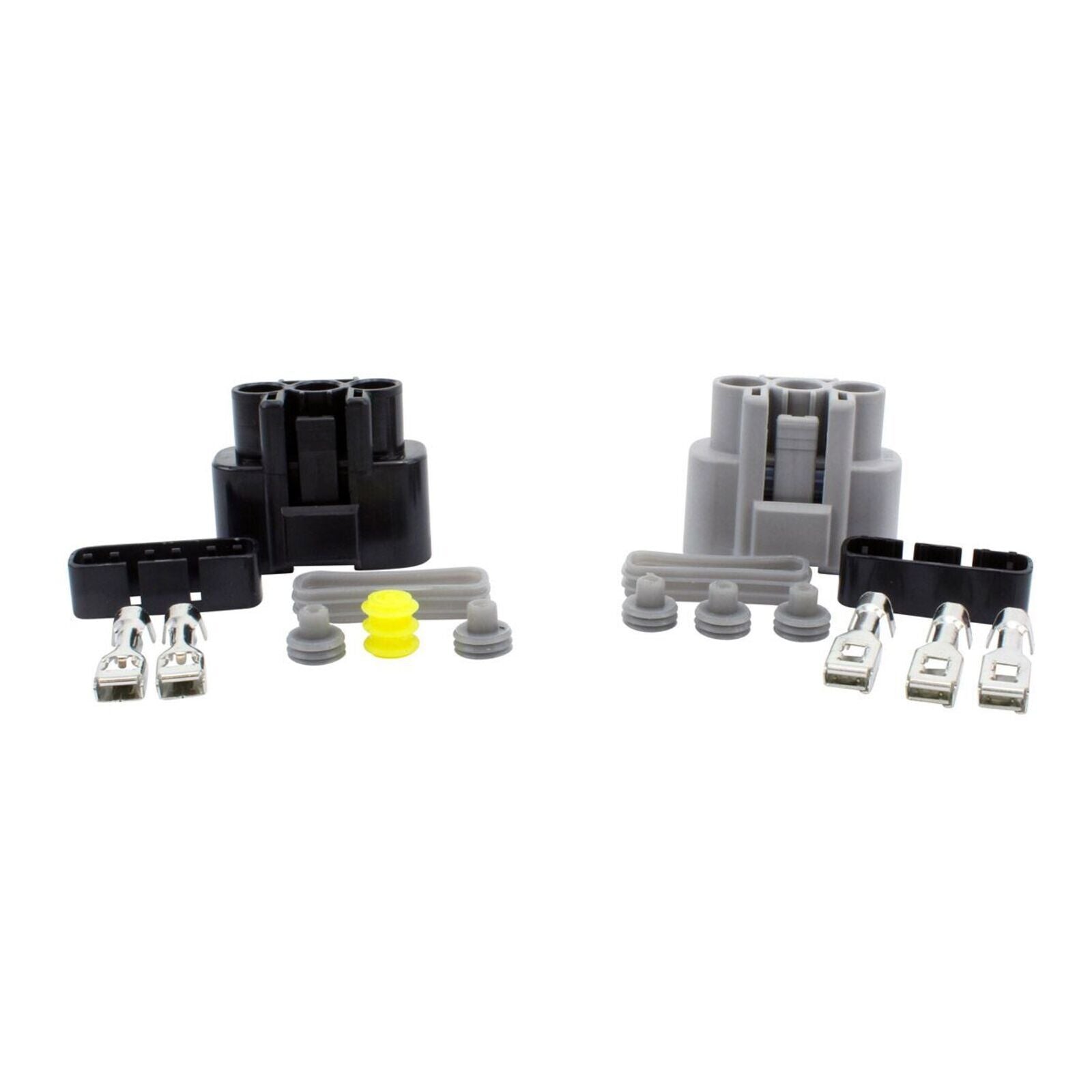

Polaris Surepower Module Regulator bypass Harness:

Specifications:
Number of yellow wires: 3
Number of red wires: 1
Number of black wires: 1
Number of plugs: 3

Width	103 mm
Length	103 mm
Height	28 mm
Fixation holes center to center	80 mm
Number of plugs	2
Number of pins	5
Minimum Charging Voltage	14.5 V +/- 0.5 V
Maximum Charging Current	50 A / 500 W
Open Circuit Voltage	< 15 V
Operation Temperature	-20°C to 85°C
Wires length	1000 mm
Number of yellow wires	3
Number of red wires	1
Number of black wires	1
