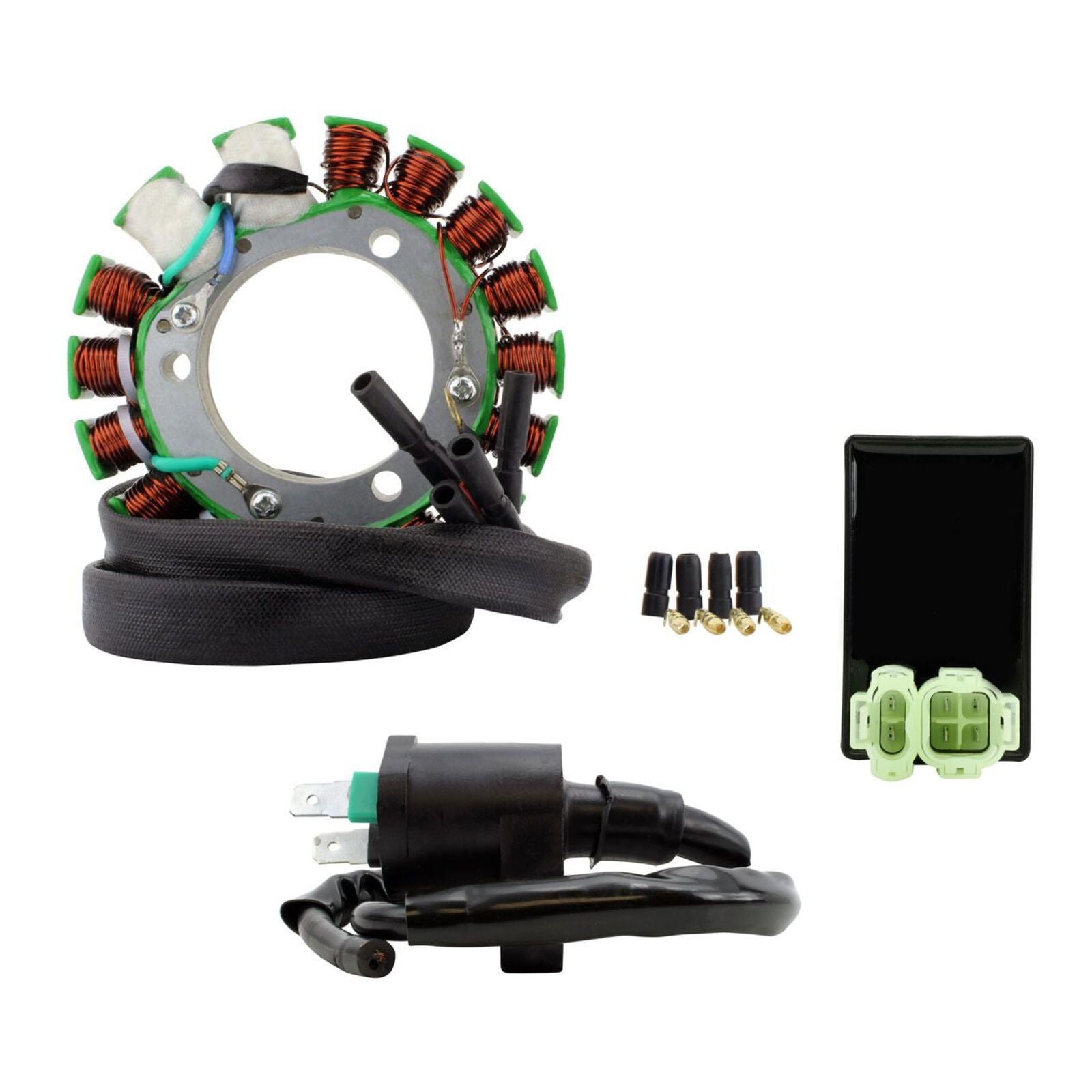

STATOR KIT + CDI BOX + IGN COIL HON XR 600 R '88-00'

Brand new Kit High Output Stator 200W + High-Performance CDI + External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

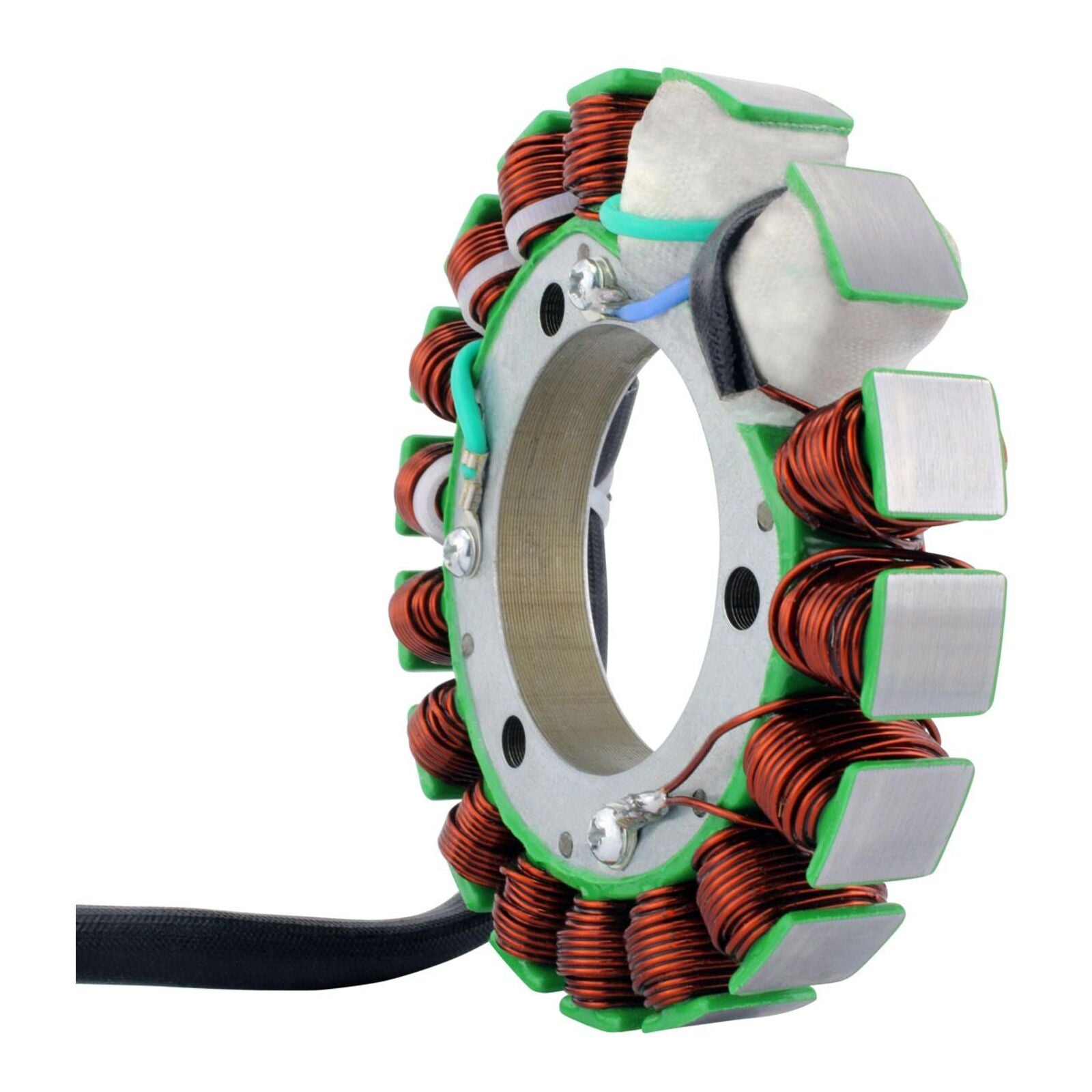

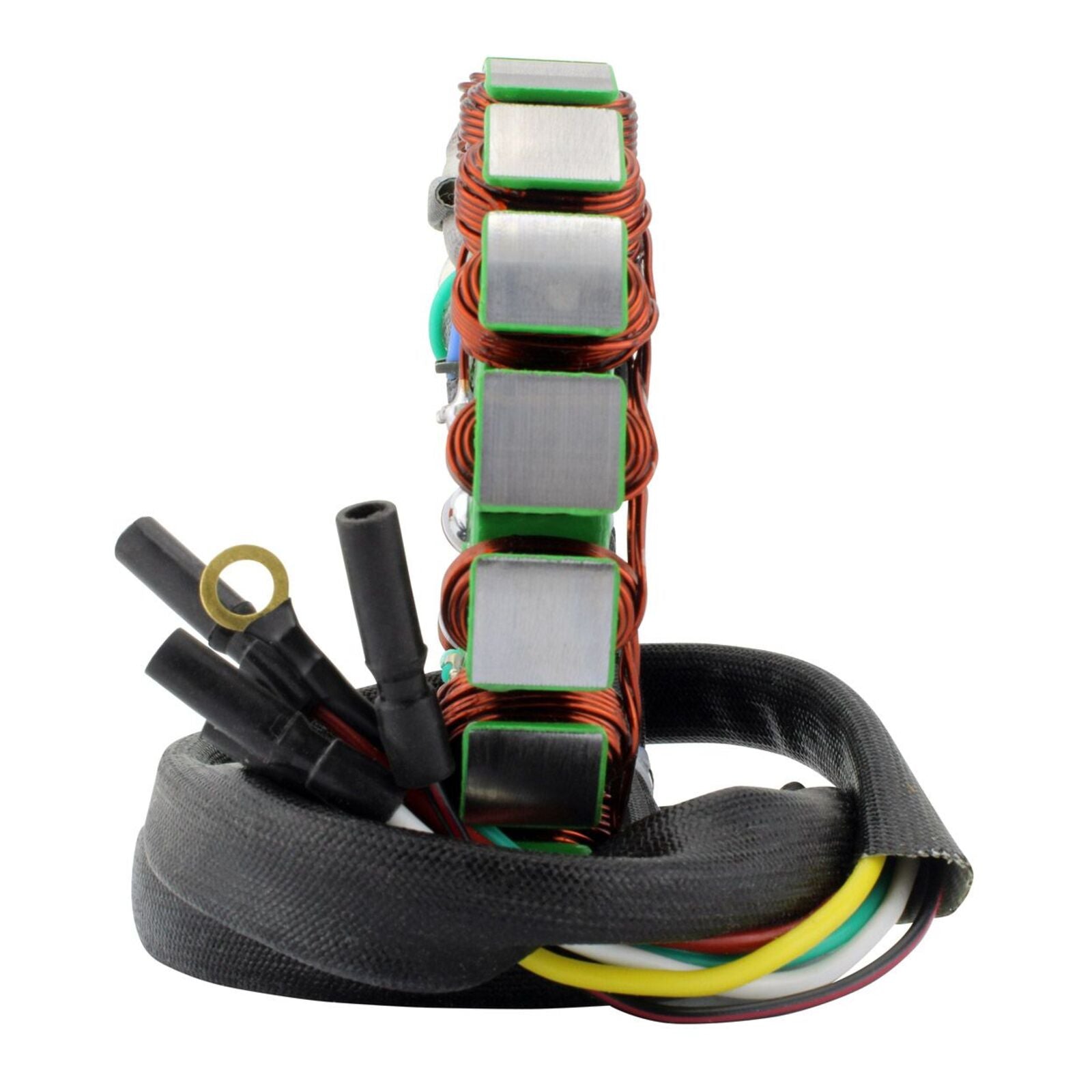

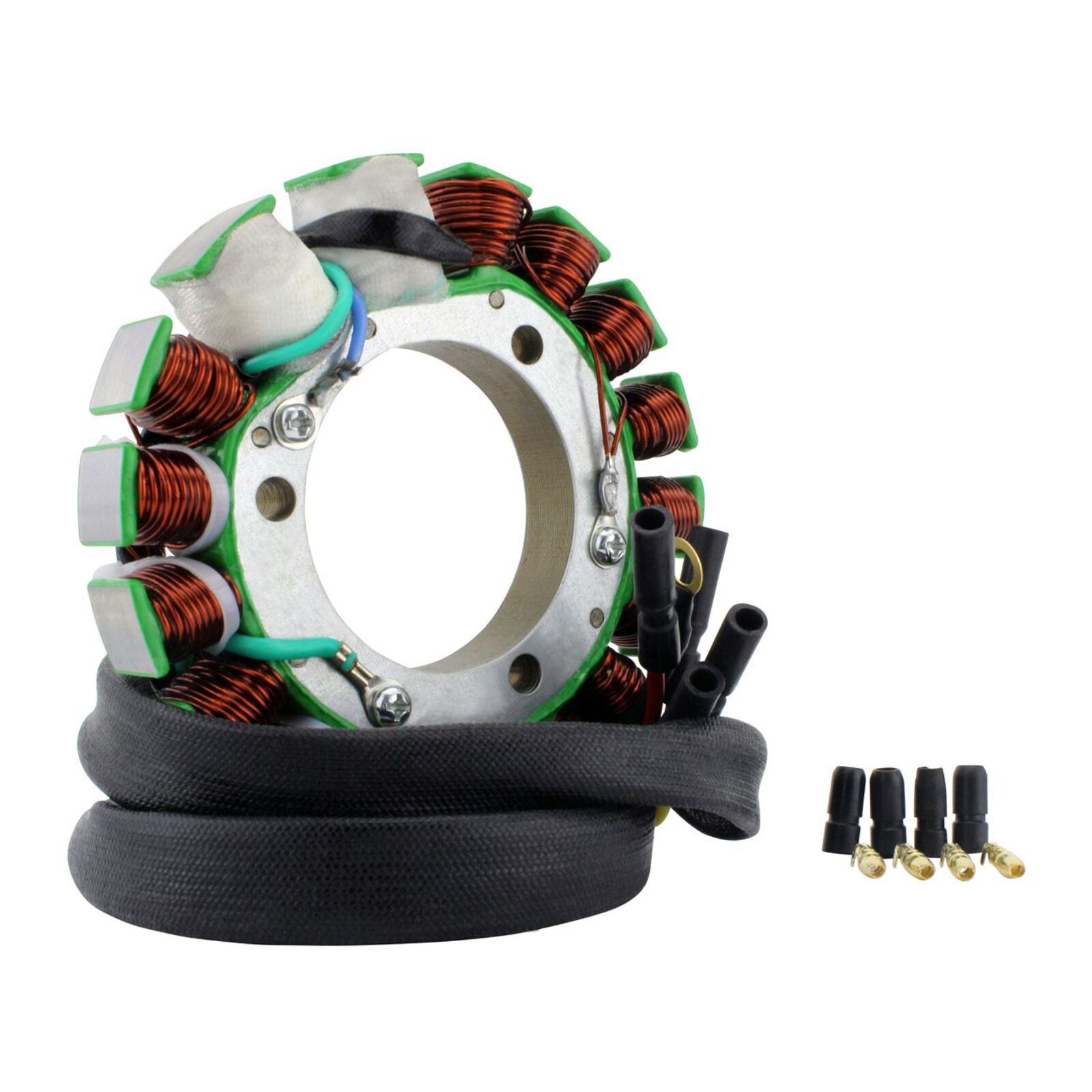

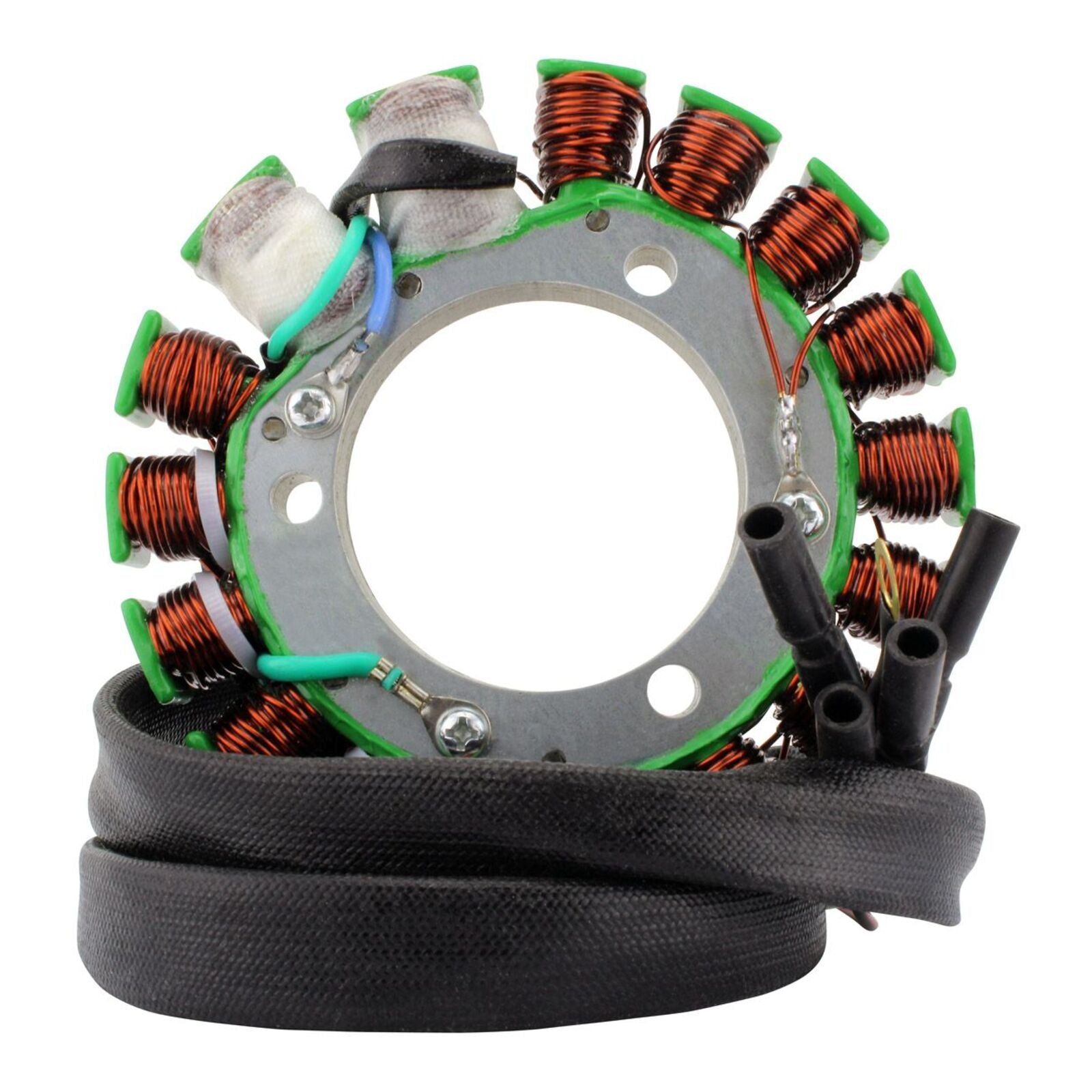

Brand new aftermarket High output Stator 200W

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• 2 x 100W
• Connectors included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

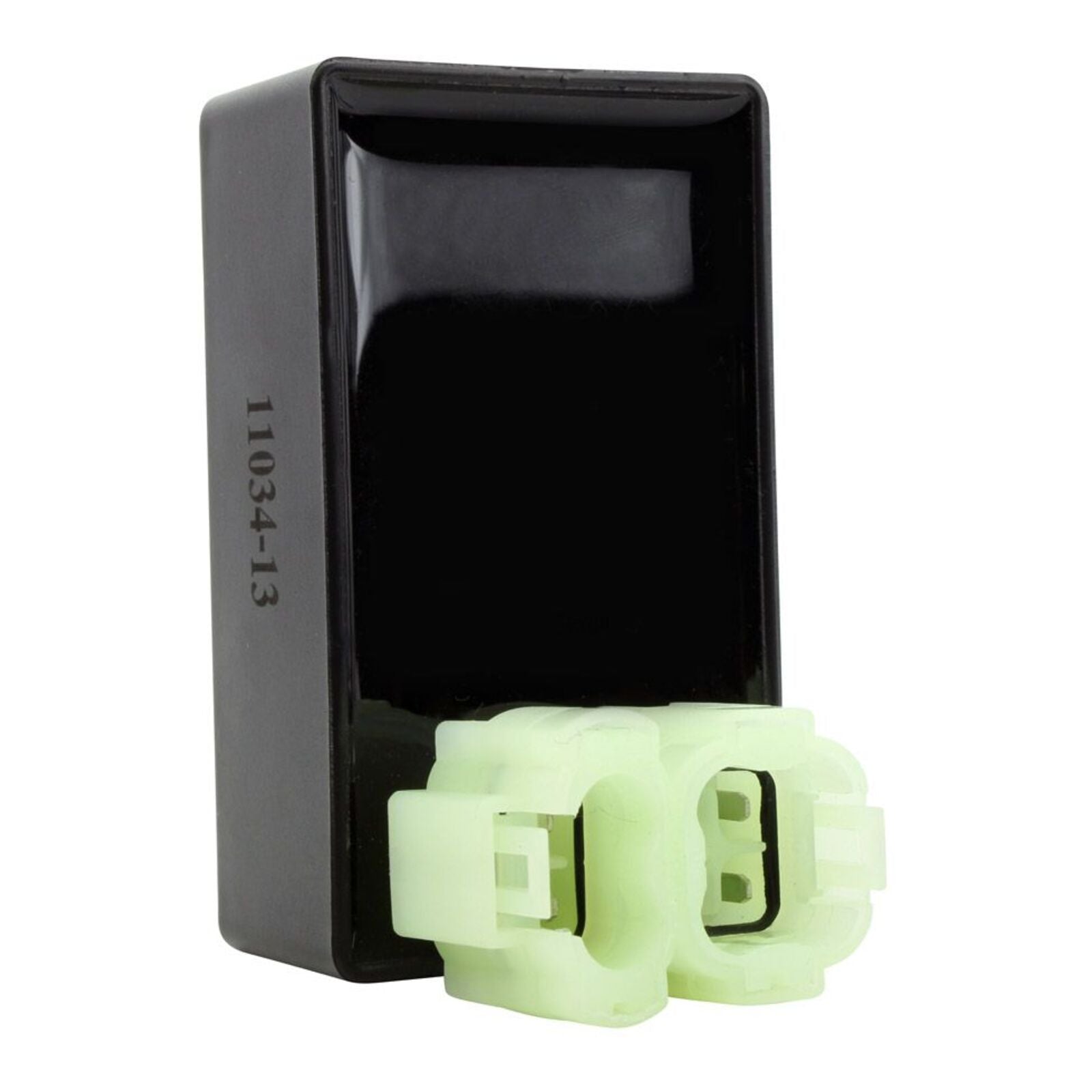

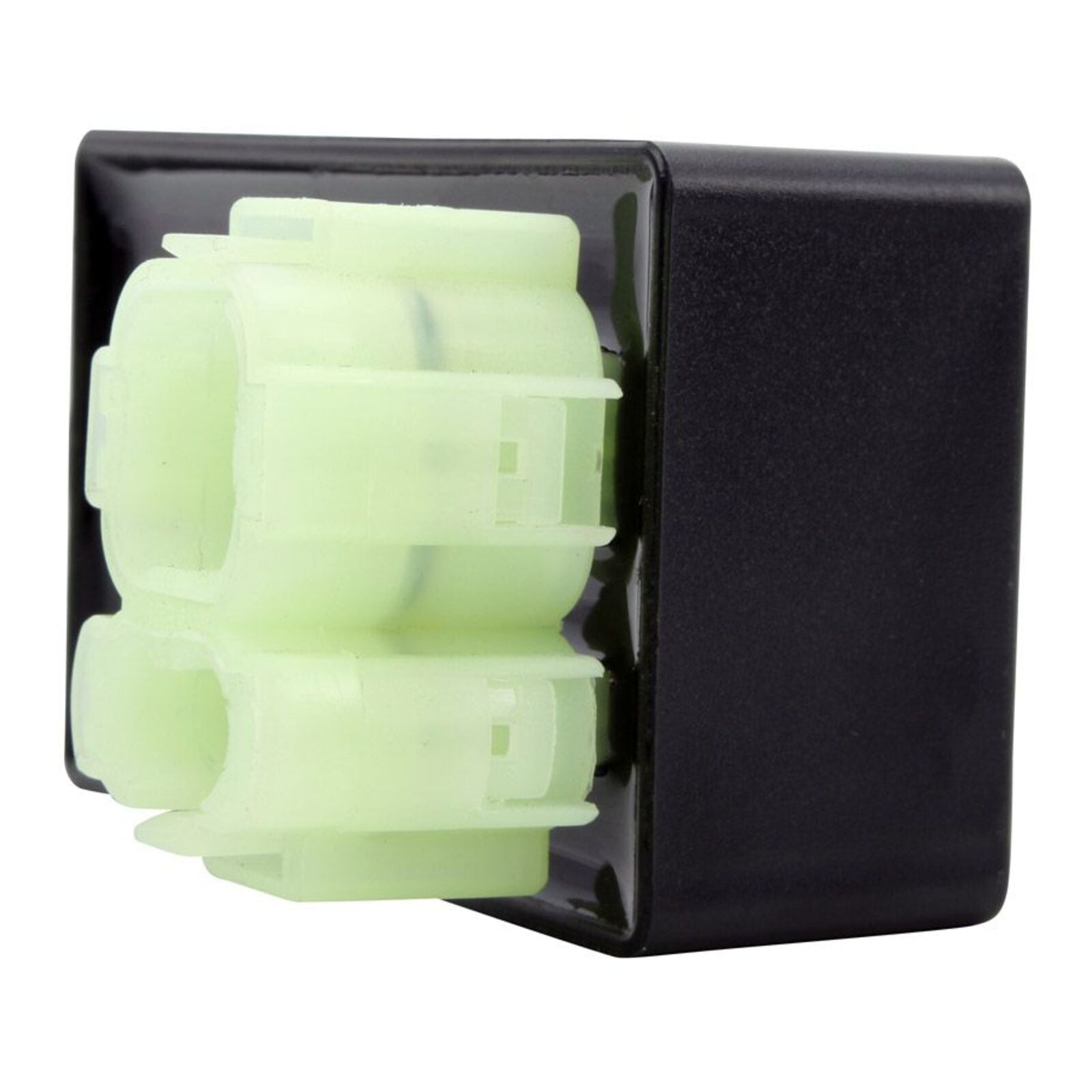

Brand new aftermarket CDI box

• Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
• Higher grade of electronic components.
• The quality exceeds the OEM equipment

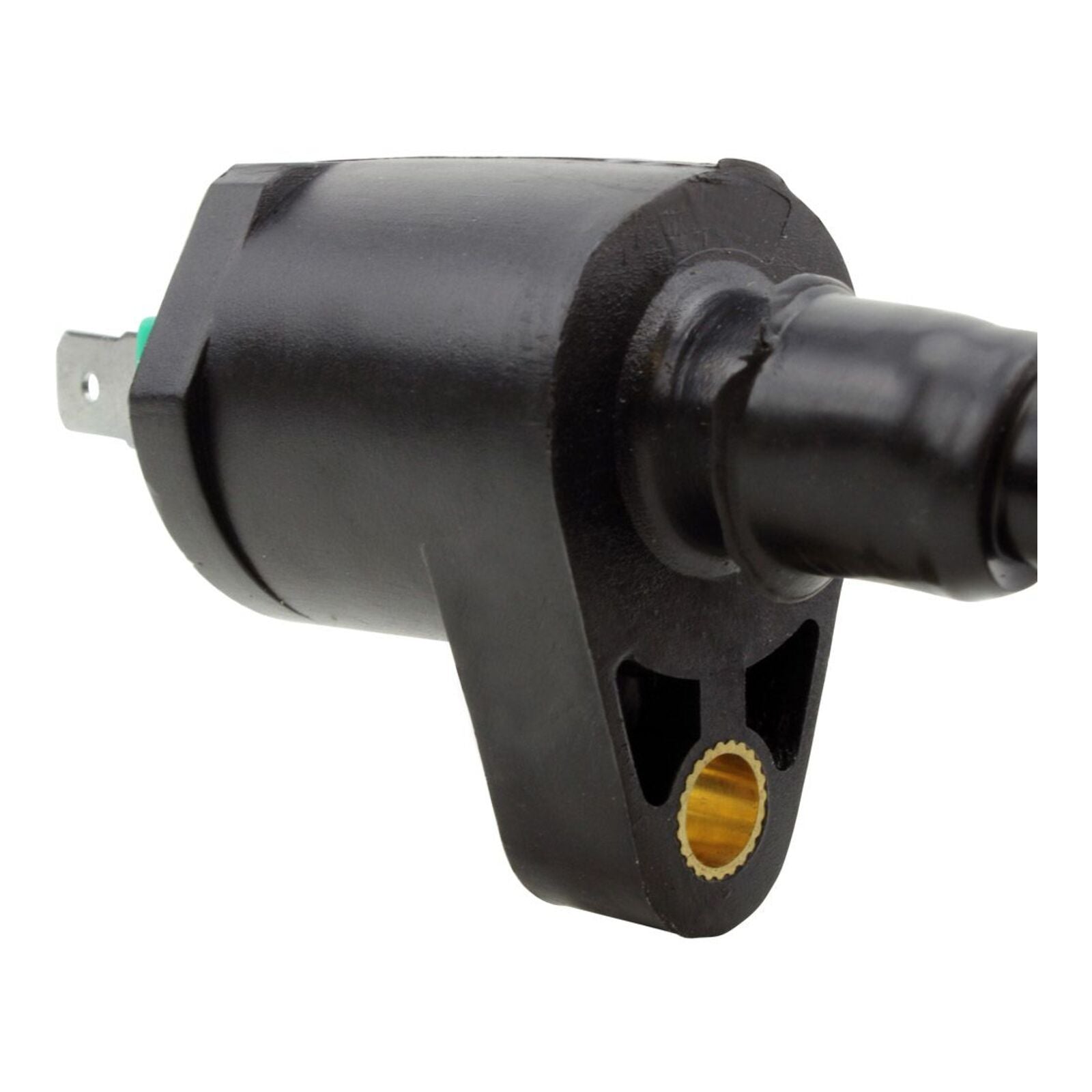

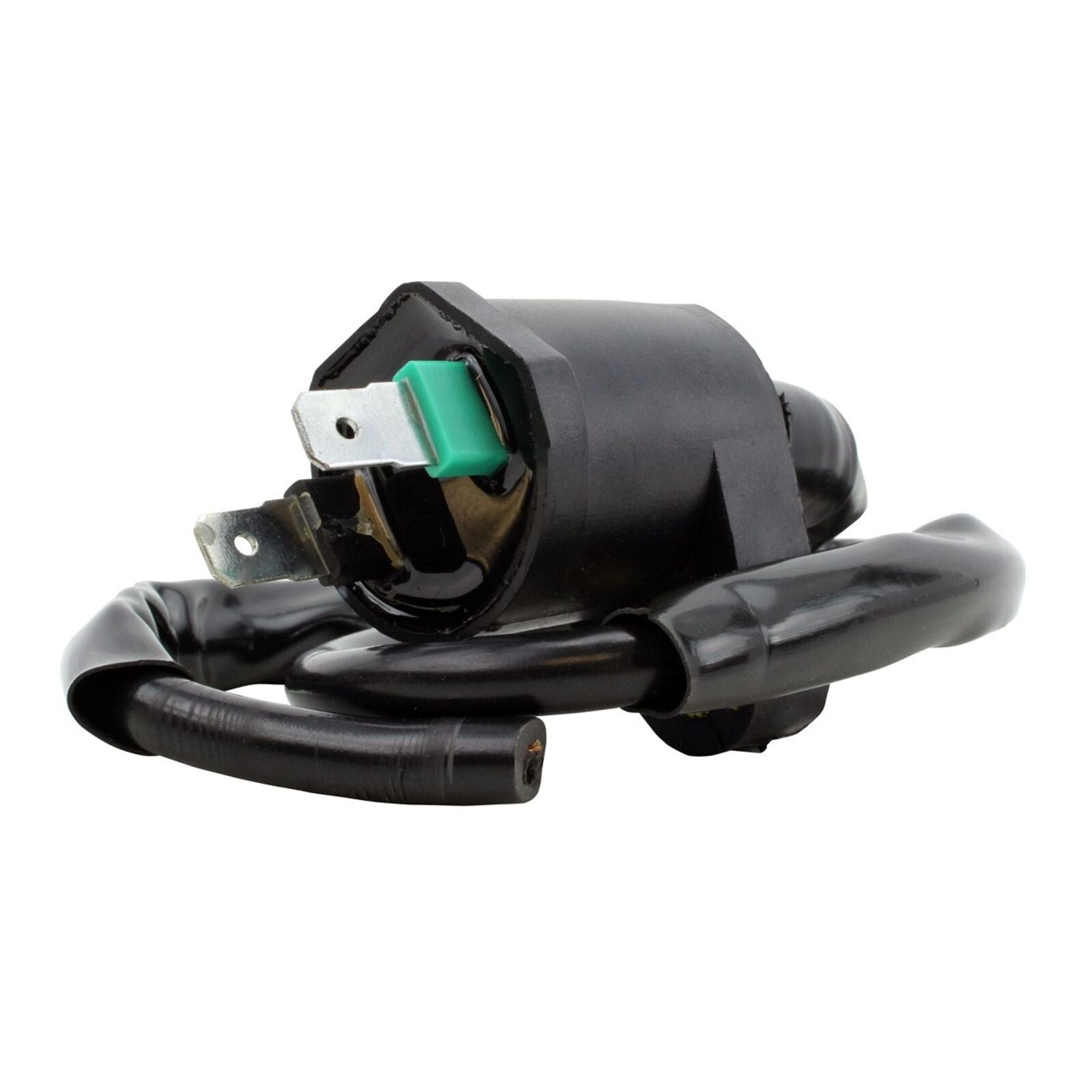

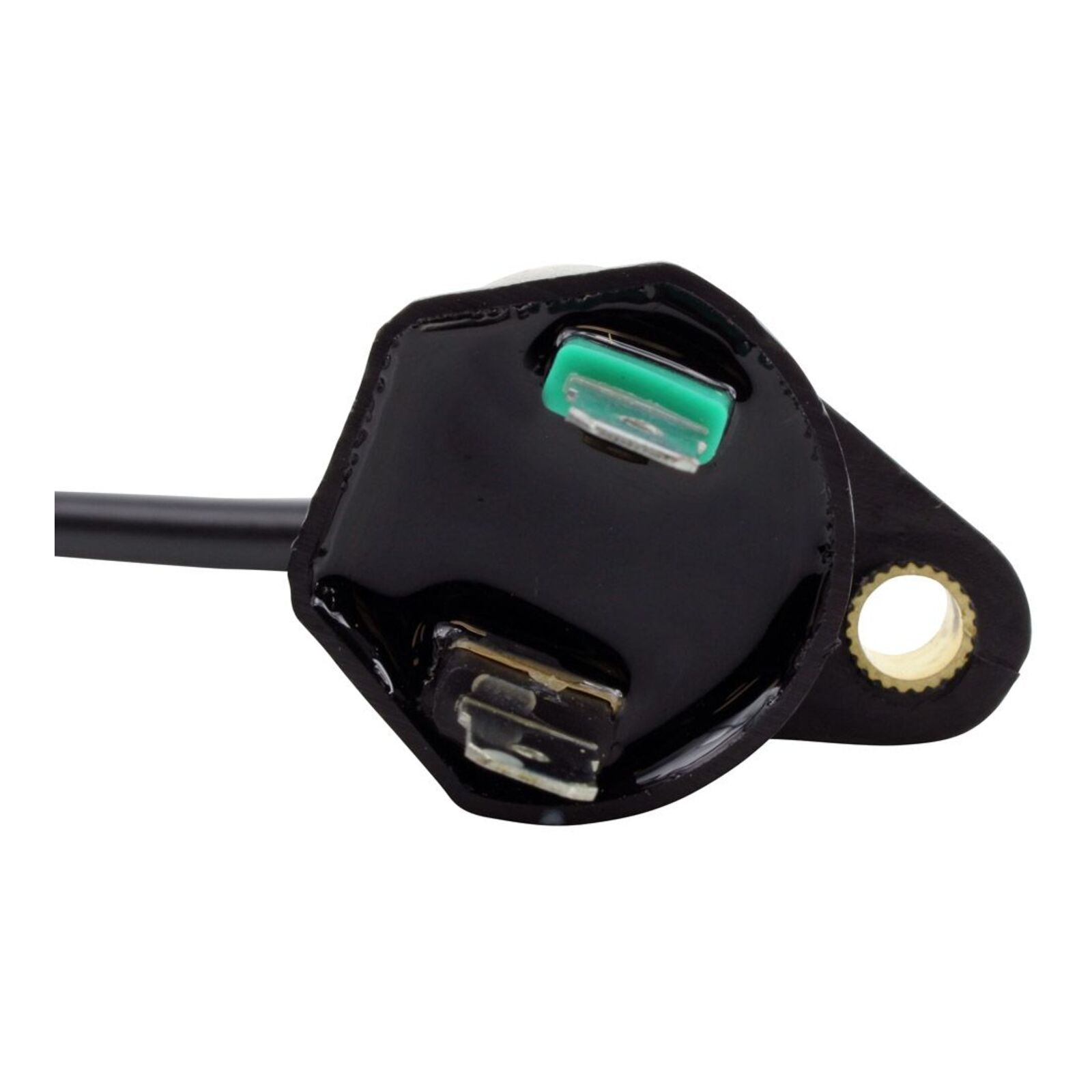

Brand new aftermarket External Ignition Coil

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug- and-play unit, direct fit, and easy to install.

High output Stator 200W

• Dimensions:
  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 200 mm
• Length of wires grommet to plug: 700 mm
• Other specifications:
  • Number of wires: 5
  • Number of plugs: 5
  • Number of pins: 3
  • Number of poles: 17
  • Wire to wire resistance:
  • Alternator: White to Green = 0.4 ohms +-20%
  • Alternator: Yellow to Red = 0.4 ohms +-20%
  • Source: Black/Red to Green = 140 ohms +-20%

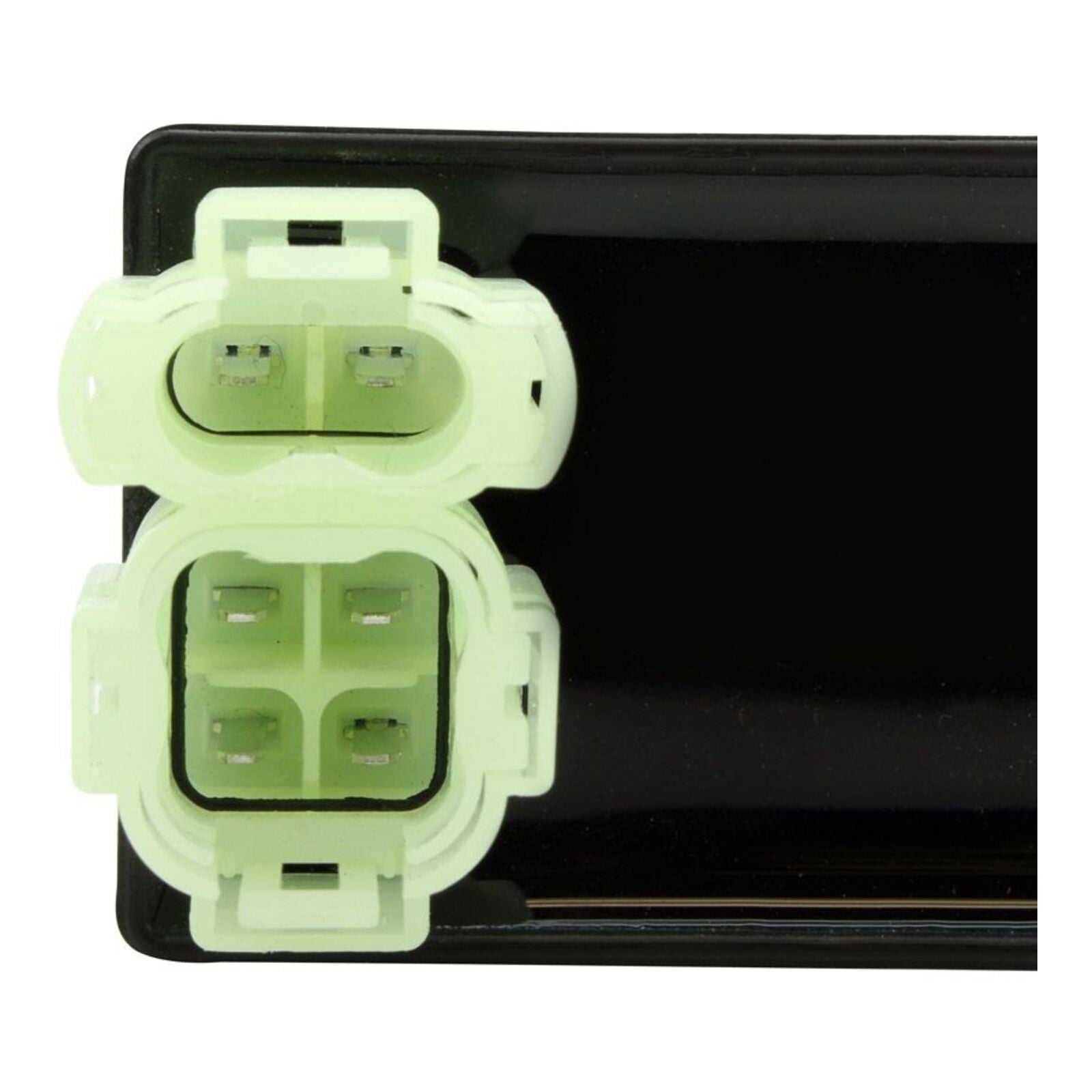

High- performance CDI Box

• Dimensions:
  • Height: 22mm
  • Length: 66mm
  • Width: 42mm
• Other specifications:
  • Number of plugs: 2
  • Number of pins: 6
