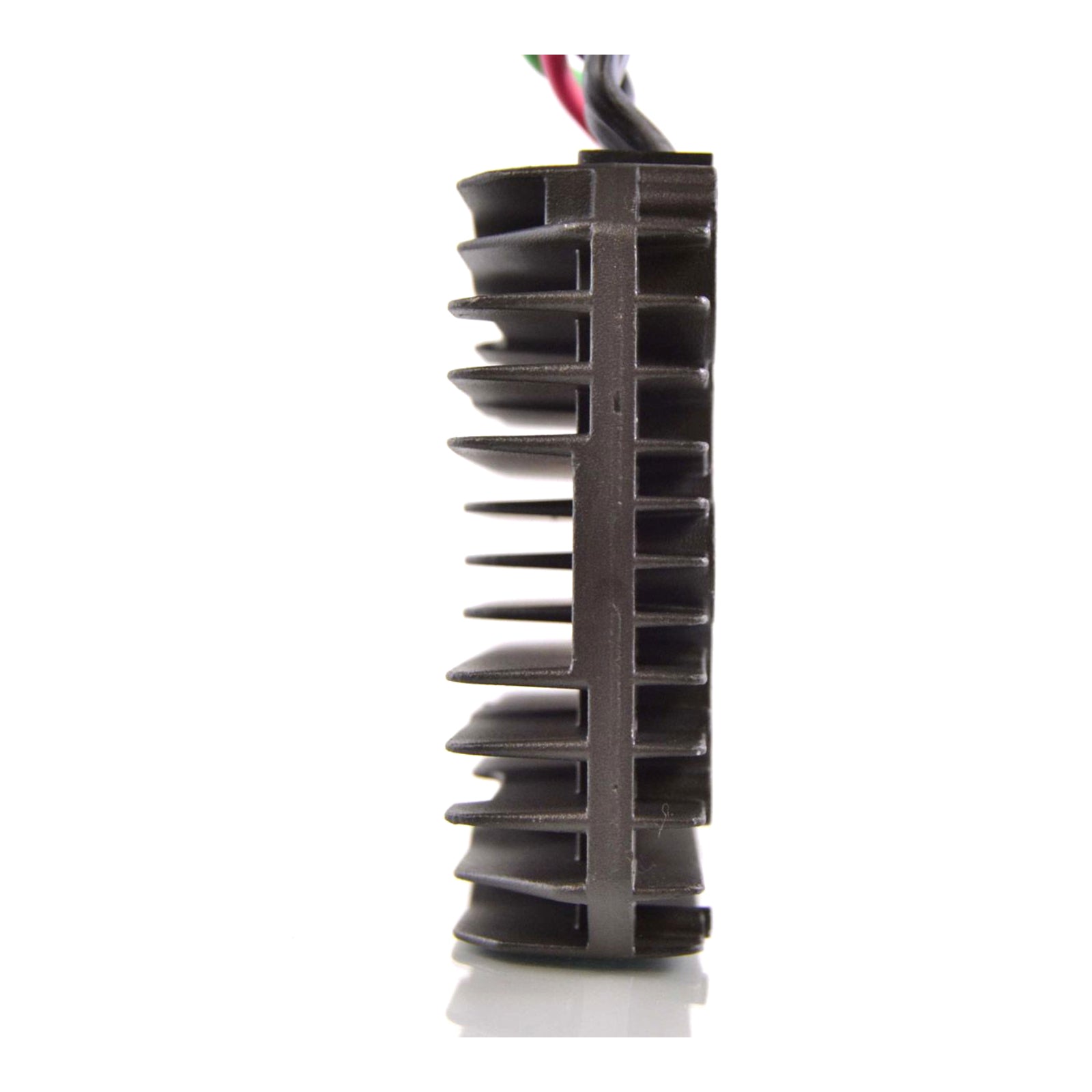

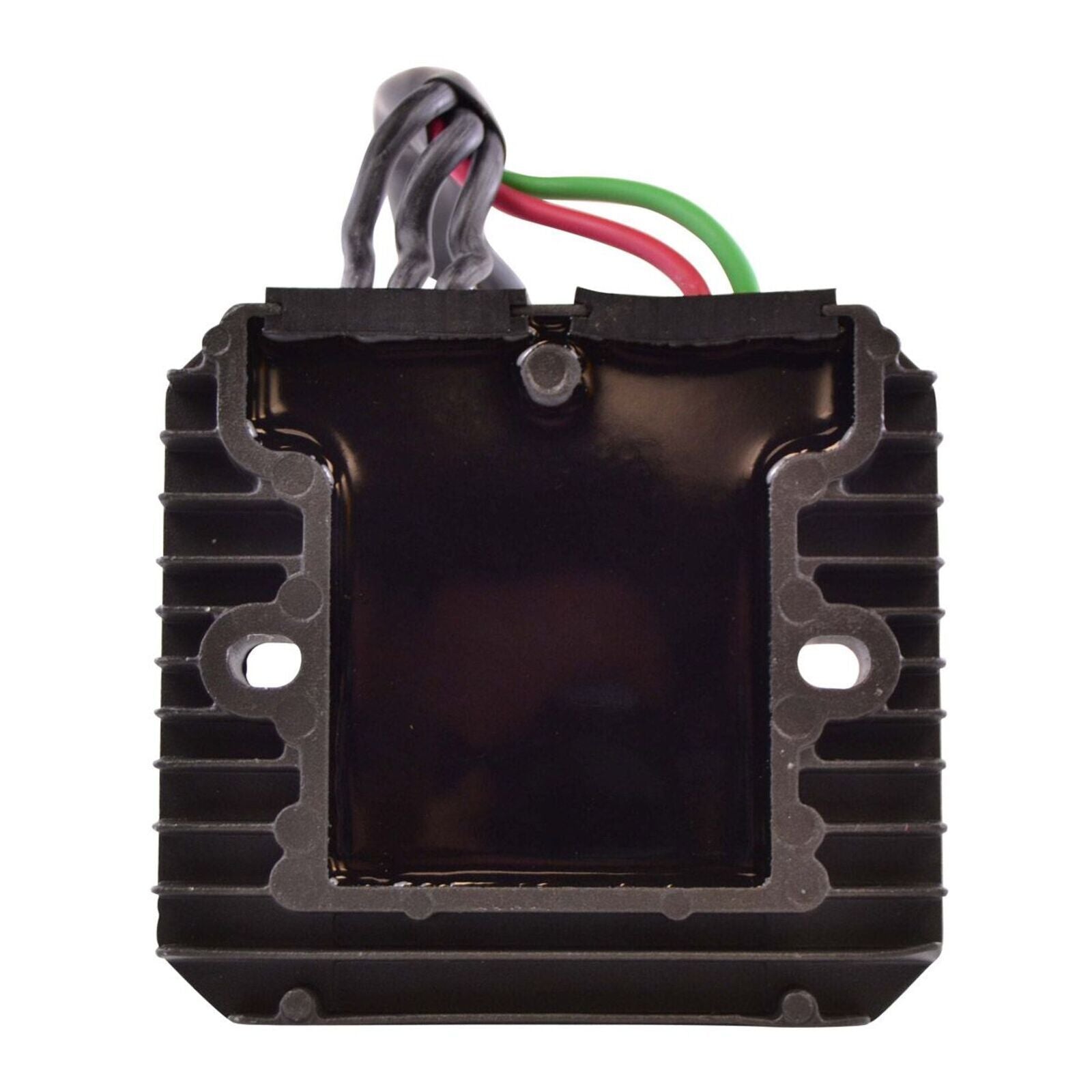

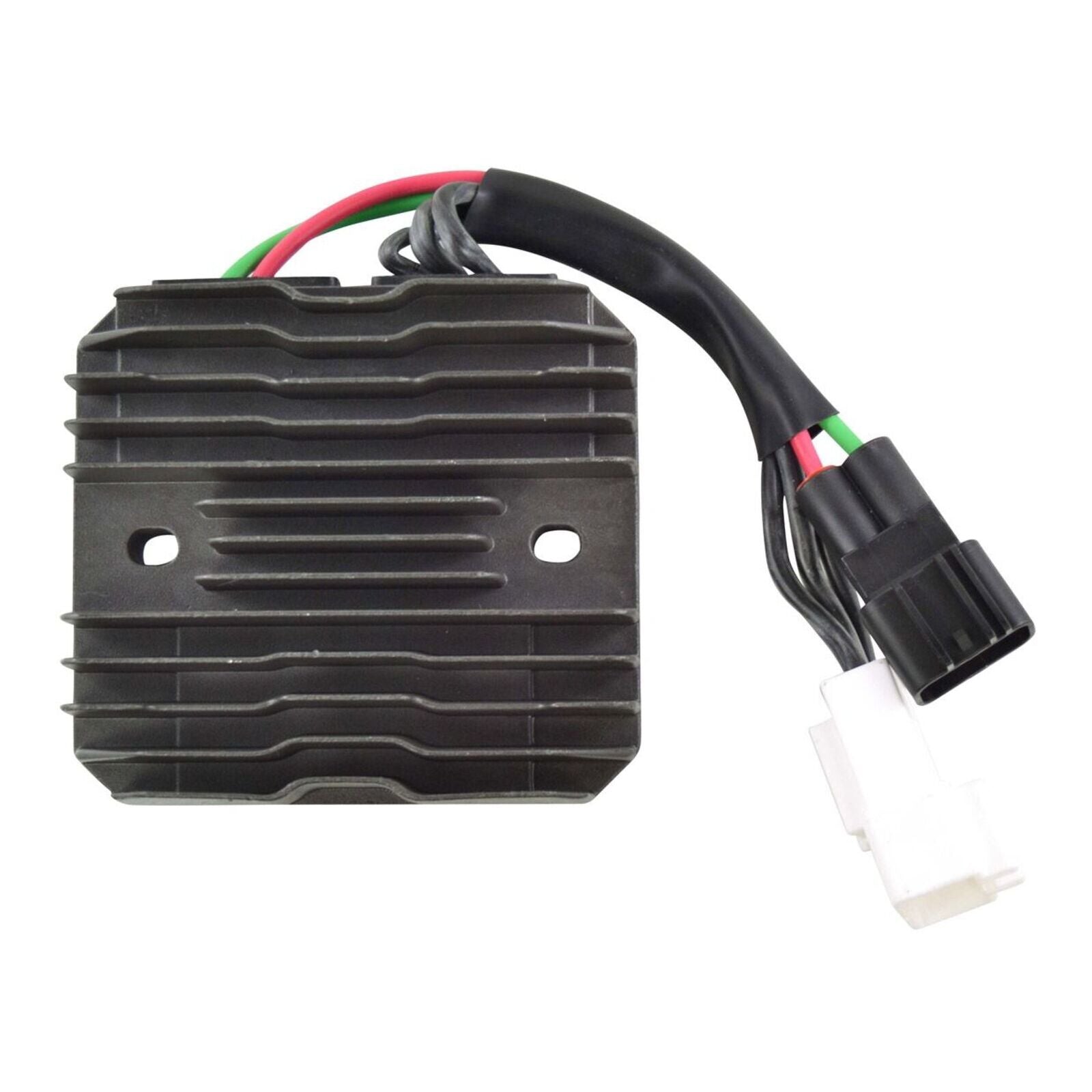

RMSTATOR Regulator Rectifier Assorted Suzuki Models - Refer to Fitments (RM30337)

Brand new aftermarket voltage regulator rectifier.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher grade of electric components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

Dimensions:

• Width: 100mm
• Length: 110mm
• Height: 35mm
• Fixation holes centre to centre: 77mm
• Wires length: 130mm and 160mm

Other Specifications:

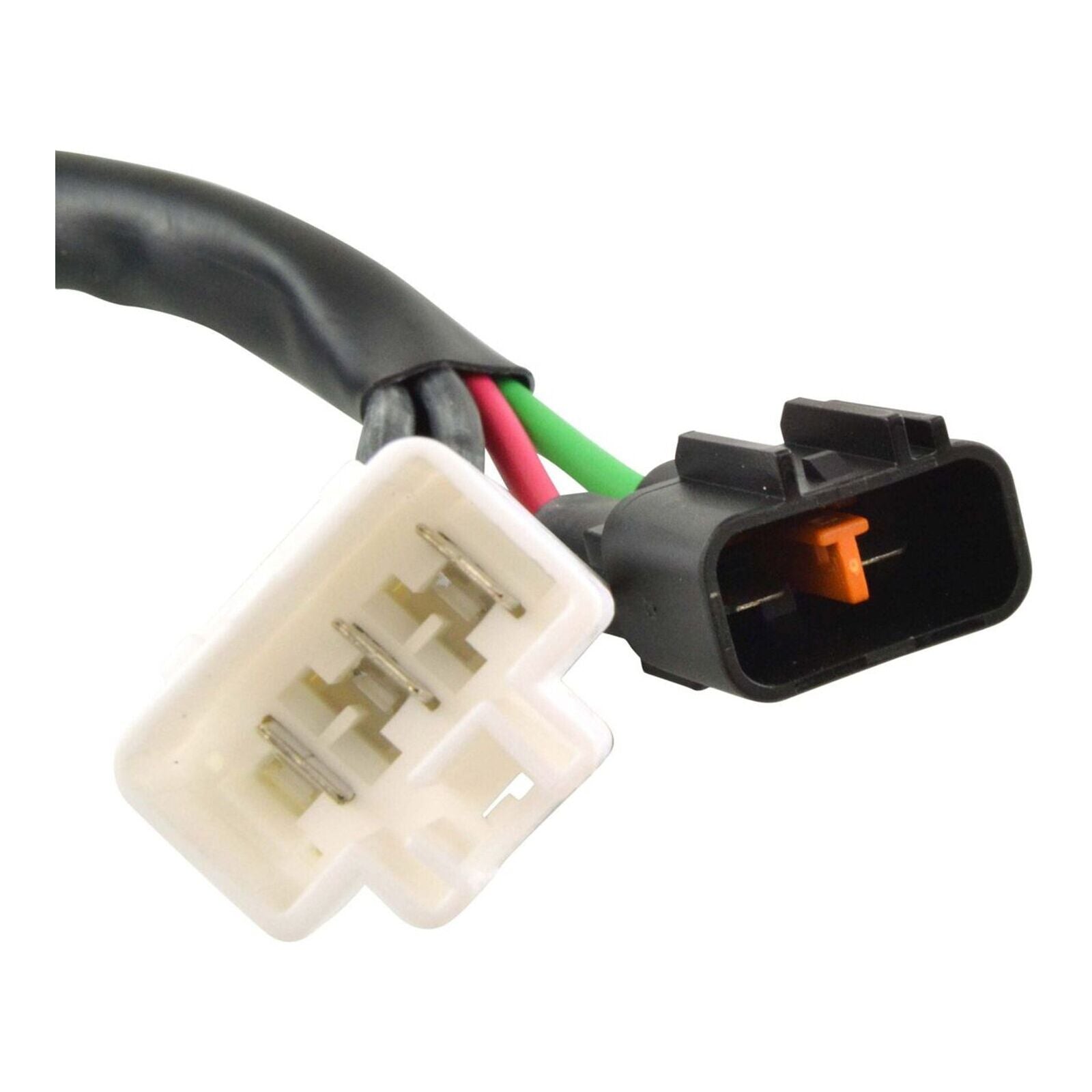

• Number of plugs: 2
• Number of pins: 5

Before installing your new voltage regulator rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.
