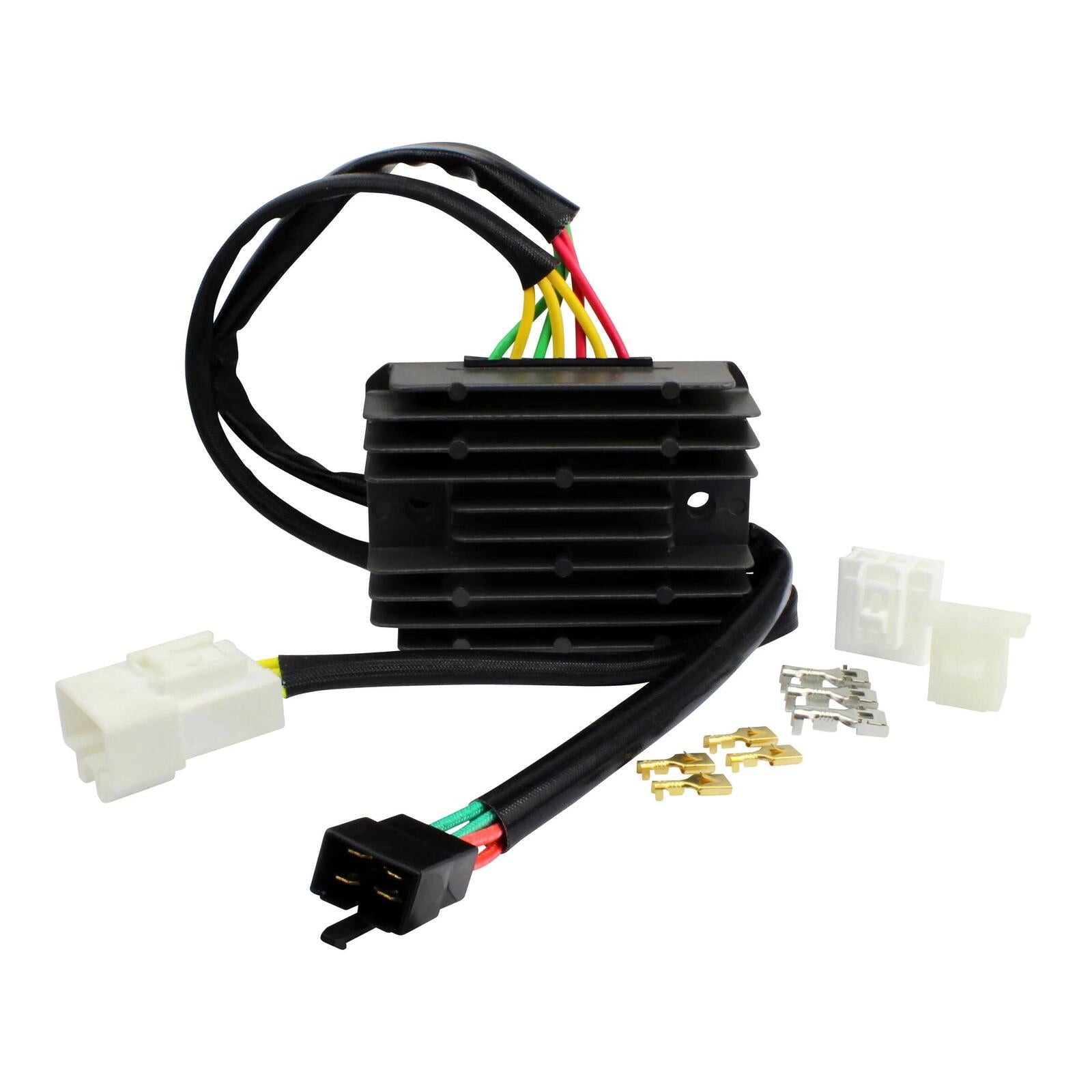

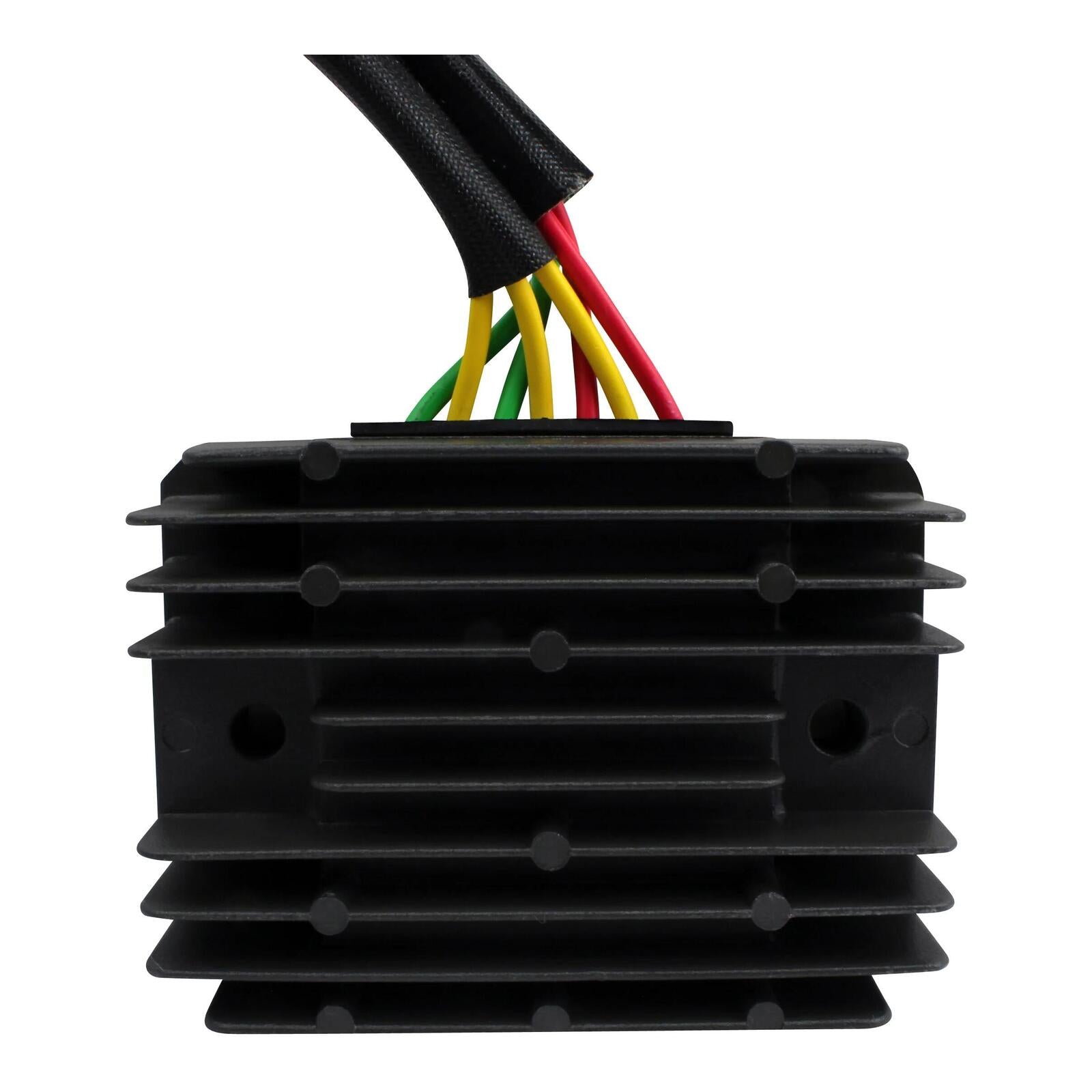

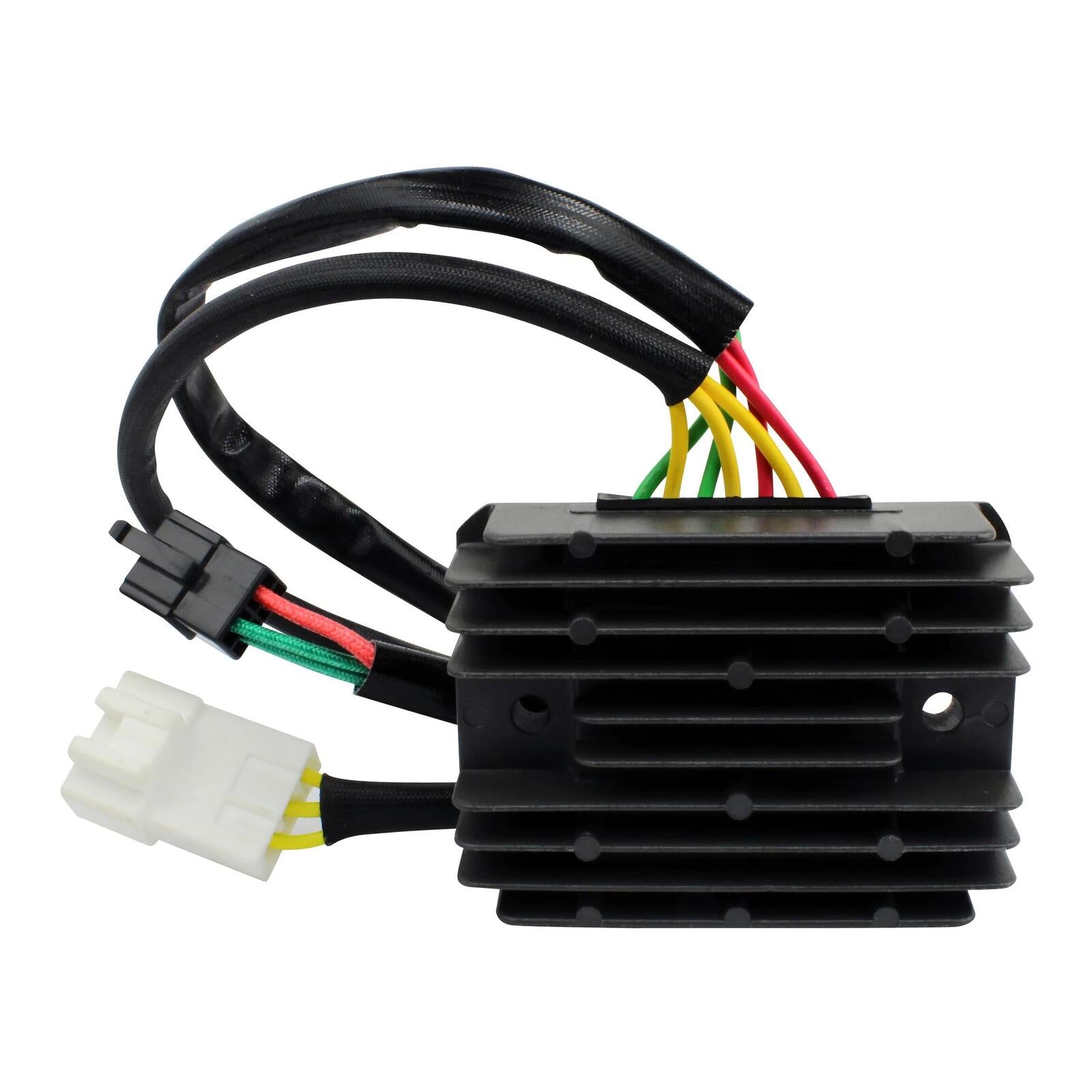

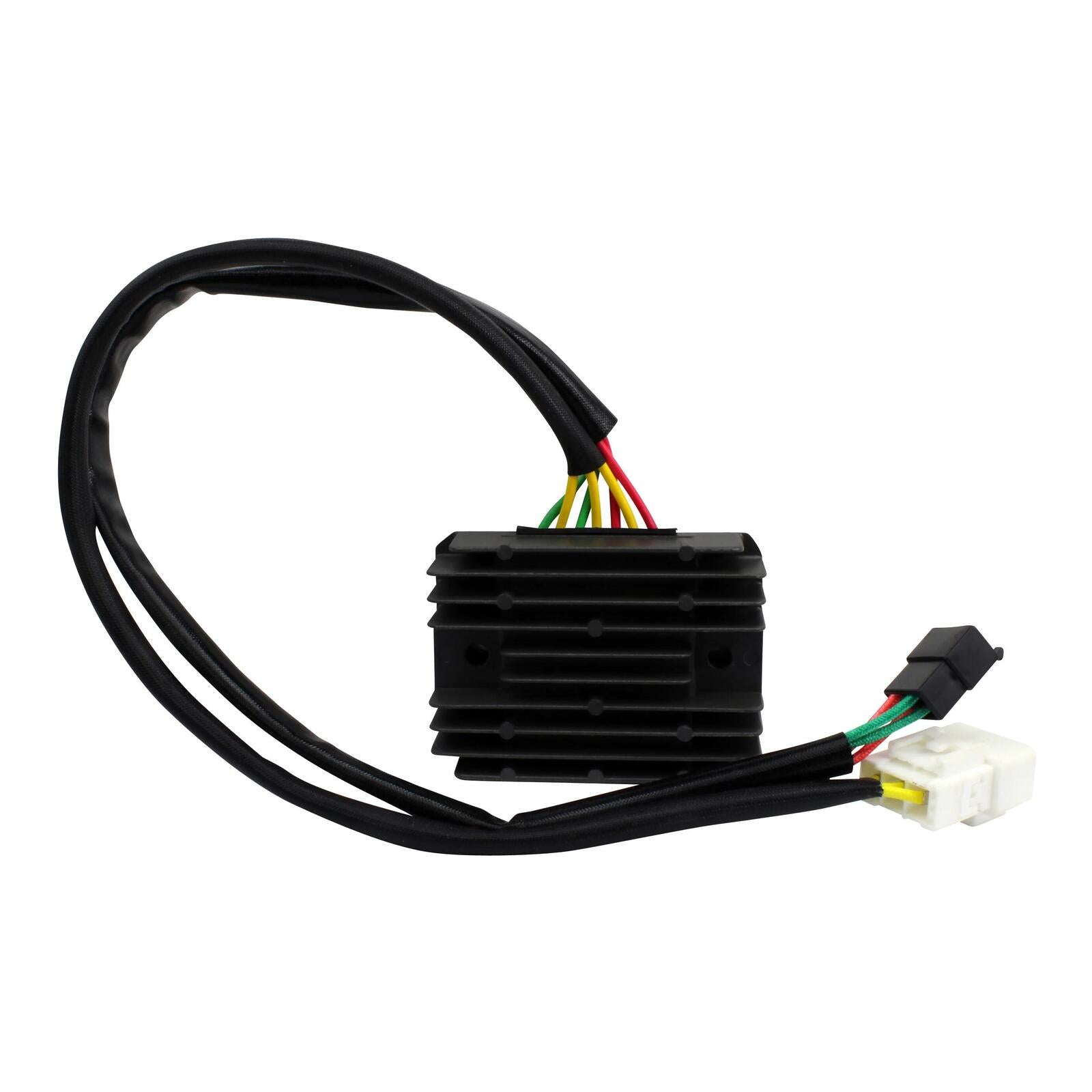

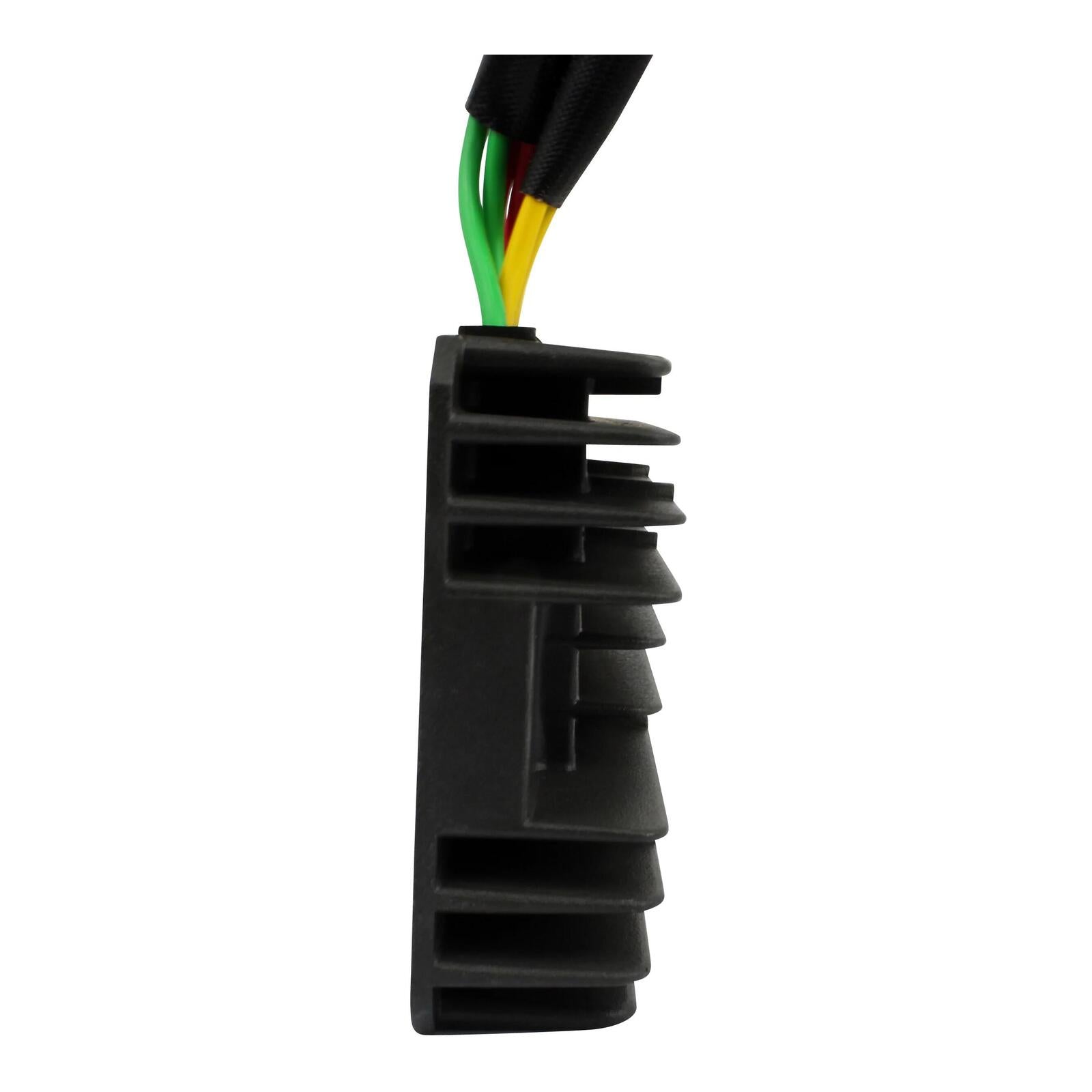

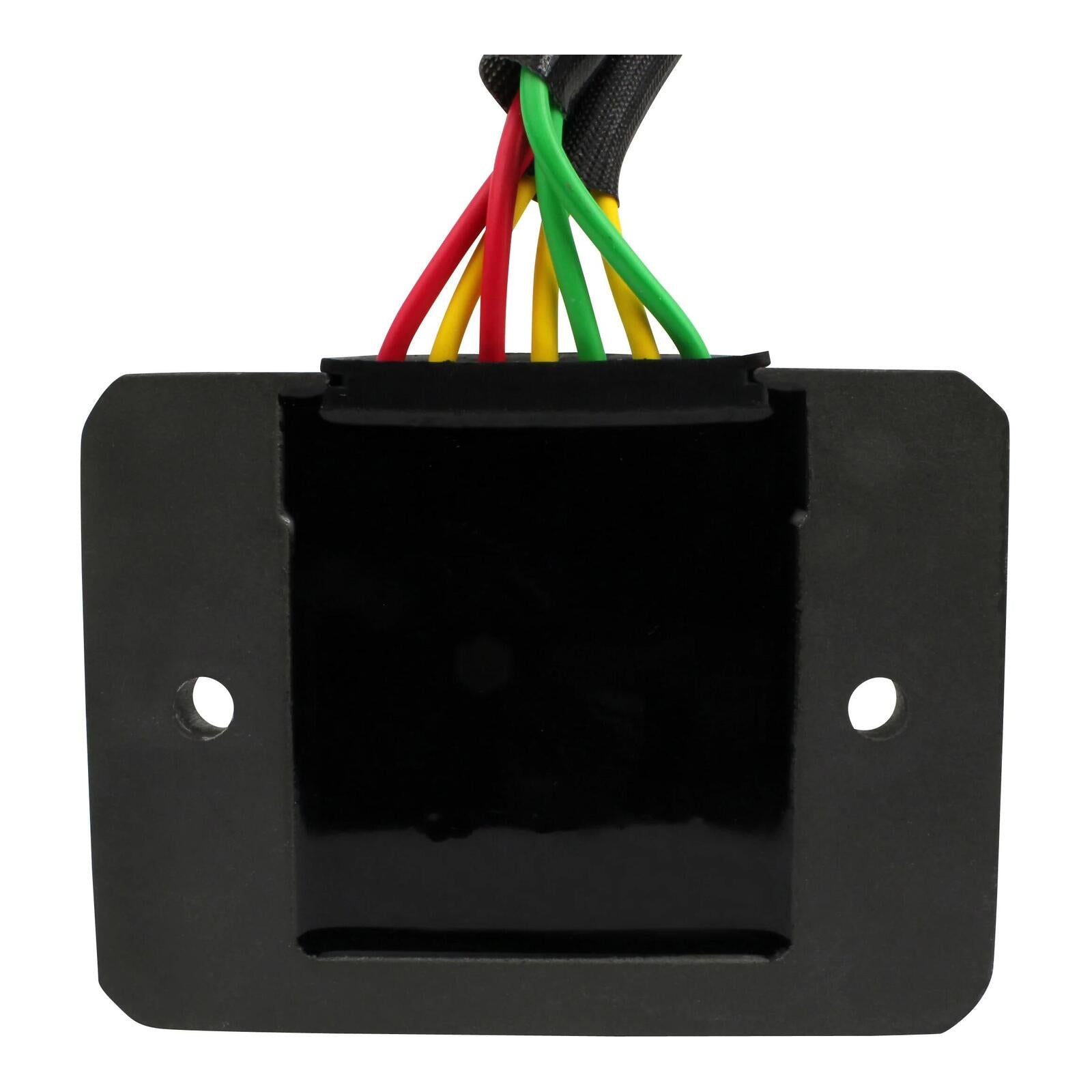

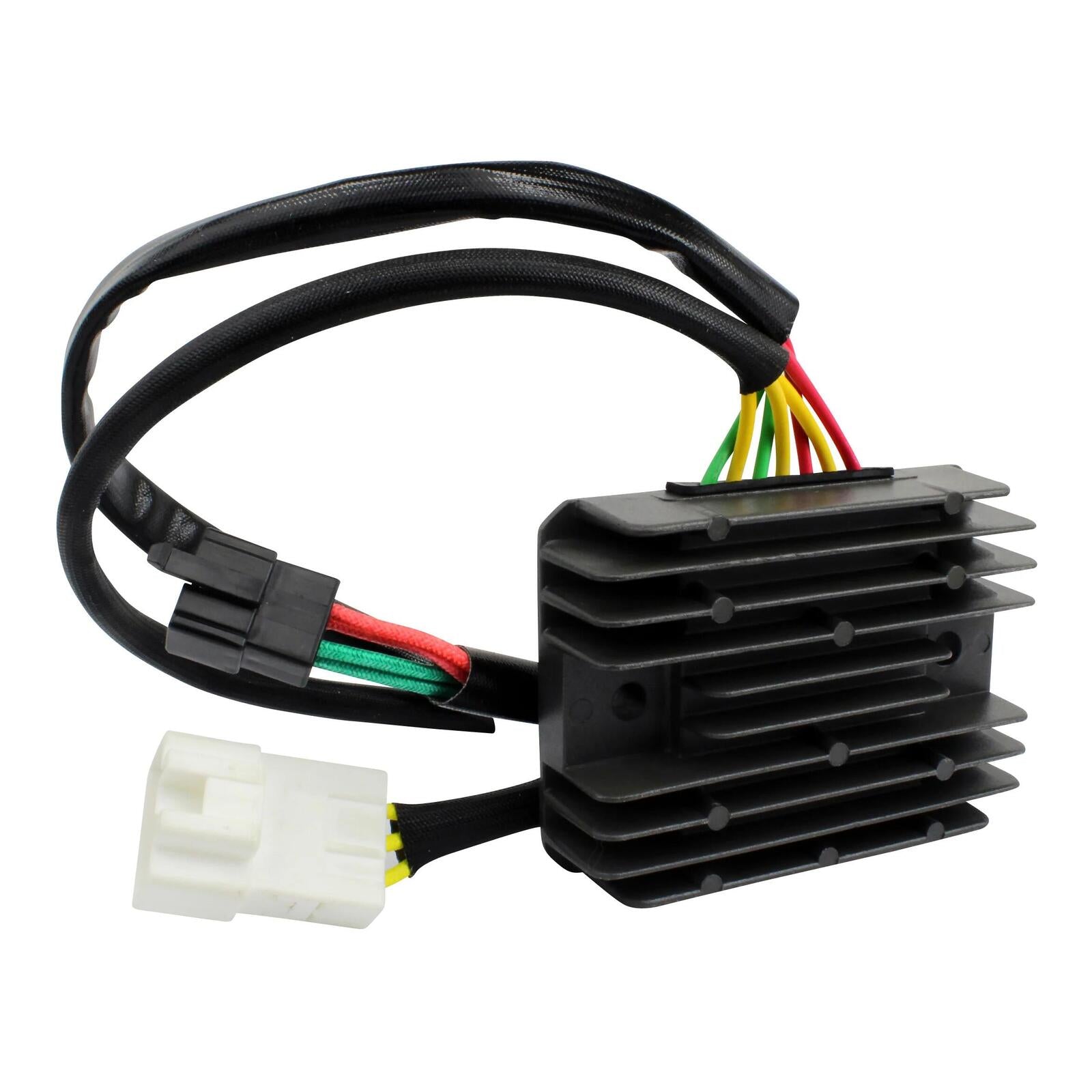

RM Stator Voltage Regulator Aprilia Piaggio Models

Direct replacement to your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher grade of electric components.
• Improved heat sink and charging capabilities.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

Specifications:

• Width: 79 mm
• Length: 109 mm
• Height: 28 mm
• Wire Length: 540 mm
• Mounting Hole Centre-to-Centre Distance: 80 mm

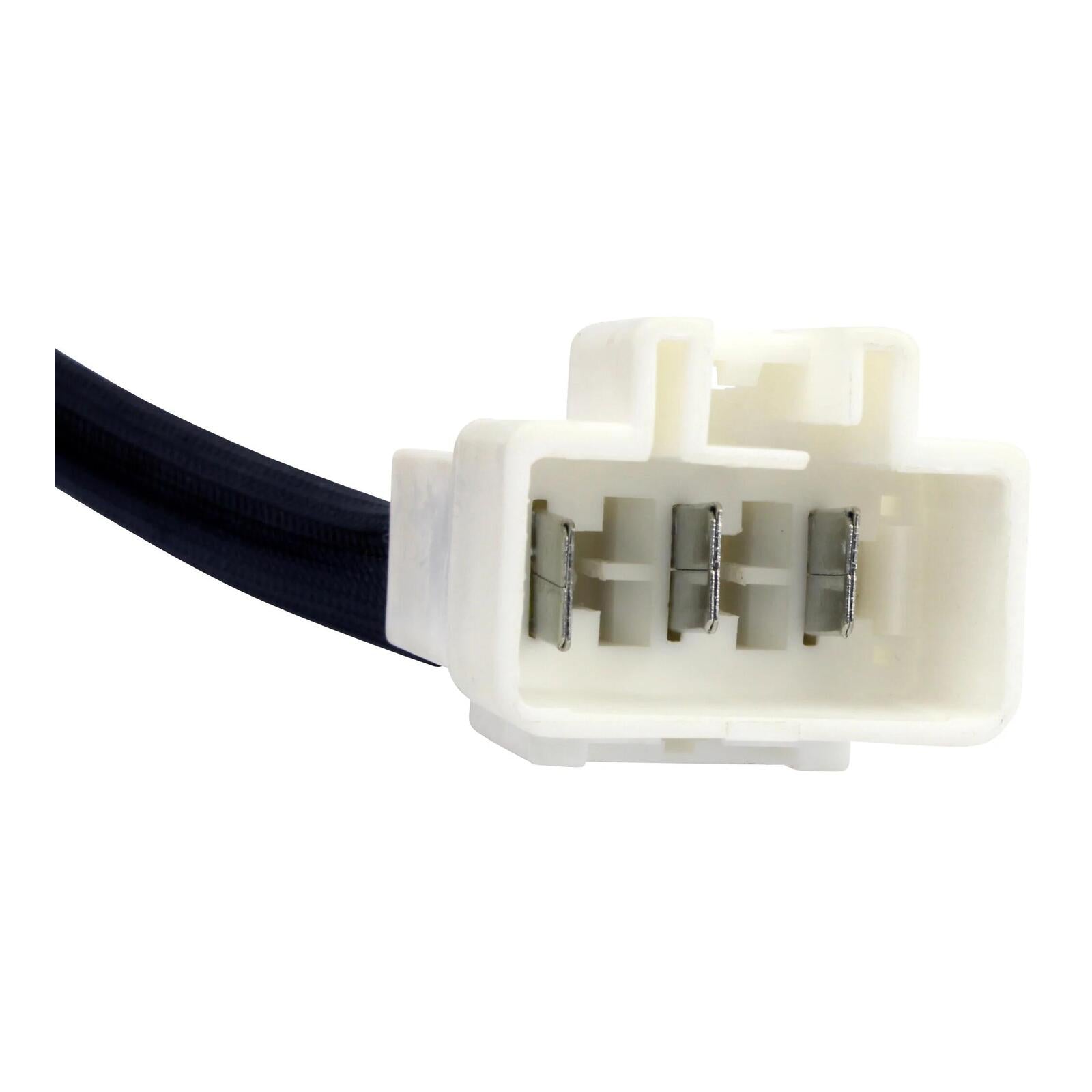

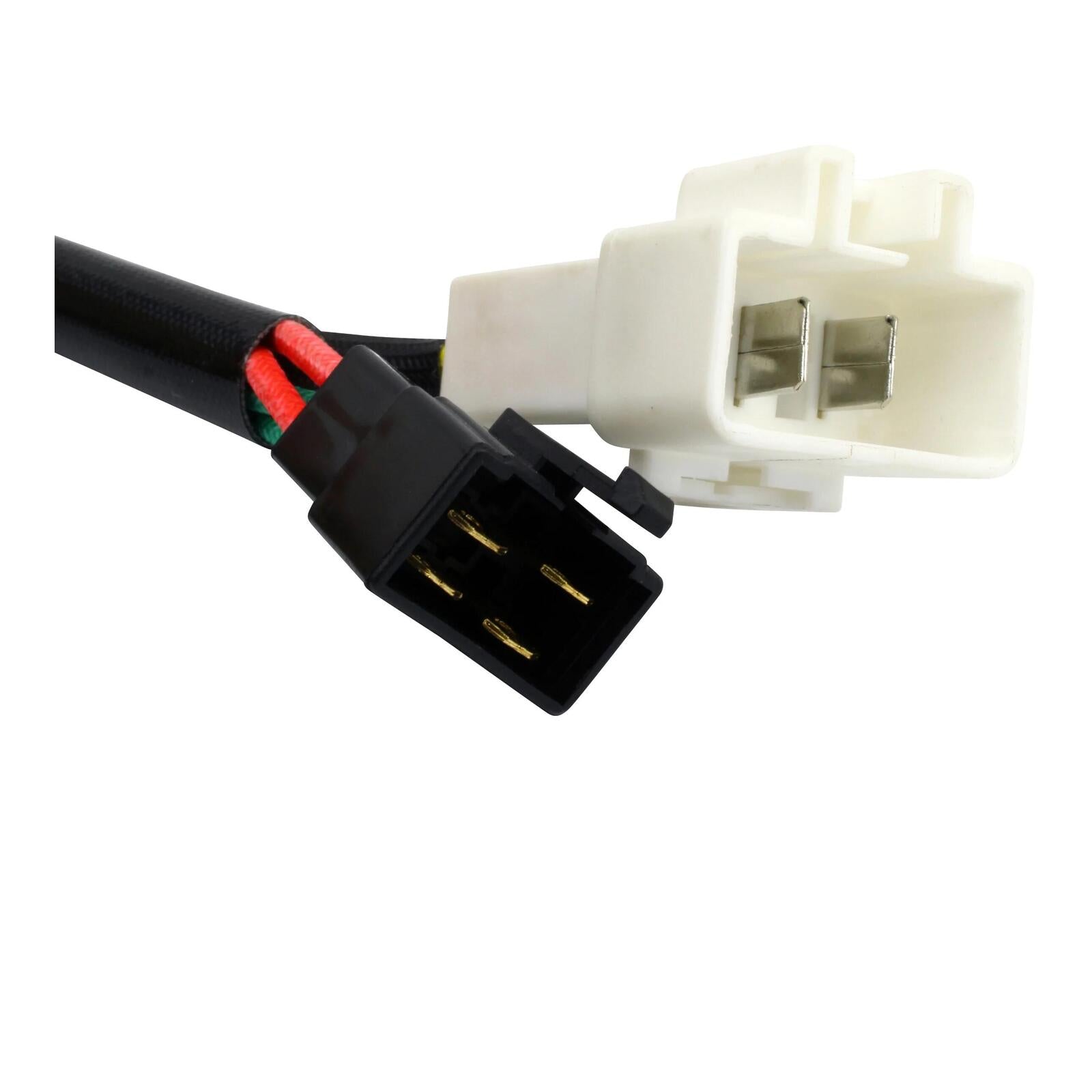

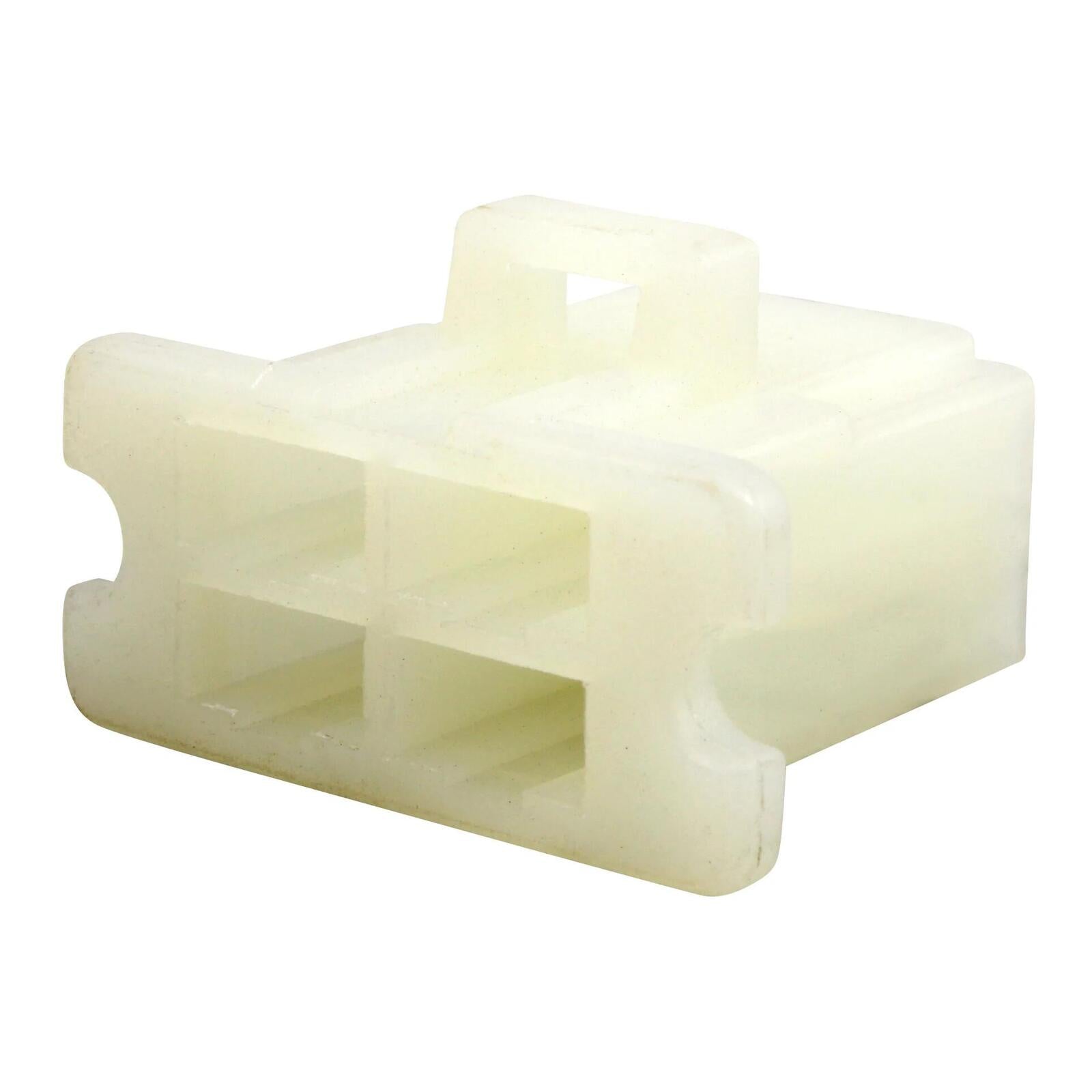

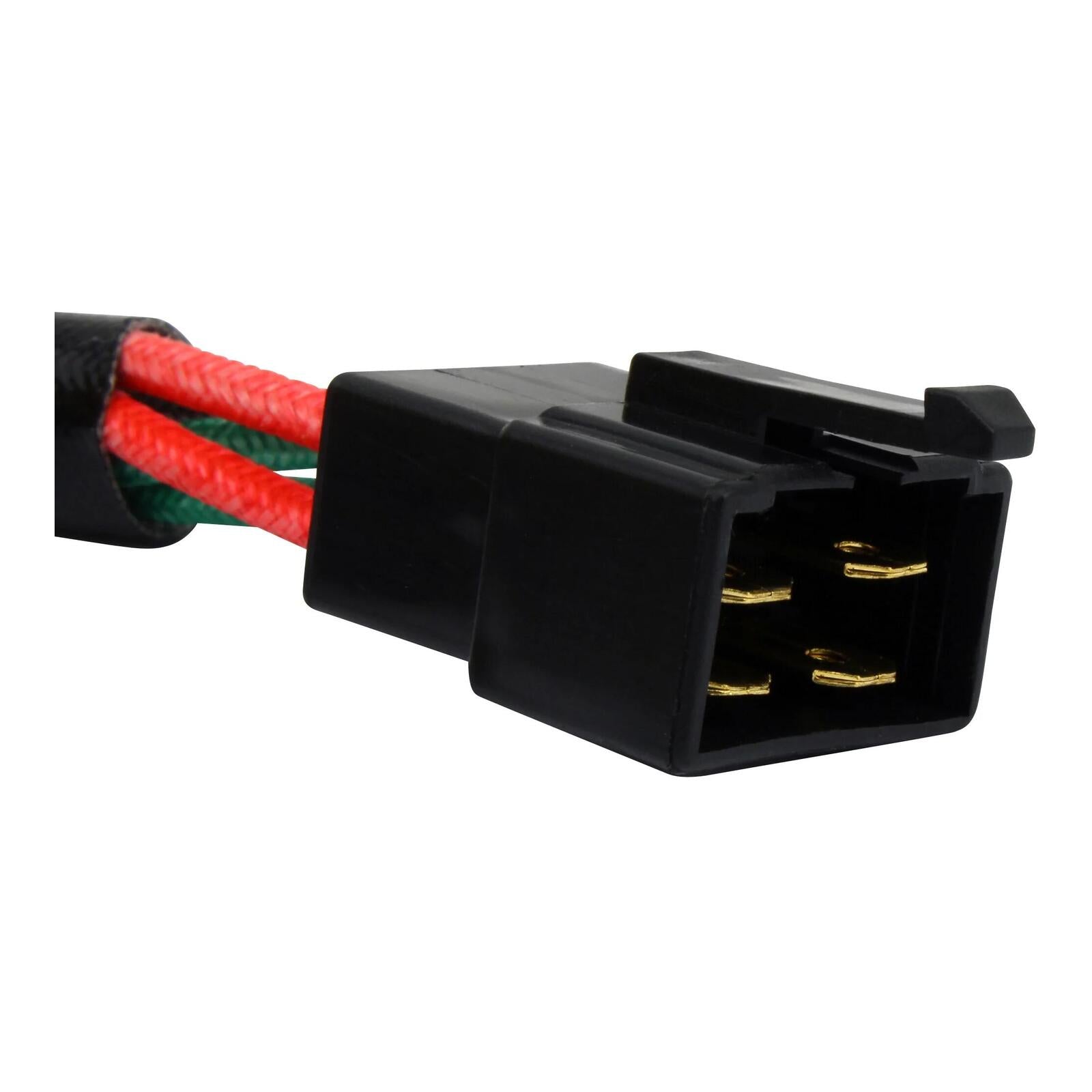

• Number of Plugs: 2
• Number of Pins: 7
• Number of Wires: 7
• Minimum Charging Voltage: 14.5 V ± 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operating Temperature: -20°C to 85°C
