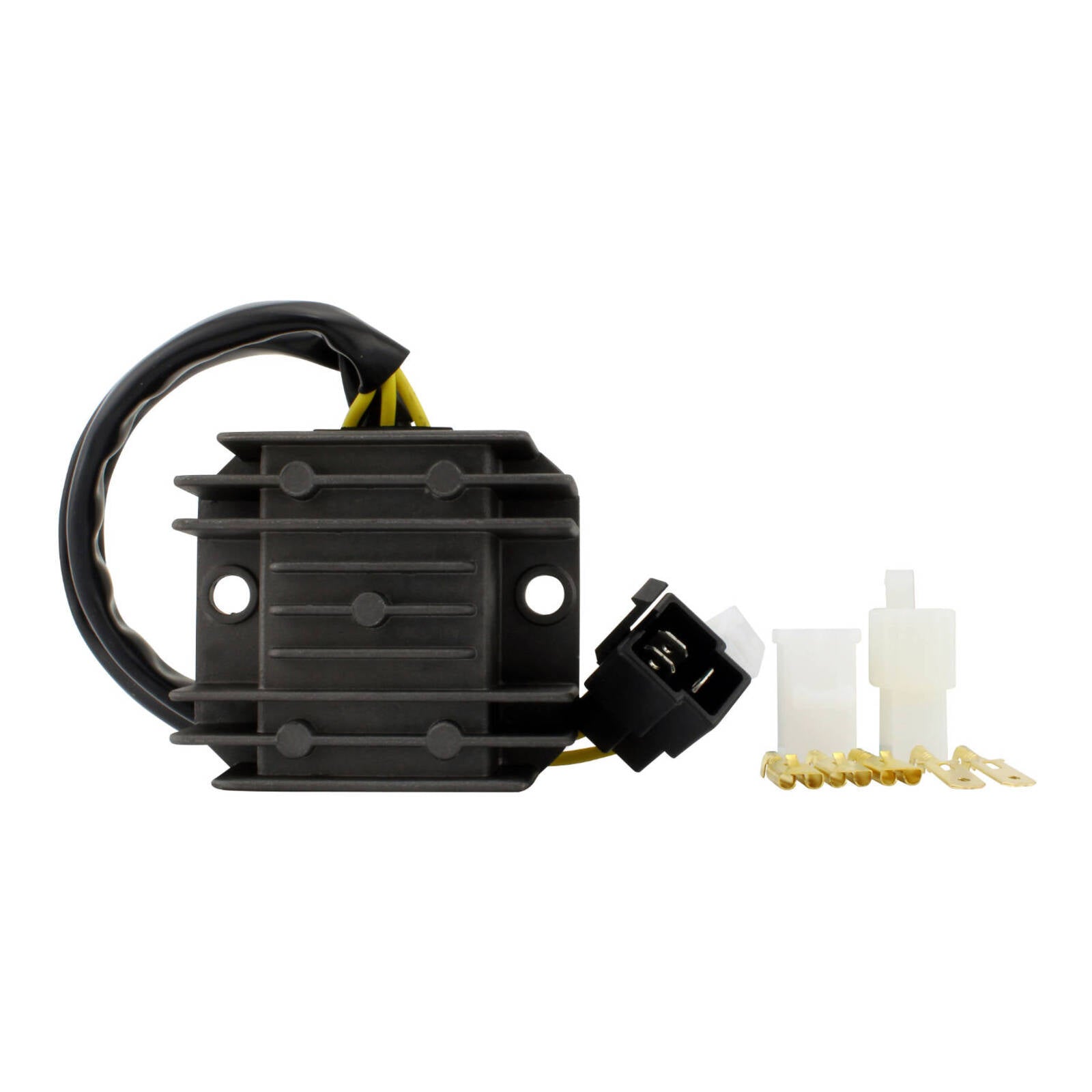

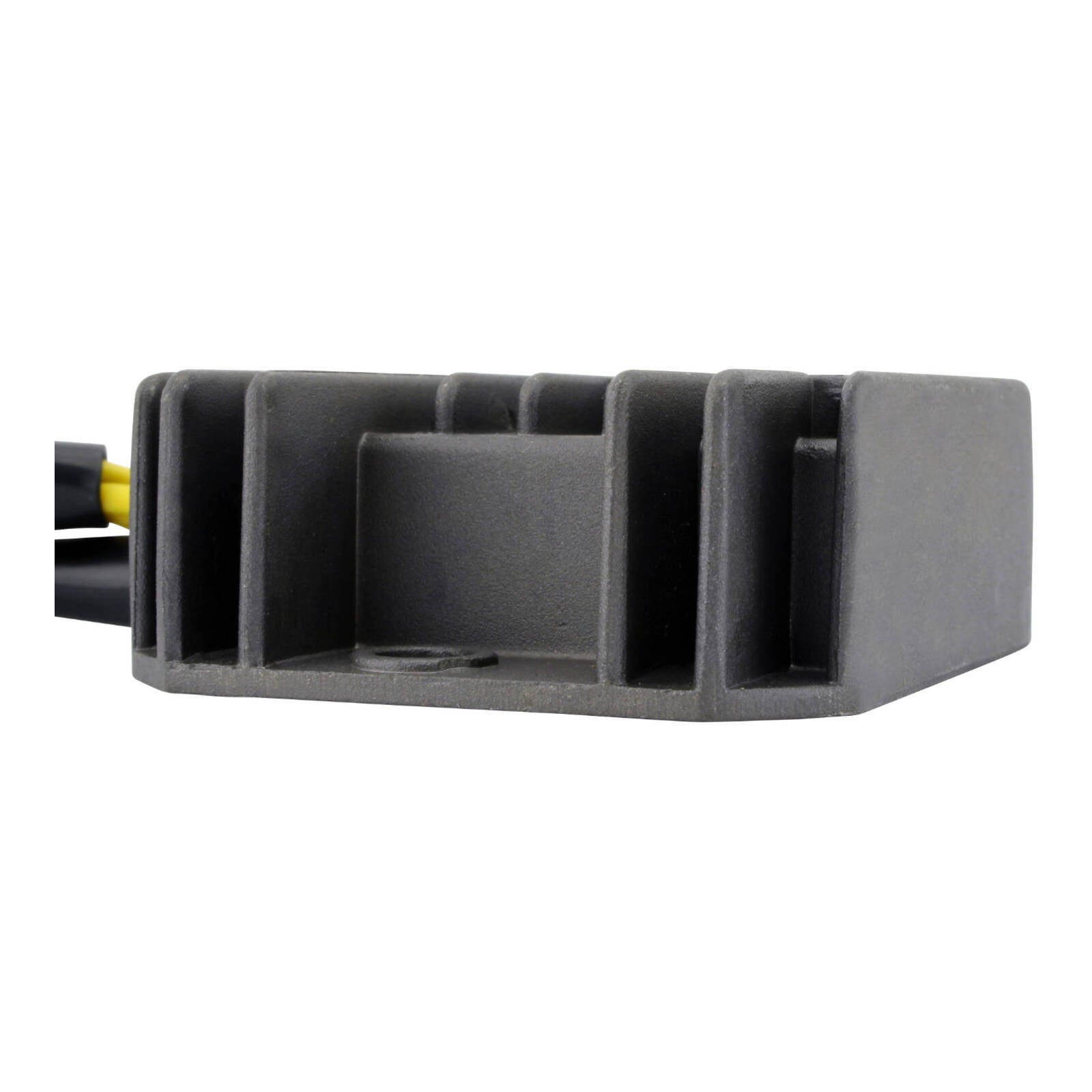

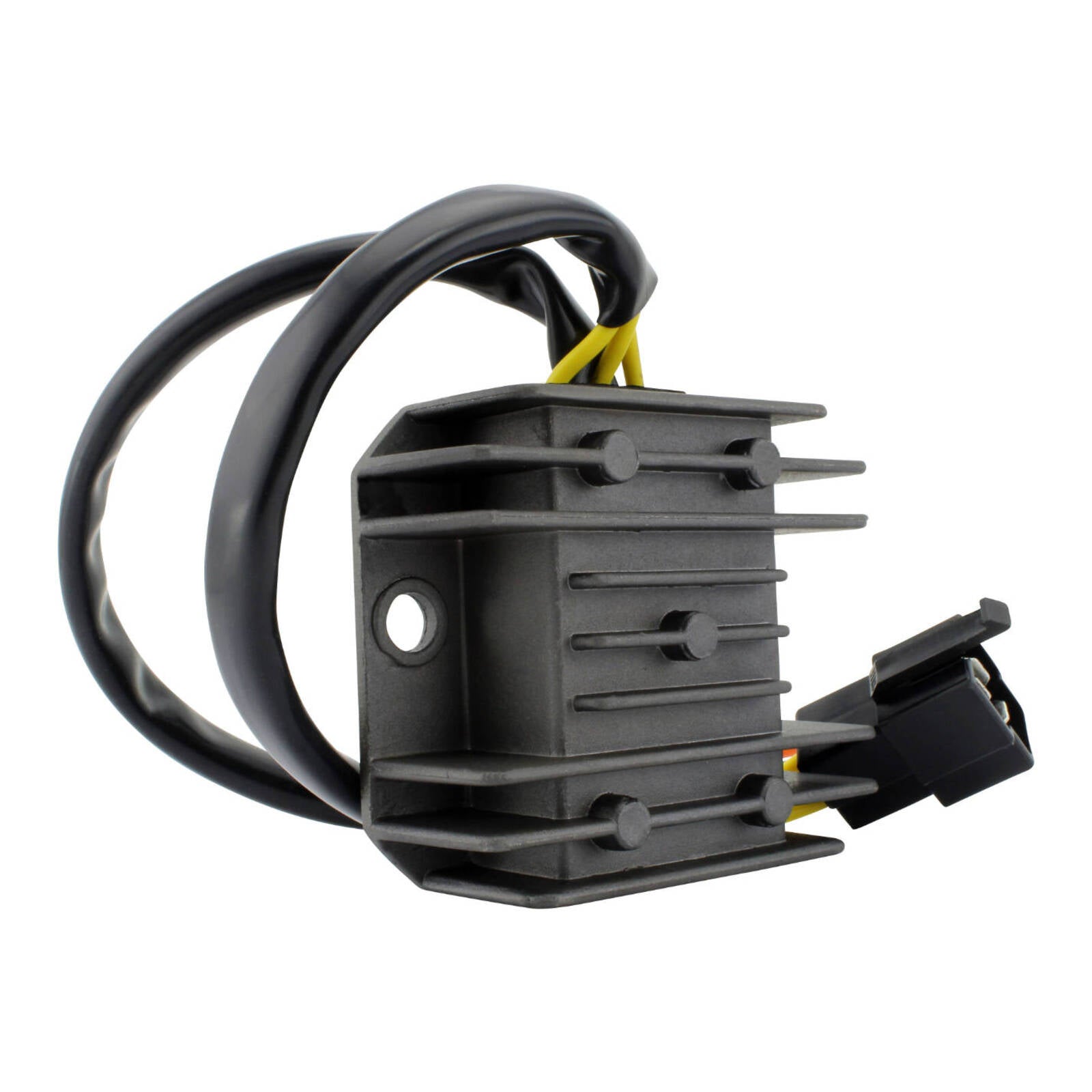

Voltage Regulator - Suzuki DR-Z

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

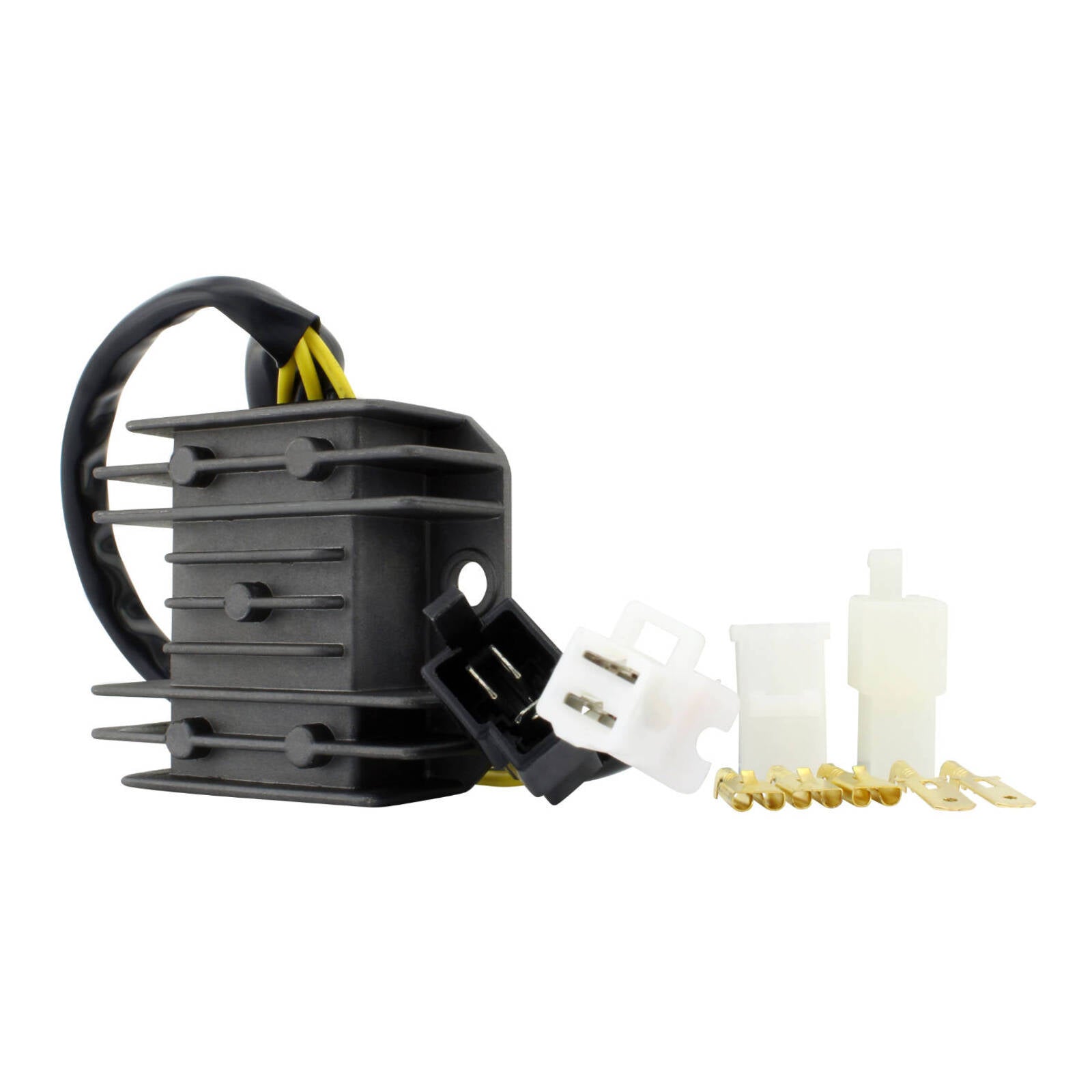

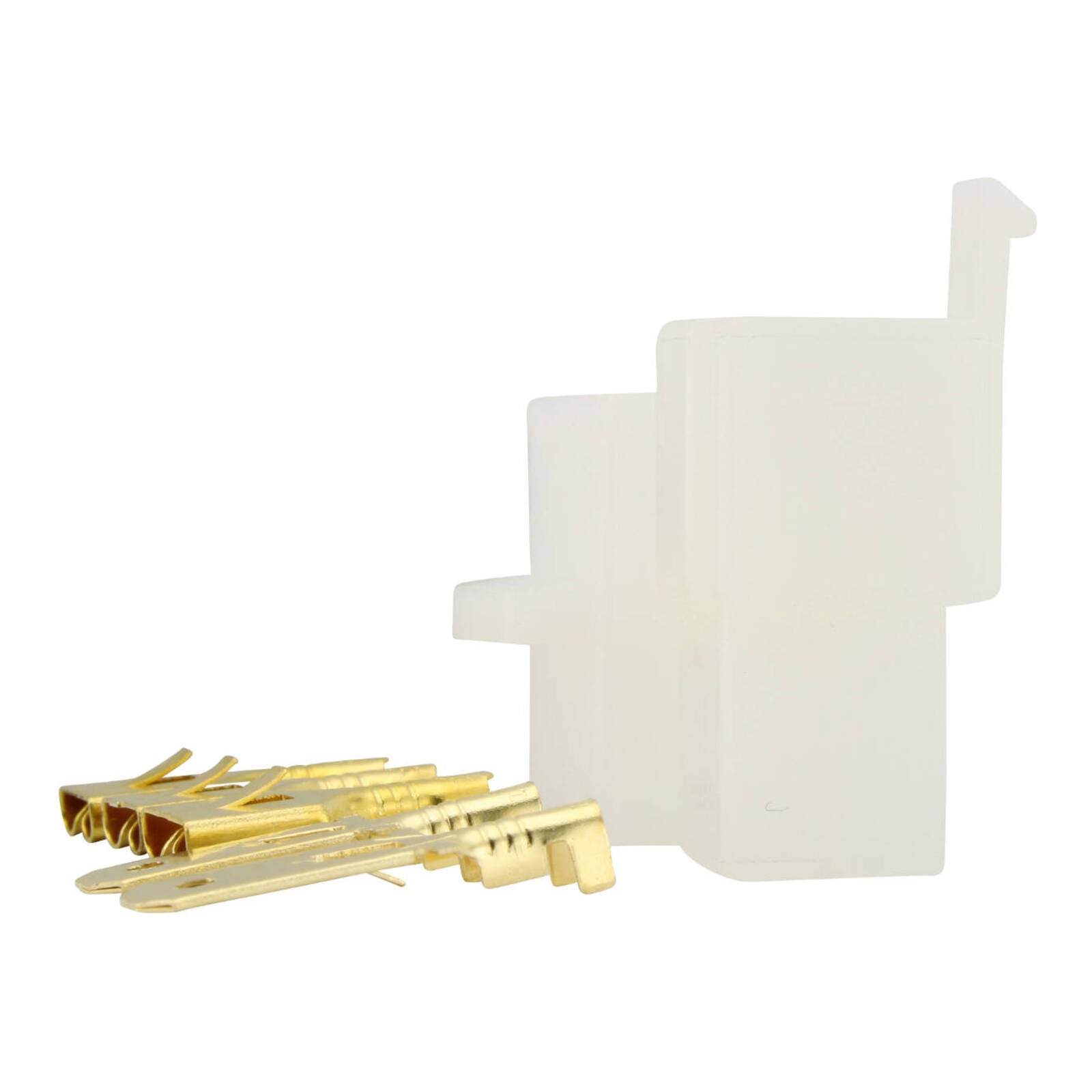

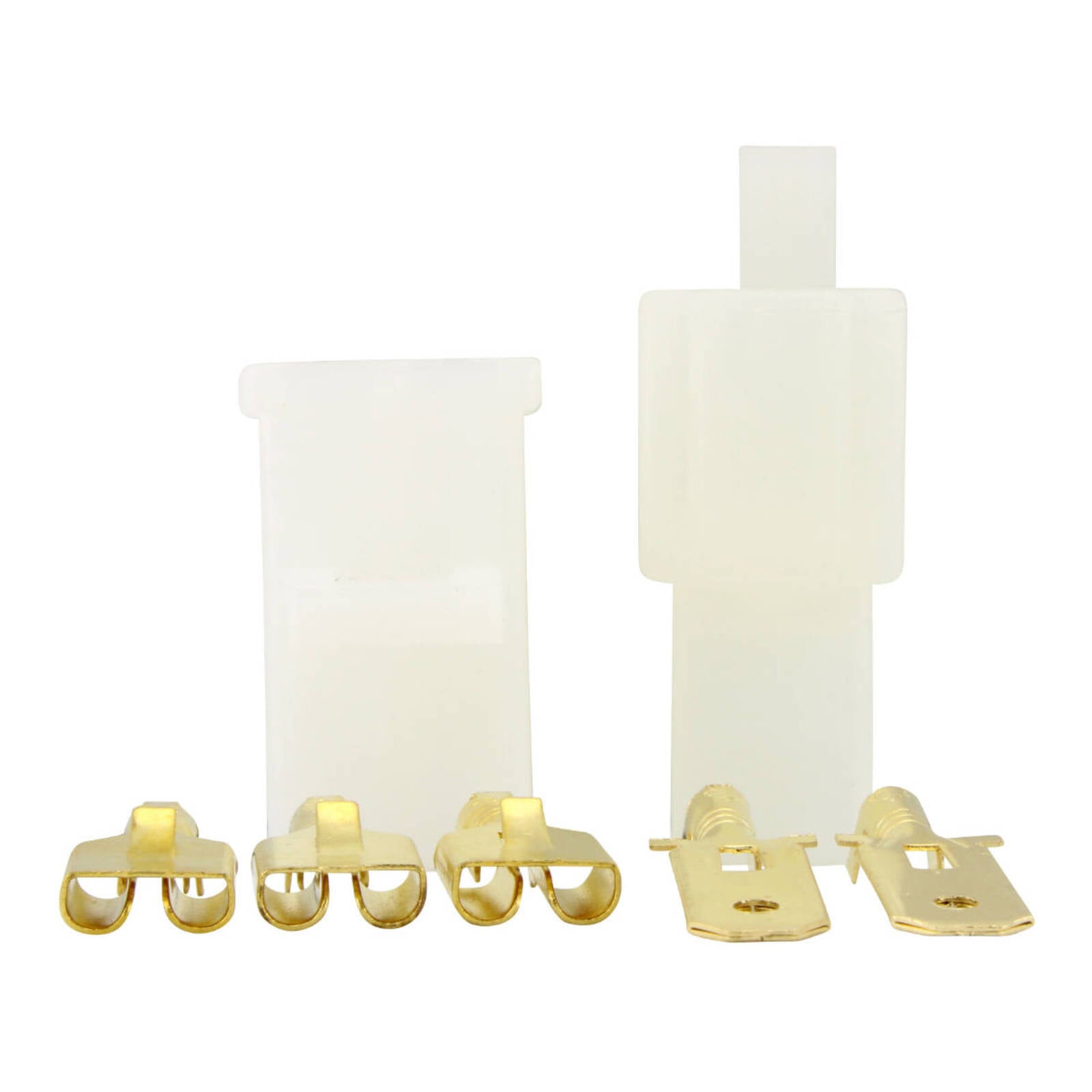

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

• Width: 53 mm
• Length: 70 mm
• Height: 23 mm
• Stator Wire length: 210 mm
• Battery Wire length: 250 mm

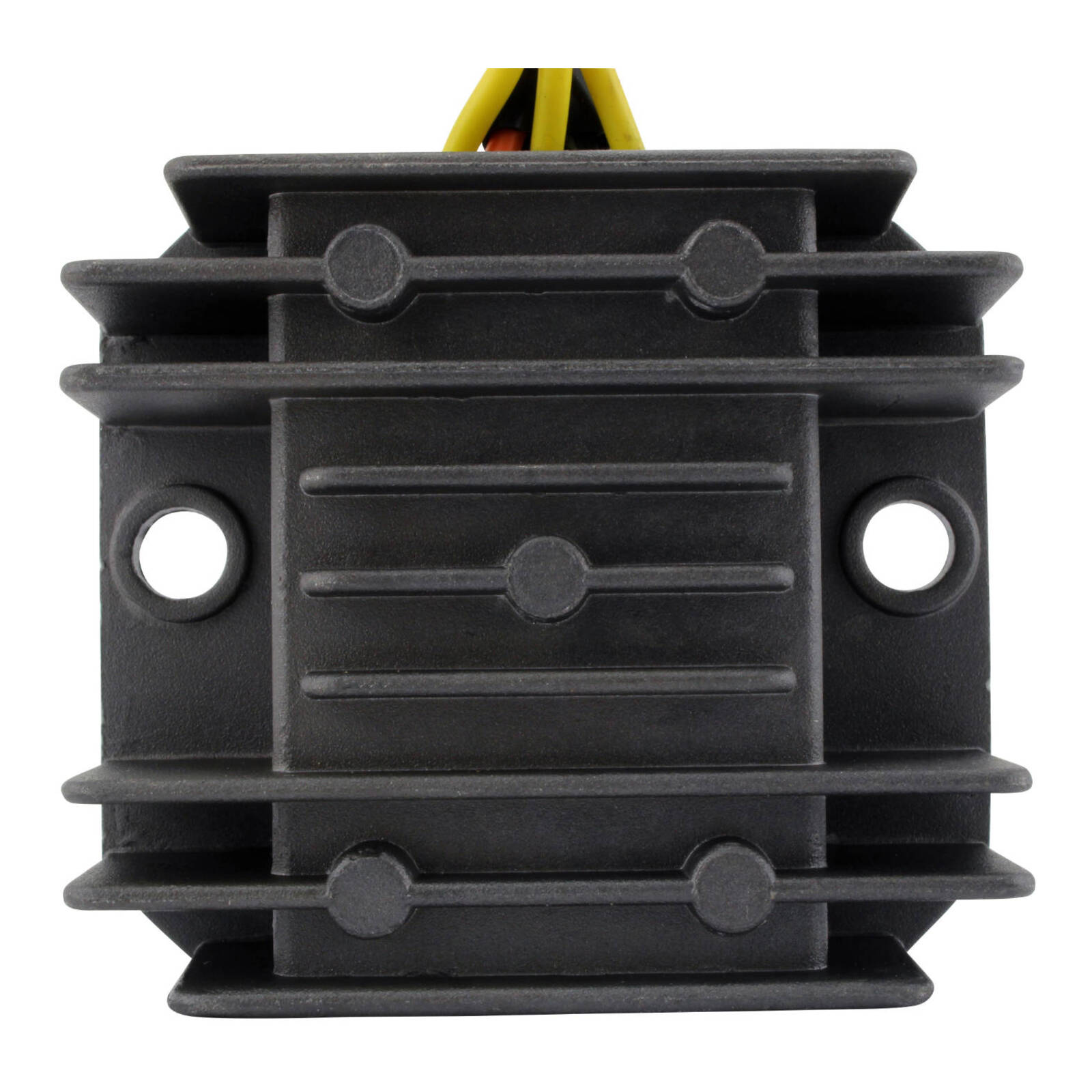

• Distance between fixation holes center to center: 55 mm

Other specifications:

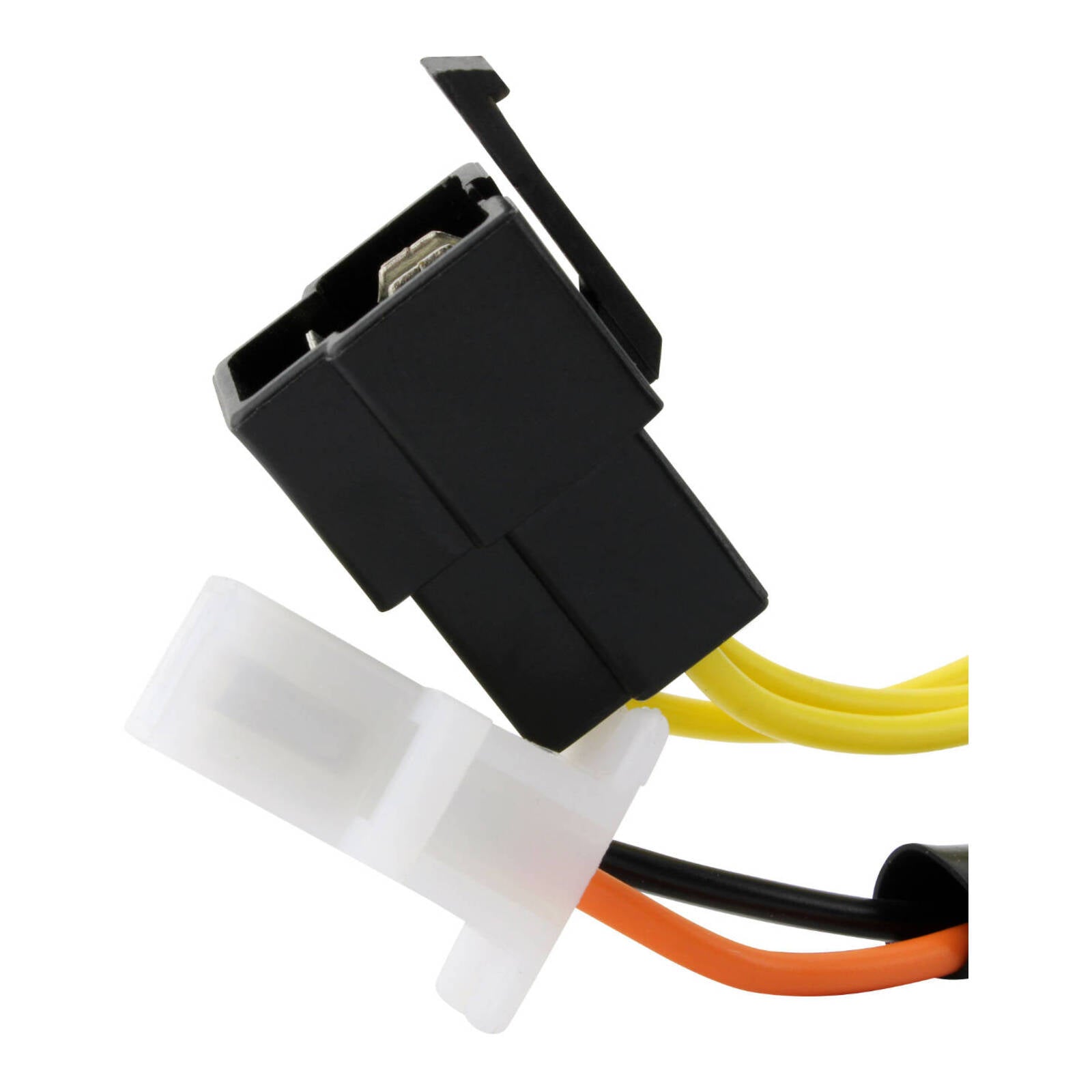

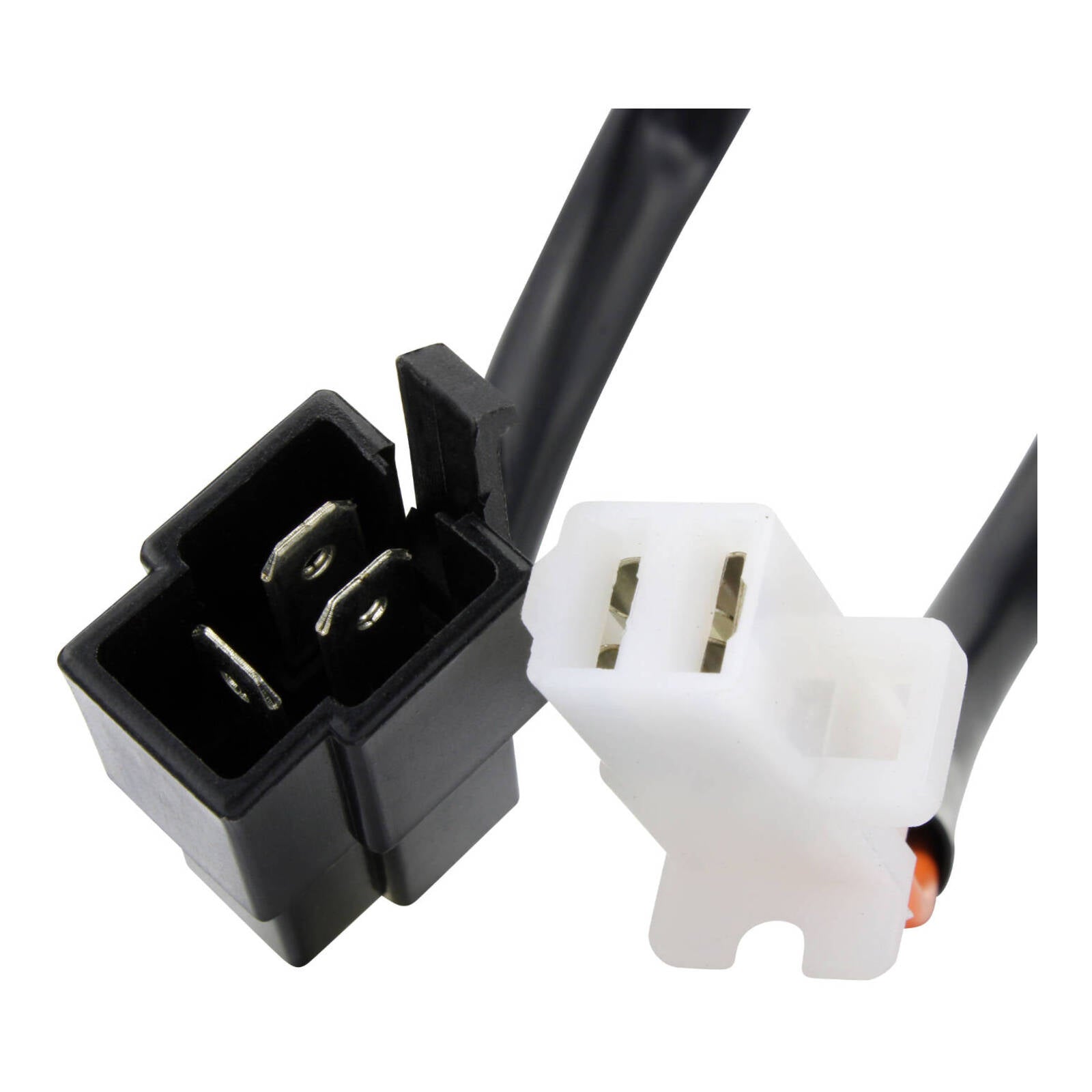

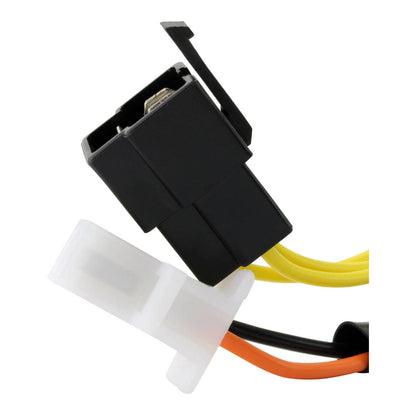

• Number of plugs: 2
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
