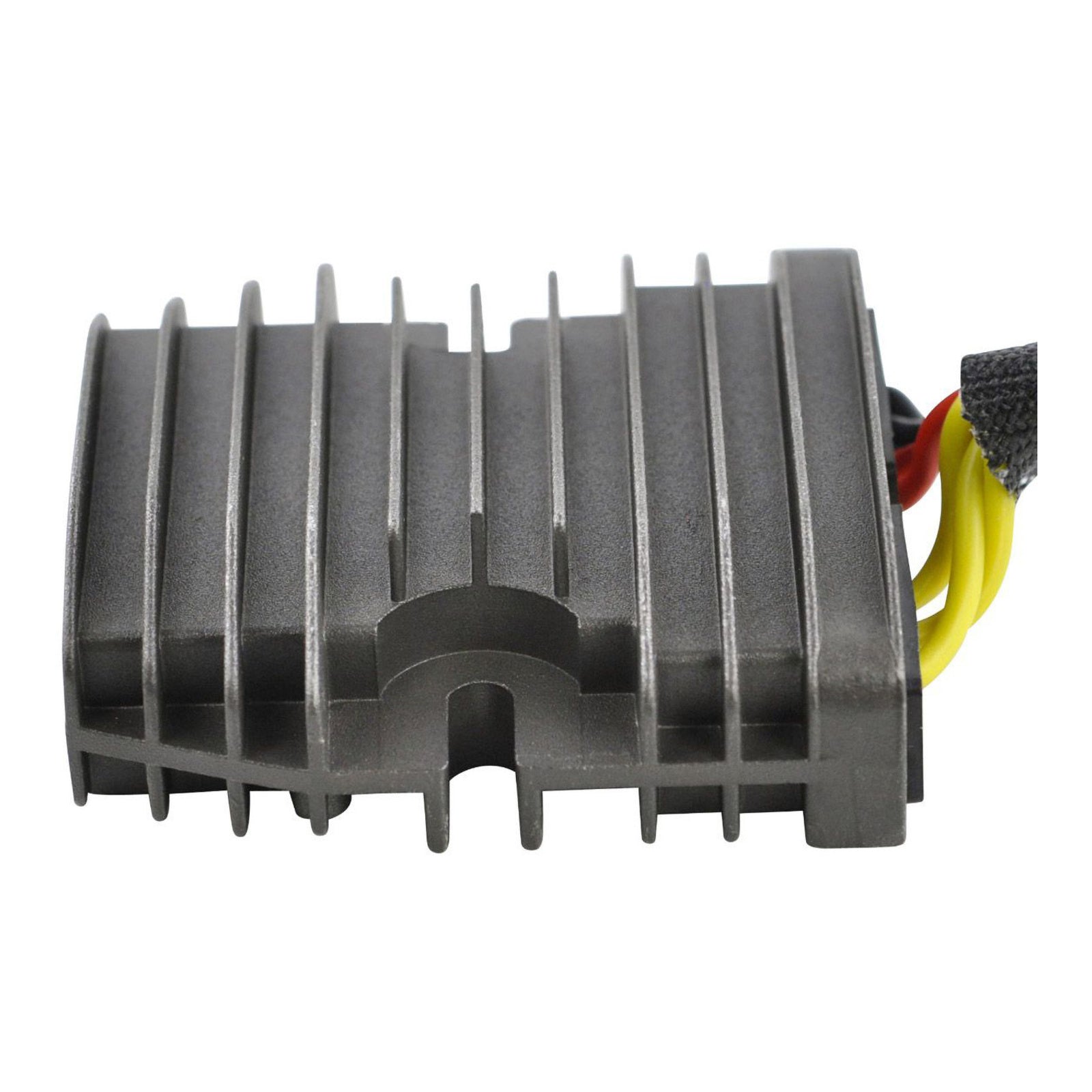

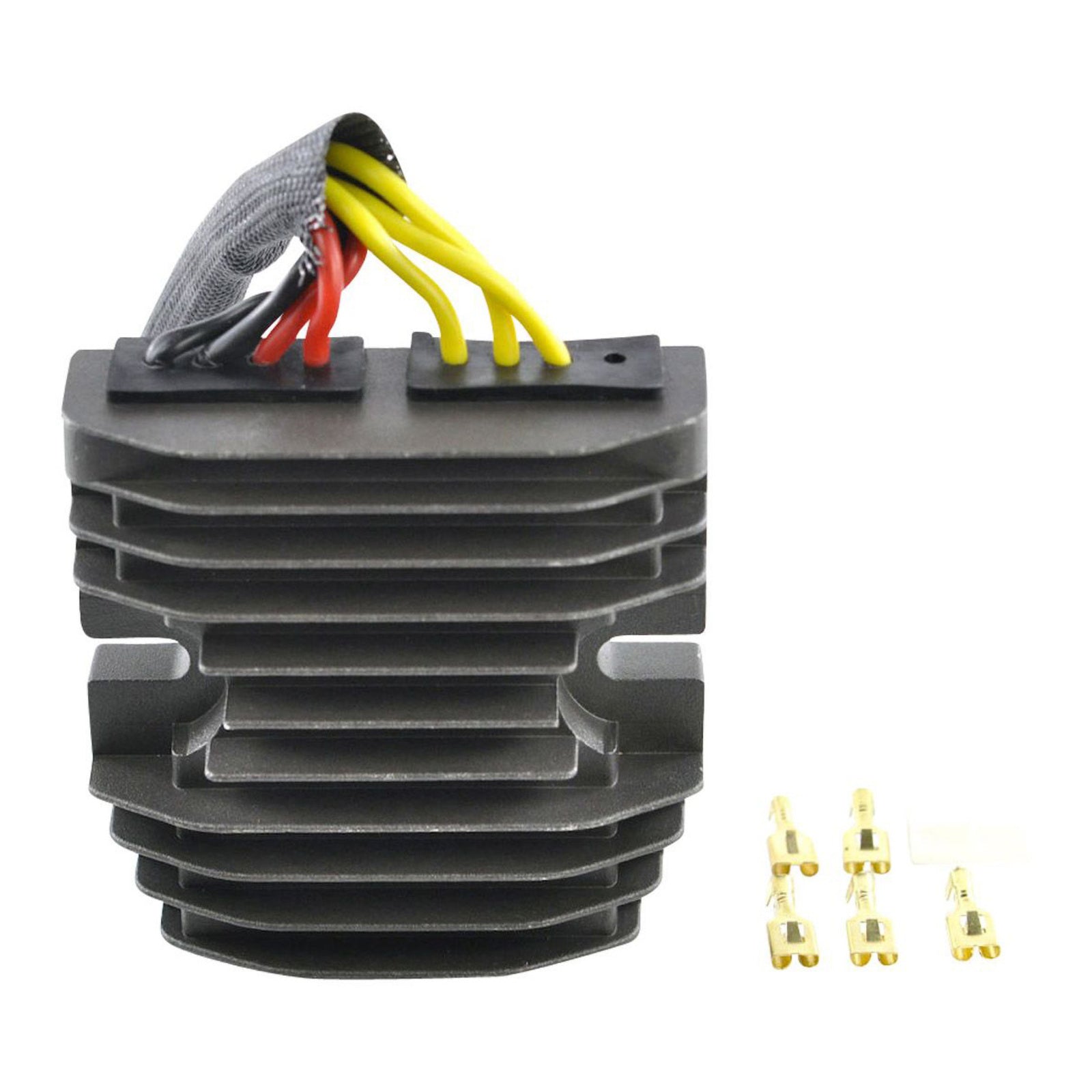

MOSFET Regulator - Triumph Bonneville 900 '01-'10 (RMS020-103436)

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

It is time to update or replace your voltage regulator with the advanced MOSFET type. It runs cooler than all OEM diode-style regulators. In addition, this rectifier has to overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components
• All shipped products are tested

Dimensions:

• Width: 90mm
• Length: 90mm
• Height: 30mm
• Wires length: 240mm
• Fixation holes centre to centre: 80mm

Other specifications:

• Number of plugs: 1
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are multiple regulators for some Triumph vehicles. Please refer to the note below to make sure you purchase the right part:
• Bonneville 2017 to 2020: This part will only fit on Bonneville with a VIN HIGHER than 513325. If you have a LOWER VIN you should look for parts # RM30506 / RM30506H / RMS022-105928 / RMS023 106203 / RMS023-107140.
• Thruxton from 2008 to 2020 This part will only fit Thruxton with a VIN HIGHER than 513322. If your vehicle has a VIN inferior to 513321, refer to OEM T1300890.
