Generator Stator Suzuki VZR1800 '06-'19 (RM01596)

RMSTATOR | SKU: RMS01596

Generator Stator Suzuki VZR1800 '06-'19 (RM01596)

$391.59; ~~$439.99~~; $391.59
Unit price: per

Best price guarantee

Found it cheaper? We’ll match it. Shop with confidence every time.

Quantity:

Subtotal: $391.59

🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–2 days.

Explore related collections:

➔ Parts (25001 products)
➔ Clearance (25001 products)
➔ All products (25001 products)
➔ Electrical system and instruments (1890 products)
➔ Electrical systems (1795 products)
➔ Charging and regulation (926 products)
➔ RMSTATOR (516 products)
➔ Stators (358 products)

Description

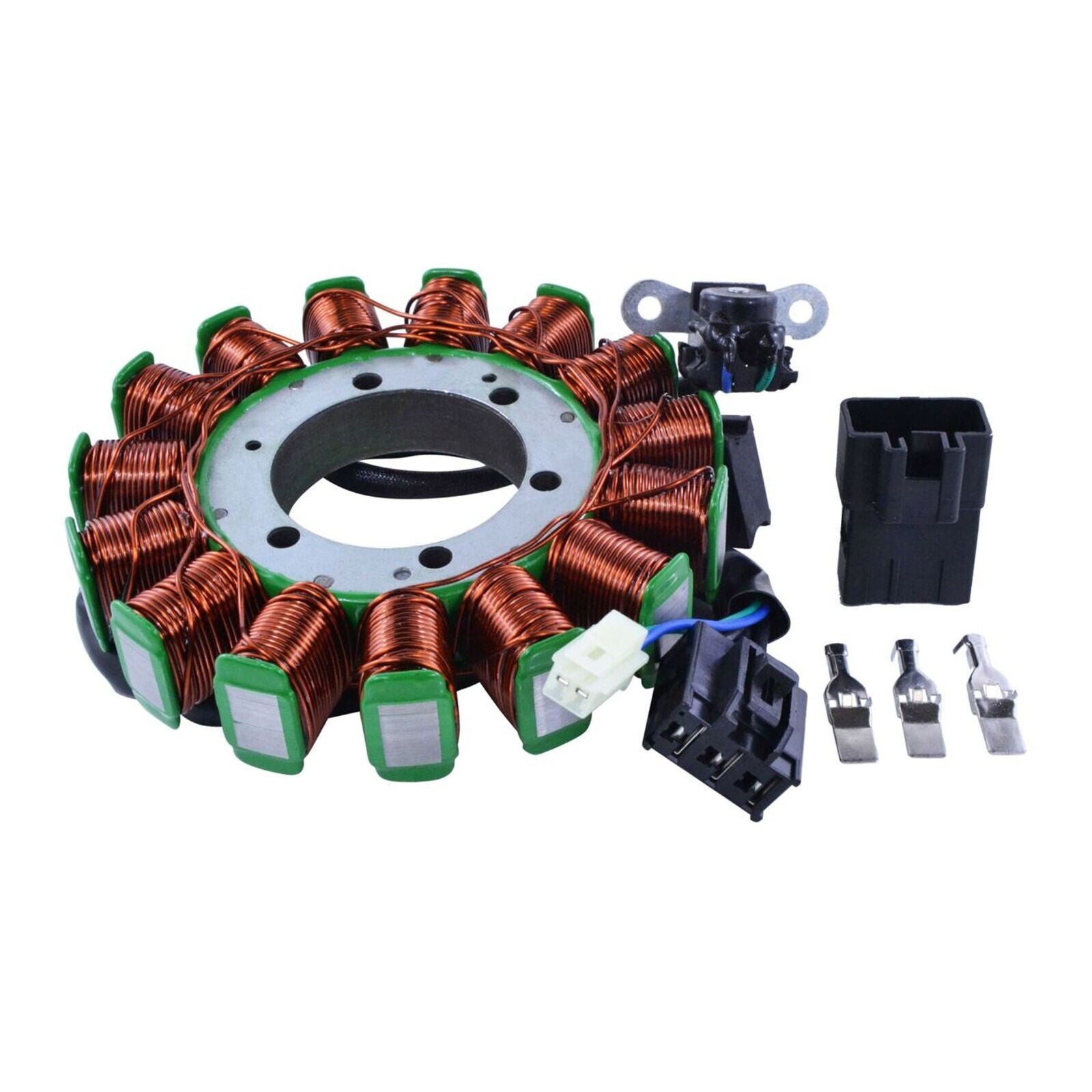

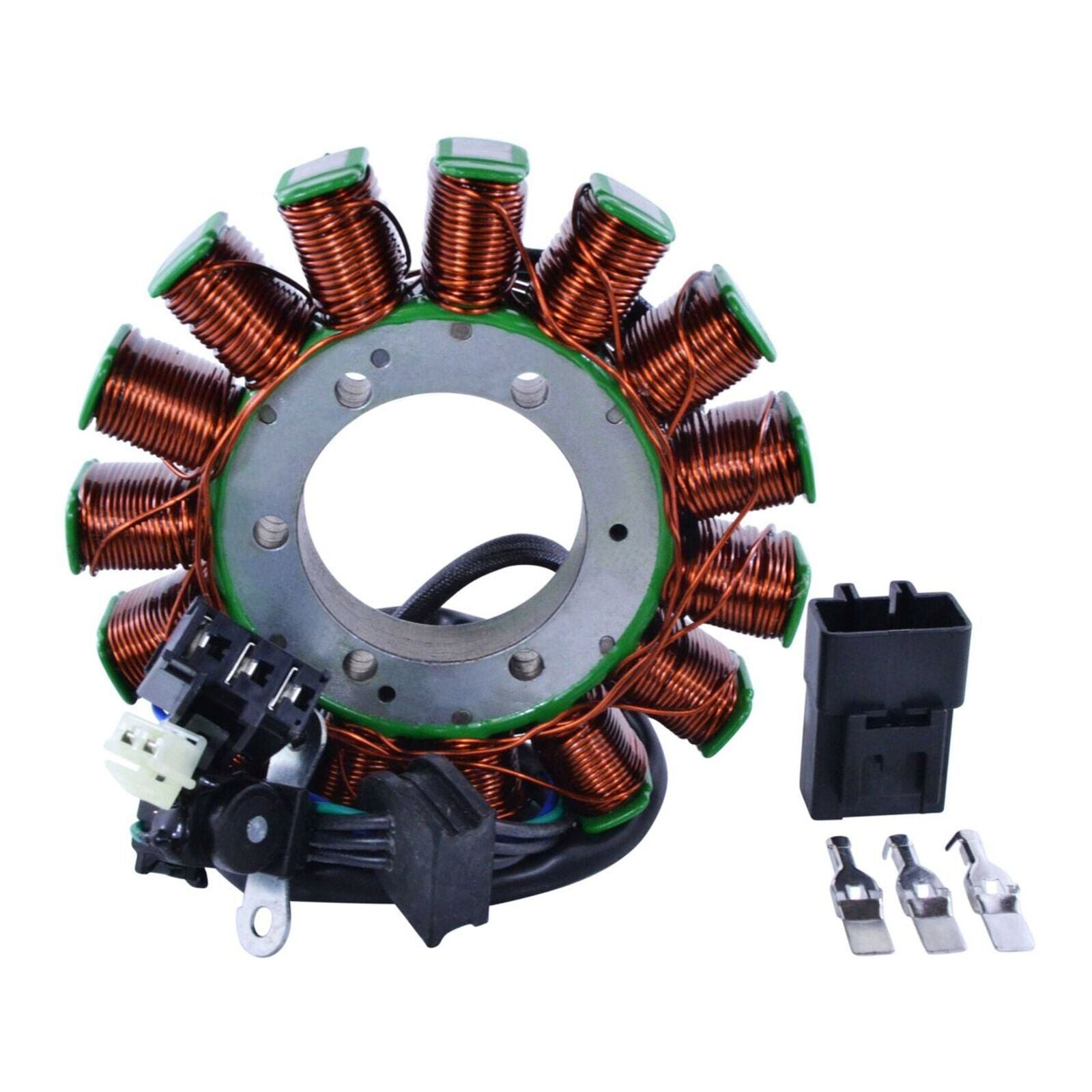

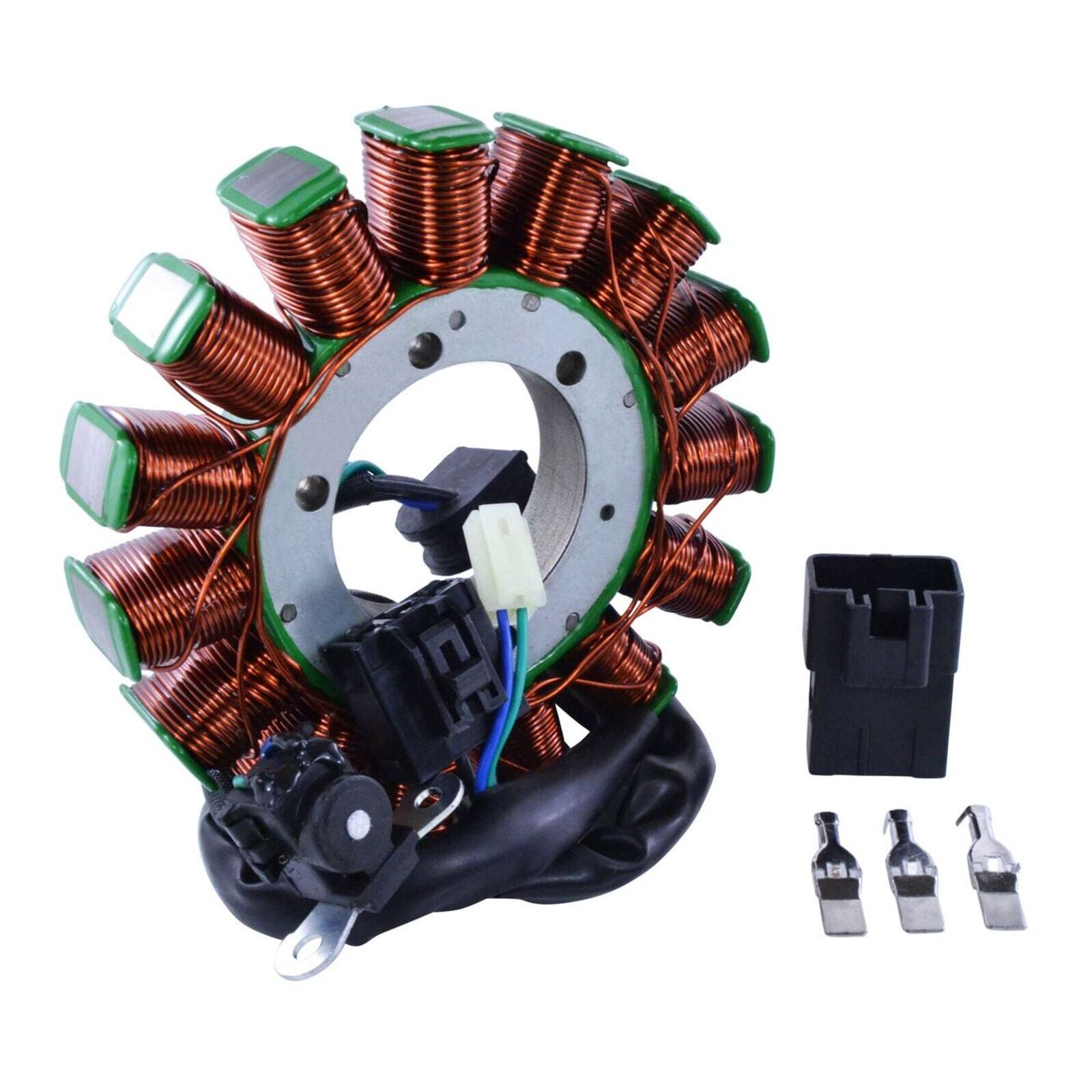

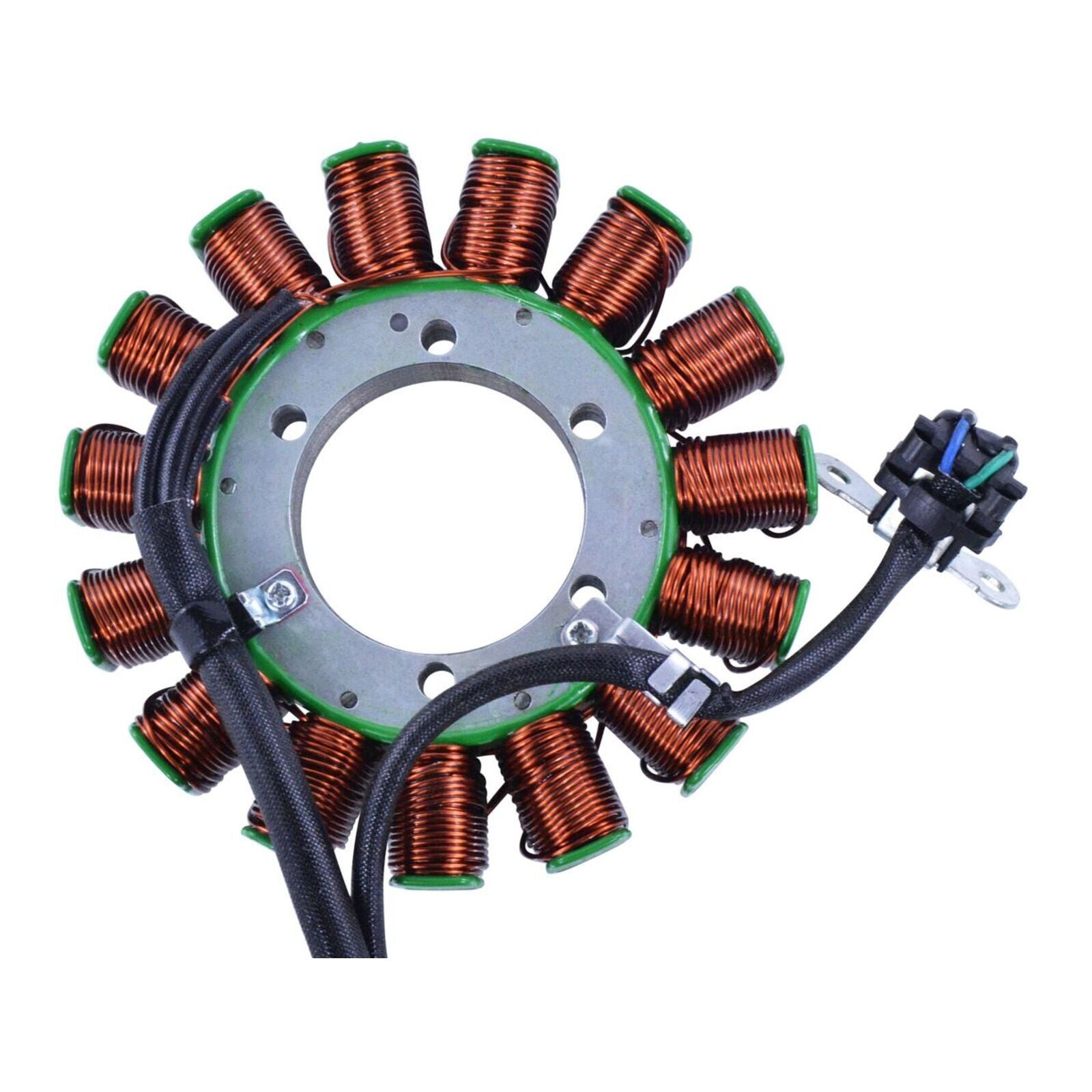

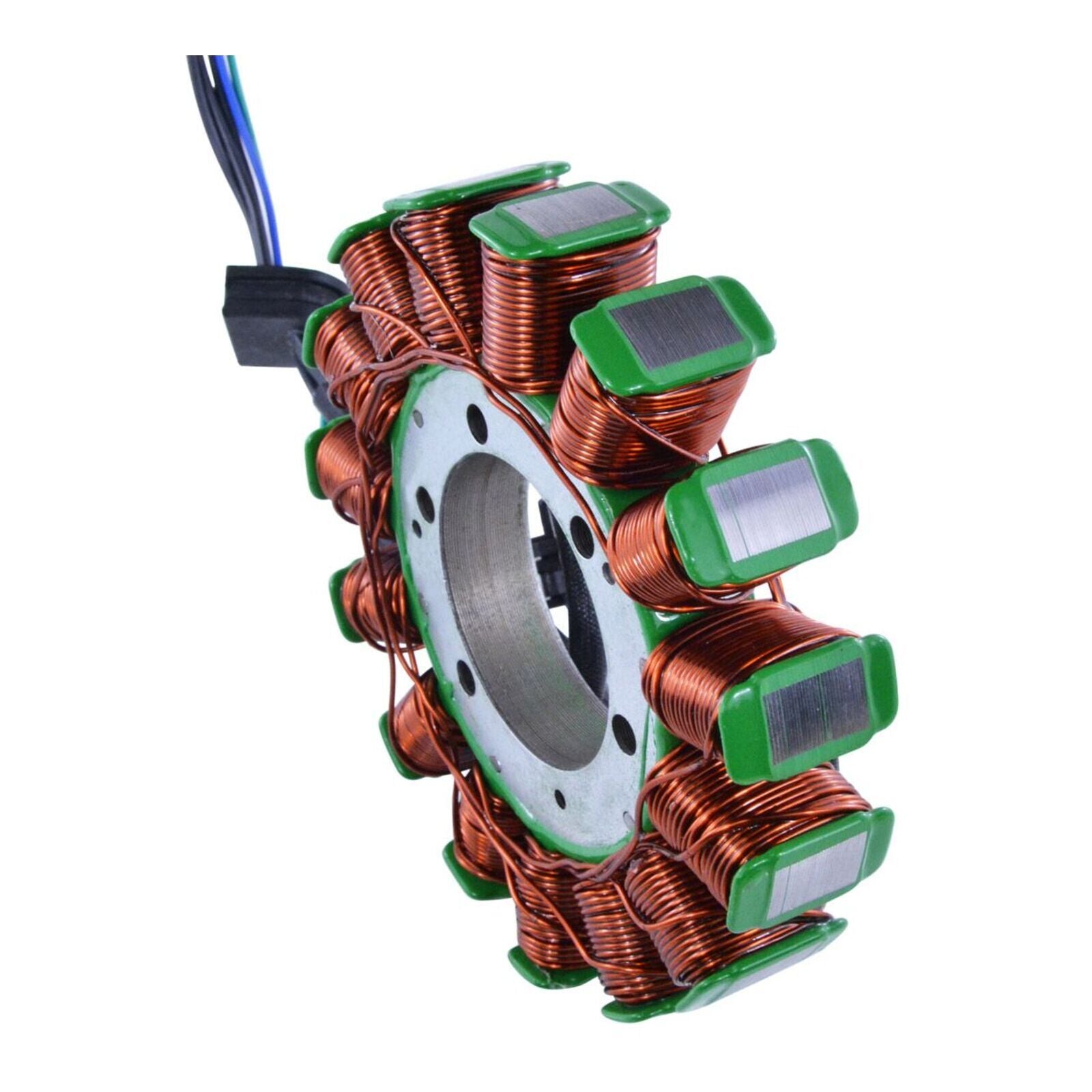

Brand new aftermarket generator stator. RM has even included the opposite connector (main harness side) which are a major cause for repetitive electrical issues.

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest-grade lamination materials.

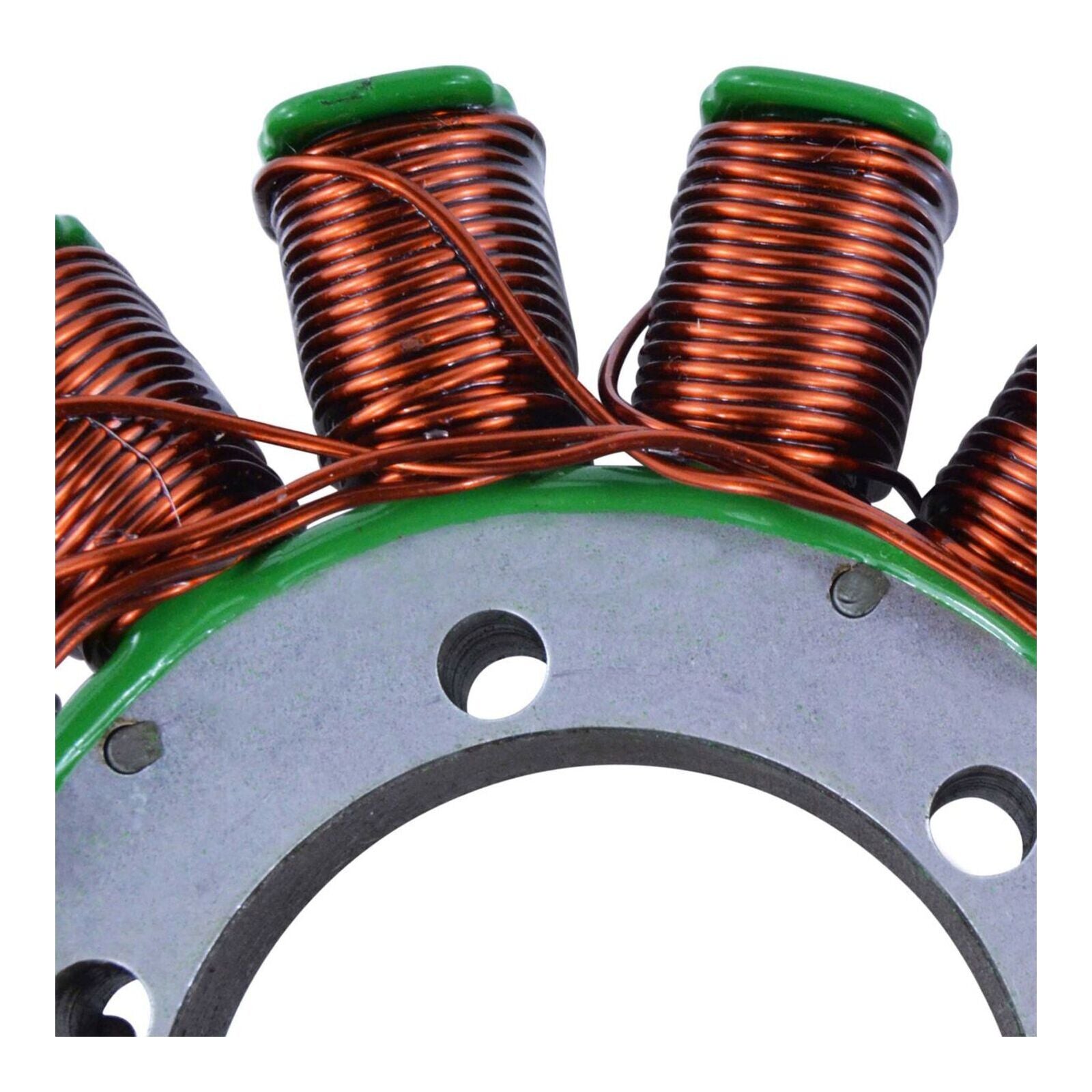

Highest grade copper windings, resistant to 200 degrees Celsius.

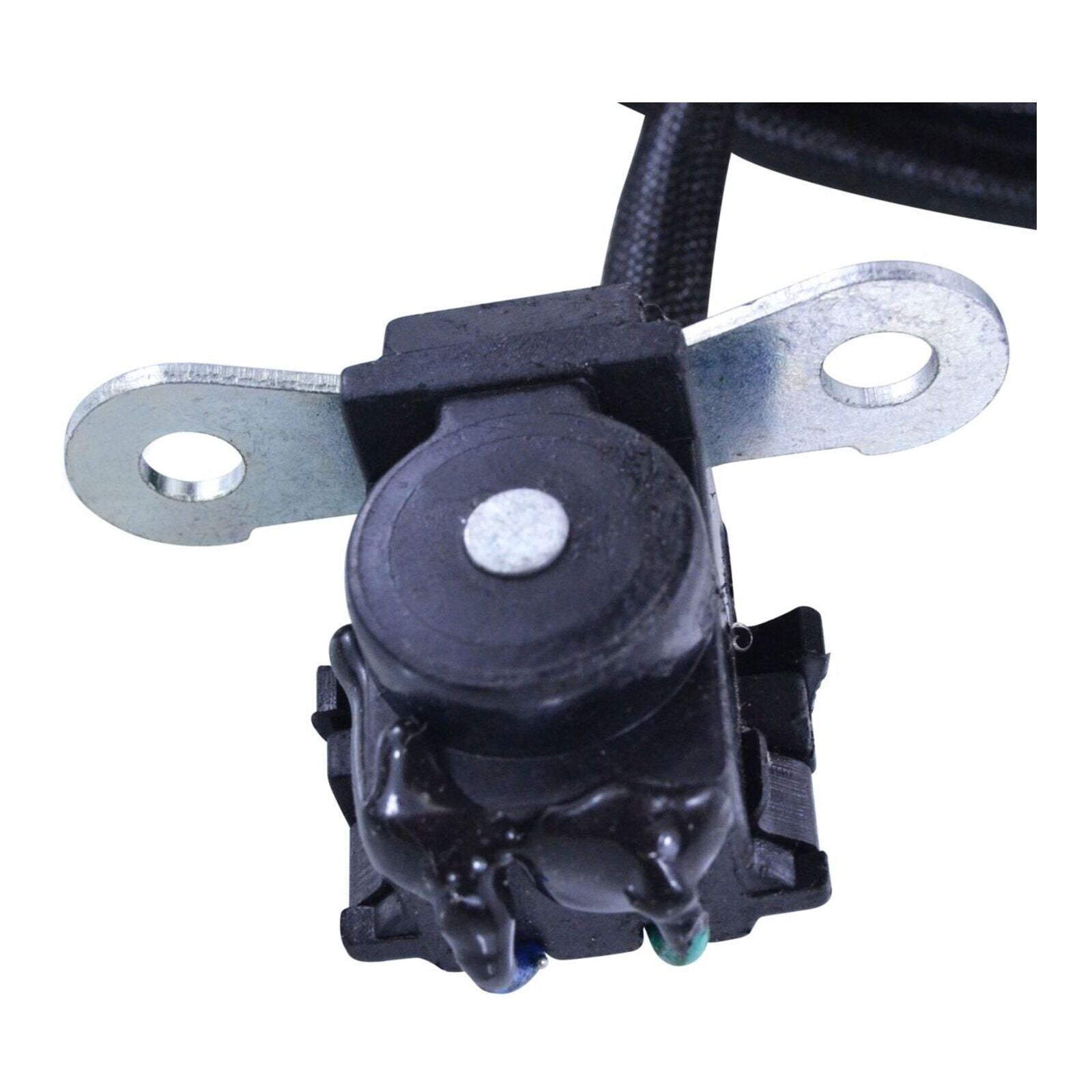

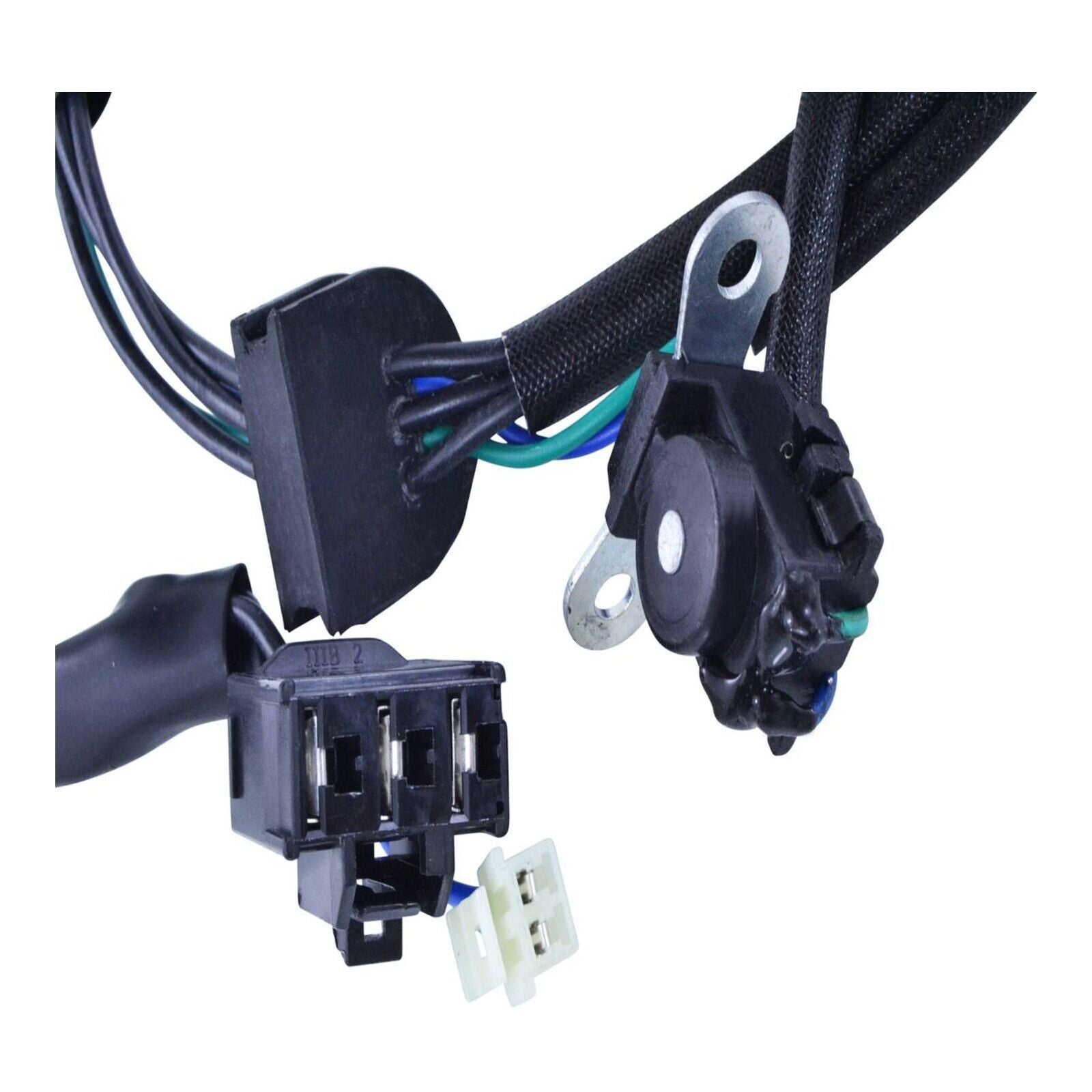

Pick up pulsar coil included.

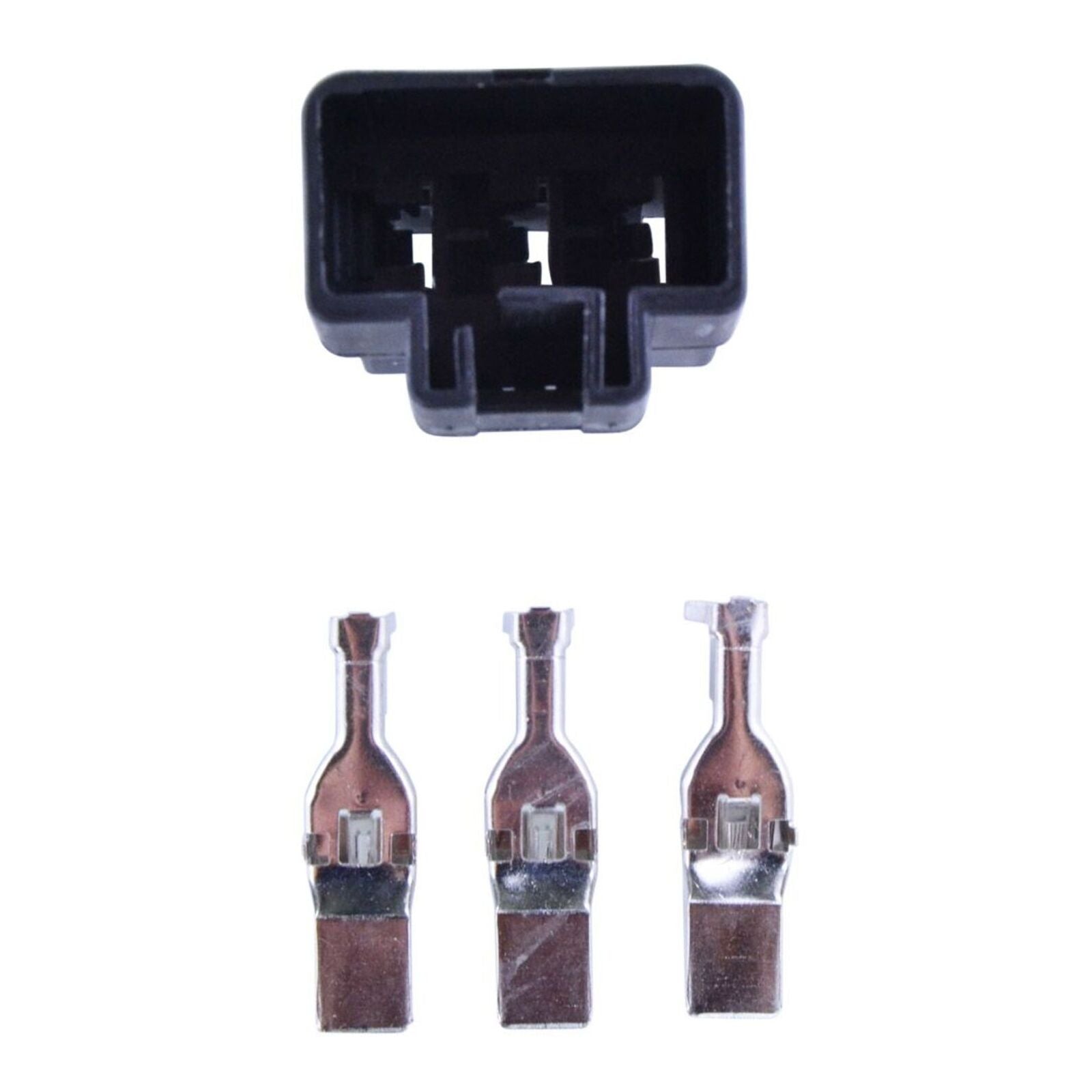

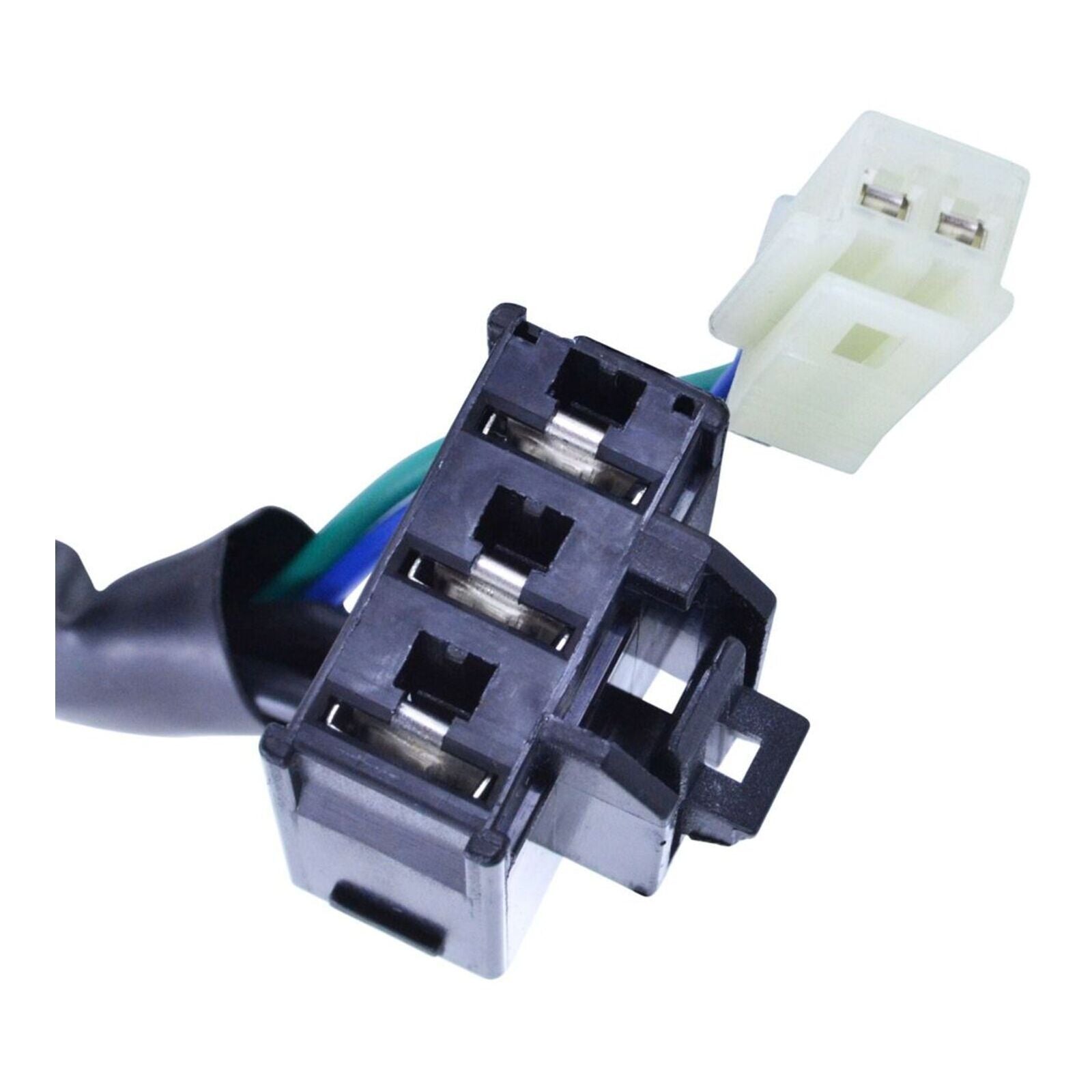

Connector included.

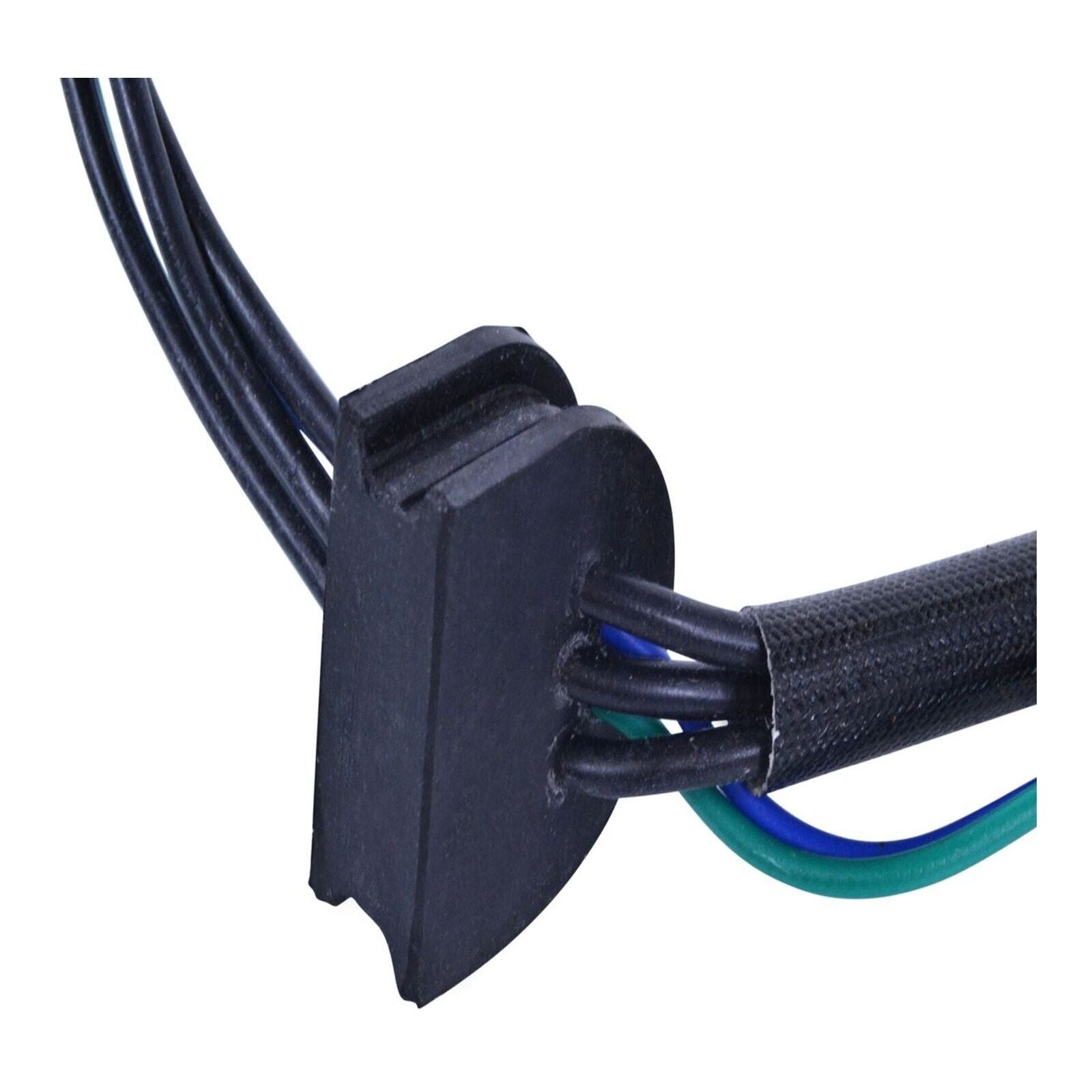

Rubber grommet included.
All products shipped are tested.

Dimensions:

Interio r diameter: 54 mm
Exterior diameter: 140 mm
Thickness: 18 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 420 mm
Length of pickup coil's wire to grommet: 240 mm

Other Specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to Wire Resistance:

Alternator: Black to Black = 0.5 ohms ±20%
Pickup: Blue to Green = 239 ohms ±20%
