RMSTATOR | SKU: RMS01285

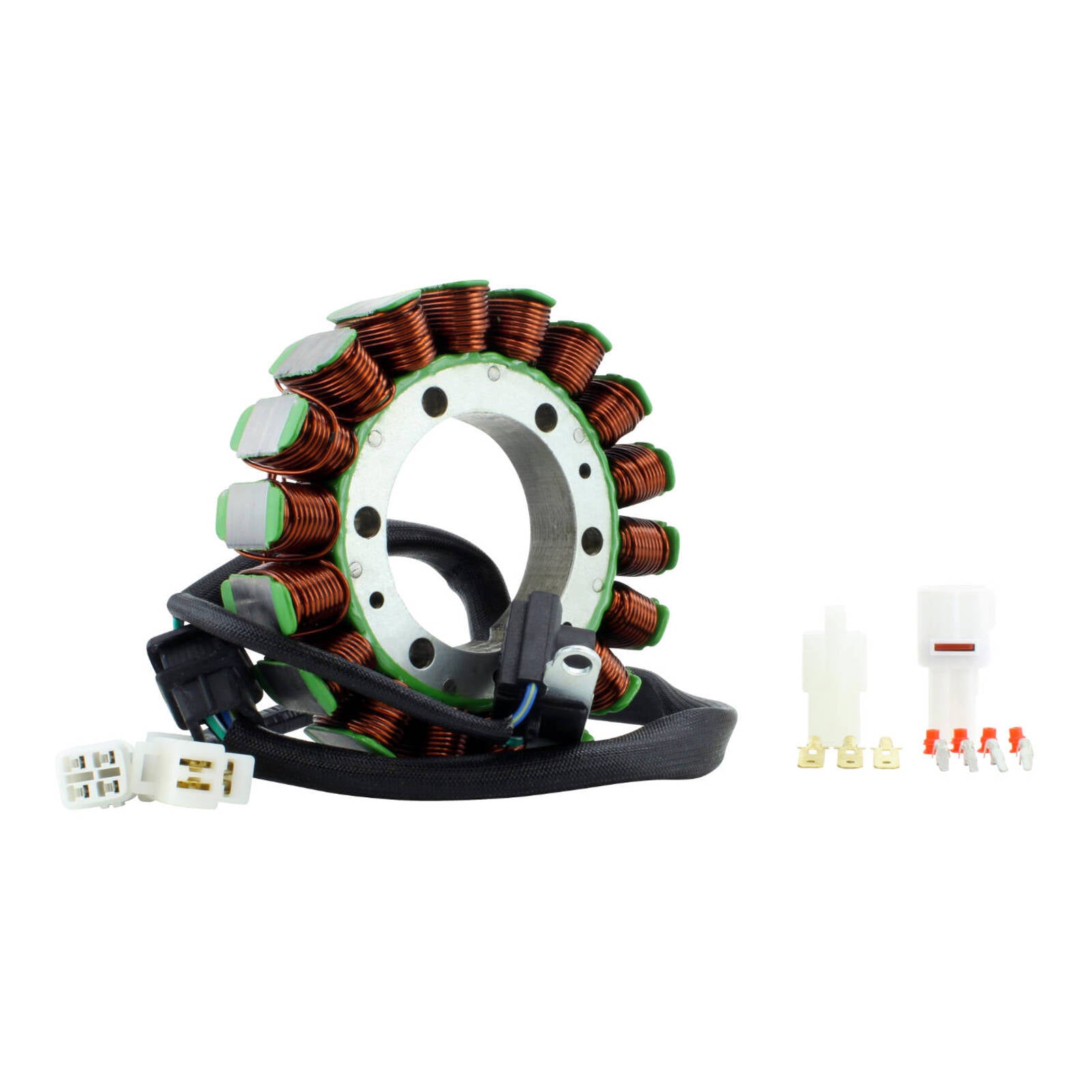

Generator Stator Various Arctic Cat (RM01285)

Name: Generator Stator Various Arctic Cat (RM01285)
Brand: RMSTATOR
SKU: RMS01285
Price: 315.0 AUD
Availability: OutOfStock

$315.00

$315.00 ~~$319.99~~

Tax included. Shipping calculated at checkout.

Out of stock

🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–3 days.

Explore related collections:

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

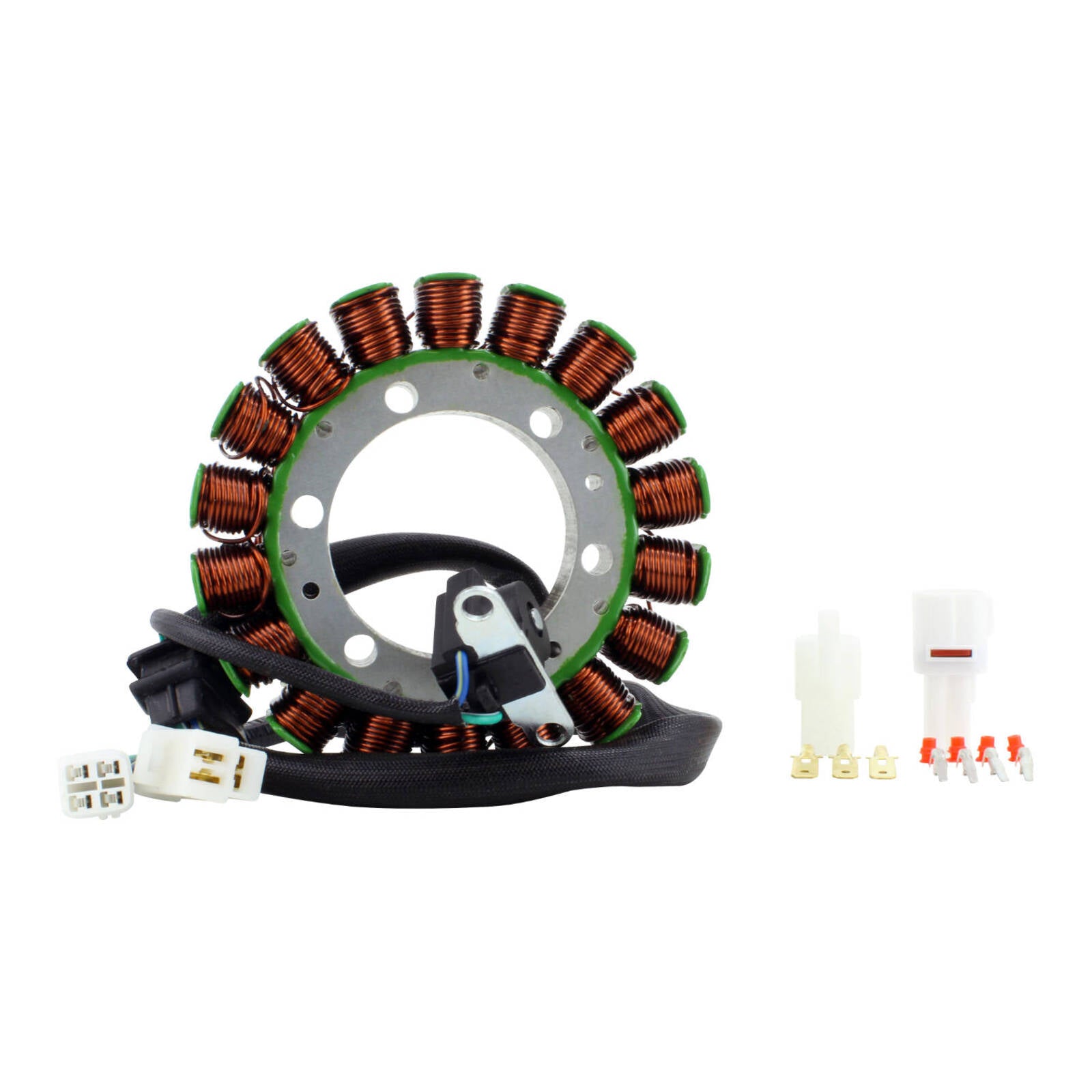

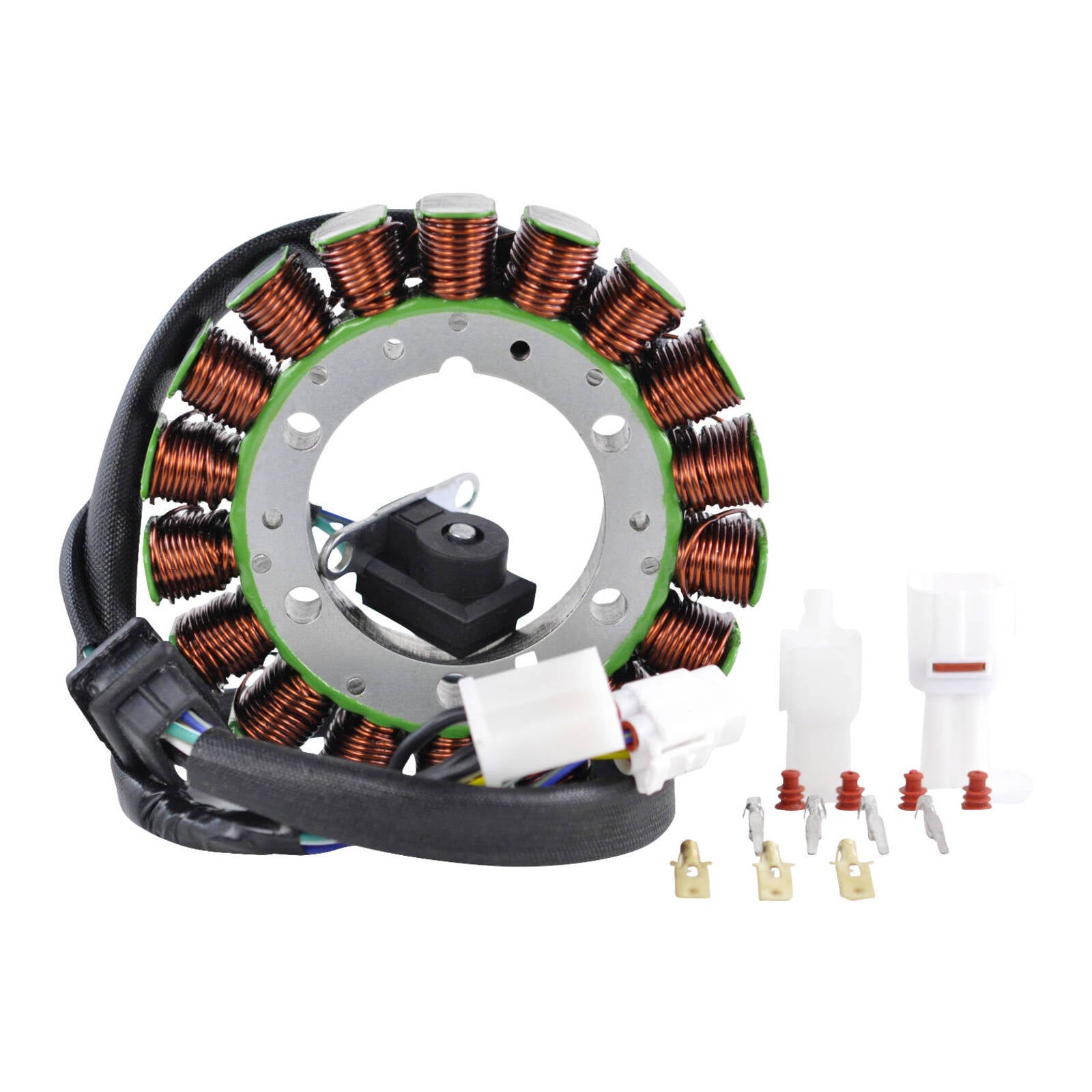

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

Other specifications:

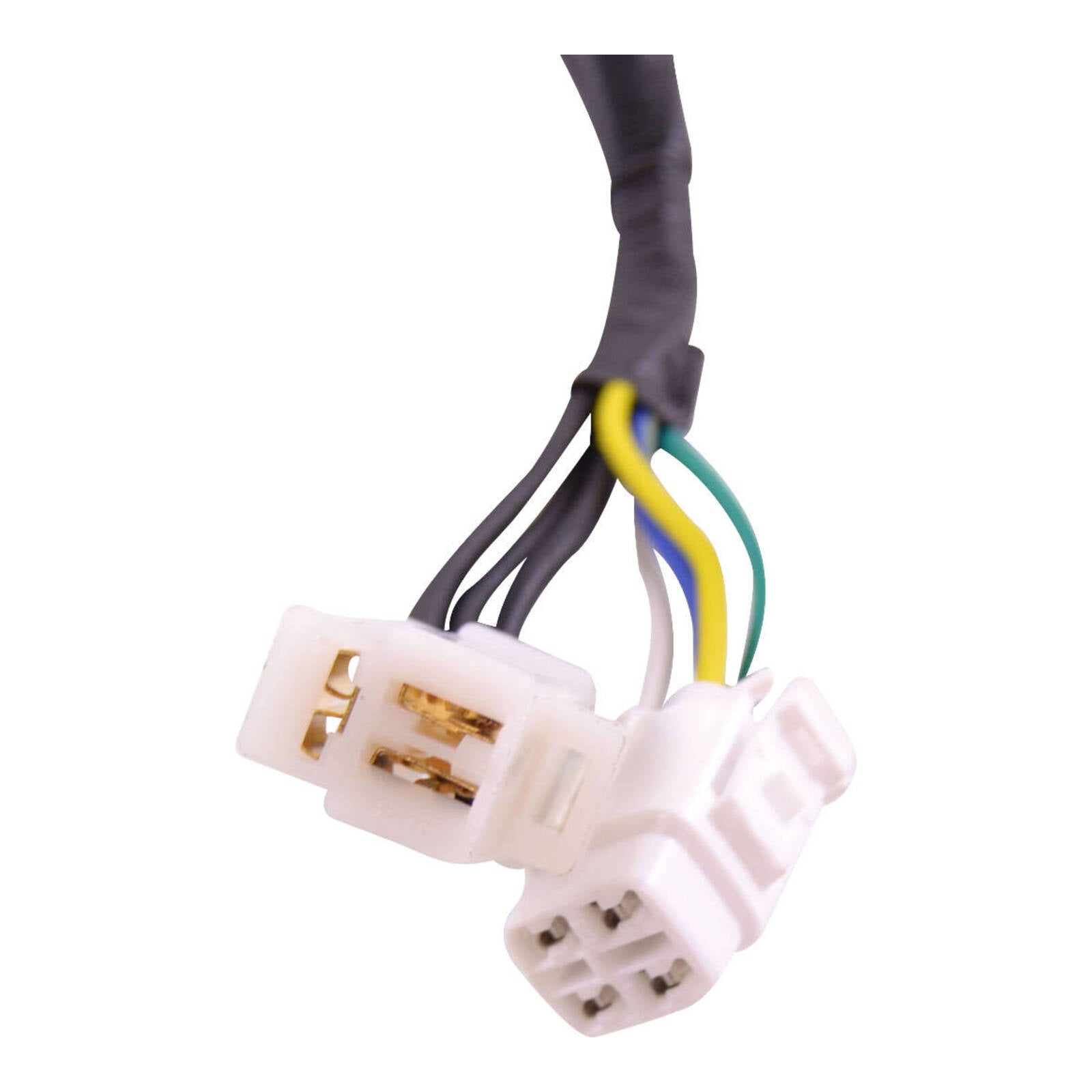

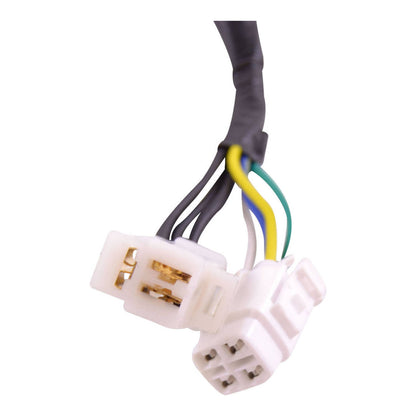

Number of wires: 7

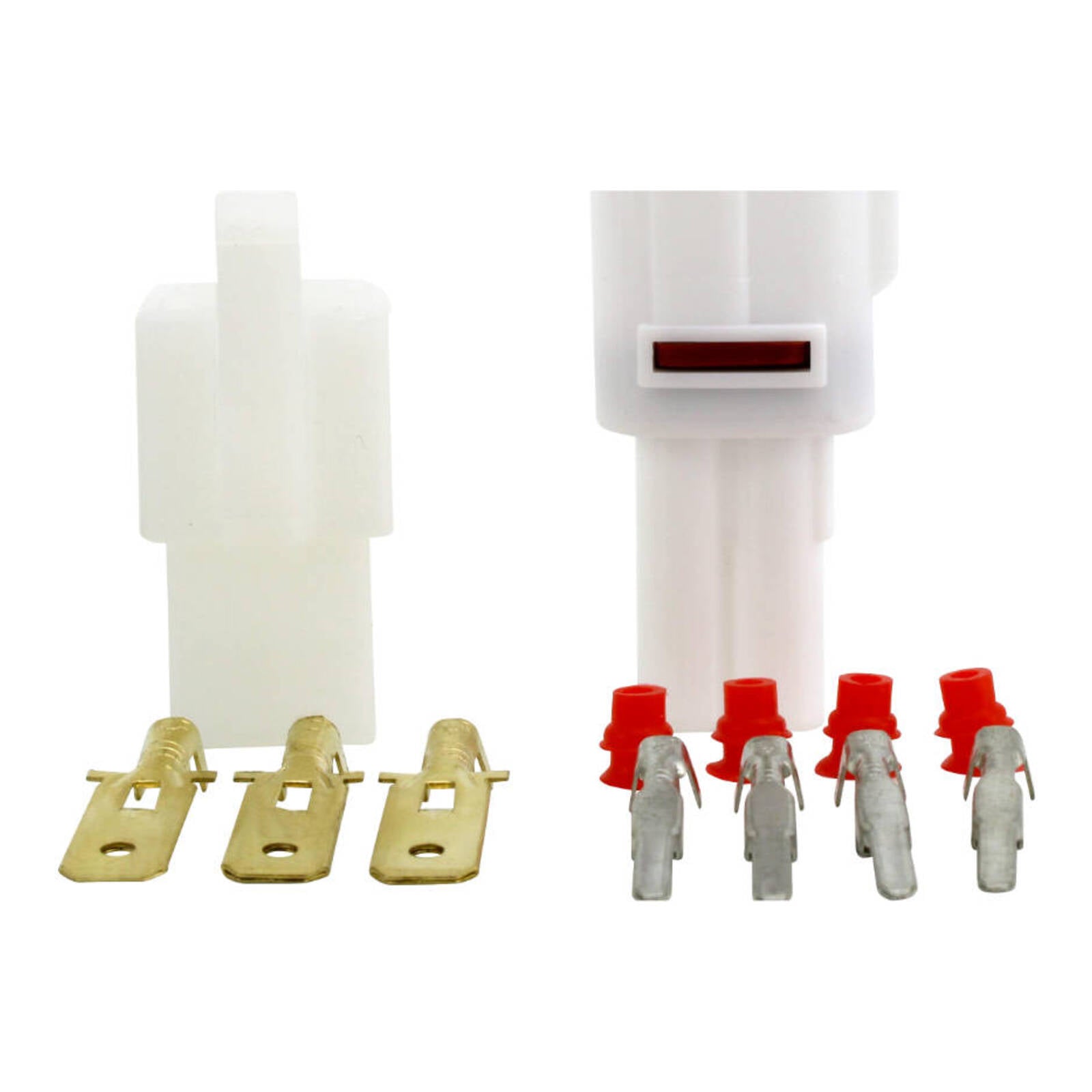

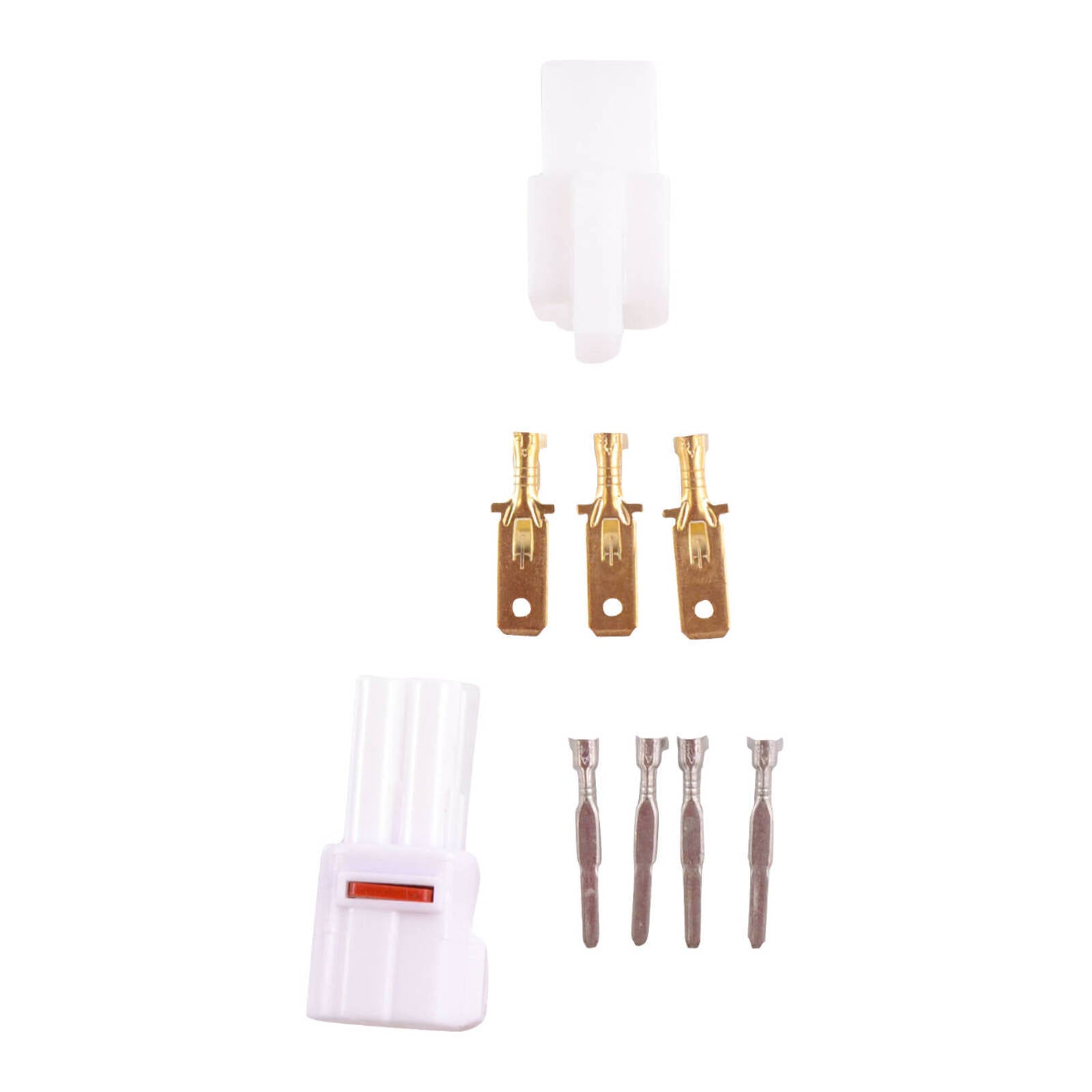

Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
- Alternator: Black between each Black = 0.4 ohms +-20%
- Pickup: Blue to Green = 185 ohms +/-20%
- Position Sensor: White to Yellow = 0.2ohms +/-20%

Details:

Interior diameter	54mm
Exterior diameter	114mm

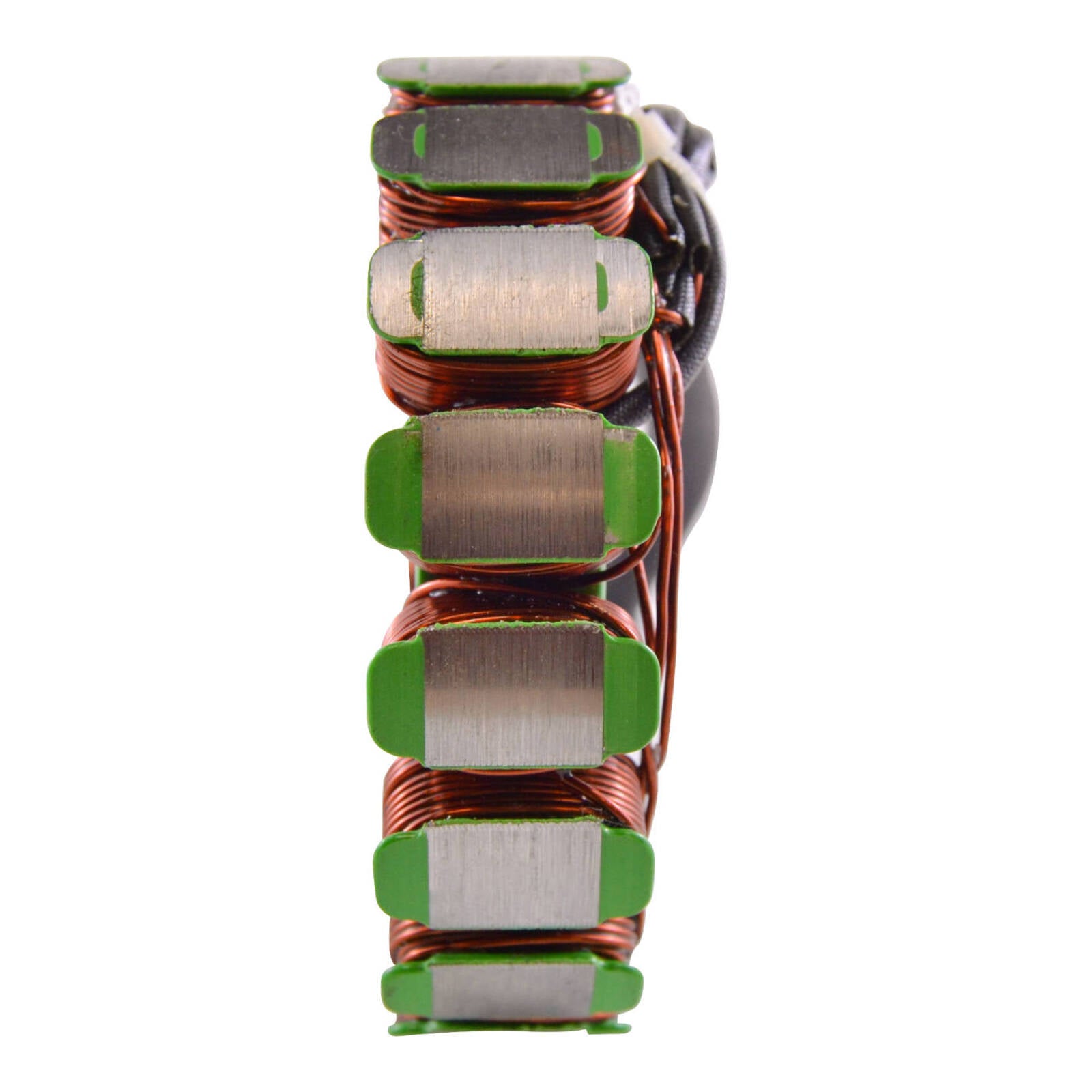

Thickness	18mm
Length of wires stator to grommet	140mm
Length of wires grommet to plug	320mm
Length of pickup coil's wire to grommet	95mm
Number of wires	7
Number of plugs	2
Number of pins	7
Alternator	Black between each Black = 0.4 ohms +-20%
Pickup	Blue to Green = 185 ohms +/-20%
Position Sensor	White to Yellow = 0.2ohms +/-20%
