12% Off
RMSTATOR  | SKU: RMS01074

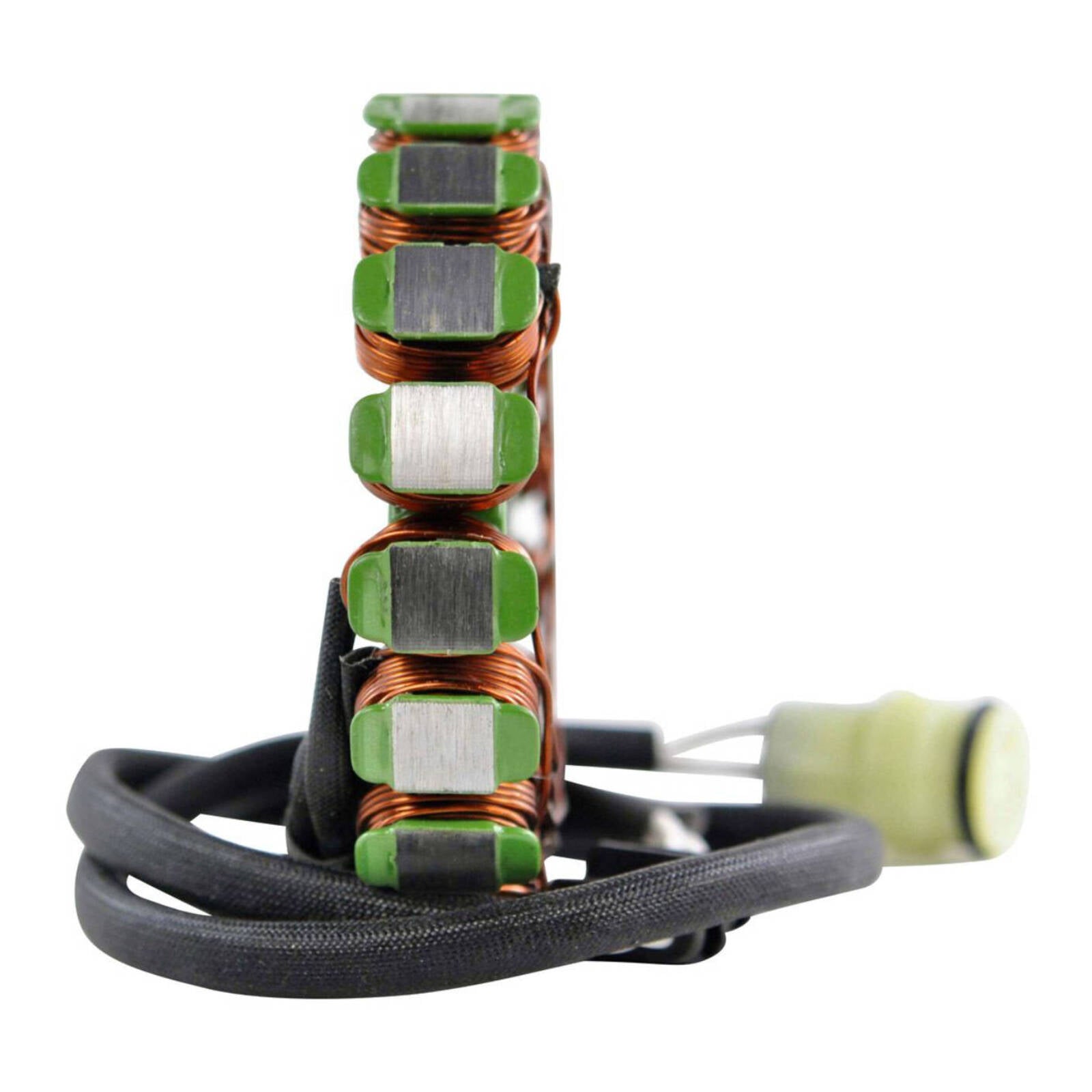

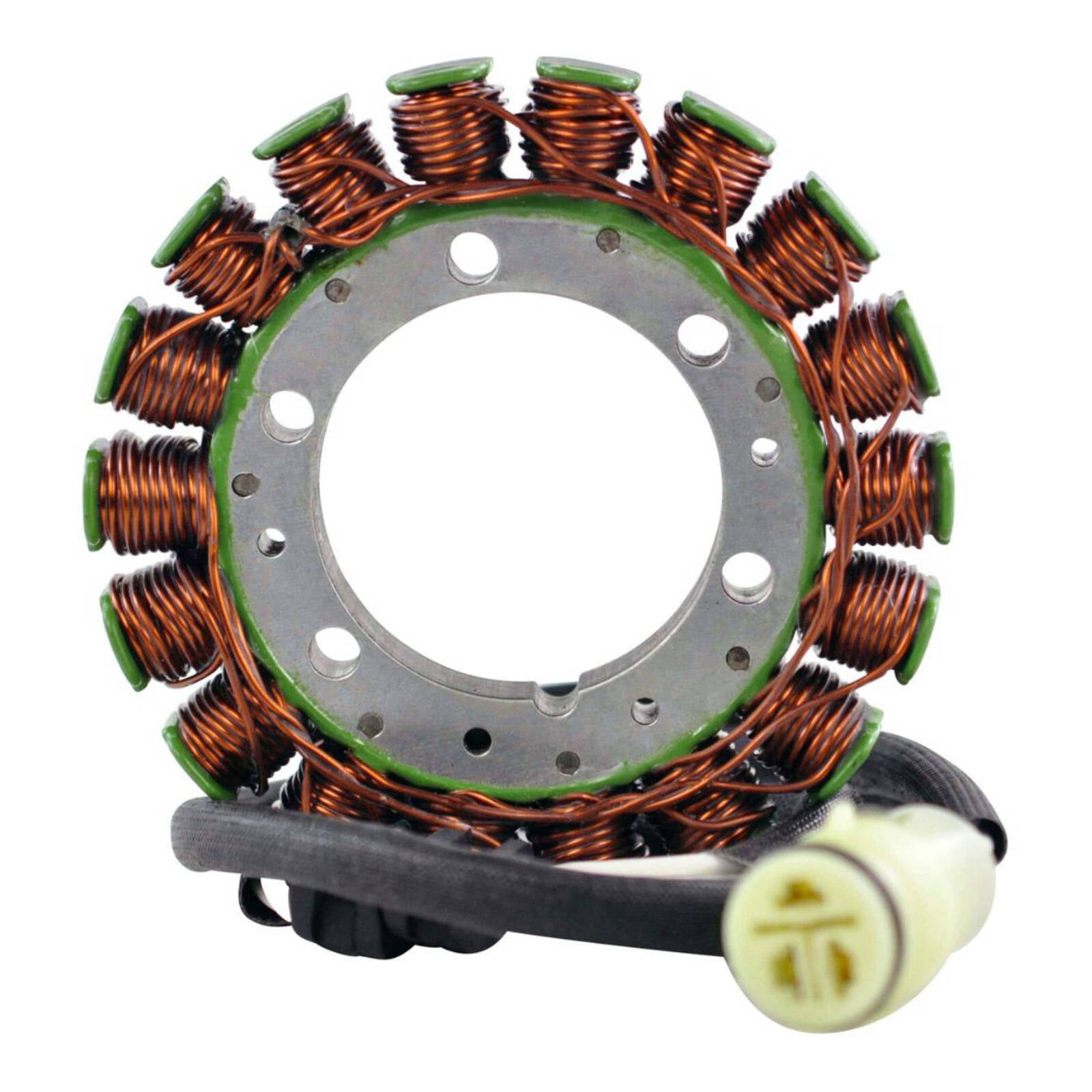

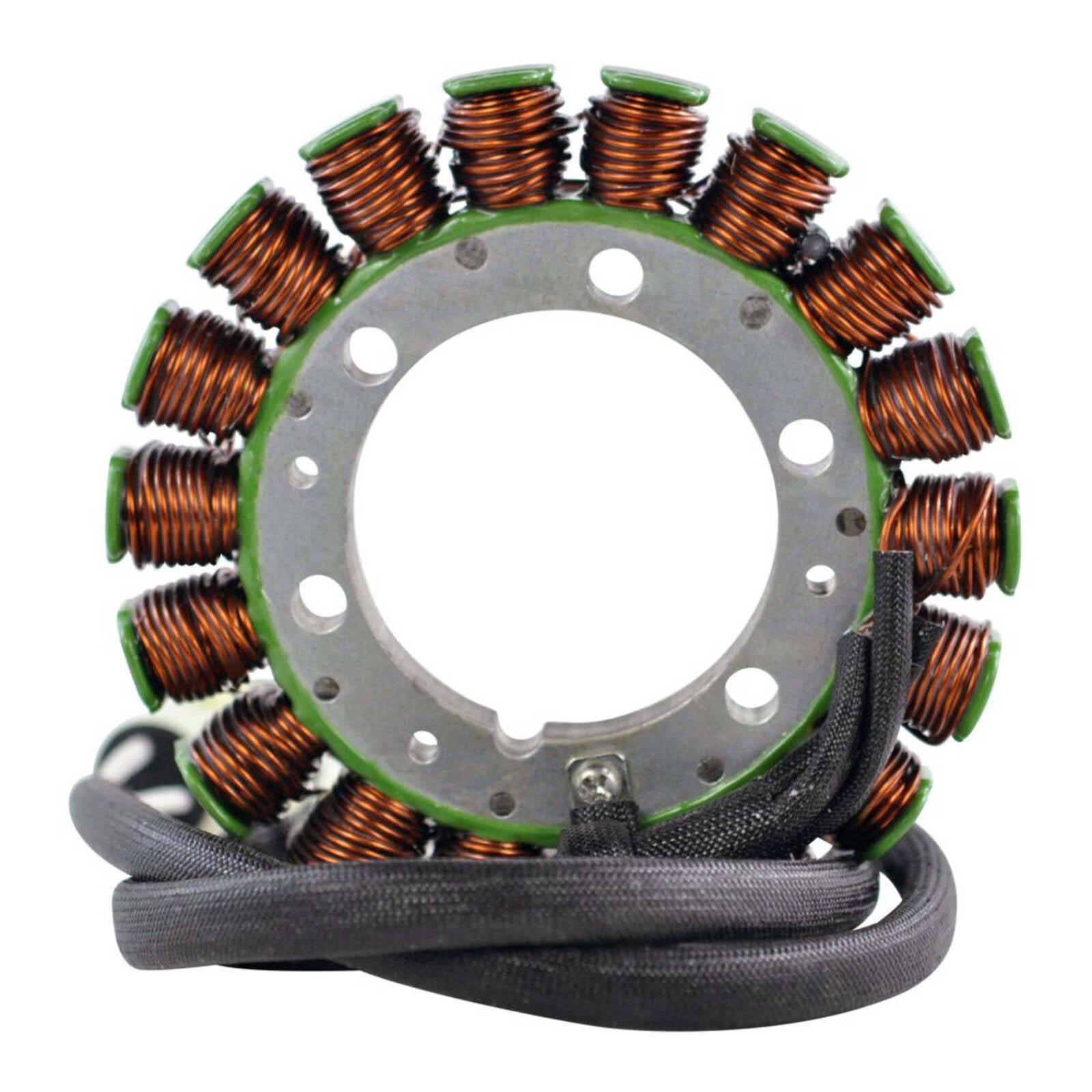

HIGH OUTPUT STATOR KAW KVF 360 400 PRAIRIE 99-12 (RM01074)

$299.00
$299.00 $339.99
Tax included. Shipping calculated at checkout.
Low stock! Only 1 left
🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–3 days.

Explore related collections:

Description

Plug-and-play, high output replacement stator from RM Stator.



Dimensions:

  • Interior diameter: 53mm
  • Exterior diameter: 115mm
  • Thickness: 14mm
  • Length of wires — stator to grommet: 90mm
  • Length of wires — grommet to plug: 500mm



Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Wire to wire resistance:
    • Alternator: White to White = 0.4 ohms +-20%
    • Altnerator: White to Ground = O.L on Display



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

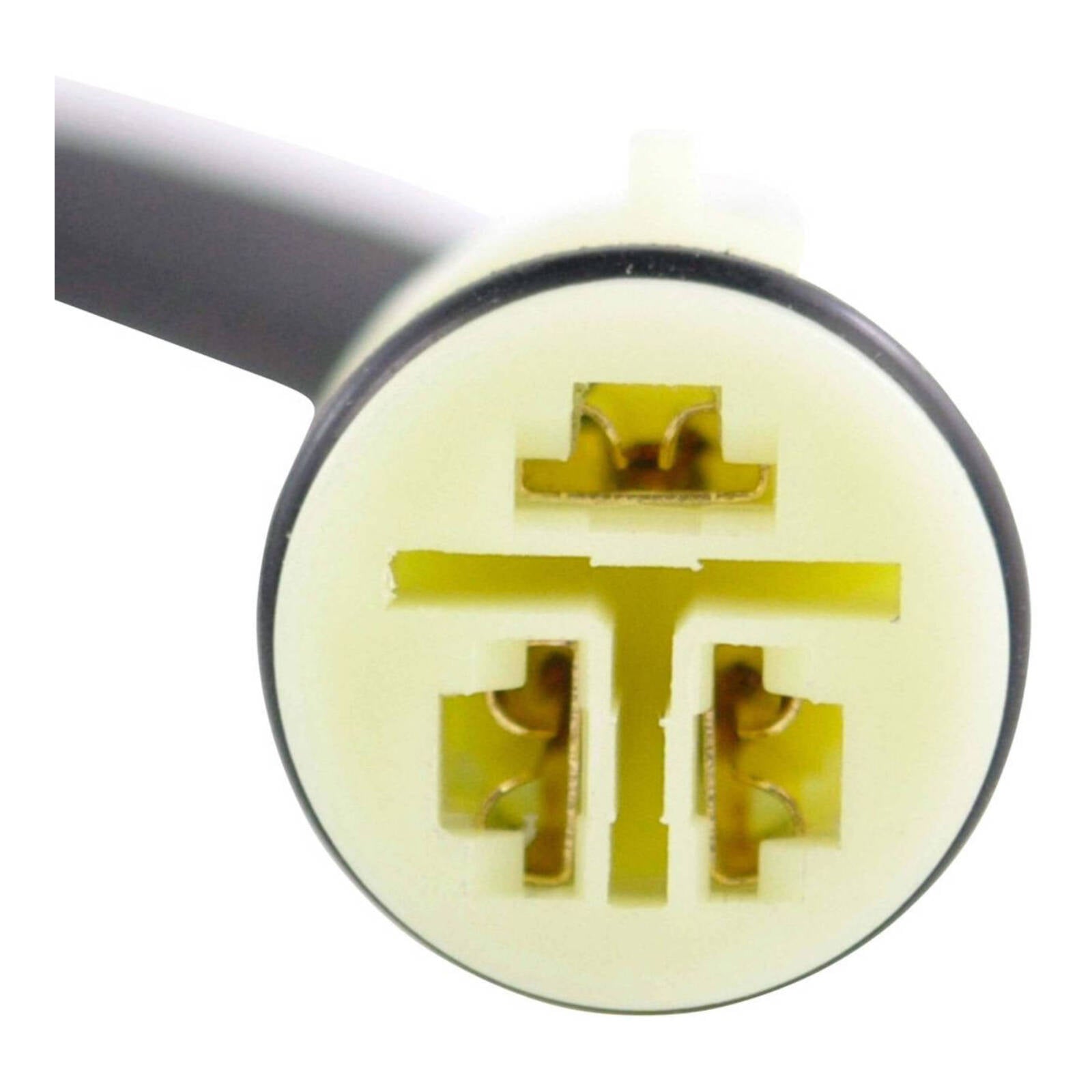

  • Connector included
  • Includes the opposite connector (main harness side) as these are often melted/corroded/defective and a major cause for repetitive electrical issues
  • Rubber grommet included
  • All products shipped are tested

Specifications

Interior diameter 53mm
Exterior diameter 115mm
Thickness 14mm
Length of wires — stator to grommet 90mm
Length of wires — grommet to plug 500mm
Number of wires 3
Number of plugs 1
Number of pins 3
Alternator White to White = 0.4 ohms +-20%
Altnerator White to Ground = O.L on Display
