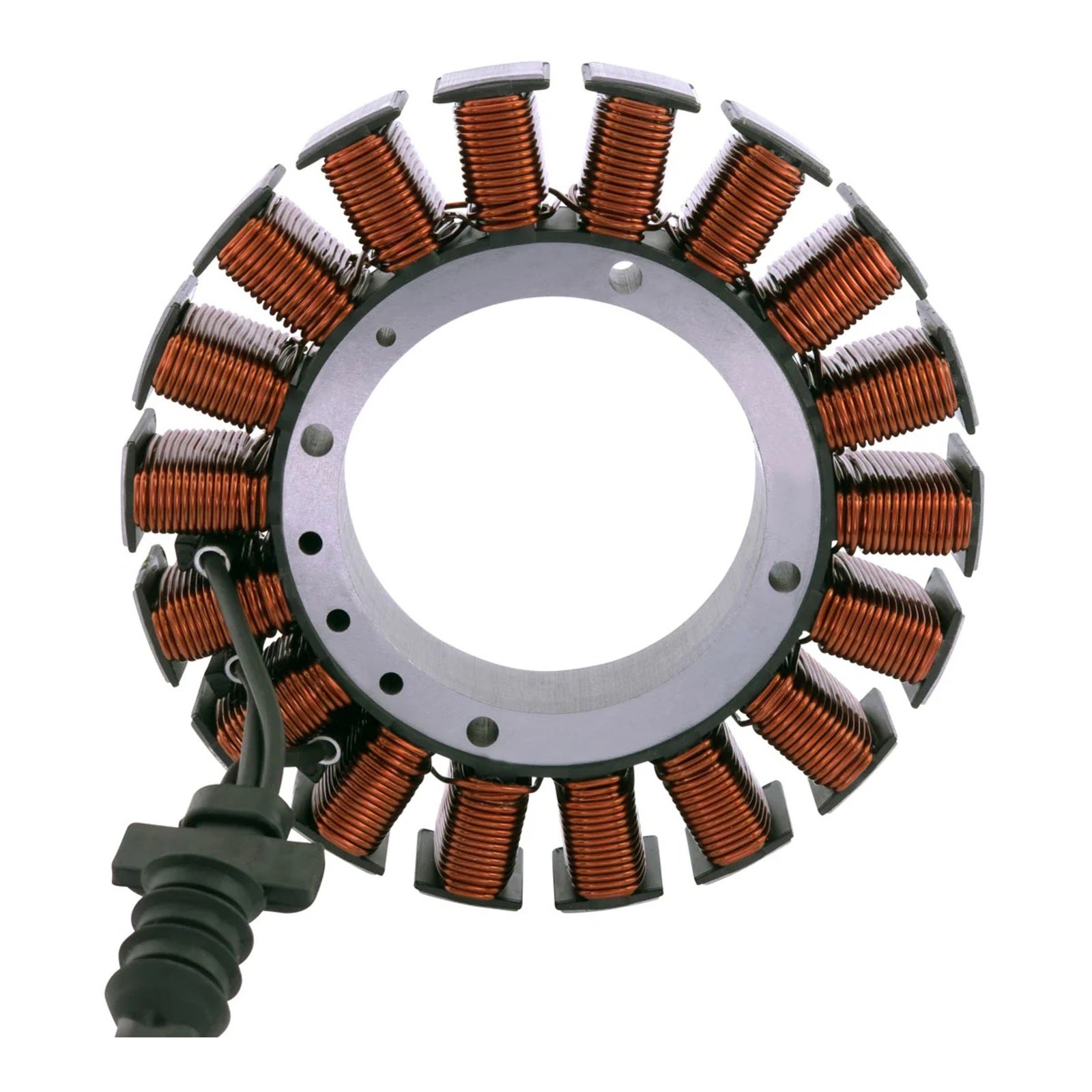

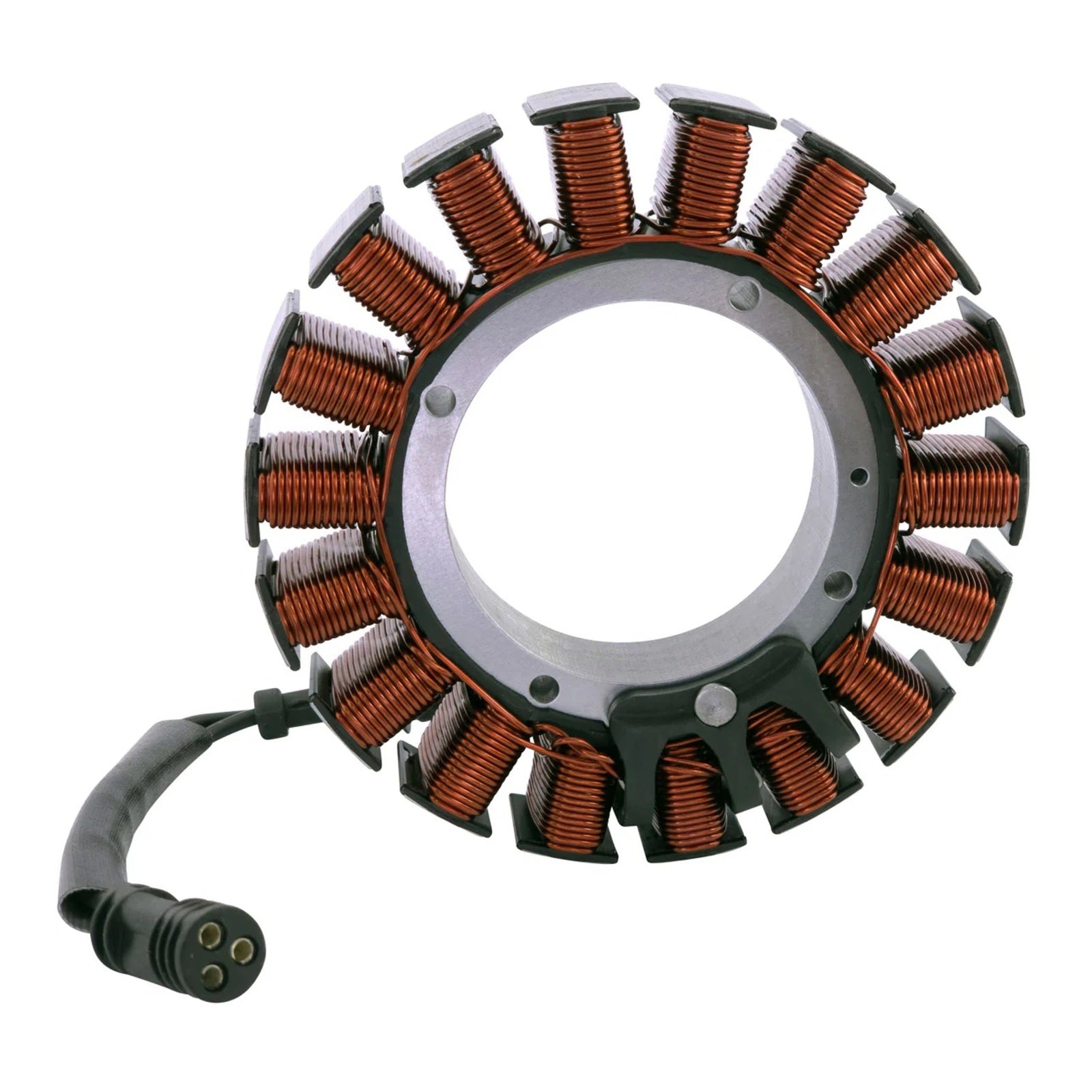

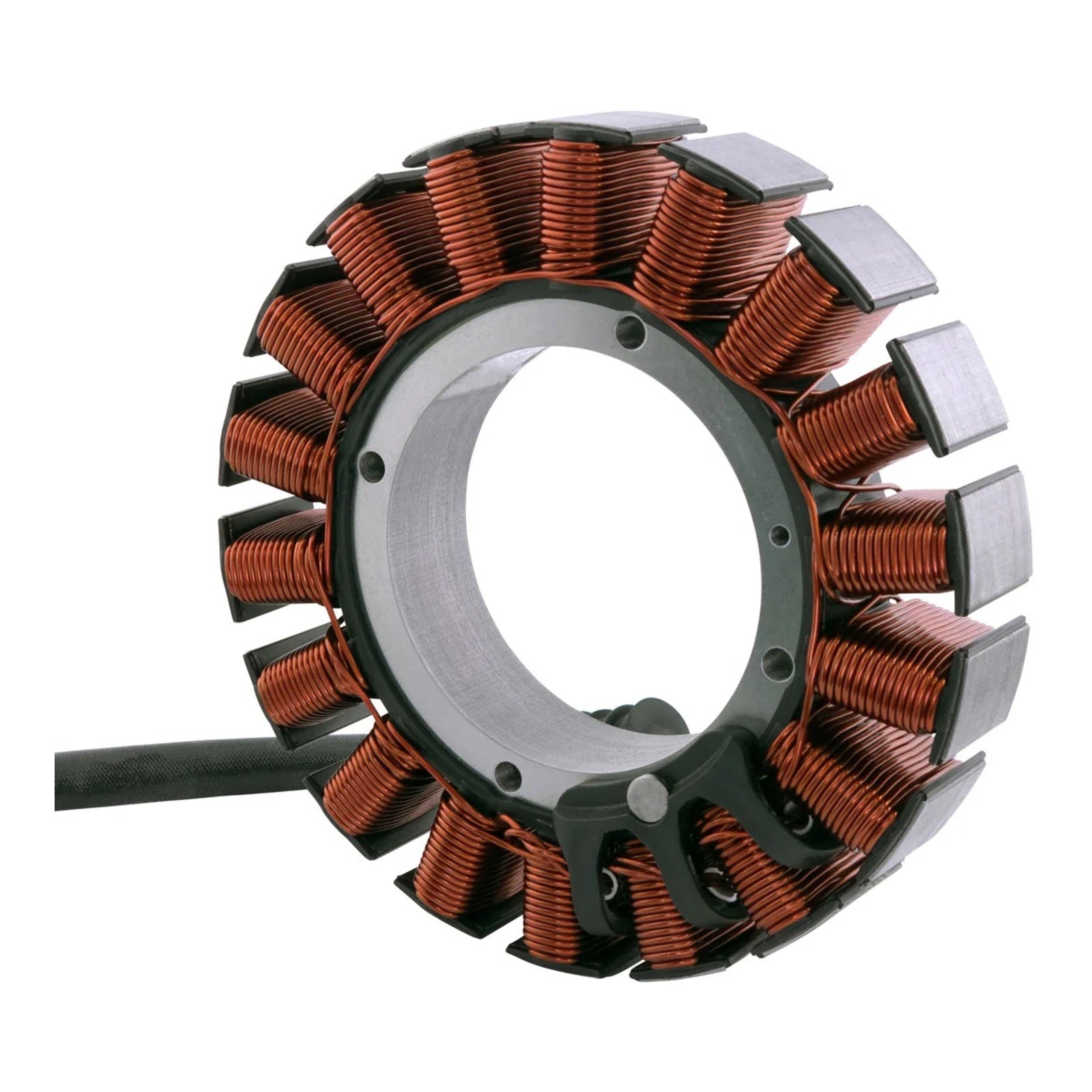

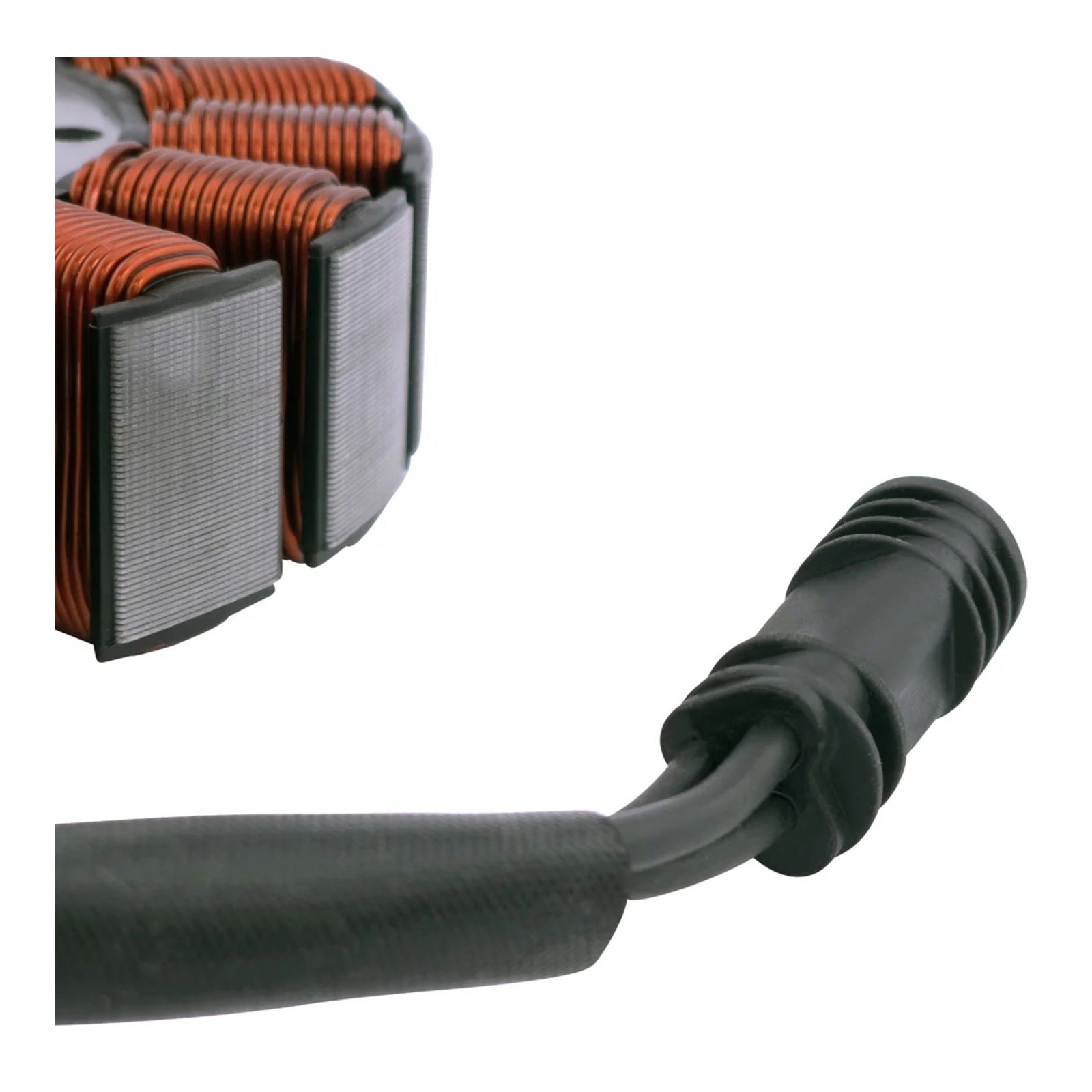

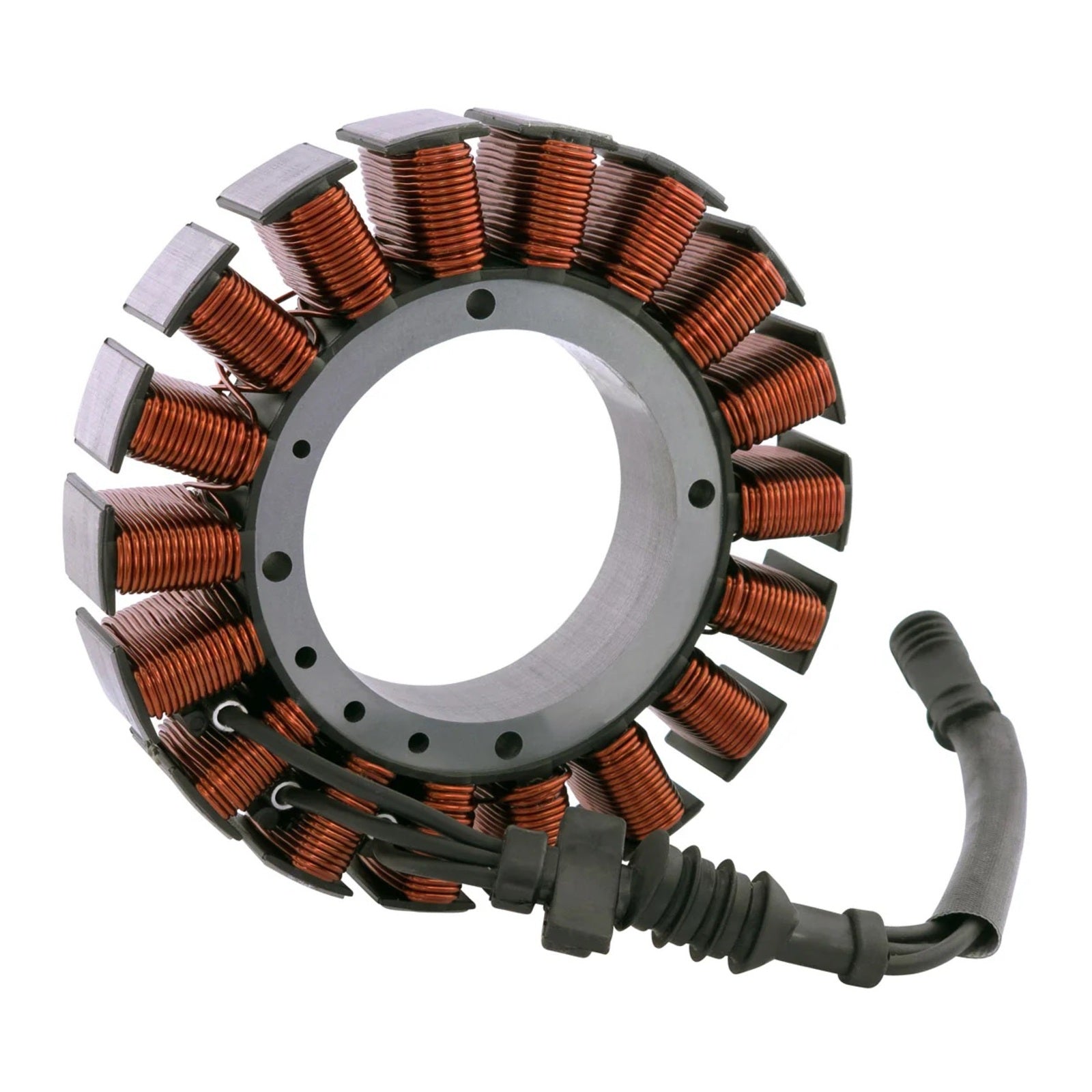

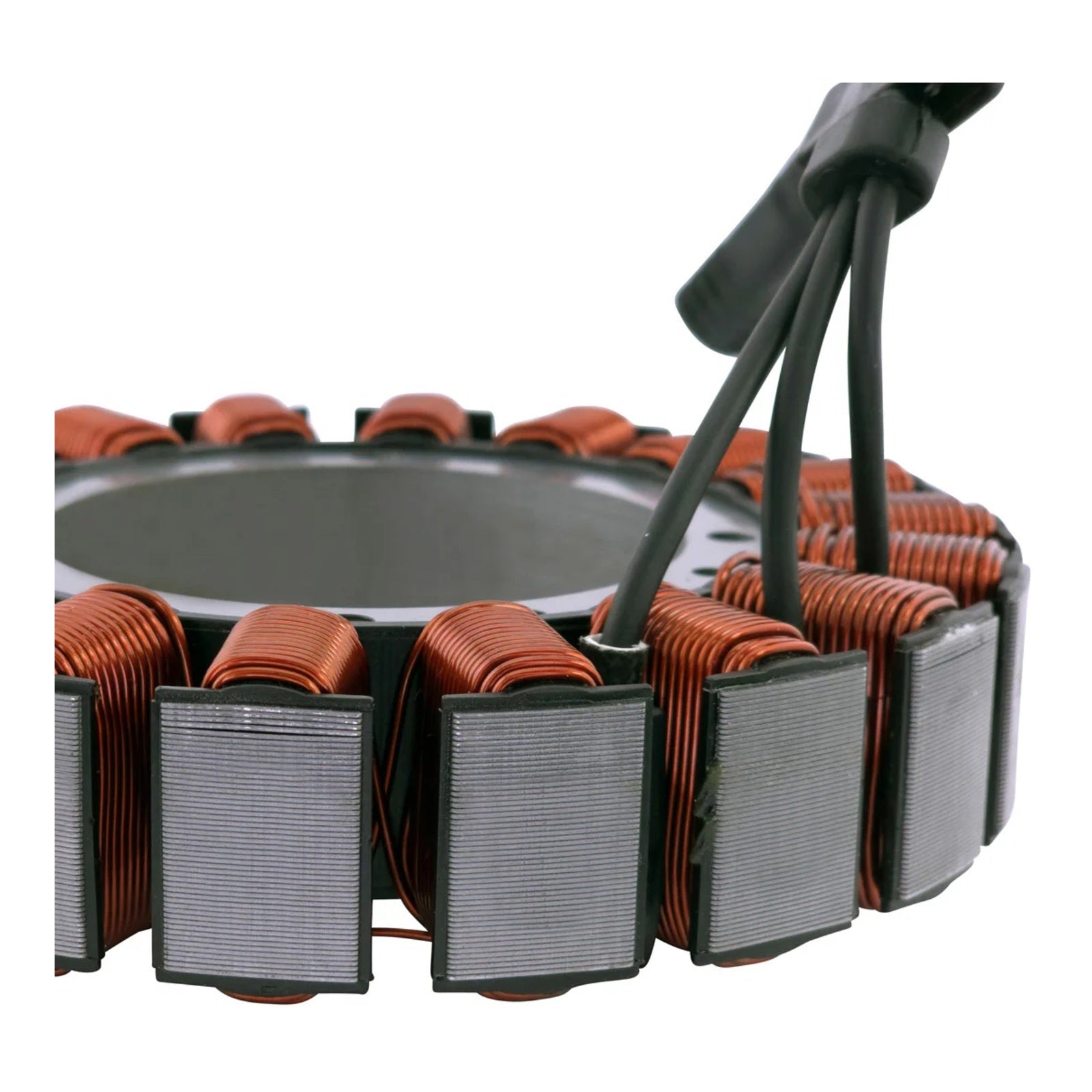

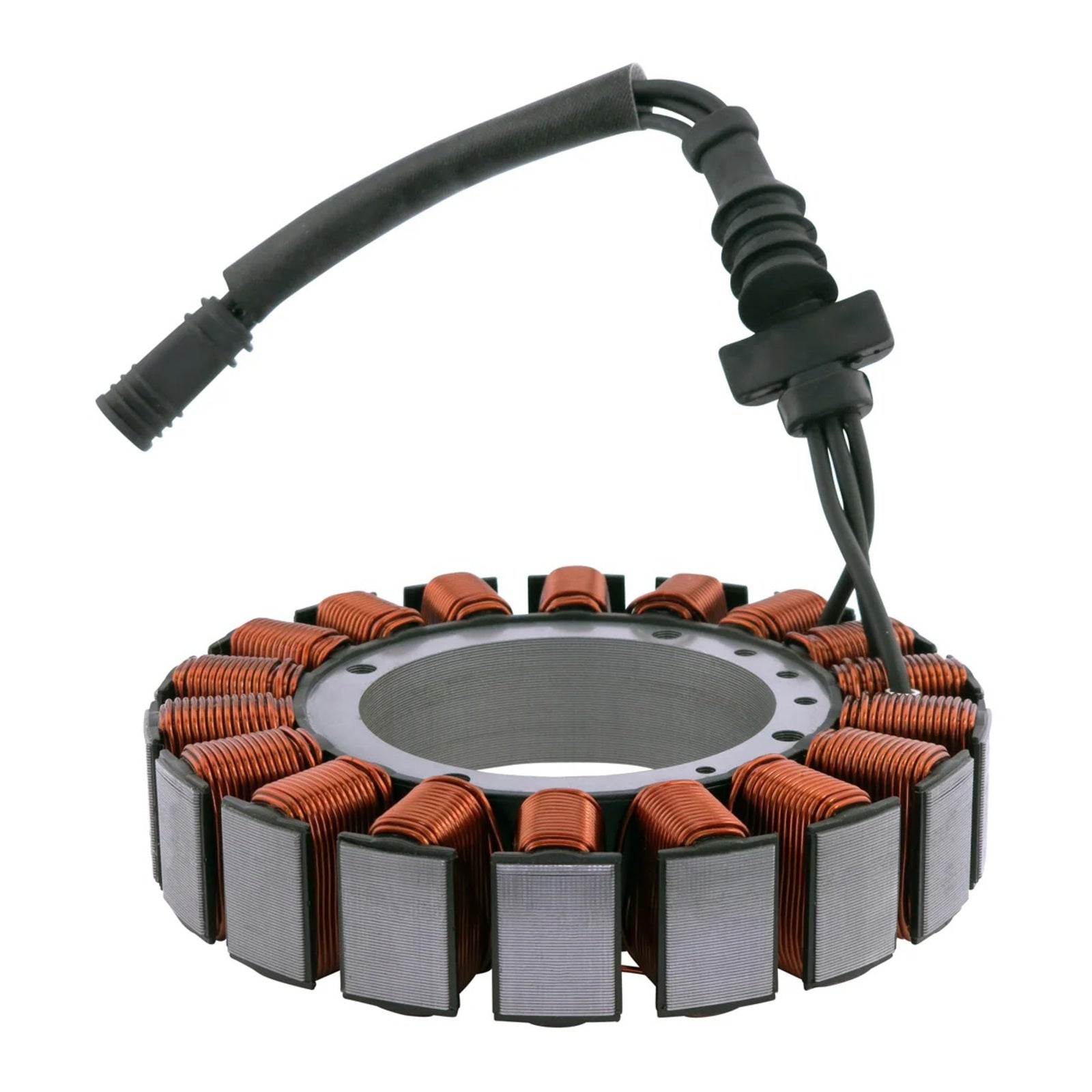

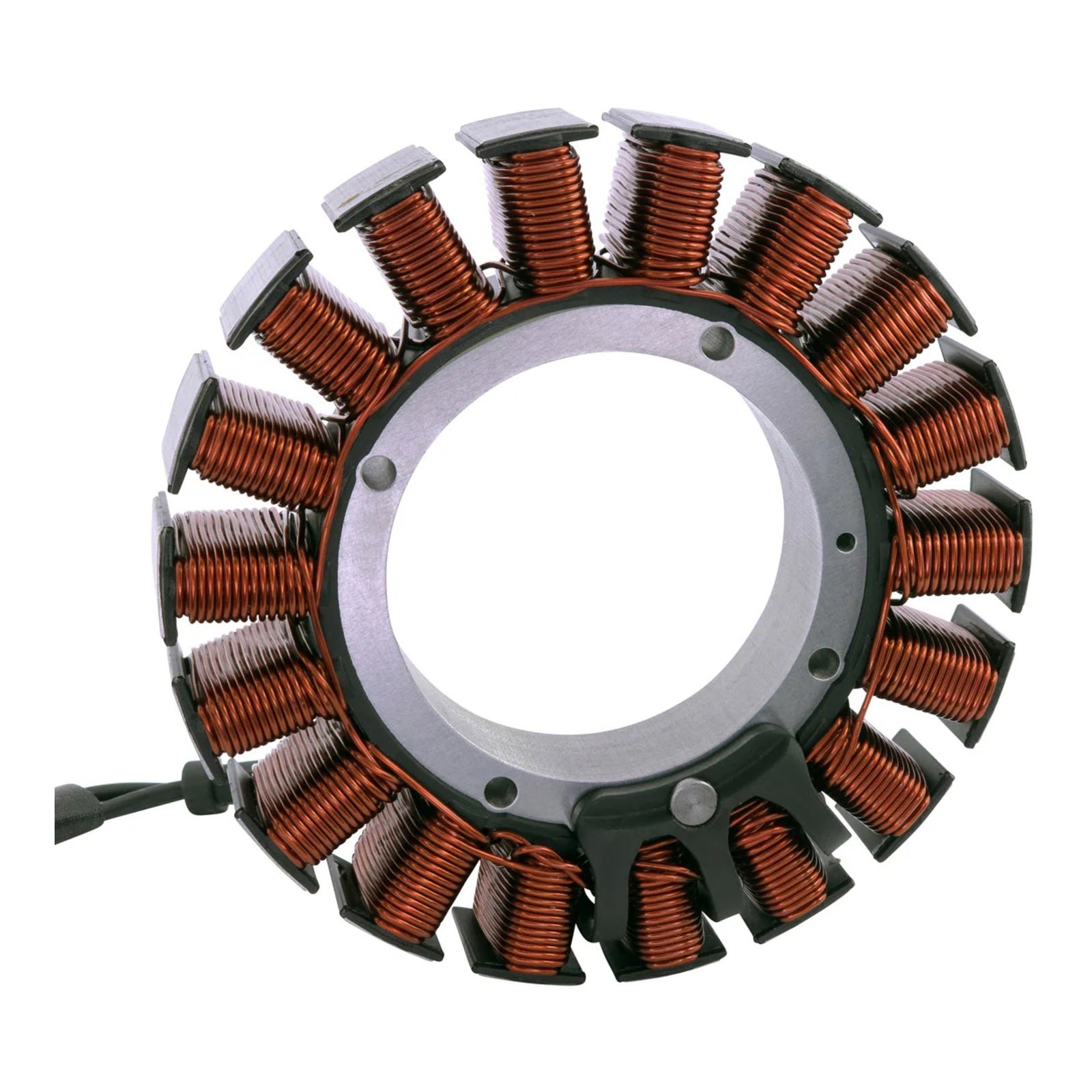

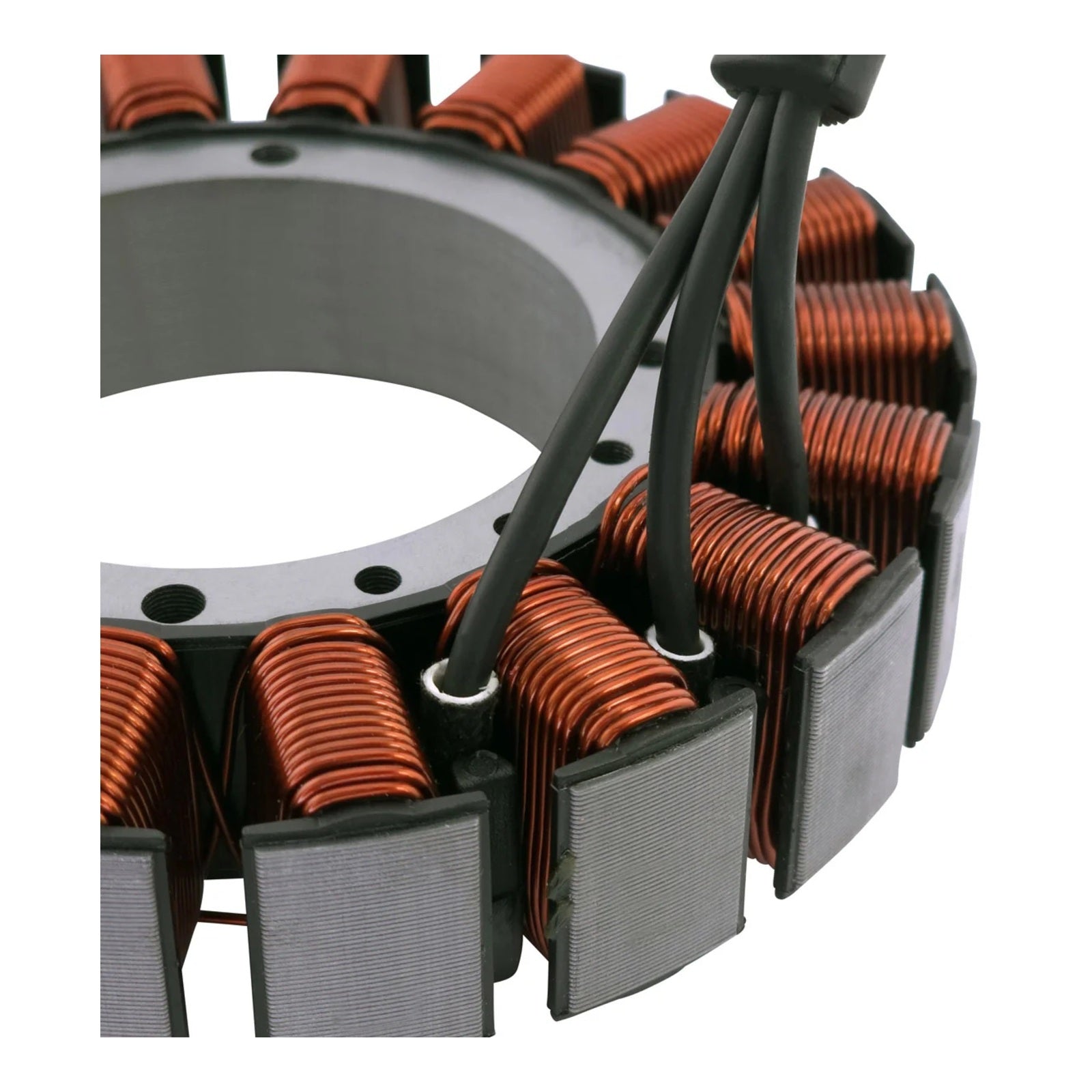

Brand new aftermarket stator.
Features:
- Direct replacement for your original unit.
- Plug-and-play, direct fit, easy installation.
- Made with the highest grade lamination materials.
- Premium copper winding, resistant up to 200°C.
- Connectors included.

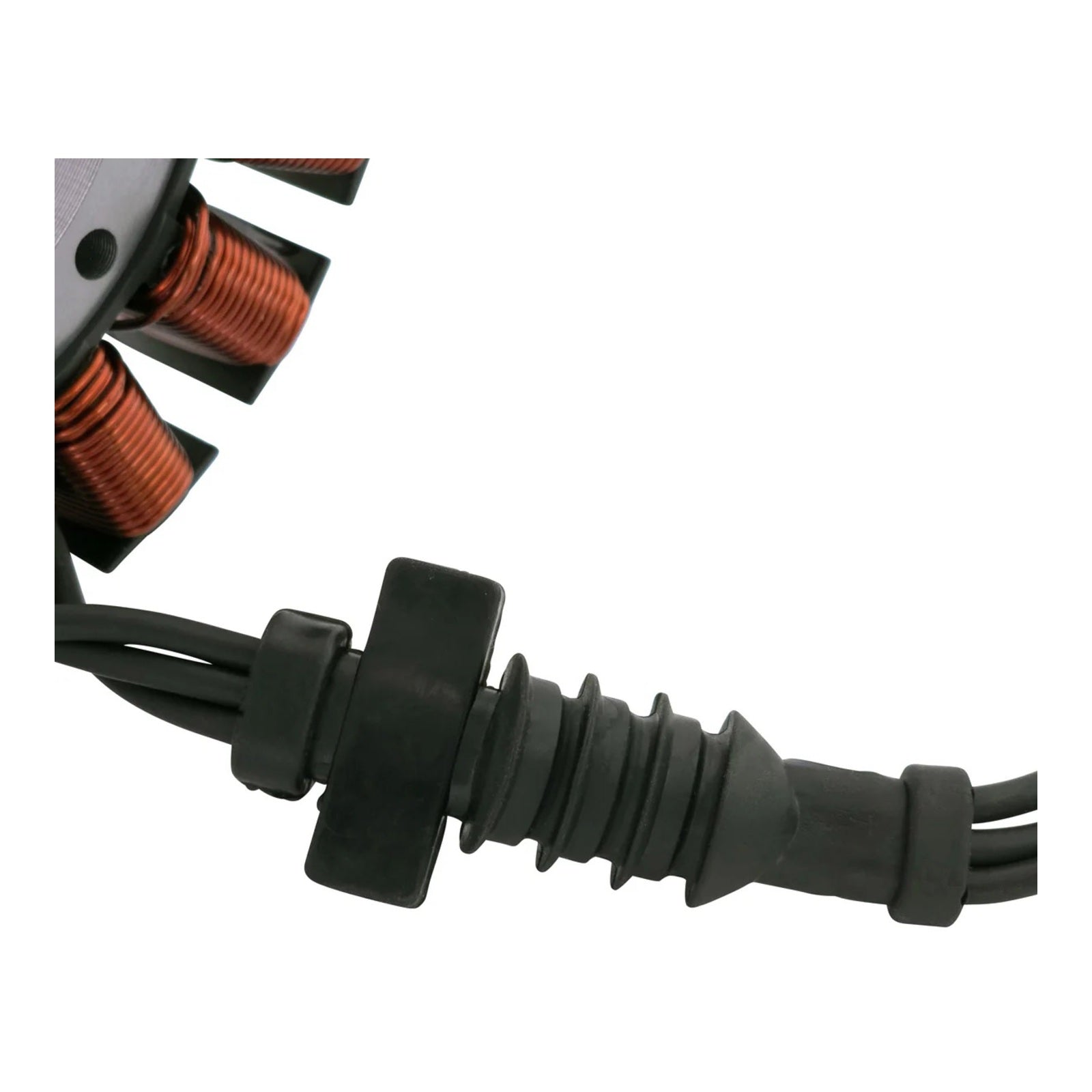

- Rubber grommet included.
- All products are fully tested before shipping.
Specifications:
Dimensions:
- Interior diameter: 71 mm
- Exterior diameter: 144 mm

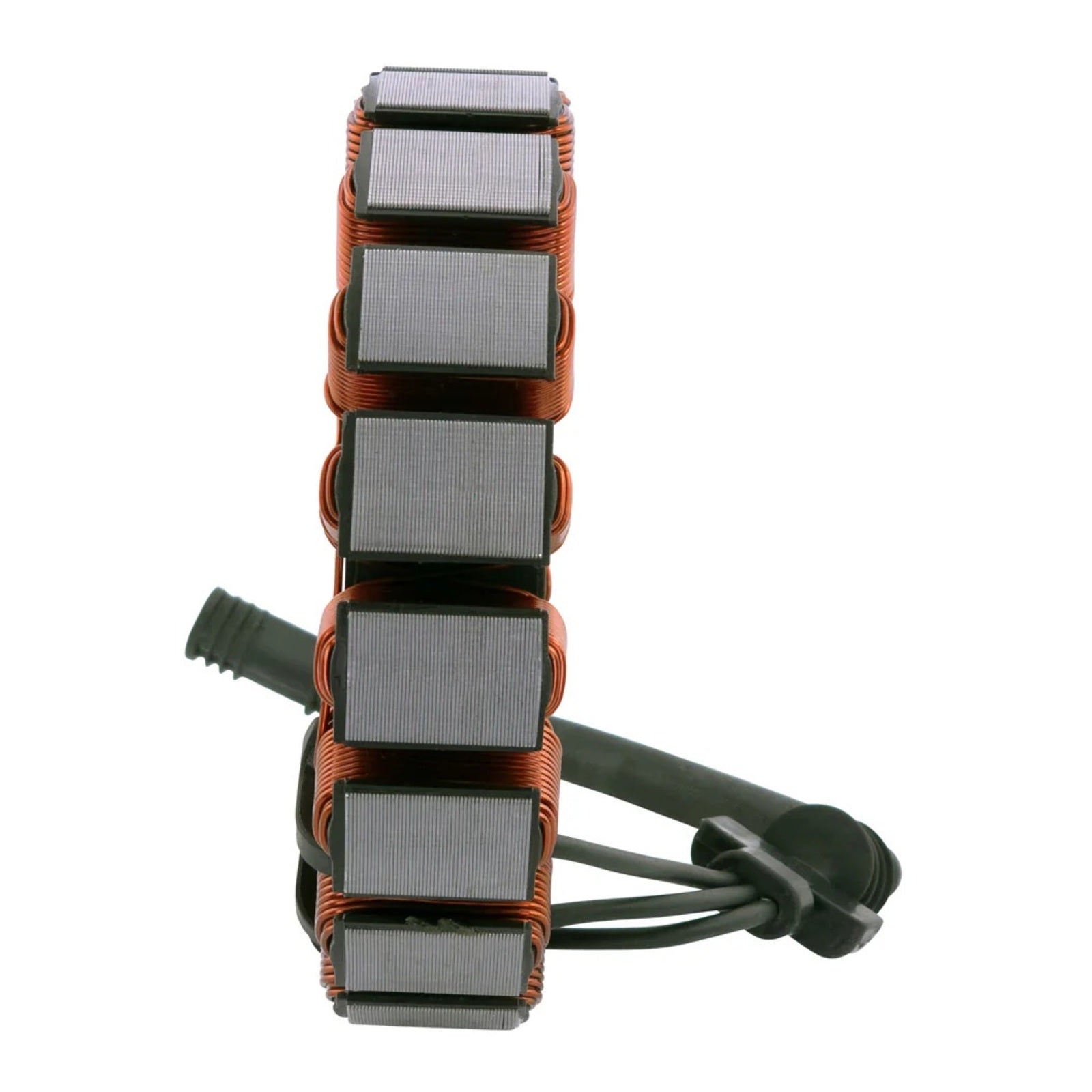

- Thickness: 24 mm
- Length of wires (stator ? grommet): 40 mm
- Length of wires (grommet ? plug): 130 mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1

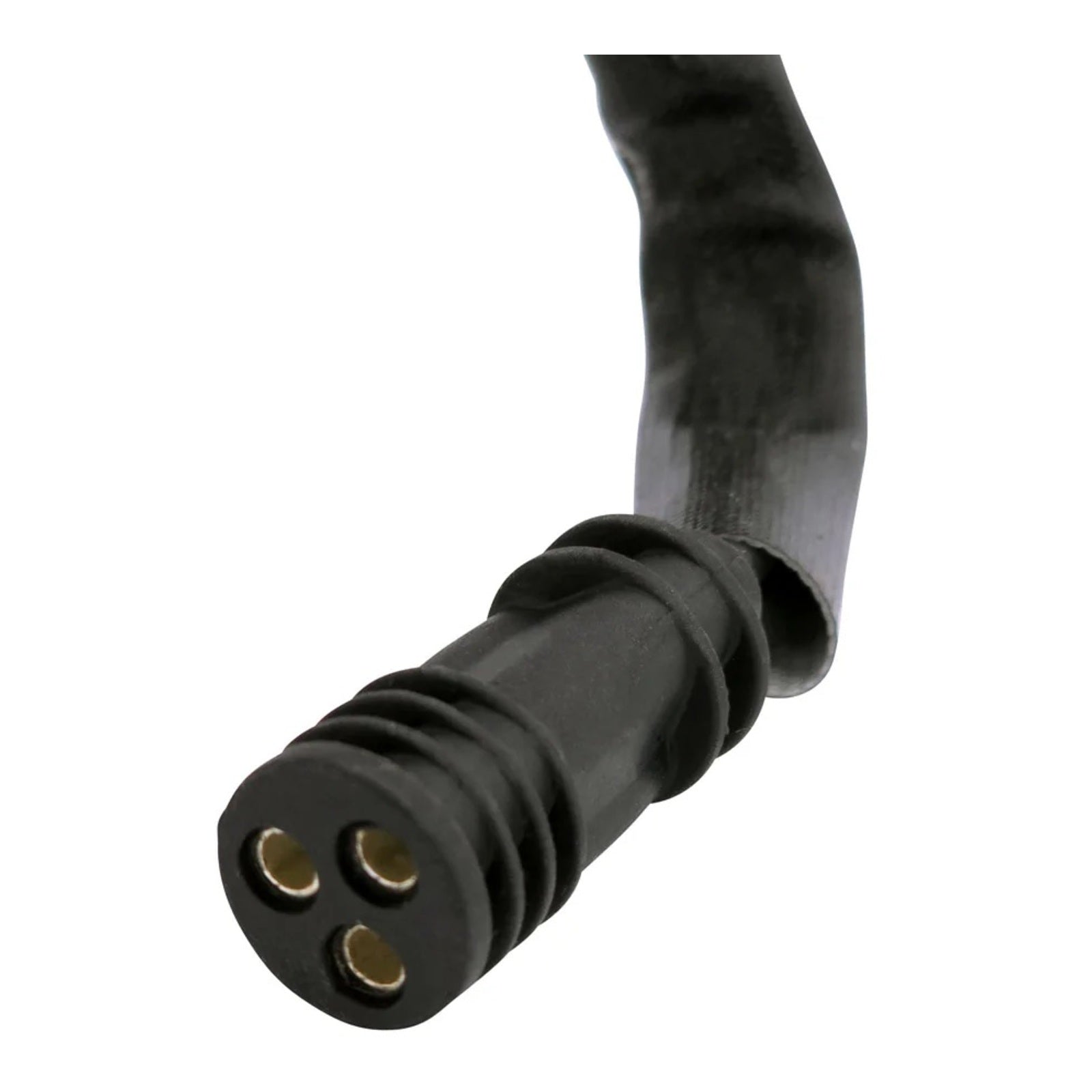

- Number of pins: 3
- Number of poles: 18
Wire-to-wire resistance:
- Alternator: Black to Black = 0.6 O ±20%
- Alternator: Black to Ground = O.L (Open Loop)
Brand new aftermarket stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Connectors included.
- Rubber grommet included.
- All products shipped are tested.
Specifications:
Dimensions
- Interior diameter: 71 mm
- Exterior diameter: 144 mm
- Thickness: 24 mm
- Length of wires stator to grommet: 40 mm
- Length of wires grommet to plug: 130 mm
Other specifications
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 18
Wire-to-wire resistance
- Alternator: Black to Black = 0.6 ohms +/-20%
- Alternator: Black to ground = O.L
| Interior diameter | 71 mm |
|---|---|
| Exterior diameter | 144 mm |
| Thickness | 24 mm |
| Length of wires (stator ? grommet) | 40 mm |
| Length of wires (grommet ? plug) | 130 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Number of poles | 18 |
| Length of wires stator to grommet | 40 mm |
| Length of wires grommet to plug | 130 mm |
