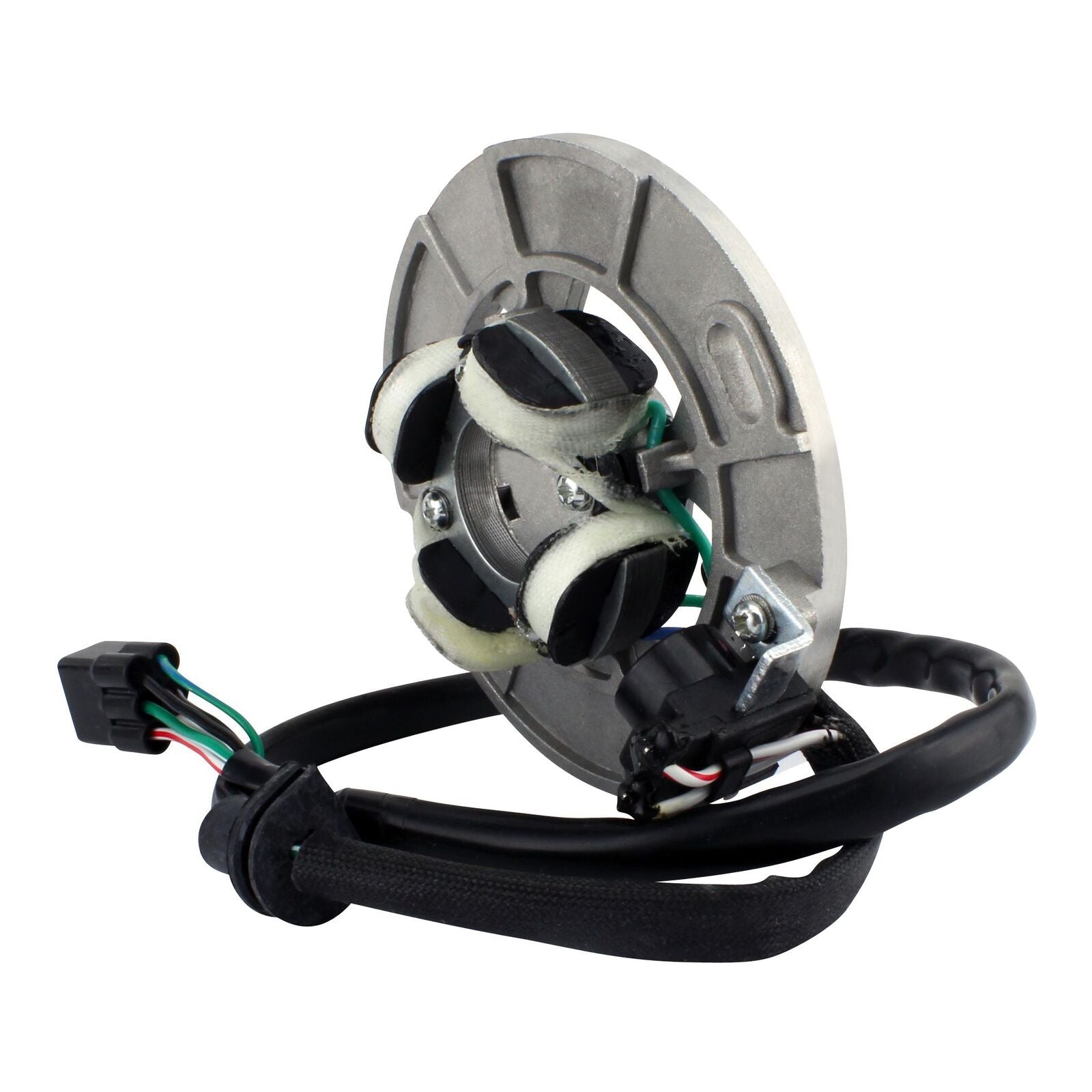

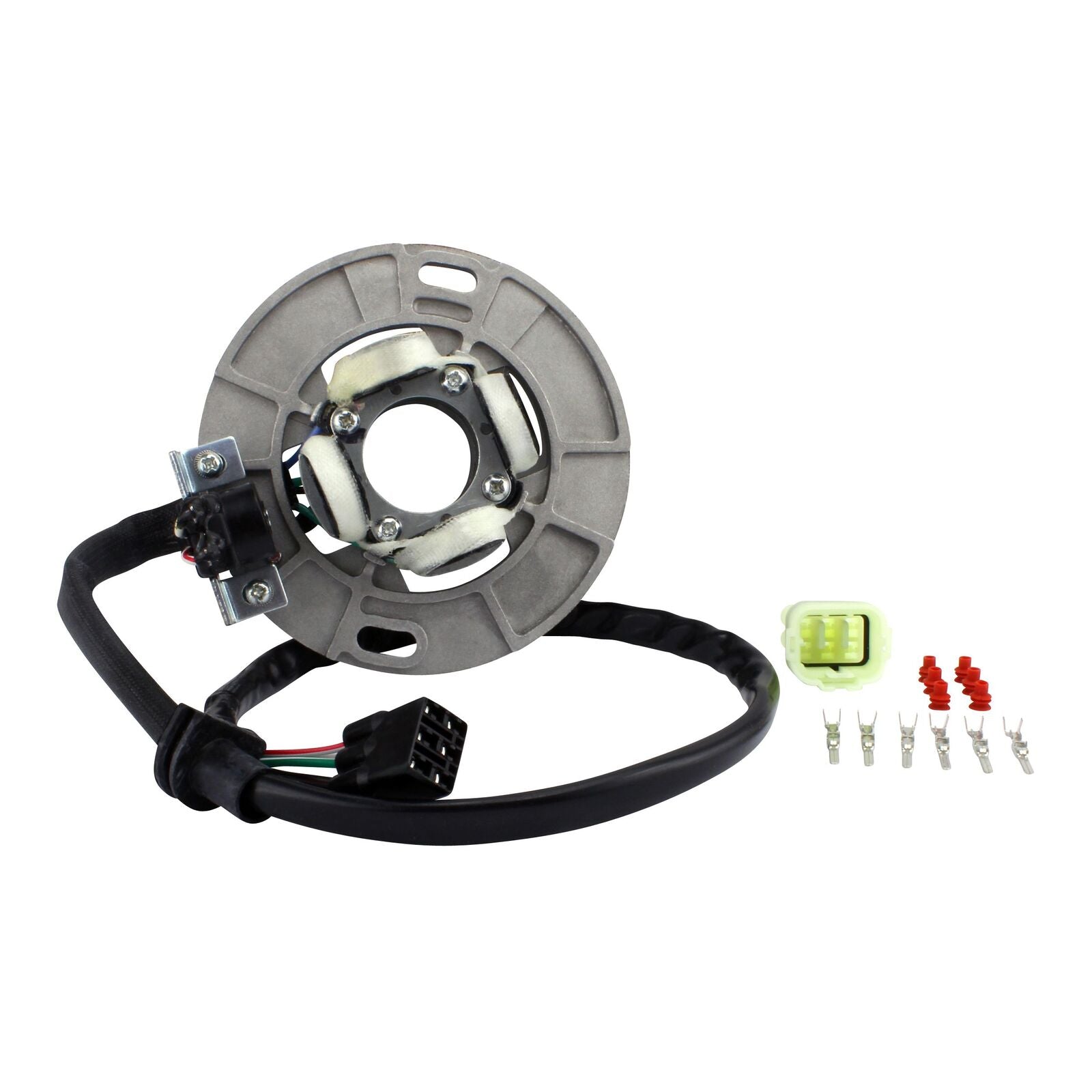

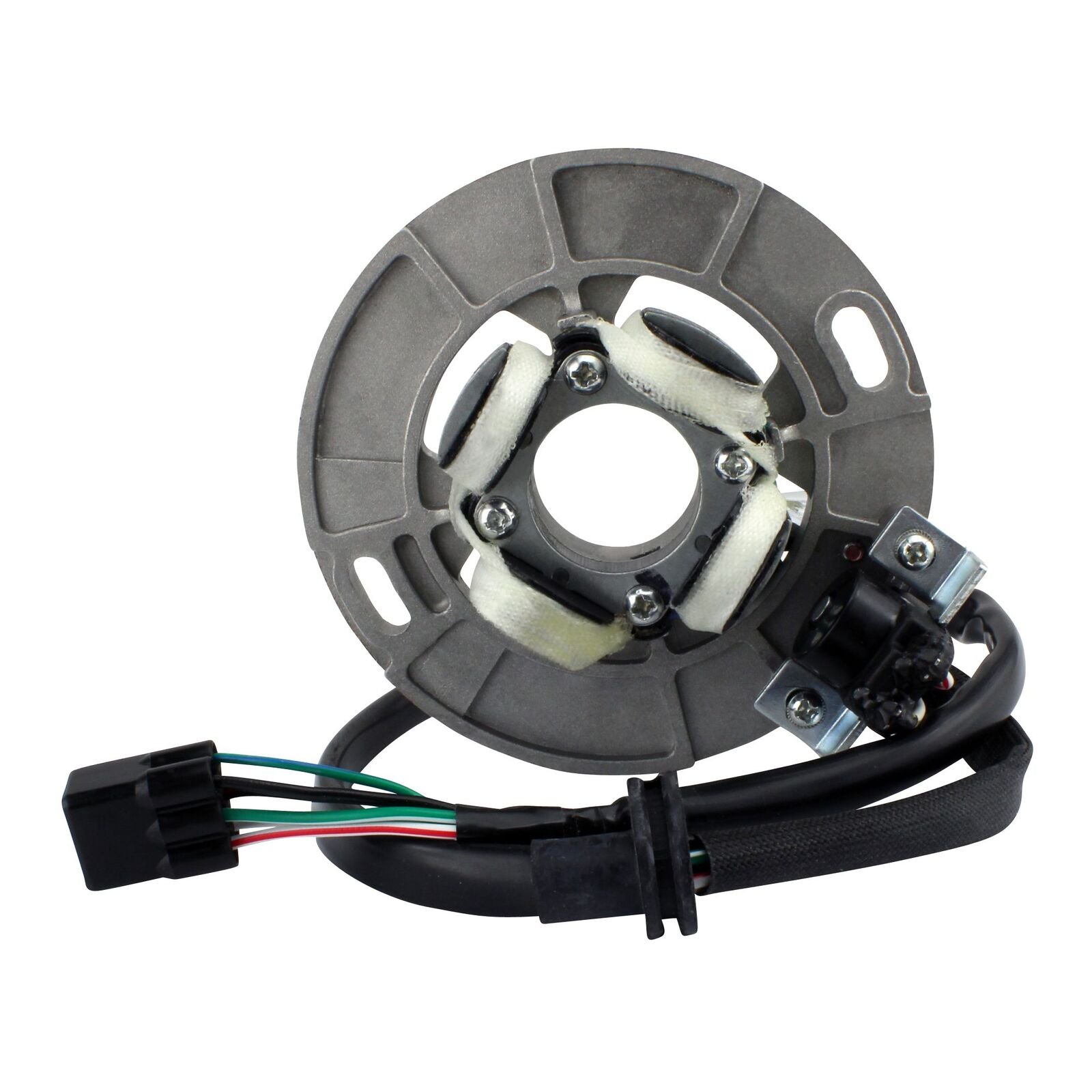

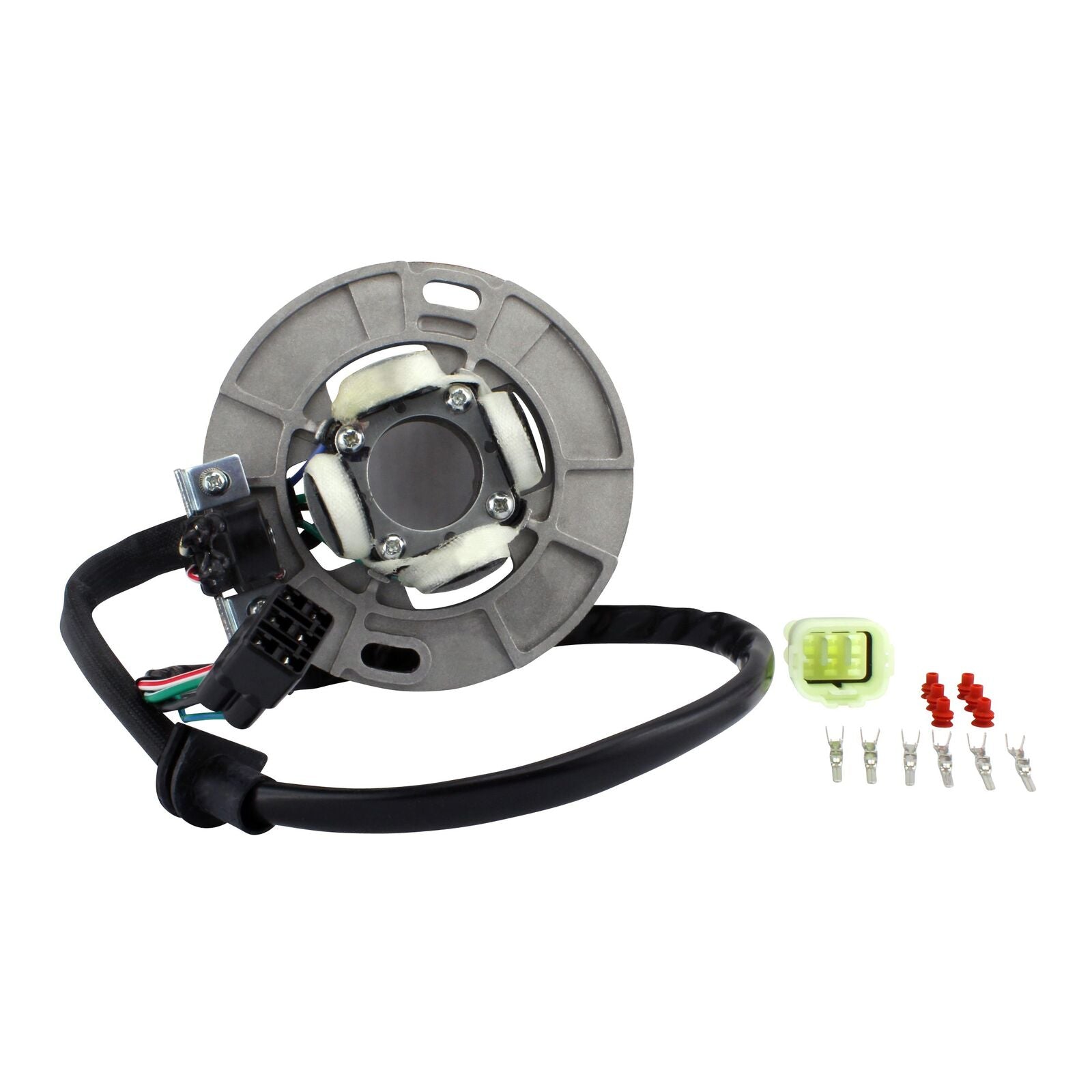

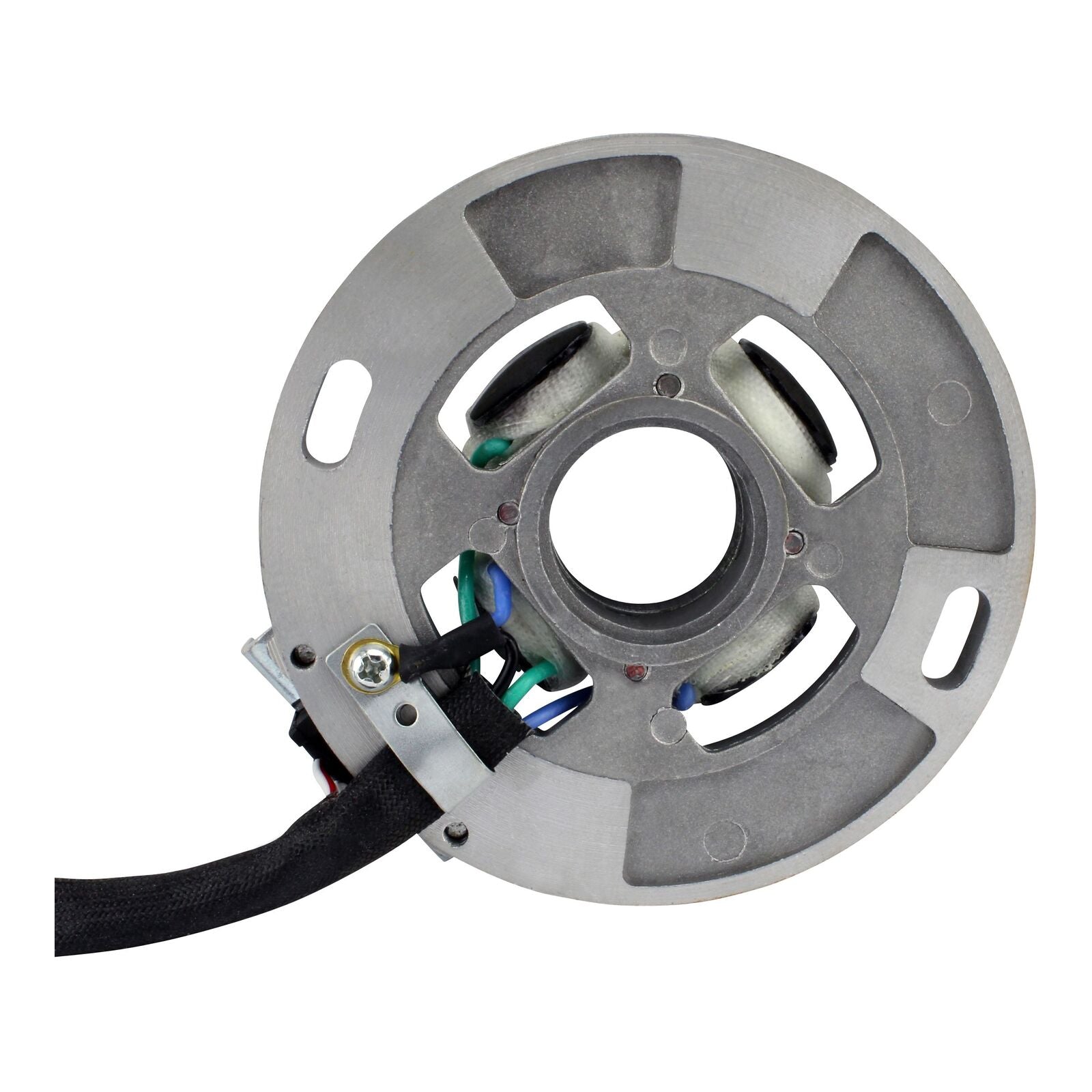

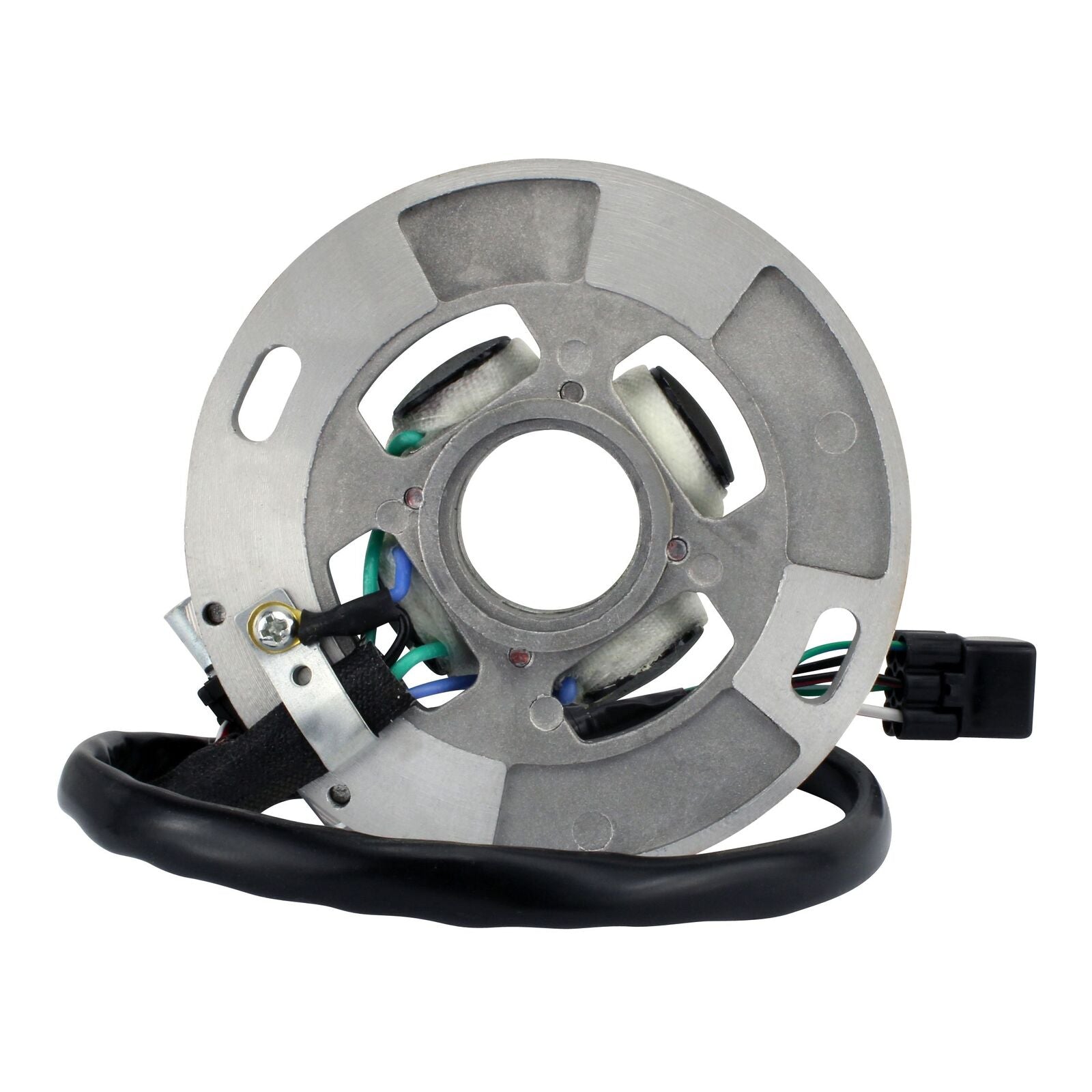

Stator Yamaha YZ65 '18-'24 & YZ85 '02-'24 (RMS010-108281)

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation.
• Made with the highest grade of lamination materials.
• Features the highest grade of copper winding, resistant to 200 degrees Celsius.
• Includes a pick up pulsar coil.

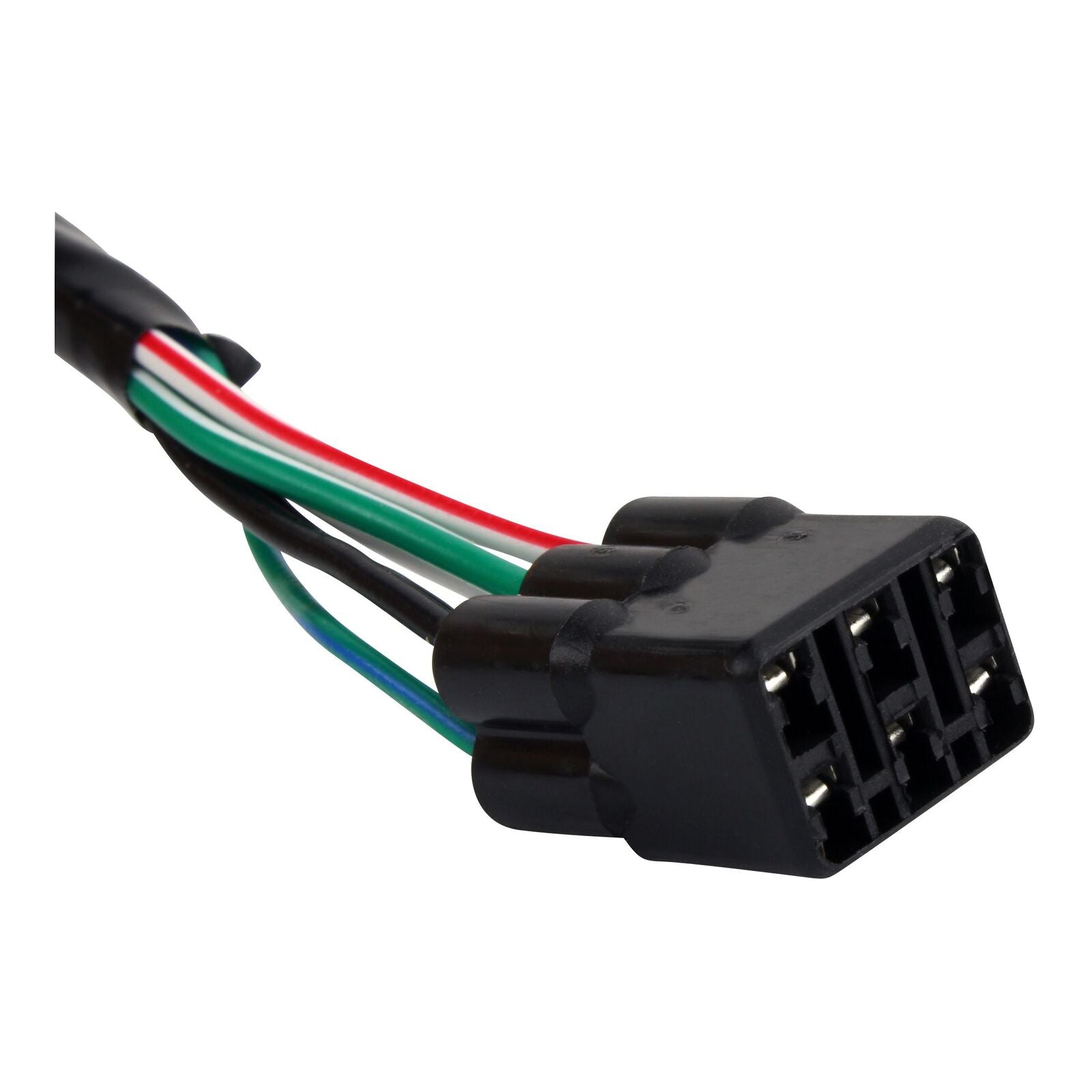

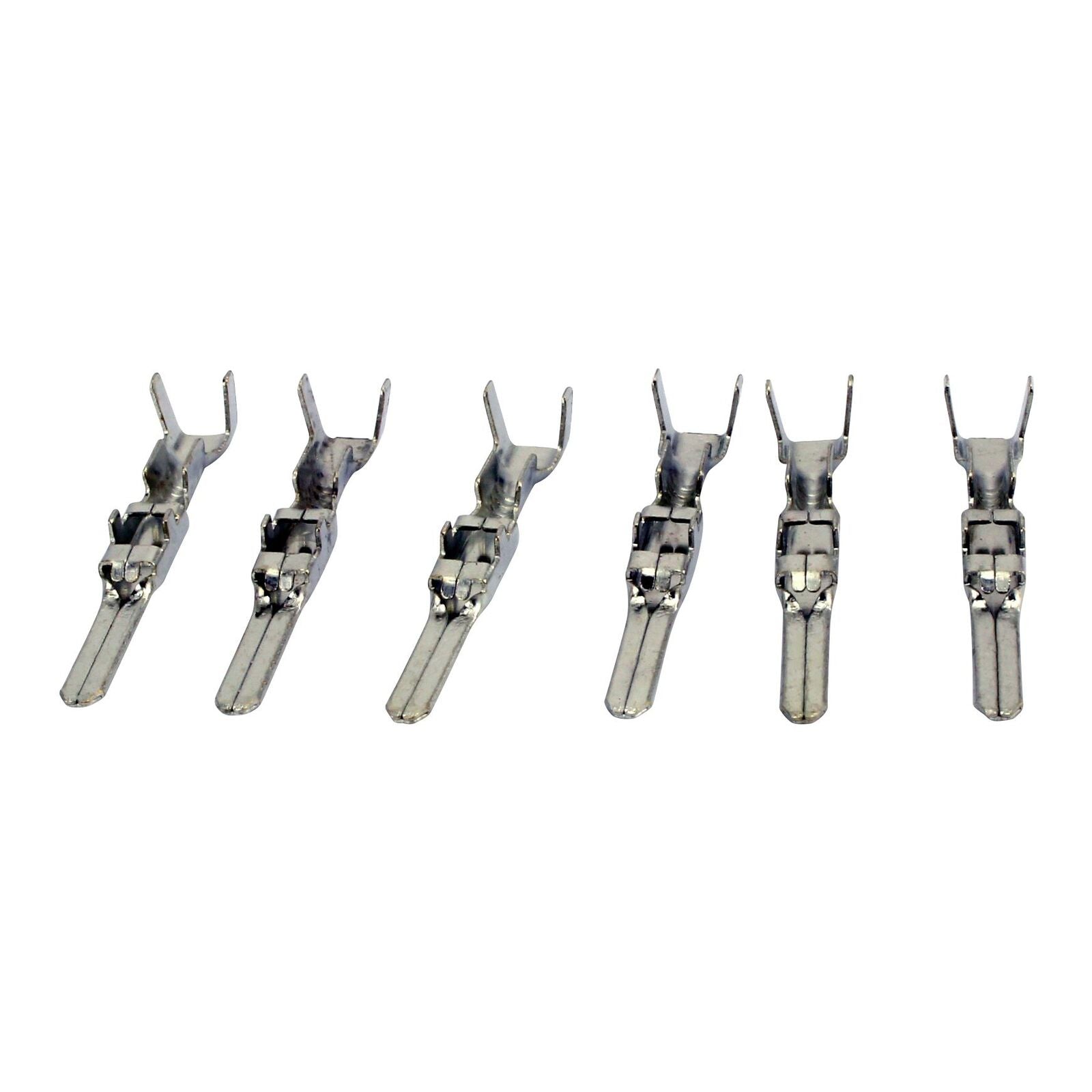

• Comes with connectors.
• Includes a rubber grommet.
• Back plate is included.
• All products are tested before shipping.

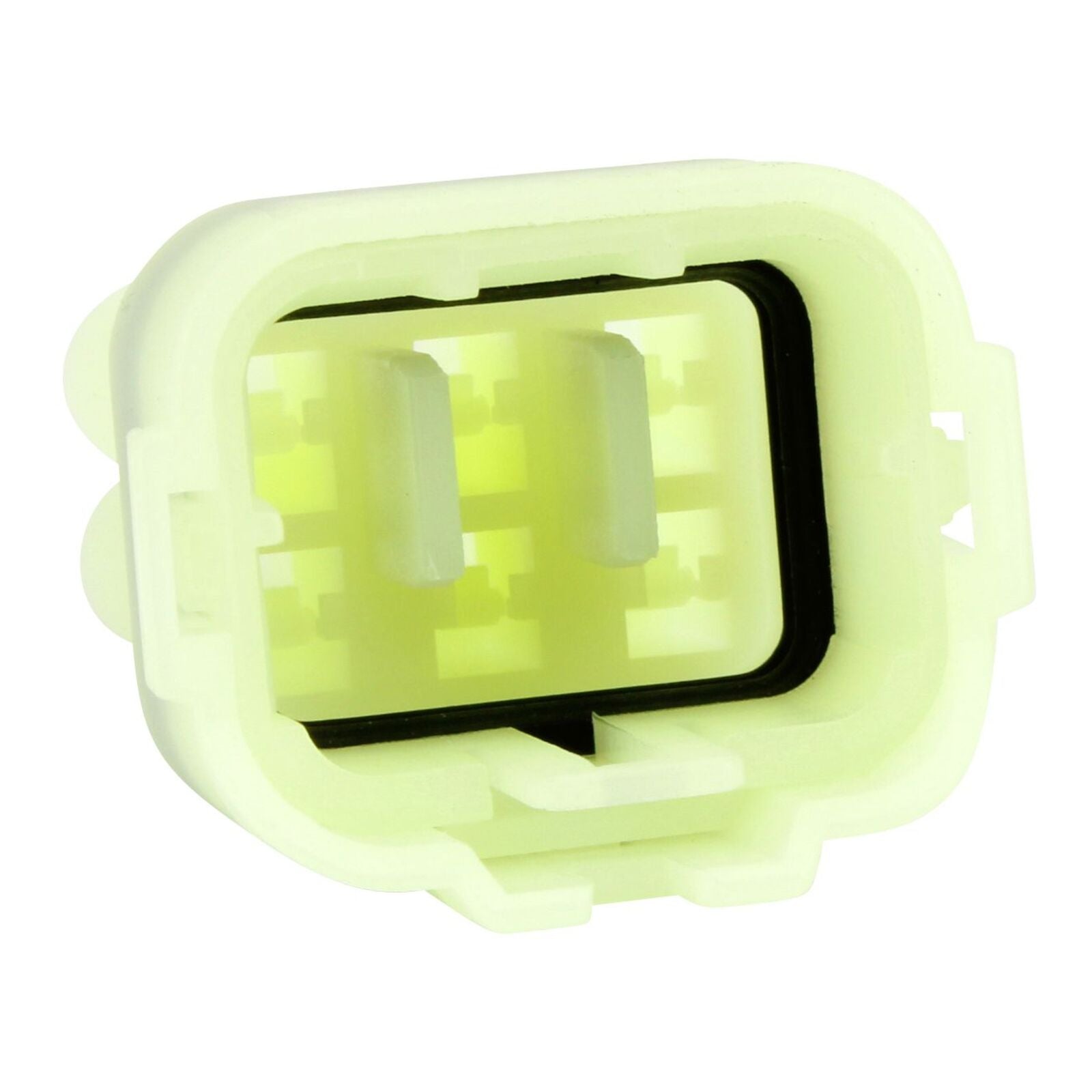

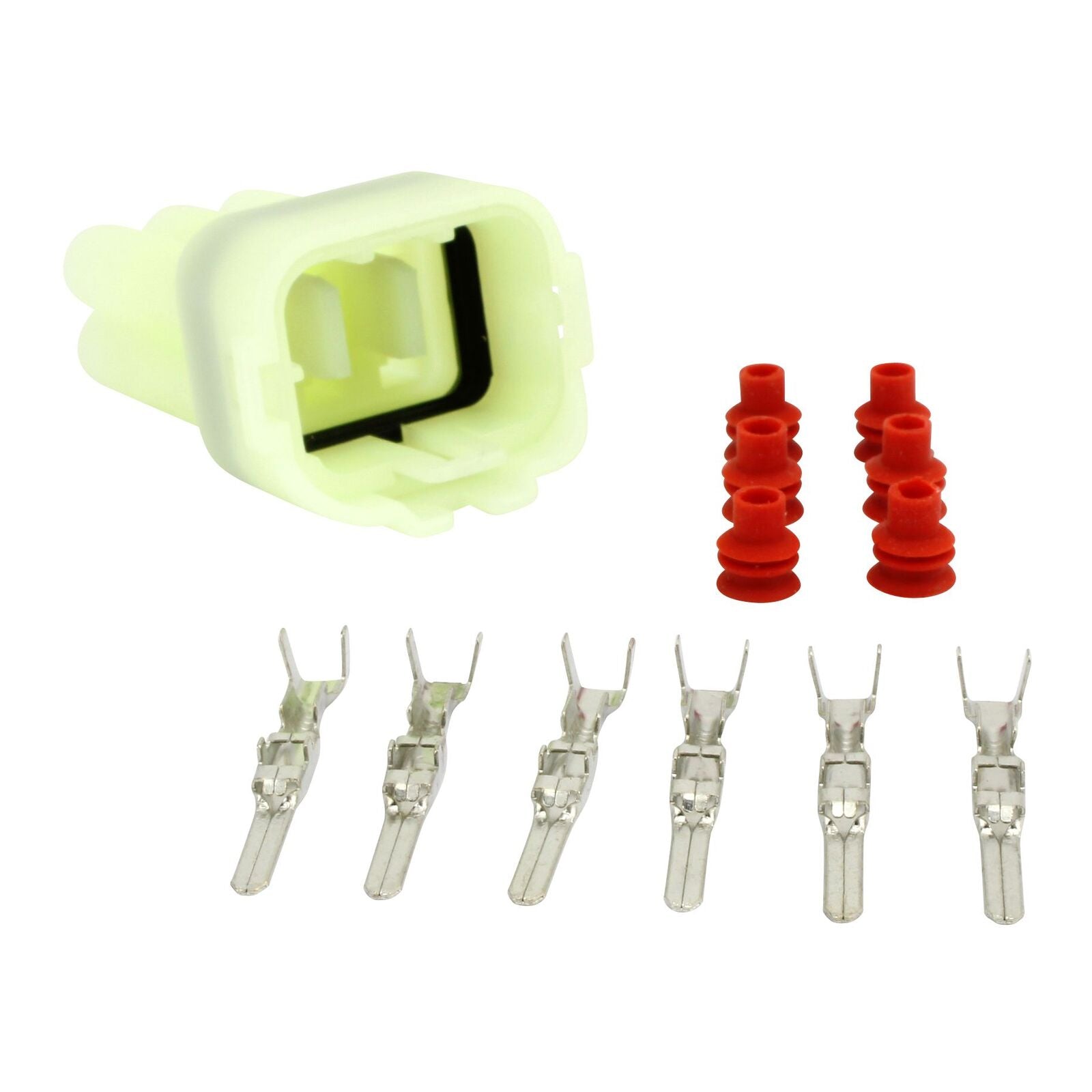

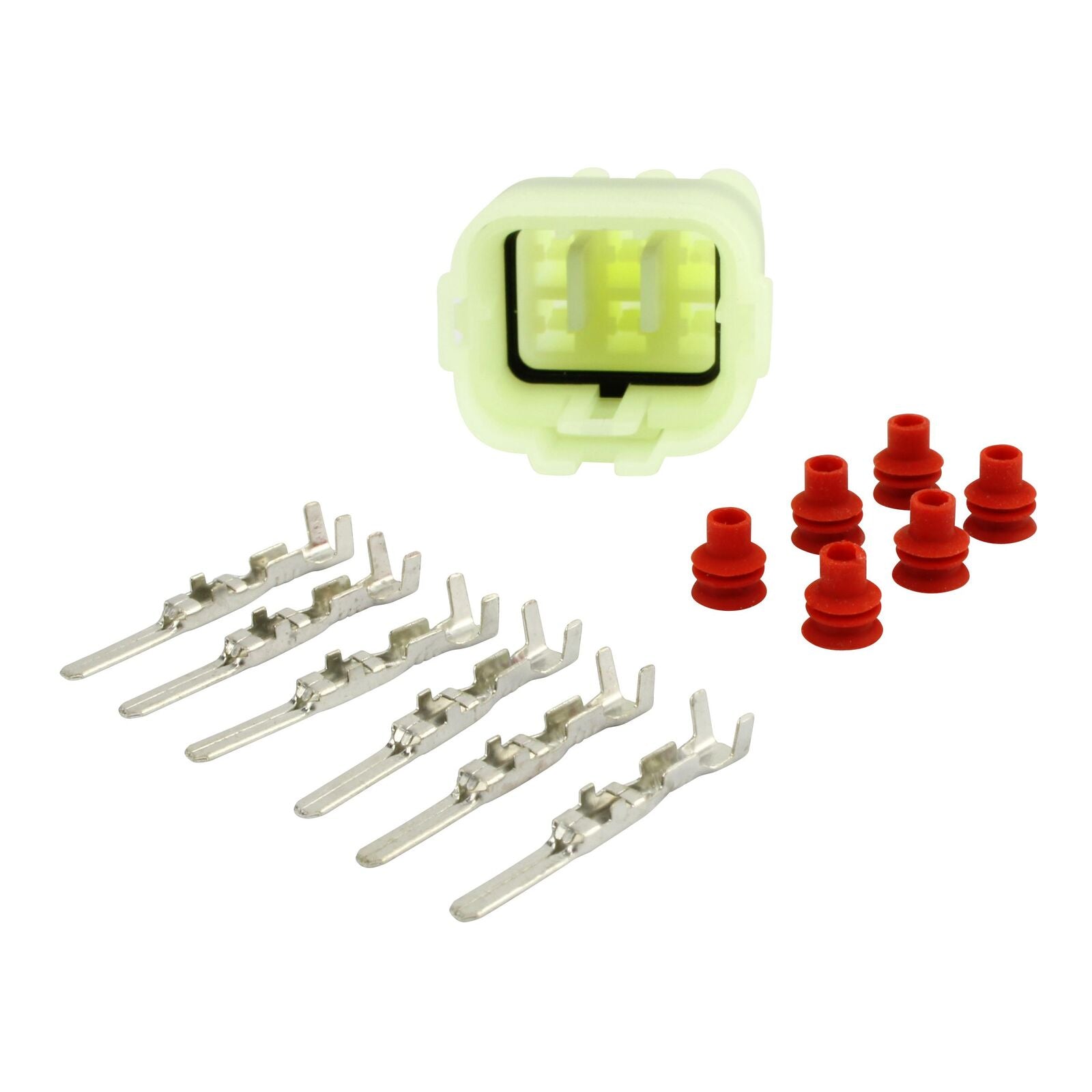

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Dimensions:

• Interior diameter: 27 mm
• Exterior diameter: 109 mm
• Thickness: 32.6 mm
• Length of wires (stator to grommet): 135 mm
• Length of wires (grommet to plug): 410 mm
• Length of pickup coil's wire to grommet: 135 mm

Other Specifications:

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6
• Number of poles: 4
• Wire to wire resistance:
  • Pickup: White/Blue to White/Red = 293 ohms ±20%
  • Source: Green/White to Black/Red = 858 ohms ±20%
  • Source: Black to Green/Blue = 53 ohms ±20%
