2% Off
RMSTATOR  | SKU: RMS010107581

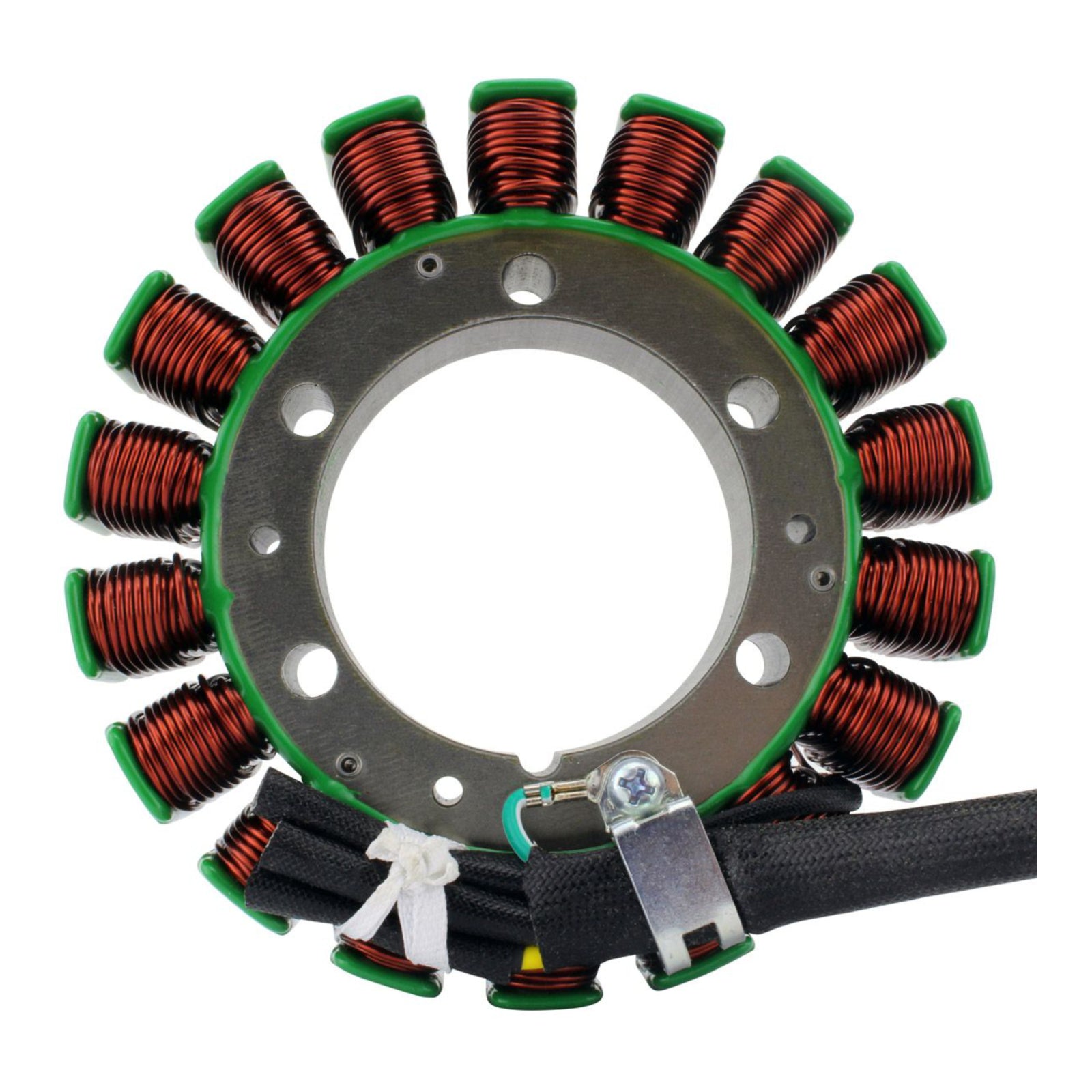

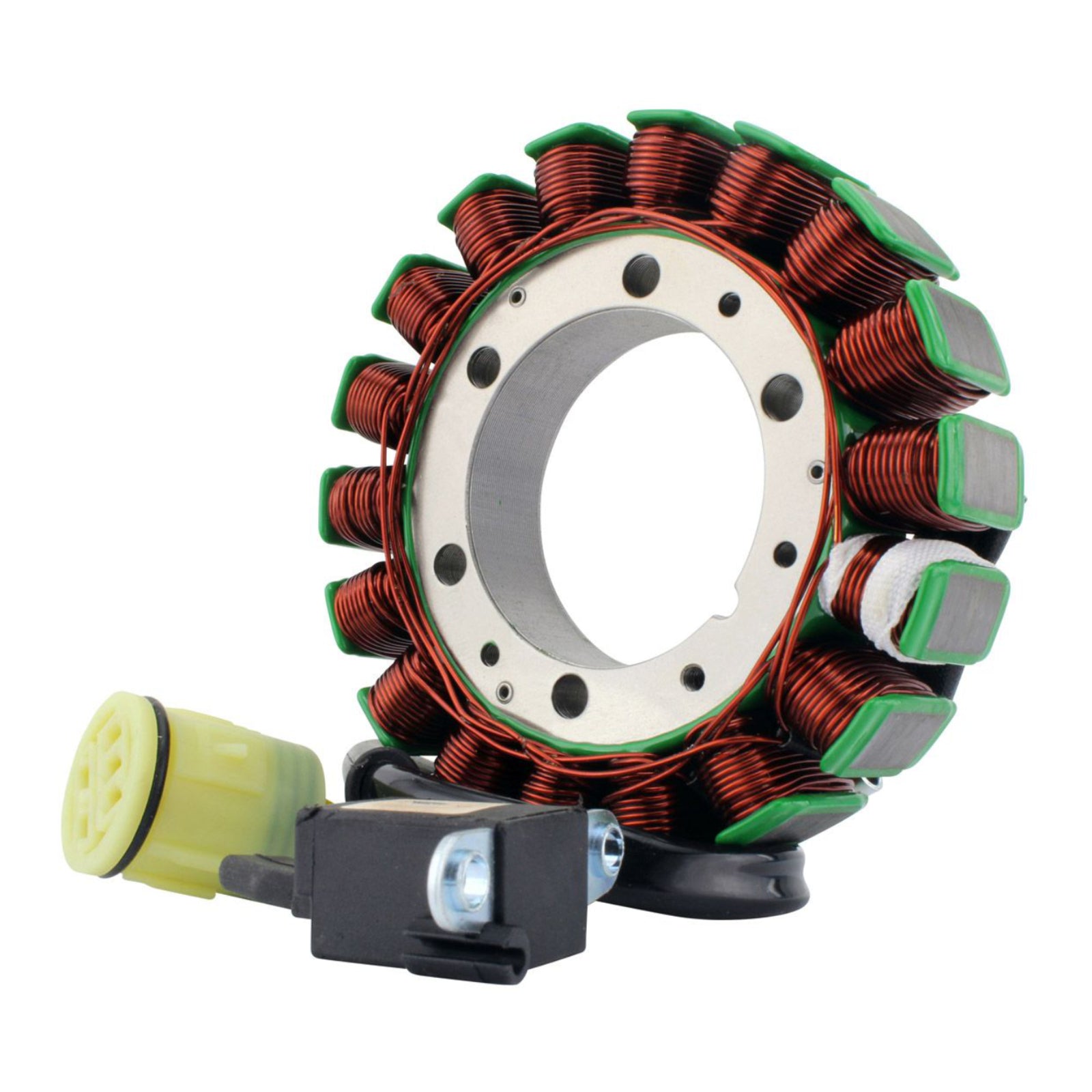

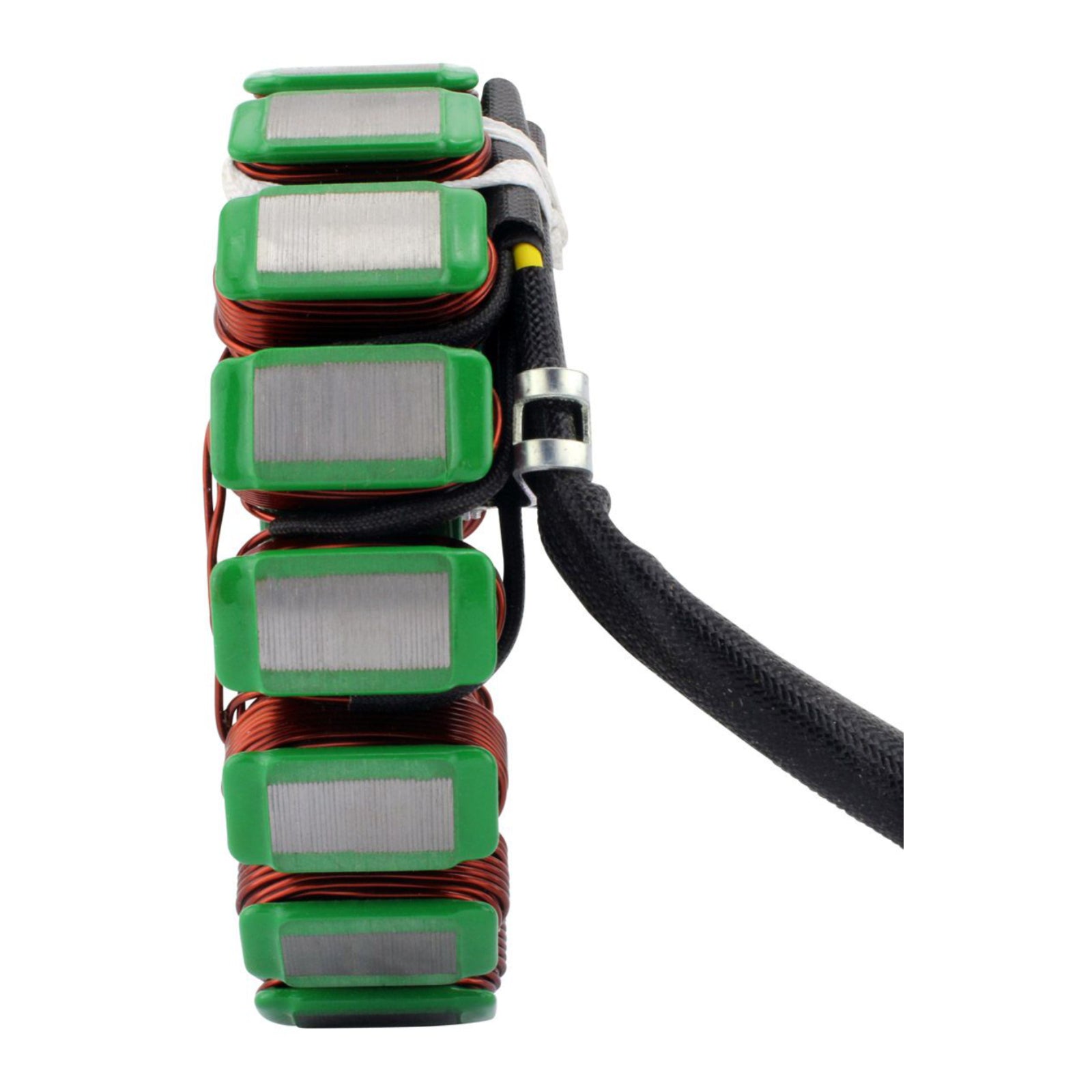

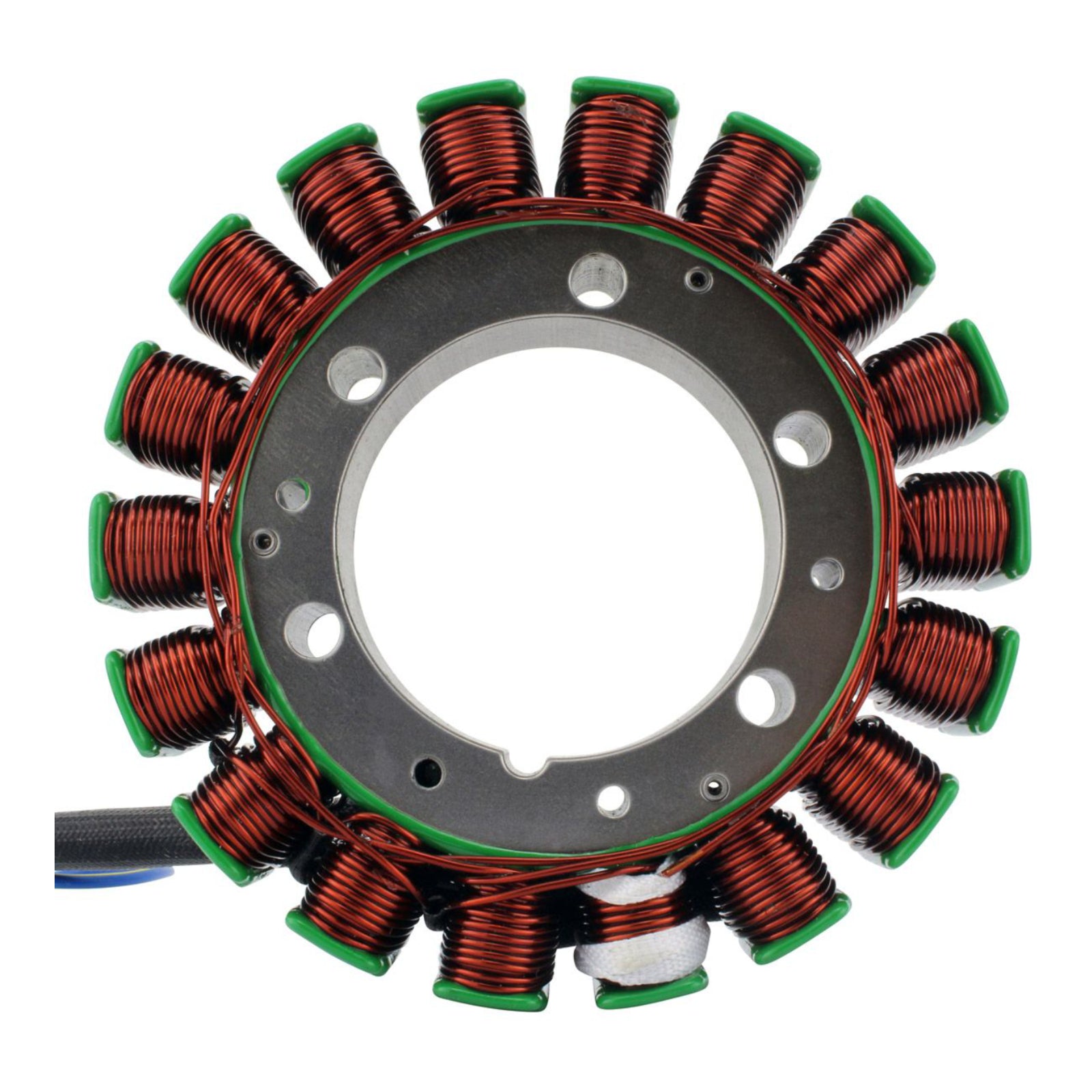

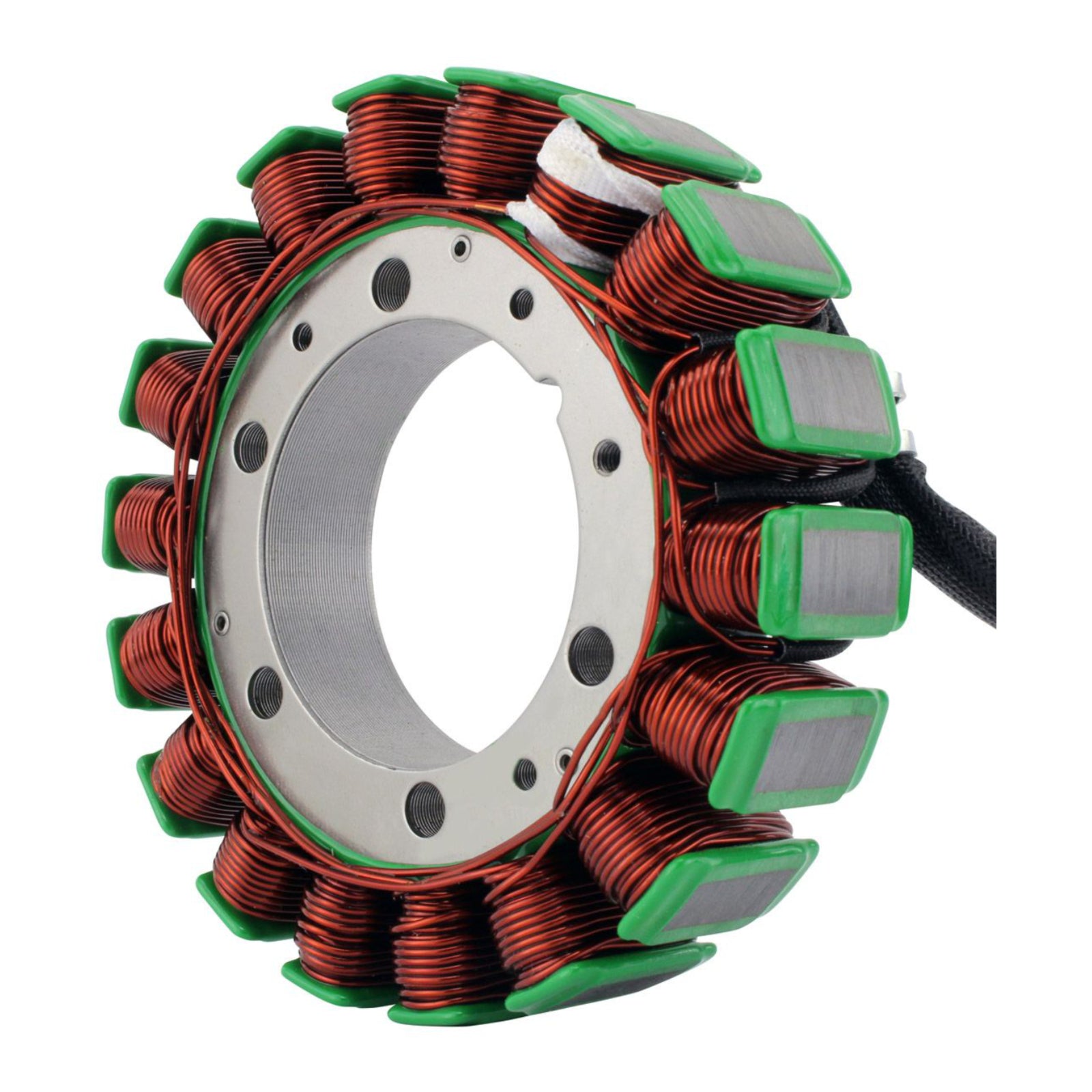

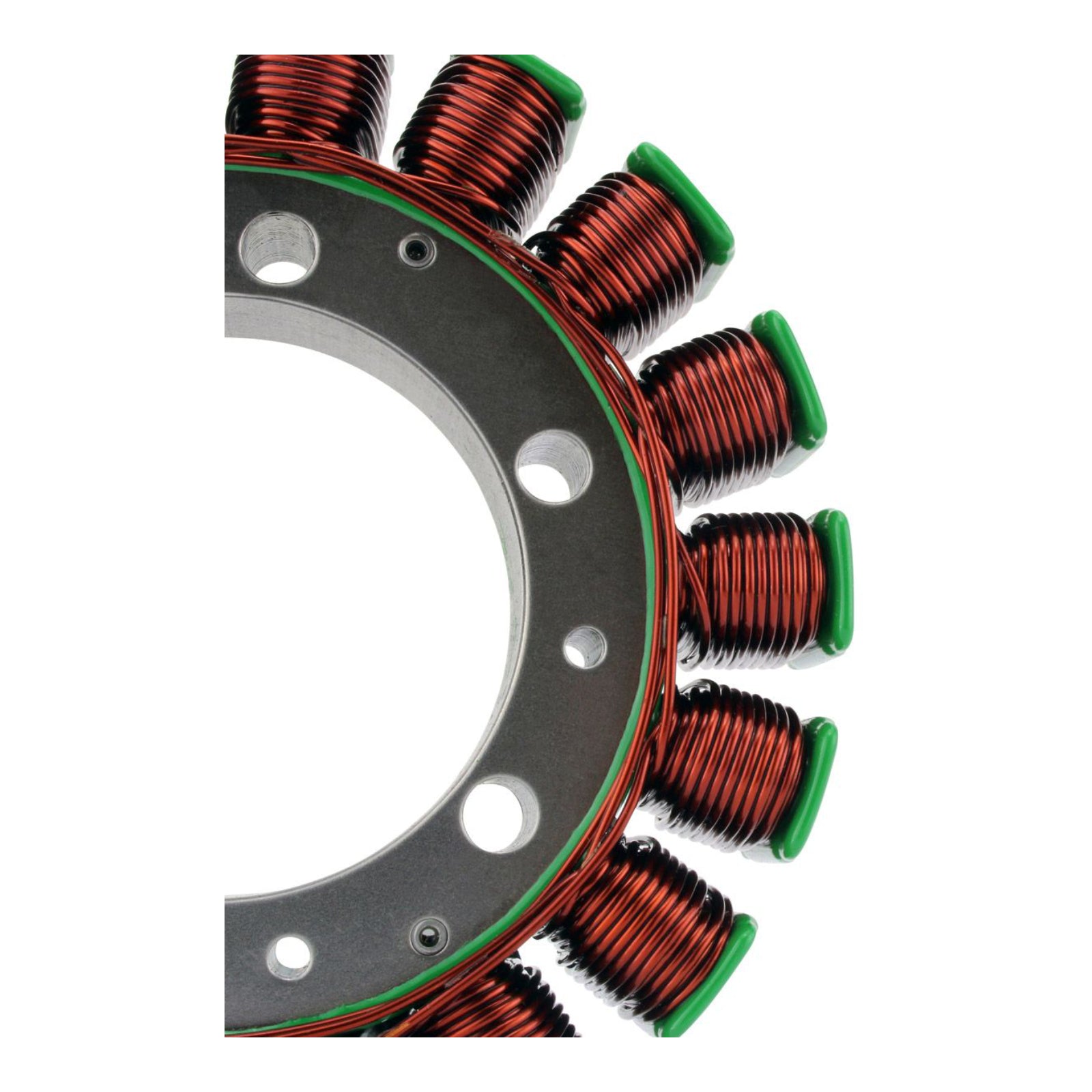

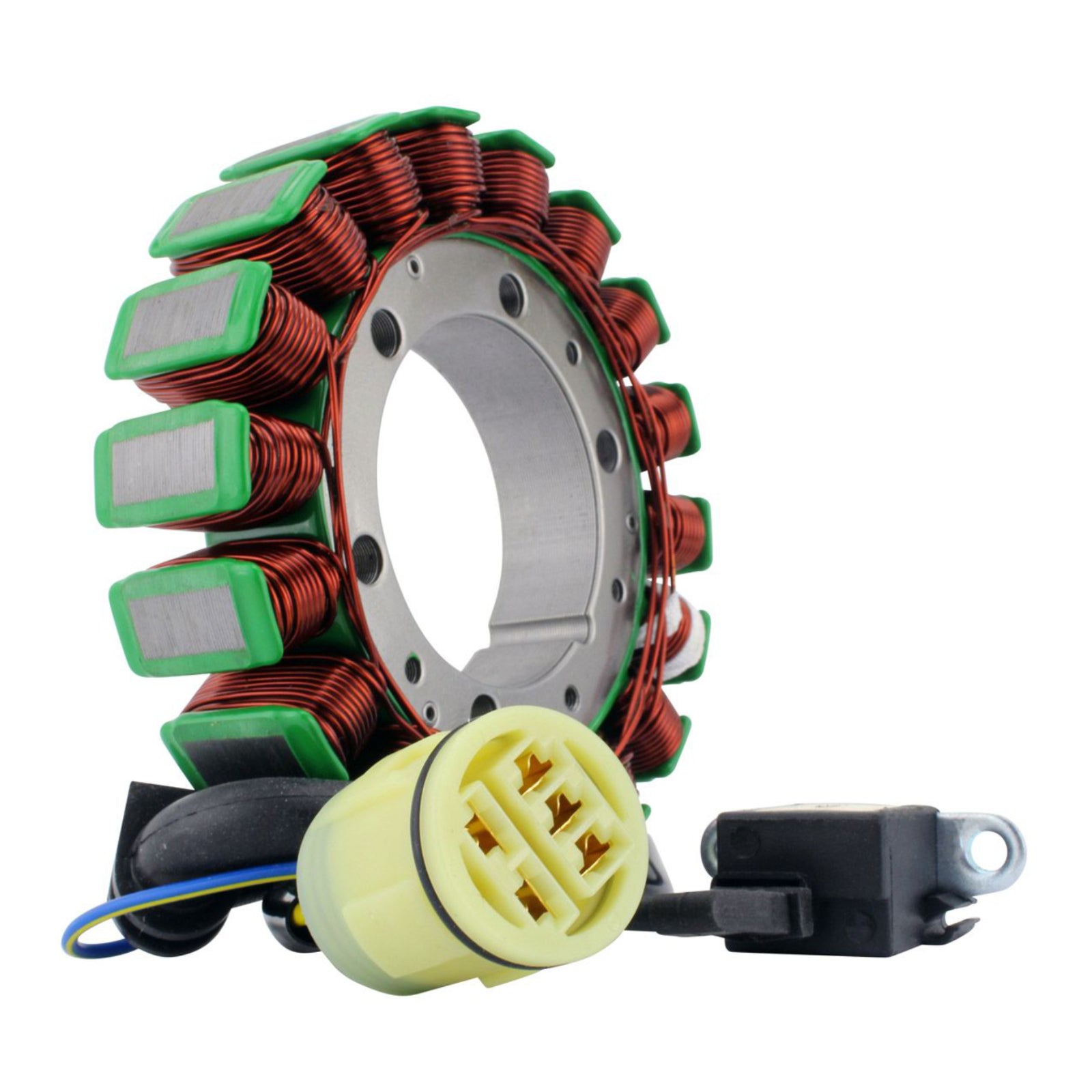

GENERATOR STATOR HOND TRX 650 RINCON 03-05'

$472.00
$472.00 $479.99
Tax included. Shipping calculated at checkout.
Low stock! Only 2 left
🚚 Local pick-up isn't offered, but we've got you covered with fast, reliable shipping — dispatched in 1–3 days.

Explore related collections:

Description

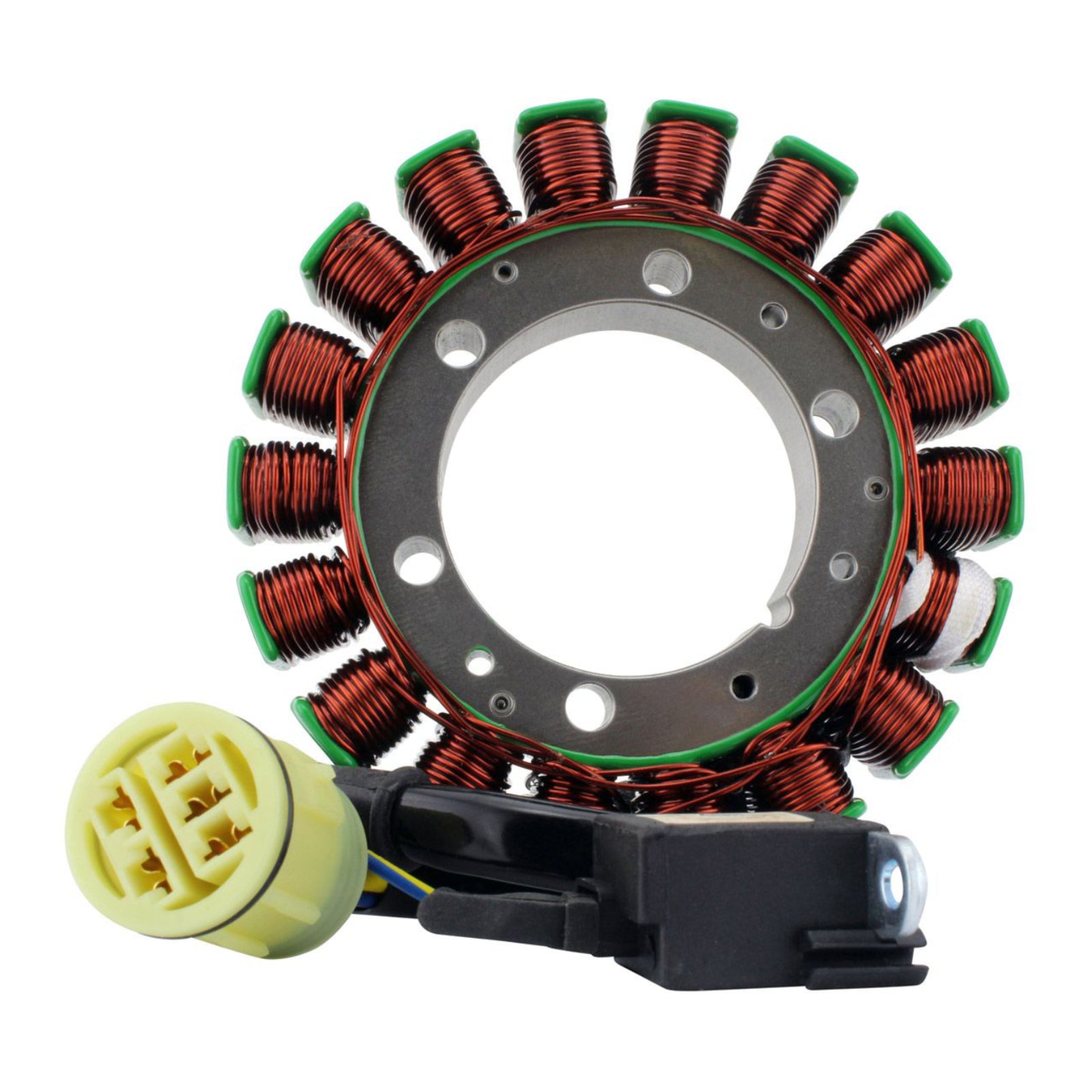

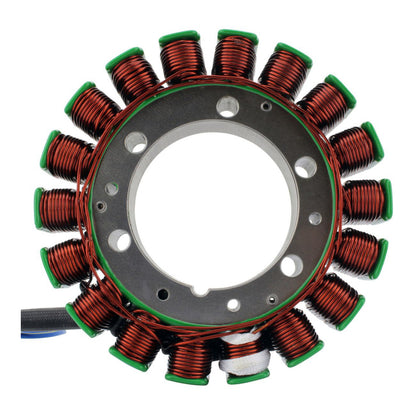

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.

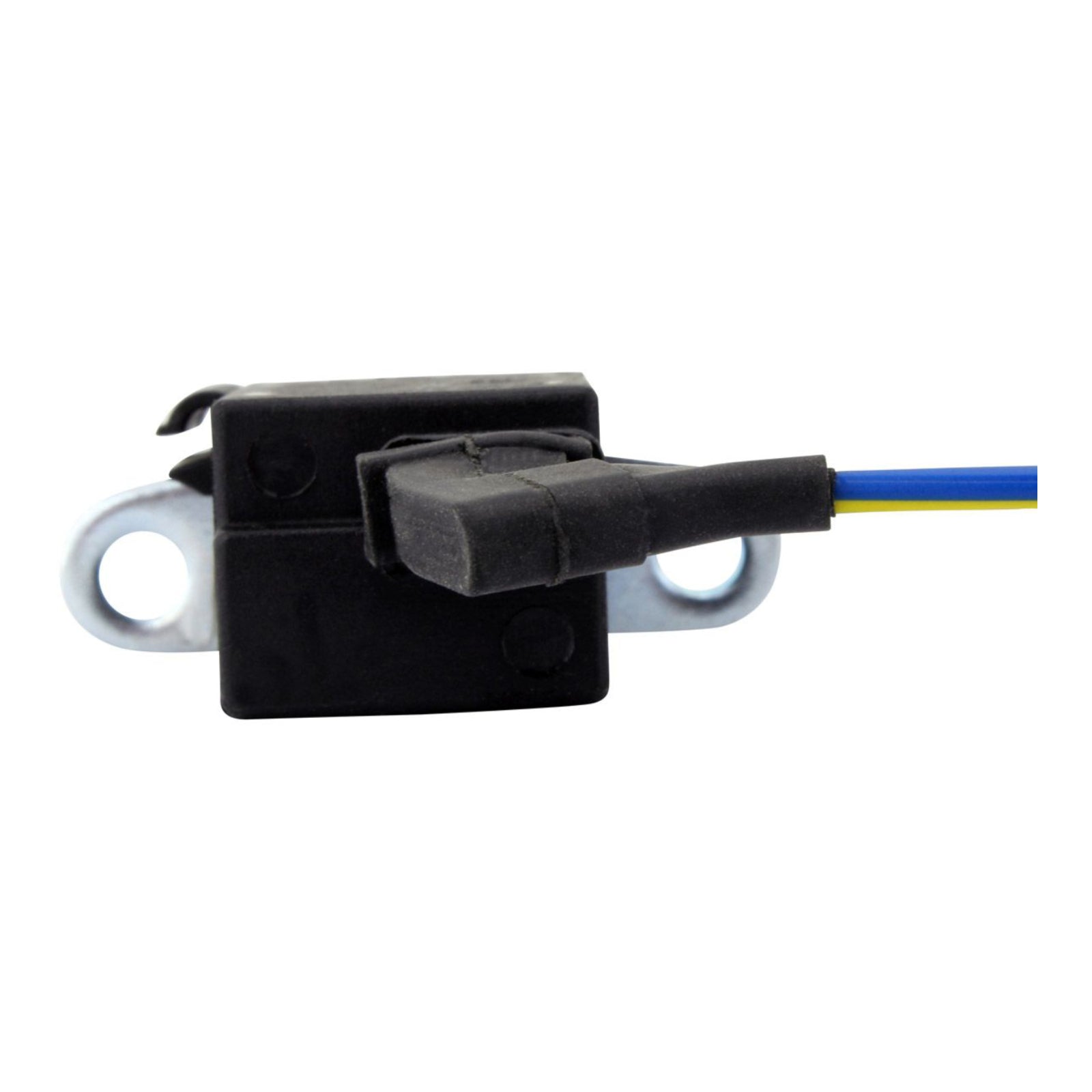

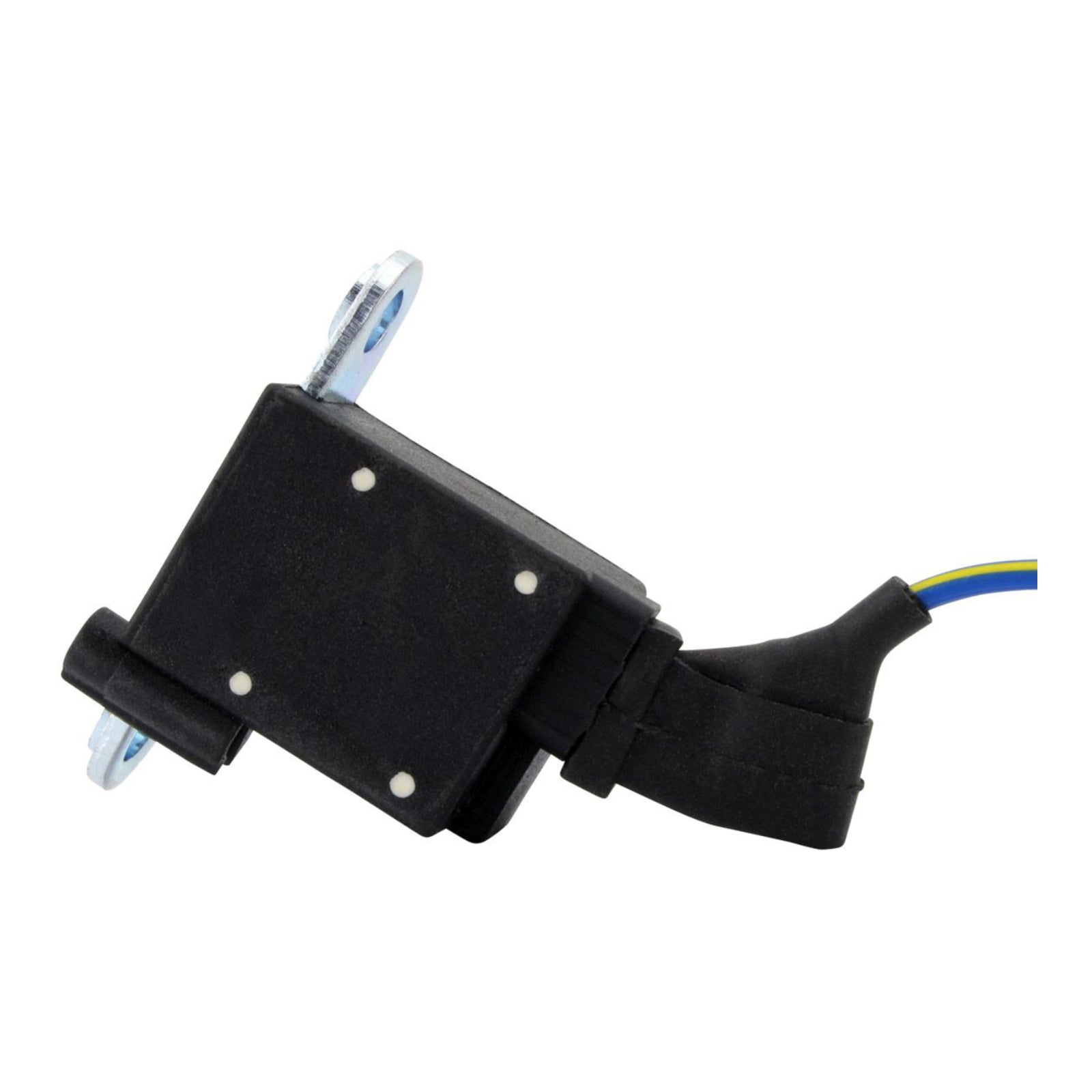

  • Pick up pulsar coil included

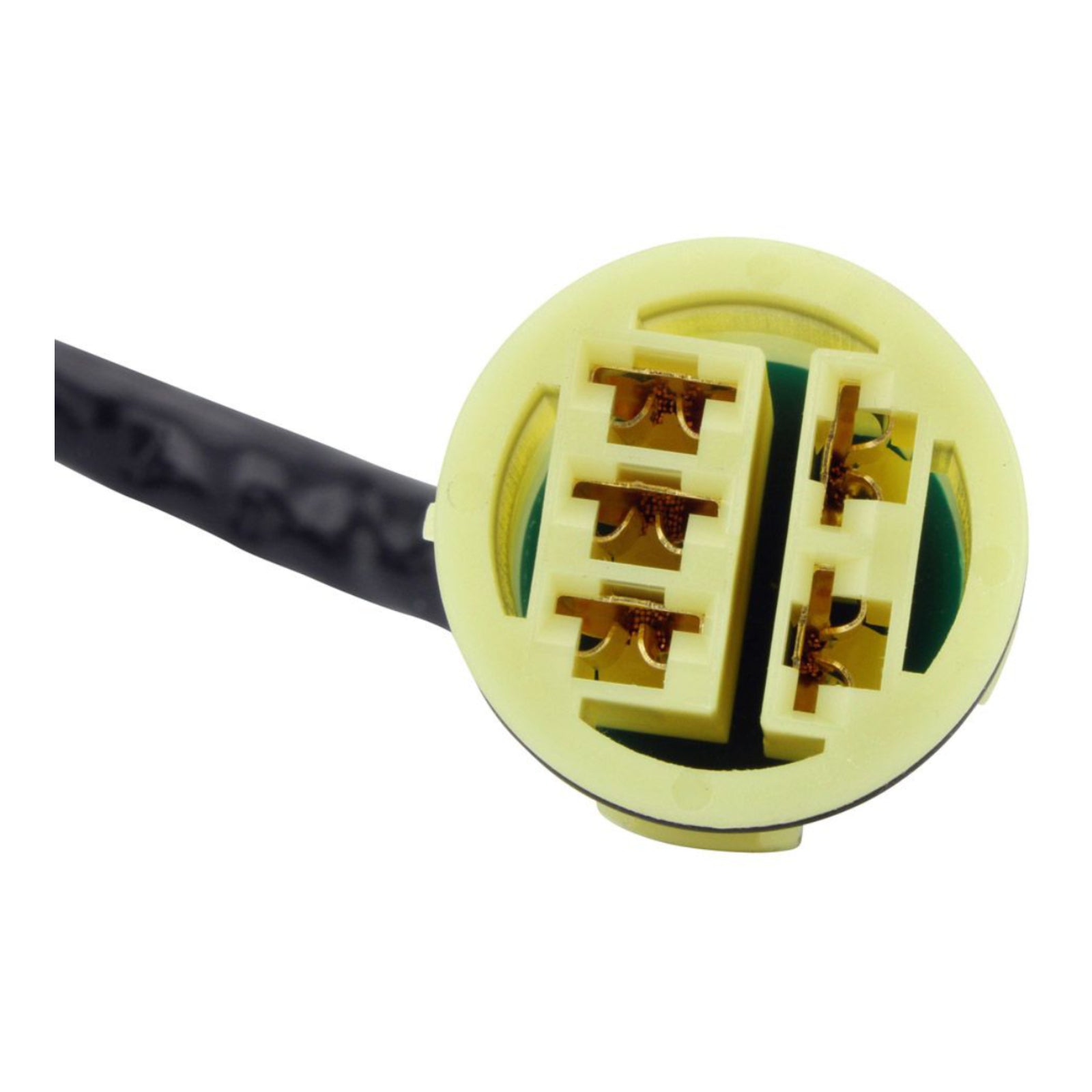

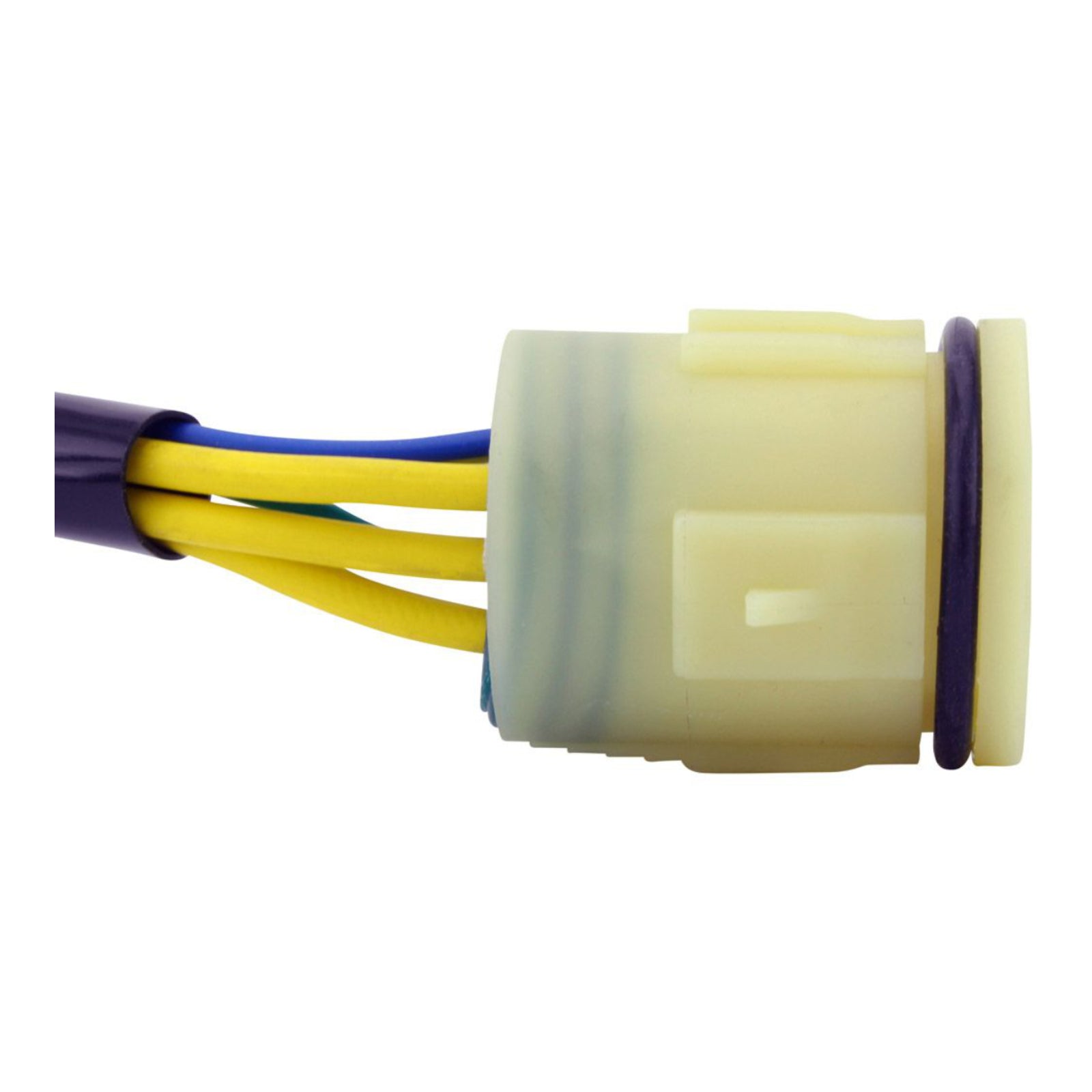

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 20 mm
  • Length of wires stator to grommet: 75 mm
  • Length of wires grommet to plug: 180 mm

    • Other specifications:

    • Number of wires: 5
    • Number of plugs: 1
    • Number of pins: 5
    • Number of poles: 18

    Wire-to-wire resistance:

    • Alternator: Yellow to Yellow = 0.6 ohms +-20%
    • Alternator: Yellow to ground = O.L
    • Pickup: Blue/Yellow to Green= 340 ohms +-20%

    Specifications

    Number of wires 5
    Number of plugs 1
    Number of pins 5
    Number of poles 18
    Alternator Yellow to Yellow = 0.6 ohms +-20%
    Pickup Blue/Yellow to Green= 340 ohms +-20%
