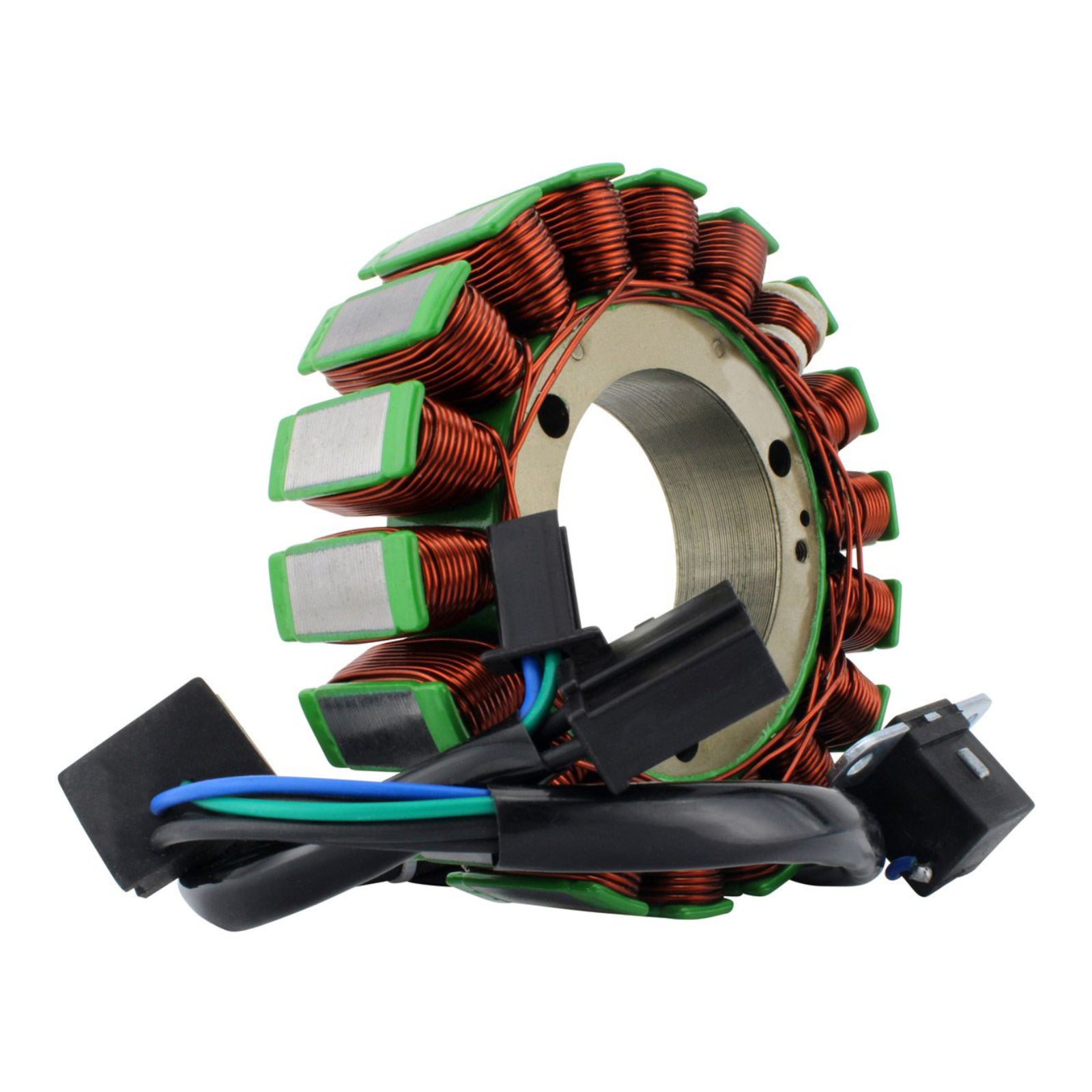

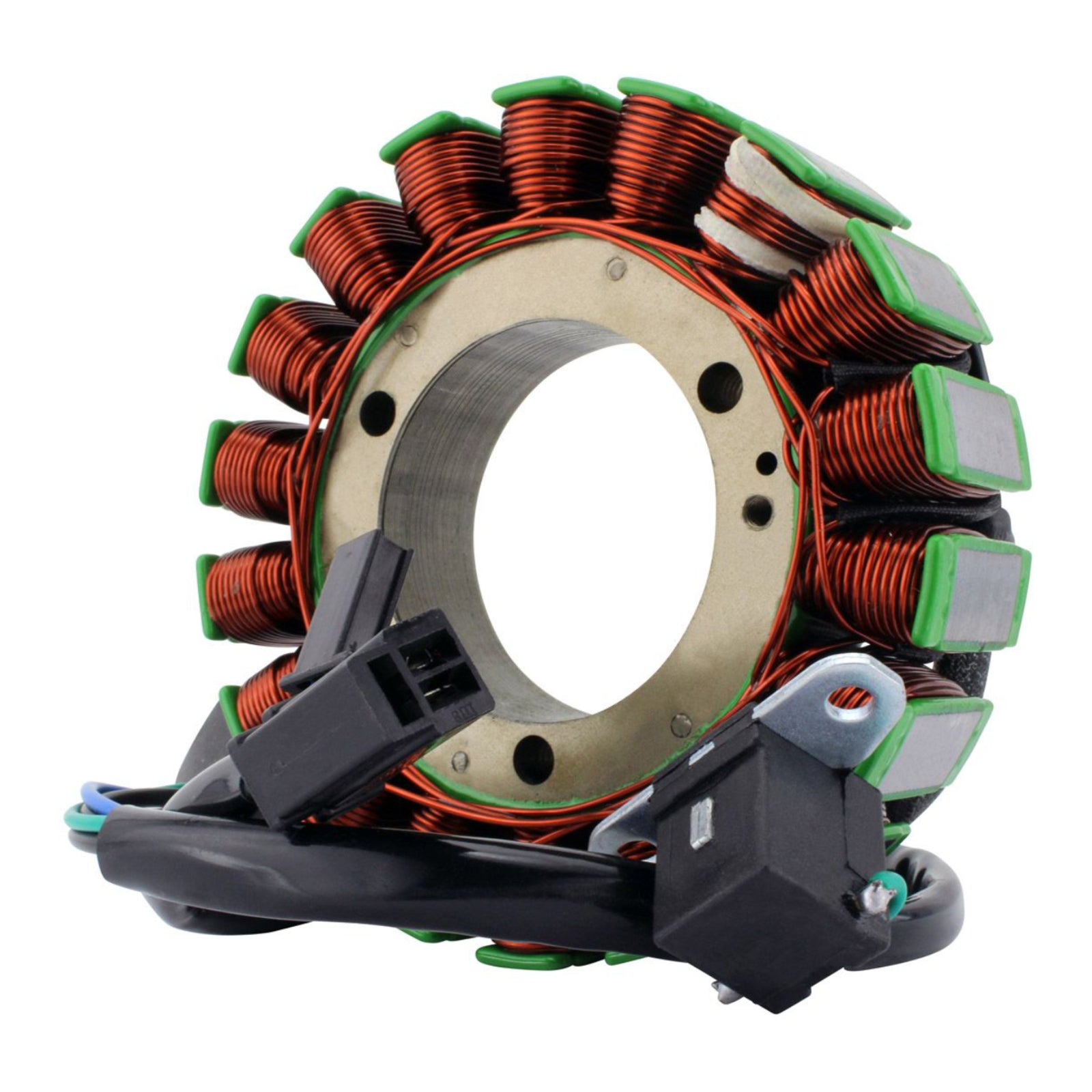

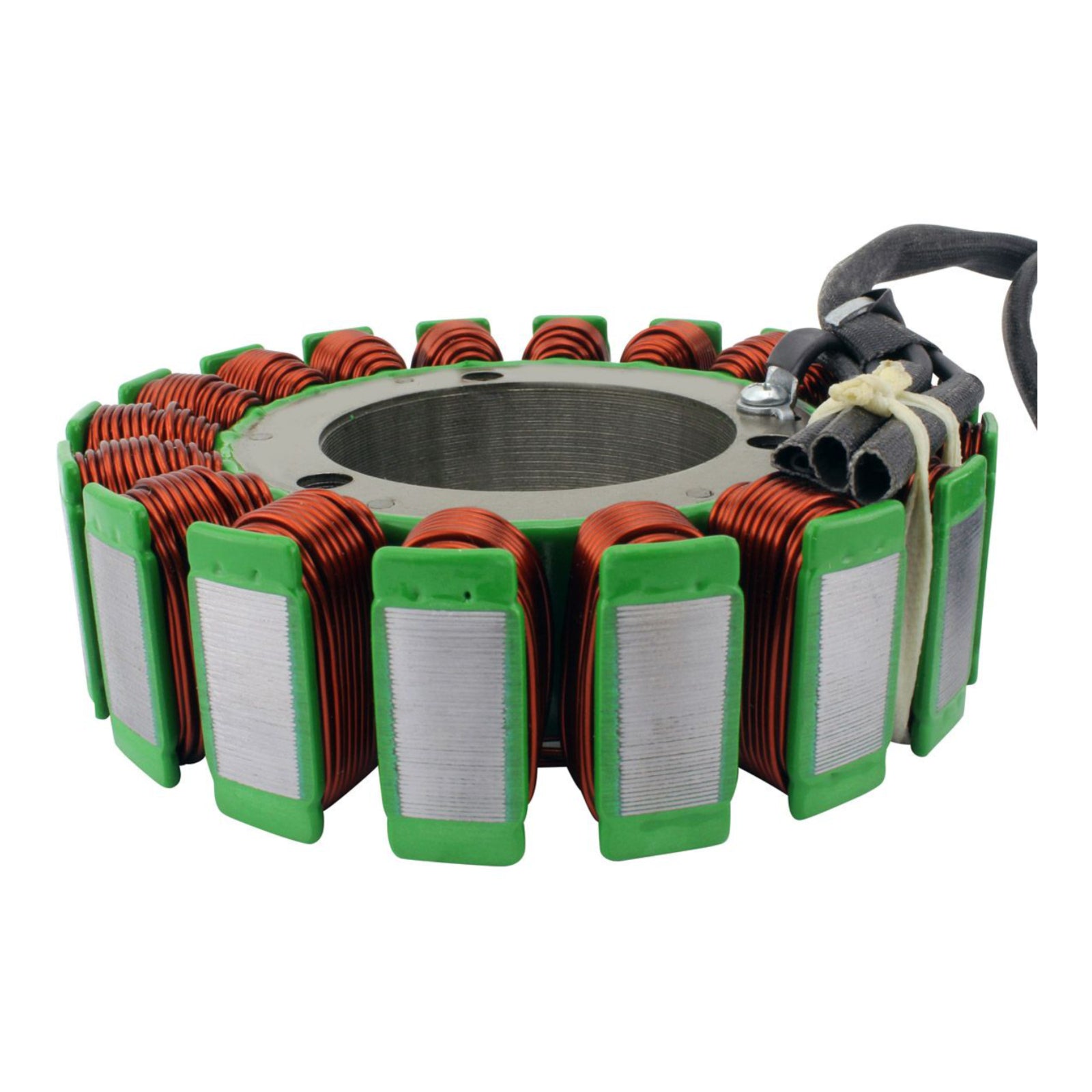

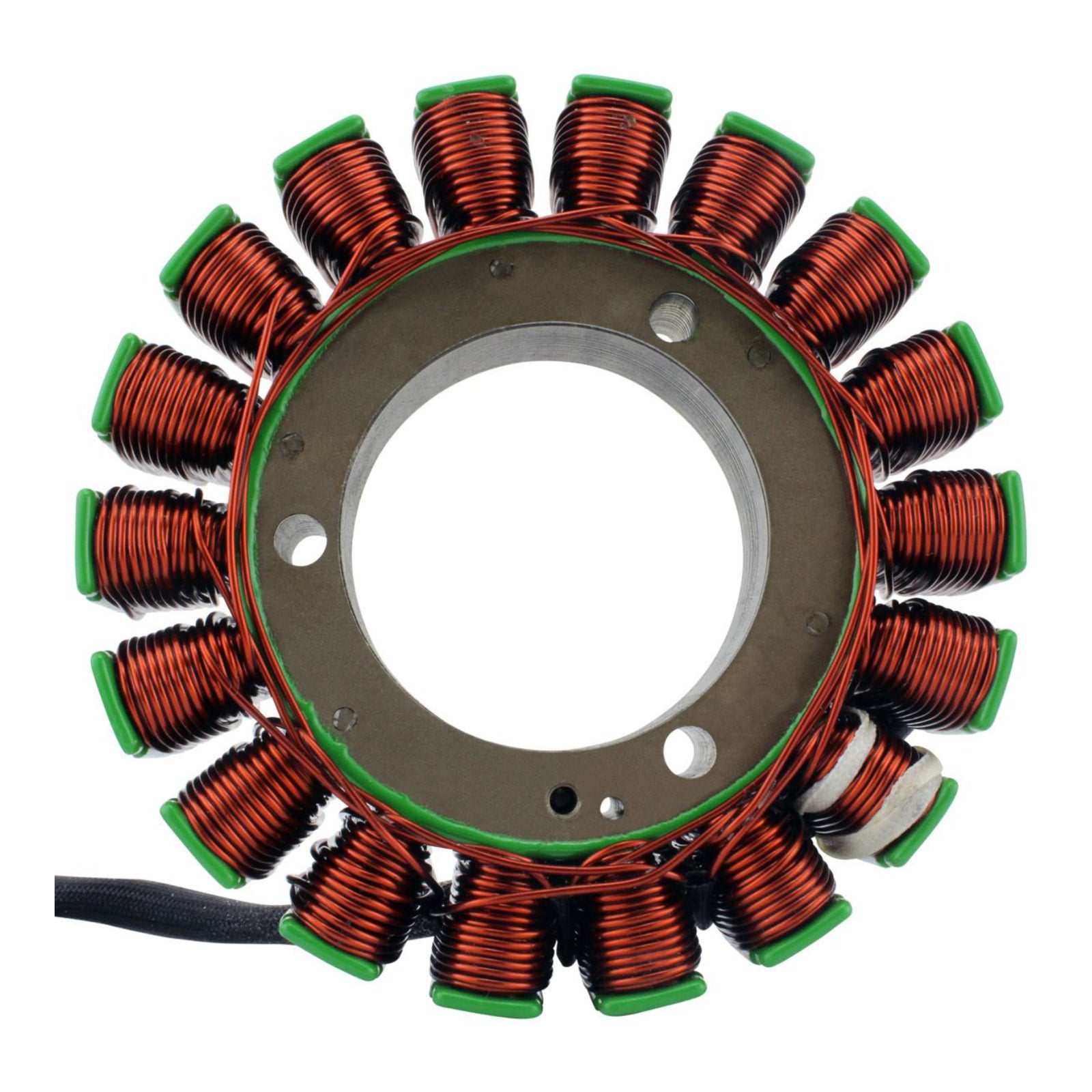

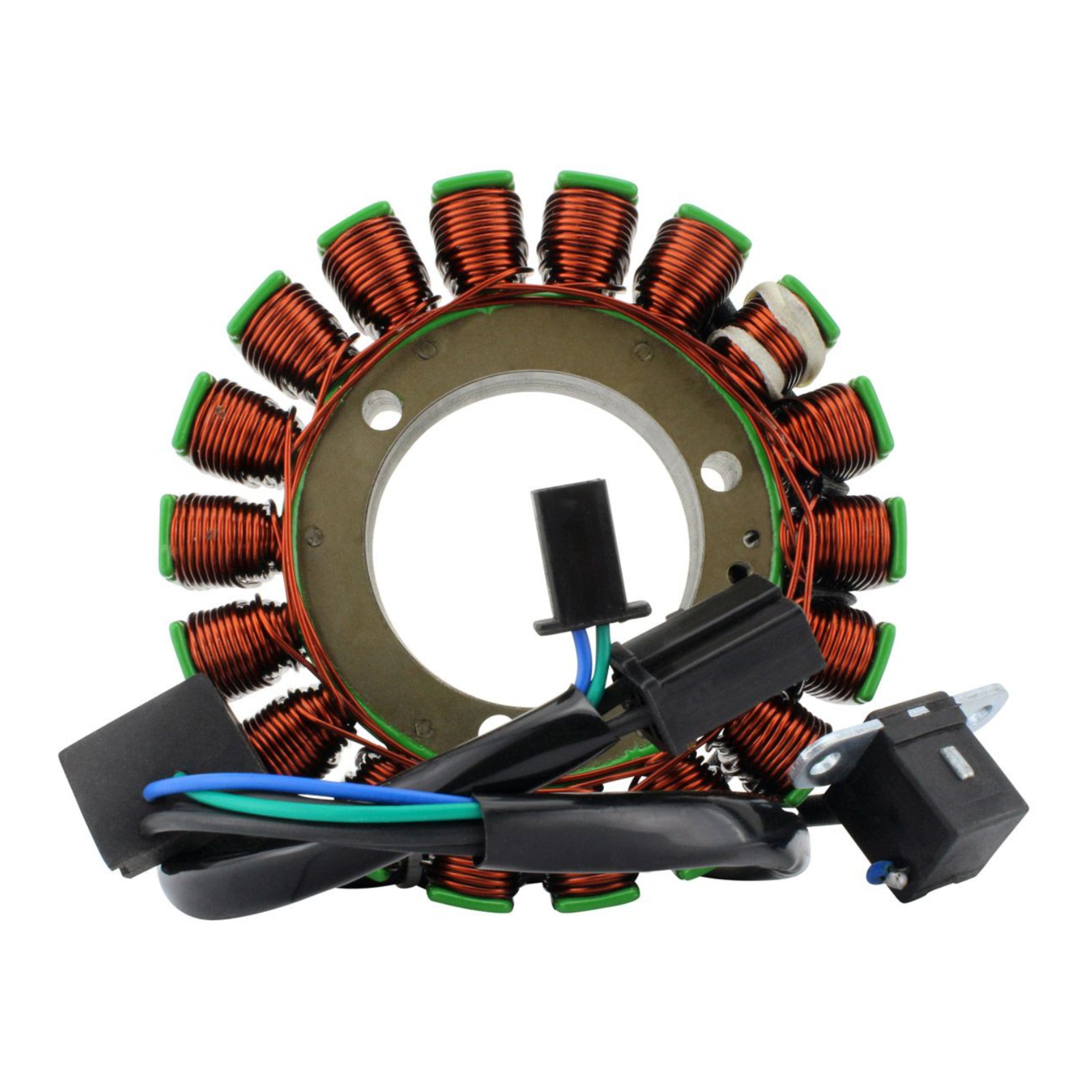

GENERATOR STATOR SUZ VSTORM 1000 02-09 2012

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 119 mm
• Thickness: 28 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 430 mm
• Length of pickup coil's wire to grommet: 150 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18

Wire to wire resistance:

• Alternator: Black to Black = 0.4ohms +-20%
• Alternator: to ground = O.L
• Pickup: Green to Blue = 200ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
