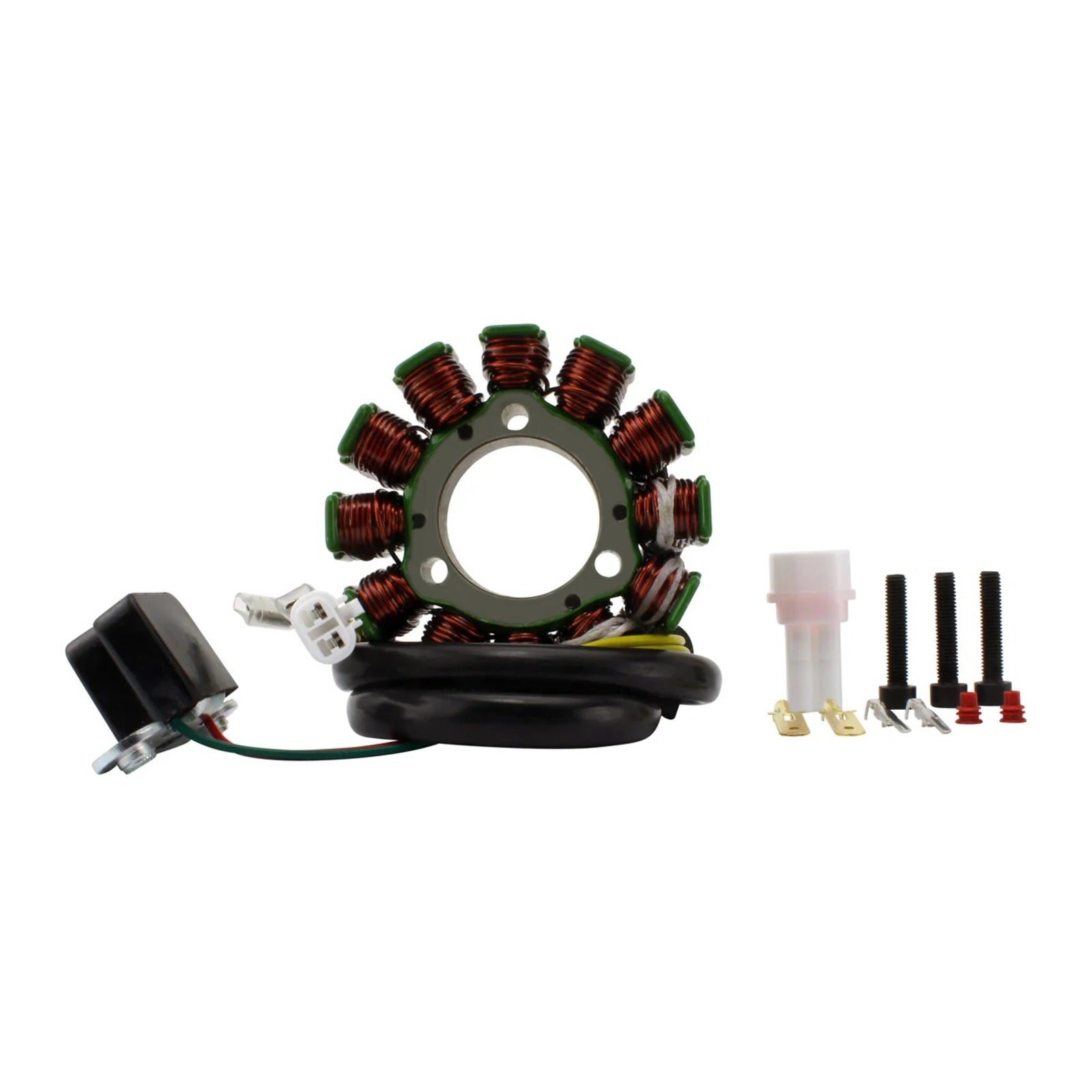

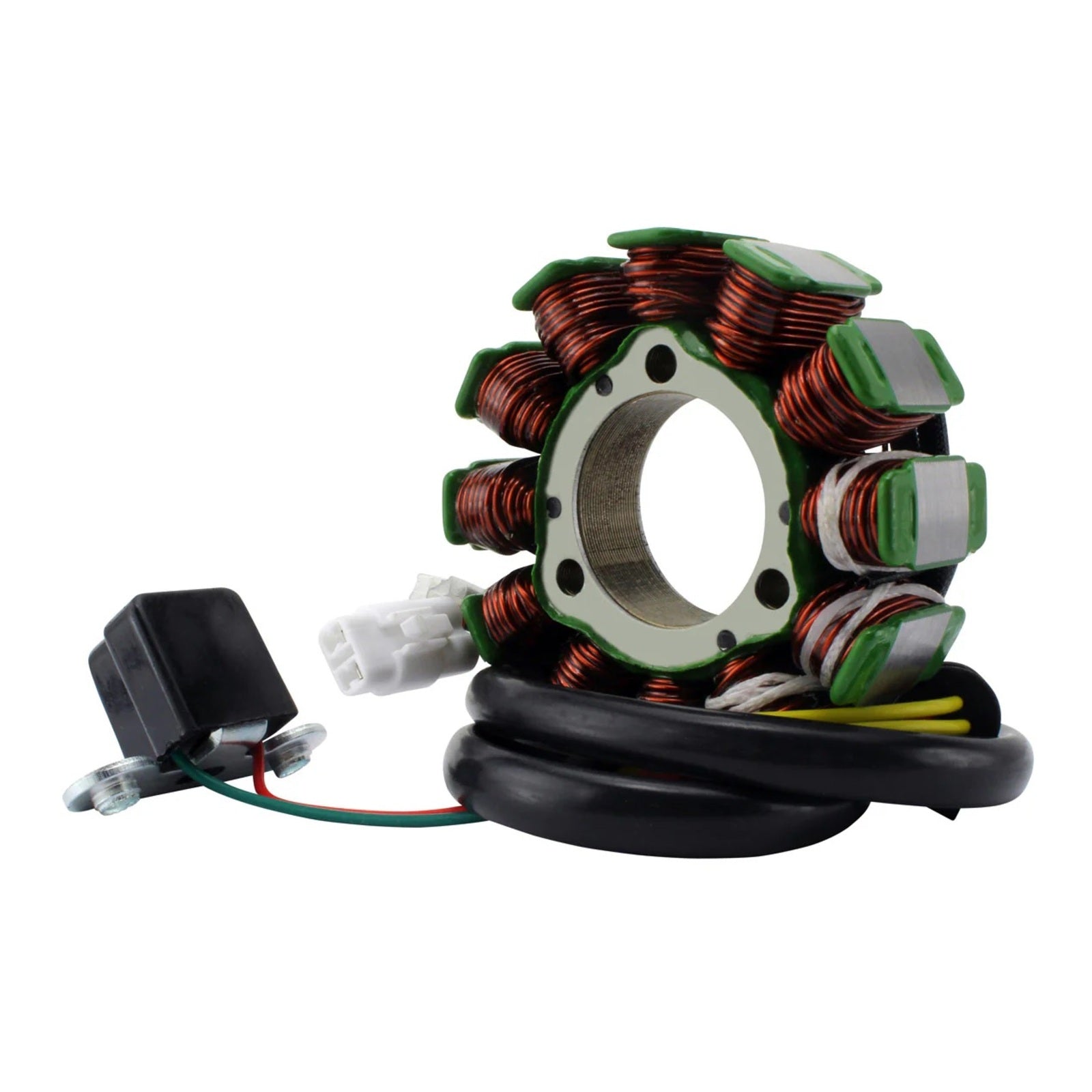

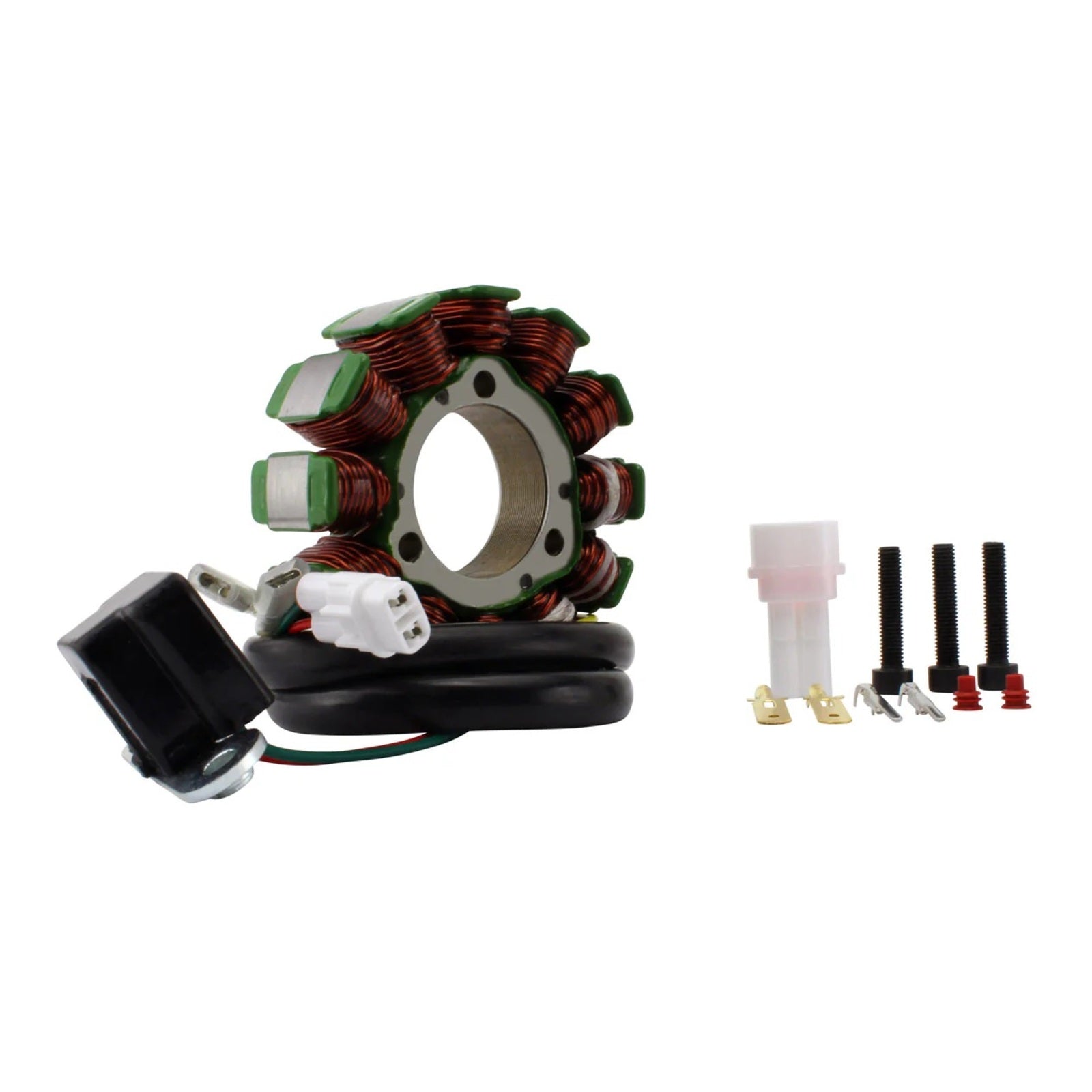

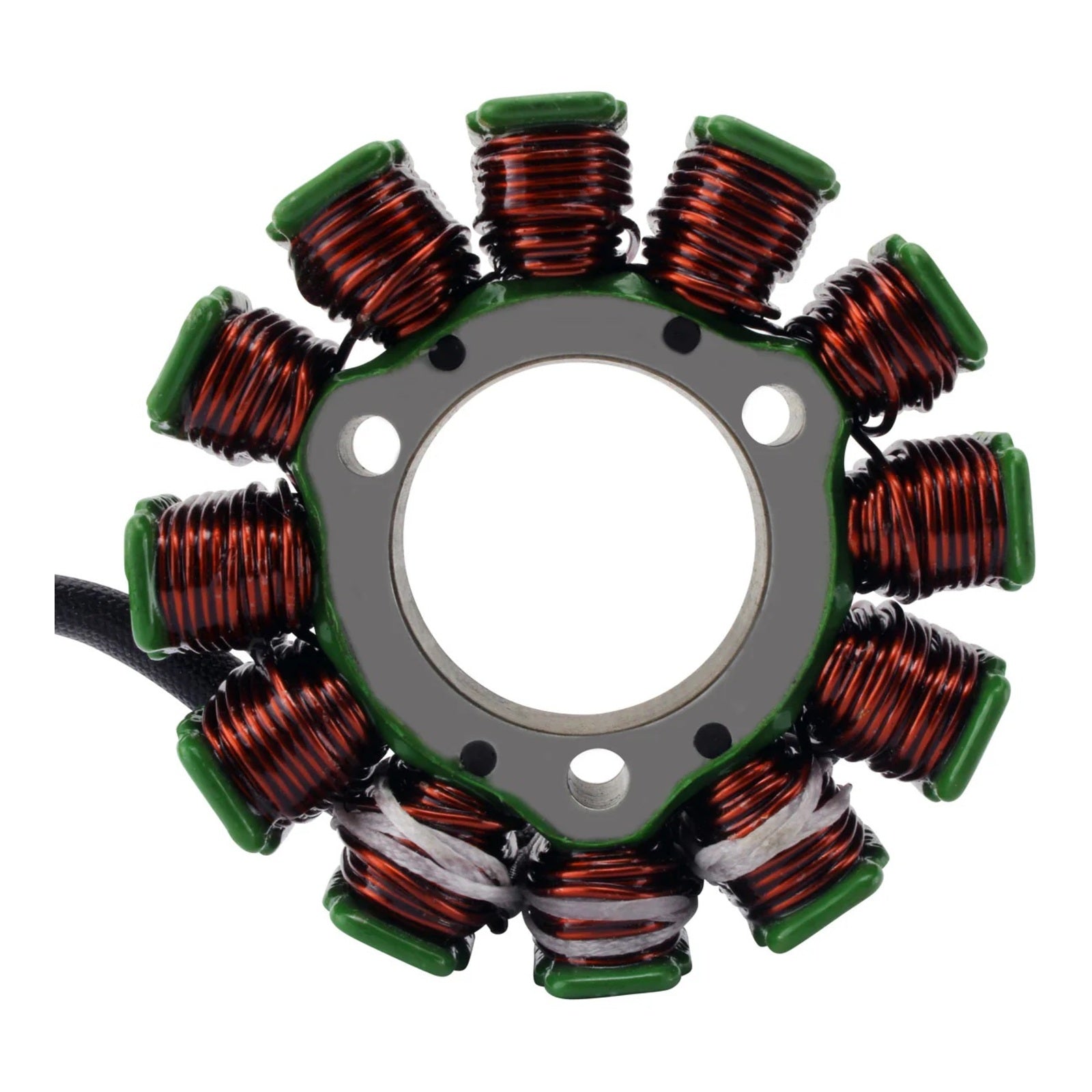

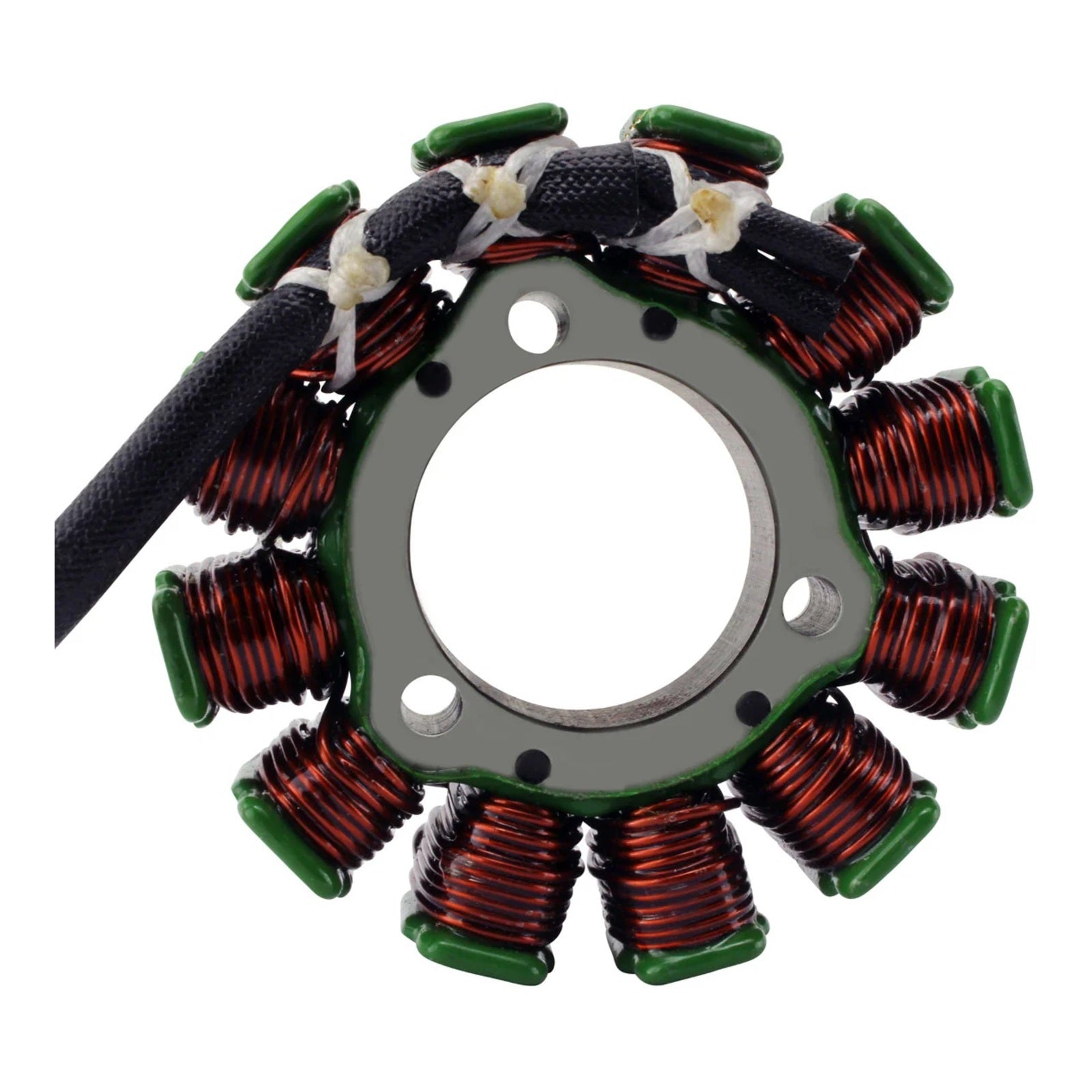

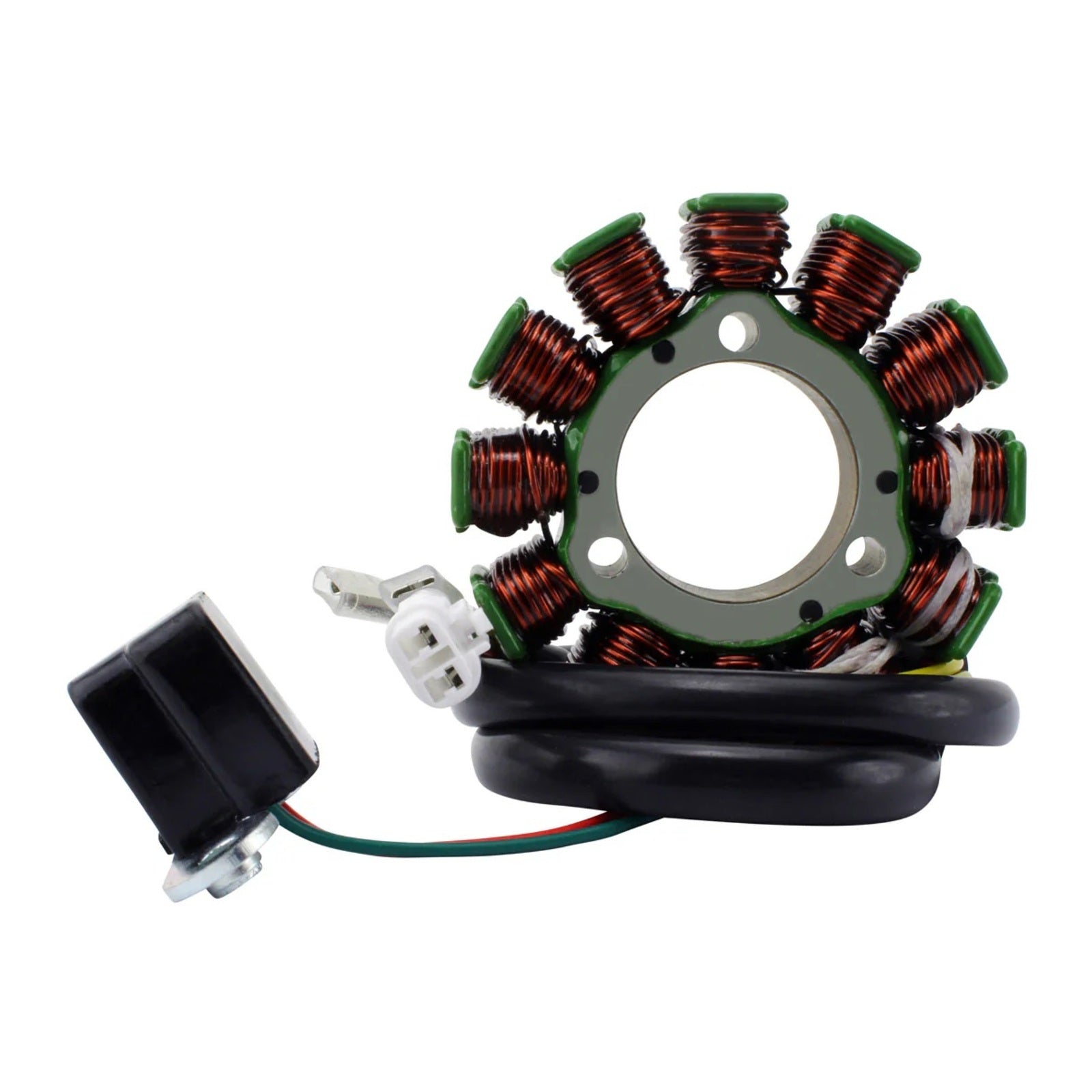

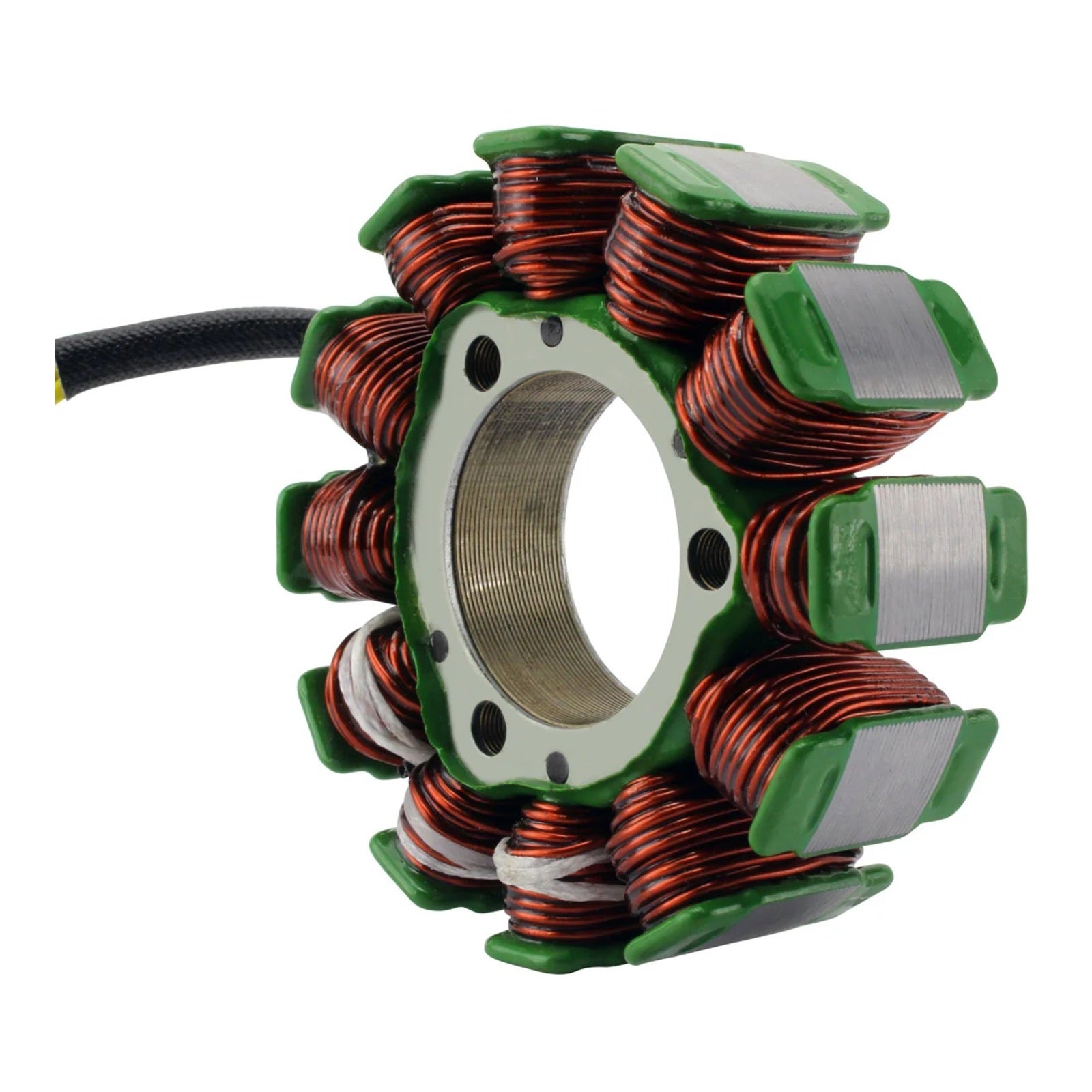

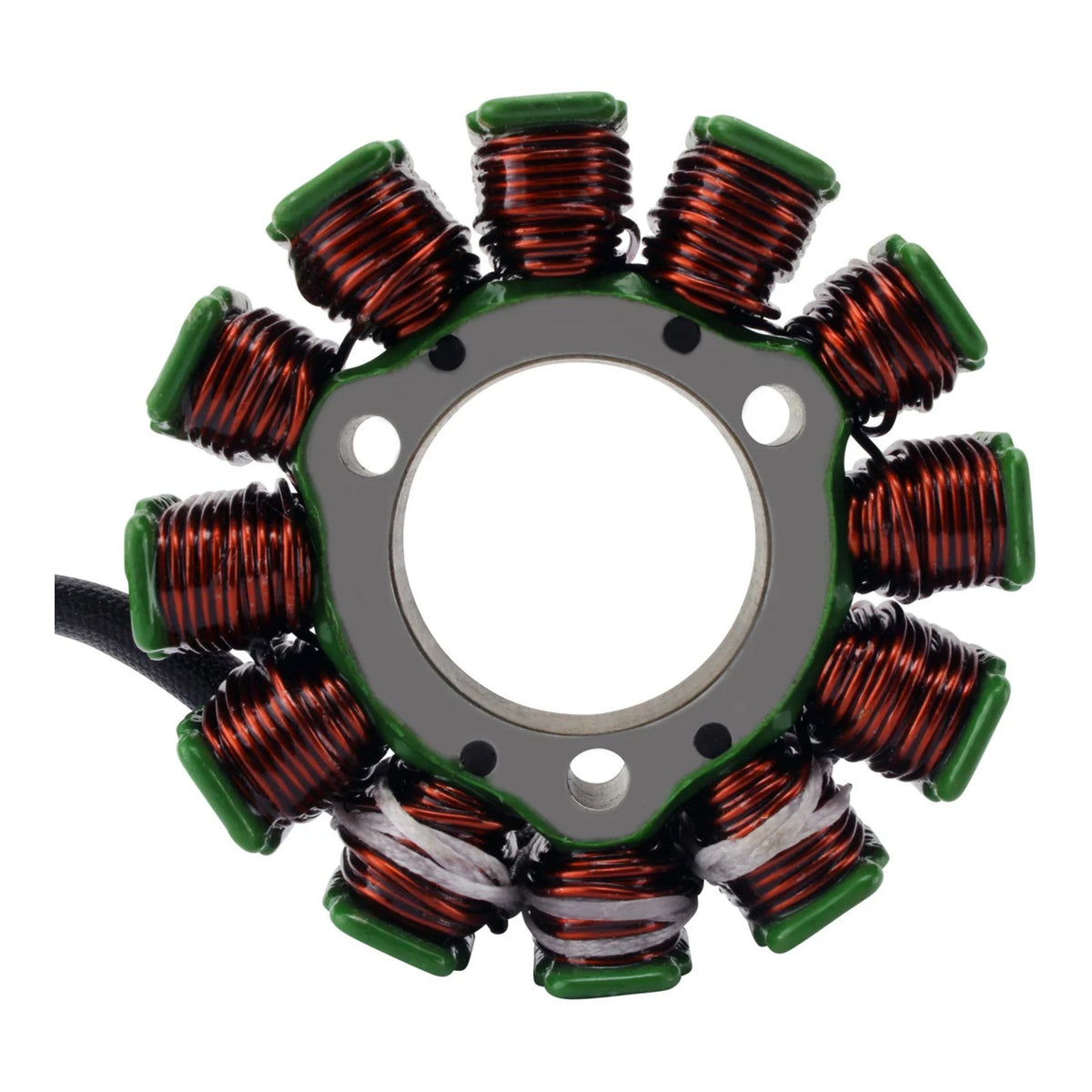

80W High Output Stator - KTM / GasGas / Husqvarna Models

Brand new aftermarket stator. Direct replacement for your original unit.

Features:

• 80W DC output
• Significantly increased power output
• Plug-and-play design for easy installation
• High-grade lamination materials

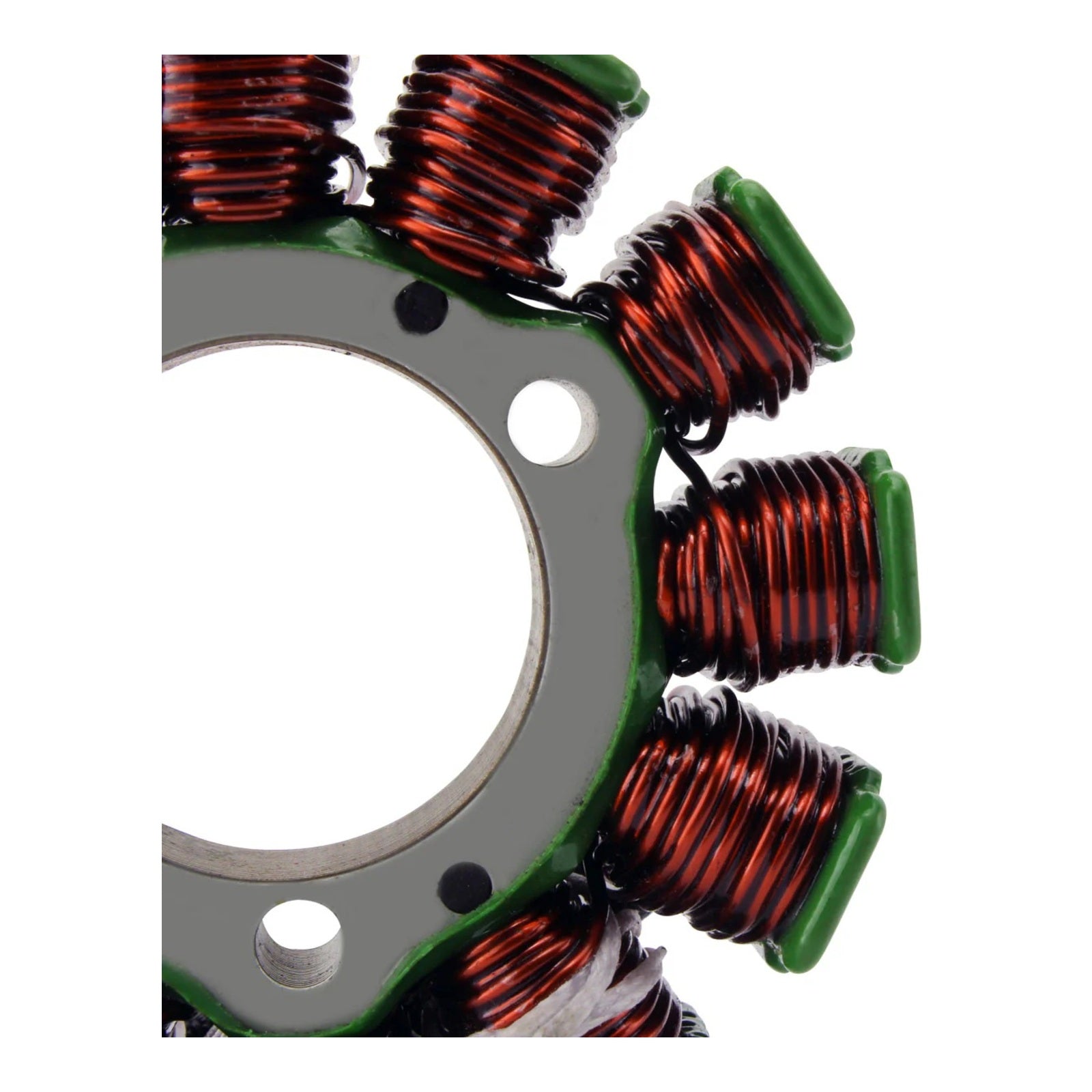

• Premium copper windings, resistant up to 200°C

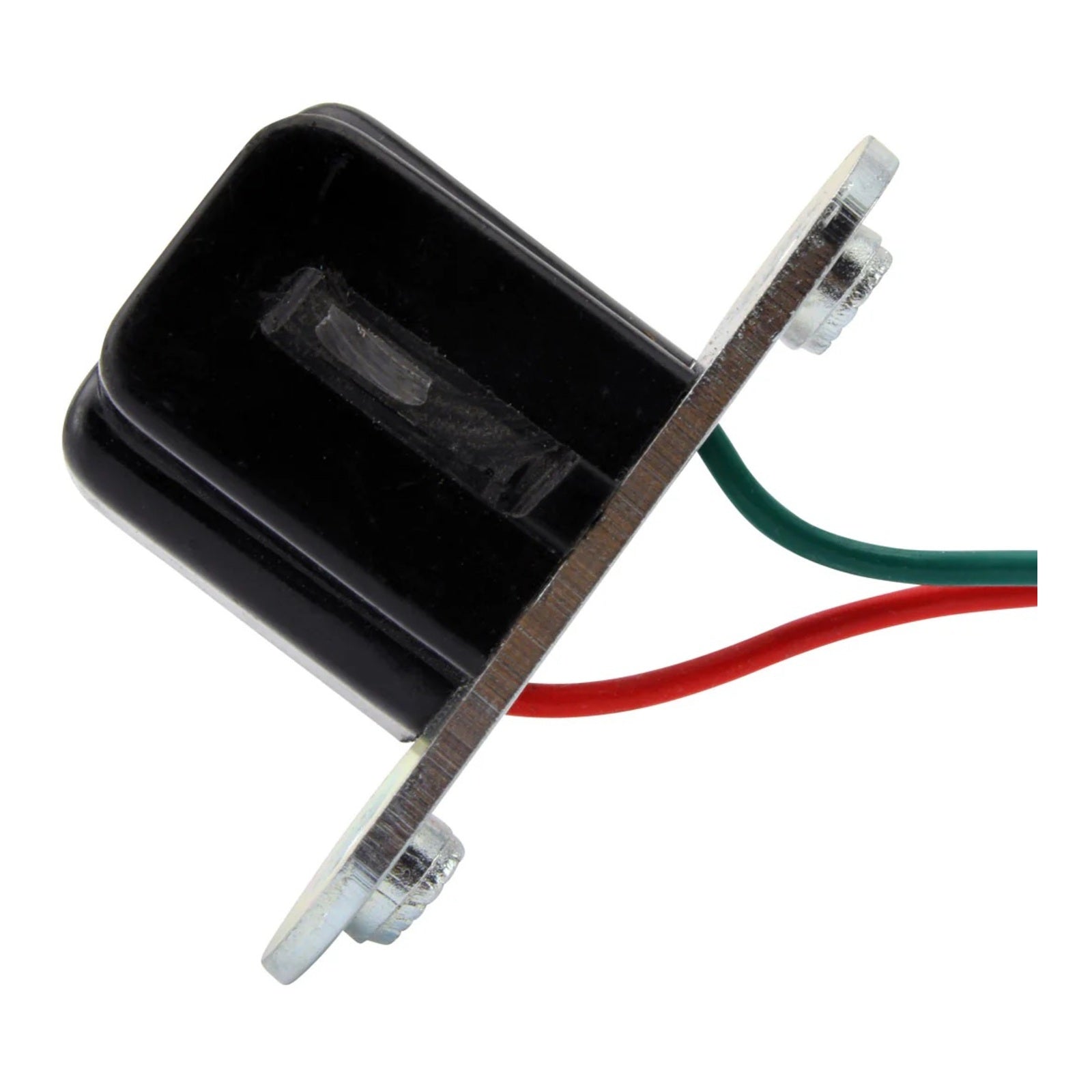

• Pickup pulsar coil included

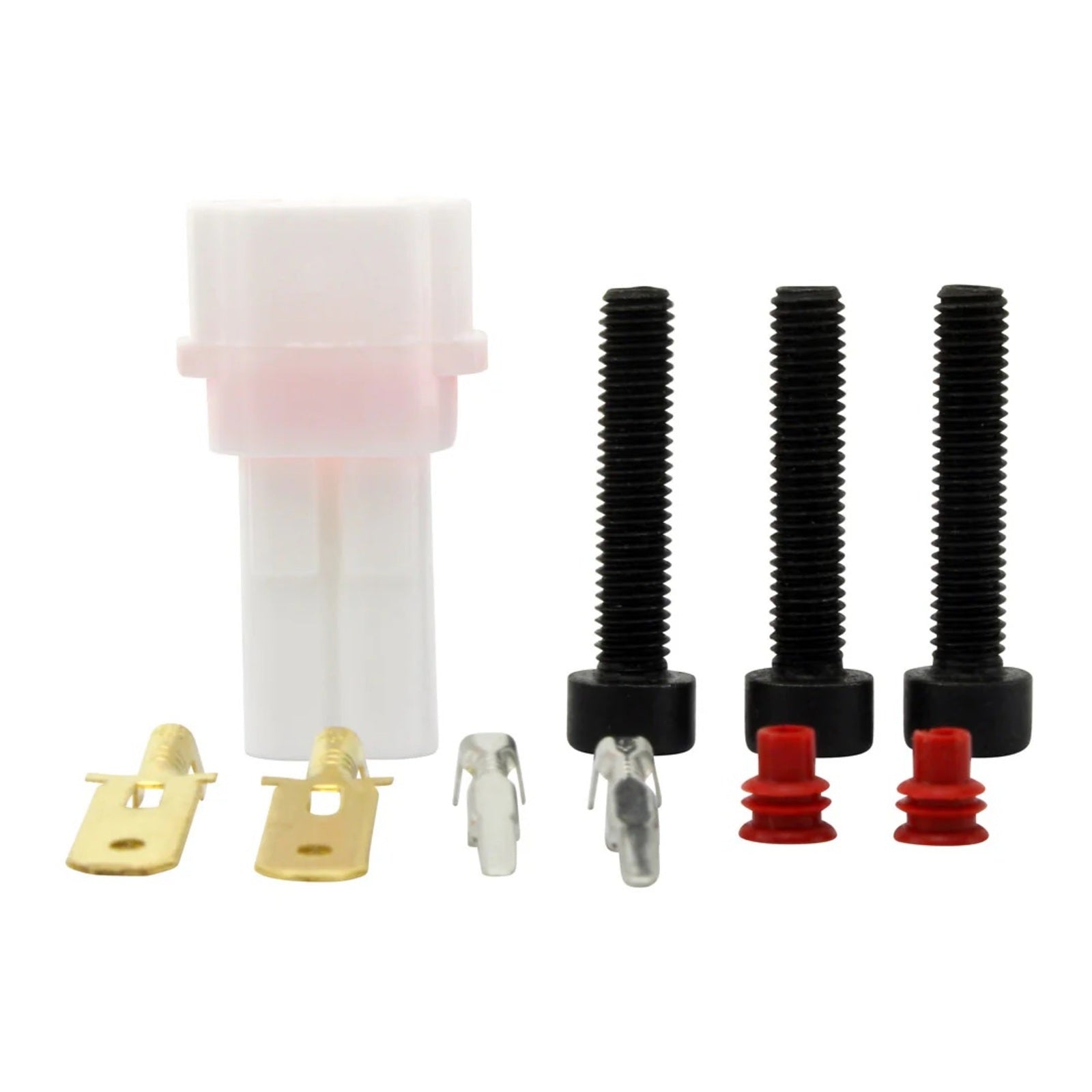

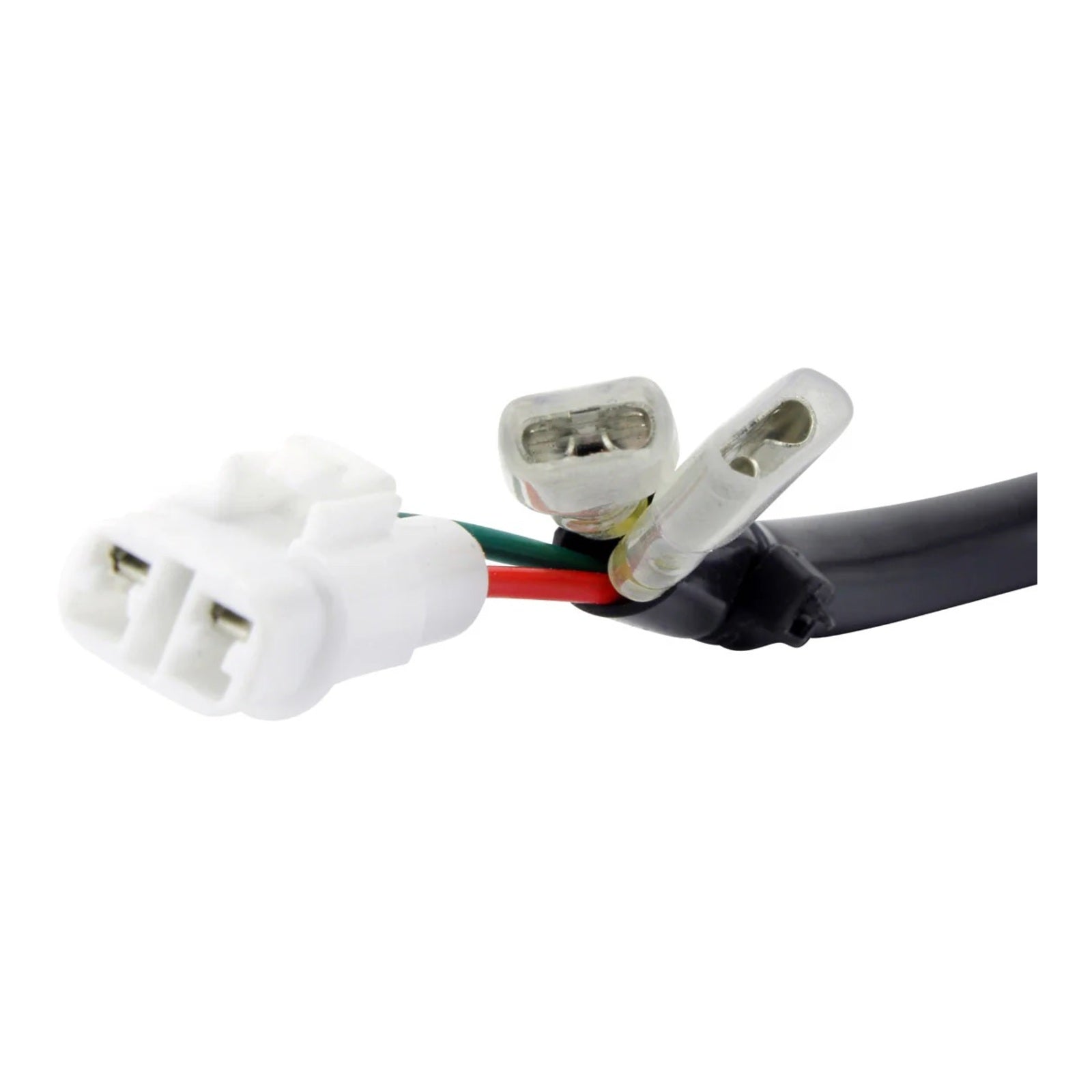

• Connectors included
• Rubber grommet included
• All units are tested before shipping

Technical Data

Dimensions

• Interior Diameter: 32mm
• Exterior Diameter: 76mm
• Thickness: 17 mm

Wire Lengths

• Stator to Grommet: 125mm
• Grommet to Plug: 510mm
• Pickup Coil to Grommet: 100mm

Electrical Specifications

• Number of Wires: 4
• Number of Plugs: 1
• Number of Pins: 4
• Number of Poles: 12

Resistance Values

• Alternator (Yellow to Yellow): 0.4 Ω ±20%
• Alternator (Yellow to Ground): O.L (no continuity)
• Pickup Coil (Green to Red): 133 Ω ±20%
