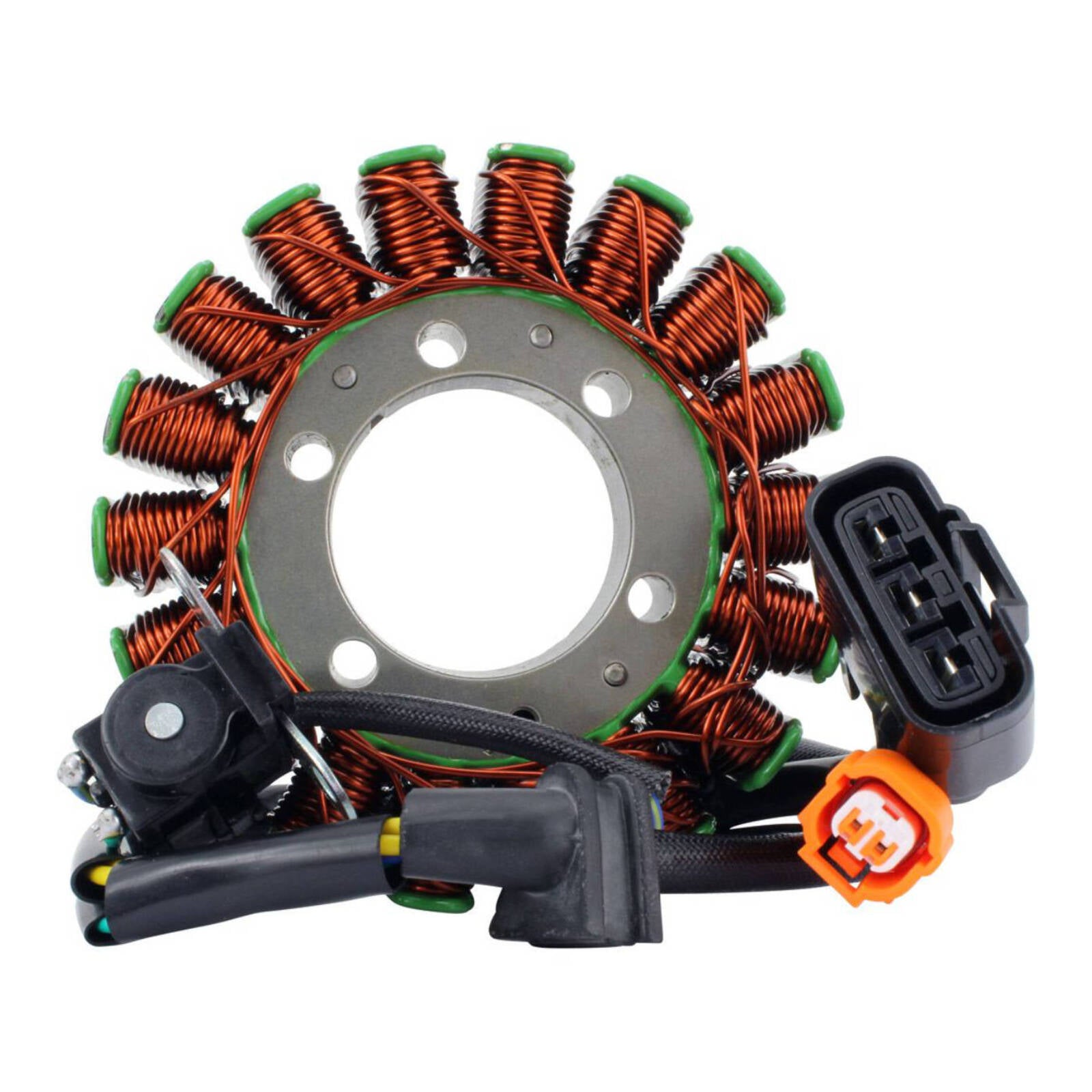

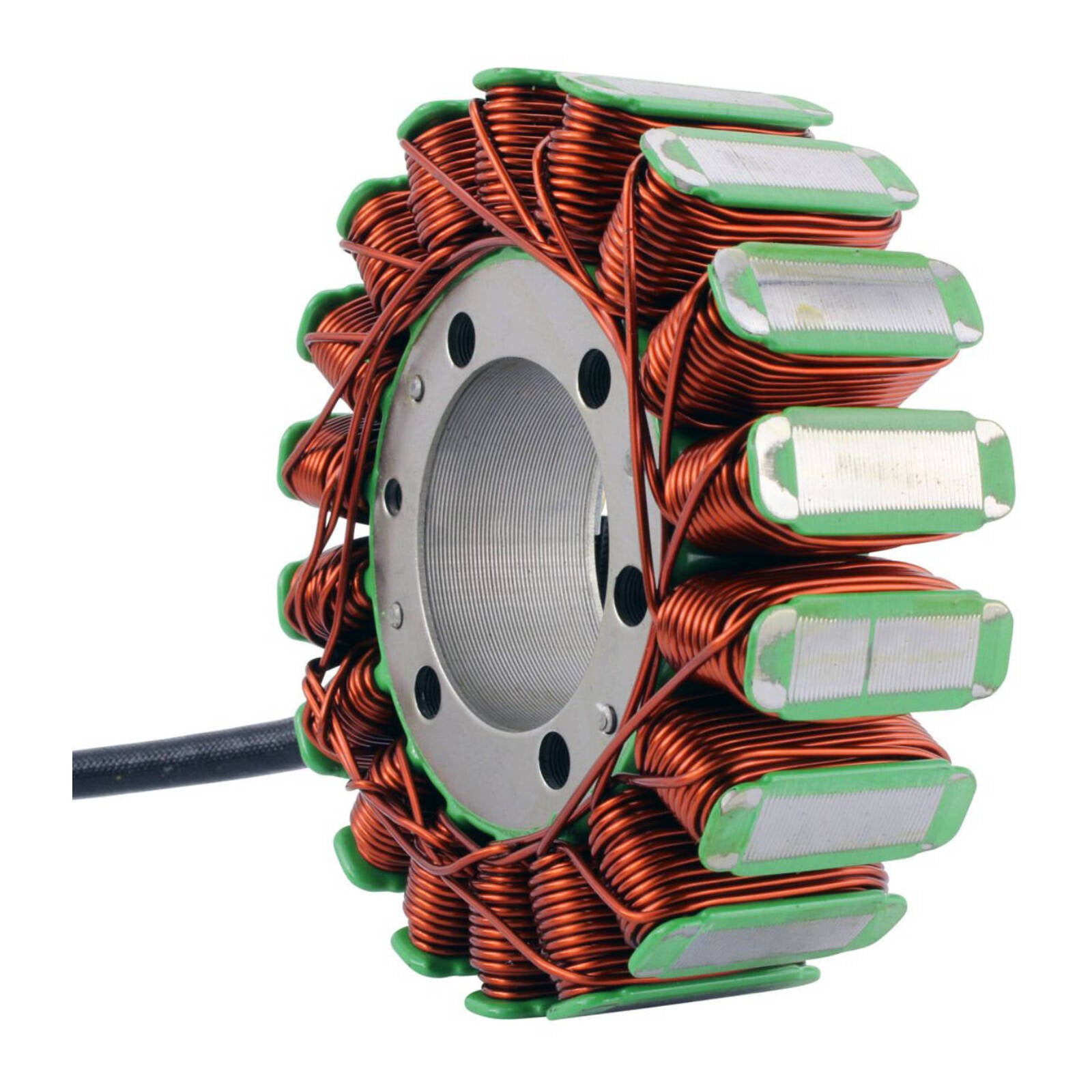

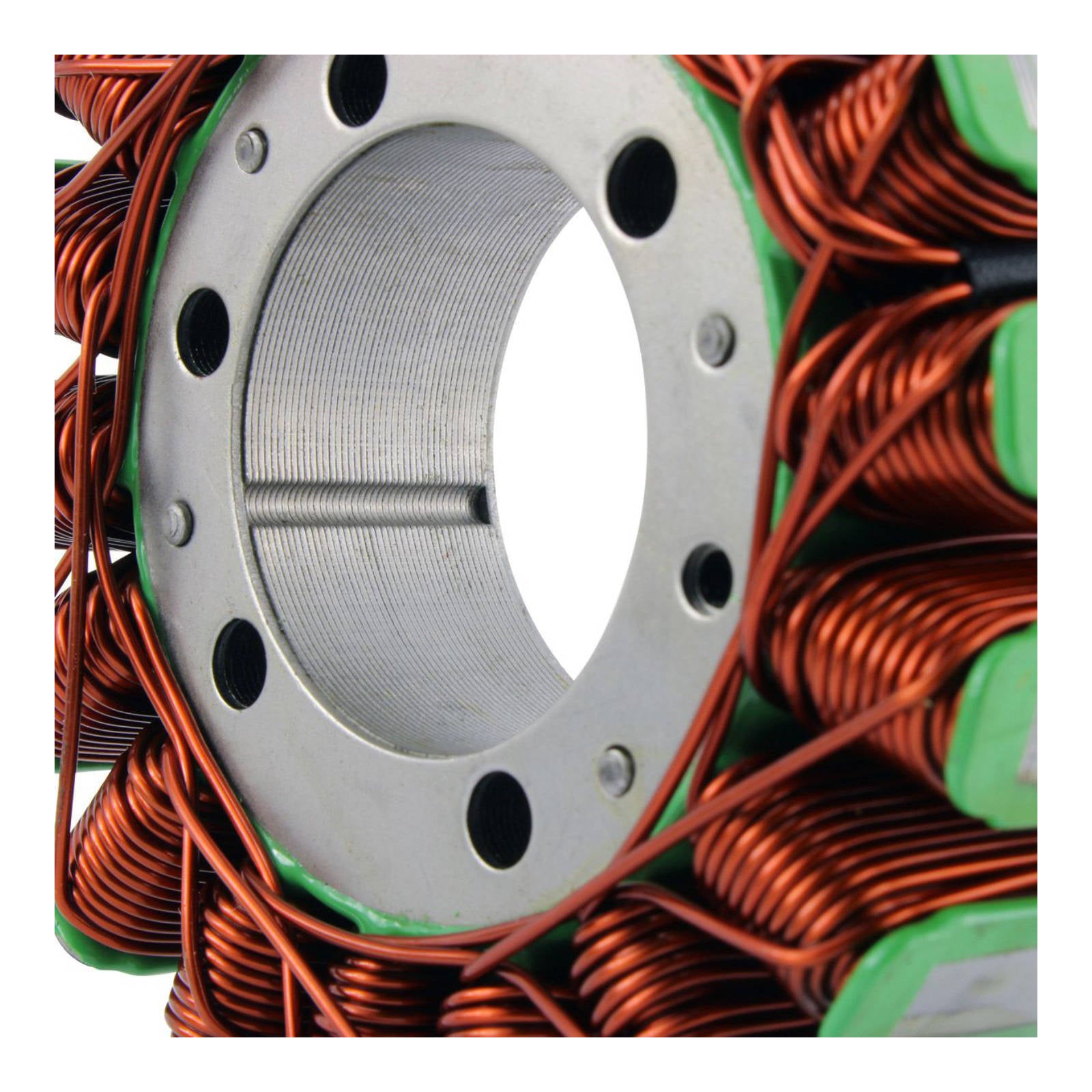

Plug-and-play replacement stator from RM Stator.
Dimensions:
- Interior diameter: 42 mm
- Exterior diameter: 107 mm
- Thickness: 26 mm
- Length of wires stator to grommet: 105 mm
- Length of wires grommet to plug: 275 mm
- Length of pickup coil's wire to grommet: 75 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Between each Yellow = 0.5 ohms +-20%
- Pickup: Blue/Yellow to Green = 232 ohms +-20%
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
| Interior diameter | 42 mm |
|---|---|
| Exterior diameter | 107 mm |
| Thickness | 26 mm |
| Length of wires stator to grommet | 105 mm |
| Length of wires grommet to plug | 275 mm |
| Length of pickup coil's wire to grommet | 75 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Number of poles | 18 |
| Alternator | Between each Yellow = 0.5 ohms +-20% |
| Pickup | Blue/Yellow to Green = 232 ohms +-20% |
