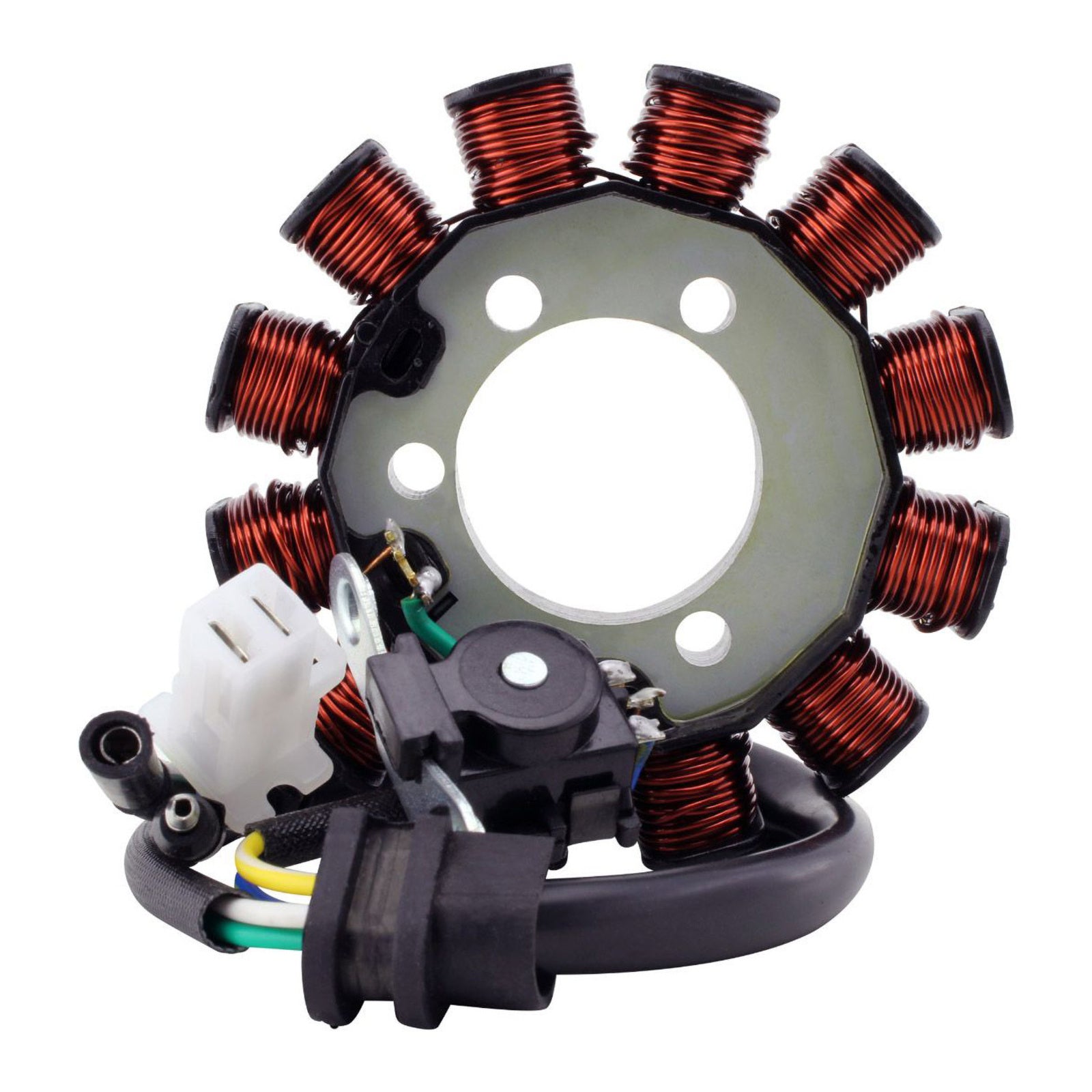

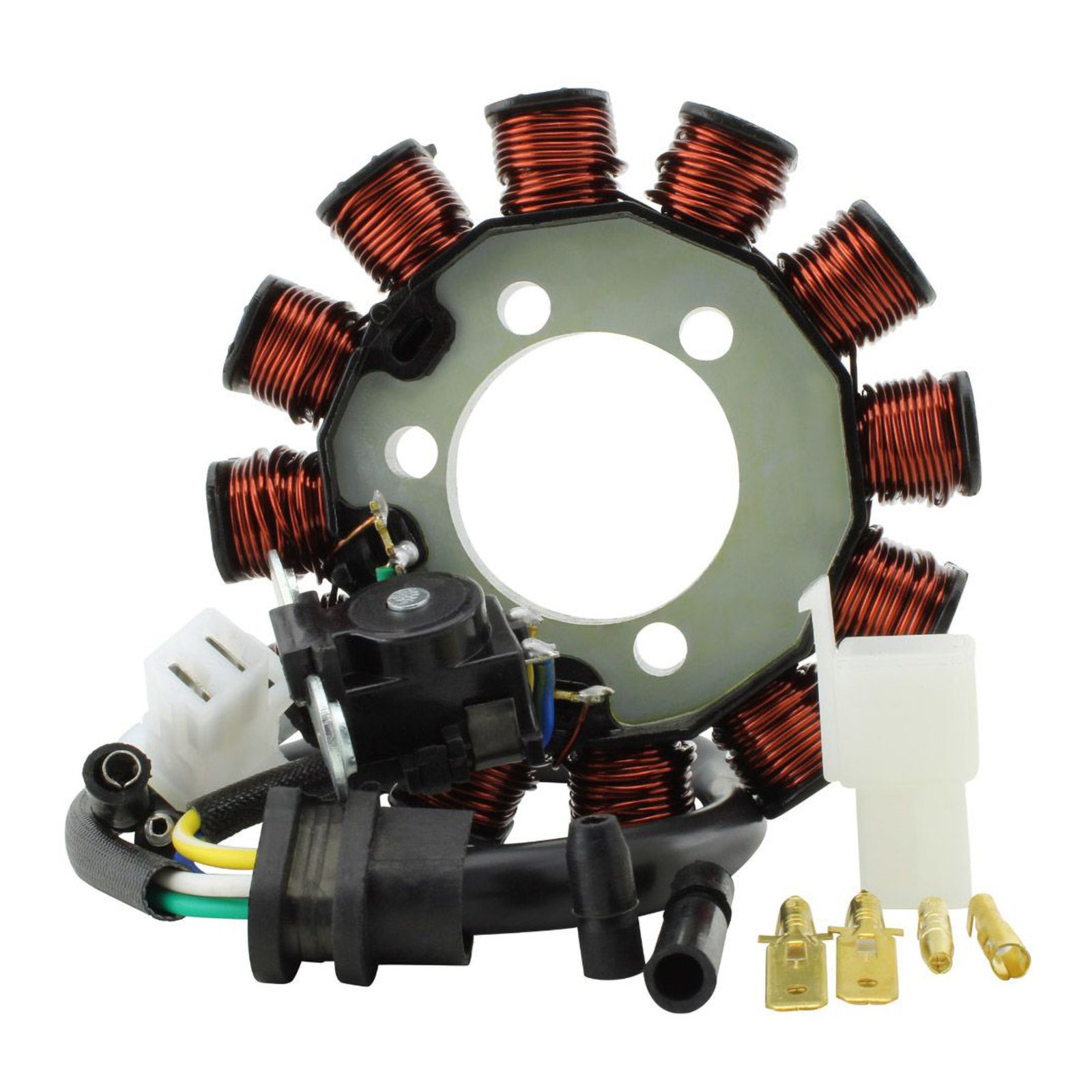

Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 35mm
- Exterior diameter: 93mm
- Thickness: 9mm
- Length of wires stator to grommet: 120mm
- Length of wires grommet to plug: 230mm
- Length of pickup coil's wire to grommet: 30mm
Other specifications:
- Number of wires: 3
- Number of plugs: 3
- Number of pins: 3
- Number of poles: 12
Wire to wire resistance:
- Alternator: Green to White = 1.2 ohms +-20%
- Pickup: Green to Blue/Yellow = 263 ohms +-20%
- Source: Green = Ground
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
| Interior diameter | 35mm |
|---|---|
| Exterior diameter | 93mm |
| Thickness | 9mm |
| Length of wires stator to grommet | 120mm |
| Length of wires grommet to plug | 230mm |
| Length of pickup coil's wire to grommet | 30mm |
| Number of wires | 3 |
| Number of plugs | 3 |
| Number of pins | 3 |
| Number of poles | 12 |
| Alternator | Green to White = 1.2 ohms +-20% |
| Pickup | Green to Blue/Yellow = 263 ohms +-20% |
| Source | Green = Ground |
