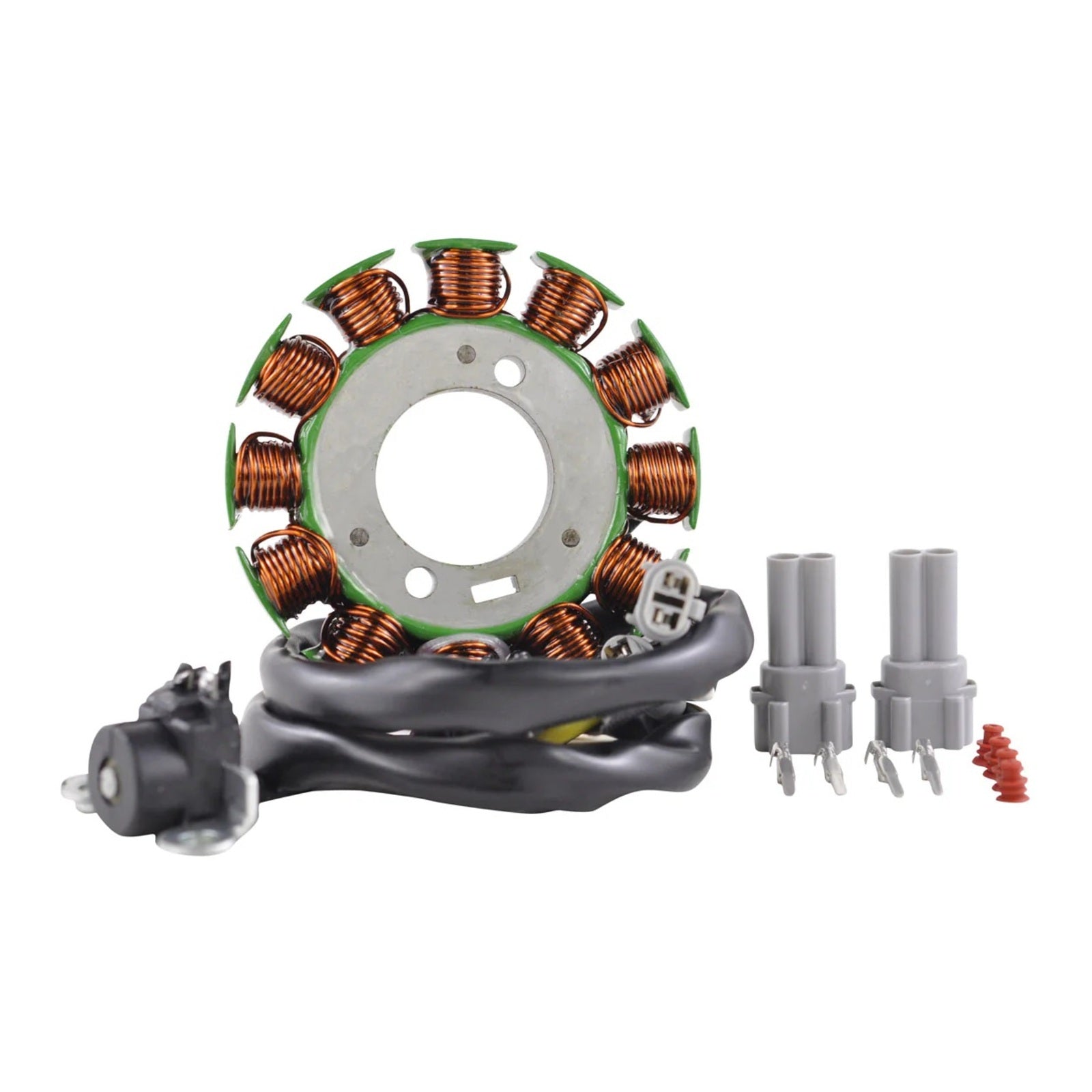

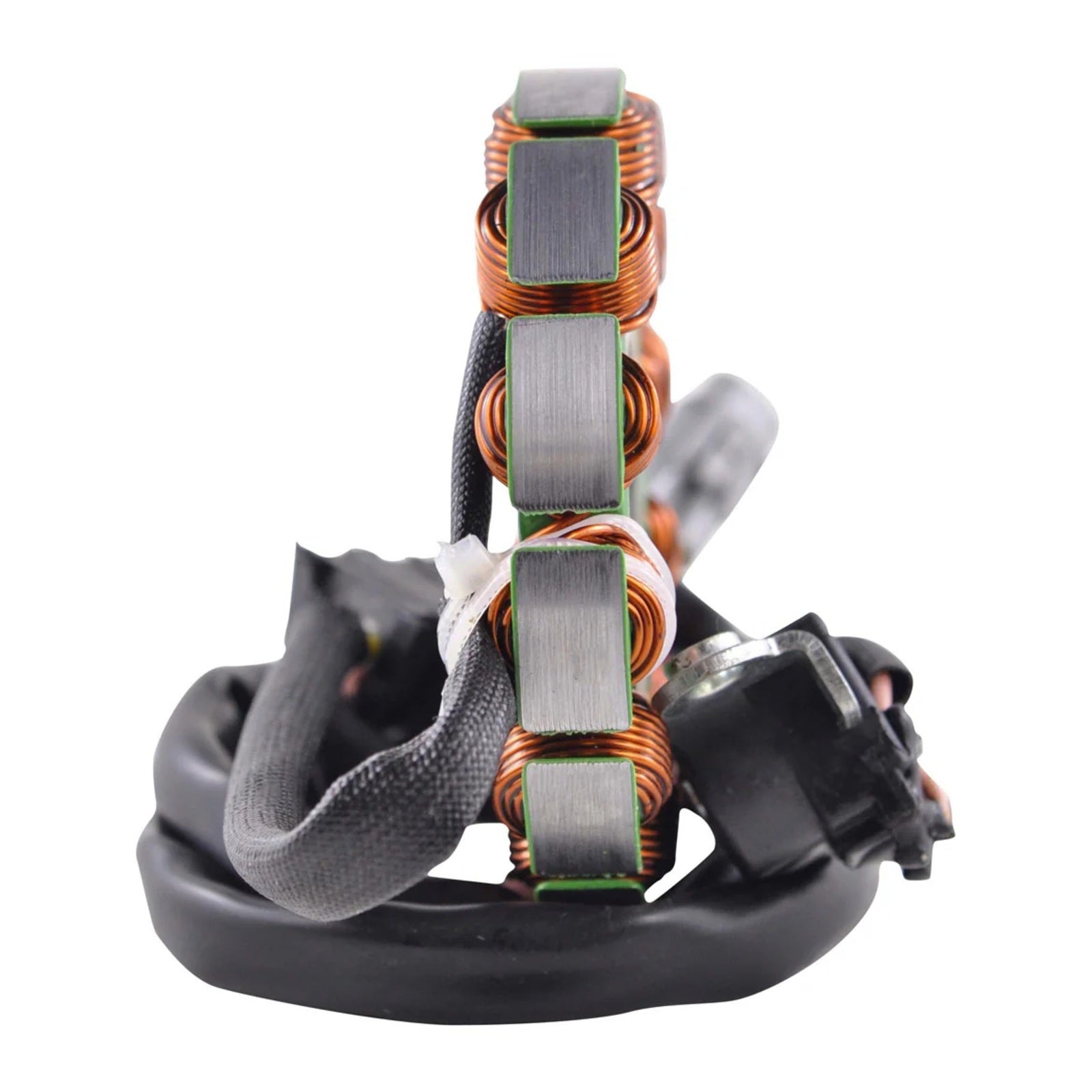

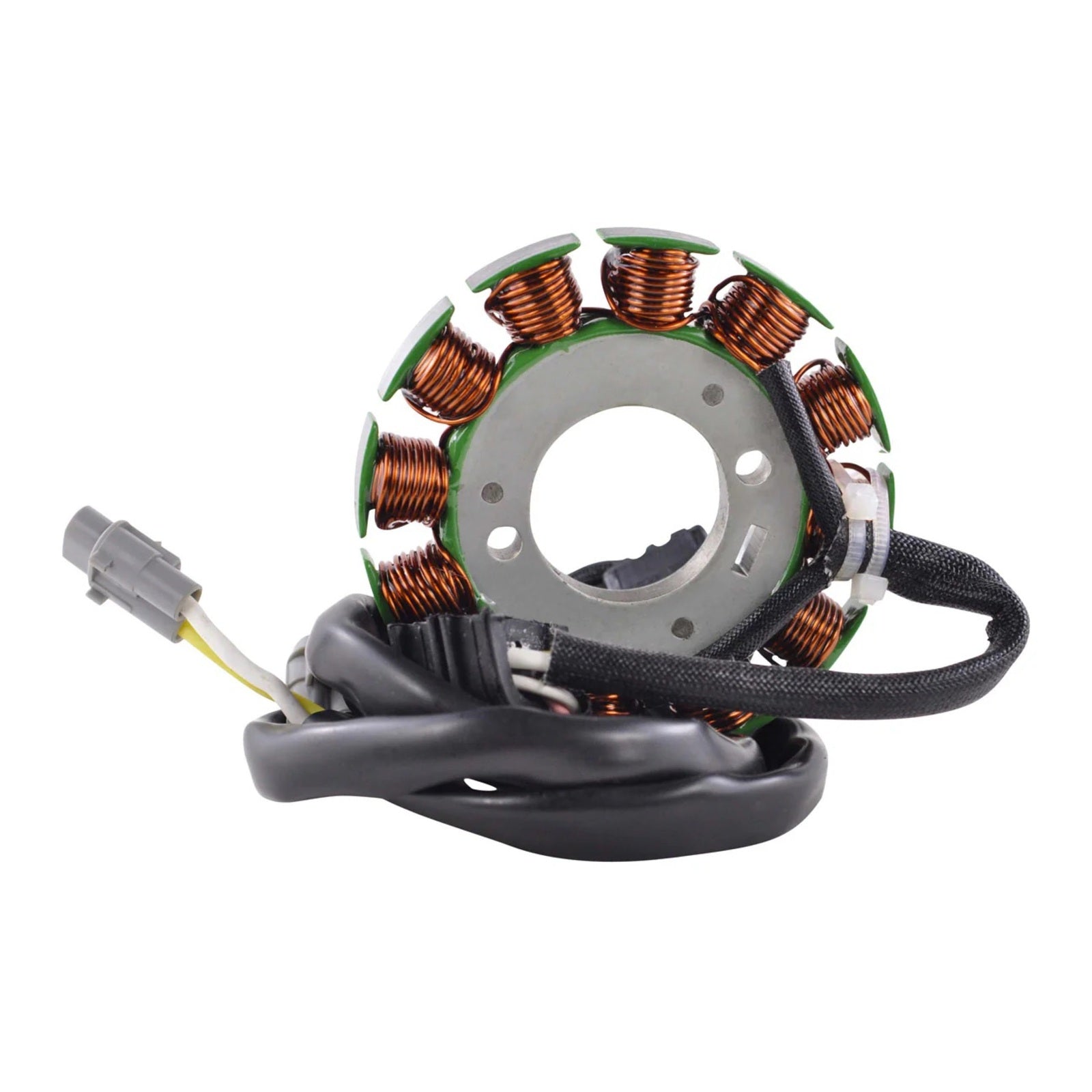

Generator Stator - Yamaha WR250F '05–'13

Brand new aftermarket stator.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

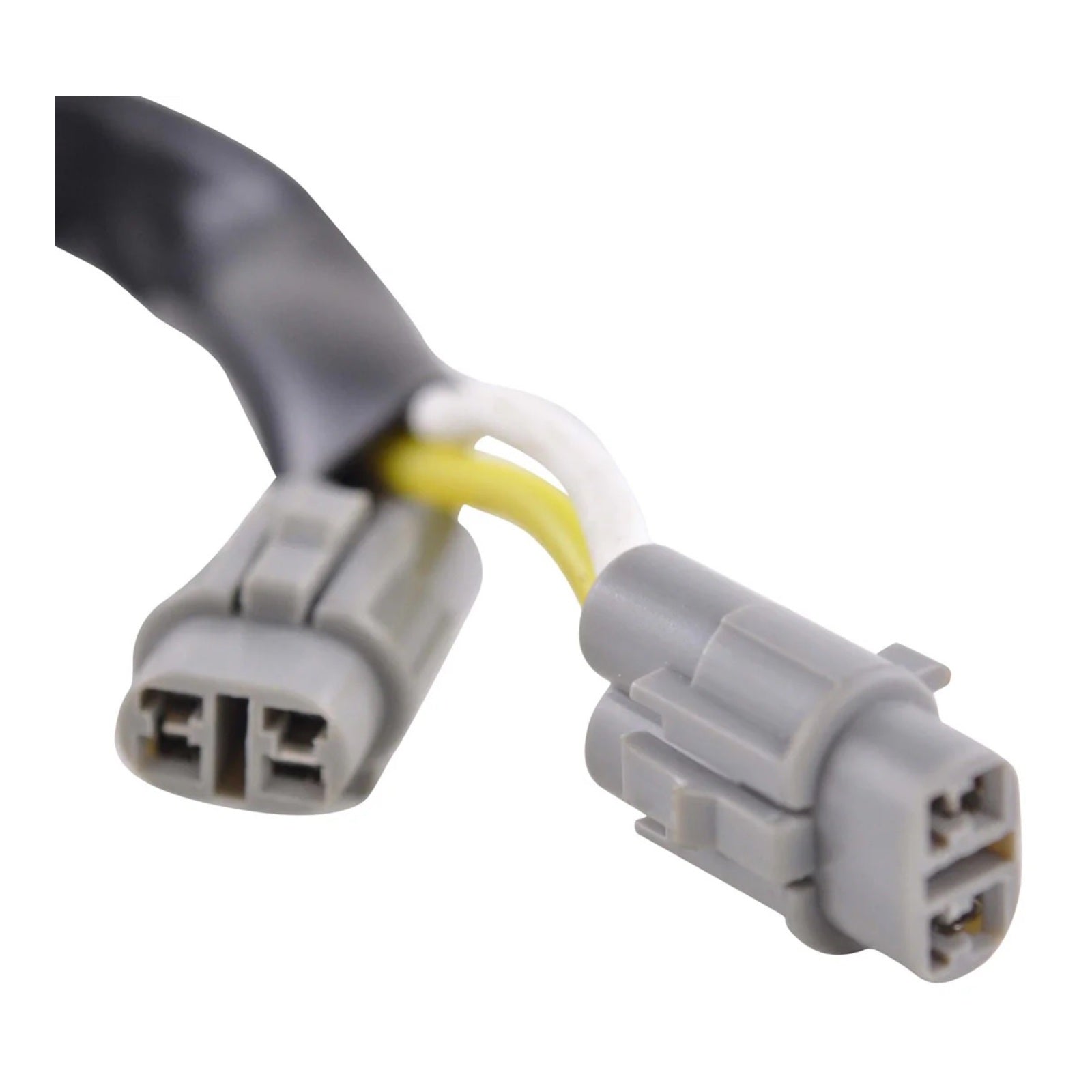

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Specifications:

• Interior diameter: 30 mm
• Exterior diameter: 84 mm
• Thickness: 9 mm
• Length of wires stator to grommet: 110 mm
• Length of wires grommet to plug: 545 mm
• Length of pickup coil's wire to grommet: 90 mm

Other specifications

• Number of wires: 4
• Number of plugs: 2

Wire-to-wire resistance

• Alternator : Yellow To White = 0.4 ohms +/-20%
• Pickup : Pink To White = 280 ohms +/-20%
