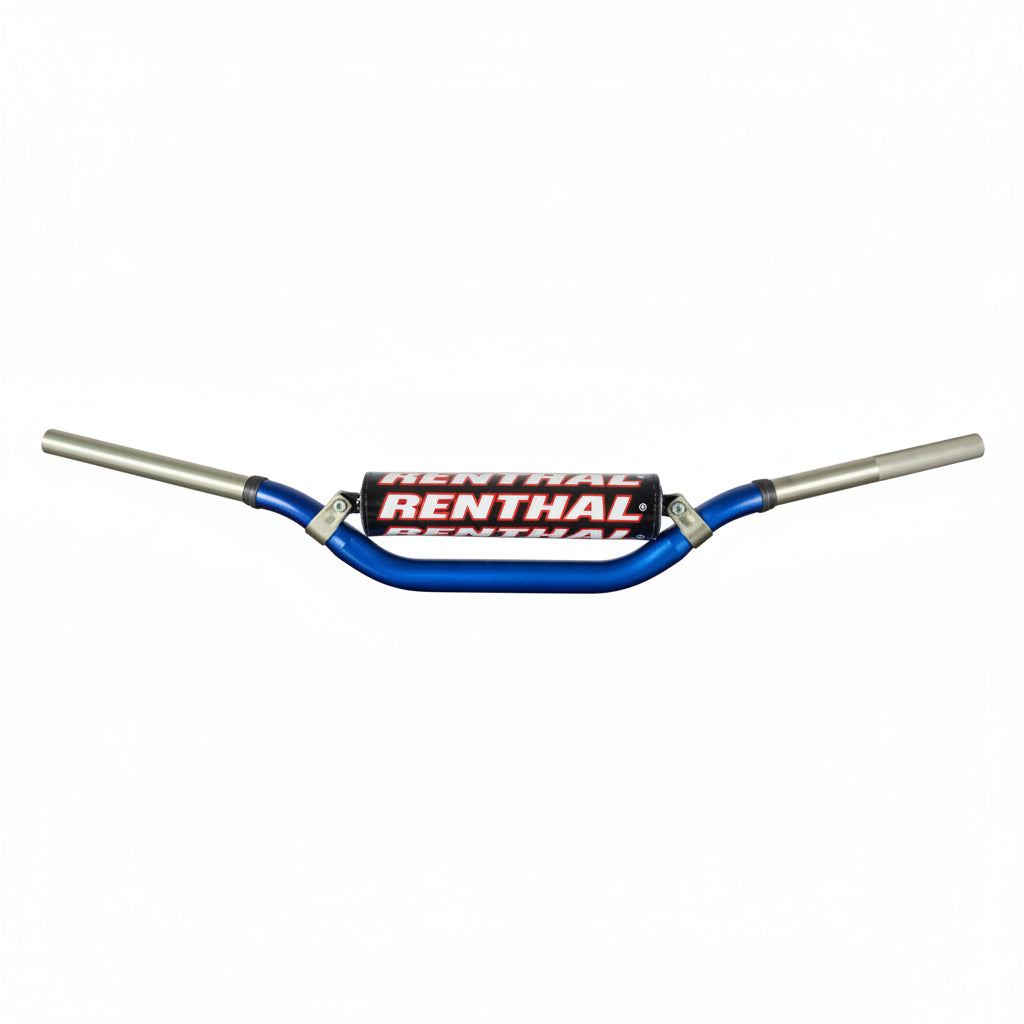

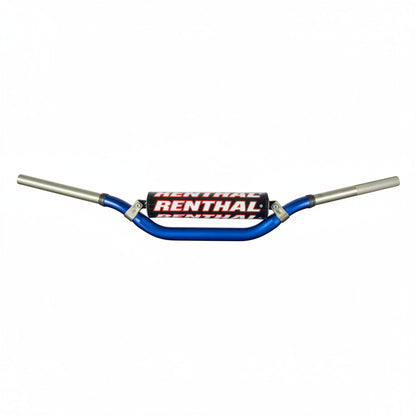

RENTHAL TWINWALL H/BAR YAM YZ/YZF 06+ BLU W/BAR PAD (921-01-BU-07-184)

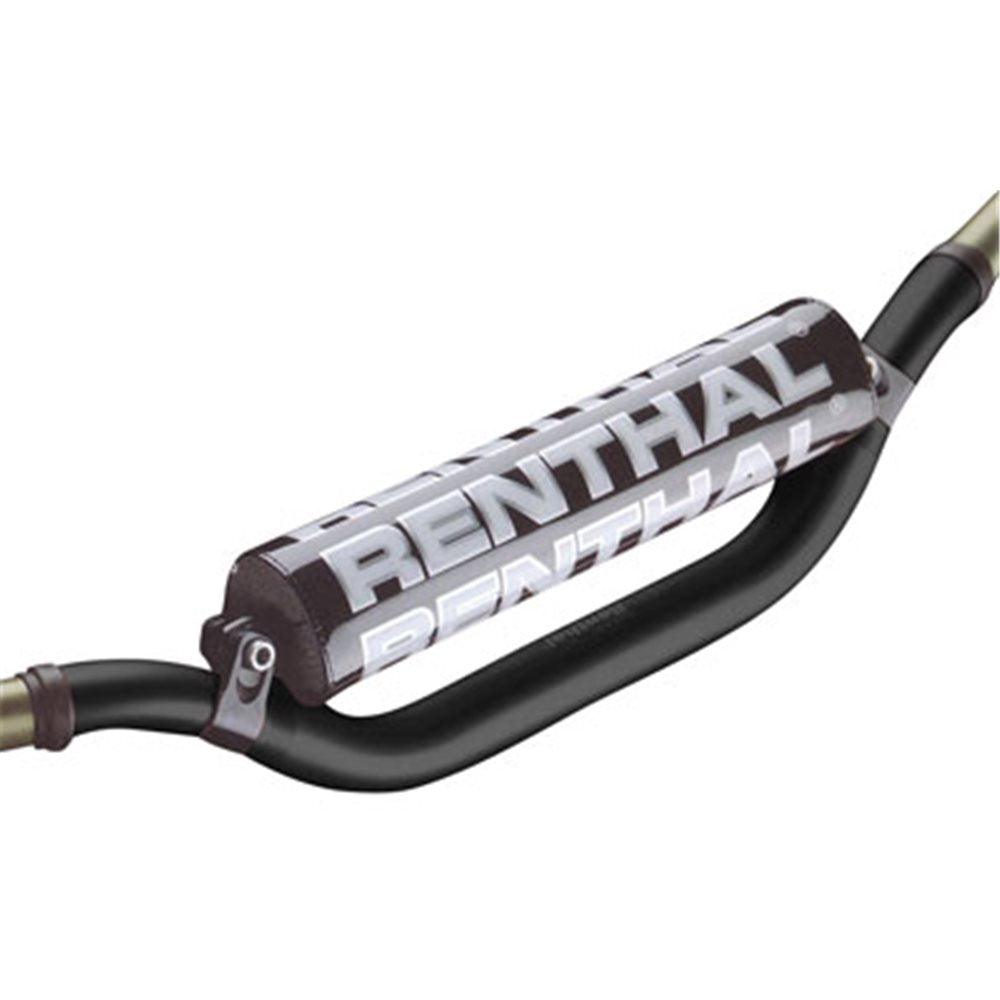

RENTHAL TWINWALL BARS- YZ/ YZF 06+ Renthal’s revolutionary Twinwall® handlebar is a large diameter, 1 1/8” double tube Handlebar which combines immense strength, good resilience and a virtual guarantee against fatigue failure. The Twinwall® has been designed and developed to achieve the best combination of strength and safety, the result? A bar that will only bend in the most severe crashes.

• Twinwall® construction - Consists of two aluminium alloy tubes, one within the other
• Outer tube is 7010 T73, which has extreme resistance to mechanical damage and is anodised to prevent corrosion
• Inner tube is ultra high strength 7010 T6 Aluminium and is hard anodised to resist wear from twist grip and controls

Single Bolt Design

• Renthal's pioneered bonded lightweight single bolt clamping system for the crossbrace, greatly increases strength whilst still allowing flex

Positioning Grid

• Laser etched positioning grid

Knurled End

• Knurling (Clutch end only) increases bonding between bar and grip

Smooth End

• No knurling in clamp area, this could cause a stress raiser and lead to fatigue failure

Bar Pad

• A specially developed injection moulded crossbar pad is fitted with every handlebar

Rubber Seals

• Rubber seals cover the join to keep out water and cleaning fluids

*Dimensions in millimeters (mm)
