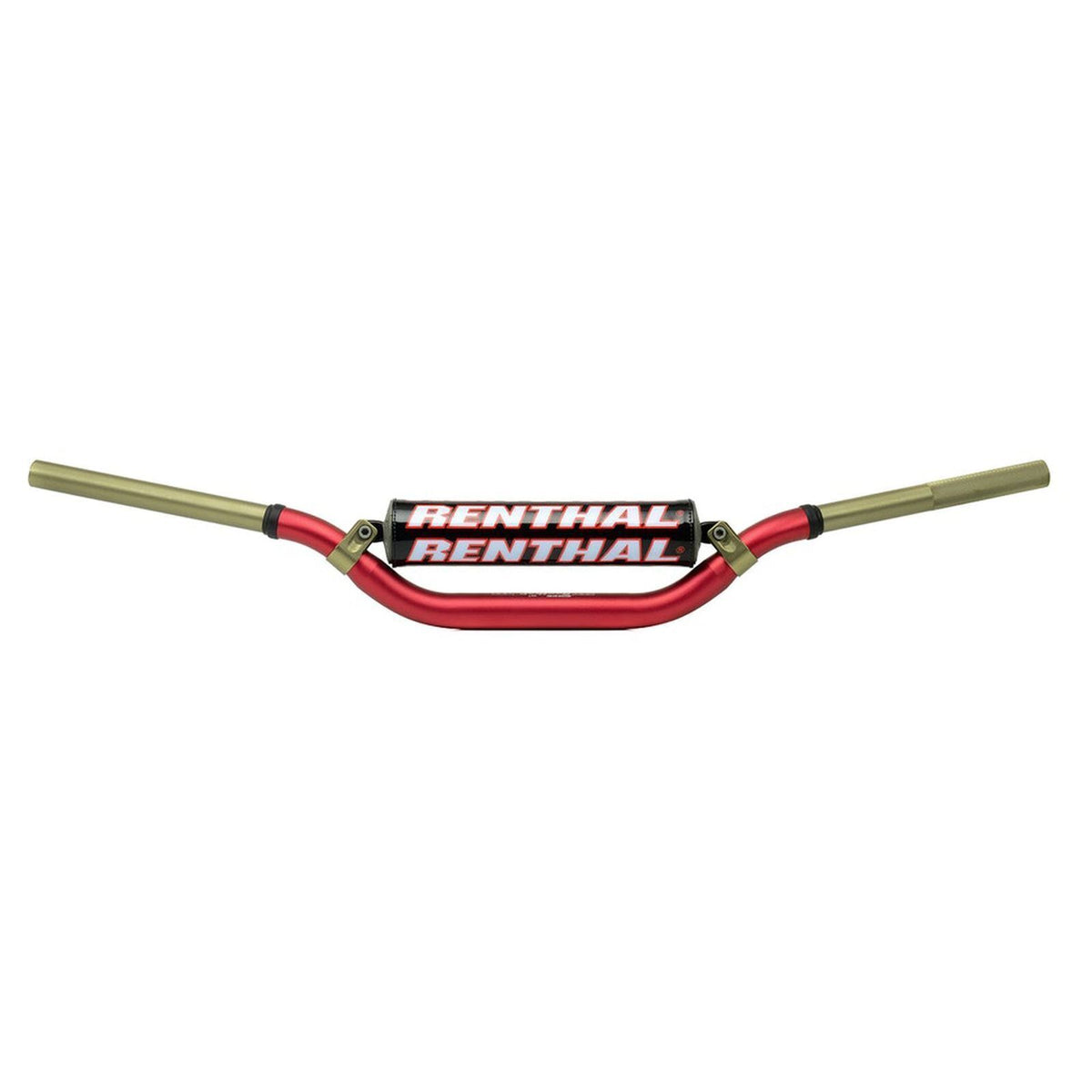

RENTHAL TWINWALL H/BAR RC HIGH RED W/BAR PAD (922-01-RD-07-185)

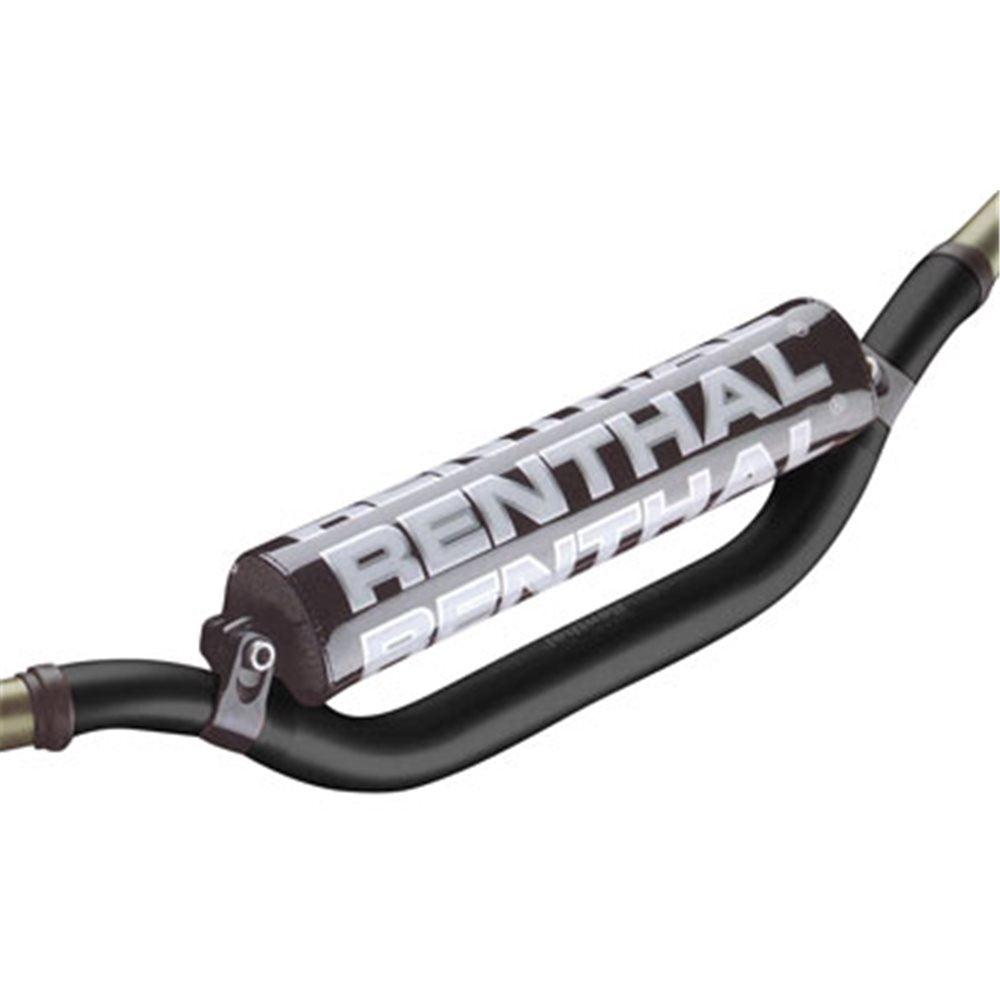

RENTHAL TWINWALL BARS- RC High Bend Renthal’s revolutionary Twinwall® handlebar is a large diameter, 1 1/8” double tube Handlebar which combines immense strength, good resilience and a virtual guarantee against fatigue failure. The Twinwall® has been designed and developed to achieve the best combination of strength and safety, the result? A bar that will only bend in the most severe crashes.

• Twinwall® construction - Consists of two aluminium alloy tubes, one within the other
• Outer tube is 7010 T73, which has extreme resistance to mechanical damage and is anodised to prevent corrosion
• Inner tube is ultra high strength 7010 T6 Aluminium and is hard anodised to resist wear from twist grip and controls

Single Bolt Design

• Renthal's pioneered bonded lightweight single bolt clamping system for the crossbrace, greatly increases strength whilst still allowing flex

Positioning Grid

• Laser etched positioning grid

Knurled End

• Knurling (Clutch end only) increases bonding between bar and grip

Smooth End

• No knurling in clamp area, this could cause a stress raiser and lead to fatigue failure

Bar Pad

• A specially developed injection moulded crossbar pad is fitted with every handlebar

Rubber Seals

• Rubber seals cover the join to keep out water and cleaning fluids

*Dimensions are in millimeters (mm)*

Spare Bar Pad	P261
Width (Dim A)	812mm
Height (Dim B)	120mm
Rise (Dim C)	86mm
Clamping Width (Dim D)	115mm
Sweep (Dim E)	58mm
Control Length (Dim F)	187mm
Height (Dim Bv)	120mm
Mounting Diameter	28.6mm / 1-1/8"
