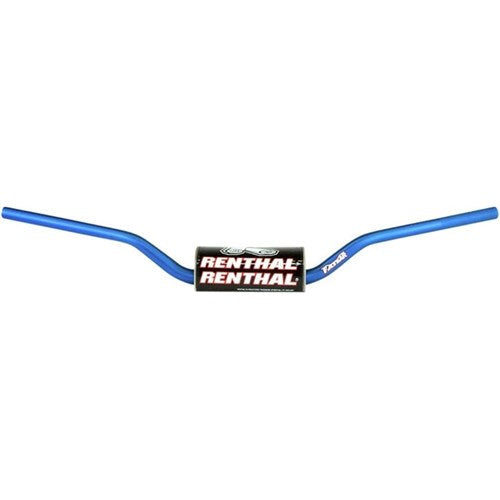

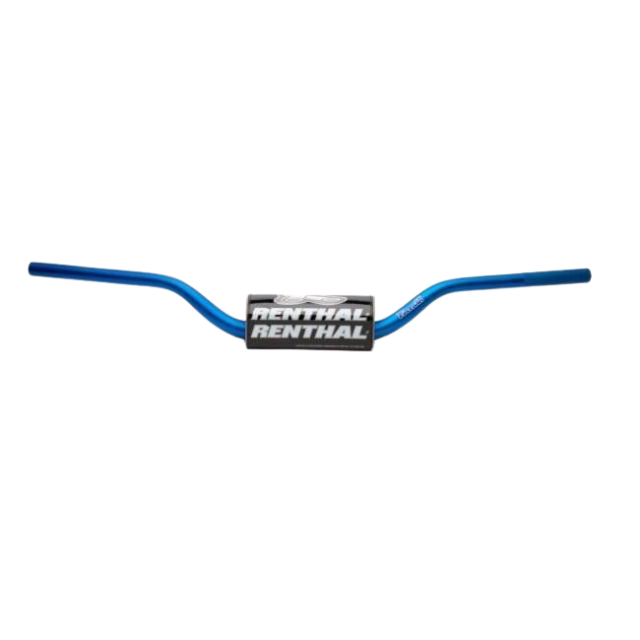

RENTHAL FATBAR H/BAR REED/WINDHAM BLU W/BAR PAD (603-01-BU)

1 1/8” (28.6mm) large diameter clamping area
Tapered wall construction to 7/8” (22.2mm) allows fitment of standard grips and controls
Braceless design
7010 T6 Aluminium. Renthal® has exclusive rights to this specifically developed
alloy, for the manufacture of handlebars.
Shot peened surface finish to help prevent fatigue failure
Knurled grip area increases bonding between bars and grips
No Kurling in clamping area as this could cause a stress riser and lead
to fatigue failure
Anodising – a 15 step anodising process forms an integral coating giving
protection against corrosion
Laser etched positioning grid
Available in a variety of bends and colours to offer a custom fit on the bike

Suitable for all dirt bikes that use 1-1/8″ handlebars (Pro Taper sized). 1-1/8″ is measured at the clamping area where they clamp to the top triple clamp, they taper to 7/8″ where the grips and controls mount.

Renthal Windham bend bar specs are:

803mm wide

92mm high

56mm rise

57mm sweep
