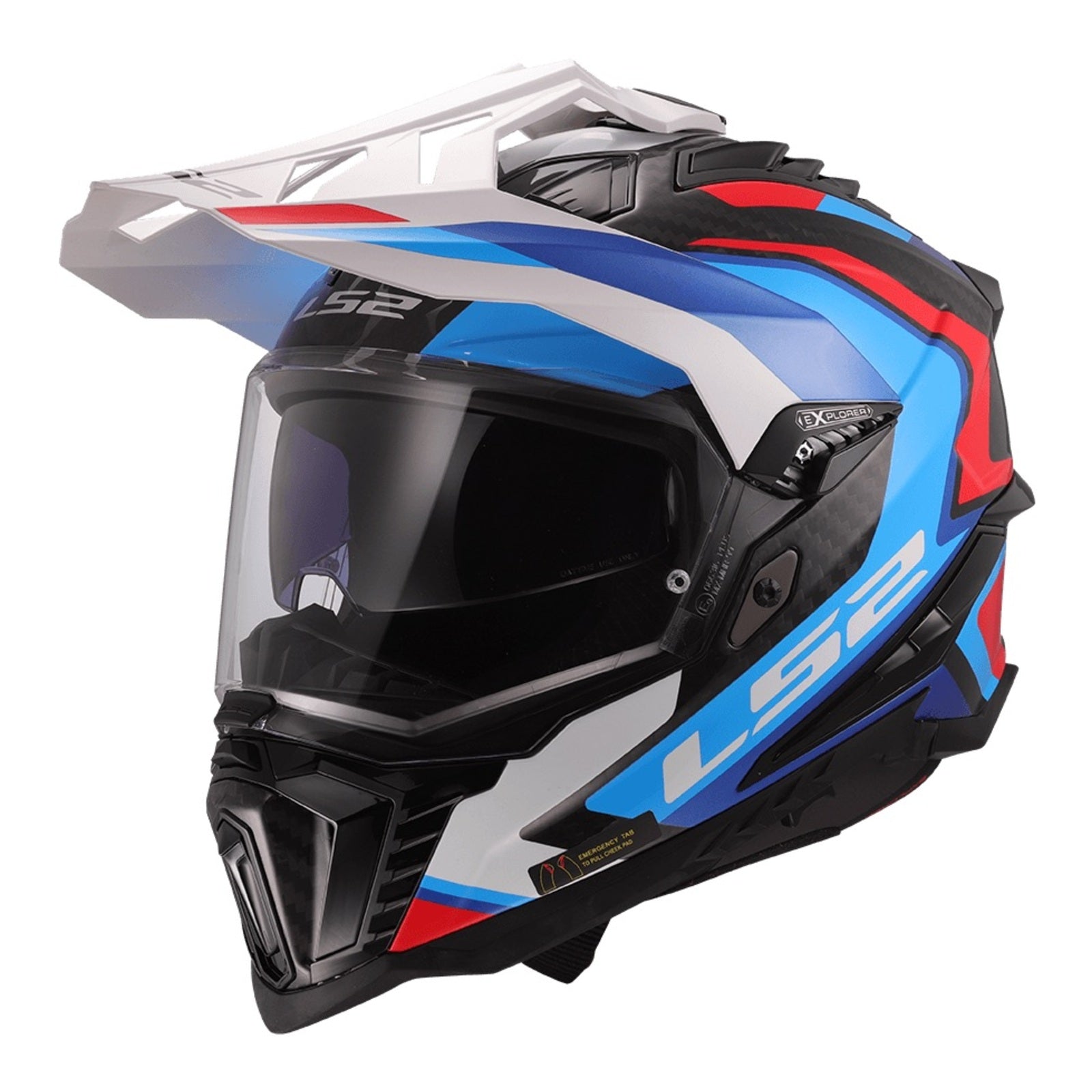

LS2 MX701 Explorer Carbon Frontier II Helmet - White / Blue / Red

Perfect trail helmet for long distance routes and any surface. Maximum safety and lightness thanks to its carbon fibre. Excellent ventilation. Adjustable and removable peak. Wide anti-scratch visor prepared for the anti-fog system, Pinlock Max Vision, and interior sun visor.

SPECIFICATIONS

• Material: Carbon
• Weight 1450 grams (±50 grams)
• Sizes (3 Shells):
  • XS-S
  • L
  • XL-2XL-3X
• Homologation: ECE 22.06

SAFETY

• Emergency Release System
• Double Ring
• Multi-Density EPS
• Visor Button Lock
• Reinforced C Strap

VENTILATION

• Chin and top vent
• Exhaust vents
• Channelled EPS

COMFORT

• Removable and washable
• Breathable
• Hypoallergenic
• Laser-cut foam

VISOR

• Pinlock® 70 MaxVision™ included
• Twin Visor System
• Scratch-resistant
• UV- resistant

• Carbon fibre shell for low weight and high strength
• ECE 22.06 homologated
• Approximate weight of 1450 g (±50 g)
• Twin Visor System with drop-down internal sun visor
• Pinlock 70 MaxVision anti-fog insert included
• Wide outer visor with scratch-resistant and UV-resistant treatment
• Visor button lock to keep the shield secured
• Adjustable peak that can be removed for road use
• Chin and top intake vents plus exhaust vents with channelled EPS
• Multi-density EPS liner
• Emergency Release System for safer helmet removal by first responders
• Double D-ring retention with reinforced chin strap
• Removable and washable liner in breathable, hypoallergenic laser-cut foam
• Three shell sizes to keep proportions correct across the size range

• Helmet with peak fitted
• Pinlock 70 MaxVision insert

Fasten the double D-ring properly every ride: thread the strap through both rings, back through the outer ring, and pull firm — the strap should sit snug under the jaw with no slack.
Remove the liner and cheek pads and hand wash in cool water with a mild detergent, then air dry away from direct sunlight and heat. Never machine dry or use a hair dryer, as heat distorts the foam.
Clean the carbon shell and vents with a soft cloth, warm water and mild soap only. Keep petrol, solvents, ammonia-based cleaners and insect repellent away from the shell, visor and internal sun visor.
Wash the outer visor separately with a damp microfibre cloth. Soften dried insects by laying a damp cloth over them for a few minutes rather than scrubbing.
Remove the Pinlock insert before cleaning the visor. The anti-fog coating is soft — rinse gently, do not rub dry, and let it air dry.
After dusty or muddy off-road rides, clear the chin, top and exhaust vents so the airflow channels stay open, and check the peak fasteners are still tight.
Remove the peak for sustained highway riding if you find buffeting at speed, and refit it squarely with all fasteners secured for trail work.
Store the helmet in a cool, dry place in its bag, out of sunlight and away from fuel vapours. Avoid resting it on mirrors or bar ends, which crush the liner.
Re-seat the Emergency Release System cheek pads fully after any removal so the release tabs are correctly positioned for first responders.
Replace the helmet after any significant impact, even if there is no visible damage to the carbon shell.
