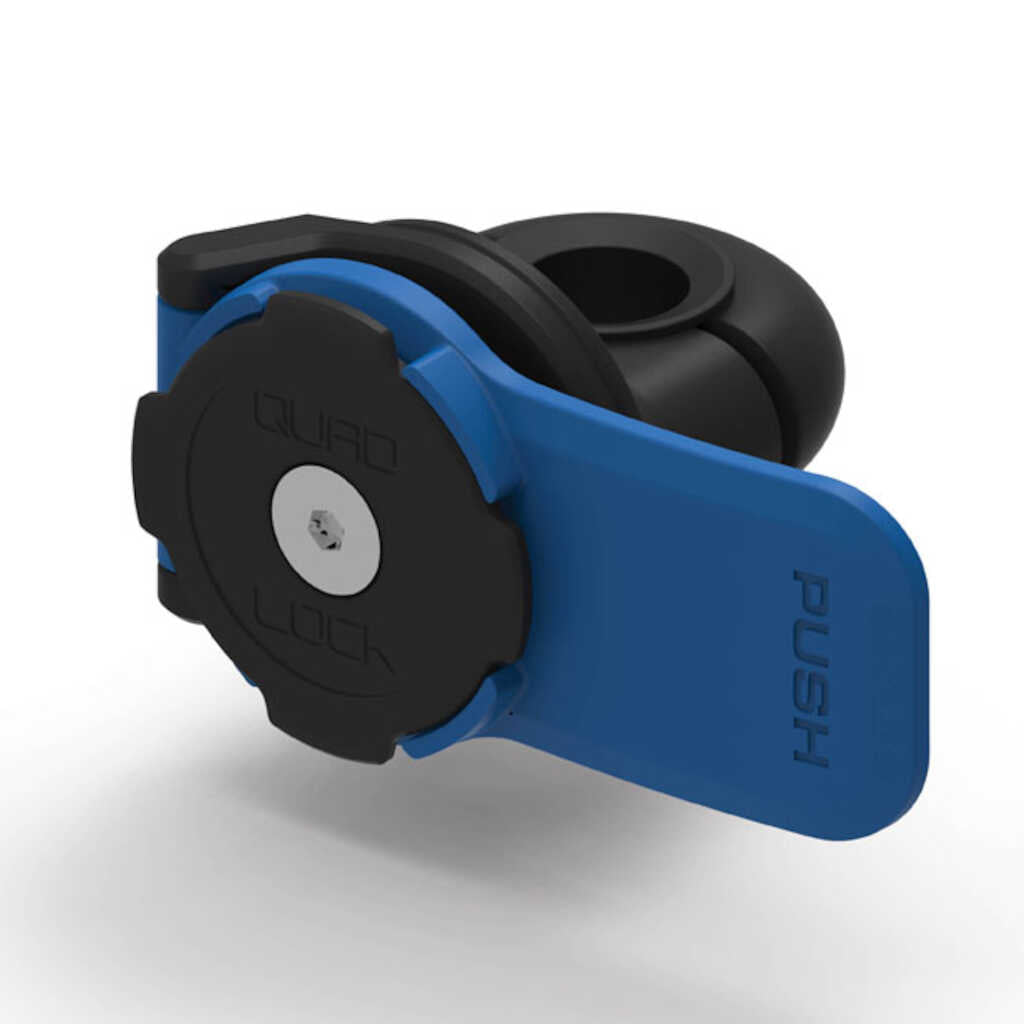

Quad Lock Motorcycle Mirror Mount

The Quad Lock Motorcycle Mirror Mount clamps to standard motorcycle and scooter mirror stems (and other small-diameter bars) to hold your phone in clear view while you ride. It suits commuters, scooter riders and tourers who want navigation, music and calls accessible without cluttering the bars or blocking the instruments.

A small bar clamp and three spacers let the mount suit a range of stem diameters, while the indexing head lets you set the viewing angle to suit your riding position. The patented dual-stage lock means the phone twists on and off in one motion, yet stays put from the urban commute to open highway. It works with all Quad Lock cases and the Quad Lock Universal Adaptor, so you can move one phone between bike, car, bicycle and desk mounts.

Phone case or Universal Adaptor required and sold separately.

• Clamps to standard motorcycle and scooter mirror stems and small bars
• Patented dual-stage locking mechanism secures the phone with a single twist
• Quick twist-on, twist-off attachment and release
• Indexing head allows the viewing angle to be adjusted to suit your riding position
• Compact, discreet mount profile on the mirror arm
• Fits bar diameters of 10 mm, 12 mm, 14 mm and 16 mm using the supplied spacers
• Moulded from tough glass-filled nylon with stainless steel hardware
• Compatible with all Quad Lock cases and the Quad Lock Universal Adaptor

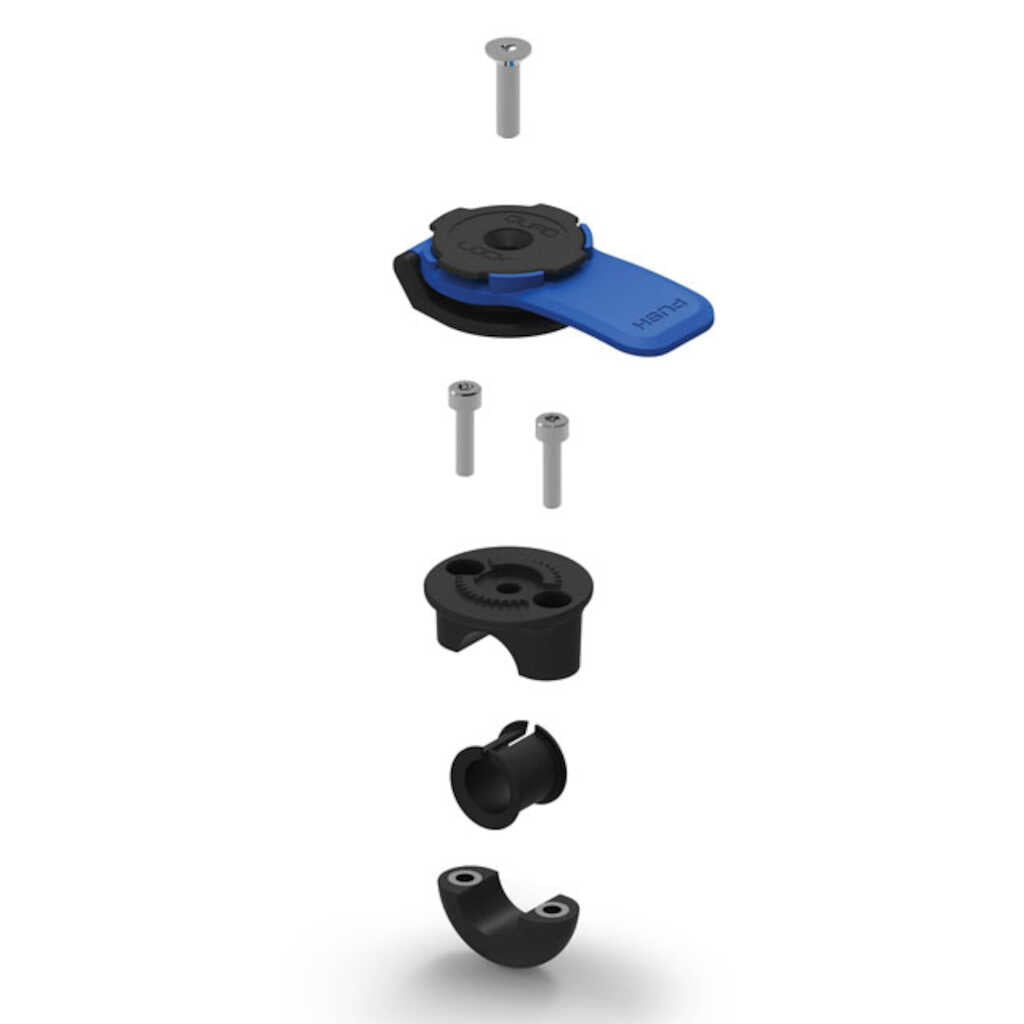

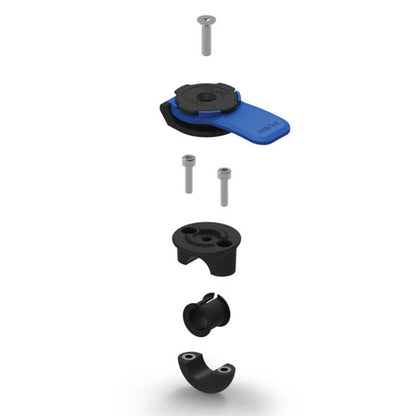

• 1 x Quad Lock Index Head (with blue lever)
• 1 x Small Bar Clamp
• 3 x Bar Spacers
• 1 x Allen (hex) key

Choose the bar spacer that matches your mirror stem diameter (10, 12, 14 or 16 mm) so the clamp seats evenly on the stem before tightening.
Tighten the clamp fitting evenly with the supplied hex key until the mount is firm and cannot rotate on the stem — avoid over-tightening, which can damage the nylon clamp or mark the stem.
Set the viewing angle with the indexing head before you ride, and make sure the mount does not foul mirror adjustment, cables or steering lock-to-lock.
Attach the phone by pushing it onto the head and twisting a quarter turn until it locks, then confirm the blue lever has engaged in the locked position before setting off.
Release the phone by holding the lever open and twisting back — do not force the phone off while the lever is engaged.
Check the clamp bolt and mount tightness periodically, particularly after the first few rides and after riding rough or corrugated roads, as vibration can loosen fittings over time.
Keep the locking head and lever free of dust, grit and road grime; rinse with clean water if needed and wipe dry.
Clean with a soft damp cloth and mild soap only. Avoid solvents, petrol, brake cleaner and harsh degreasers, which can damage the nylon and plastics.
Remove your phone when parking the bike, both for security and to limit exposure to heat, rain and UV.
