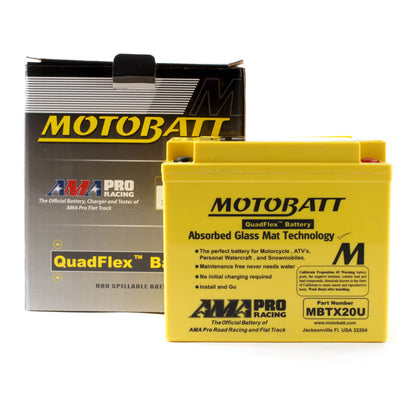

Motobatt Battery Quadflex AGM - MBTX20U

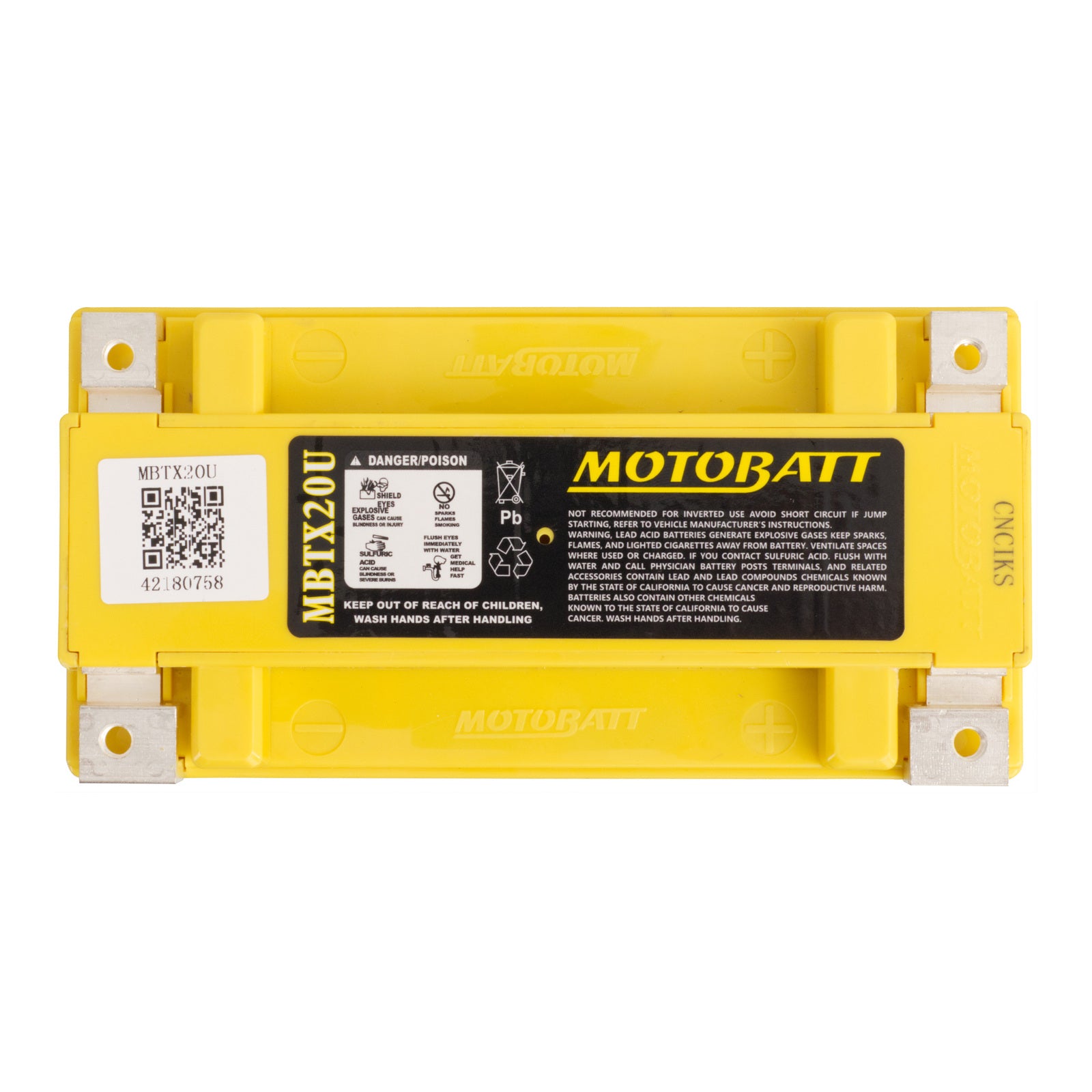

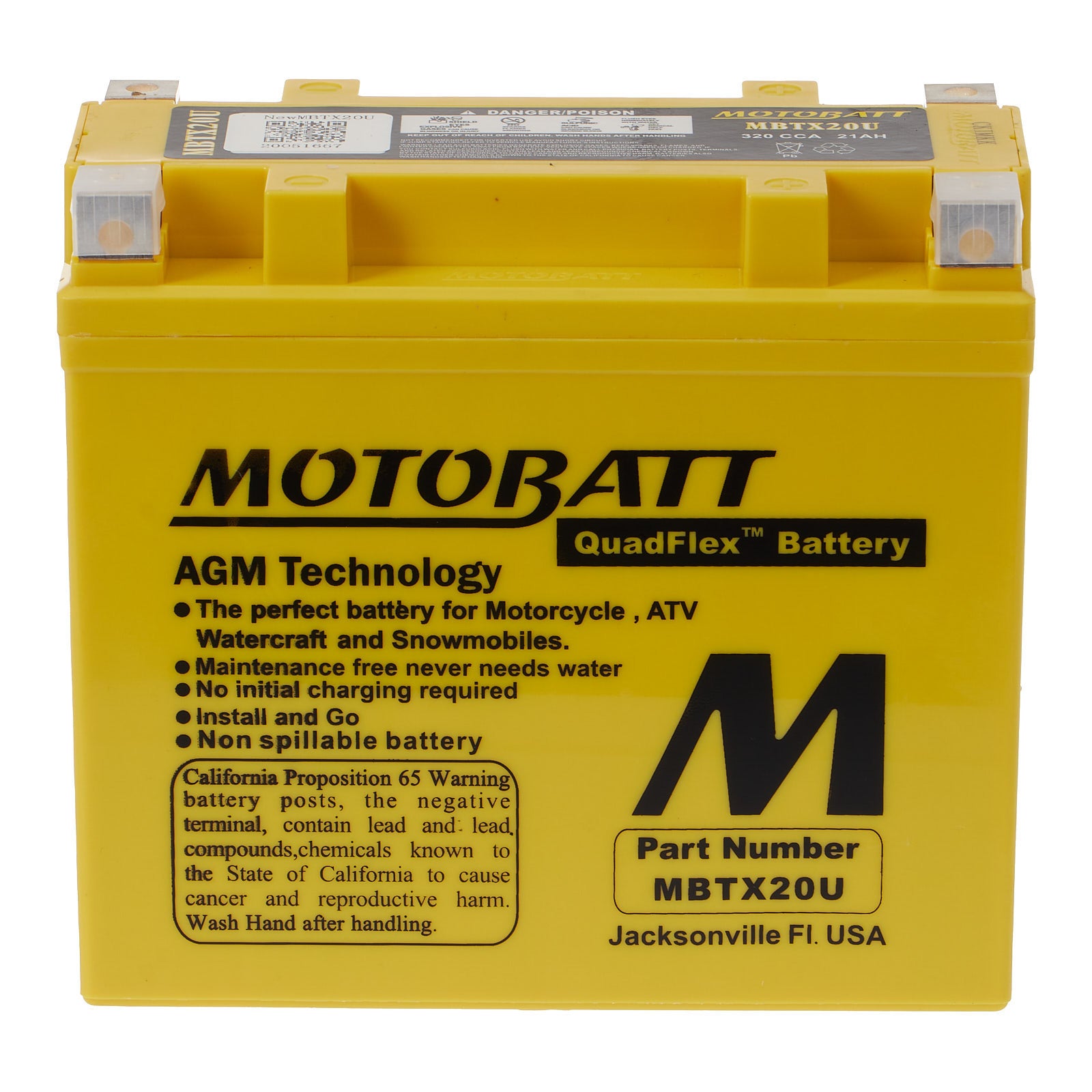

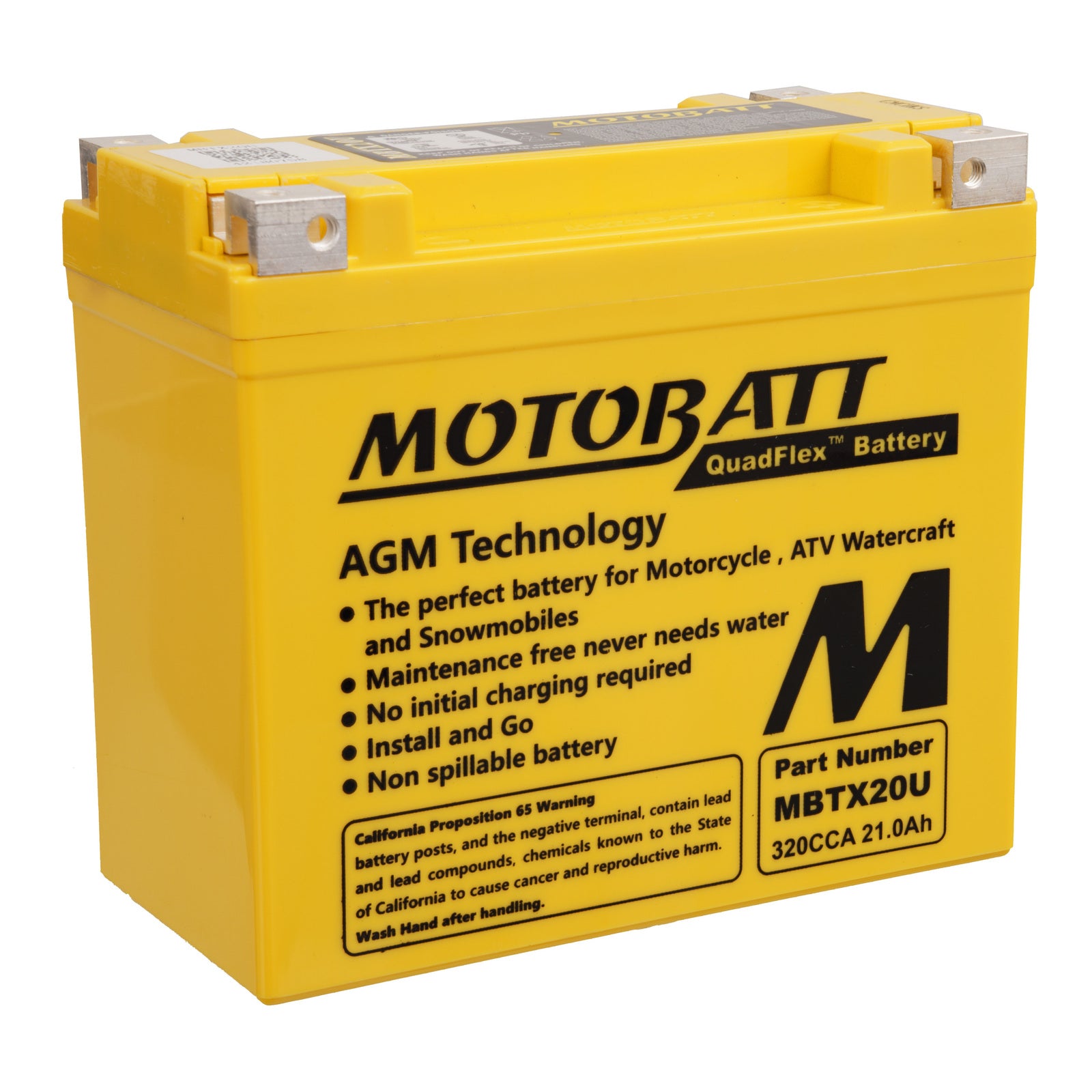

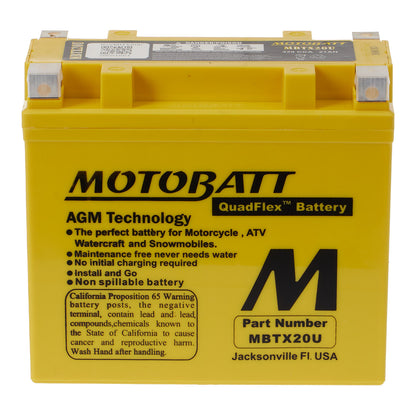

Motobatt batteries are built using Absorbed Glass Mat (AGM) technology, a design that has revolutionised the motorcycle, ATV, lawnmower, and small engine industries. Featuring QuadFlex technology, each battery incorporates a unique four-terminal design with two positive and two negative terminals, plus height spacers to allow for an almost universal fit. All Motobatt AGM batteries are maintenance-free, non- hazardous, non-spillable, and come fully charged and ready to install straight out of the box.

Each battery plate is wrapped in a fibrous glass mat that absorbs all liquid electrolytes and cushions the plates to prevent vibration damage. This design minimises the risk of short circuits or broken plate welds, common causes of battery failure. The thicker, heavier plates used in Motobatt’s construction further enhance durability and performance.

Compared to standard wet-flooded batteries, AGM batteries have a significantly lower self-discharge rate. As a high amp-hour AGM battery, Motobatt can discharge more deeply and recover repeatedly under vehicle alternator charging or through maintenance charging, something conventional flooded batteries cannot endure without premature failure.

Your Motobatt is a Factory Activated battery, pre-conditioned and fully charged for optimal performance right out of the box. Up to 80% of early Powersports battery failures are due to improper activation of dry battery plates, a problem completely eliminated with Motobatt’s factory activation. You’ll also never need to handle acid, top up fluids, or deal with corrosion from gassing, all of which are common issues with traditional flooded-cell batteries.

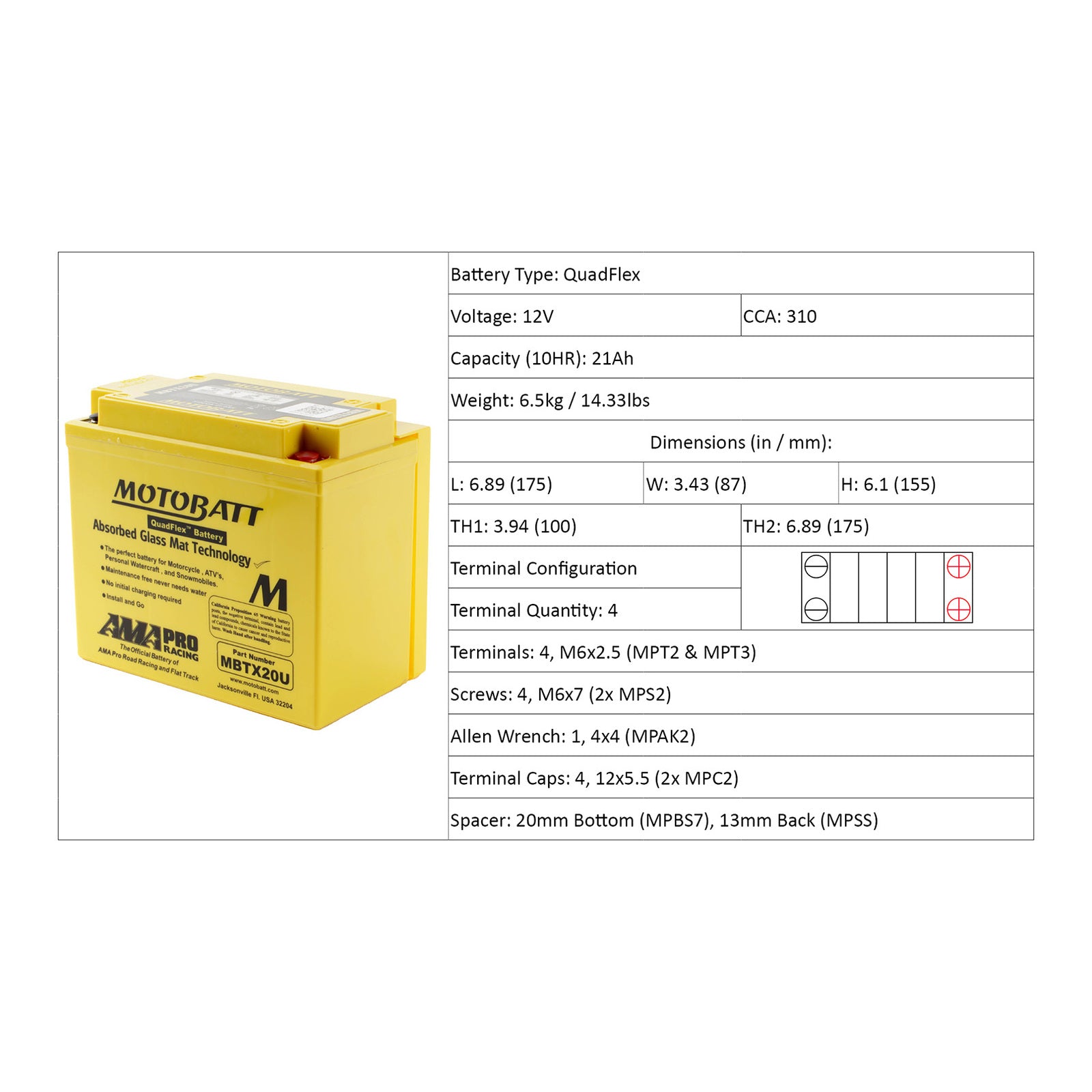

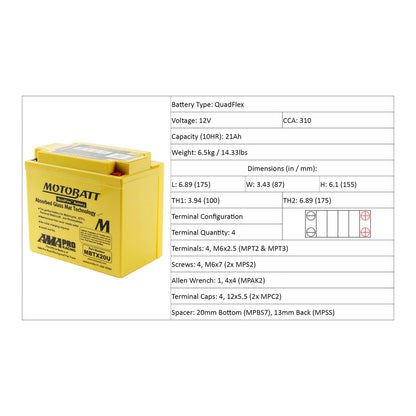

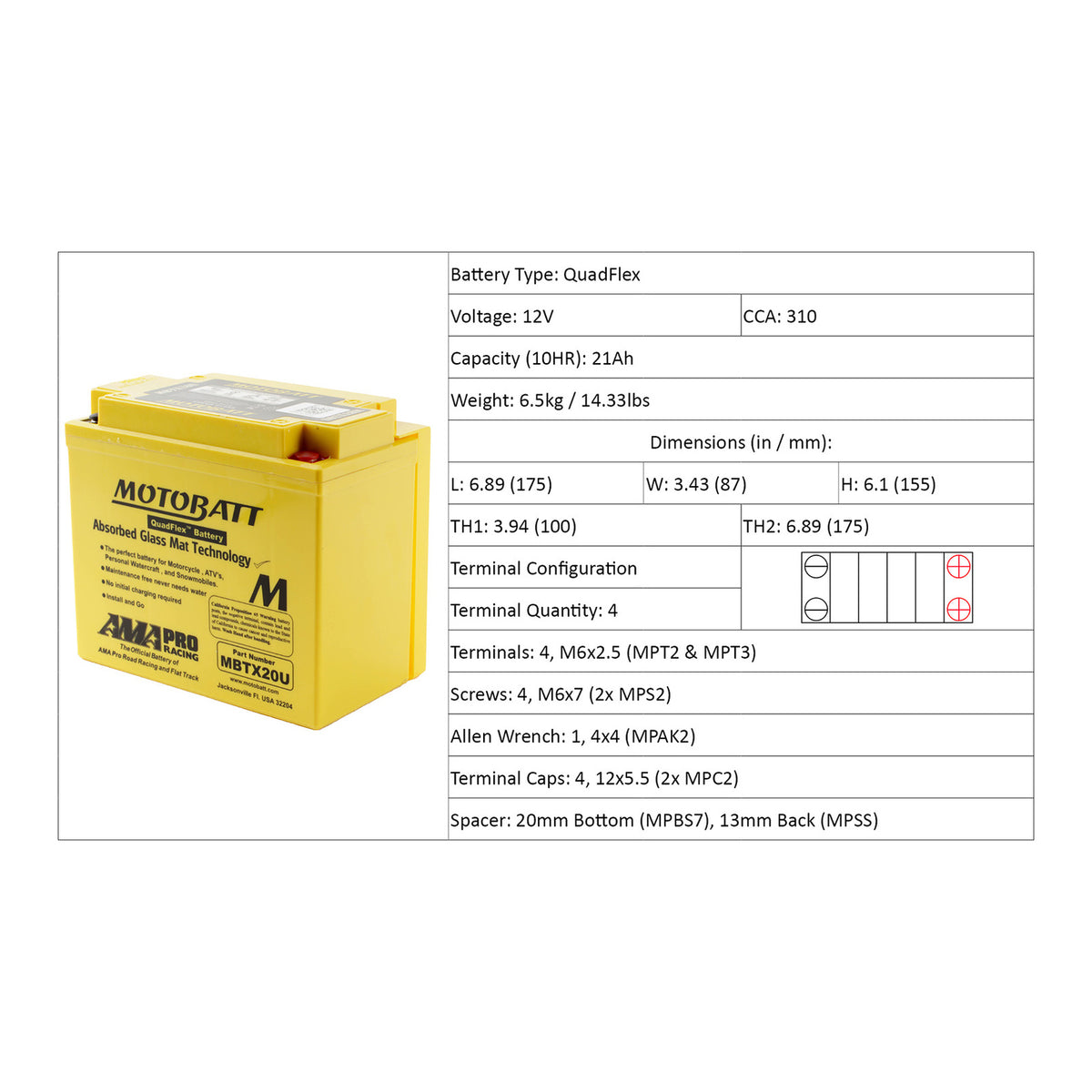

Specifications:

• Voltage: 12V
• C(10) Ah: 21
• C(20) Ah: 22.3
• CCA (Cold Cranking Amps): 320A
• MCA (Marine Cranking Amps): 407A
• PHCA (Pulse Hot Cranking Amps): 624A
• Weight: 6.5kg (14.33lbs)
• Dimensions (LxWxH): 175 x 87 x 155mm (6.89 x 3.43 x 6.1)
• Terminal Height 1: 100mm (3.94)
• Terminal Height 2: 175mm (6.89)
• Terminals: 4, M6x2.5 (MPT2 and MPT3)
• Screws: 4, M6x7 (2x MPS2)
• Allen Wrench: 1, 4x4 (MPAK2)
• Terminal Caps: 4, 12x5.5 (2x MPC2)
• Spacer: 20mm Bottom (MPBS7), 13mm Back (MPSS)

Features:

• Patented QuadFlex multi-fit terminals.
• Absorbed Glass Mat technology – ensures greater protection against vibration and gives a longer lifecycle.
• Fully sealed – can be mounted and transported in any position.
• No initial charging – install and go, charged right out of the box.
• Maintenance free – no messy acid to worry about.
• 20% more cold cranking amps (CCA).
• Easy accessory connection with multiple terminals.

Motobatt batteries are available via courier delivery as they contain no liquid acid!

• 12V AGM (Absorbed Glass Mat) construction, sealed and maintenance free
• Patented QuadFlex four-terminal layout with two positive and two negative posts
• Supplied height spacers (20mm bottom, 13mm back) for near-universal tray fitment
• 320A cold cranking amps (CCA), 407A marine cranking amps (MCA)
• 624A pulse hot cranking amps (PHCA)
• 21Ah at the 10-hour rate, 22.3Ah at the 20-hour rate
• Factory activated and fully charged — install straight from the box
• Non-spillable and fully sealed, so it can be mounted and transported in any position
• Glass mat separators cushion the plates against vibration damage
• Thicker, heavier plates for deeper discharge and repeated recovery
• Low self-discharge rate compared with wet-flooded batteries
• Spare terminals make accessory wiring easy without stacking ring terminals
• No acid handling, no fluid top-ups and no gassing corrosion
• Ships by courier — contains no free liquid acid

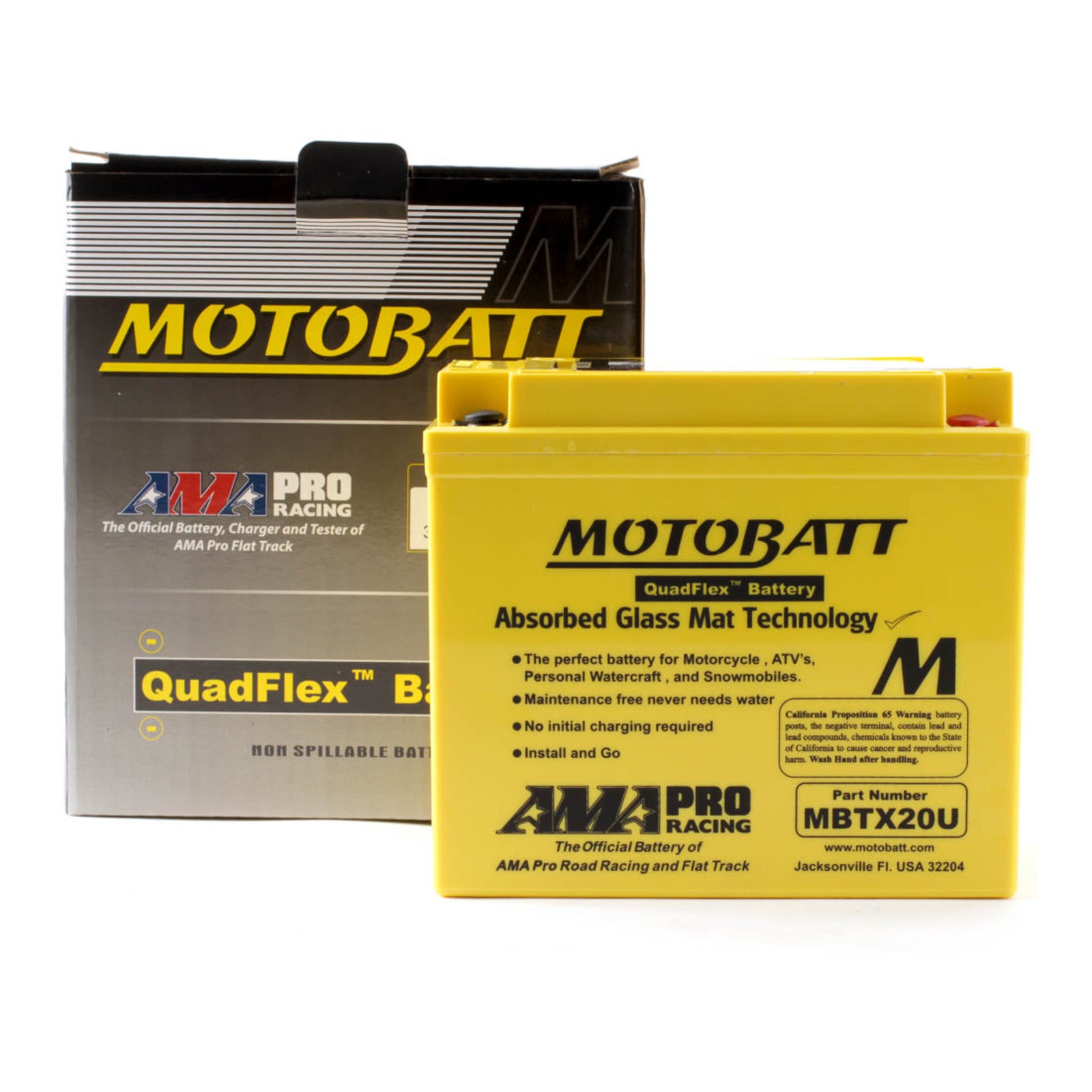

• Motobatt MBTX20U AGM battery (factory activated)
• 4 x M6 x 7 terminal screws (2x MPS2)
• 4 x terminal caps, 12 x 5.5 (2x MPC2)
• 1 x 4mm Allen wrench (MPAK2)
• 20mm bottom spacer (MPBS7)
• 13mm back spacer (MPSS)

No activation required — the battery is factory activated and fully charged, so it can be fitted straight from the box without adding acid or giving it an initial charge.
Check the tray before fitting: use the supplied 20mm bottom and 13mm back spacers to take up slack so the battery sits firm and cannot move under vibration.
Choose the terminal pair that best suits your cable routing, then fit the unused posts with the supplied caps to prevent accidental shorts against the frame or tray.
Use the supplied M6 screws and Allen wrench, connect positive first and negative last on installation (negative first on removal), and nip the screws up snugly — do not overtighten, as the terminals are threaded inserts.
Use the spare terminals for accessories such as heated grips, driving lights or a charge lead rather than stacking multiple ring terminals on one post.
Only charge with a charger that has an AGM or sealed lead-acid setting; a low-amperage smart charger is ideal. Do not use a high-output boost or bulk charger, and never use a charger intended for gel batteries.
If the bike is stored or ridden only occasionally, put it on a maintenance charger periodically. AGM self-discharges slowly, but leaving any lead-acid battery flat for long periods causes permanent capacity loss.
Store off the bike in a cool, dry place, charged, and away from direct heat sources. Top up the charge before returning it to service.
Keep the case and terminals clean and dry — wipe with a damp cloth and dry off. Do not use solvents on the case, and do not pressure-wash directly at the battery or its terminals.
The battery is sealed: never attempt to open it, drill it or add fluid, and do not expose it to naked flame.
If cranking becomes slow, have the charging system checked as well as the battery — a faulty regulator/rectifier will flatten or cook an otherwise healthy AGM battery.
