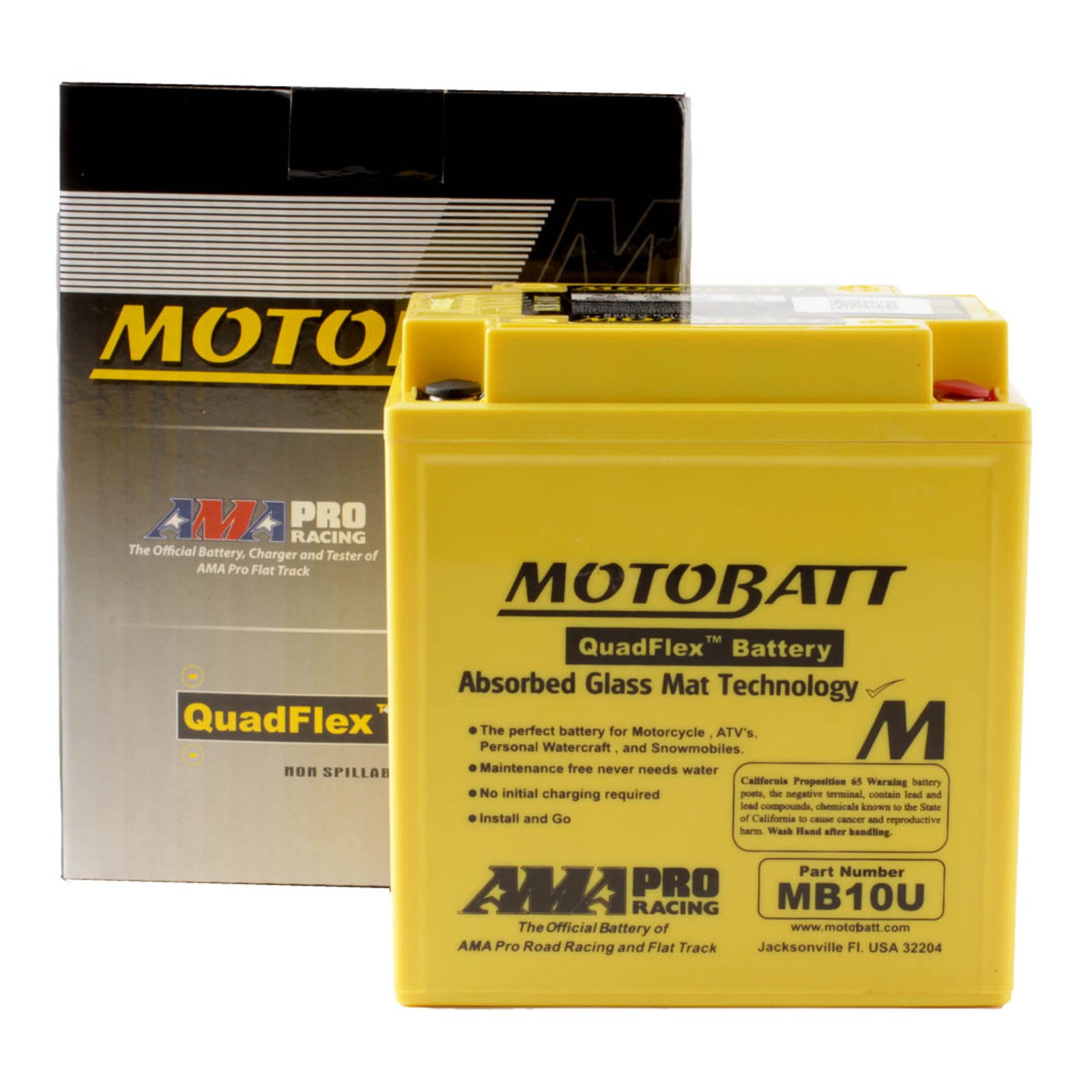

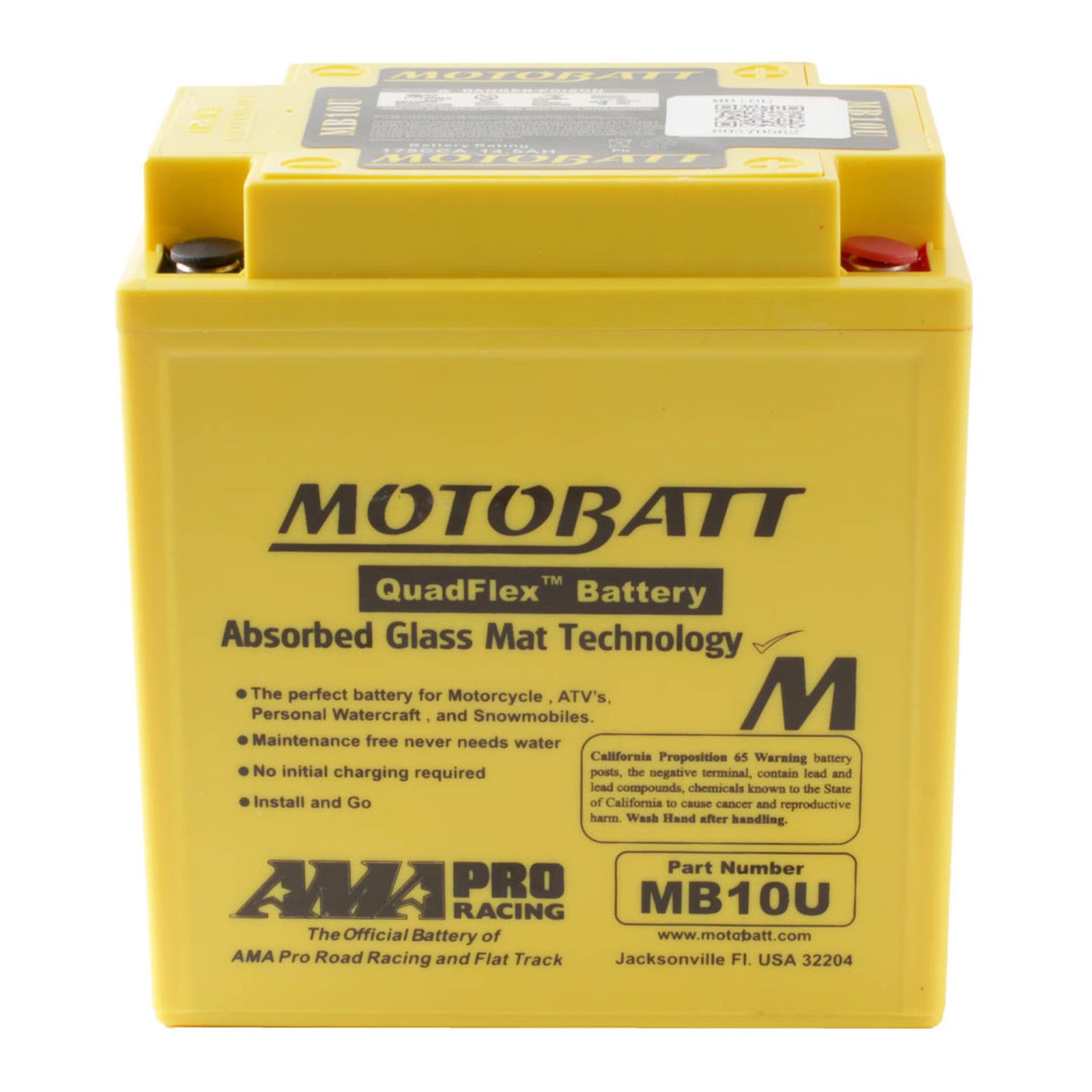

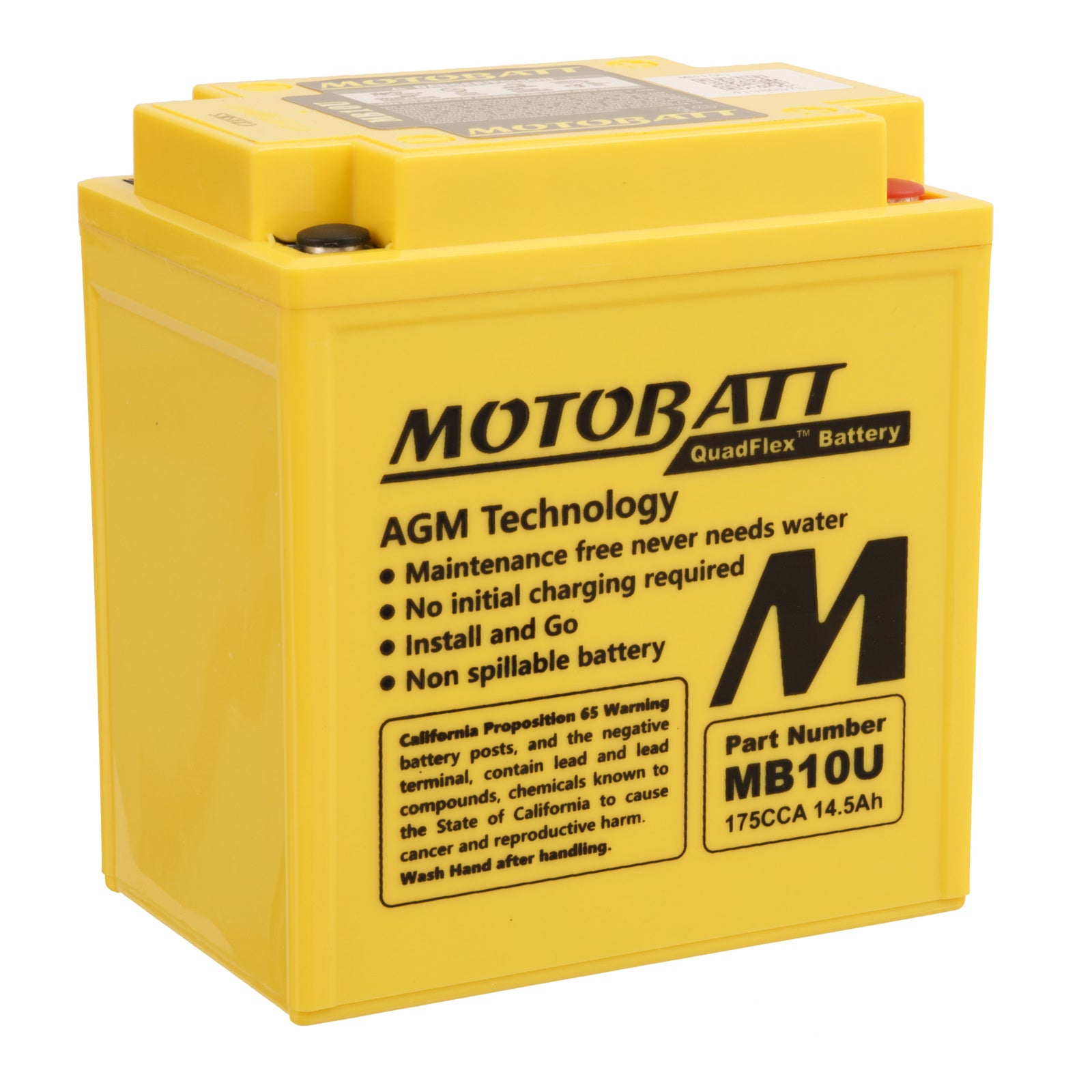

Motobatt Battery Quadflex AGM - MB10U

Specifically designed for motorcycles, Motobatt batteries offer much higher cranking power and higher amp hour ratings. Their batteries can withstand constant starting without draining the battery or causing long-term cell damage. Their unique terminal design offers far greater versatility, allowing them to fit a wider range of applications which enables stockists to carry a narrower range of batteries for a large market, which makes it easier for retail customers to find a battery to fit their vehicle, in stock.

Motobatt batteries are manufactured from Absorbed Glass Mat (AGM), this design has revolutionised the motorcycle, ATV, lawnmower and small engine industry. QuadFlex provides a unique four-terminal design with two positives, two negatives along with height spacers that permit an almost universal fit. All Motobatt AGM Batteries are maintenance-free, non-hazardous, non-spill, charged and ready to install directly out of the box.

Each plate in the battery is wrapped in a fibrous glass matting which not only absorbs all liquid electrolytes but keeps the plates separated in a cushioned environment. This stops the plates from vibrating which can break down the plate and cause short circuits between the plates or break plate welds which results in battery failure. The thick, heavy plates used in Motobatt designs really make the difference.

AGM batteries also have a much lower inherent self-discharge rate than wet flooded types. And, as a higher amp hour AGM battery, the Motobatt battery can also discharge more deeply and recover repeatedly under the vehicle alternator charge or through maintenance charging. A standard flooded cell battery is not capable of withstanding this type of cycling without premature failure.

Your Motobatt is a Factory Activated battery, it comes to you pre-conditioned and fully charged for optimum performance and ready to install out of the box. 80% of early Powersports battery failure is caused by faulty activation of the dry battery plates. Additionally, you never have to mess with acid or top up fluid levels or remove corrosion from the terminals caused by gassing, which are all common with standard flooded battery types.

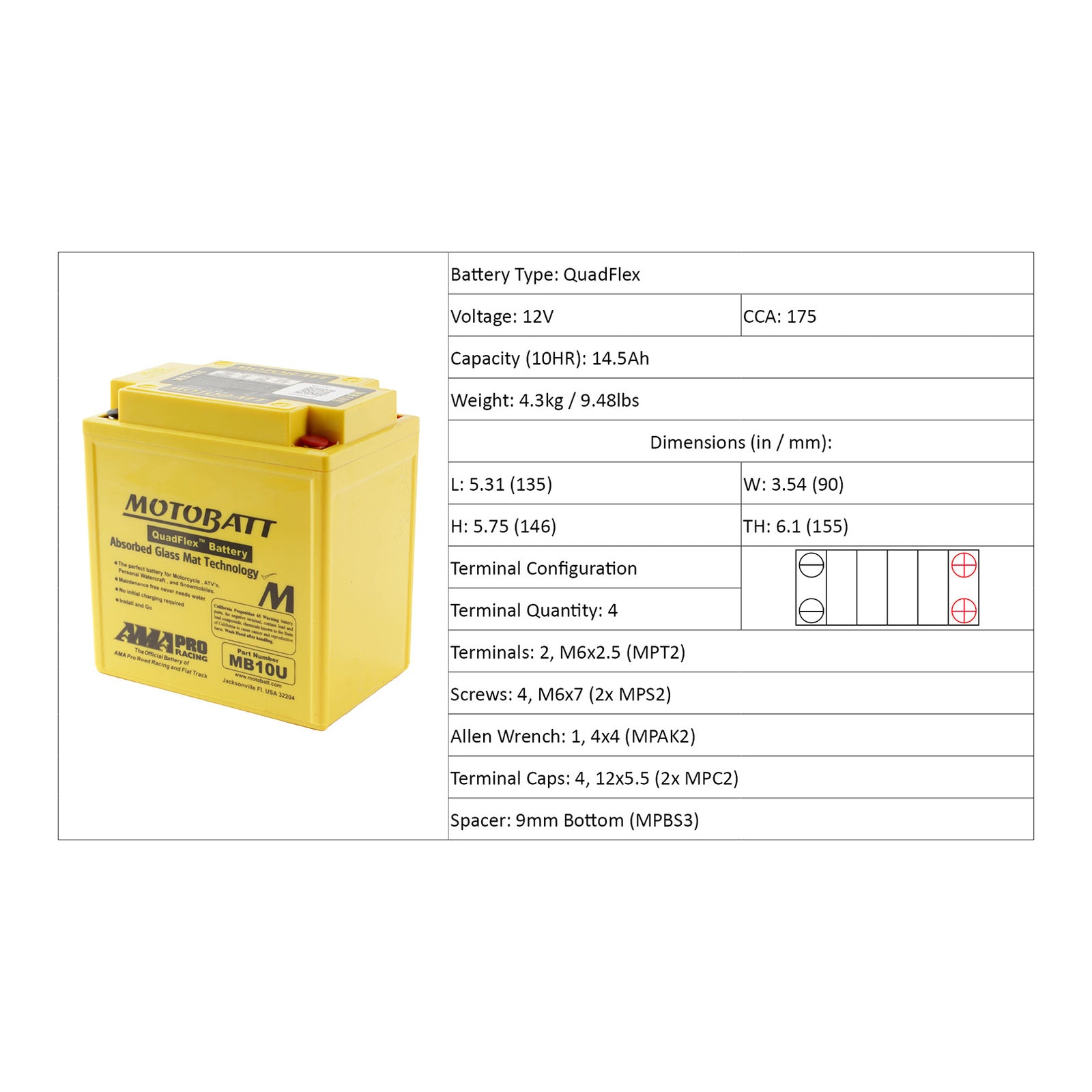

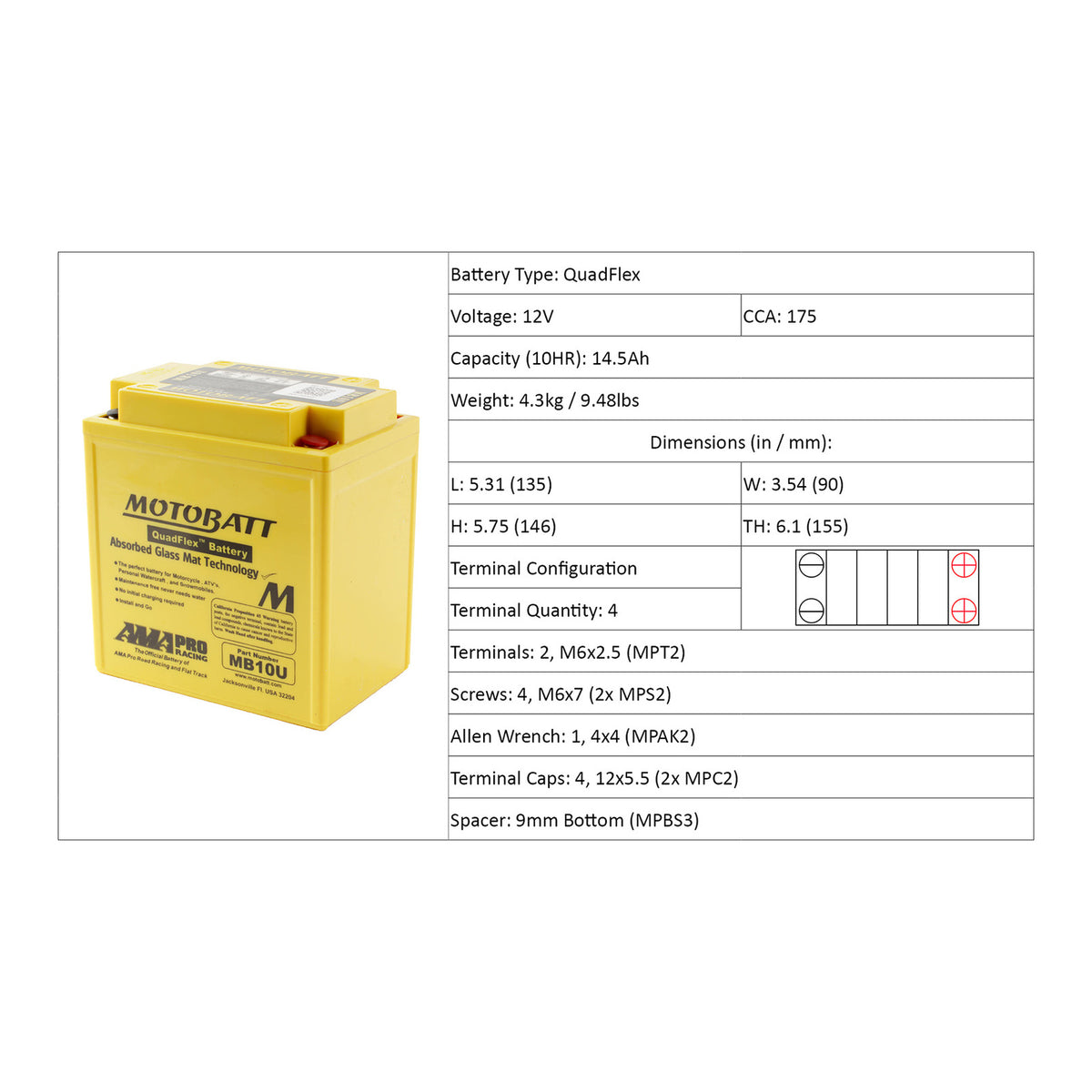

Specifications:

• Voltage: 12V
• C(10) Ah: 14.5
• C(20) Ah: 15.4
• CCA (Cold Cranking Amps): 175A
• MCA (Marine Cranking Amps): 238A
• PHCA (Pulse Hot Cranking Amps): 420A
• Weight: 4.3kg (9.48lbs)
• Dimensions (LxWxH): 135 x 90 x 146mm (5.31 x 3.54 x 5.75)
• Terminal Height: 155mm (6.1)
• Terminals: 2, M6x2.5 (MPT2)
• Screws: 4, M6x7 (2x MPS2)
• Allen Wrench: 1, 4x4 (MPAK2)
• Terminal Caps: 4, 12x5.5 (2x MPC2)
• Spacer: 9mm Bottom (MPBS3)

Features:

• Patented QuadFlex multi-fit terminals.
• Absorbed Glass Mat technology – ensures greater protection against vibration and gives a longer lifecycle.
• Fully sealed – Can be mounted and transported in any position.
• No initial charging – Install and go, charged right out of the box.
• Maintenance Free – No messy acid to worry about.
• 20% more cold cranking amps (CCA).
• Easy accessory connection with multiple terminals.

Motobatt batteries are available via courier delivery as they contain no liquid acid!

• Patented QuadFlex four-terminal design — two positive and two negative posts for flexible fitment
• Absorbed Glass Mat (AGM) construction for high vibration resistance and longer cycle life
• 12V with 14.5Ah at the 10-hour rate and 15.4Ah at the 20-hour rate
• 175A cold cranking amps (CCA), 238A marine cranking amps (MCA), 420A pulse hot cranking amps (PHCA)
• 20% more cold cranking amps than comparable standard batteries
• Factory activated — fully charged and ready to install out of the box, no initial charging required
• Fully sealed, non-spill design can be mounted and transported in any orientation
• Maintenance free — no acid handling, no topping up, no terminal gassing corrosion
• Included 9mm bottom spacer (MPBS3) adjusts overall height to suit more battery trays
• Multiple terminals make wiring accessories straightforward
• Thick, heavy plates and low self-discharge suit deeper discharge and repeated recovery
• Contains no liquid acid, so it can be sent by standard courier

• Motobatt MB10U QuadFlex AGM battery
• 2 x M6 x 2.5 terminals (MPT2)
• 4 x M6 x 7 screws (2 x MPS2)
• 1 x 4 x 4 Allen wrench (MPAK2)
• 4 x 12 x 5.5 terminal caps (2 x MPC2)
• 1 x 9mm bottom spacer (MPBS3)

No initial charging or acid filling is required — the battery is factory activated and ships fully charged, so it can be installed straight from the box.
Check your tray depth and terminal orientation before fitting: use the QuadFlex posts on whichever side suits your leads, and fit the included 9mm bottom spacer if you need extra height.
Use the supplied M6 screws, terminal hardware and 4mm Allen key; tighten terminal screws firmly but do not overtighten, as stripped posts are not covered by normal wear.
Fit the supplied caps over any unused terminals to prevent shorting against the frame, seat base or loose tools.
Disconnect the negative lead first when removing a battery and reconnect it last when installing, to reduce the risk of shorting through the chassis.
Keep the case and terminals clean and dry — wipe with a dry or lightly damp cloth; never open the battery, add water or add acid, as it is a sealed maintenance-free unit.
Use only a charger with an AGM setting. Do not use an unregulated or high-rate flooded/'boost' charger, which can overheat and damage AGM plates.
If the bike is stored or ridden infrequently, keep the battery on a maintenance (trickle) charger or top it up periodically — AGM self-discharge is low but not zero, and leaving it flat for long periods shortens its life.
Investigate persistent flat batteries rather than just recharging: check for parasitic drains and confirm the charging system output, since over- or under-charging will kill any battery.
The battery can be mounted and transported in any position, but still secure it properly in the tray so it cannot shift or vibrate against surrounding components.
