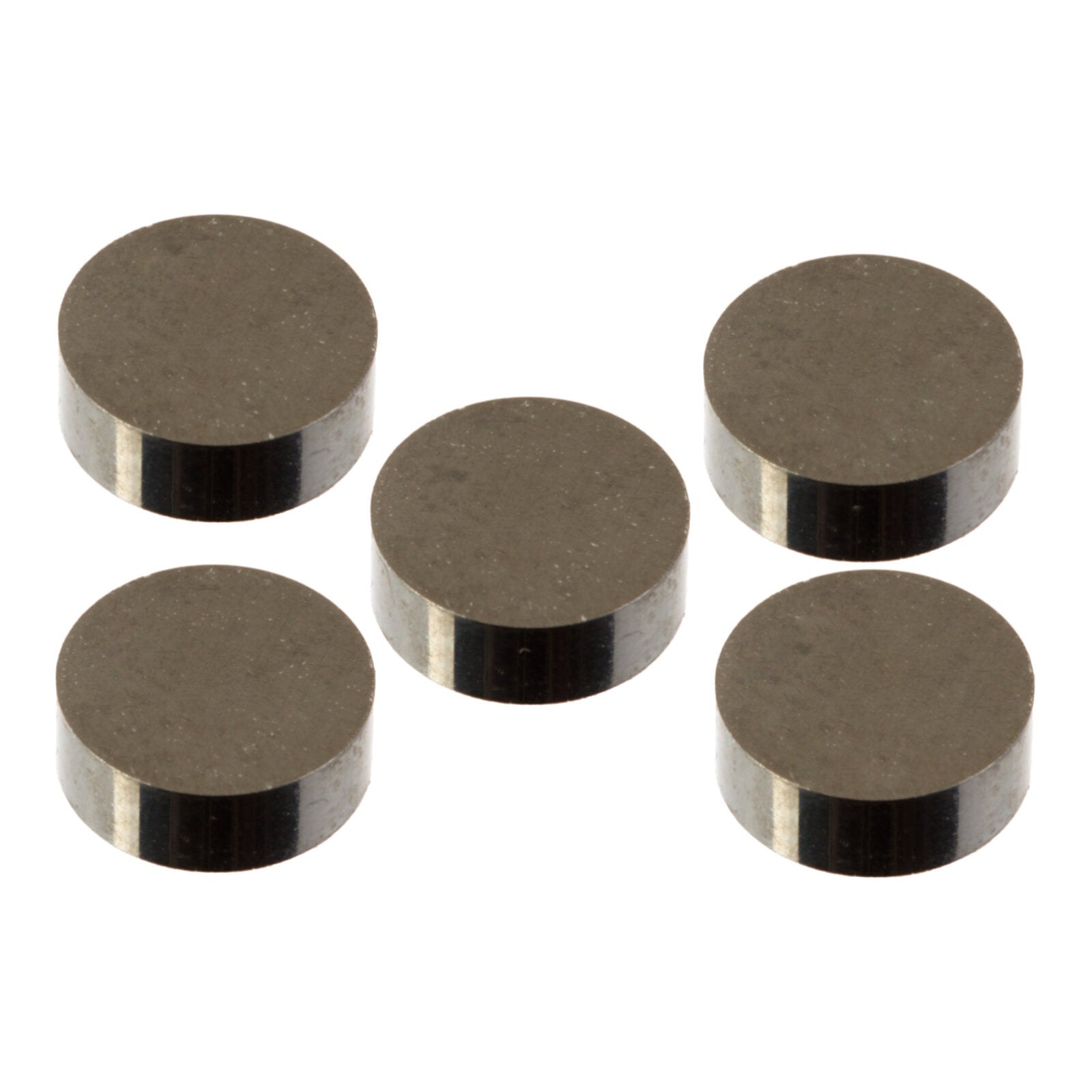

Hot Cams Replacement Shim - 9.48mm x 3.35mm (5 Pack)

Replacement valve adjustment shims from Hot Cams, supplied as a pack of five in a single size — 9.48 mm outside diameter by 3.35 mm thick. They are heat-treated for hardness and durability, and precision machined so the thickness matches the marked size when you are dialling in valve clearances.

Suited to workshops and home mechanics servicing four-stroke engines that use 9.48 mm outside diameter shims, which is typical of many 400cc and larger four-strokes. Selling each size on its own keeps the cost down when you only need one thickness, and makes it easy to top up a depleted shim kit or shim tray.

Compatible with stock or aftermarket camshafts. Always confirm the outside diameter your engine uses before ordering — many 250cc four-strokes take 7.48 mm shims, and some KTM models use 10 mm or 8.90 mm.

• 9.48 mm outside diameter valve shim
• 3.35 mm thickness
• Supplied as a pack of 5 shims, all the same size
• Heat-treated for hardness, durability and reduced wear
• Precision machined to match the stated size
• Works with stock or aftermarket camshafts
• Sold by individual size to keep costs down when topping up a shim kit

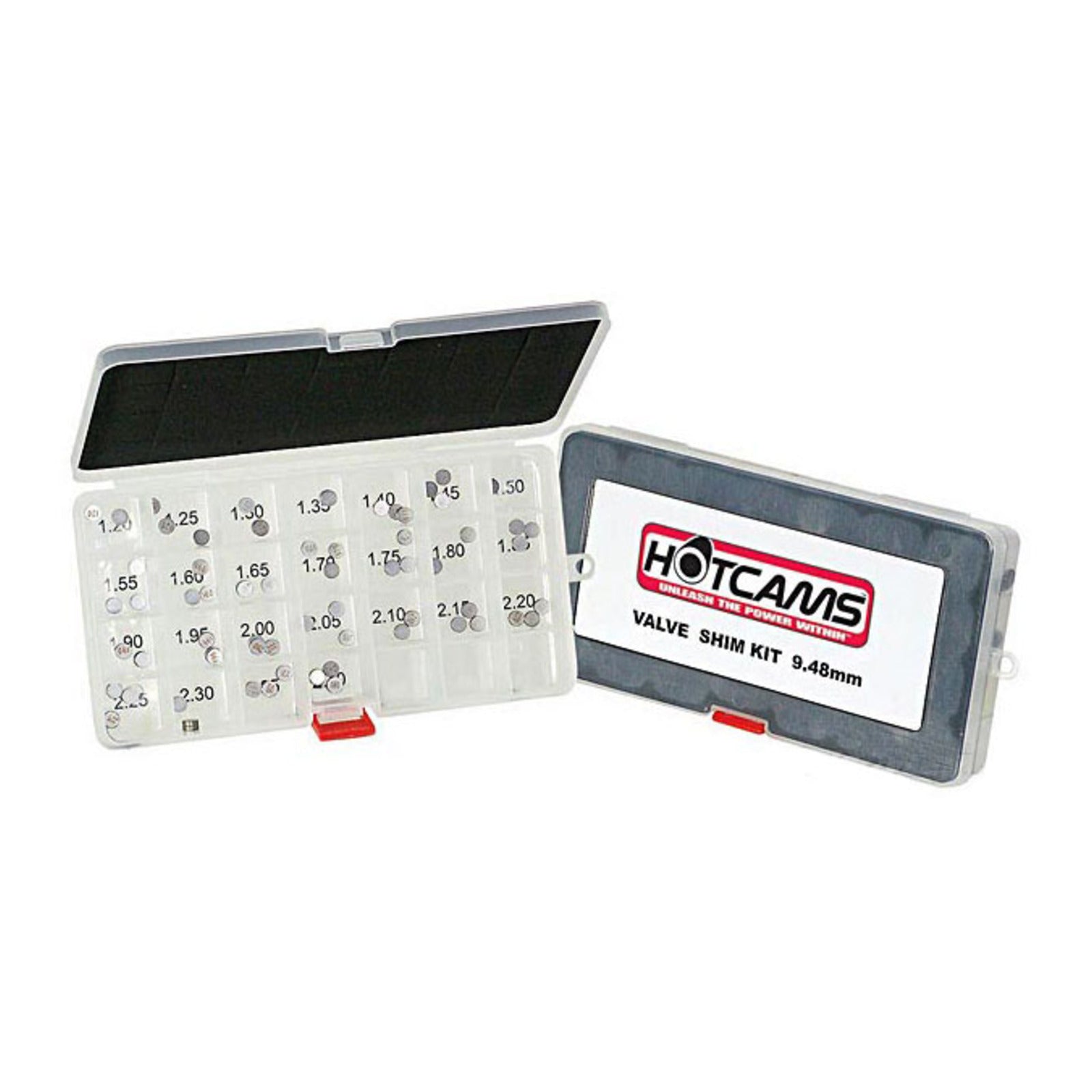

• Part of a range covering 9.48 mm shims from 1.20 mm to 3.50 mm in 0.05 mm increments

• 5 x Hot Cams valve shim, 9.48 mm OD x 3.35 mm thick

Check and adjust valve clearances with the engine completely cold, and follow the clearance figures and service intervals in your vehicle's workshop manual.
Confirm your engine uses 9.48 mm outside diameter shims before fitting — many 250cc four-strokes take 7.48 mm, and some KTM models use 10 mm or 8.90 mm.
Measure each shim with a micrometer before installation rather than relying on printed markings, and measure the shims you remove as well, since worn or unmarked shims can lead to an incorrect calculation.
Handle shims with clean hands or gloves and wipe them with a lint-free cloth; grit or burrs on the seating face will alter the measured clearance.
Install the shim seated flat and fully home in its bucket or retainer as described in the service manual, then rotate the engine through several turns by hand and re-measure the clearance before reassembling.
Do not grind, sand or lap a shim to change its thickness — this removes the hardened surface and causes rapid wear; fit the correct size instead.
Store the spare shims in a labelled shim tray or the original packaging in a dry place so sizes do not get mixed and surfaces do not corrode.
Re-check valve clearances after the first few hours of running following any camshaft, valve or head work, and keep the shim kit topped up with the sizes you use most.
