GIVI ENGINE CRASH GUARDS - BMW S1000XR 15-19

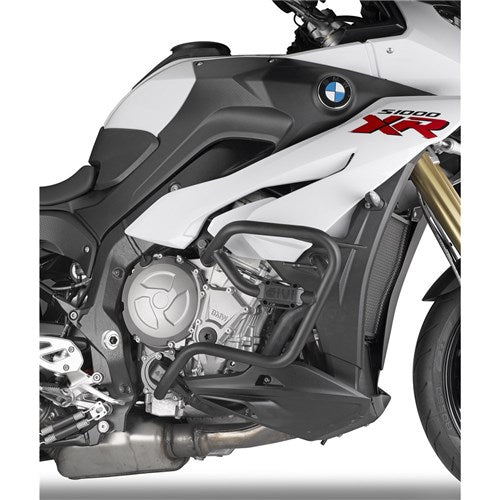

The Givi TN5119 is a model-specific engine guard for the BMW S1000XR built between 2015 and 2019. It is formed from 25 mm diameter steel tube and finished in black, forming a protective frame around the sides of the engine and lower fairing area.

Because it is a vehicle-specific part rather than a universal kit, the shape and mounting points are made for this model and model year range only. It suits S1000XR riders who commute, tour or carry luggage and want a straightforward layer of protection for the bike in a tip-over or low-speed drop.

• Model-specific engine guard for the BMW S1000XR (2015-2019)
• 25 mm diameter steel tube construction
• Black finish
• Givi part number TN5119
• Wraps the lower engine and fairing area for tip-over protection

Fit using the instructions supplied with the guard, and tighten all fasteners to the specified torque values rather than estimating.
Re-check every mounting bolt after the first ride and then at regular service intervals, as engine and frame fasteners can loosen with vibration.
Wash with warm water and a mild detergent, then dry thoroughly; avoid harsh solvents and abrasive pads on the black finish.
Avoid aiming a high-pressure washer directly at the mounting points and fastener threads.
Touch up any chips or deep scratches promptly so the steel underneath does not begin to corrode, especially in coastal or salted-road conditions.
After any drop or impact, inspect the guard and its mounting points; replace bent or cracked tubing and any damaged hardware rather than attempting to straighten it.
Do not use the guard as a lifting point, tie-down anchor or footstep.
