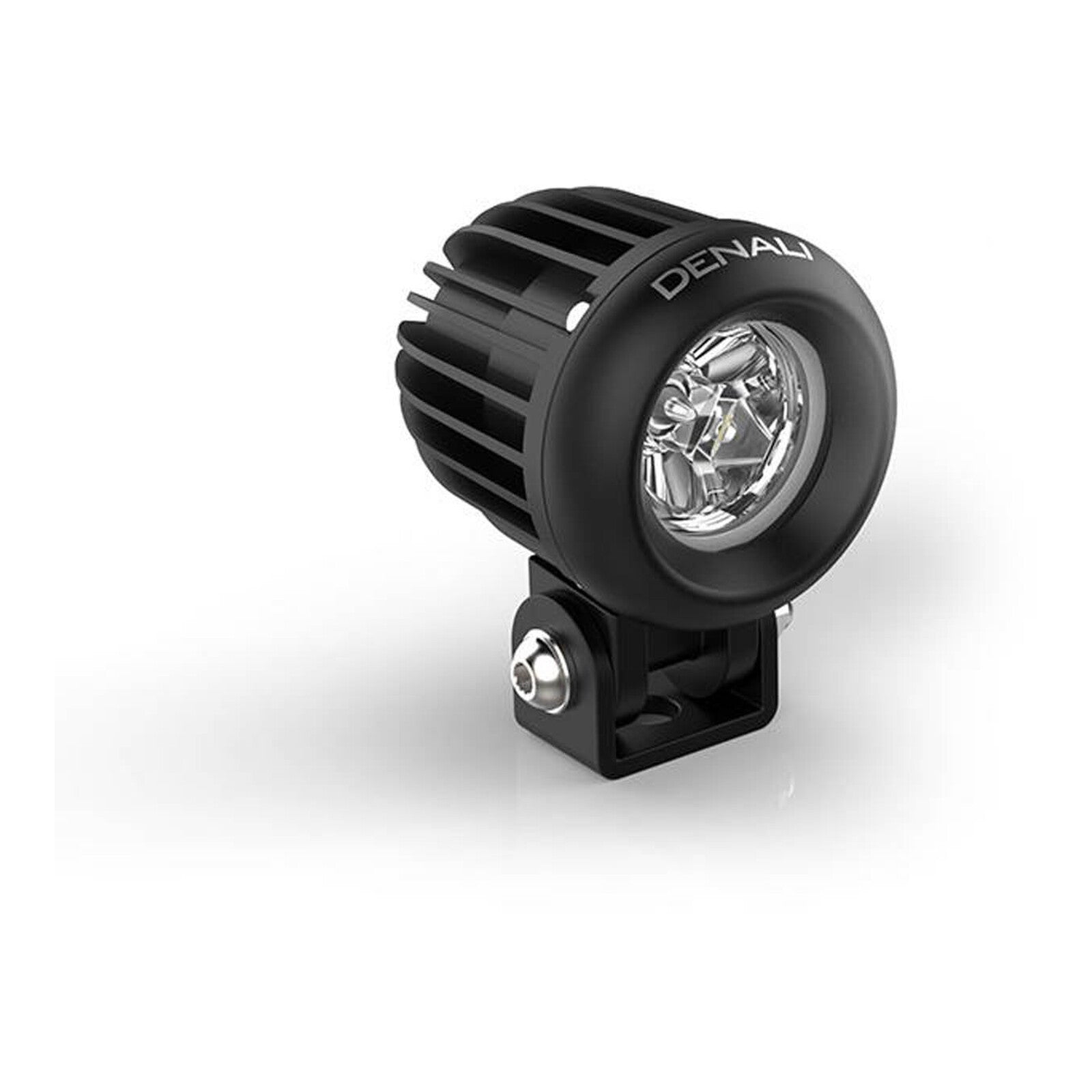

Denali D2 LED Light Pod - DataDim™ Technology - Single

The Denali D2 is a compact auxiliary LED light pod built to strike a balance between reach down the road at night and being seen during the day. A single 10-watt Cree XPL HI LED produces 1095 raw lumens from a pod just over two inches across, so it adds meaningful light without dominating the front of the bike.

It suits riders fitting auxiliary lighting to a road, adventure or touring machine, particularly anyone running a DataDim-compatible setup who wants the pods to dim automatically rather than run at full output all the time. Spot lenses come fitted, and a set of E-Mark approved elliptical flood lenses is included so you can change the beam pattern to suit your riding.

Construction is aimed at year-round use: DrySeal submersible sealing, IP67 rating, Impact PC polycarbonate bezels that resist cracking, fading and corrosion, and LiveActive thermal management to hold output steady as the light heats up. Sold as a single pod with a low-profile hinge mount and stainless steel hardware.

• Single 10-watt Cree XPL HI high-intensity LED producing 1095 raw lumens per pod
• DataDim compatible for automatic dimming with a compatible controller
• Spot lenses fitted from the factory for night-time distance
• E-Mark approved elliptical flood lenses included for a wider beam
• DrySeal submersible sealing, rated IP67
• Impact PC polycarbonate bezels resist cracking, fading and corrosion
• LiveActive thermal management maintains light output as the LED heats up
• Low-profile hinge mount with M8 stainless steel hardware included

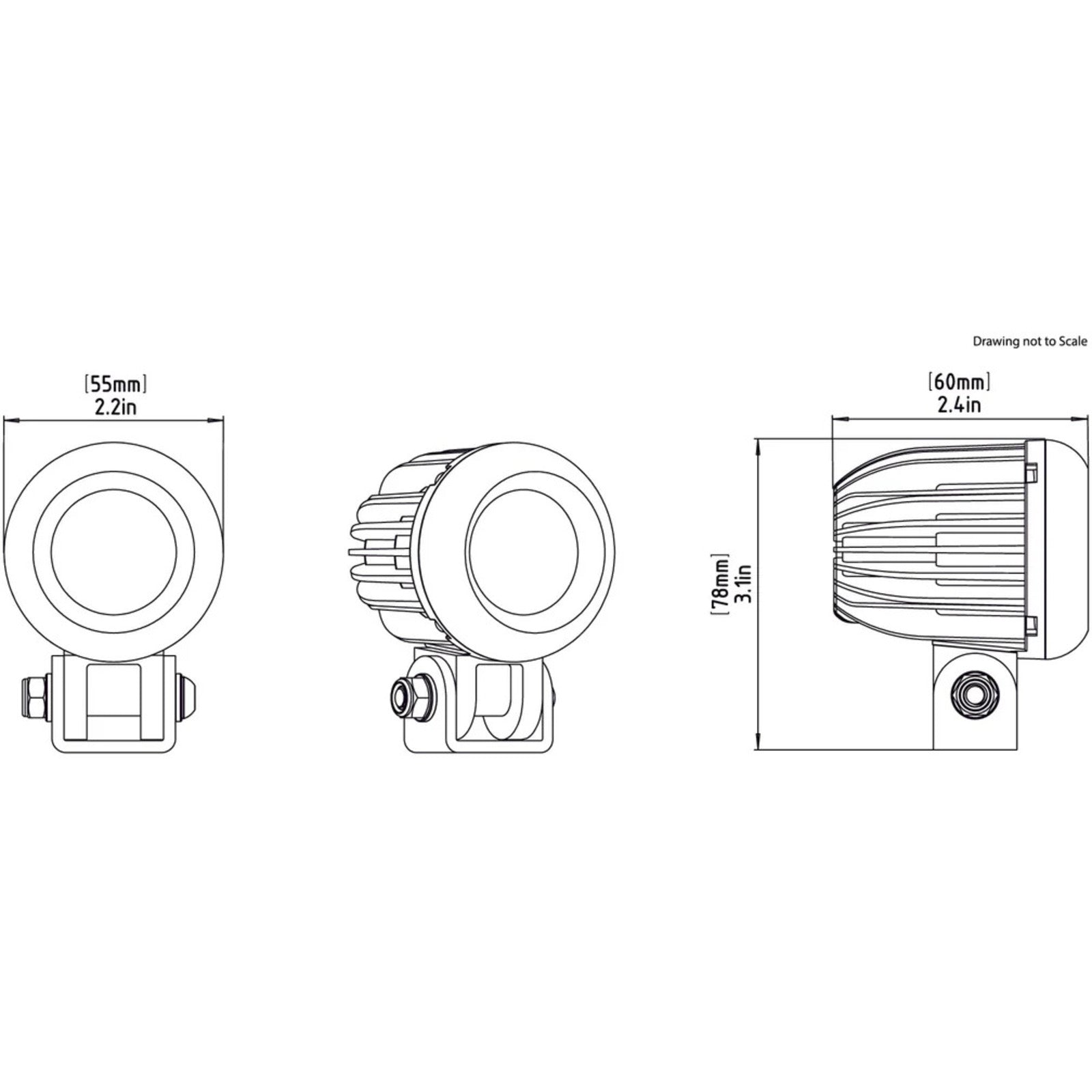

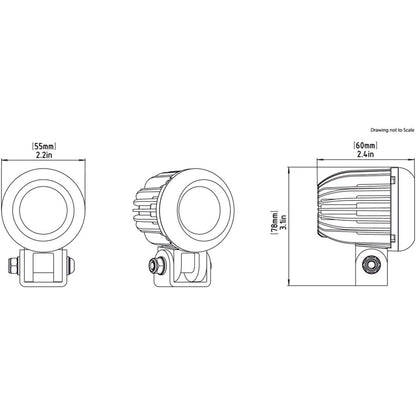

• Compact 2.2 in round by 2.4 in deep pod, 0.6 lb (approx. 0.27 kg)
• Runs on 12 VDC with a low 0.8 A draw
• Optional amber lenses available separately

• 1x LED light pod
• 1x Spot lenses (fitted)
• 1x E-Mark approved elliptical flood lenses
• 1x Hinge mount with M8 stainless steel hardware
• 1x Wiring pigtail

Mount the pod using the supplied hinge bracket and M8 stainless steel hardware, choosing a location with clear airflow so the LiveActive thermal management can shed heat.
Aim the beam with the bike upright and loaded as you normally ride it, then tighten the hinge hardware so vibration cannot shift the aim; recheck tension after the first few rides and periodically thereafter.
Wire the pod through the supplied pigtail to a fused, switched 12 VDC supply, and route the loom clear of steering movement, hot exhaust components and suspension travel.
To use dimming, connect the pod to a DataDim-compatible controller; without one it simply runs at full output.
Swap between the fitted spot lenses and the included E-Mark approved elliptical flood lenses to change the beam pattern - work in a clean, dry area and reseat the lens seal fully so the DrySeal rating is maintained.
Clean the lens and polycarbonate bezel with warm water, mild soap and a soft cloth; avoid solvents, fuel, abrasive pads and harsh cleaners, which can haze polycarbonate.
The pod is IP67 rated and submersible, so washing and wet-weather riding are fine, but avoid directing a high-pressure washer at the lens seal or connectors.
Inspect the lens, bezel and wiring connections for damage, chafing or corrosion at regular service intervals, and keep unused connectors capped and dry.
Check that any local road-use requirements are met before riding on the road, and cover or switch off auxiliary lights where they are not permitted.
