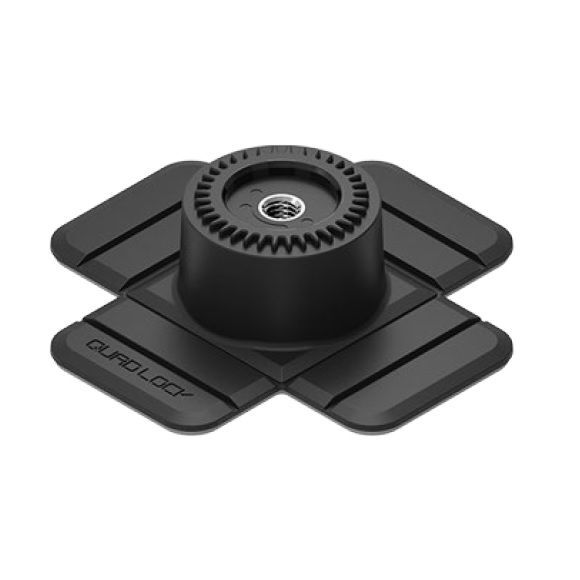

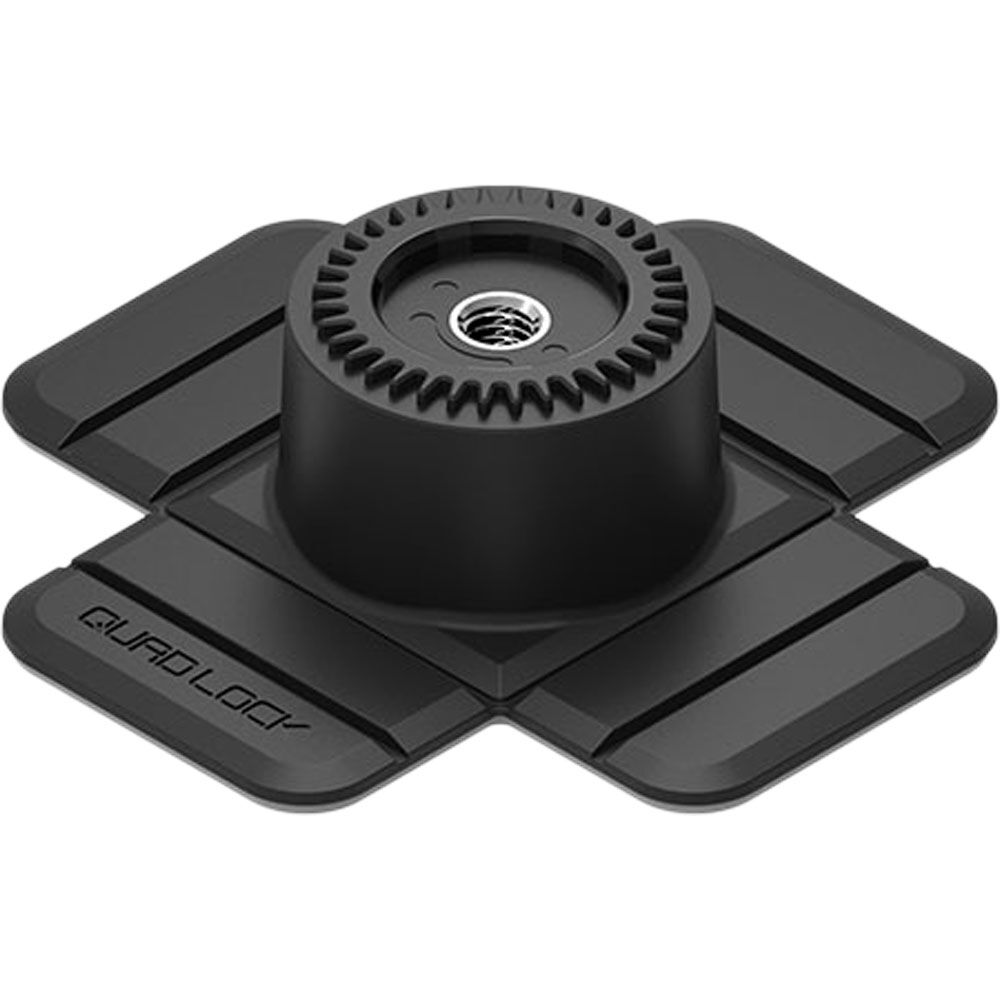

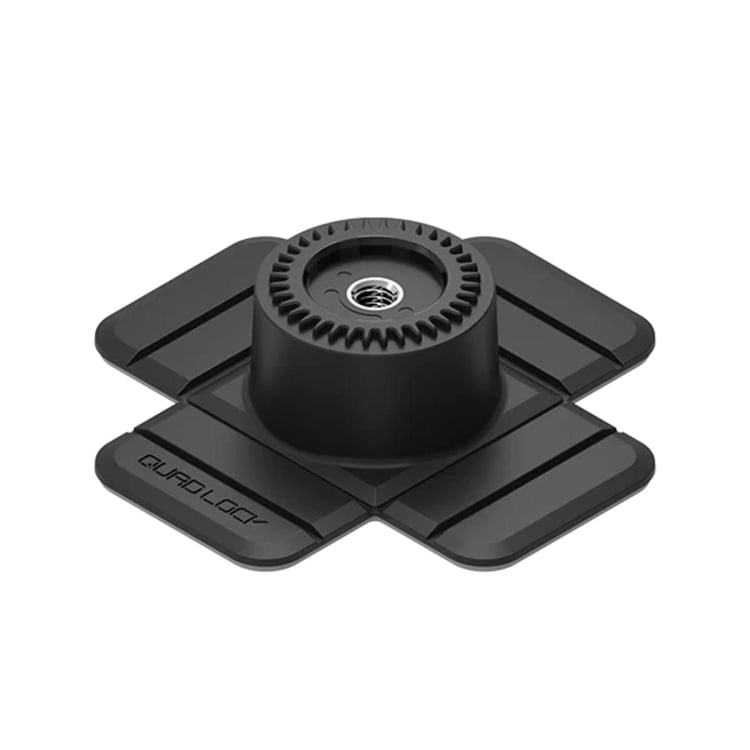

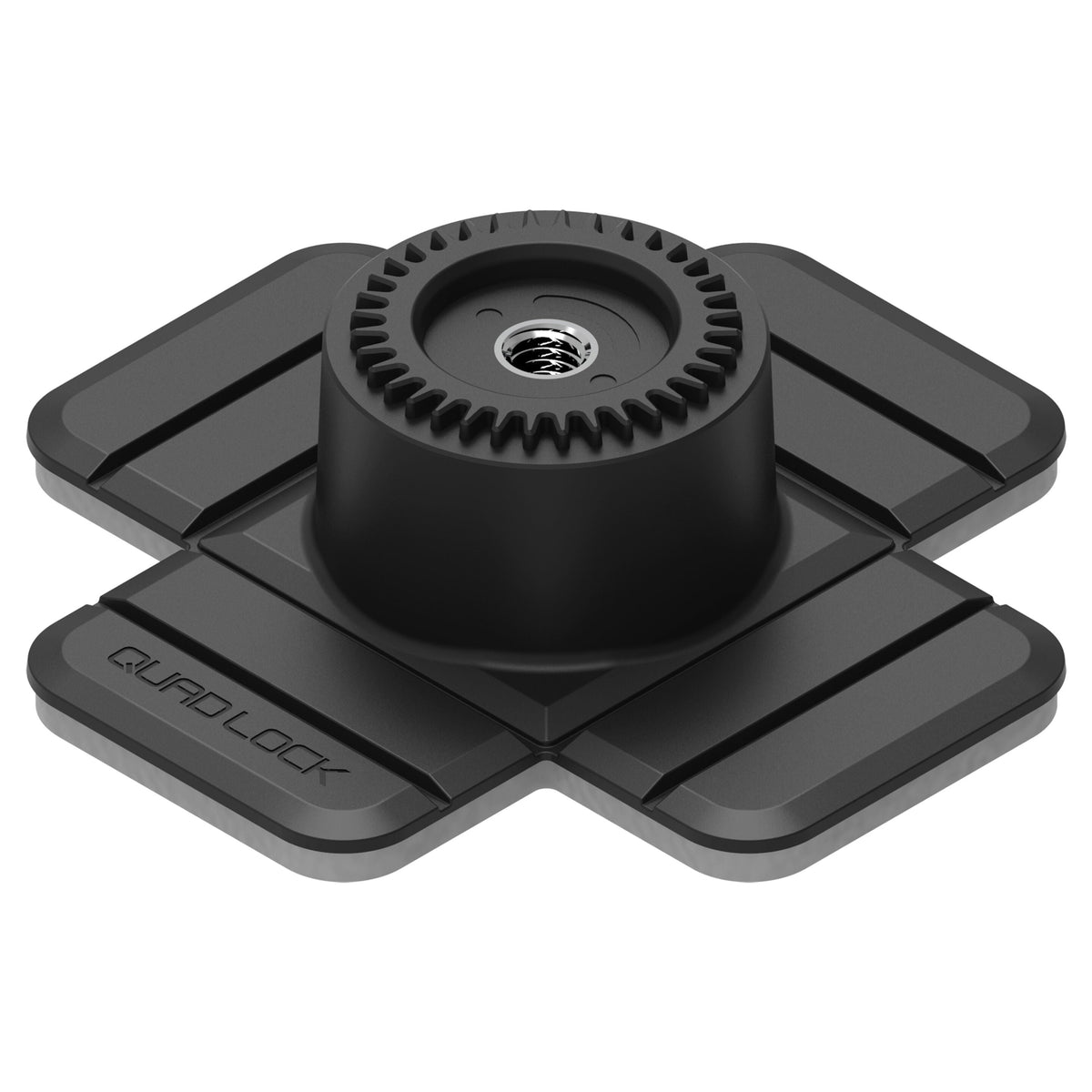

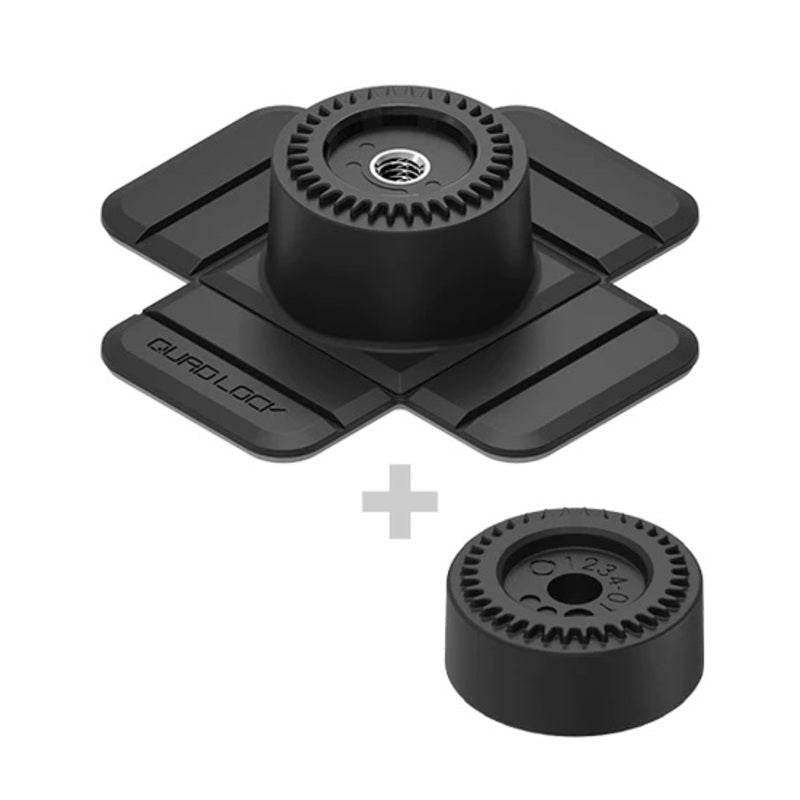

Quad Lock 360 Base - Flexible Adhesive

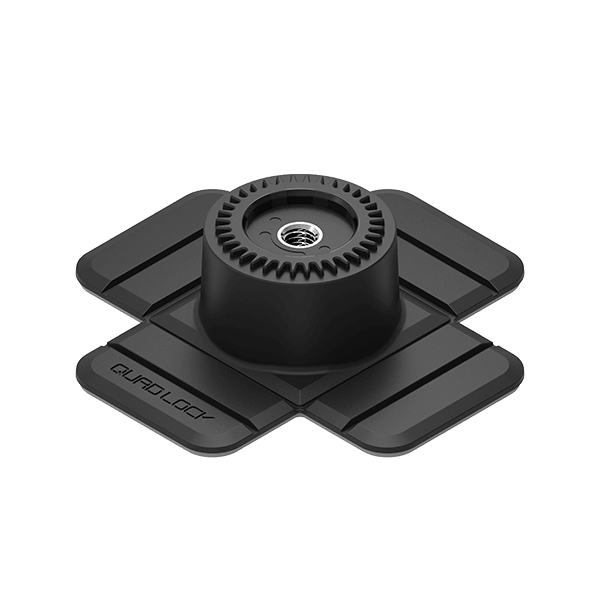

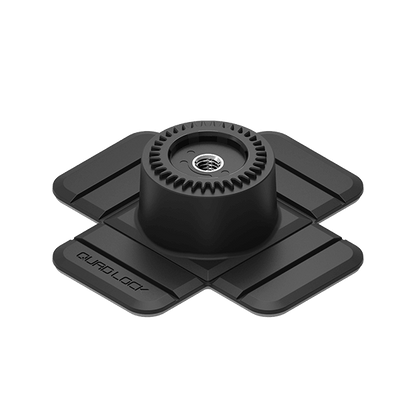

The Flexible Adhesive Base is suitable for mounting to flat or curved surfaces*
Using a super secure 3M™ Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.

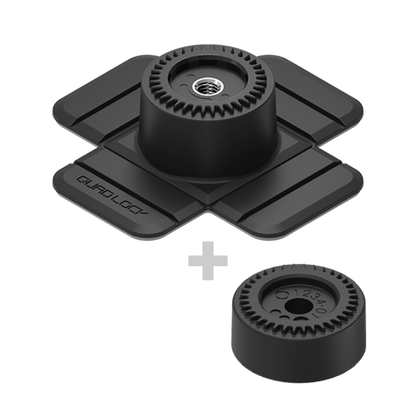

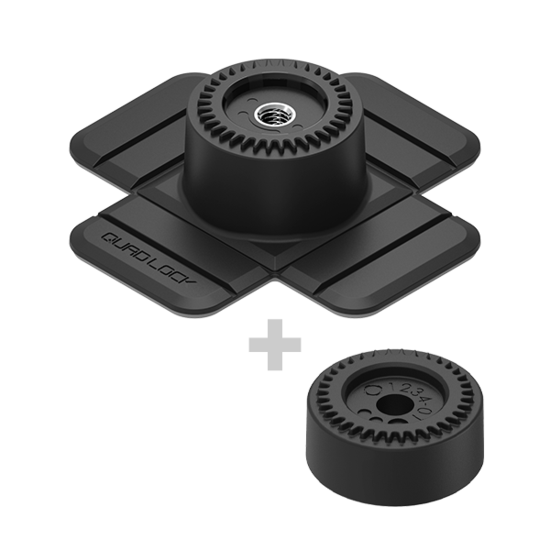

A 10mm Spacers and x2 Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.
*Please Note: Not intended for severely curved surfaces (eg. 180 degrees)
INCLUDED :
1 x Flexible Adhesive Base
1 x 10mm Spacers
1 x M5x30 screw (for connecting Spacer to Lever Head or 360 Arms)
1 x M5x45 screw (for connecting Spacer to Weatherproof Wireless Charging Head)
1 x Isopropyl Alcohol Wipe
TECH SPECS :
Made from tough, nylon construction, the Flexible Adhesive Base is 60mm x 60mm with a height of 18.3mm.
Each tab is 28mm wide and has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner.
The adhesive used is the renowned, 3M™ Adhesive for extra strong grip.
Compatible with all Quad Lock 360 ARMs and HEADs.
Please Note: It is recommended to thoroughly clean the surface before applying the Flexible Adhesive Base with an alcohol-based cleaning substance.
SURFACE GUIDELINE :
The Flexible Adhesive Base can be attached to a number of different flat and curved surfaces, however, it is not intended for severely curved surfaces (eg. 180 degrees).
The 3M™ VHB Adhesive will adhere to smooth, non-textured, non-porous surfaces such as:
Un-coated Glass (eg. windshield)
Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. plastic car dash, console)
Metals
Fibreglass
Sealed wood
Recommended applications:

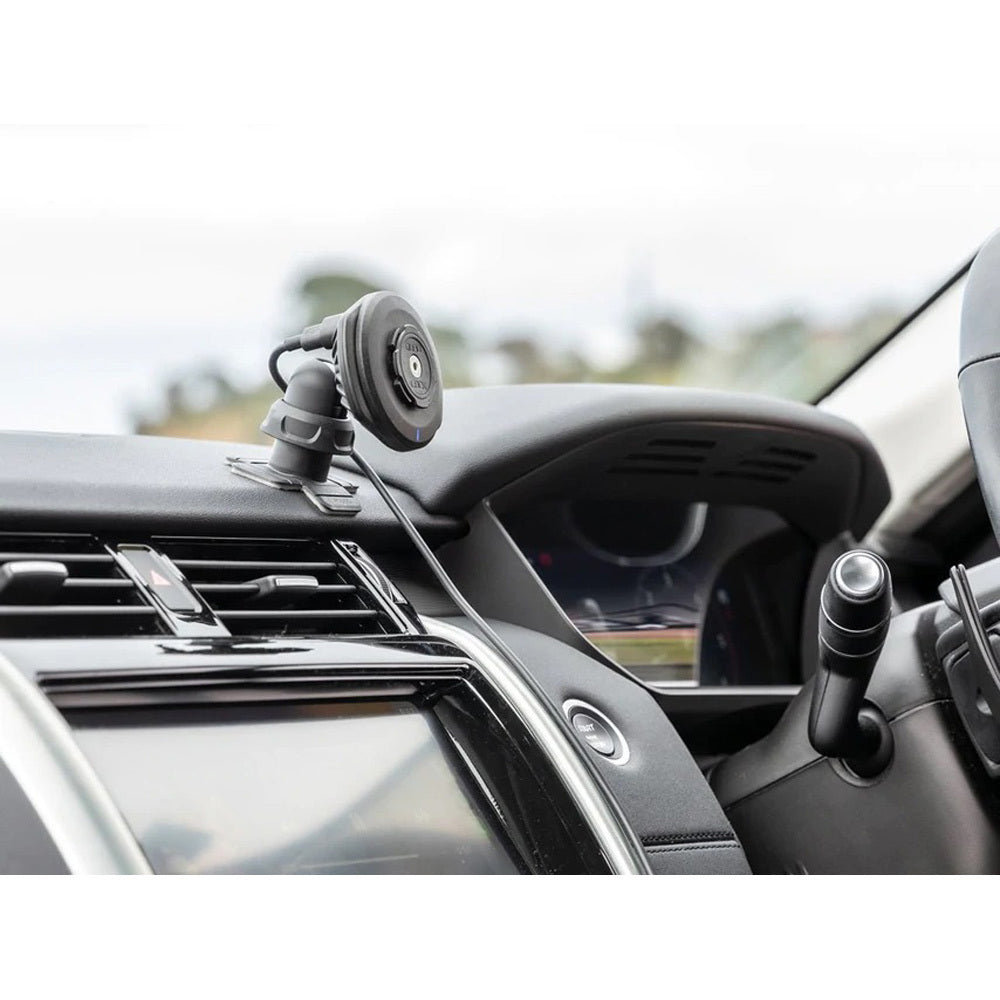

Interior of cars / 4x4

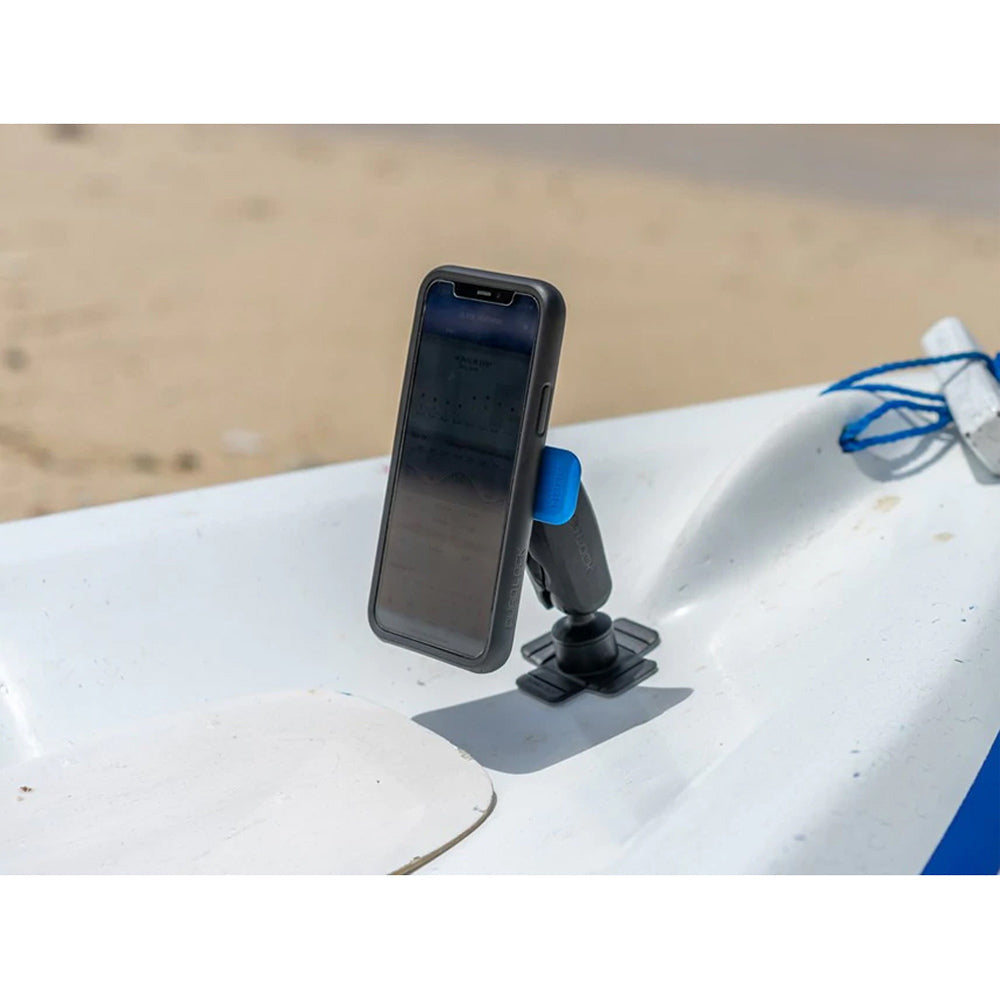

Boats
Caravans
Any low vibration element
It is not recommended for the following substrates:
Rubber, TPU, TPE
Leather
Silicone
Soft touch coating or paint
Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
Unsealed wood
Although possible, using the Flexible Adhesive Base on the following vehicles is not recommended.
Motorcycles
Scooters
ATVs
Anything that causes high vibrations or receives constant exposure from outdoor elements
Please ensure the substrate is thoroughly cleaned and dry before applying the Flexible Adhesive Base.
The 3M™ VHB ™ tape is a single use adhesive and is not reusable.
Ensure mount position does not obstruct vehicle safety features such as airbags.
