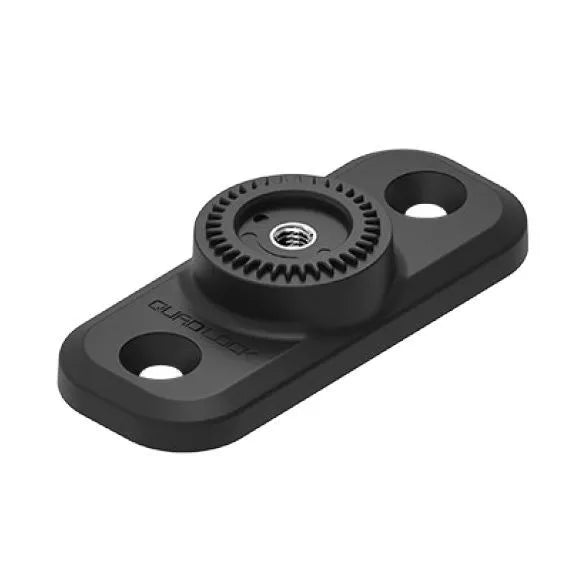

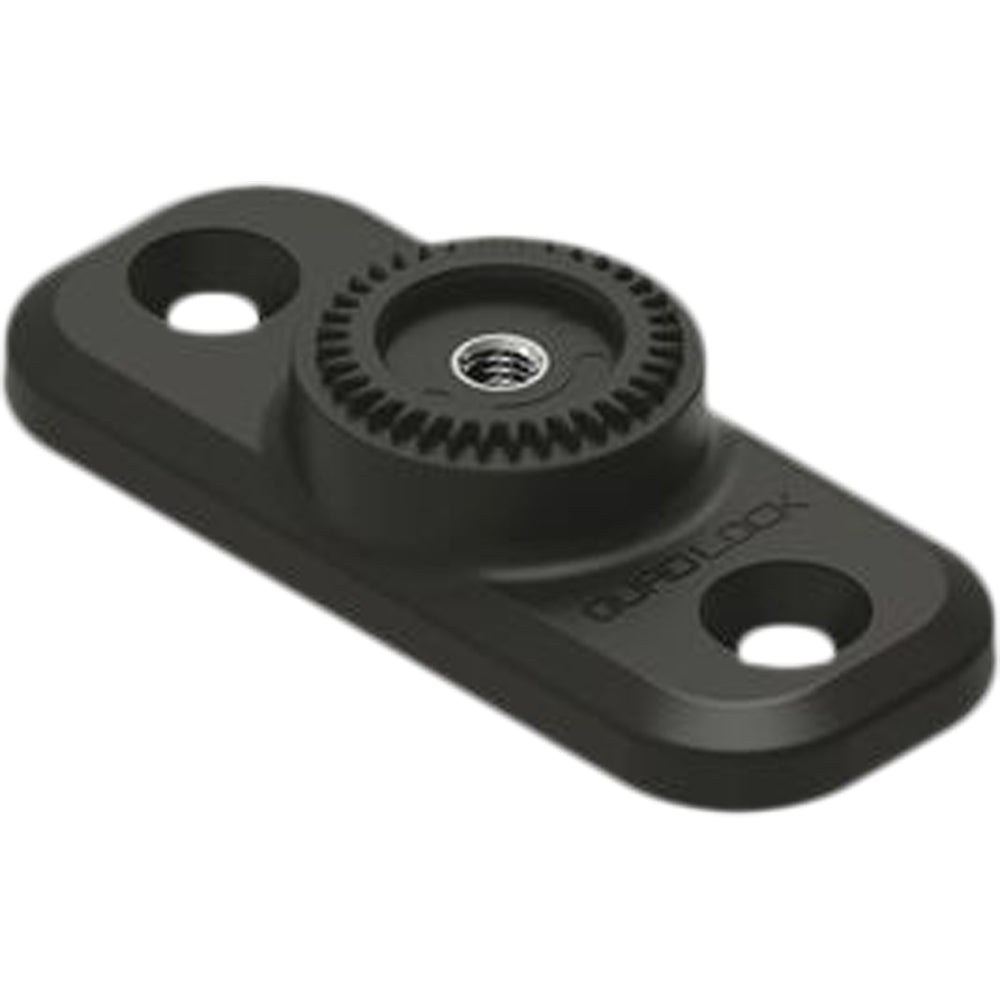

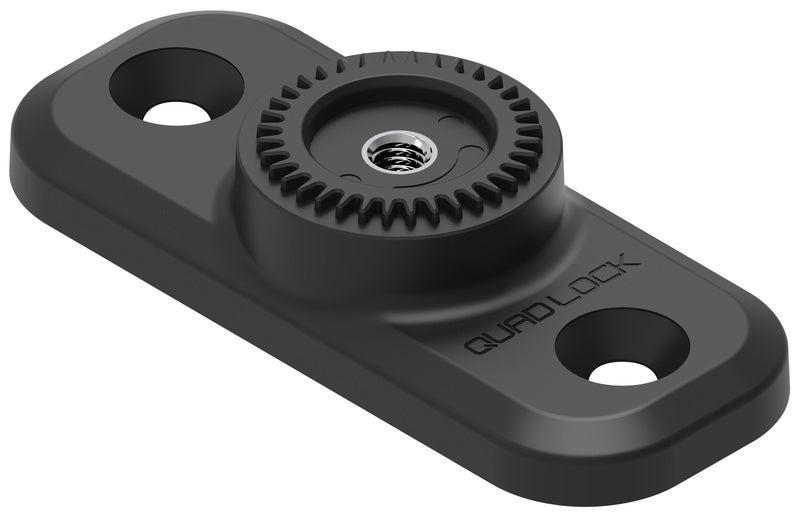

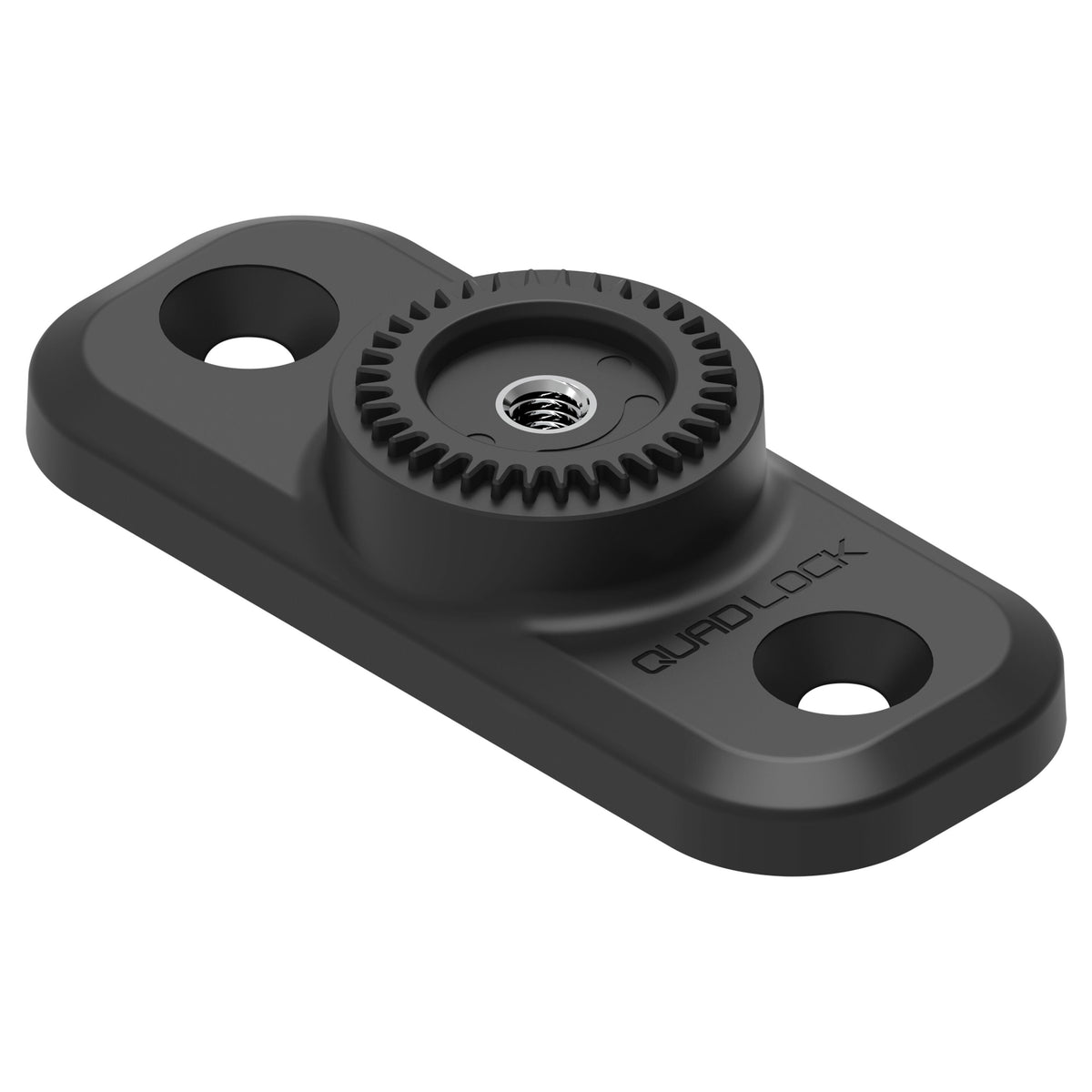

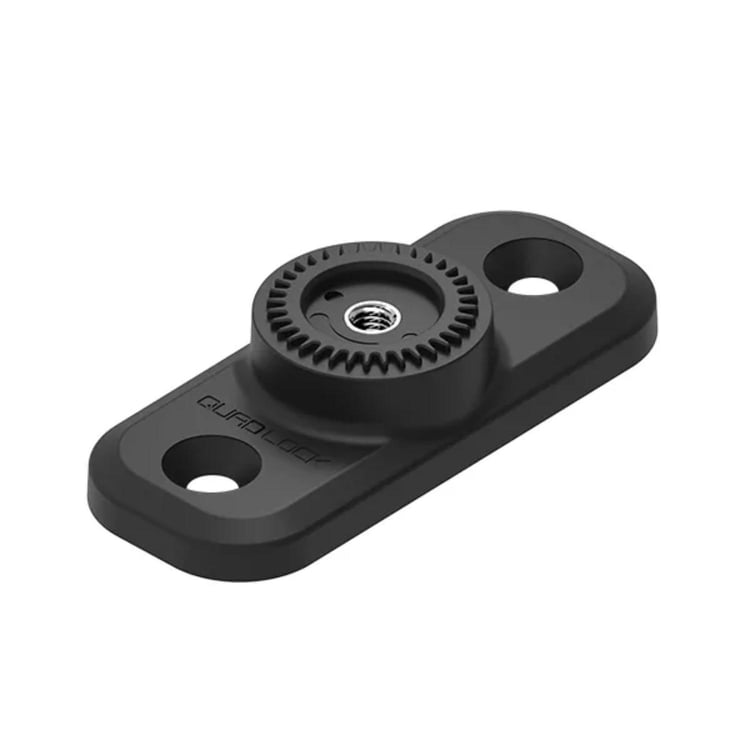

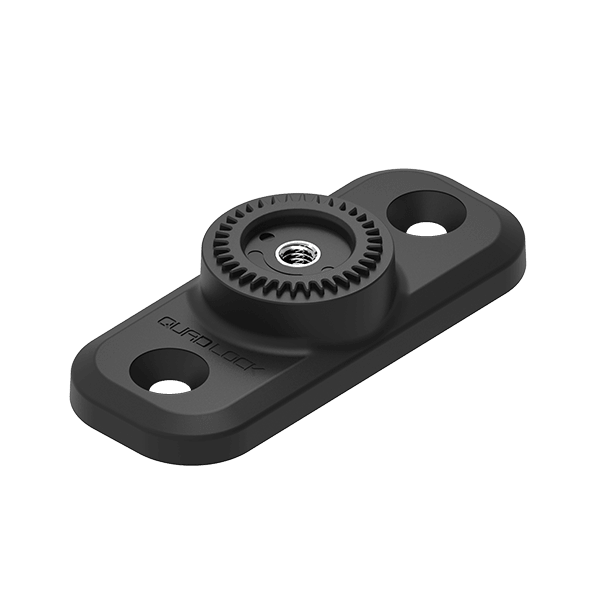

BASE - FLAT RECTANGLE 2 HOLE

Securely fix your mount to flat surfaces using one of the Rectangle Flat Hole Bases.

Choose between a 2 hole or a 4 hole base.

Both bases can be fixed to flat surfaces vertically, diagonally or horizontally.

Each base uses the universal AMPs hole spacing standard and the holes will accept 10G or M5 countersunk fasteners. If using the 4 hole base, it is recommended to use all 4 hole screws for the strongest connection.

A 10mm Spacers and x2 screws are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

Please Note: Screws are not provided for mounting the base to your required surface

WHAT'S INCLUDED

2 HOLE BASE

• 1 x Flat Rectangle 2 Hole Base
• 1 x 10mm Spacers
• 1 x M5x30 Screw (for connecting Spacer to Lever Head or 360 Arm)
• 1 x M5x45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head)

4 HOLE BASE

• 1 x Flat Rectangle 4 Hole Base
• 1 x 10mm Spacers
• 1 x M5x30 Screw (for connecting Spacer to Lever Head or 360 Arm)
• 1 x M5x45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head)

TECH SPECS

Both Rectangle Bases are built with tough, nylon and use the universal AMPs hole spacing standard.

The holes will accept 10G or M5 countersunk fasteners.

2 HOLE BASE

• 68.5mm (2.7") long x 28mm (1.1") wide x 14mm (0.55") high
• AMPS Hole Pitch: 48.5mm (1.9")

4 HOLE BASE

• 58mm (2.3") long x 50mm (2") wide x 14mm (0.55") high
• AMPS Hole Pitch: 38mm (1.5") x 30mm (1.2")
