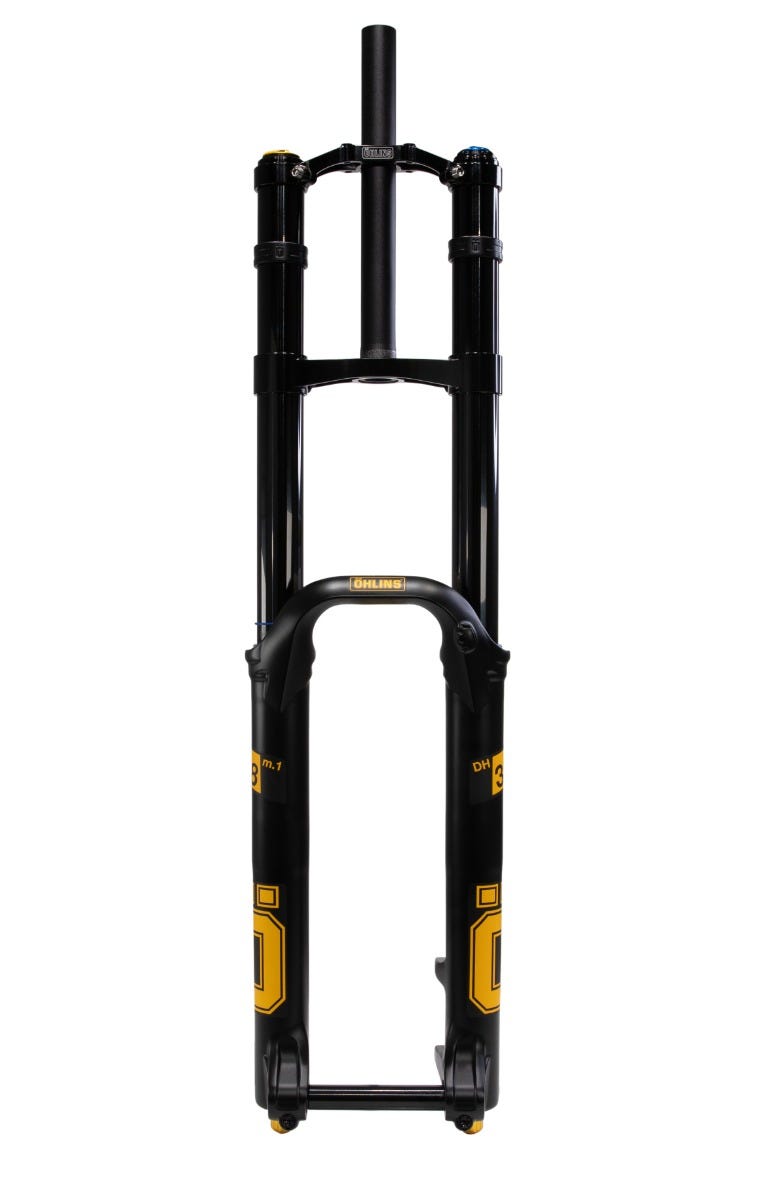

Öhlins DH38 m.1 Coil TTX18 29''/27.5''/200

DH38 M.1 FRONT FORK MOUNTAIN BIKE

Part no: FDMTB 3820 2120

Our next-generation DH fork makes fast even faster, with unrivaled levels of adjustability and sensitivity that deliver total rider comfort and control.

Combine our race-winning DH38 platform with a number of key upgrades and together they form the best downhill fork we’ve ever created – the DH38 m.1.

Whether you ride an e-MTB gravity rig or the pedal-powered version, with superb small bump tracking and the ability to soak up landings from even the heftiest drop-off, the DH38 m.1 fork will give you smoother, faster and more confident feeling runs than anything you’ve ridden before.

Redesigned seals work with our new lubes and greases to amplify the incredibly plush feel of the DH38 m.1. This actively boosts the levels of traction and control and helps smooth out even the most demanding course, enabling you to push your bike harder and finish your run feeling less fatigued.

The award-winning DH38 m.1 fork utilizes our TTX twin-tubed damping system to deliver unrivaled control and flawless damping whatever the riding conditions. This latest model comes packed with upgrades over the original, including our new coil system to further enhance traction and deliver more consistent performance. The result? One of the plushest feeling, most capable, and easily customizable downhill forks on the market.

All Öhlins suspension components are designed to be as easy to maintain as possible, and the DH38 m.1 is no exception. To see how you can perform a 50-hour service on the fork lowers, check out the video below.

Just like every product fitted with TTX damping technology, the DH38 m.1 fork has a race-proven settings bank giving access to a huge range of options for tuning the damper to suit any specific rider, bike or riding style.

FEATURES

• TTX technology

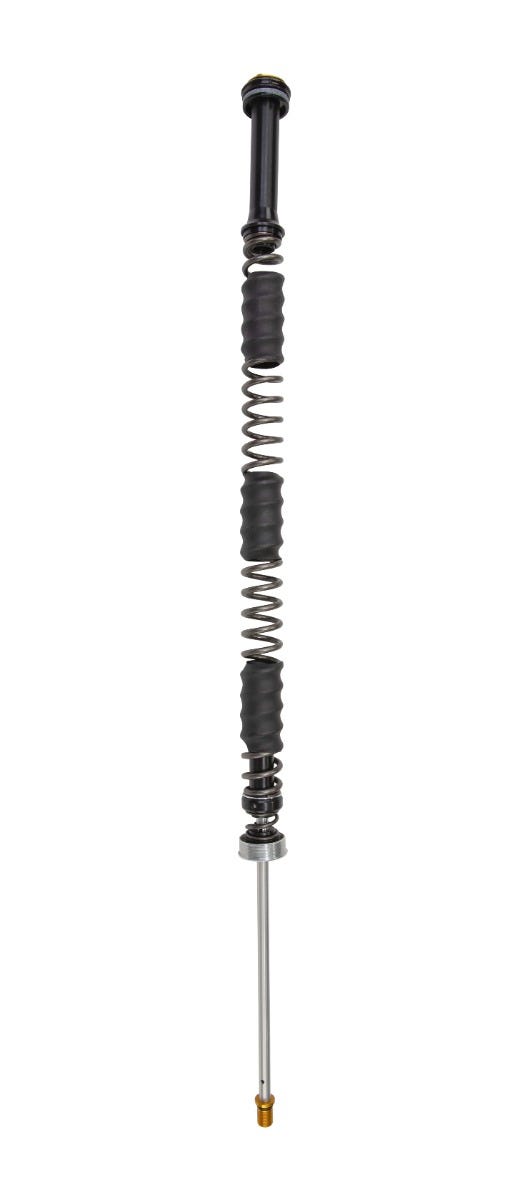

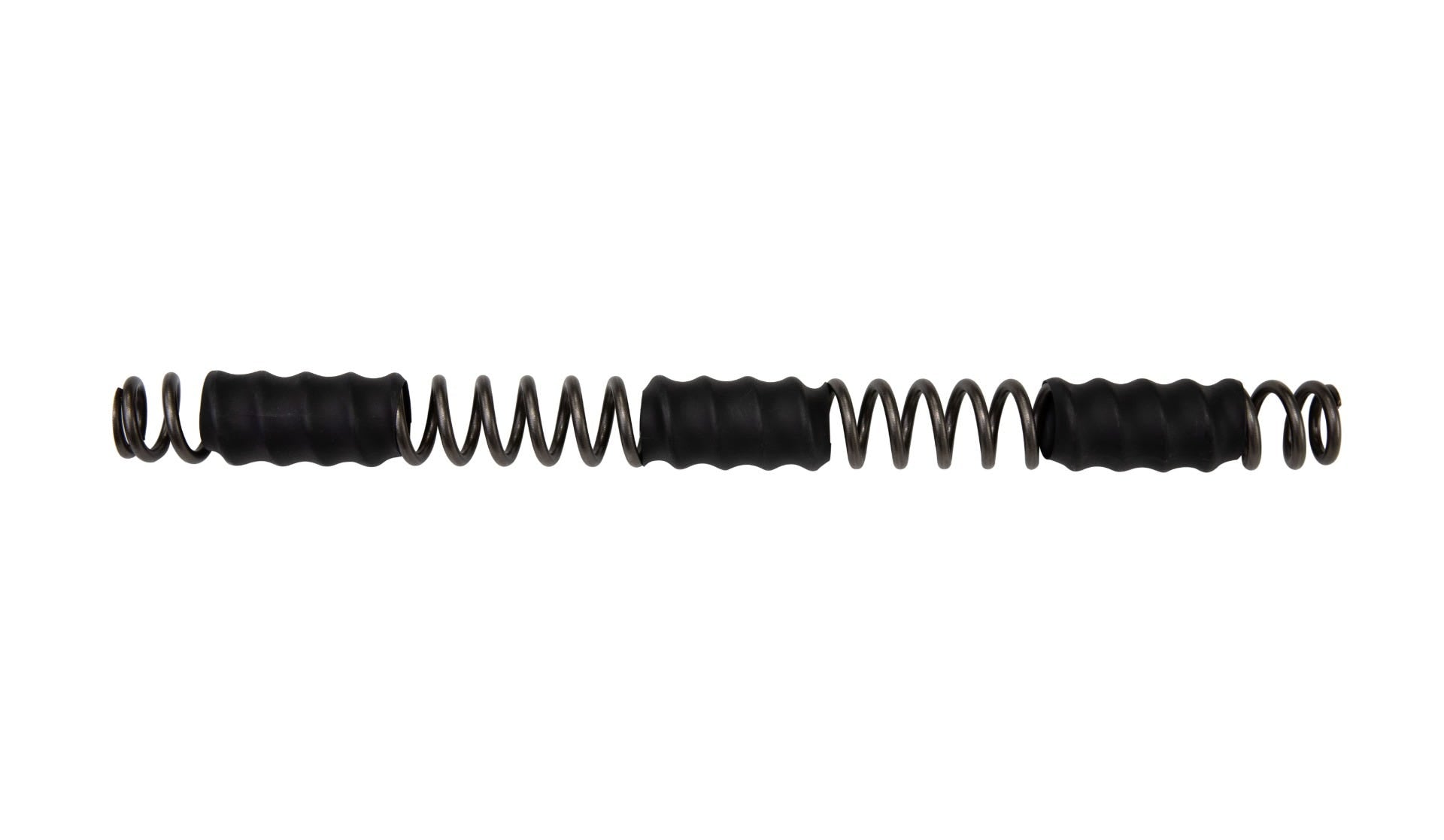

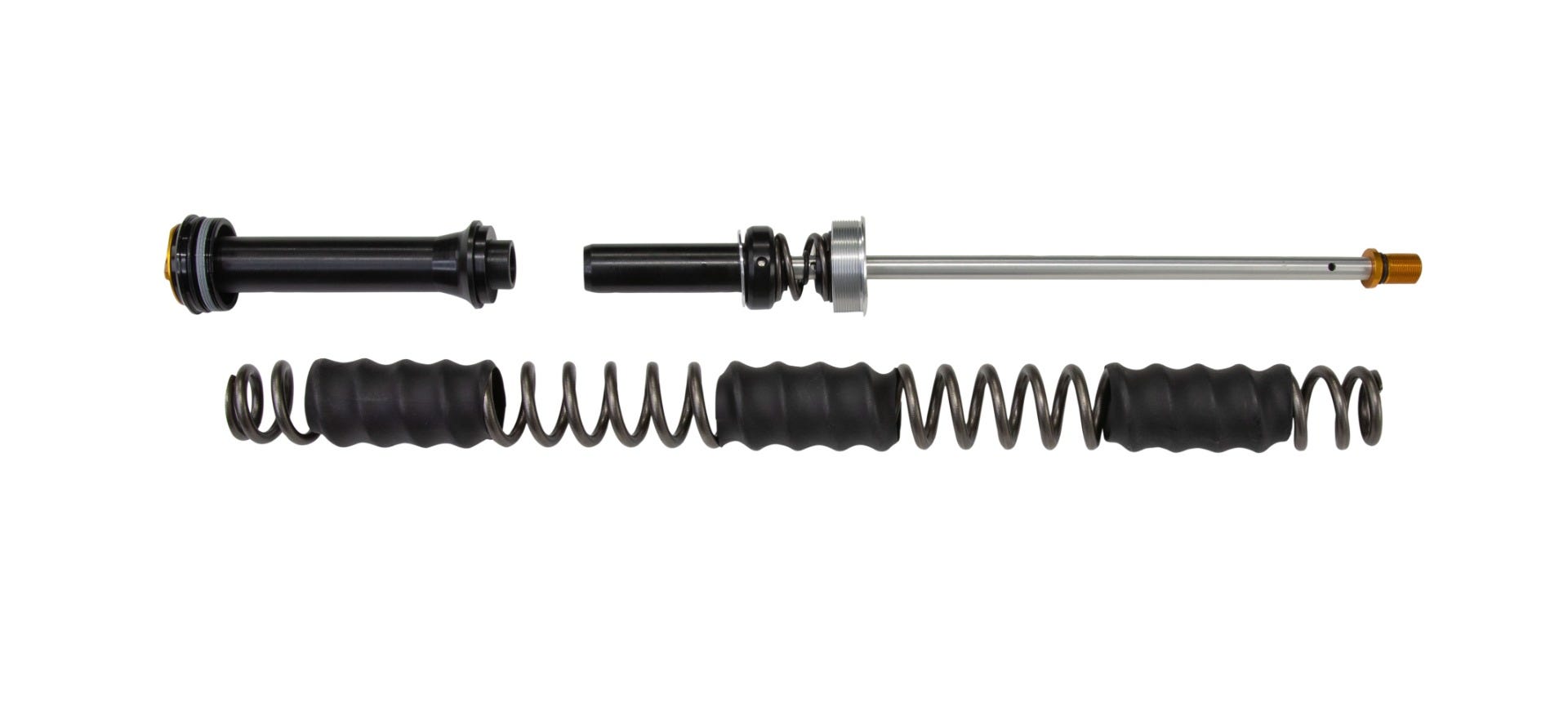

• Independent cartridge coil spring and damper systems
• Designed for use with a 200 mm disc
• Uses the 110x20 Boost DH hub standard
• 38-mm upper tube diameter for added strength
• 46-58 mm offset
• Compatible maximum tire sizes 29 x 2.8 and 27.5 x 3.0
• Dual-clamp floating axle for minimum friction
• 200 mm stroke
• e-MTB approved
• Weight 2715 g (without crowns and steer tube)
• Wheel size: 29/27.5
• Damp tech: TTX18
• Lsc Cli: 16
• Lsr Cli: 16
